2011 MITSUBISHI ENDEAVOR Owners Manual

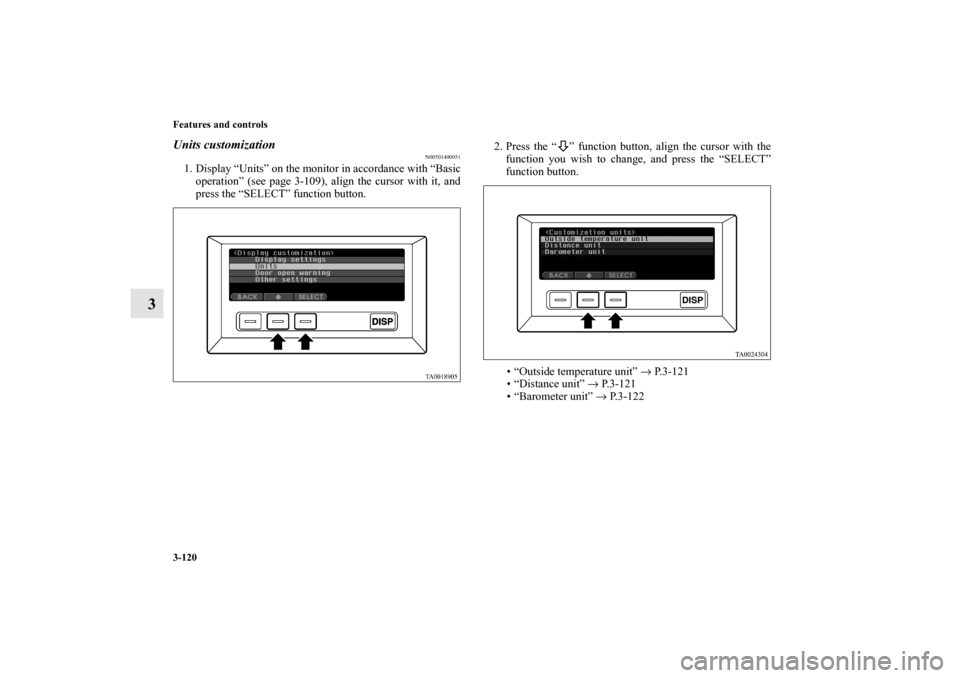

3-120 Features and controls
3
Units customization
N00501400051
1. Display “Units” on the monitor in accordance with “Basic
operation” (see page 3-109), align the cursor with it, and
press the “SELECT” function button.2. Press the “ ” function button, align the cursor with the
function you wish to change, and press the “SELECT”
function button.
• “Outside temperature unit” → P.3-121
• “Distance unit” → P. 3 - 1 2 1
• “Barometer unit” → P.3-122
BK0121600US.book 120 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

Features and controls
3-121
3
Outside temperature unit
N00501500049
The unit for the outside temperature can be set to °F or °C.NOTE
When the unit for the outside temperature is changed, the
air conditioning’s preset temperature indication changes
accordingly.
1. Press the “ ” function button, align the cursor with the
unit you wish to select, and press the “SELECT” function
button.
•°F
•°C2. The monitor will show “The setting is progressing” while
the setting change is in progress.
When the setting change has been completed successfully,
a tone will sound once and the monitor will return to the
“Outside temperature unit” display. If the setting change
is not successful, the monitor will show “The setting
failed.” then return to the “Outside temperature unit” dis-
play.
Distance unit
N00502000025
The unit for the distance can be set to miles or kilometers.NOTE
When the unit for the distance is changed, the trip com-
puter and record maintenance’s preset distance indication
changes accordingly.
BK0121600US.book 121 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

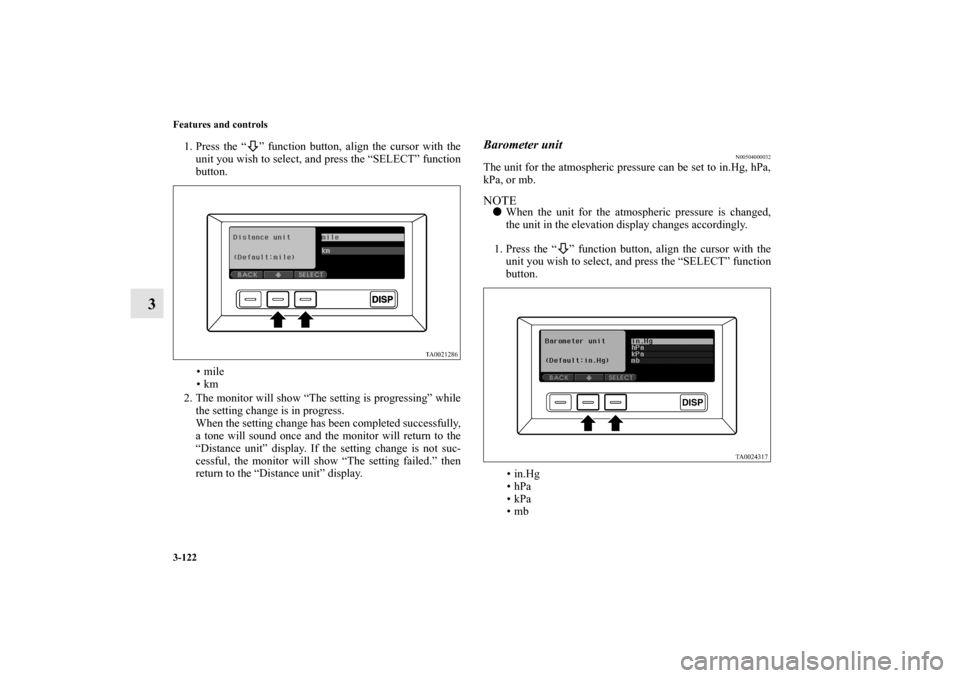

3-122 Features and controls
3
1. Press the “ ” function button, align the cursor with the
unit you wish to select, and press the “SELECT” function
button.
•mile
•km
2. The monitor will show “The setting is progressing” while
the setting change is in progress.
When the setting change has been completed successfully,
a tone will sound once and the monitor will return to the
“Distance unit” display. If the setting change is not suc-
cessful, the monitor will show “The setting failed.” then
return to the “Distance unit” display.
Barometer unit
N00504000032
The unit for the atmospheric pressure can be set to in.Hg, hPa,
kPa, or mb. NOTE
When the unit for the atmospheric pressure is changed,
the unit in the elevation display changes accordingly.
1. Press the “ ” function button, align the cursor with the
unit you wish to select, and press the “SELECT” function
button.
•in.Hg
•hPa
•kPa
•mb
BK0121600US.book 122 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

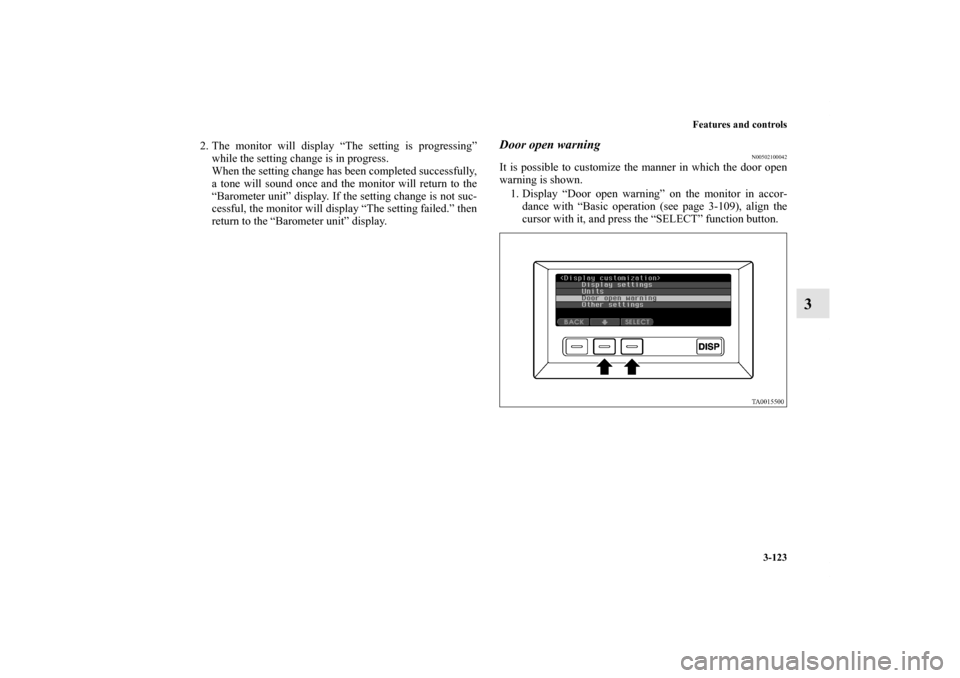

Features and controls
3-123
3
2. The monitor will display “The setting is progressing”
while the setting change is in progress.
When the setting change has been completed successfully,
a tone will sound once and the monitor will return to the
“Barometer unit” display. If the setting change is not suc-
cessful, the monitor will display “The setting failed.” then
return to the “Barometer unit” display.
Door open warning
N00502100042
It is possible to customize the manner in which the door open
warning is shown.
1. Display “Door open warning” on the monitor in accor-
dance with “Basic operation (see page 3-109), align the
cursor with it, and press the “SELECT” function button.
BK0121600US.book 123 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

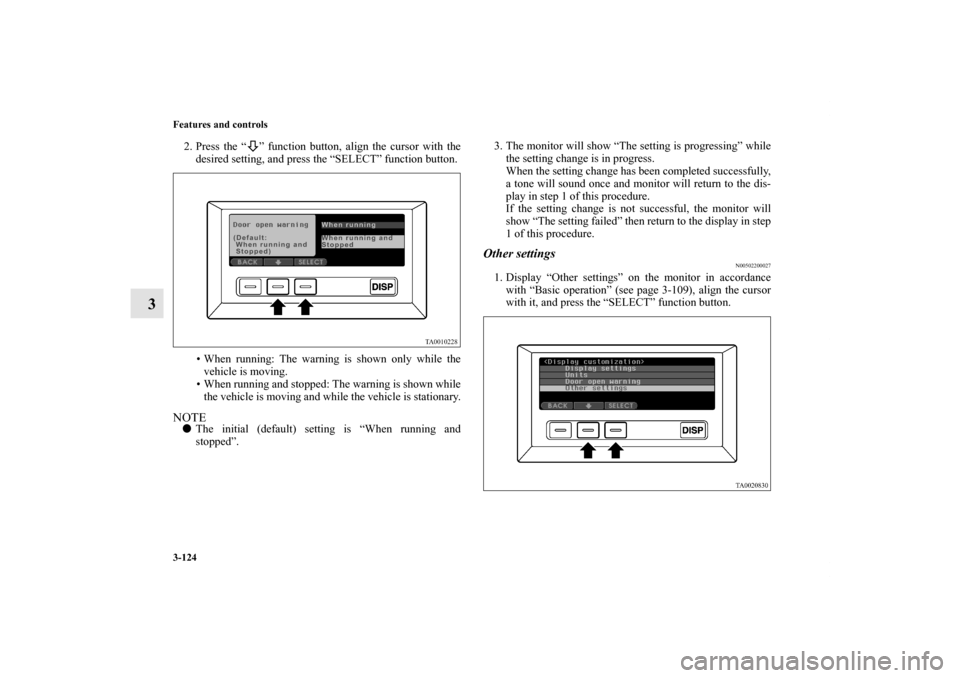

3-124 Features and controls
3
2. Press the “ ” function button, align the cursor with the
desired setting, and press the “SELECT” function button.
• When running: The warning is shown only while the
vehicle is moving.
• When running and stopped: The warning is shown while
the vehicle is moving and while the vehicle is stationary.NOTE
The initial (default) setting is “When running and
stopped”.3. The monitor will show “The setting is progressing” while
the setting change is in progress.
When the setting change has been completed successfully,
a tone will sound once and monitor will return to the dis-
play in step 1 of this procedure.
If the setting change is not successful, the monitor will
show “The setting failed” then return to the display in step
1 of this procedure.
Other settings
N00502200027
1. Display “Other settings” on the monitor in accordance
with “Basic operation” (see page 3-109), align the cursor
with it, and press the “SELECT” function button.
BK0121600US.book 124 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

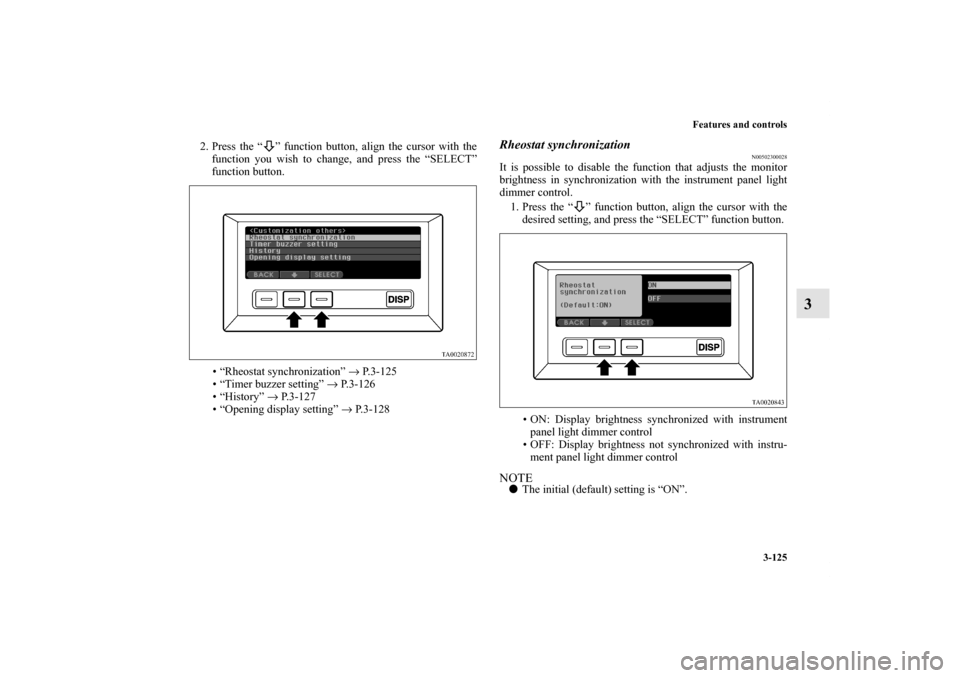

Features and controls
3-125
3
2. Press the “ ” function button, align the cursor with the
function you wish to change, and press the “SELECT”
function button.
• “Rheostat synchronization” → P. 3 - 1 2 5
• “Timer buzzer setting” → P. 3 - 1 2 6
•“History” → P.3-127
• “Opening display setting” → P.3-128
Rheostat synchronization
N00502300028
It is possible to disable the function that adjusts the monitor
brightness in synchronization with the instrument panel light
dimmer control.
1. Press the “ ” function button, align the cursor with the
desired setting, and press the “SELECT” function button.
• ON: Display brightness synchronized with instrument
panel light dimmer control
• OFF: Display brightness not synchronized with instru-
ment panel light dimmer controlNOTE
The initial (default) setting is “ON”.
BK0121600US.book 125 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

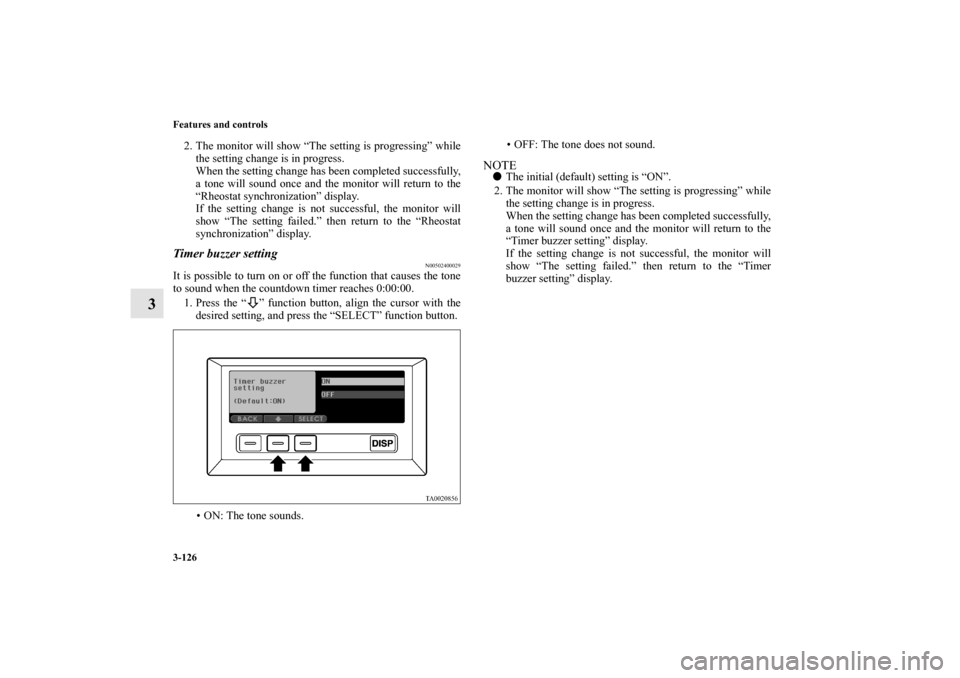

3-126 Features and controls
3
2. The monitor will show “The setting is progressing” while
the setting change is in progress.
When the setting change has been completed successfully,
a tone will sound once and the monitor will return to the
“Rheostat synchronization” display.
If the setting change is not successful, the monitor will
show “The setting failed.” then return to the “Rheostat
synchronization” display.Timer buzzer setting
N00502400029
It is possible to turn on or off the function that causes the tone
to sound when the countdown timer reaches 0:00:00.
1. Press the “ ” function button, align the cursor with the
desired setting, and press the “SELECT” function button.
• ON: The tone sounds.• OFF: The tone does not sound.
NOTE
The initial (default) setting is “ON”.
2. The monitor will show “The setting is progressing” while
the setting change is in progress.
When the setting change has been completed successfully,
a tone will sound once and the monitor will return to the
“Timer buzzer setting” display.
If the setting change is not successful, the monitor will
show “The setting failed.” then return to the “Timer
buzzer setting” display.
BK0121600US.book 126 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

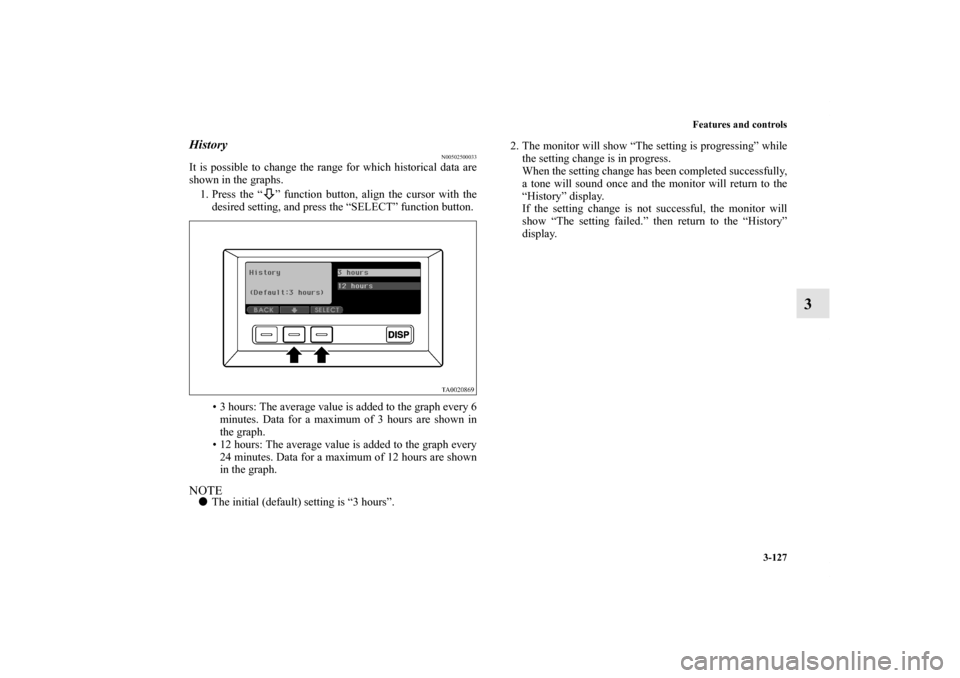

Features and controls
3-127
3
History
N00502500033
It is possible to change the range for which historical data are
shown in the graphs.
1. Press the “ ” function button, align the cursor with the
desired setting, and press the “SELECT” function button.
• 3 hours: The average value is added to the graph every 6
minutes. Data for a maximum of 3 hours are shown in
the graph.
• 12 hours: The average value is added to the graph every
24 minutes. Data for a maximum of 12 hours are shown
in the graph.NOTE
The initial (default) setting is “3 hours”.2. The monitor will show “The setting is progressing” while
the setting change is in progress.
When the setting change has been completed successfully,
a tone will sound once and the monitor will return to the
“History” display.
If the setting change is not successful, the monitor will
show “The setting failed.” then return to the “History”
display.
