2011 MITSUBISHI ENDEAVOR Owners Manual

3-200 Features and controls
3

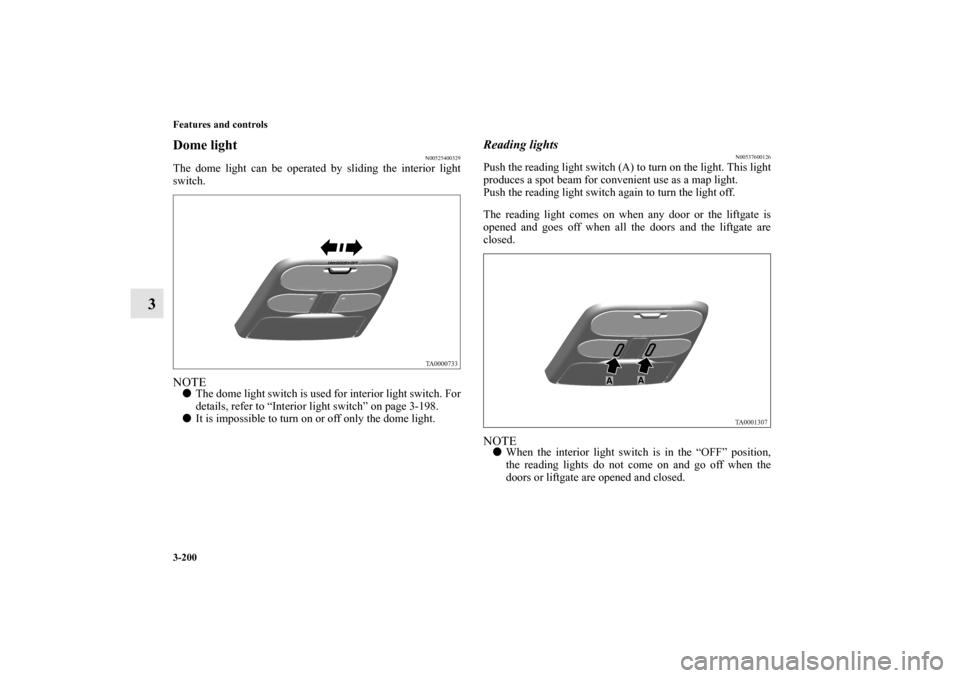

Dome light
N00525400329
The dome light can be operated by sliding the interior light
switch.NOTE
The dome light switch is used for interior light switch. For
details, refer to “Interior light switch” on page 3-198.

It is impossible to turn on or off only the dome light.
Reading lights
N00537600126
Push the reading light switch (A) to turn on the light. This light
produces a spot beam for convenient use as a map light.
Push the reading light switch again to turn the light off.
The reading light comes on when any door or the liftgate is
opened and goes off when all the doors and the liftgate are
closed.NOTE
When the interior light switch is in the “OFF” position,
the reading lights do not come on and go off when the
doors or liftgate are opened and closed.
BK0121600US.book 200 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

Features and controls
3-201
3

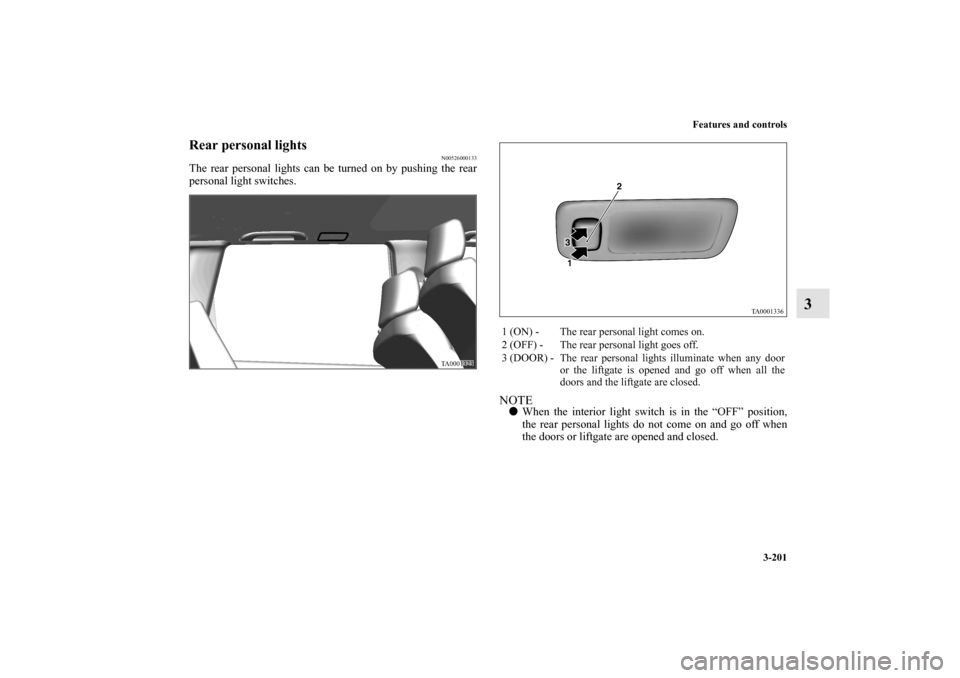

Rear personal lights
N00526000133
The rear personal lights can be turned on by pushing the rear
personal light switches.
NOTE
When the interior light switch is in the “OFF” position,
the rear personal lights do not come on and go off when
the doors or liftgate are opened and closed.1 (ON) - The rear personal light comes on.
2 (OFF) - The rear personal light goes off.
3 (DOOR) - The rear personal lights illuminate when any door
or the liftgate is opened and go off when all the
doors and the liftgate are closed.
BK0121600US.book 201 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

3-202 Features and controls
3

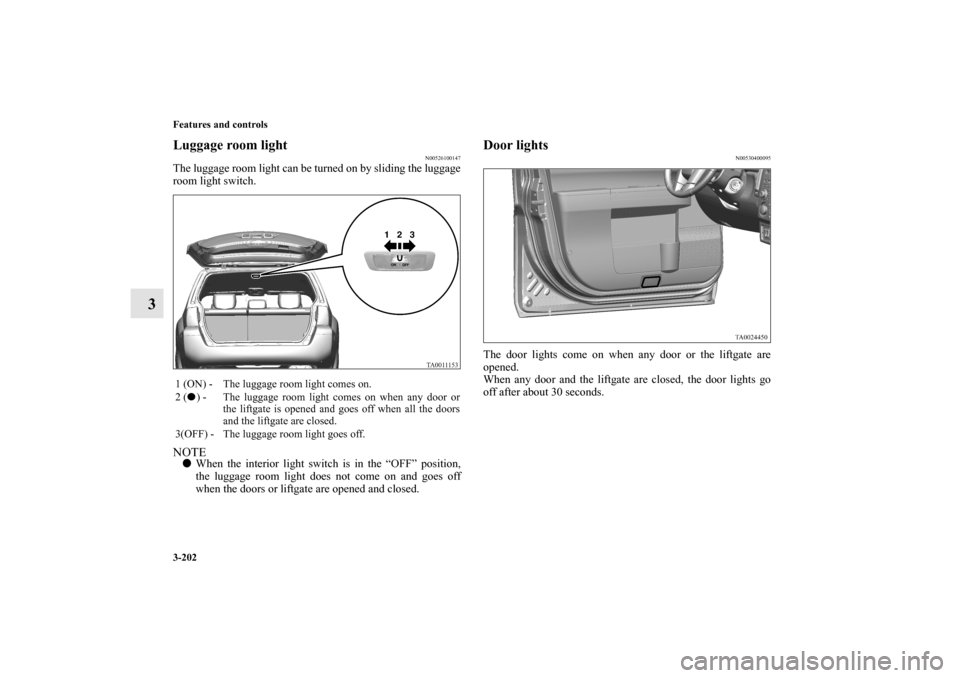

Luggage room light
N00526100147
The luggage room light can be turned on by sliding the luggage
room light switch.NOTE
When the interior light switch is in the “OFF” position,
the luggage room light does not come on and goes off
when the doors or liftgate are opened and closed.
Door lights
N00530400095
The door lights come on when any door or the liftgate are
opened.
When any door and the liftgate are closed, the door lights go
off after about 30 seconds.
1 (ON) - The luggage room light comes on.
2 (
) - The luggage room light comes on when any door or
the liftgate is opened and goes off when all the doors
and the liftgate are closed.
3(OFF) - The luggage room light goes off. BK0121600US.book 202 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

Features and controls
3-203
3

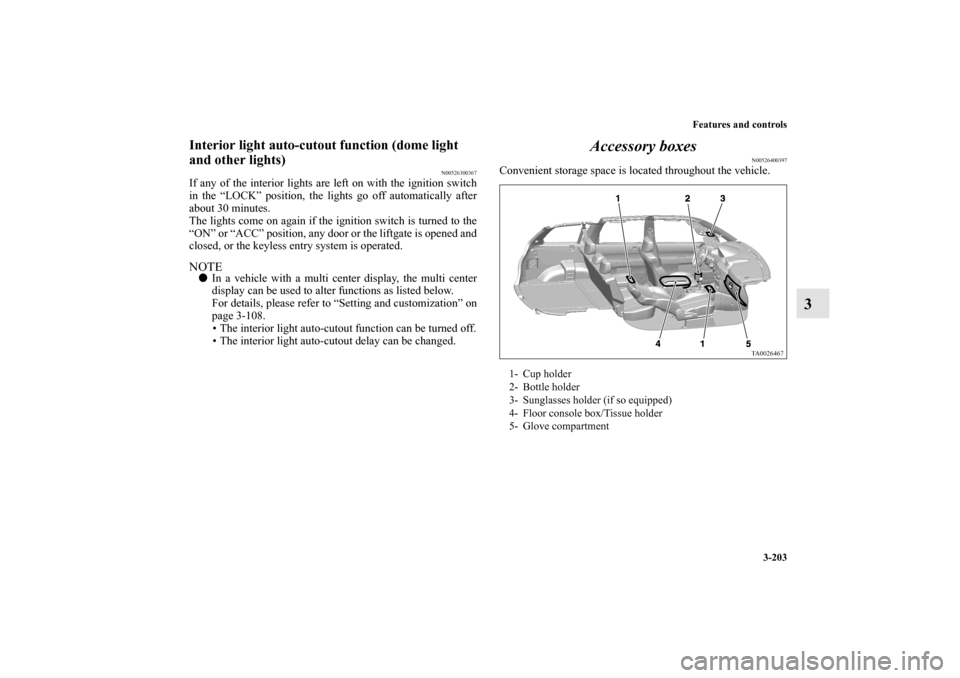

Interior light auto-cutout function (dome light
and other lights)
N00526300367
If any of the interior lights are left on with the ignition switch
in the “LOCK” position, the lights go off automatically after
about 30 minutes.
The lights come on again if the ignition switch is turned to the
“ON” or “ACC” position, any door or the liftgate is opened and
closed, or the keyless entry system is operated.NOTE
In a vehicle with a multi center display, the multi center
display can be used to alter functions as listed below.
For details, please refer to “Setting and customization” on
page 3-108.
• The interior light auto-cutout function can be turned off.
• The interior light auto-cutout delay can be changed.
Accessory boxes
N00526400397
Convenient storage space is located throughout the vehicle.1- Cup holder
2- Bottle holder
3- Sunglasses holder (if so equipped)
4- Floor console box/Tissue holder
5- Glove compartment
BK0121600US.book 203 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

3-204 Features and controls
3Glove compartment
N00526500255
To open, pull the lever (A).NOTE
If your vehicle is equipped with glove compartment light,
when the light switch is set in either the “ ” or “ ”
position, the glove compartment light illuminates.
Floor console box/Tissue holder
N00526600038
Floor console boxThe floor console box is located under the arm rest.
1. Lift the arm rest (A).
WA R N I N G
!
An open glove compartment door can cause a seri-
ous injury or death to the front passenger in an acci-
dent, even if the passenger is wearing his/her seat
belt. Always keep the glove compartment door
closed when driving.
BK0121600US.book 204 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

Features and controls
3-205
3

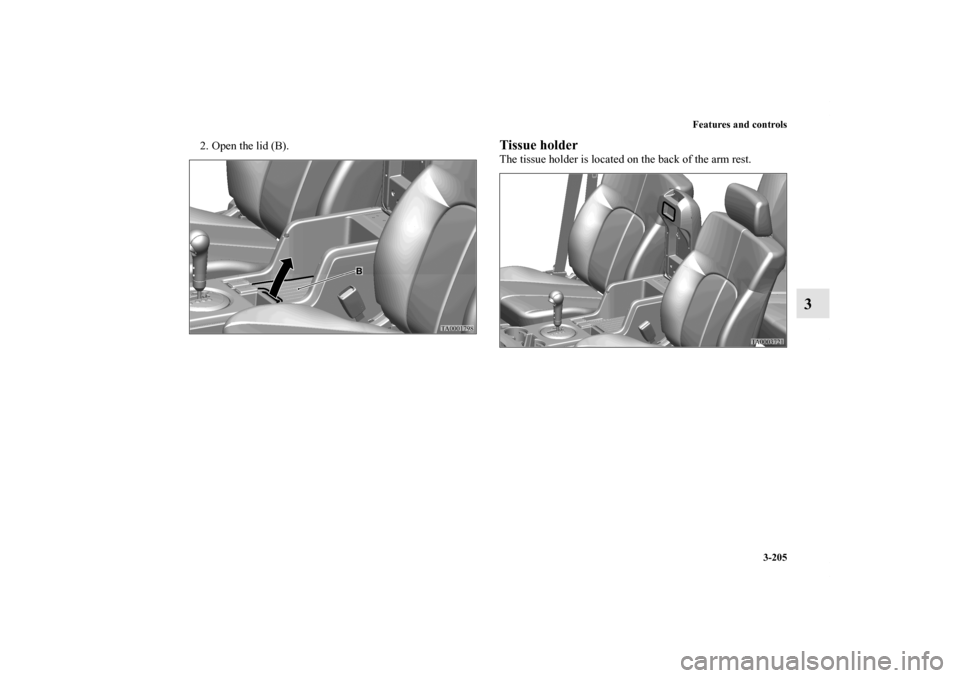

2. Open the lid (B).
Tissue holderThe tissue holder is located on the back of the arm rest.
BK0121600US.book 205 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

3-206 Features and controls

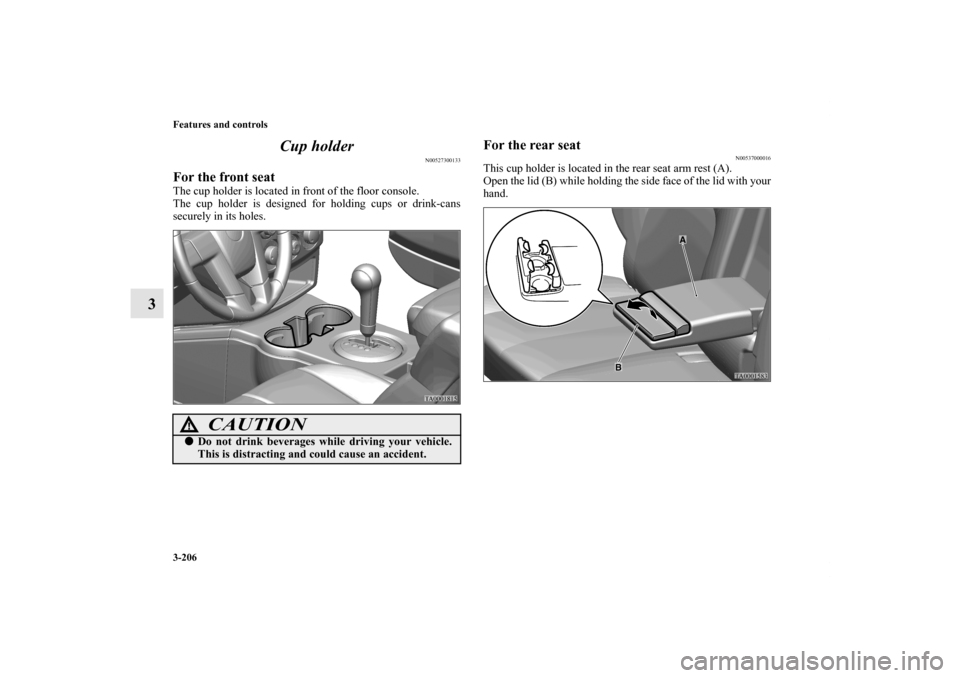

3Cup holder
N00527300133
For the front seatThe cup holder is located in front of the floor console.
The cup holder is designed for holding cups or drink-cans
securely in its holes.
For the rear seat
N00537000016
This cup holder is located in the rear seat arm rest (A).
Open the lid (B) while holding the side face of the lid with your
hand.
CAUTION
!
Do not drink beverages while driving your vehicle.
This is distracting and could cause an accident.
BK0121600US.book 206 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

Features and controls
3-207

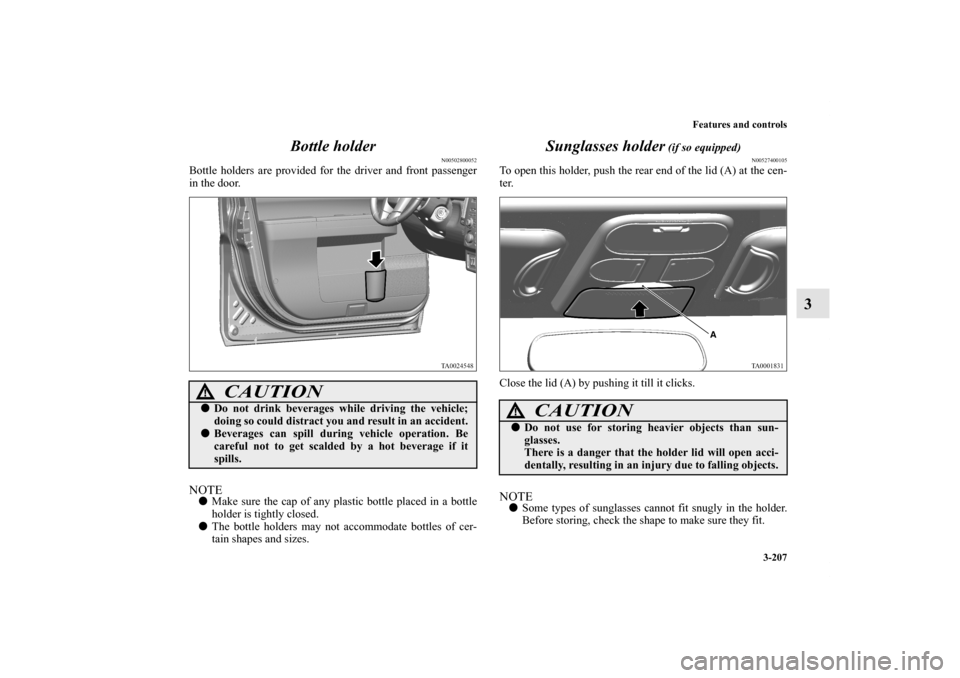

3 Bottle holder
N00502800052
Bottle holders are provided for the driver and front passenger
in the door.NOTE
Make sure the cap of any plastic bottle placed in a bottle
holder is tightly closed.

The bottle holders may not accommodate bottles of cer-
tain shapes and sizes.
Sunglasses holder
(if so equipped)
N00527400105
To open this holder, push the rear end of the lid (A) at the cen-
ter.
Close the lid (A) by pushing it till it clicks.NOTE
Some types of sunglasses cannot fit snugly in the holder.
Before storing, check the shape to make sure they fit.
CAUTION
!
Do not drink beverages while driving the vehicle;
doing so could distract you and result in an accident.
Beverages can spill during vehicle operation. Be
careful not to get scalded by a hot beverage if it
spills.
CAUTION
!
Do not use for storing heavier objects than sun-
glasses.
There is a danger that the holder lid will open acci-
dentally, resulting in an injury due to falling objects.
BK0121600US.book 207 ページ ２０１０年４月１２日　月曜日　午前１０時３９分
