2011 MITSUBISHI ENDEAVOR Owners Manual

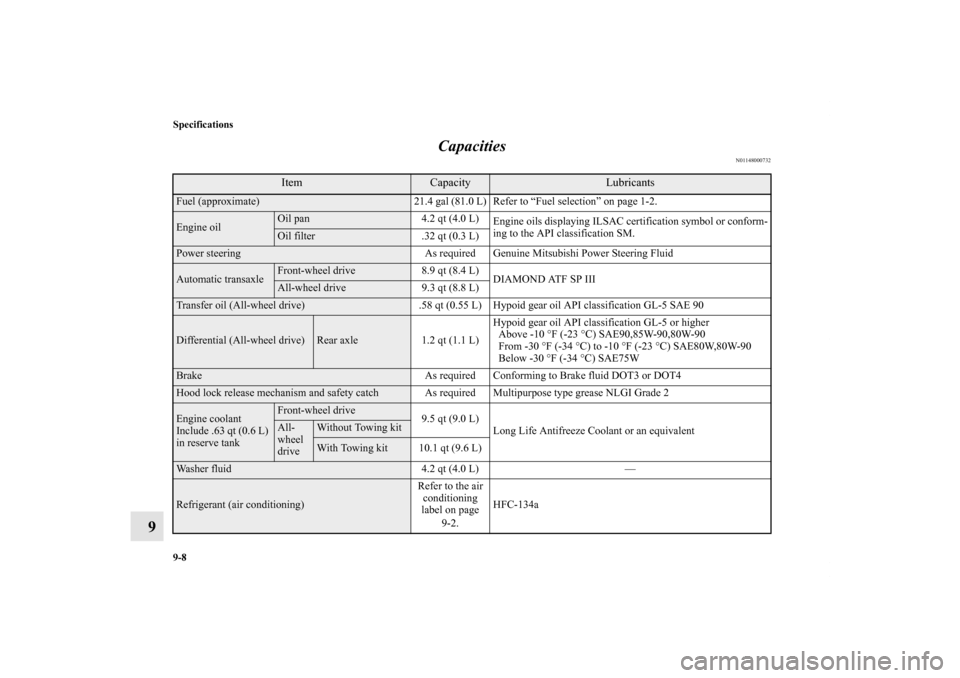

9-8 Specifications
9Capacities
N01148000732
Item
Capacity
Lubricants
Fuel (approximate) 21.4 gal (81.0 L) Refer to “Fuel selection” on page 1-2.Engine oil
Oil pan 4.2 qt (4.0 L)
Engine oils displaying ILSAC certification symbol or conform-
ing to the API classification SM.Oil filter .32 qt (0.3 L)
Power steering As required Genuine Mitsubishi Power Steering Fluid Automatic transaxle
Front-wheel drive 8.9 qt (8.4 L)
DIAMOND ATF SP III All-wheel drive 9.3 qt (8.8 L)
Transfer oil (All-wheel drive) .58 qt (0.55 L) Hypoid gear oil API classification GL-5 SAE 90Differential (All-wheel drive)
Rear axle 1.2 qt (1.1 L)Hypoid gear oil API classification GL-5 or higher
Above -10 °F (-23 °C) SAE90,85W-90,80W-90
From -30 °F (-34 °C) to -10 °F (-23 °C) SAE80W,80W-90
Below -30 °F (-34 °C) SAE75W
Brake As required Conforming to Brake fluid DOT3 or DOT4 Hood lock release mechanism and safety catch As required Multipurpose type grease NLGI Grade 2 Engine coolant
Include .63 qt (0.6 L)
in reserve tank
Front-wheel drive
9.5 qt (9.0 L)
Long Life Antifreeze Coolant or an equivalentAll-
wheel
drive
Without Towing kitWith Towing kit 10.1 qt (9.6 L)
Washer fluid 4.2 qt (4.0 L) — Refrigerant (air conditioning)Refer to the air
conditioning
label on page
9-2.HFC-134a BK0121600US.book 8 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

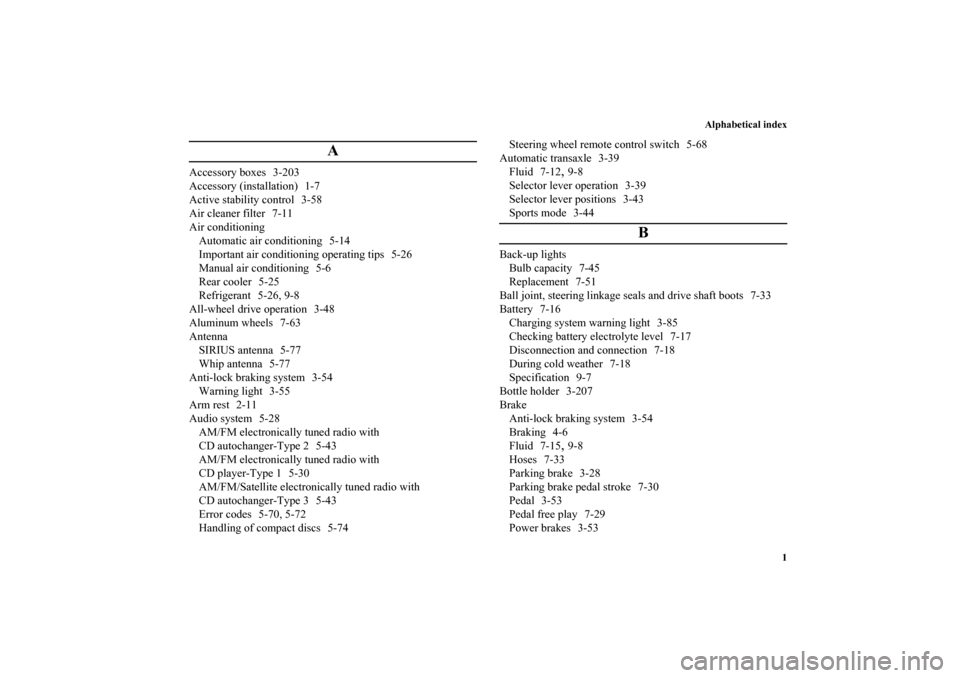

Alphabetical index
1
A
Accessory boxes 3-203
Accessory (installation) 1-7
Active stability control 3-58
Air cleaner filter 7-11
Air conditioning
Automatic air conditioning 5-14
Important air conditioning operating tips 5-26
Manual air conditioning 5-6
Rear cooler 5-25
Refrigerant 5-26, 9-8
All-wheel drive operation 3-48
Aluminum wheels 7-63
Antenna
SIRIUS antenna 5-77
Whip antenna 5-77
Anti-lock braking system 3-54
Warning light 3-55
Arm rest 2-11
Audio system 5-28
AM/FM electronically tuned radio with
CD autochanger-Type 2 5-43
AM/FM electronically tuned radio with
CD player-Type 1 5-30
AM/FM/Satellite electronically tuned radio with
CD autochanger-Type 3 5-43
Error codes 5-70, 5-72
Handling of compact discs 5-74Steering wheel remote control switch 5-68
Automatic transaxle 3-39
Fluid 7-12
,9-8
Selector lever operation 3-39
Selector lever positions 3-43
Sports mode 3-44
B
Back-up lights
Bulb capacity 7-45
Replacement 7-51
Ball joint, steering linkage seals and drive shaft boots 7-33
Battery 7-16
Charging system warning light 3-85
Checking battery electrolyte level 7-17
Disconnection and connection 7-18
During cold weather 7-18
Specification 9-7
Bottle holder 3-207
Brake
Anti-lock braking system 3-54
Braking 4-6
Fluid 7-15
,9-8
Hoses 7-33
Parking brake 3-28
Parking brake pedal stroke 7-30
Pedal 3-53
Pedal free play 7-29
Power brakes 3-53
BK0121600US.book 1 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

Alphabetical index
2Service brake 3-53
Warning light 3-83
Break-in recommendations 3-2
Bulb capacity 7-44
C
California Perchlorate Materials Requirements 1-9
Capacities 9-8
Cargo loads 4-12
Catalytic converter 7-3
Cautions on the handling of all-wheel drive vehicles 3-51
Certification label 9-4
Charging system warning light 3-85
Child restraints 2-25
Child safety locks for rear door 3-15
Cleaning
Inside of your vehicle 7-58
Outside of your vehicle 7-60
Clock 3-197
Coat hook 3-210
Combination headlights and dimmer switch 3-153
Consumer information 8-2
Coolant (engine) 7-9
,9-8
Cruise control 3-63
Indicator 3-64
Cup holder 3-206
D
Defogger (rear window) 3-163Digital clock 3-197
Dimensions 9-4
Dimmer (high/low beam change) 3-156
Disc brake pads 7-33
Dome light
Bulb capacity 7-46
Replacement 7-55
Switch 3-200
Door lights 3-202
Bulb capacity 7-46
Replacement 7-57
Doors
Locks 3-13
Power door locks 3-15
Warning light and buzzer 3-85
Drive belt 7-33
Driving during cold weather 4-5
Driving precaution 4-2
Driving, alcohol and drugs 4-3
E
Electric rear window defogger switch 3-163
Electronic immobilizer (Anti-theft starting system) 3-3
Emission-control system maintenance 7-31
Engine
Block heater 3-38
Compartment 7-6
Coolant 7-9
,9-8
Coolant temperature gauge 3-81
BK0121600US.book 2 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

Alphabetical index
3
Hood 7-4
Malfunction indicator 3-84
Oil and oil filter 7-6
,9-8
Overheating 6-5
Serial number 9-2
Specifications 9-6
Error codes 5-70, 5-72
Exhaust system 7-34
F
Filling the fuel tank 1-4
Floor console box 3-204
Fluid
Automatic transaxle fluid 7-12
,9-8
Brake fluid 7-15
,9-8
Engine coolant 7-9,9-8
Power steering fluid 7-16
,9-8
Washer fluid 7-14
,9-8
Fluid capacities and lubricants 9-8
Fog lights
Bulb capacity 7-45
Indicator 3-83
Replacement 7-49
Switch 3-158
For cold and snowy weather 7-35
Front side-marker lights
Bulb capacity 7-45
Replacement 7-48
Front turn signal lightsBulb capacity 7-45
Replacement 7-48
Fuel
Fuel economy 4-2
Fuel gauge 3-80
Fuel hoses 7-32
Fuel selection 1-2
Low-fuel warning light 3-80
Modification/alterations to the electrical or fuel systems 1-8
Tank capacity 1-5
,9-8
Full-time all-wheel drive 3-47
Fuse links 7-36
Fuses 7-36
G
Gauges 3-77
General maintenance 7-33
General vehicle data 9-4
,9-5
Genuine parts 1-9
Glove compartment 3-204
H
Hands-free Bluetooth
® cellular phone interface system with
voice recognition 3-164
Hazard warning flasher switch 3-158
Hazard warning lights 3-83
Head restraints 2-12
Headlights
Bulb capacity 7-45
BK0121600US.book 3 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

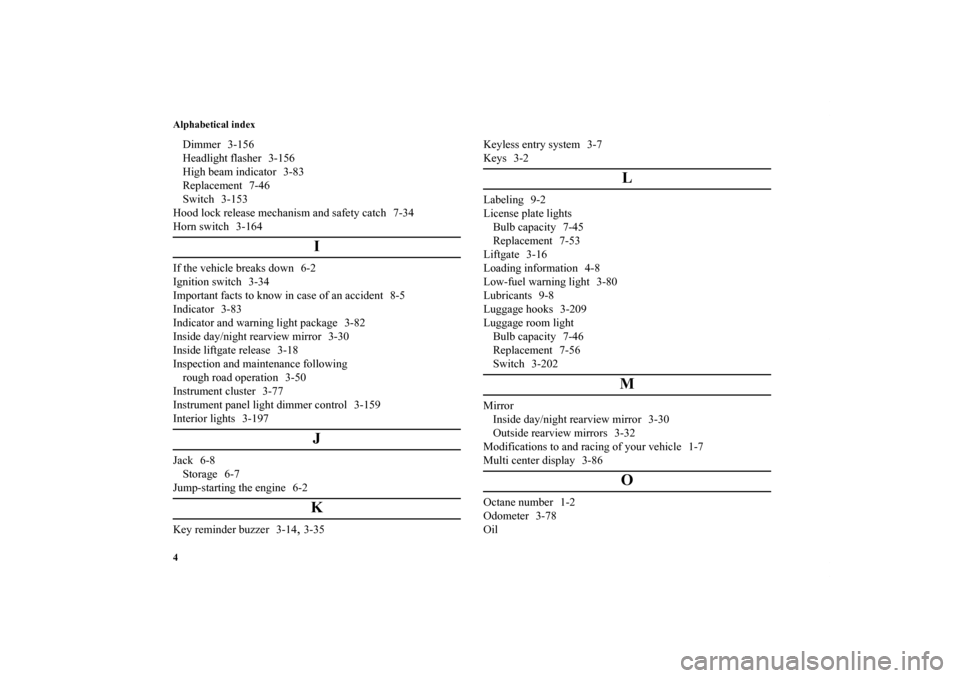

Alphabetical index
4Dimmer 3-156
Headlight flasher 3-156
High beam indicator 3-83
Replacement 7-46
Switch 3-153
Hood lock release mechanism and safety catch 7-34
Horn switch 3-164
I
If the vehicle breaks down 6-2
Ignition switch 3-34
Important facts to know in case of an accident 8-5
Indicator 3-83
Indicator and warning light package 3-82
Inside day/night rearview mirror 3-30
Inside liftgate release 3-18
Inspection and maintenance following
rough road operation 3-50
Instrument cluster 3-77
Instrument panel light dimmer control 3-159
Interior lights 3-197
J
Jack 6-8
Storage 6-7
Jump-starting the engine 6-2
K
Key reminder buzzer 3-14
,3-35Keyless entry system 3-7
Keys 3-2
L
Labeling 9-2
License plate lights
Bulb capacity 7-45
Replacement 7-53
Liftgate 3-16
Loading information 4-8
Low-fuel warning light 3-80
Lubricants 9-8
Luggage hooks 3-209
Luggage room light
Bulb capacity 7-46
Replacement 7-56
Switch 3-202
M
Mirror
Inside day/night rearview mirror 3-30
Outside rearview mirrors 3-32
Modifications to and racing of your vehicle 1-7
Multi center display 3-86
O
Octane number 1-2
Odometer 3-78
Oil
BK0121600US.book 4 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

Alphabetical index
5
Engine oil 7-6
,9-8
Rear axle oil 7-14,9-8
Transfer oil 7-13
,9-8
Oil pressure warning light 3-85
Operation under adverse driving conditions 6-25
Outside rearview mirrors 3-32
Overhead console control switch 3-165
Overheating 6-5
P
Parking 4-7
Parking brake 3-28
Parking brake pedal stroke 7-30
Parking brake 7-30
Parking brake break-in 7-30
Parking lights
Bulb capacity 7-45
Replacement 7-48
Polishing 7-61
Power brakes 3-53
Power door locks 3-15
Power outlet 3-195
Power steering
Fluid 7-16
,9-8
System 3-57
Power windows 3-23
Main switch 3-24
Sub switch 3-24
Timer function 3-24Puncture (Tire changing) 6-12
R
Radiator cap 7-10
Radio
AM/FM electronically tuned radio with
CD autochanger-Type 2 5-43
AM/FM electronically tuned radio with
CD player-Type 1 5-30
AM/FM/Satellite electronically tuned radio with
CD autochanger-Type 3 5-43
General information about your radio 5-78
Reading lights
Replacement 7-55
Switch 3-200
Rear axle oil 7-14
,9-8
Rear cooler 5-25
Rear personal lights
Bulb capacity 7-46
Replacement 7-56
Switch 3-201
Rear side-marker light
Bulb capacity 7-45
Replacement 7-51
Rear turn signal lights
Bulb capacity 7-45
Replacement 7-51
Rear window defogger switch 3-163
Rear-view camera 3-74
BK0121600US.book 5 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

Alphabetical index
6Rearview mirror
Inside 3-30
Outside 3-32
Refrigerant (air conditioning) 5-26, 9-8
Replacement of light bulbs 7-44
Reporting Safety Defects 8-3
S
Safe driving techniques 4-5
Safety mechanism 3-27
Seat 2-2
Arm rest 2-11
Front seats 2-3
Head restraints 2-12
Heated seats 2-9
Rear seats 2-10
Seats and restraint systems 2-3
Seat belt 2-15
Adjustable seat belt shoulder anchor 2-21
Maintenance and inspection 2-35
Seat belts
Driver’s seat belt reminder/warning light 2-19
Front passenger seat belt warning light 2-20
Pre-tensioner and force limiter systems 2-23
Seat belt extender 2-22
Seat belt use during pregnancy 2-22
Service brake 3-53
Service precautions 7-2
Spark plugs 7-32Speedometer 3-78
Starting 3-37
Steering
Power steering fluid 7-16
,9-8
Tilt lock lever 3-29
Wheel lock 3-36
Steering wheel remote control switch 5-68
Stop lights
Bulb capacity 7-45
Replacement 7-51
Sun visors 3-194
Sunglasses holder 3-207
Sunroof 3-26
Safety mechanism 3-27
Sunshade 3-28
Timer function 3-26
Sunshade 3-28
Supplemental Restraint System 2-35
How the Supplement Restraint System works 2-39
Servicing 2-58
Warning light 2-44T
Tachometer 3-78
Tail lights
Bulb capacity 7-45
Replacement 7-51
Tank capacity 1-5
,9-8
Theft-alarm system 3-20
BK0121600US.book 6 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

Alphabetical index
7
Timer function 3-24
,3-26
Timing belt 7-34
Tire pressure monitoring system 3-69
Tires 7-20
Compact spare tire 6-14
How to change a tire 6-12
Inflation pressure 7-24
Maintenance 7-26
Quality grading 8-2
Replacing tires and wheels 7-26
Rotation 7-27
Size (tire and wheel) 9-7
Snow tires 7-28
Spare tire information 6-13
Tire and loading information placard 4-9
,9-3
Tire chains 7-29
Tread wear indicators 7-26
Tissue holder 3-204
Tonneau cover 3-208
Tools 6-8
Storage 6-7
Towing 6-23
Trailer towing 4-15
Transfer oil 7-13
,9-8
Trip odometer 3-78
Turn signal light
Bulb capacity 7-45
Indicators 3-83
Lever 3-157Replacement 7-48
,7-51
V
Vanity mirror 3-195
Vehicle care precautions 7-57
Vehicle dimensions 9-4
Vehicle labeling 9-2
Vehicle preparation before driving 4-3
Vehicle weights 9-5
Vents 5-2
W
Warning lights 3-83
Washer
Fluid 7-14
,9-8
Rear window washer 3-161
Switch 3-161
Windshield washer 3-161
Waxing 7-61
Weights 9-5
Wheel
Specification 9-7
Wiper
Rear window wiper 3-161
Switch 3-159
Windshield 3-159
Wiper blades 7-31
