2011 MITSUBISHI ENDEAVOR Owners Manual

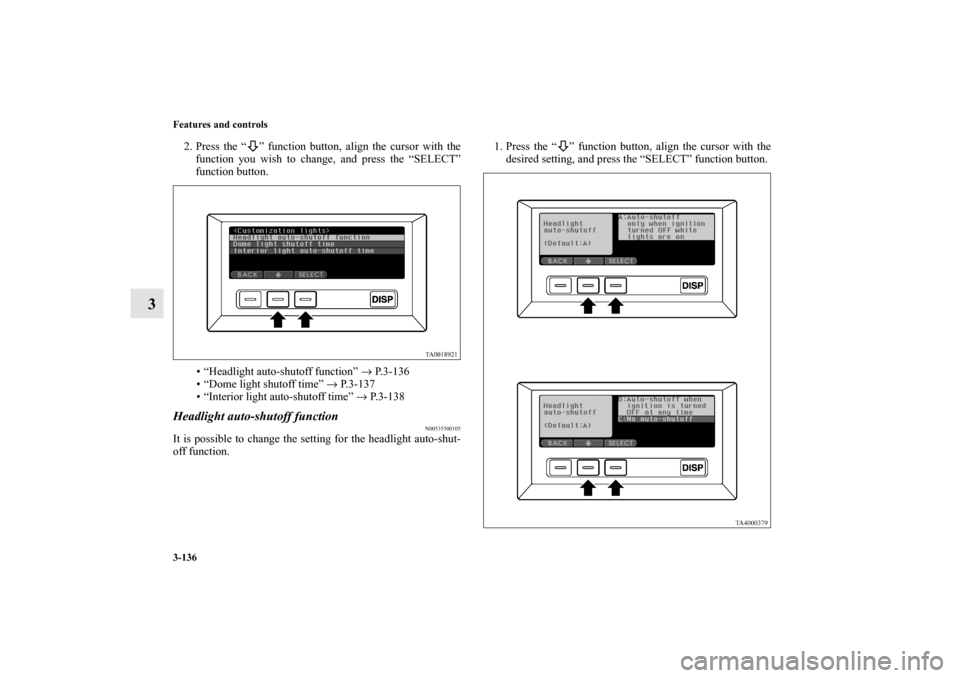

3-136 Features and controls
3
2. Press the “ ” function button, align the cursor with the
function you wish to change, and press the “SELECT”
function button.
• “Headlight auto-shutoff function” → P.3-136
• “Dome light shutoff time” → P. 3 - 1 3 7
• “Interior light auto-shutoff time” → P.3-138Headlight auto-shutoff function
N00535500105
It is possible to change the setting for the headlight auto-shut-
off function.1. Press the “ ” function button, align the cursor with the
desired setting, and press the “SELECT” function button.BK0121600US.book 136 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

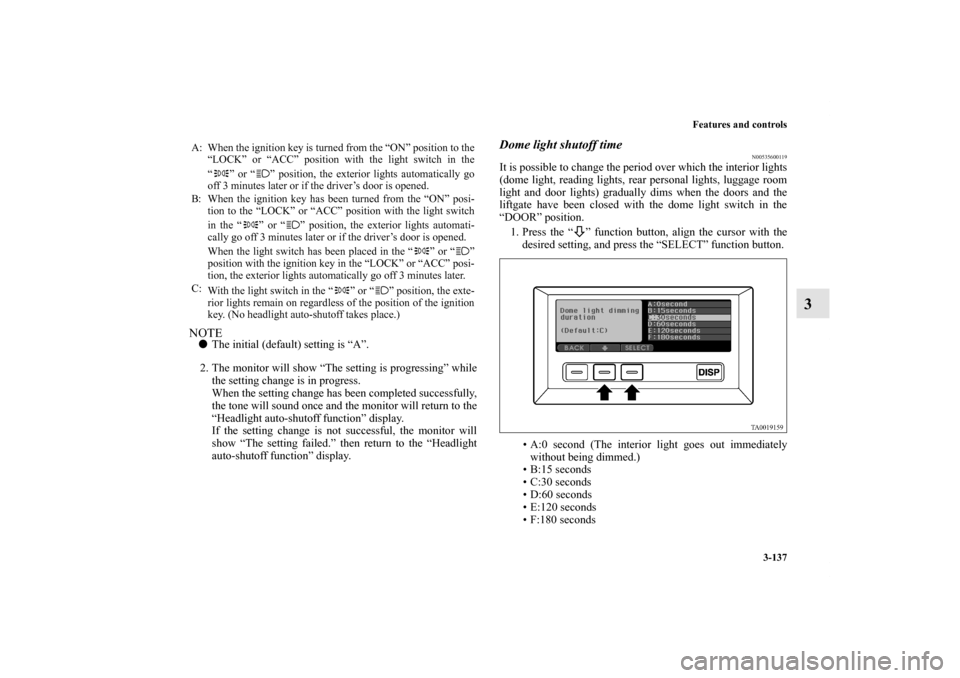

Features and controls
3-137
3
NOTE
The initial (default) setting is “A”.
2. The monitor will show “The setting is progressing” while
the setting change is in progress.
When the setting change has been completed successfully,
the tone will sound once and the monitor will return to the
“Headlight auto-shutoff function” display.
If the setting change is not successful, the monitor will
show “The setting failed.” then return to the “Headlight
auto-shutoff function” display.
Dome light shutoff time
N00535600119
It is possible to change the period over which the interior lights
(dome light, reading lights, rear personal lights, luggage room
light and door lights) gradually dims when the doors and the
liftgate have been closed with the dome light switch in the
“DOOR” position.
1. Press the “ ” function button, align the cursor with the
desired setting, and press the “SELECT” function button.
• A:0 second (The interior light goes out immediately
without being dimmed.)
• B:15 seconds
• C:30 seconds
• D:60 seconds
• E:120 seconds
• F:180 seconds
A: When the ignition key is turned from the “ON” position to the
“LOCK” or “ACC” position with the light switch in the
“ ” or “ ” position, the exterior lights automatically go
off 3 minutes later or if the driver’s door is opened.
B: When the ignition key has been turned from the “ON” posi-
tion to the “LOCK” or “ACC” position with the light switch
in the “ ” or “ ” position, the exterior lights automati-
cally go off 3 minutes later or if the driver’s door is opened.
When the light switch has been placed in the “ ” or “ ”
position with the ignition key in the “LOCK” or “ACC” posi-
tion, the exterior lights automatically go off 3 minutes later.
C:
With the light switch in the “ ” or “ ” position, the exte-
rior lights remain on regardless of the position of the ignition
key. (No headlight auto-shutoff takes place.)
BK0121600US.book 137 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

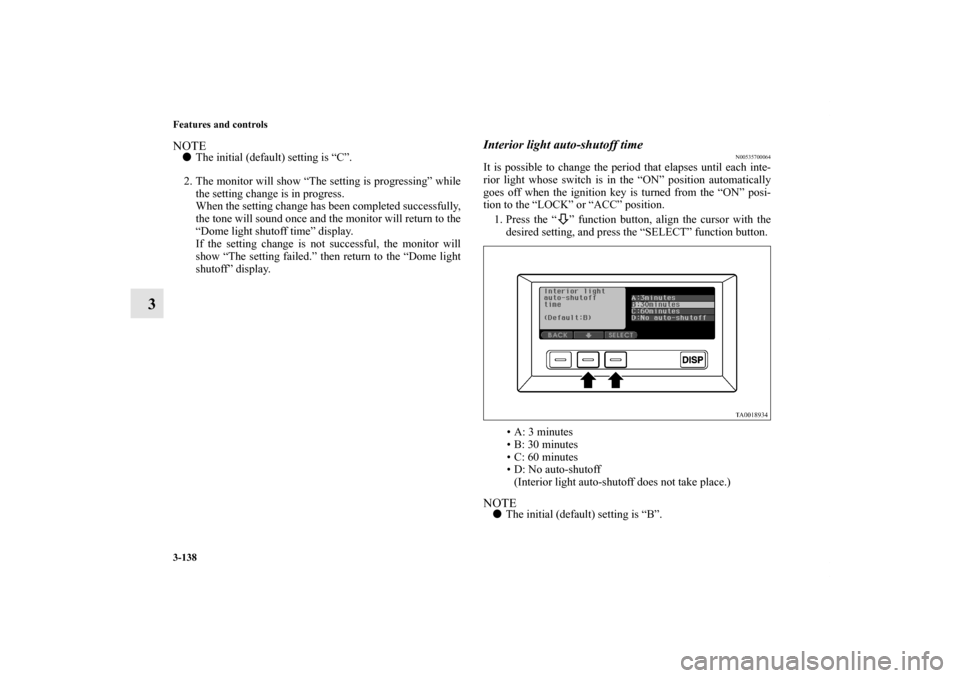

3-138 Features and controls
3
NOTE
The initial (default) setting is “C”.
2. The monitor will show “The setting is progressing” while
the setting change is in progress.
When the setting change has been completed successfully,
the tone will sound once and the monitor will return to the
“Dome light shutoff time” display.
If the setting change is not successful, the monitor will
show “The setting failed.” then return to the “Dome light
shutoff” display.
Interior light auto-shutoff time
N00535700064
It is possible to change the period that elapses until each inte-
rior light whose switch is in the “ON” position automatically
goes off when the ignition key is turned from the “ON” posi-
tion to the “LOCK” or “ACC” position.
1. Press the “ ” function button, align the cursor with the
desired setting, and press the “SELECT” function button.
• A: 3 minutes
• B: 30 minutes
• C: 60 minutes
• D: No auto-shutoff
(Interior light auto-shutoff does not take place.)NOTE
The initial (default) setting is “B”.
BK0121600US.book 138 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

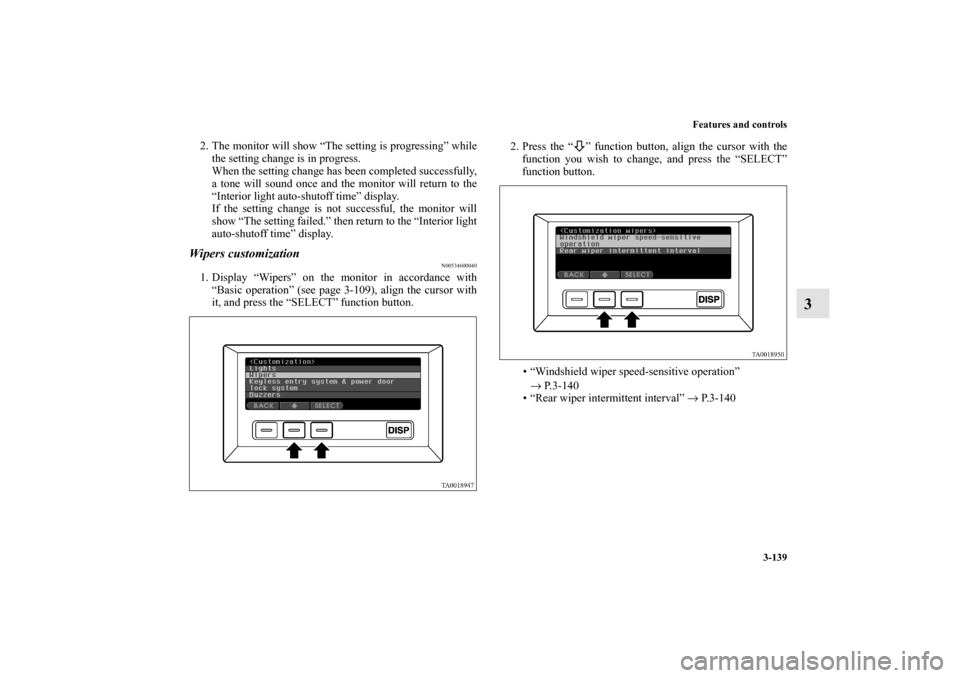

Features and controls
3-139
3
2. The monitor will show “The setting is progressing” while
the setting change is in progress.
When the setting change has been completed successfully,
a tone will sound once and the monitor will return to the
“Interior light auto-shutoff time” display.
If the setting change is not successful, the monitor will
show “The setting failed.” then return to the “Interior light
auto-shutoff time” display.Wipers customization
N00534600040
1. Display “Wipers” on the monitor in accordance with
“Basic operation” (see page 3-109), align the cursor with
it, and press the “SELECT” function button.2. Press the “ ” function button, align the cursor with the
function you wish to change, and press the “SELECT”
function button.
• “Windshield wiper speed-sensitive operation”
→ P. 3 - 1 4 0
• “Rear wiper intermittent interval” → P. 3 - 1 4 0
BK0121600US.book 139 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

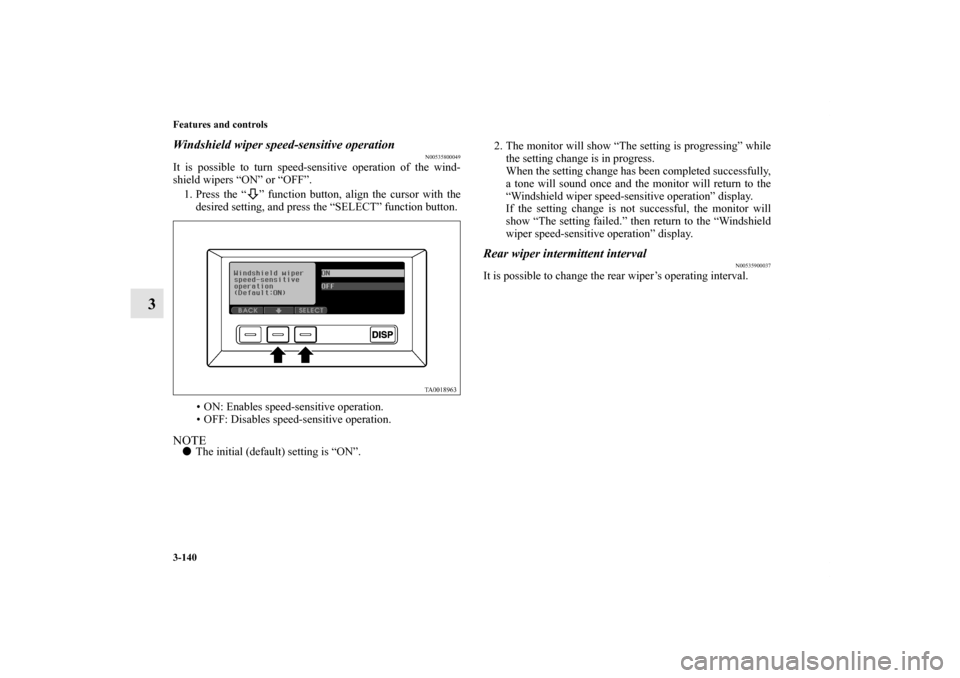

3-140 Features and controls
3
Windshield wiper speed-sensitive operation
N00535800049
It is possible to turn speed-sensitive operation of the wind-
shield wipers “ON” or “OFF”.
1. Press the “ ” function button, align the cursor with the
desired setting, and press the “SELECT” function button.
• ON: Enables speed-sensitive operation.
• OFF: Disables speed-sensitive operation.NOTE
The initial (default) setting is “ON”.2. The monitor will show “The setting is progressing” while
the setting change is in progress.
When the setting change has been completed successfully,
a tone will sound once and the monitor will return to the
“Windshield wiper speed-sensitive operation” display.
If the setting change is not successful, the monitor will
show “The setting failed.” then return to the “Windshield
wiper speed-sensitive operation” display.
Rear wiper intermittent interval
N00535900037
It is possible to change the rear wiper’s operating interval.
BK0121600US.book 140 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

Features and controls
3-141
3
1. Press the “ ” function button, align the cursor with the
desired setting, and press the “SELECT” function button.• A:8 seconds interval
• B:4 seconds interval
If the rear wiper switch is turned “OFF” → “ON” →
“OFF” → “ON” continuously, the rear wiper operates
continuously.
• C:8 seconds interval
If the rear wiper switch is turned “OFF” → “ON” →
“OFF” → “ON” continuously, the rear wiper operates
continuously.
• D:16 seconds interval
If the rear wiper switch is turned “OFF” → “ON” →
“OFF” → “ON” continuously, the rear wiper operates
continuously.
• E: Continuous operation
NOTE
The initial (default) setting is “A”.
2. The monitor will show “The setting is progressing” while
the setting change is in progress.
When the setting change has been completed successfully,
the tone will sound once and the monitor will return to the
“Rear wiper intermittent interval” display.
If the setting change is not successful, the monitor will
show “The setting failed.” then return to the “Rear wiper
intermittent interval” display.
BK0121600US.book 141 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

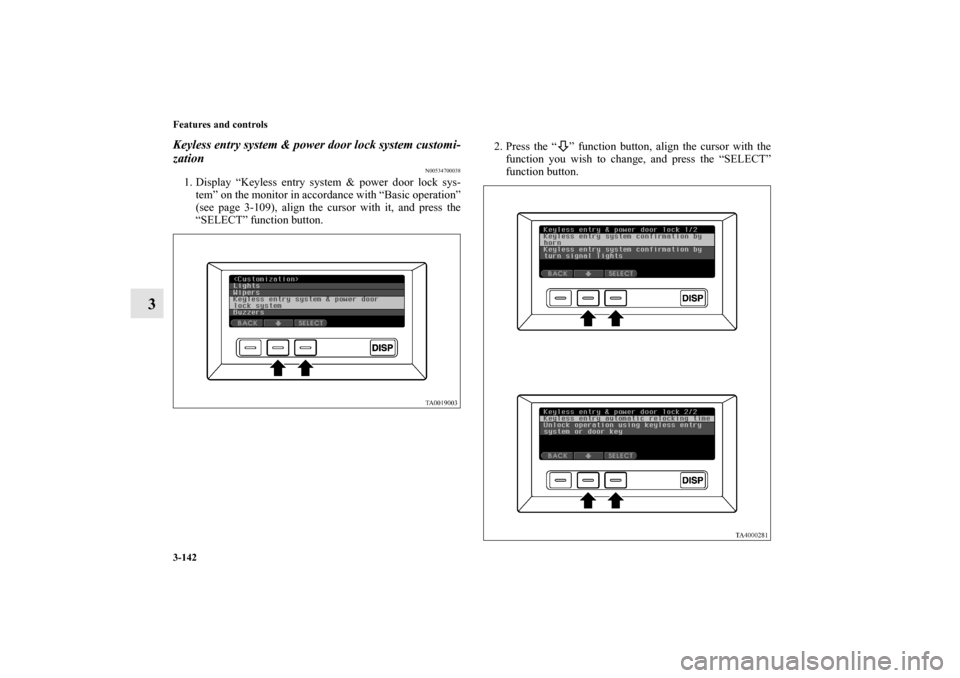

3-142 Features and controls
3
Keyless entry system & power door lock system customi-
zation
N00534700038
1. Display “Keyless entry system & power door lock sys-
tem” on the monitor in accordance with “Basic operation”
(see page 3-109), align the cursor with it, and press the
“SELECT” function button.2. Press the “ ” function button, align the cursor with the
function you wish to change, and press the “SELECT”
function button.
BK0121600US.book 142 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

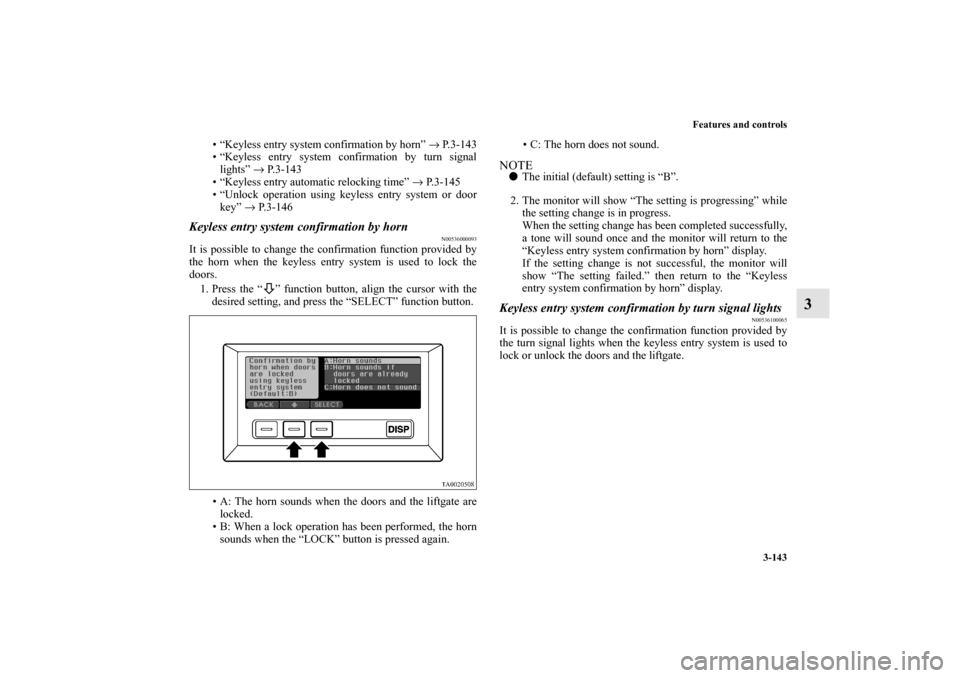

Features and controls
3-143
3
• “Keyless entry system confirmation by horn” → P. 3 - 1 4 3
• “Keyless entry system confirmation by turn signal
lights” → P. 3 - 1 4 3
• “Keyless entry automatic relocking time” → P. 3 - 1 4 5
• “Unlock operation using keyless entry system or door
key” → P. 3 - 1 4 6
Keyless entry system confirmation by horn
N00536000093
It is possible to change the confirmation function provided by
the horn when the keyless entry system is used to lock the
doors.
1. Press the “ ” function button, align the cursor with the
desired setting, and press the “SELECT” function button.
• A: The horn sounds when the doors and the liftgate are
locked.
• B: When a lock operation has been performed, the horn
sounds when the “LOCK” button is pressed again.• C: The horn does not sound.
NOTE
The initial (default) setting is “B”.
2. The monitor will show “The setting is progressing” while
the setting change is in progress.
When the setting change has been completed successfully,
a tone will sound once and the monitor will return to the
“Keyless entry system confirmation by horn” display.
If the setting change is not successful, the monitor will
show “The setting failed.” then return to the “Keyless
entry system confirmation by horn” display.Keyless entry system confirmation by turn signal lights
N00536100065
It is possible to change the confirmation function provided by
the turn signal lights when the keyless entry system is used to
lock or unlock the doors and the liftgate.
BK0121600US.book 143 ページ ２０１０年４月１２日　月曜日　午前１０時３９分
