2011 MITSUBISHI ENDEAVOR Owners Manual

Overview
Outside (Front)
N00100600935
Antenna P.5-77
Windshield wiper and
washer P.3-159
Engine compartment P.7-6
Engine hood P.7-4
Front fog lights (if so equipped)
P.3-158, 7-45, 7-49Outside rearview mirrors
P. 3 - 3 2
Fuel tank filler P.1-4
Locking and unlocking
P. 3 - 1 3
Keyless entry system
P. 3 - 7
Parking and front side-marker and front
turn signal lights
P.3-153, 3-157, 7-45, 7-48 Headlights
P.3-153, 7-45, 7-46
Engine block heater (if so equipped) P.3-38
BK0121600US.book 7 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

Overview
Outside (Rear)
N00100600948
Sunroof (if so equipped) P.3-26
Rear window wiper and
washer P.3-161
Rear-view camera
(if so equipped) P.3-74
License plate lights
P.3-153, 7-45, 7-53Tail and stop and rear
side-marker lights
P.3-153, 7-45, 7-51
Back-up lights
P.7-45, 7-51
Rear turn signal lights
P.3-157, 7-45, 7-51
Tire inflation pressures P.7-24
Changing tires P.6-12
Tire rotation P.7-27
Tire chains P.7-29
Tire pressure monitoring sys-
tem P.3-69 High-mounted stop light
P. 7 - 4 5
BK0121600US.book 8 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

BK0121600US.book 9 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

Quick index
1
If this warning light comes on or flashes while you’re driving...
N00200700924
NOTE
These warning lights will come on for a few seconds for a bulb check when the ignition key is first turned to “ON”.
Warning light
Do this
Ref. page
Charging system warning light
Park your vehicle in a safe place and stop the engine.
Contact an authorized Mitsubishi Motors dealer or a repair facility of your
choice for assistance.P.3-85
Oil pressure warning light
Park your vehicle in a safe place and stop the engine, then check the engine
oil level.
If the light comes on while the engine oil level is normal, have the system
checked at an authorized Mitsubishi Motors dealer or a repair facility of your
choice as soon as possible.P.3-85
or
Brake warning light
If this light comes on while driving, check to see that the parking brake is
fully released.

If this light stays on after releasing the parking brake, stop and check the
brake fluid level.

If the brake fluid level is correct, there may be a system malfunction. Avoid
hard braking and high speeds, and contact an authorized Mitsubishi Motors
dealer or a repair facility of your choice for assistance.P.3-83
BK0121600US.book 1 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

2 Quick indexAutomatic transaxle fluid tempera-
ture warning light
Park your vehicle in a safe place.
Idle the engine until the warning light goes off. If the light does not go off,
have the system checked at an authorized Mitsubishi Motors dealer or a repair
facility of your choice as soon as possible.P. 3 - 4 2
or
Engine malfunction indicator
(“SERVICE ENGINE SOON” or
“Check engine light”)
Although your vehicle will usually be drivable and not need towing, have the
engine system checked at an authorized Mitsubishi Motors dealer or a repair
facility of your choice as soon as possible. If the vehicle is not drivable, con-
tact emergency roadside assistance at 1-888-648-7820 (for vehicles sold in
U.S.A.) or 1-888-576-4878 (for vehicles sold in Canada), an authorized Mit-
subishi Motors dealer, or local towing company for assistance.P. 3 - 8 4
or
Anti-lock braking system warning
light
When this light comes on, the anti-lock braking system is not functioning and
only the ordinary braking system is functioning.

Park your vehicle in a safe place and stop the engine.
Test the system as described on page 3-56.

If the light does not go out after the test, or if it comes on again, we recom-
mend that you have the system checked at an authorized Mitsubishi Motors
dealer or a repair facility of your choice as soon as possible.P. 3 - 5 5
SRS warning light
It is not necessary to stop the vehicle immediately, but we recommend that
you have the air bag and the pre-tensioner seat belt system checked at an
authorized Mitsubishi Motors dealer as soon as possible.P.2-24,
2-44
Warning light
Do this
Ref. page
BK0121600US.book 2 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

Quick index
3

ASC indicator/TCL indicator,
TCL OFF indicator
Park your vehicle in a safe place and turn off the engine.
Restart the engine and check to see if the indicator comes on again.

If the indicator does not go out, or if it comes on again, it is not necessary to
stop the vehicle immediately, but we recommend that you have your vehicle
inspected at an authorized Mitsubishi Motors dealer or a repair facility of
your choice as soon as possible.

When this indicator comes on, the Traction control system or Active skid con-
trol system is not functioning and normal operation of the vehicle will not be
affected.P.3-60
“N” indicator in the instrument clus-
ter flashes slowly
Have the automatic transaxle checked at an authorized Mitsubishi Motors
dealer or a repair facility of your choice as soon as possible.P.3-42
Tire pressure monitoring system
warning light
If the warning light comes on, you should stop and adjust the tires to the
proper inflation pressure as soon as possible.
(See “Tire inflation pressures” on page 7-24.)
Once adjustments have been made, the warning light will go off after a few
minutes of driving.

If the warning light blinks for approximately 1 minute and then remains con-
tinuously illuminated, the system is not operating properly. If the system
returns to normal, the warning light will go off. If the warning light does not
go off, have the vehicle inspected at an authorized Mitsubishi Motors dealer.P.3-70
Warning light
Do this
Ref. page
BK0121600US.book 3 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

4 Quick index

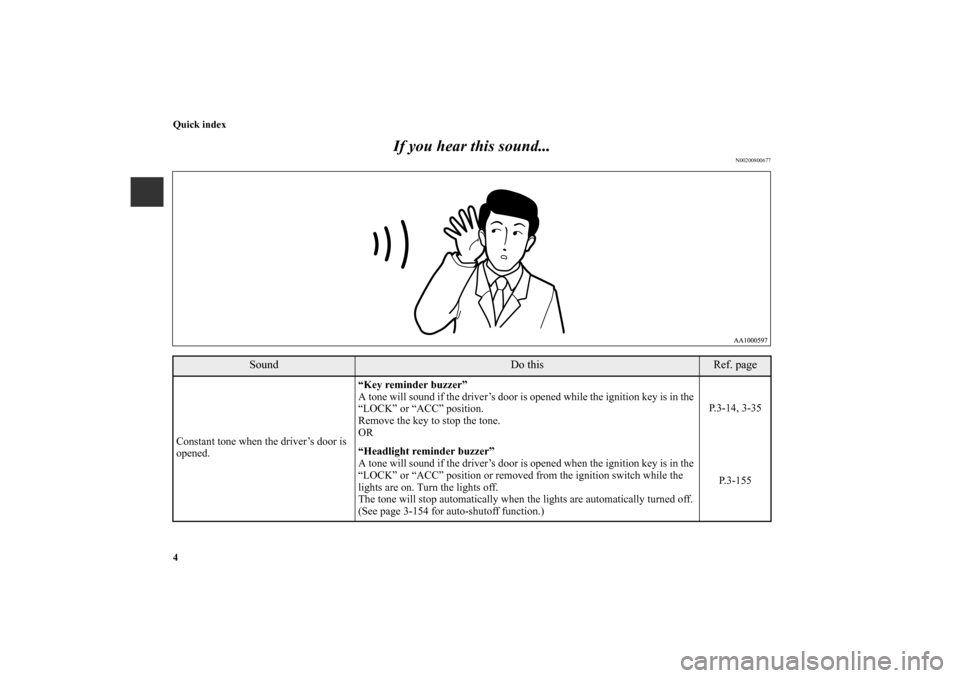

If you hear this sound...
N00200800677
Sound
Do this
Ref. page
Constant tone when the driver’s door is
opened.“Key reminder buzzer”
A tone will sound if the driver’s door is opened while the ignition key is in the
“LOCK” or “ACC” position.
Remove the key to stop the tone.
ORP.3-14, 3-35
“Headlight reminder buzzer”
A tone will sound if the driver’s door is opened when the ignition key is in the
“LOCK” or “ACC” position or removed from the ignition switch while the
lights are on. Turn the lights off.
The tone will stop automatically when the lights are automatically turned off.
(See page 3-154 for auto-shutoff function.)P.3-155BK0121600US.book 4 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

Quick index
5
Metallic squeal when you press the
brake pedal while driving.“Brake pad wear alarm”
The brake pads are worn down to the serviceable limit.
Have the brake pads replaced at an authorized Mitsubishi Motors dealer or a
repair facility of your choice.P.3-54
Tone when the ignition key is turned to
the “ON” position.“Seat belt reminder buzzer”
When the ignition key is turned to the “ON” position, the tone will sound for
about 6 seconds. If the driver’s seat belt remains unfastened 1 minute later, the
tone will sound intermittently (12 times) when the vehicle is driven. If the
driver’s seat belt subsequently remains unfastened while the vehicle is being
driven, the tone will sound as a warning each time the vehicle stops and starts.
When the driver’s seat belt is fastened, the tone will stop.P.2-19
Tone when the vehicle is moving at
more than 5 mph (8 km/h).“Door-ajar warning buzzer”
Door, liftgate is not properly shut.
If you shut the door, liftgate the tone will stop.P.3-85
Wind buffeting when driving with one
or both rear door windows opened.“What to do if you hear wind buffeting when driving”
Open the front door windows as well as the rear door windows.P.3-25
When the headlights have flashed for
three minutes, the horn will sound inter-
mittently for three minutes.“Theft-alarm system”
The theft-alarm system is operating. To stop the alarm, turn the key in the
driver’s door toward the front of the vehicle (the lock direction) or toward the
rear of the vehicle (the unlock direction). Alternatively, use the keyless-entry
transmitter to lock or unlock the doors, liftgate.P.3-20
Sound
Do this
Ref. page
