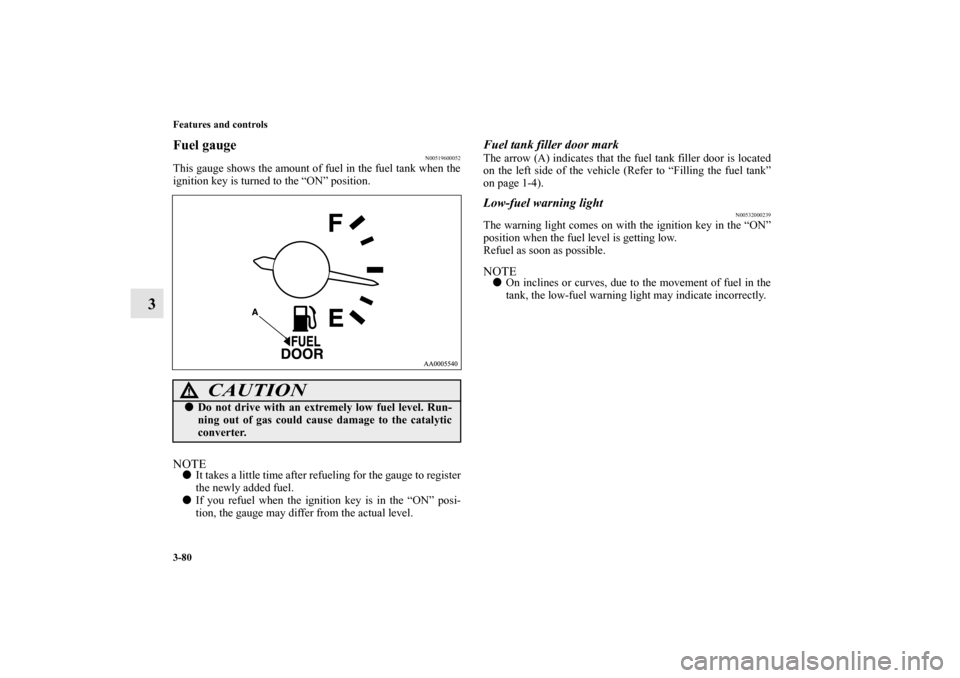

Fuel gauge
N00519600052
This gauge shows the amount of fuel in the fuel tank when the
ignition key is turned to the “ON” position.NOTE
It takes a little time after refueling for the gauge to register
the newly added fuel.

If you refuel when the ignition key is in the “ON” posi-
tion, the gauge may differ from the actual level.
Fuel tank filler door markThe arrow (A) indicates that the fuel tank filler door is located
on the left side of the vehicle (Refer to “Filling the fuel tank”
on page 1-4).Low-fuel warning light
N00532000239
The warning light comes on with the ignition key in the “ON”
position when the fuel level is getting low.
Refuel as soon as possible.NOTE
On inclines or curves, due to the movement of fuel in the
tank, the low-fuel warning light may indicate incorrectly.
CAUTION
!
Do not drive with an extremely low fuel level. Run-
ning out of gas could cause damage to the catalytic
converter.
BK0121600US.book 80 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

Features and controls
3-81
3

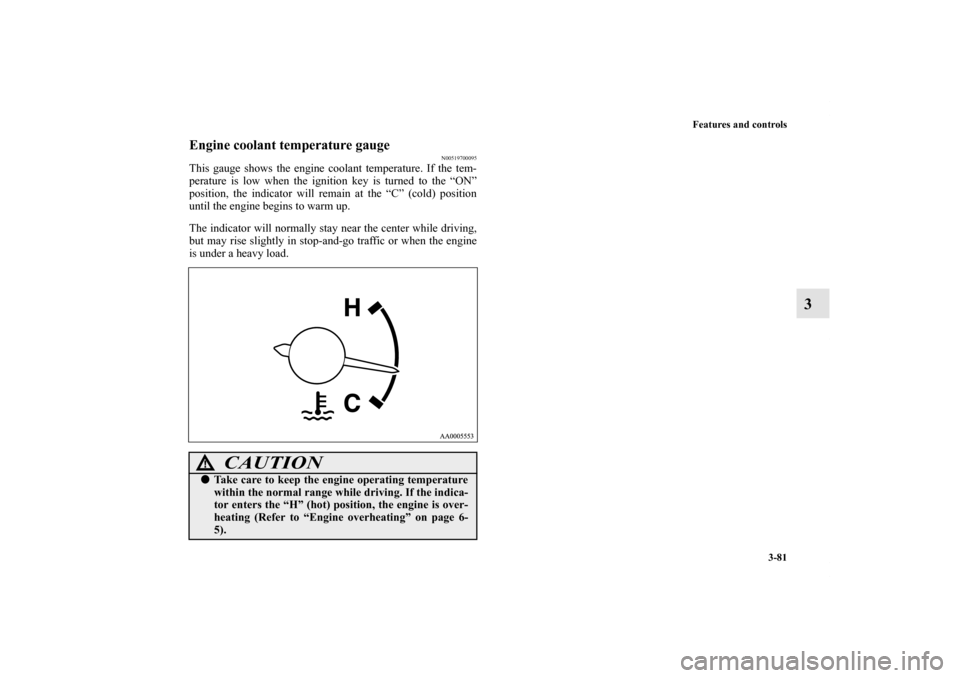

Engine coolant temperature gauge
N00519700095
This gauge shows the engine coolant temperature. If the tem-
perature is low when the ignition key is turned to the “ON”
position, the indicator will remain at the “C” (cold) position
until the engine begins to warm up.
The indicator will normally stay near the center while driving,
but may rise slightly in stop-and-go traffic or when the engine
is under a heavy load.
CAUTION
!
Take care to keep the engine operating temperature
within the normal range while driving. If the indica-
tor enters the “H” (hot) position, the engine is over-
heating (Refer to “Engine overheating” on page 6-
5).
BK0121600US.book 81 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

3-82 Features and controls

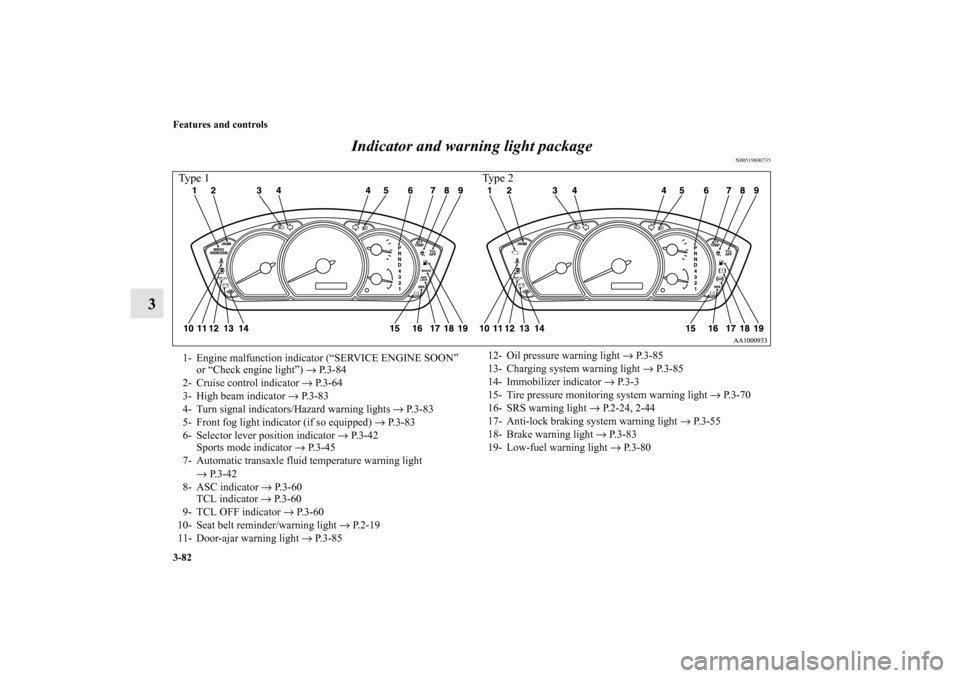

3Indicator and warning light package
N00519800735
Ty p e 2 Ty p e 1
1- Engine malfunction indicator (“SERVICE ENGINE SOON”
or “Check engine light”) → P.3-84
2- Cruise control indicator → P.3-64
3- High beam indicator → P.3-83
4- Turn signal indicators/Hazard warning lights → P.3-83
5- Front fog light indicator (if so equipped) → P.3-83
6- Selector lever position indicator → P. 3 - 4 2
Sports mode indicator → P.3-45
7- Automatic transaxle fluid temperature warning light
→ P. 3 - 4 2
8- ASC indicator → P.3-60
TCL indicator → P.3-60
9- TCL OFF indicator → P. 3 - 6 0
10- Seat belt reminder/warning light → P.2-19
11- Door-ajar warning light → P.3-8512- Oil pressure warning light → P.3-85
13- Charging system warning light → P.3-85
14- Immobilizer indicator → P. 3 - 3
15- Tire pressure monitoring system warning light → P. 3 - 7 0
16- SRS warning light → P.2-24, 2-44
17- Anti-lock braking system warning light → P. 3 - 5 5
18- Brake warning light → P.3-83
19- Low-fuel warning light → P.3-80
BK0121600US.book 82 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

Features and controls
3-83
3 Indicator
N00519900042
Turn signal indicators/Hazard warning lights
N00520000144
The arrows will flash in time with the corresponding exterior
turn signals when the turn signal lever is used.
Both arrows will flash when the hazard warning flasher switch
is pressed. NOTE
If the indicator flashes faster than usual or if the indicator
stays on without flashing, check for a malfunctioning turn
signal light bulb or turn signal connection.High beam indicator
N00520100031
A blue light comes on when the headlights are on high beam.Front fog light indicator
(if so equipped)
N00520200159
This indicator comes on while the front fog lights are on.
Warning lights
N00520300121
Brake warning light
N00520400294
This light comes on when the ignition key is turned to the
“ON” position (engine off).
When the engine is started, the light should go off.
The light will illuminate under the following conditions:

When the parking brake pedal is engaged.

When the brake fluid level in the reservoir falls to a low
level.

When the brake circuit is not operating correctly.
Before driving your vehicle, release the parking brake and
make certain that the brake warning light has gone out.
CAUTION
!
Brake performance or your ability to control the
vehicle may be compromised or the vehicle may
become unstable if the brakes are applied suddenly
in the following situations:
• The brake warning light does not illuminate when
the parking brake is applied or does not turn off
when the parking brake is released.
• The brake warning light remains illuminated dur-
ing driving.
• If any of the above situations occur, stop the vehi-
cle in a safe location, avoiding any sudden brake
application, and contact your nearest authorized
Mitsubishi Motors dealer or a repair facility of
your choice.
BK0121600US.book 83 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

3-84 Features and controls
3
Engine malfunction indicator (“SERVICE
ENGINE SOON” or “Check engine light”)
N00520500396
This indicator is a part of the onboard diagnostic (OBD) sys-
tem which monitors the emissions, engine, and automatic tran-
saxle control systems. If a problem is detected in one of these
systems, this indicator comes on. When the ignition key is
turned to the “ON” position, this indicator normally comes on
and goes off a few seconds later.
This indicator will come on if the fuel tank filler cap is not
properly tightened. If the indicator comes on and stays on after
refueling, stop the engine and check that the cap is properly
tightened. (Turn the cap clockwise until you hear clicking
sounds.)
If this indicator does not go off after several seconds or lights
up while driving, have the system checked as soon as possible
at an authorized Mitsubishi Motors dealer or a repair facility of
your choice.
NOTE
Do not disconnect the battery cable when the Engine mal-
function indicator (“SERVICE ENGINE SOON” or
“Check engine light”) is on.
The engine electronic control module stores critical OBD
information (especially exhaust emission data), which
may be lost if the battery cable is disconnected while the
engine malfunction indicator is on. This will make it diffi-
cult to diagnose the cause of future problems.

The vehicle should be brought to a stop in the fol-
lowing manner when brake performance has deteri-
orated while driving.
• Press the brake pedal harder than usual.
• Should the brakes fail, shift down to a lower gear
to reduce your speed and slowly depress the park-
ing brake pedal to park your vehicle. Press the
brake pedal to operate your rear brake lights to
alert vehicles behind you.CAUTION
!
CAUTION
!
Driving for a long time with the engine malfunction
indicator on may cause more damage to the emission
control system. This could also affect fuel economy
and drivability.
If this indicator does not come on when the ignition
key is turned to the “ON” position, have the system
checked by an authorized Mitsubishi Motors dealer
or a repair facility of your choice.
If the indicator comes on while the engine is run-
ning, avoid driving at high speeds.
During vehicle operation with the indicator on, the
vehicle may not accelerate when you depress the
accelerator pedal.
When the vehicle is stationary with the indicator on,
you must depress the brake pedal more firmly than
usual since the engine idling speed is higher than
usual and the vehicle with an automatic transaxle
has a stronger tendency to creep forward.
BK0121600US.book 84 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

Features and controls
3-85
3

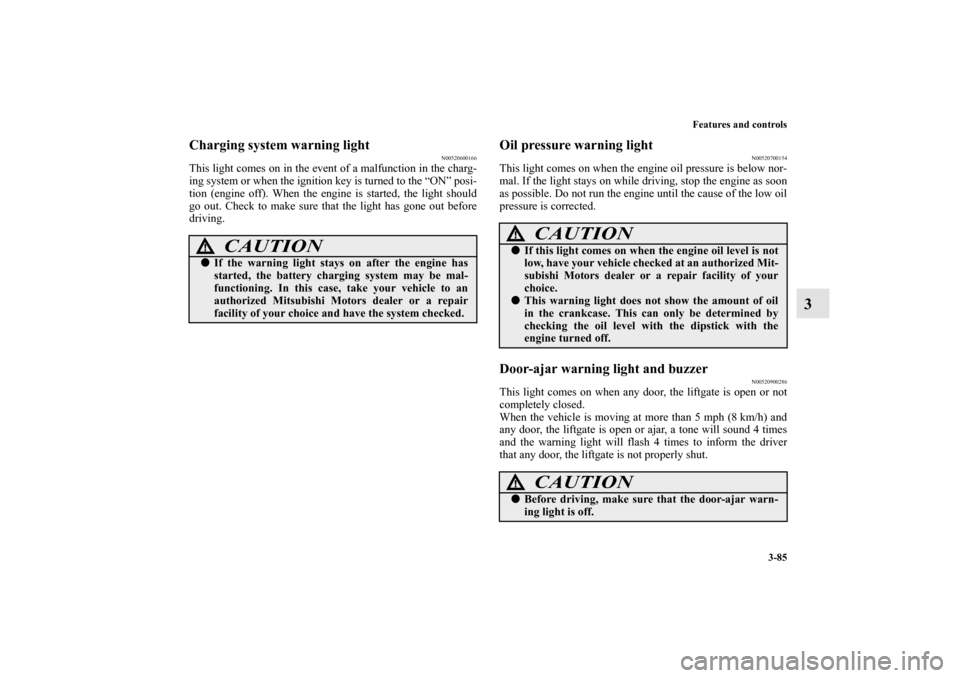

Charging system warning light
N00520600166
This light comes on in the event of a malfunction in the charg-
ing system or when the ignition key is turned to the “ON” posi-
tion (engine off). When the engine is started, the light should
go out. Check to make sure that the light has gone out before
driving.
Oil pressure warning light
N00520700154
This light comes on when the engine oil pressure is below nor-
mal. If the light stays on while driving, stop the engine as soon
as possible. Do not run the engine until the cause of the low oil
pressure is corrected.Door-ajar warning light and buzzer
N00520900286
This light comes on when any door, the liftgate is open or not
completely closed.
When the vehicle is moving at more than 5 mph (8 km/h) and
any door, the liftgate is open or ajar, a tone will sound 4 times
and the warning light will flash 4 times to inform the driver
that any door, the liftgate is not properly shut.
CAUTION
!
If the warning light stays on after the engine has
started, the battery charging system may be mal-
functioning. In this case, take your vehicle to an
authorized Mitsubishi Motors dealer or a repair
facility of your choice and have the system checked.
CAUTION
!
If this light comes on when the engine oil level is not
low, have your vehicle checked at an authorized Mit-
subishi Motors dealer or a repair facility of your
choice.
This warning light does not show the amount of oil
in the crankcase. This can only be determined by
checking the oil level with the dipstick with the
engine turned off.
CAUTION
!
Before driving, make sure that the door-ajar warn-
ing light is off.
BK0121600US.book 85 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

3-86 Features and controls
3

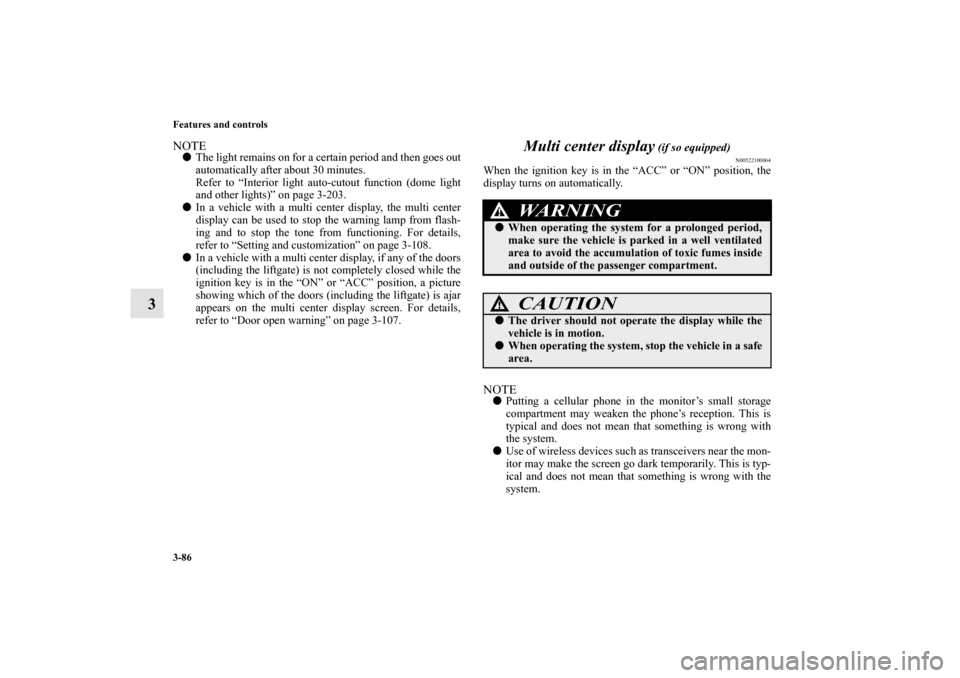

NOTE
The light remains on for a certain period and then goes out
automatically after about 30 minutes.
Refer to “Interior light auto-cutout function (dome light
and other lights)” on page 3-203.

In a vehicle with a multi center display, the multi center
display can be used to stop the warning lamp from flash-
ing and to stop the tone from functioning. For details,
refer to “Setting and customization” on page 3-108.

In a vehicle with a multi center display, if any of the doors
(including the liftgate) is not completely closed while the
ignition key is in the “ON” or “ACC” position, a picture
showing which of the doors (including the liftgate) is ajar
appears on the multi center display screen. For details,
refer to “Door open warning” on page 3-107.
Multi center display
(if so equipped)
N00522100064
When the ignition key is in the “ACC” or “ON” position, the
display turns on automatically.NOTE
Putting a cellular phone in the monitor’s small storage
compartment may weaken the phone’s reception. This is
typical and does not mean that something is wrong with
the system.

Use of wireless devices such as transceivers near the mon-
itor may make the screen go dark temporarily. This is typ-
ical and does not mean that something is wrong with the
system.
WA R N I N G
!
When operating the system for a prolonged period,
make sure the vehicle is parked in a well ventilated
area to avoid the accumulation of toxic fumes inside
and outside of the passenger compartment.
CAUTION
!
The driver should not operate the display while the
vehicle is in motion.
When operating the system, stop the vehicle in a safe
area.
BK0121600US.book 86 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

Features and controls
3-87
3

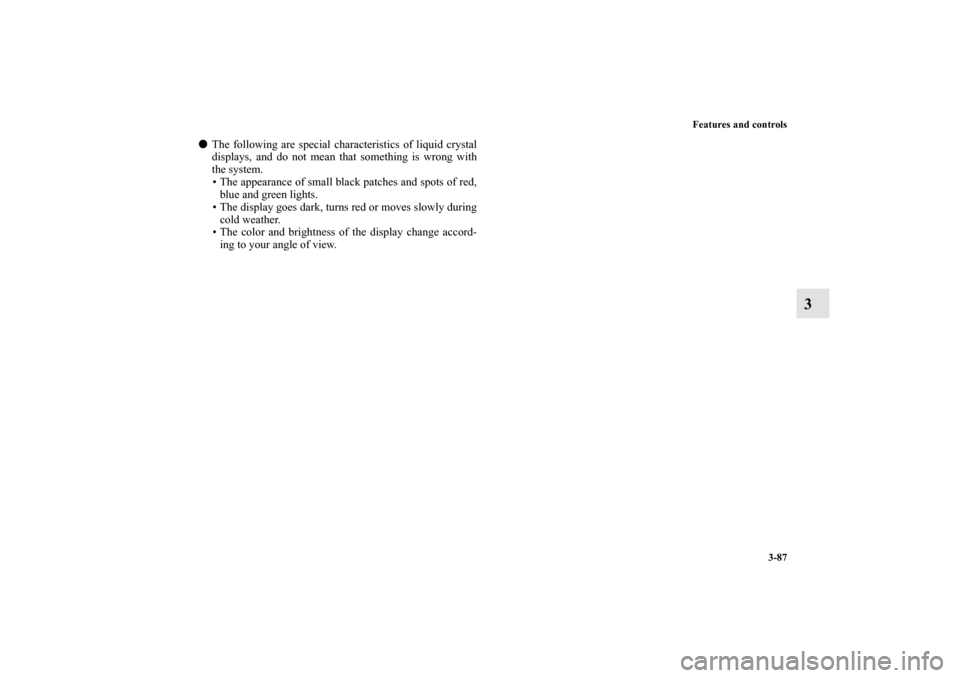

The following are special characteristics of liquid crystal
displays, and do not mean that something is wrong with
the system.
• The appearance of small black patches and spots of red,
blue and green lights.
• The display goes dark, turns red or moves slowly during
cold weather.
• The color and brightness of the display change accord-
ing to your angle of view.
BK0121600US.book 87 ページ ２０１０年４月１２日　月曜日　午前１０時３９分
