2011 MITSUBISHI ENDEAVOR Owners Manual

3-8 Features and controls
3
NOTE
If you press the LOCK button (1) after locking the doors
and the liftgate, the horn will sound once to confirm that
they are locked.To unlock Press the UNLOCK button (2) to unlock the driver’s door only.
Press the UNLOCK button one more time to unlock all the
doors and the liftgate.
When the driver’s door only or all doors and the liftgate are
unlocked with the dome light in the “DOOR” position, the
dome light will turn on for 15 seconds. The turn signal lights
will also blink twice.NOTE
In a vehicle with a multi center display, the multi center
display can be used to change the settings for unlocking
the doors with the remote control transmitter. For details,
refer to “Setting and customization” on page 3-108.Answerback function The keyless entry system answerback functions from the horn
and turn signal lights can each be turned on or off as desired.
This is done with the key removed from the ignition switch. NOTE
The answerback function is not provided when the key is
in the ignition switch.
Horn deactivation/reactivation The answerback function can be set in the following three
ways.
Each time the answerback function is set, a tone will sound to
tell you the condition of the answerback function.
1. Press the LOCK button (1) for 4 to 10 seconds and press
the UNLOCK button (2) during this time.
2. Release the LOCK and UNLOCK buttons within 10 sec-
onds of pressing the UNLOCK button in step 1.NOTE
In a vehicle with a multi center display, the multi center
display can be used to change the answerback function
provided by the horn. For details, refer to “Setting and
customization” on page 3-108.One chime: The horn will sound if the doors and the liftgate
are locked with the keyless entry system.
Two chimes: The horn will not sound, even if the doors and
the liftgate are locked with the keyless entry sys-
tem.
Three chimes: The horn will sound if the doors and the liftgate
are already locked and the keyless entry system
is used.
In this mode, the horn will only sound when the
keyless entry LOCK button is pressed again to
reconfirm that the doors and the liftgate are
locked.
BK0121600US.book 8 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

Features and controls
3-9
3
Turn signal light deactivation/reactivation The answerback function from the turn signal lights indicating
when the doors and the liftgate are locked or unlocked can be
turned on or off separately.
A tone will sound once when the function has been turned on,
and twice if it has been turned off.
To deactivate/reactivate the answerback function for lock-
ing of the doors and the liftgate, take the following steps:
1. Press the UNLOCK button (2) for 4 to 10 seconds and
press the LOCK button (1) during this time.
2. Release the LOCK button and then release the UNLOCK
button within 10 seconds of pressing the LOCK button in
step 1.
To deactivate/reactivate the answerback function for
unlocking of the doors and the liftgate, take the following
steps:
1. Press the UNLOCK button (2) for 4 to 10 seconds and
press the LOCK button (1) during this time.
2. Release the UNLOCK button and then release the LOCK
button within 10 seconds of pressing the LOCK button in
step 1.NOTE
In a vehicle with a multi center display, the multi center
display can be used to change the answerback function
provided by the turn signal lights. For details, refer to
“Setting and customization” on page 3-108.
Using the panic alarmIf you are near your vehicle and feel threatened, you may acti-
vate the alarm to call attention as follows:
1. Press the PANIC button (3) for more than 1 second.
2. The headlights will blink on and off and the horn will
sound intermittently for about 3 minutes.
3. To turn off the alarm, press any button on the remote con-
trol transmitter.NOTE
The indicator light (4) comes on each time a button is
pressed.

The keyless entry system does not work if the key is in the
ignition.

The remote control transmitter can be used from about 40
feet (12 m) away. However, this distance may change if
your vehicle is near a TV transmitting tower, a power sta-
tion, or a radio station.

If the UNLOCK button (2) is pressed when all doors and
the liftgate are closed and no doors and the liftgate are
opened within about 30 seconds, the doors and the liftgate
will automatically re-lock.
In a vehicle with a multi center display, the multi center
display can be used to change the time that elapses until
automatic relocking. For details, refer to “Setting and cus-
tomization” on page 3-108.
BK0121600US.book 9 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

3-10 Features and controls
3

If the following conditions are observed after pressing the
LOCK (1) or UNLOCK (2) button on the remote control
transmitter, the battery in the remote control transmitter
may need to be replaced.
• The doors and the liftgate cannot be locked or unlocked.
• The panic alarm cannot be operated.
• The indicator light (4) is dim or does not come on.

If you lose your remote control transmitter, please contact
an authorized Mitsubishi Motors dealer for a replacement.

If you wish to obtain an additional remote control trans-
mitter, please contact an authorized Mitsubishi Motors
dealer. A maximum of 4 remote control transmitters can
be programmed for your vehicle.
In a vehicle with a multi center display, the multi center
display can be used to confirm the number of registered
remote control transmitter. For details, refer to “Setting
and customization” on page 3-108.
NOTE
Your keyless entry system operates on a radio frequency
subject to Federal Communications Commission (FCC)
Rules (For vehicles sold in U.S.A.) and Industry Canada
Rules (For vehicles sold in Canada). This device complies
with Part 15 of the FCC Rules and RSS-210 of the Indus-
try Canada Rules.
Operation is subject to the following two conditions.
• This device may not cause harmful interference.
• This device must accept any interference received,
including interference that may cause undesired opera-
tion.
CAUTION
!
Changes or modifications not expressly approved by
the manufacturer for compliance could void the
user’s authority to operate the equipment.
BK0121600US.book 10 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

Features and controls
3-11
3
Procedure for replacing the remote control trans-
mitter battery1. With the Mitsubishi mark facing you, insert the cloth-cov-
ered tip of a flat blade screwdriver into the notch in the
remote control transmitter case and use it to open the case.NOTE
Be sure to perform the procedure with the Mitsubishi
mark facing you. If the Mitsubishi mark is not facing you
when you open the remote control transmitter case, the
buttons may come out.2. Remove the remote control transmitter from the remote
control transmitter case. Then, open the remote control
transmitter using the method described in step 1.
3. Remove the old battery.
BK0121600US.book 11 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

3-12 Features and controls
3
4. Install a new battery with the + side (A) down.
5. Close the remote control transmitter firmly.
6. Place the remote control transmitter in the remote control
transmitter case, then securely close the remote control
transmitter case.
7. Check the keyless entry system to see that it works. NOTE
You may purchase a replacement battery at an electric
appliance store.

Your authorized Mitsubishi Motors dealer can replace the
battery for you if you prefer.
+ side
- side
Coin type battery CR1620
CAUTION
!
When the remote control transmitter case is opened,
be careful to keep water, dust, etc. out. Also, do not
touch the internal components.
BK0121600US.book 12 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

Features and controls
3-13

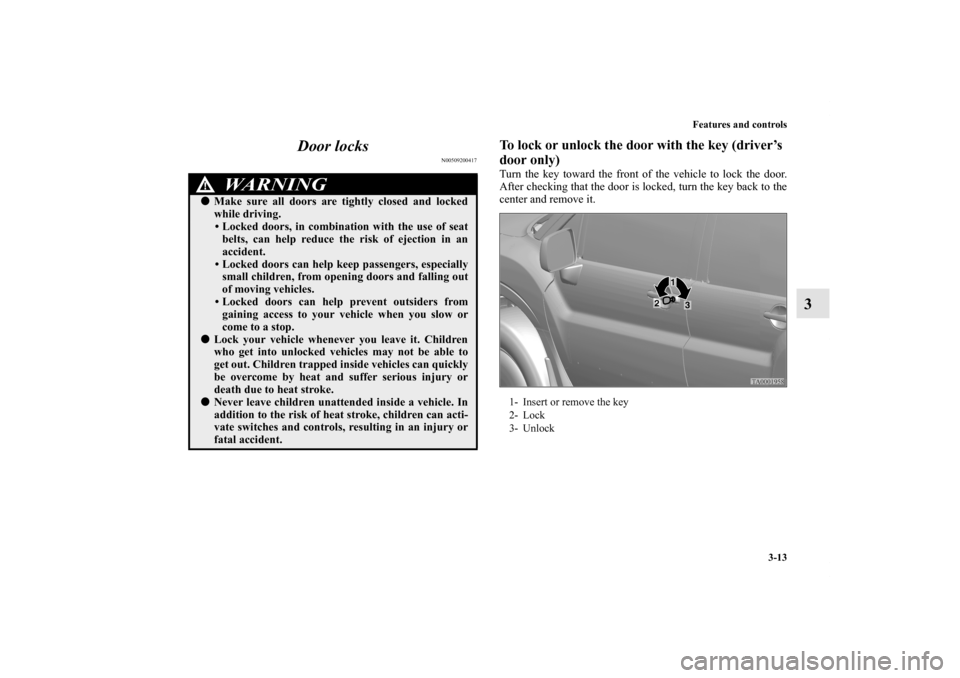

3 Door locks
N00509200417
To lock or unlock the door with the key (driver’s
door only)Turn the key toward the front of the vehicle to lock the door.
After checking that the door is locked, turn the key back to the
center and remove it.
WA R N I N G
!
Make sure all doors are tightly closed and locked
while driving.
• Locked doors, in combination with the use of seat
belts, can help reduce the risk of ejection in an
accident.
• Locked doors can help keep passengers, especially
small children, from opening doors and falling out
of moving vehicles.
• Locked doors can help prevent outsiders from
gaining access to your vehicle when you slow or
come to a stop.

Lock your vehicle whenever you leave it. Children
who get into unlocked vehicles may not be able to
get out. Children trapped inside vehicles can quickly
be overcome by heat and suffer serious injury or
death due to heat stroke.
Never leave children unattended inside a vehicle. In
addition to the risk of heat stroke, children can acti-
vate switches and controls, resulting in an injury or
fatal accident.
1- Insert or remove the key
2- Lock
3- Unlock
BK0121600US.book 13 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

3-14 Features and controls
3

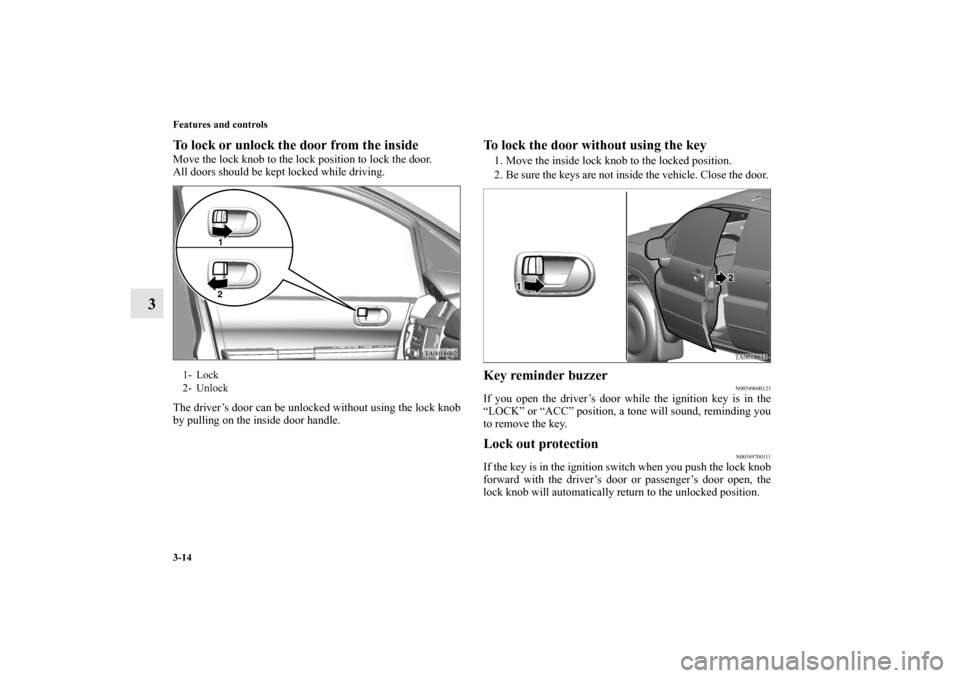

To lock or unlock the door from the inside Move the lock knob to the lock position to lock the door.
All doors should be kept locked while driving.
The driver’s door can be unlocked without using the lock knob
by pulling on the inside door handle.
To lock the door without using the key 1. Move the inside lock knob to the locked position.
2. Be sure the keys are not inside the vehicle. Close the door. Key reminder buzzer
N00549600123
If you open the driver’s door while the ignition key is in the
“LOCK” or “ACC” position, a tone will sound, reminding you
to remove the key. Lock out protection
N00549700111
If the key is in the ignition switch when you push the lock knob
forward with the driver’s door or passenger’s door open, the
lock knob will automatically return to the unlocked position.
1- Lock
2- Unlock
BK0121600US.book 14 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

Features and controls
3-15

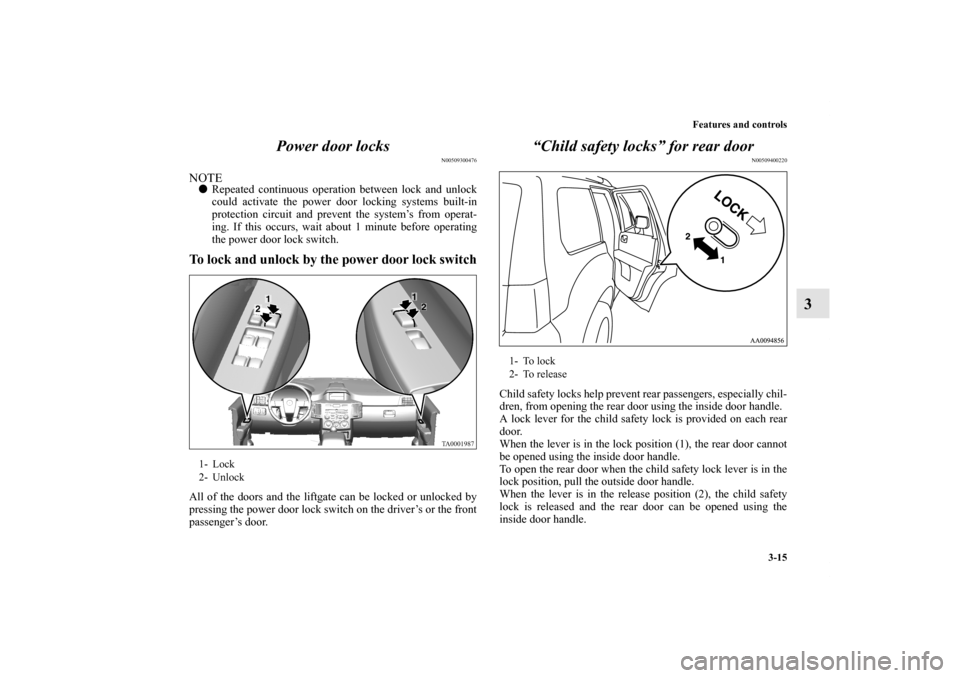

3 Power door locks
N00509300476
NOTE
Repeated continuous operation between lock and unlock
could activate the power door locking systems built-in
protection circuit and prevent the system’s from operat-
ing. If this occurs, wait about 1 minute before operating
the power door lock switch.To lock and unlock by the power door lock switchAll of the doors and the liftgate can be locked or unlocked by
pressing the power door lock switch on the driver’s or the front
passenger’s door.
“Child safety locks” for rear door
N00509400220
Child safety locks help prevent rear passengers, especially chil-
dren, from opening the rear door using the inside door handle.
A lock lever for the child safety lock is provided on each rear
door.
When the lever is in the lock position (1), the rear door cannot
be opened using the inside door handle.
To open the rear door when the child safety lock lever is in the
lock position, pull the outside door handle.
When the lever is in the release position (2), the child safety
lock is released and the rear door can be opened using the
inside door handle.
1- Lock
2- Unlock
1- To lock
2- To release
