2011 MITSUBISHI ENDEAVOR Owners Manual

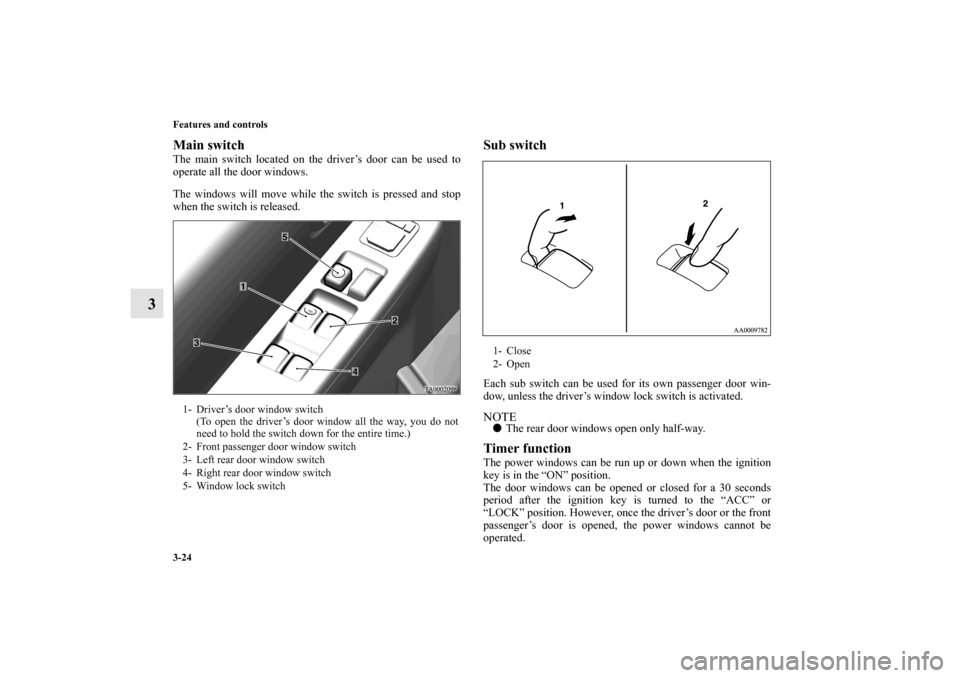

3-24 Features and controls
3
Main switchThe main switch located on the driver’s door can be used to
operate all the door windows.
The windows will move while the switch is pressed and stop
when the switch is released.
Sub switchEach sub switch can be used for its own passenger door win-
dow, unless the driver’s window lock switch is activated. NOTE
The rear door windows open only half-way.Timer functionThe power windows can be run up or down when the ignition
key is in the “ON” position.
The door windows can be opened or closed for a 30 seconds
period after the ignition key is turned to the “ACC” or
“LOCK” position. However, once the driver’s door or the front
passenger’s door is opened, the power windows cannot be
operated.
1- Driver’s door window switch
(To open the driver’s door window all the way, you do not
need to hold the switch down for the entire time.)
2- Front passenger door window switch
3- Left rear door window switch
4- Right rear door window switch
5- Window lock switch
1- Close
2- Open
BK0121600US.book 24 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

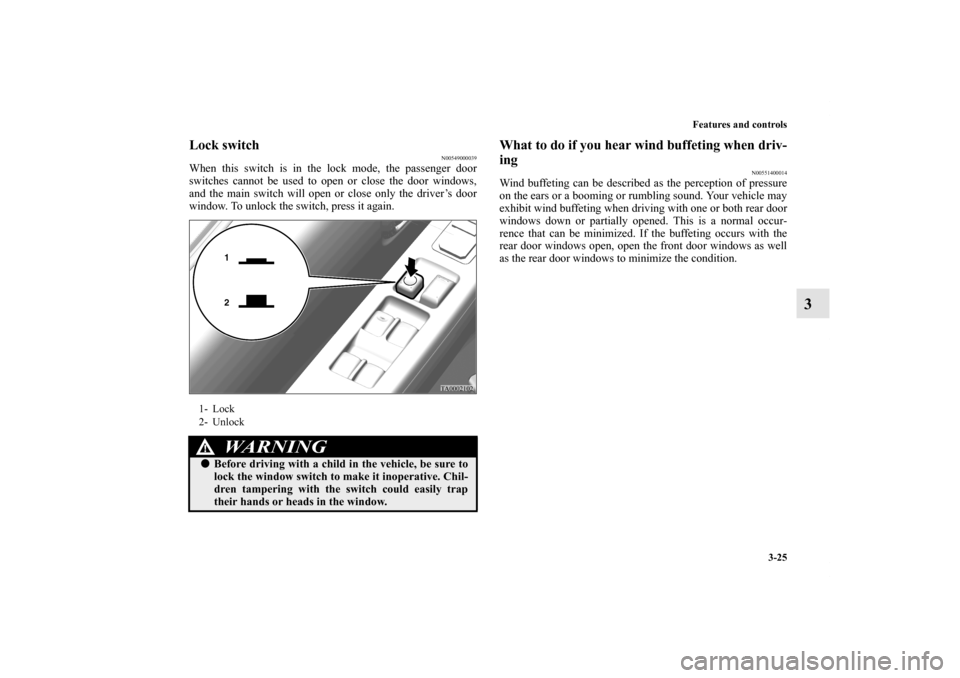

Features and controls
3-25
3
Lock switch
N00549000039
When this switch is in the lock mode, the passenger door
switches cannot be used to open or close the door windows,
and the main switch will open or close only the driver’s door
window. To unlock the switch, press it again.
What to do if you hear wind buffeting when driv-
ing
N00551400014
Wind buffeting can be described as the perception of pressure
on the ears or a booming or rumbling sound. Your vehicle may
exhibit wind buffeting when driving with one or both rear door
windows down or partially opened. This is a normal occur-
rence that can be minimized. If the buffeting occurs with the
rear door windows open, open the front door windows as well
as the rear door windows to minimize the condition.
1- Lock
2- Unlock
WA R N I N G
!
Before driving with a child in the vehicle, be sure to
lock the window switch to make it inoperative. Chil-
dren tampering with the switch could easily trap
their hands or heads in the window.
BK0121600US.book 25 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

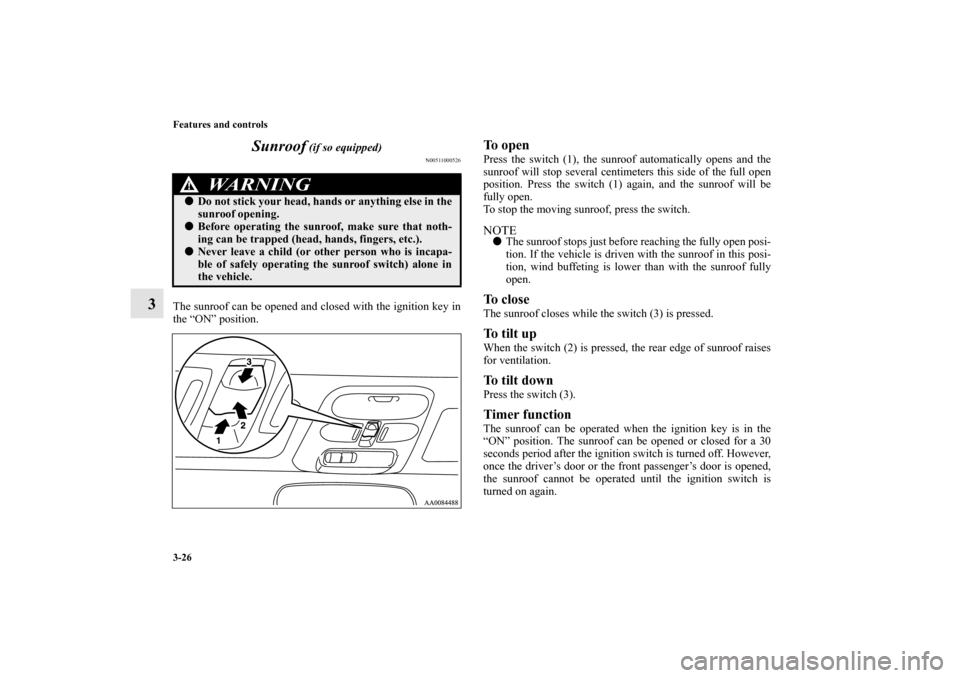

3-26 Features and controls
3Sunroof
(if so equipped)
N00511000526
The sunroof can be opened and closed with the ignition key in
the “ON” position.
To open Press the switch (1), the sunroof automatically opens and the
sunroof will stop several centimeters this side of the full open
position. Press the switch (1) again, and the sunroof will be
fully open.
To stop the moving sunroof, press the switch. NOTE
The sunroof stops just before reaching the fully open posi-
tion. If the vehicle is driven with the sunroof in this posi-
tion, wind buffeting is lower than with the sunroof fully
open.To closeThe sunroof closes while the switch (3) is pressed.To tilt up When the switch (2) is pressed, the rear edge of sunroof raises
for ventilation. To tilt down Press the switch (3). Timer functionThe sunroof can be operated when the ignition key is in the
“ON” position. The sunroof can be opened or closed for a 30
seconds period after the ignition switch is turned off. However,
once the driver’s door or the front passenger’s door is opened,
the sunroof cannot be operated until the ignition switch is
turned on again.
WA R N I N G
!
Do not stick your head, hands or anything else in the
sunroof opening.
Before operating the sunroof, make sure that noth-
ing can be trapped (head, hands, fingers, etc.).
Never leave a child (or other person who is incapa-
ble of safely operating the sunroof switch) alone in
the vehicle.
BK0121600US.book 26 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

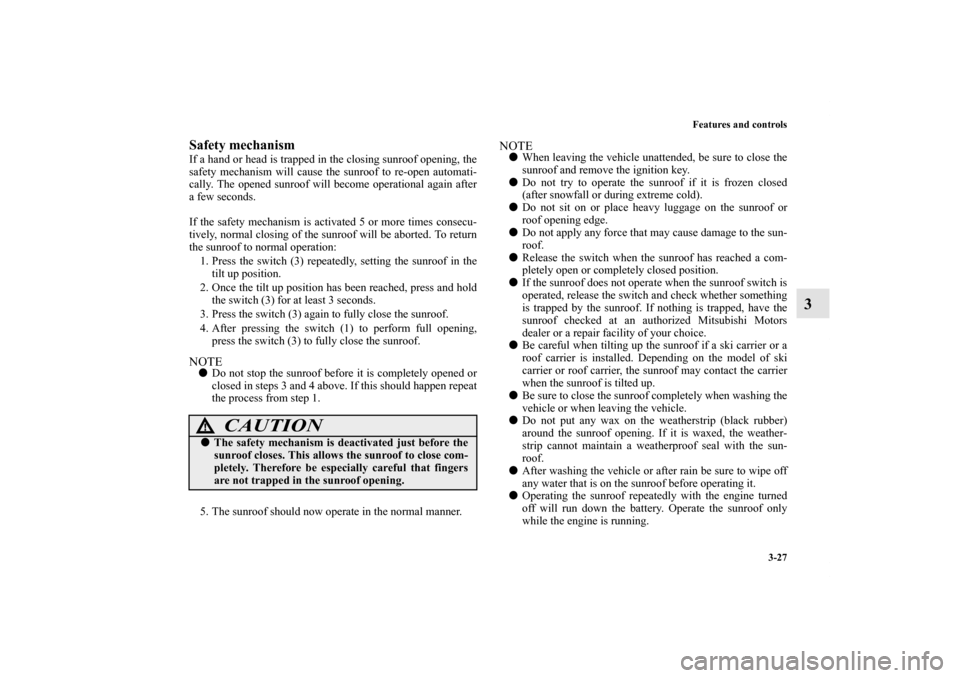

Features and controls
3-27
3
Safety mechanismIf a hand or head is trapped in the closing sunroof opening, the
safety mechanism will cause the sunroof to re-open automati-
cally. The opened sunroof will become operational again after
a few seconds.
If the safety mechanism is activated 5 or more times consecu-
tively, normal closing of the sunroof will be aborted. To return
the sunroof to normal operation:
1. Press the switch (3) repeatedly, setting the sunroof in the
tilt up position.
2. Once the tilt up position has been reached, press and hold
the switch (3) for at least 3 seconds.
3. Press the switch (3) again to fully close the sunroof.
4. After pressing the switch (1) to perform full opening,
press the switch (3) to fully close the sunroof.NOTE
Do not stop the sunroof before it is completely opened or
closed in steps 3 and 4 above. If this should happen repeat
the process from step 1.
5. The sunroof should now operate in the normal manner.
NOTE
When leaving the vehicle unattended, be sure to close the
sunroof and remove the ignition key.

Do not try to operate the sunroof if it is frozen closed
(after snowfall or during extreme cold).

Do not sit on or place heavy luggage on the sunroof or
roof opening edge.

Do not apply any force that may cause damage to the sun-
roof.

Release the switch when the sunroof has reached a com-
pletely open or completely closed position.

If the sunroof does not operate when the sunroof switch is
operated, release the switch and check whether something
is trapped by the sunroof. If nothing is trapped, have the
sunroof checked at an authorized Mitsubishi Motors
dealer or a repair facility of your choice.

Be careful when tilting up the sunroof if a ski carrier or a
roof carrier is installed. Depending on the model of ski
carrier or roof carrier, the sunroof may contact the carrier
when the sunroof is tilted up.

Be sure to close the sunroof completely when washing the
vehicle or when leaving the vehicle.

Do not put any wax on the weatherstrip (black rubber)
around the sunroof opening. If it is waxed, the weather-
strip cannot maintain a weatherproof seal with the sun-
roof.

After washing the vehicle or after rain be sure to wipe off
any water that is on the sunroof before operating it.

Operating the sunroof repeatedly with the engine turned
off will run down the battery. Operate the sunroof only
while the engine is running.
CAUTION
!
The safety mechanism is deactivated just before the
sunroof closes. This allows the sunroof to close com-
pletely. Therefore be especially careful that fingers
are not trapped in the sunroof opening.
BK0121600US.book 27 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

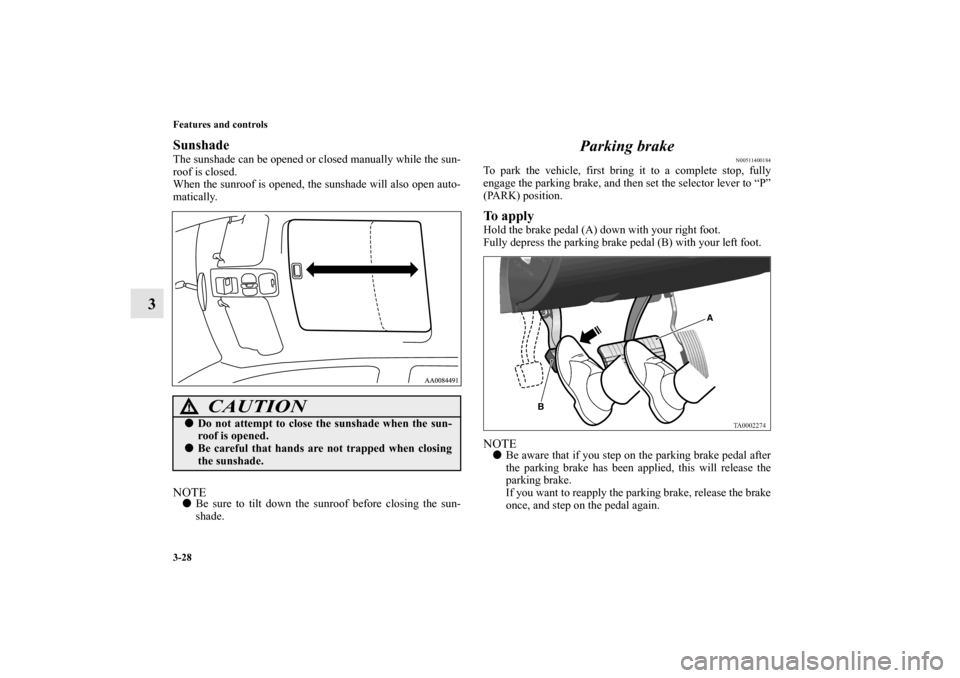

3-28 Features and controls
3
SunshadeThe sunshade can be opened or closed manually while the sun-
roof is closed.
When the sunroof is opened, the sunshade will also open auto-
matically.NOTE
Be sure to tilt down the sunroof before closing the sun-
shade.
Parking brake
N00511400184
To park the vehicle, first bring it to a complete stop, fully
engage the parking brake, and then set the selector lever to “P”
(PARK) position.To applyHold the brake pedal (A) down with your right foot.
Fully depress the parking brake pedal (B) with your left foot.NOTE
Be aware that if you step on the parking brake pedal after
the parking brake has been applied, this will release the
parking brake.
If you want to reapply the parking brake, release the brake
once, and step on the pedal again.
CAUTION
!
Do not attempt to close the sunshade when the sun-
roof is opened.
Be careful that hands are not trapped when closing
the sunshade.
BK0121600US.book 28 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

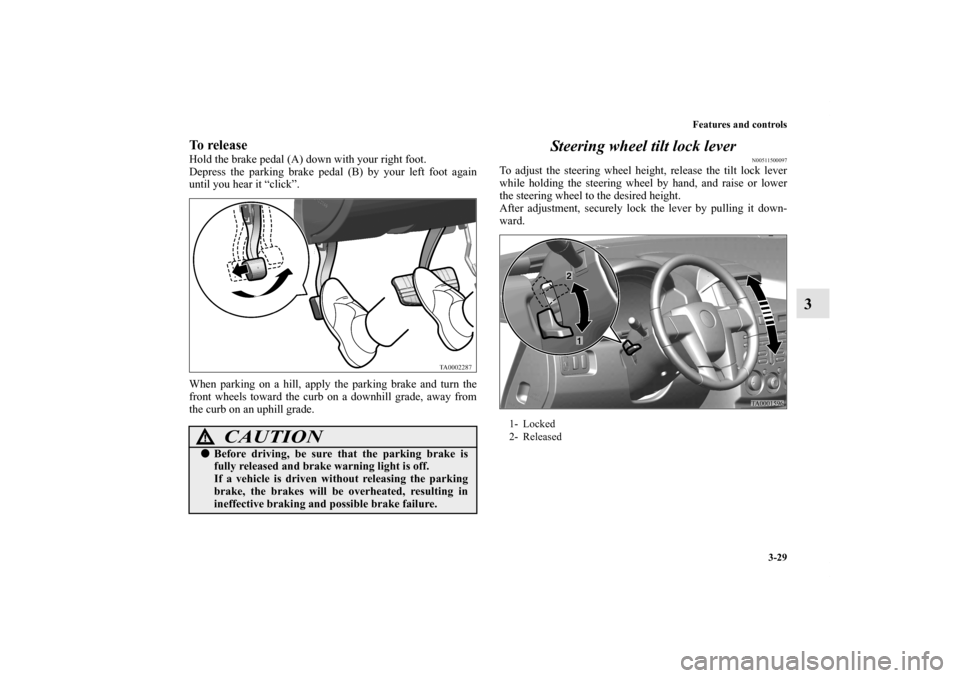

Features and controls
3-29
3
To releaseHold the brake pedal (A) down with your right foot.
Depress the parking brake pedal (B) by your left foot again
until you hear it “click”.
When parking on a hill, apply the parking brake and turn the
front wheels toward the curb on a downhill grade, away from
the curb on an uphill grade.
Steering wheel tilt lock lever
N00511500097
To adjust the steering wheel height, release the tilt lock lever
while holding the steering wheel by hand, and raise or lower
the steering wheel to the desired height.
After adjustment, securely lock the lever by pulling it down-
ward.
CAUTION
!
Before driving, be sure that the parking brake is
fully released and brake warning light is off.
If a vehicle is driven without releasing the parking
brake, the brakes will be overheated, resulting in
ineffective braking and possible brake failure.
1- Locked
2- Released
BK0121600US.book 29 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

3-30 Features and controls
3Inside day/night rearview mirror
N00511600216
Adjust the inside rearview mirror only after making any seat
adjustments so as to have a clear view to the rear of the vehicle.
WA R N I N G
!
After adjusting, make sure the lock lever is secured
in the locked (1) position.
Do not attempt to adjust the steering wheel while
driving. This can be dangerous.
When releasing the tilt lock lever {moving it to the
position (2)}, be sure to hold the steering wheel
firmly. Otherwise, the steering wheel may slip down
too suddenly.
WA R N I N G
!
Do not attempt to adjust the inside rearview mirror
while driving. This can be dangerous.
Be sure to adjust the mirror before driving.
BK0121600US.book 30 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

Features and controls
3-31
3
Adjust the inside mirror to maximize the view through the rear
window.To adjust the vertical mirror positionIt is possible to move the mirror up and down to adjust its posi-
tion.
To reduce the glareThe day/night knob (A) at the bottom of the mirror can be used
to adjust the mirror to reduce the glare from the headlights of
vehicles behind you during night driving.1- Daytime position
2- Night position
