Features and controls
3-43
3

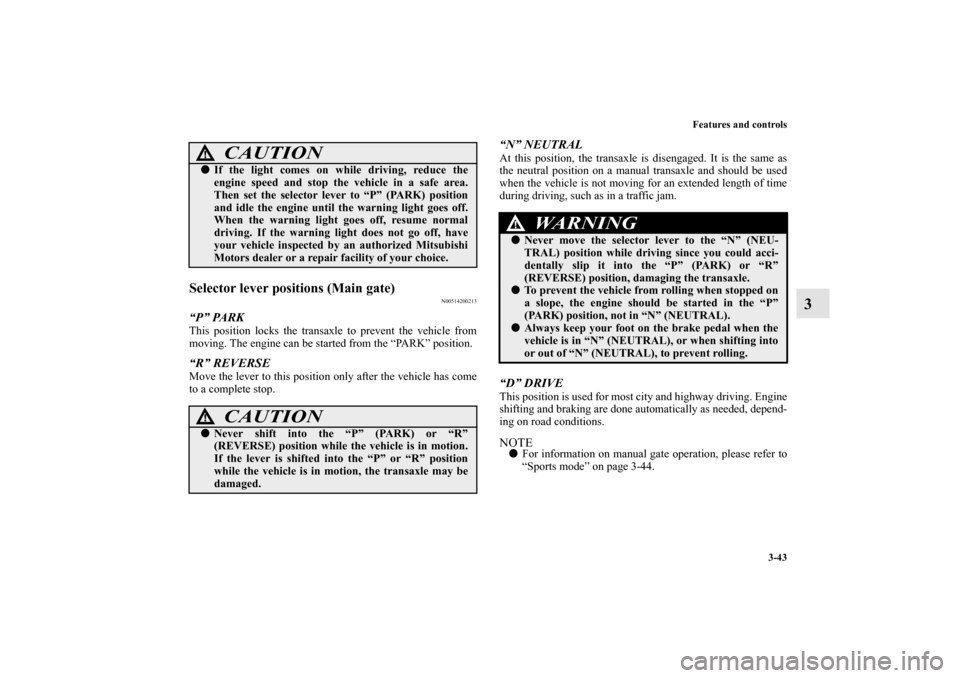

Selector lever positions (Main gate)
N00514200213
“P” PARKThis position locks the transaxle to prevent the vehicle from
moving. The engine can be started from the “PARK” position.“R” REVERSEMove the lever to this position only after the vehicle has come
to a complete stop.
“N” NEUTRALAt this position, the transaxle is disengaged. It is the same as
the neutral position on a manual transaxle and should be used
when the vehicle is not moving for an extended length of time
during driving, such as in a traffic jam.“D” DRIVEThis position is used for most city and highway driving. Engine
shifting and braking are done automatically as needed, depend-
ing on road conditions.NOTE
For information on manual gate operation, please refer to
“Sports mode” on page 3-44.
CAUTION
!
If the light comes on while driving, reduce the
engine speed and stop the vehicle in a safe area.
Then set the selector lever to “P” (PARK) position
and idle the engine until the warning light goes off.
When the warning light goes off, resume normal
driving. If the warning light does not go off, have
your vehicle inspected by an authorized Mitsubishi
Motors dealer or a repair facility of your choice.
CAUTION
!
Never shift into the “P” (PARK) or “R”
(REVERSE) position while the vehicle is in motion.
If the lever is shifted into the “P” or “R” position
while the vehicle is in motion, the transaxle may be
damaged.
WA R N I N G
!
Never move the selector lever to the “N” (NEU-
TRAL) position while driving since you could acci-
dentally slip it into the “P” (PARK) or “R”
(REVERSE) position, damaging the transaxle.
To prevent the vehicle from rolling when stopped on
a slope, the engine should be started in the “P”
(PARK) position, not in “N” (NEUTRAL).
Always keep your foot on the brake pedal when the
vehicle is in “N” (NEUTRAL), or when shifting into
or out of “N” (NEUTRAL), to prevent rolling.
BK0121600US.book 43 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

Comfort controls
5-67
5

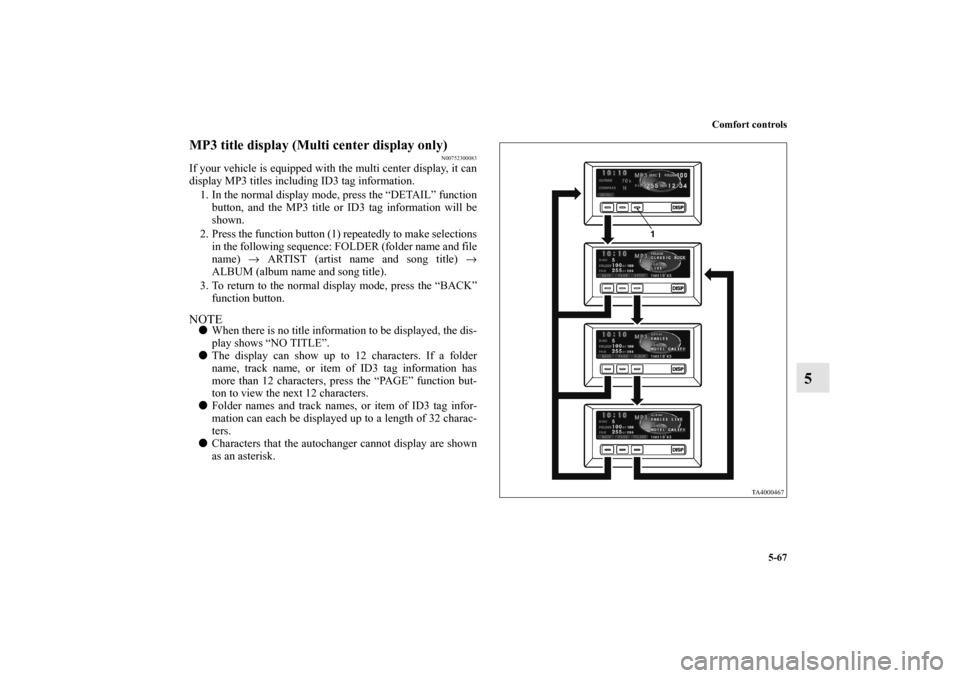

MP3 title display (Multi center display only)
N00752300083
If your vehicle is equipped with the multi center display, it can
display MP3 titles including ID3 tag information.
1. In the normal display mode, press the “DETAIL” function
button, and the MP3 title or ID3 tag information will be
shown.
2. Press the function button (1) repeatedly to make selections
in the following sequence: FOLDER (folder name and file
name) → ARTIST (artist name and song title) →
ALBUM (album name and song title).
3. To return to the normal display mode, press the “BACK”
function button.NOTE
When there is no title information to be displayed, the dis-
play shows “NO TITLE”.

The display can show up to 12 characters. If a folder
name, track name, or item of ID3 tag information has
more than 12 characters, press the “PAGE” function but-
ton to view the next 12 characters.

Folder names and track names, or item of ID3 tag infor-
mation can each be displayed up to a length of 32 charac-
ters.

Characters that the autochanger cannot display are shown
as an asterisk.
BK0121600US.book 67 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

Vehicle care and maintenance
7-15

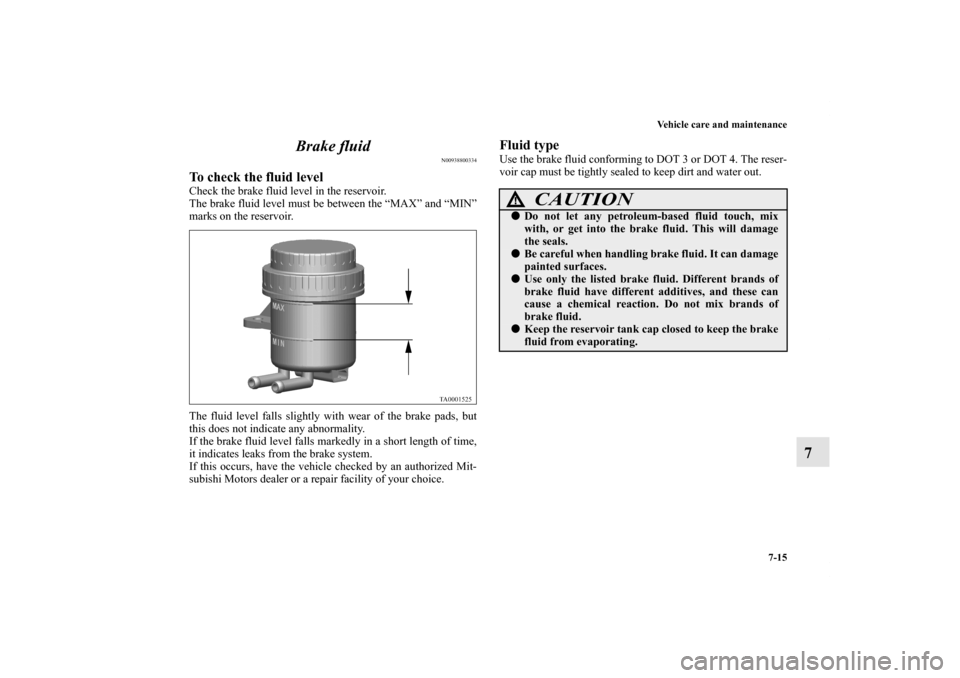

7 Brake fluid
N00938800334
To check the fluid levelCheck the brake fluid level in the reservoir.
The brake fluid level must be between the “MAX” and “MIN”
marks on the reservoir.
The fluid level falls slightly with wear of the brake pads, but
this does not indicate any abnormality.
If the brake fluid level falls markedly in a short length of time,
it indicates leaks from the brake system.
If this occurs, have the vehicle checked by an authorized Mit-
subishi Motors dealer or a repair facility of your choice.
Fluid typeUse the brake fluid conforming to DOT 3 or DOT 4. The reser-
voir cap must be tightly sealed to keep dirt and water out.
CAUTION
!
Do not let any petroleum-based fluid touch, mix
with, or get into the brake fluid. This will damage
the seals.
Be careful when handling brake fluid. It can damage
painted surfaces.
Use only the listed brake fluid. Different brands of
brake fluid have different additives, and these can
cause a chemical reaction. Do not mix brands of
brake fluid.
Keep the reservoir tank cap closed to keep the brake
fluid from evaporating.
BK0121600US.book 15 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

9-4 Specifications
9
Certification label
N01148200138
The certification label is located on the inside sill of the
driver’s door.
Vehicle dimensions
N01147500437
*1: Vehicles with 17 inch tires
*2: Vehicles with 18 inch tiresOverall length 190.8 in (4,846 mm) Overall width 73.6 in (1,870 mm)*
1
74.2 in (1,885 mm)*
2
Overall height
Without cross bars69.6 in (1,769 mm)*
1,
69.8 in (1,774 mm)*2
With cross bars 70.4 in (1,789 mm)
Wheel base 108.3 in (2,750 mm)
