2010 INFINITI FX Owners Manual

Main power window switch (driver’s
side)
1. Driver side window
2. Front passenger side window
3. Rear left passenger side window
4. Rear right passenger side window
5. Window lock button
To open or close the window, push downAor
pull up
Bthe switch and hold it. The main
switch (driver side switches) will open or close
all the windows.
Locking passengers’ windows
When the lock buttonCis pushed in, only the
driver side window can be opened or closed.
Push it in again to cancel.
Passenger side power window switch
The passenger side switch will open or close
only the corresponding window. To open or
close the window, push down or pull up the
switch and hold it.
SIC3640SIC3241
2-54Instruments and controls
—
—
07/30/09—pattie


Automatic operation (for front door
windows or all door windows)
To fully open or close the window, completely
push down or pull up the switch and release it;
it need not be held. The window will automati-
cally open or close all the way. To stop the
window, just push or lift the switch in the
opposite direction.
A light push or pull on the switch will cause the
window to open or close until the switch is
released.
Auto reverse function
WARNING
There are some small distances immediately
before the closed position which cannot be de-
tected. Make sure that all passengers have
their hands, etc., inside the vehicle before clos-
ing the window.
If the control unit detects something caught in
the window as it is closing, the window will be
immediately lowered.
The auto reverse function can be activated when
the window is closed by automatic operation
when the ignition switch is in the ON position or
for 45 seconds after the ignition switch is
pushed to the OFF position.
Depending on the environment or driving condi-
tions, the auto reverse function may be activated
if an impact or load similar to something being
caught in the window occurs.
If the windows do not close
automatically
If the power window automatic function (closing
only) does not operate properly, perform the
following procedure to initialize the power win-
dow system.
1. Push the ignition switch to the ON posi- tion.
2. Close the door.
3. Open the window more than halfway by operating the power window switch.
4. Pull the power window switch and hold it to close the window, and then hold the
switch more than 3 seconds after the
window is closed completely.
5. Release the power window switch. Oper- ate the window by the automatic function
to confirm the initialization is complete.
6. Perform steps 2 through 5 above for other windows.
If the power window automatic function does
not operate properly after performing the pro-
cedure above, have your vehicle checked by an
INFINITI retailer.
SIC3285
Instruments and controls2-55
—
—
07/30/09—pattie


WARNING
●In an accident you could be thrown from the
vehicle through an open moonroof. Always
use seat belts and child restraints.
● Do not allow anyone to stand up or extend
any portion of their body out of the moonroof
opening while the vehicle is in motion or
while the moonroof is closing.
CAUTION
● Remove water drops, snow, ice or sand from
the moonroof before opening.
● Do not place any heavy object on the moon-
roof or surrounding area.
AUTOMATIC MOONROOF
The moonroof only operates when the ignition
switch is in the ON position.
The automatic moonroof is operational for
about 45 seconds, even if the ignition switch is
pushed to the OFF position. If the driver’s door
or the passenger’s door is opened during this
period of about 45 seconds, power to the
moonroof is canceled.
Sunshade
The sunshade will open automatically when the
moonroof is opened. However, it must be
closed manually.
Tilting the moonroof
To tilt up, first close the moonroof, then push
the UP
1side of the moonroof switch and
release it; it need not be held. To tilt down the
moonroof, push the DOWN
2side.
Sliding the moonroof
To fully open or close the moonroof, push the
OPEN
2or CLOSE1side of the moonroof
switch and release it; it need not be held. The
roof will automatically open or close all the way. To stop the roof, push the switch once more
while it is opening or closing.
Auto reverse function
WARNING
There are some small distances immediately
before the closed position which cannot be de-
tected. Make sure that all passengers have
their hands, etc., inside the vehicle before clos-
ing the moonroof.
If the control unit detects something caught in
the moonroof when it is closing, the moonroof
will be immediately opened.
The auto reverse function can be activated when
the moonroof is closed by automatic operation
when the ignition switch is in the ON position or
for about 45 seconds after the ignition switch is
pushed to the OFF position.
If the moonroof cannot be closed automatically
when the auto reverse function activates due to
a malfunction, push and hold the CLOSE
1
side of the moonroof switch.
Depending on the environment or driving condi-
tions, the auto reverse function may be activated
if an impact or load similar to something being
caught in the moonroof occurs.
SIC3243
MOONROOF
2-56Instruments and controls
—
—
07/30/09—pattie


If the moonroof does not operate
If the moonroof does not operate properly,
perform the following procedure to initialize the
moonroof operation system.
1. If the moonroof is open, close it fully byrepeatedly pushing the CLOSE
1side of
the moonroof switch.
2. Push and hold the CLOSE
1side of the
moonroof switch to tilt the moonroof up.
3. Release the moonroof switch after the moonroof moves slightly up and down.
4. Push and hold the OPEN
2side of the
moonroof switch to fully tilt the moonroof
down.
5. Check if the moonroof switch operates normally.
If the moonroof does not operate properly after
performing the procedure above, have your
vehicle checked by an INFINITI retailer. To activate or deactivate the welcome light
function, perform the following procedure. Note
that the function is set to disabled as the
factory default setting.1. Push the ignition switch to the ON posi-
tion.
2. Open the driver’s side door.
3. Push the door handle request switch on the driver’s side door handle for more
than 5 seconds with the driver’s door
open.
4. A chime sounds when the setting is com- pleted.
Once the welcome light function is active, the
puddle light
Aand the passenger cabin illu- mination will illuminate when you approach the
vehicle with the Intelligent Key (within approxi-
mately 3.3 feet (1 m) of the antenna built inside
the door handles) and the following conditions
are met.
●
All doors are closed and locked.
● The ignition switch is in the LOCK or OFF
position.
● The Intelligent Key is outside the vehicle.
● The puddle light operates within a set dura-
tion.
The welcome light function will be deactivated
automatically if it does not operate within a set
duration to prevent battery discharge. Note that
the duration is set to 14 days as the factory
default setting. An INFINITI retailer can custom-
ize the set duration from 1 to 14 days. Contact
an INFINITI retailer for details.
SIC3642
WELCOME LIGHT
Instruments and controls2-57
—
—
07/30/09—pattie

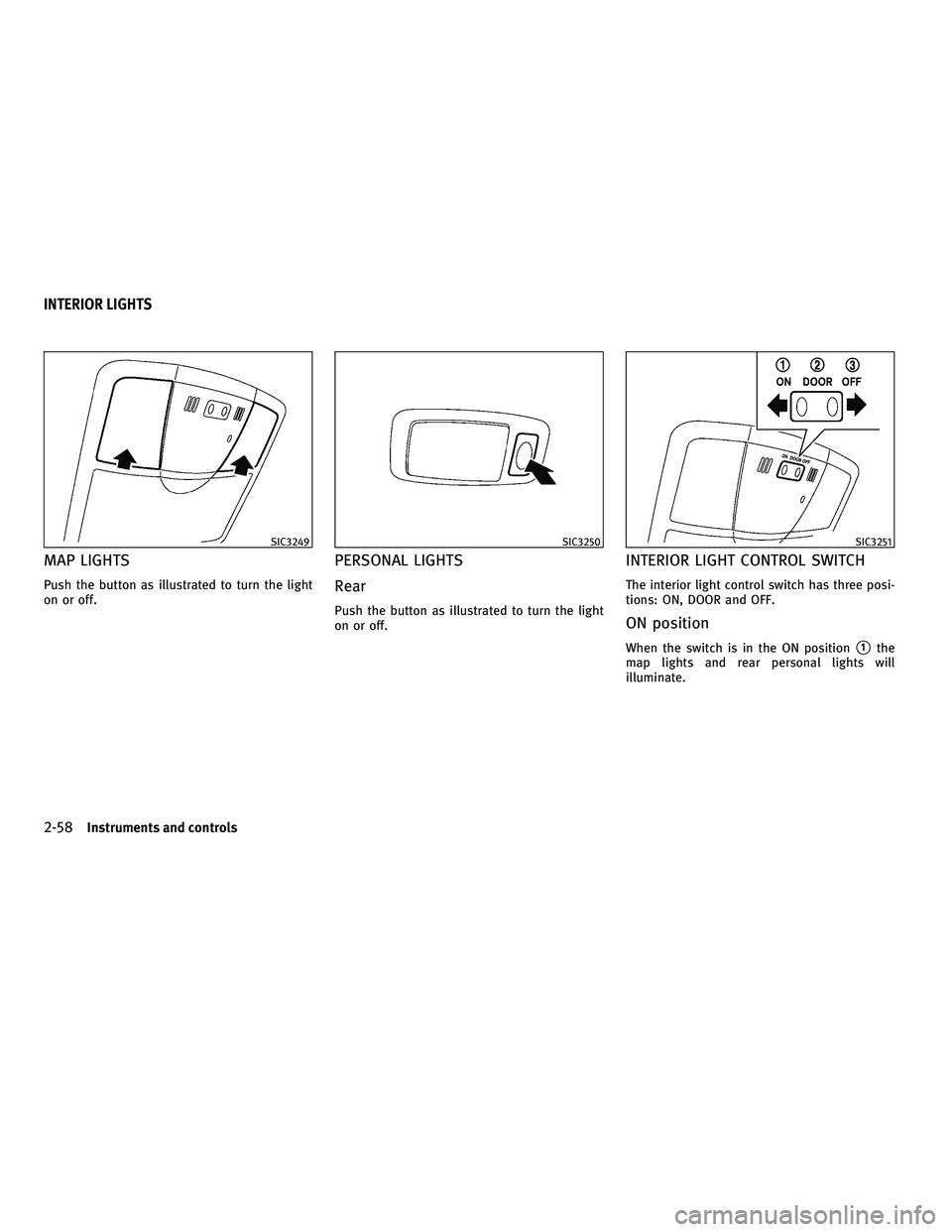

MAP LIGHTS
Push the button as illustrated to turn the light
on or off.
PERSONAL LIGHTS
Rear
Push the button as illustrated to turn the light
on or off.
INTERIOR LIGHT CONTROL SWITCH
The interior light control switch has three posi-
tions: ON, DOOR and OFF.
ON position
When the switch is in the ON position1the
map lights and rear personal lights will
illuminate.
SIC3249SIC3250SIC3251
INTERIOR LIGHTS
2-58Instruments and controls
—
—
07/30/09—pattie


DOOR position
When the switch is in the DOOR position2, the
map lights and rear personal lights will illumi-
nate under the following conditions:
● ignition switch is switched to the LOCK
position
– remain on for about 15 seconds.
● doors are unlocked by pushing the UNLOCK
button on the Intelligent Key or door handle
request switch with the ignition switch in the
LOCK position
– remain on for about 15 seconds.
● any door is opened and then closed with the
ignition switch in the LOCK position
– remain on for about 15 seconds.
● any door is opened with the ignition switch
in the ACC or ON position
– remain on while the door is opened. When the door is closed, the lights go off.
The lights will also turn off after 30 minutes
when the lights remain illuminated after the ig-
nition switch has been pushed to the OFF or
LOCK position to prevent the battery from be-
coming discharged. When the auto interior illumination is set to the
OFF position (see “VEHICLE INFORMATION AND
SETTINGS” in the “4. Monitor, climate, audio,
phone and voice recognition systems” section),
the lights will illuminate under the following
condition:
●
any door is opened with the ignition switch
in any position
– remain on while the door is opened. When the door is closed, the lights go off.
OFF position
When the switch is in the OFF position3, the
lights will not illuminate, regardless of the
condition.
CAUTION
Do not use for extended periods of time with
the engine stopped. This could result in a dis-
charged battery. The light on the vanity mirror will turn on when
the cover on the vanity mirror is opened.
When the cover is closed, the light will turn off.
The lights will also turn off after 30 minutes
when the lights remain illuminated to prevent
the battery from becoming discharged.
SIC3869
VANITY MIRROR LIGHTS
Instruments and controls2-59
—
—
07/30/09—pattie


When the switch is in the DOOR positionA, the
light illuminates while the lift gate is opened.
When the lift gate is closed, the light will turn
off.
When the switch is in the OFF position
B, the
light will turn off.
The light will turn off after 30 minutes when the
lights remain illuminated to prevent the battery
from becoming discharged. HomeLink
Universal Transceiver provides a
convenient way to consolidate the functions of
up to three individual hand-held transmitters
into one built-in device.
HomeLink Universal Transceiver:
● Will operate most Radio Frequency (RF) de-
vices such as garage doors, gates, home and
office lighting, entry door locks and security
systems.
● Is powered by your vehicle’s battery. No
separate batteries are required. If the vehi-
cle’s battery is discharged or is discon-
nected, HomeLink will retain all program-
ming.
Once HomeLink Universal Transceiver is pro-
grammed, retain the original transmitter for fu-
ture programming procedures (Example: new ve-
hicle purchases). Upon sale of the vehicle, the
programmed HomeLink Universal Transceiver
buttons should be erased for security purposes.
For additional information, see “PROGRAMMING
HomeLink” later in this section.
WARNING
● Do not use HomeLink Universal Transceiver
with any garage door opener that lacks
safety stop and reverse features as required
by federal safety standards. (These stan-
dards became effective for opener models
manufactured after April 1, 1982.) A garage
door opener which cannot detect an object in
the path of a closing garage door and then
automatically stop and reverse, does not
meet current federal safety standards. Using
a garage door opener without these features
increases the risk of serious injury or death.
● During programming procedure, your garage
door or security gate may open or close.
Make sure that people and objects are clear
of the garage door, gate, etc. that you are
programming.
● Your vehicle’s engine should be turned off
while programming HomeLink Universal
Transceiver.
SIC2925
CARGO LIGHT HOMELINKUNIVERSAL TRANSCEIVER
2-60Instruments and controls
—
—
07/30/09—pattie


PROGRAMMING HOMELINK
To program your HomeLinkUniversal Trans-
ceiver to operate a garage door, gate, or entry
door opener, home or office lighting, you need
to be at the same location as the device. Note:
Garage door openers (manufactured after 1996)
have “rolling code protection”. To program a
garage door opener equipped with “rolling code
protection”; you will need to use a ladder to get
up to the garage door opener motor to be able
to access the “smart or learn” program button.
1. To begin, push and hold the 2 outer HomeLink buttons (to clear the memory)
until the indicator light
Ablinks (after 20
seconds). Release both buttons.
2. Position the end of the hand-held trans- mitter 1-3 inches away from the
HomeLink surface. 3. Using both hands, simultaneously push
and hold both the HomeLink button you
want to program and the hand-held trans-
mitter button.
DO NOT release the buttons until step 4
has been completed.
SIC3182SIC3183
Instruments and controls2-61
—
—
07/30/09—pattie
