wheel ruts, seams or lines remaining after
road repairs. (The LDP system could detect
these items as lane markers.)
● On roads where the traveling lane merges or
separates.
● When the vehicle’s traveling direction does
not align with the lane marker.
● When traveling close to the vehicle in front
of you, which obstructs the lane camera unit
detection range.
● When rain, snow or dirt adheres to the
windshield in front of the lane camera unit.
● When the headlights are not bright due to
dirt on the lens or if the aiming is not
adjusted properly.
● When strong light enters the lane camera
unit. (For example, the light directly shines
on the front of the vehicle at sunrise or
sunset.)
● When a sudden change in brightness occurs.
(For example, when the vehicle enters or
exits a tunnel or under a bridge.) While the LDP system is operating, you may
hear a sound of brake operation. This is normal
and indicates that the LDP system is operating
properly.
LDP system operation
The LDP system provides a lane departure warning
and brake control assistance when the vehicle is
driven at speeds of approximately 45 MPH (72
km/h) and above. When the vehicle approaches
either the left or the right side of the traveling lane,
a warning chime will sound and the lane departure
warning light (orange) on the instrument panel will
blink to alert the driver. Then, the LDP system will
automatically apply the brakes for a short period of
time to help assist the driver to return the vehicle
to the center of the traveling lane.
The warning and assist functions will stop when
the vehicle returns to a position inside of the lane
marker.
LDP ON indicator light (green)/ Warning light (orange)
SSD0672
5-22Starting and driving
—
—
08/03/09—tbrooks


To turn on the LDP system, push the LDP switch
on the steering wheel after starting the engine.
The LDP ON indicator light (green) on the instru-
ment panel will illuminate. Push the LDP switch
again to turn off the LDP system. The LDP ON
indicator light will turn off.The LDP switch is used as both the LDP and DCA
system. When the LDP switch is pushed, the
DCA system will also turn on or off simulta-
neously. The LDP system can be individually set
to on or off on the display. If the system is set
to off, the system will not turn on even if the
LDP switch is pushed to on. To set the system to
on or off on the display, see “Setting LDP
system to ON/OFF” later in this section.
LDP switch
SSD0912SSD0884
SSD0885
Starting and driving5-23
—
—
08/03/09—pattie


Setting LDP system to ON/OFF:
1. Push the SETTING1button and highlight
the “Driver Assistance” key on the display
using the INFINITI controller. Then push
the ENTER
2button.
2. Highlight the “Dynamic Assistance set- tings” key, and push the ENTER
2but-
ton.
3. To set the LDP system to on or off, high-light the “Lane Departure Prevention”
key, select ON or OFF and push the ENTER
2button.
If both the LDP and DCA systems are set to OFF
on the display, when the LDP switch is pushed,
the LDP ON indicator light and the Distance
Control Assist (DCA) system switch indicator
light will blink for approximately 2 seconds. See
“DISTANCE CONTROL ASSIST (DCA) SYSTEM”
later in this section.
Automatic deactivation
Condition A :
The warning and assist functions of the LDP
system are not designed to work under the
following conditions:
●When you operate the lane change signal
and change the traveling lanes in the direc-
tion of the signal. (The LDP system will be
deactivated for approximately 2 seconds af-
ter the lane change signal is turned off.)
● When the vehicle speed lowers to less than
approximately 45 MPH (72 km/h).
After the above conditions have finished and
the necessary operating conditions are satis-
fied, the warning and assist functions will re-
sume.
Condition B :
The assist function of the LDP system is not
designed to work under the following condi-
tions (warning is still functional):
● When the brake pedal is depressed.
● When the steering wheel is turned as far as
necessary for the vehicle to change lanes.
● When the accelerator pedal is depressed
while the brake control assist is provided.
SSD0886
5-24Starting and driving
—
—
08/03/09—pattie


●When the Intelligent Cruise Control (ICC)
approach warning occurs.
● When the hazard warning flashers are oper-
ated.
● When driving on a curve at high speed.
After the above conditions have finished and
the necessary operating conditions are satis-
fied, the LDP brake control assist function will
resume.
Condition C :
Under the following conditions, a beep will
sound and the LDP system will be canceled
automatically. The LDP ON indicator light will
blink in green, and the LDP system cannot be
activated:
● When the VDC system (except TCS function)
or ABS operates.
● When the VDC system is turned off.
● When the SNOW mode switch is turned on.
Action to take:
When the above conditions no longer exist, turn
off the LDP system. Push the LDP switch again
to turn the LDP system back on.Temporary disabled status at high temperature :
If the vehicle is parked in direct sunlight under
high temperature conditions (over approxi-
mately 104°F (40°C)) and then the LDP system is
turned on, the LDP system may be deactivated
automatically. The LDP ON indicator (green) will
blink.
When the interior temperature is reduced, the
system will resume operating automatically and
the LDP ON indicator will stop blinking.
LANE CAMERA UNIT MAINTENANCE
The lane camera unit1for the LDW/LDP
system is located above the inside mirror. To
keep the proper operation of the LDW/LDP
systems and prevent a system malfunction, be
sure to observe the following:
● Always keep the windshield clean.
● Do not attach a sticker (including transpar-
ent material) or install an accessory near the
camera unit.
● Do not place reflective materials, such as
white paper or a mirror, on the instrument
panel. The reflection of sunlight may ad-
versely affect the camera unit’s capability of
detecting the lane markers.
SSD0453
Starting and driving5-25
—
—
08/03/09—pattie


●Do not strike or damage the areas around
the camera unit. Do not touch the camera
lens or remove the screw located on the
camera unit. If the camera unit is damaged
due to an accident, contact an INFINITI re-
tailer.PRECAUTIONS ON CRUISE CONTROL
● If the cruise control system malfunctions, it
will cancel automatically. The SET indicator
on the dot matrix crystal display will then
blink to warn the driver.
● If the engine coolant temperature becomes
excessively high, the cruise control system
will be canceled automatically.
● If the SET indicator blinks, turn the cruise
control main switch off and have the system
checked by your INFINITI retailer.
● The SET indicator may sometimes blink
when the cruise control main switch is
turned ON while pushing the
RESUME/ACCELERATE, SET/COAST or CAN-
CEL switch. To properly set the cruise control
system, perform the steps below in the order
indicated.
WARNING
Do not use the cruise control when driving un-
der the following conditions:
● when it is not possible to keep the vehicle at
a set speed
● in heavy traffic or in traffic that varies in
speed
● on winding or hilly roads
● on slippery roads (rain, snow, ice, etc.)
● in very windy areas
Doing so could cause a loss of vehicle control
and result in an accident.
CRUISE CONTROL
5-26Starting and driving
—
—
08/03/09—pattie

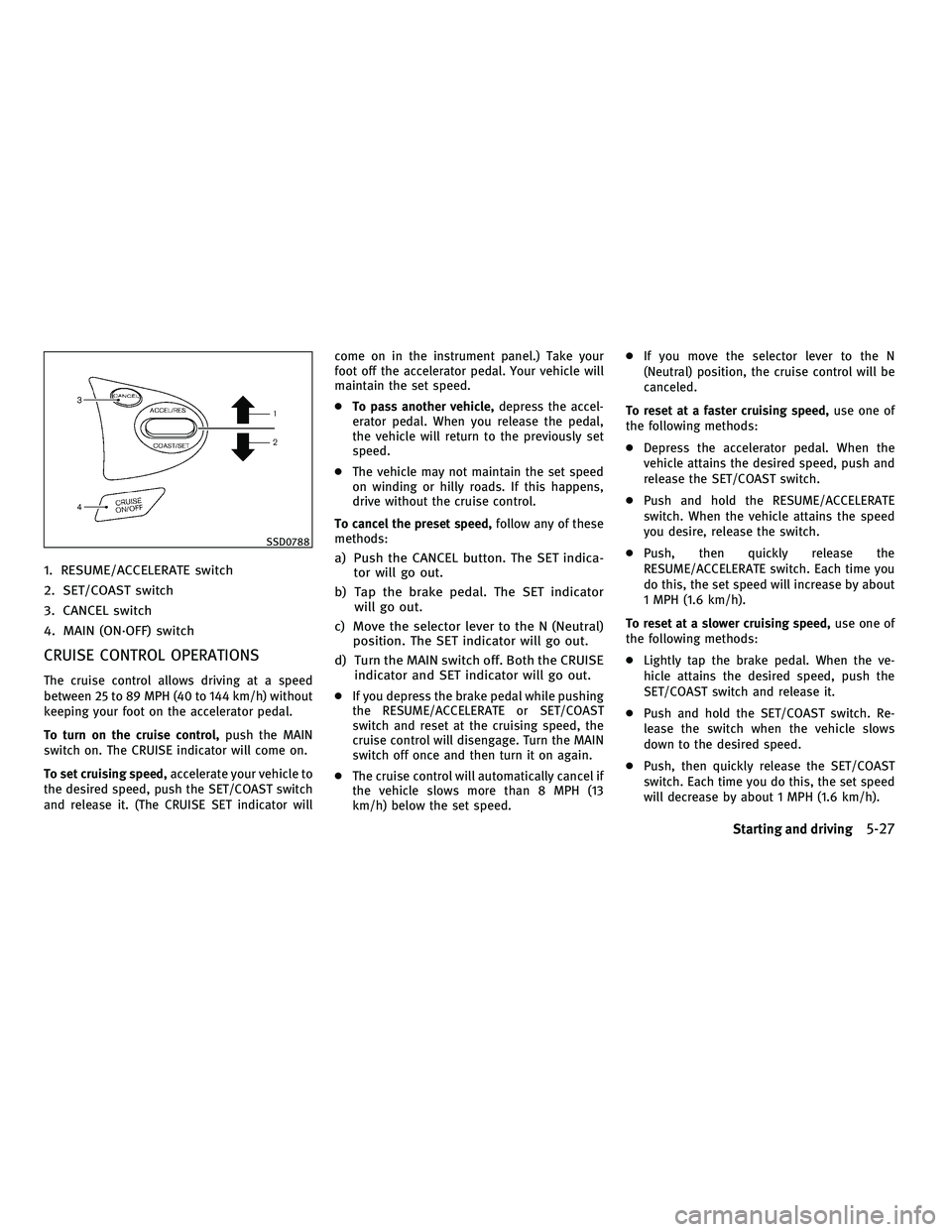

1. RESUME/ACCELERATE switch
2. SET/COAST switch
3. CANCEL switch
4. MAIN (ON·OFF) switch
CRUISE CONTROL OPERATIONS
The cruise control allows driving at a speed
between 25 to 89 MPH (40 to 144 km/h) without
keeping your foot on the accelerator pedal.
To turn on the cruise control,push the MAIN
switch on. The CRUISE indicator will come on.
To set cruising speed, accelerate your vehicle to
the desired speed, push the SET/COAST switch
and release it. (The CRUISE SET indicator will come on in the instrument panel.) Take your
foot off the accelerator pedal. Your vehicle will
maintain the set speed.
●
To pass another vehicle, depress the accel-
erator pedal. When you release the pedal,
the vehicle will return to the previously set
speed.
● The vehicle may not maintain the set speed
on winding or hilly roads. If this happens,
drive without the cruise control.
To cancel the preset speed, follow any of these
methods:
a) Push the CANCEL button. The SET indica- tor will go out.
b) Tap the brake pedal. The SET indicator will go out.
c) Move the selector lever to the N (Neutral) position. The SET indicator will go out.
d) Turn the MAIN switch off. Both the CRUISE indicator and SET indicator will go out.
●If you depress the brake pedal while pushing
the RESUME/ACCELERATE or SET/COAST
switch and reset at the cruising speed, the
cruise control will disengage. Turn the MAIN
switch off once and then turn it on again.
● The cruise control will automatically cancel if
the vehicle slows more than 8 MPH (13
km/h) below the set speed. ●
If you move the selector lever to the N
(Neutral) position, the cruise control will be
canceled.
To reset at a faster cruising speed, use one of
the following methods:
● Depress the accelerator pedal. When the
vehicle attains the desired speed, push and
release the SET/COAST switch.
● Push and hold the RESUME/ACCELERATE
switch. When the vehicle attains the speed
you desire, release the switch.
● Push, then quickly release the
RESUME/ACCELERATE switch. Each time you
do this, the set speed will increase by about
1 MPH (1.6 km/h).
To reset at a slower cruising speed, use one of
the following methods:
● Lightly tap the brake pedal. When the ve-
hicle attains the desired speed, push the
SET/COAST switch and release it.
● Push and hold the SET/COAST switch. Re-
lease the switch when the vehicle slows
down to the desired speed.
● Push, then quickly release the SET/COAST
switch. Each time you do this, the set speed
will decrease by about 1 MPH (1.6 km/h).
SSD0788
Starting and driving5-27
—
—
08/03/09—pattie


To resume the preset speed,push and release
the RESUME/ACCELERATE switch. The vehicle
will resume the last set cruising speed when the
vehicle speed is over 25 MPH (40 km/h). The Intelligent Cruise Control (ICC) system
maintains a selected distance from the vehicle
in front of you within the speed range of 0 to 90
MPH (0 to 144 km/h) up to the set speed. The
set speed can be selected by the driver between
20 to 90 MPH (32 to 144 km/h).
The vehicle travels at a set speed when the road
ahead is clear.
The ICC system can be set to one of two cruise
control modes.
●
Vehicle-to-vehicle distance control mode:
For maintaining a selected distance between
your vehicle and the vehicle in front of you
up to the preset speed.
● Conventional (fixed speed) cruise control
mode:
For cruising at a preset speed.WARNING
● Always drive carefully and attentively when
using either cruise control mode. Read and
understand the Owner’s Manual thoroughly
before using the cruise control. To avoid se-
rious injury or death, do not rely on the sys-
tem to prevent accidents or to control the
vehicle’s speed in emergency situations. Do
not use cruise control except in appropriate
road and traffic conditions.
● In the conventional (fixed speed) cruise con-
trol mode, a warning chime will not sound to
warn you if you are too close to the vehicle
ahead. Pay special attention to the distance
between your vehicle and the vehicle ahead
of you or a collision could occur.
INTELLIGENT CRUISE CONTROL (ICC)
SYSTEM (FULL SPEED RANGE) (if so
equipped)
5-28Starting and driving
—
—
08/03/09—pattie


1. Vehicle-to-vehicle distance control mode
2. Conventional (fixed speed) cruise controlmode
Push the MAIN switchAto choose the cruise
control mode between the vehicle-to-vehicle
distance control mode
1and the conventional
(fixed speed) cruise control mode
2.
To choose the vehicle-to-vehicle distance con-
trol mode
1, quickly push and release the
MAIN switch
A. To choose the conventional
(fixed speed) cruise control mode
2, push and
hold the MAIN switch
Afor longer than ap-
proximately 1.5 seconds. Once a control mode is activated, it cannot be
changed to the other cruise control mode. To
change the mode, push the MAIN switch once to
turn the system off. Then push the MAIN switch
again to turn the system back on and select the
desired cruise control mode.
Always confirm the setting in the Intelligent
Cruise Control system display.
For the vehicle-to-vehicle distance control
mode, see the following description. For the
conventional (fixed speed) cruise control mode,
see page 5-45.
SELECTING THE VEHICLE-TO-VEHICLE
DISTANCE CONTROL MODE
To choose the vehicle-to-vehicle distance con-
trol mode
1, quickly push and release the
MAIN switch
A.
VEHICLE-TO-VEHICLE DISTANCE
CONTROL MODE
In the vehicle-to-vehicle distance control mode,
the Intelligent Cruise Control (ICC) system auto-
matically maintains a selected distance from
the vehicle traveling in front of you according to
that vehicle’s speed (up to the set speed), or at
the set speed when the road ahead is clear.
With ICC, the driver can maintain the same
speed as other vehicles without the constant
need to adjust the set speed as you would with
a normal cruise control system.
SSD0913
Starting and driving5-29
—
—
08/03/09—tbrooks
