Recording CDs
1. Operate the audio system to play a CD. Forthe details of playing CDs, see “Compact
Disc (CD) player operation” earlier in this
section.
2. Select the “Start REC” or “REC” key.
NOTE:
● The system starts playing and recording the
1st track on the CD when the “Start REC” or
“REC” key is selected.
● The recording process can be stopped at any
time. All tracks that were played before the
CD was stopped are stored.
● Individual tracks can be deleted from the sys-
tem drive after the CD is recorded.
With navigation system
SAA2513
Without navigation system
SAA2612
With navigation system
SAA2514
Without navigation system
SAA2613
4-80Monitor, climate, audio, phone and voice recognition systems
—
—
03/16/10—tbrooks


If the title information of the track being re-
corded is stored either in the in-vehicle memory
or in the CD, the title is automatically displayed
on the screen. For title acquisition from the
in-vehicle memory, music recognition technol-
ogy and related data are provided by
Gracenote.
If a track is not recorded successfully due to
skipping sounds, the
mark is displayed
behind the track number.
The “Music Box” cannot perform recording un-
der the following conditions.
● There is not enough space in-vehicle
memory
● The number of albums reaches the maximum
of 500.
● The number of tracks reaches the maximum
of 3,000.
Automatic recording :
If the “Automatic Recording” function is turned
to ON, recording starts when a CD is inserted.
(See “Music Box settings” later in this section.)
Stopping recording :
To stop the recording, select the “Stop REC” key
button by touching the screen or using the
INFINITI controller. If the CD is ejected, the audio system is turned
off or the ignition switch is pushed to the OFF
position, the recording also stops.
With navigation system
SAA2515
Without navigation system
SAA2614
Monitor, climate, audio, phone and voice recognition systems4-81
—
—
03/16/10—tbrooks


Playing recorded songs
Select the “Music Box” audio system by using
one of the following methods.
●Push the audio source switch on the steering
wheel repeatedly until the center display
changes to the Music Box mode. (See
“STEERING-WHEEL-MOUNTED CONTROLS
FOR AUDIO” later in this section.)
● Push the DISC·AUX or DISC button repeat-
edly until the center display changes to the
Music Box mode.
● Give voice commands. (See “INFINITI VOICE
RECOGNITION SYSTEM (models with naviga-
tion system)” later in this section.)
Stopping playback :
The system stops playing when:
a. another mode (radio, CD, DVD, USB memory, iPod or AUX) is selected.
b. the audio system is turned off.
c. the ignition switch is pushed to the LOCK position.
Next/Previous Track and
Fast Forward/Rewind :
When the
(fast forward) or(re-
wind) button is pushed for more than 1.5 sec- onds while a track is being played, the track will
play while fast forwarding or rewinding. When
the button is released, the track will return to
the normal play speed.
When the
orbutton is pushed for
less than 1.5 seconds while a track is being
played, the next track or the beginning of the
current track will be played.
The INFINITI controller can also be used to
select tracks when a track is being played.
Play mode selection :
The TUNE/FOLDER knob will skip from album to
album unless it is playing “All Songs” from the
Music Library menu. When playing “All Songs”,
the knob will change the track instead of the
album. The upper right corner of the main
screen will indicate if the TUNE knob is chang-
ing by track or album.
REPEAT (RPT), RANDOM (RDM) :
When the RPT·RDM button is pushed while a
track is being played, the play pattern can be
changed as follows:
(Normal) →1 Album Repeat →1 Track Repeat →
1 Album Random →All Random →(Normal) Tag Track (models with navigation system) :
Select “Tag Track” key on the screen when a
track is being played. A menu will show the 5
available playlists. Select one of the playlists to
add the current song to that playlist. If a playlist
is not selectable (text is grayed out), it means
the song already exists in that playlist.
4-82Monitor, climate, audio, phone and voice recognition systems
—
—
03/16/10—tbrooks


There are some options available by selecting
the “Menu” key on the screen during playback.
Select one of the following options that are
displayed on the screen if necessary.
Now Playing (models with navigation system) :
Displays a track list to choose a preferred track
for playback.
Music Library :
There are some options available during play-
back. Select one of the following options that
are displayed on the screen if necessary.
●Artists
Play tracks by an artist whose music is
currently being played. The artists are sorted
in alphabetical order.
● Albums
Play tracks in each album. The albums are
sorted in alphabetical order.
● All Songs
Play tracks from all recorded tracks. The
tracks are sorted in alphabetical order.
● Genres
Play tracks by a selected genre. My Playlists (models with navigation system) :
Displays the Playlist and edits the Playlist if
necessary.
Select the “Edit” key.
The following items are available
●
Add Current Songs
Add a current track to the Playlist.
● Add Songs by Album
Displays a list of albums in alphabetical
order. Selecting an album displays all of the
tracks in the album. Select tracks from the
list to add to the Playlist.
● Add Songs by Artist
Displays a list of artists in alphabetical
order. Selecting an artist displays all of the
tracks by the artist. Select tracks from the
list to add to the Playlist.
● Edit Songs Order
Reorder the tracks in the Playlist by select-
ing a track and specifying the order.
● Edit Name
Edit the name of the Playlist using the
keypad displayed on the screen. (See “HOW
TO USE INFINITI CONTROLLER” earlier in this
section.)
With navigation system
SAA2516
Without navigation system
SAA2725
Monitor, climate, audio, phone and voice recognition systems4-83
—
—
08/03/09—tbrooks


●Delete Songs
Delete tracks in the Playlist by selecting from
the displayed song list.
Play Mode (models with navigation system) :
Choose the preferred play mode from the fol-
lowing items.
● Normal
● 1 Album Repeat
● 1 Track Repeat
● 1 Playlist Random
● 1 Artist Random
● 1 Album Random
● 1 All Track Random
● 1 All Random Edit Music Information :
Displays the following information about the
Music Box to edit if necessary.
●
Edit Information of Current Song (models
with navigation system)
Edit the “Track”, “Artist” and “Genre” infor-
mation of the current track using the keypad
displayed on the screen. (See “HOW TO USE
TOUCH SCREEN (models with navigation sys-
tem)” earlier in this section.)
Edit the “Mode” information by selecting
from the list.
● Edit Information by Album (models with navi-
gation system)
Edit the displayed name and of a selected
album and the track information in the al-
bum.
● Update Gracenote from USB Device (models
with navigation system)/Transfer Titles from
USB (models without navigation system)
Update the in-vehicle Gracenote Database
using a USB memory. Search the title from a
information acquired on the Internet.
Visit www.InfinitiUSA.com/music-update/
for details. ●
Transfer Missing Titles to USB
Transfer the information of an album re-
corded without titles to a USB memory.
Visit www.InfinitiUSA.com/music-update/
for details.
● Update Gracenote from HDD (models with
navigation system)
Search the title using the database in the
system.
● Update Missing Titles (models without navi-
gation system)
Search the title using the database in the
in-vehicle memory.
4-84Monitor, climate, audio, phone and voice recognition systems
—
—
03/16/10—tbrooks


Music Box settings
To set the Music box to your preferred settings,
select the “Menu” key during playback, and the
“Music Box Settings ” key with the INFINITI
controller, and then push the ENTERbutton.
Music Box Used/Free Space :
Information about “Saved Album”, “Saved
Track” and “Remaining Time” is displayed.
Automatic Recording :
When this item is turned to ON, the Music Box
automatically starts recording when a CD is
inserted.
Delete Songs from Music Box :
Deletes the current song, selected songs or
albums by choosing from the list, or all
songs/albums in the Music Box.
Recording Quality :
Set the recording quality of 105 kbps or 132
kbps. The default is set to 105 kbps.
CDDB Version (models with navigation
system)/Gracenote Database Version (models
without navigation system) :
The version of the built-in Gracenote Database
is displayed.
Gracenote
NOTE:
● The information contained in the Gracenote
Database is not fully guaranteed.
● The service of the Gracenote Database on the
Internet may be stopped without prior notice
for maintenance.
End-User License Agreement
USE OF THIS PRODUCT IMPLIES ACCEPTANCE OF
THE TERMS BELOW.
Gracenote MusicIDTerms of Use
This application or device contains software
from Gracenote, Inc. of Emeryville, California
(“Gracenote”). The software from Gracenote
(the “Gracenote Software”) enables this appli-
cation to perform disc and/or file identification
and obtain music-related information, including
name, artist, track, and title information
(“Gracenote Data”) from online servers or em-
bedded databases (collectively, “Gracenote
Servers”) and to perform other functions. You
may use Gracenote Data only by means of the
intended End-User functions of this application
or device. You agree that you will use Gracenote
Data, the Gracenote Software, and Gracenote
With navigation system
SAA2517
Without navigation system
SAA2438
Monitor, climate, audio, phone and voice recognition systems4-85
—
—
08/03/09—tbrooks

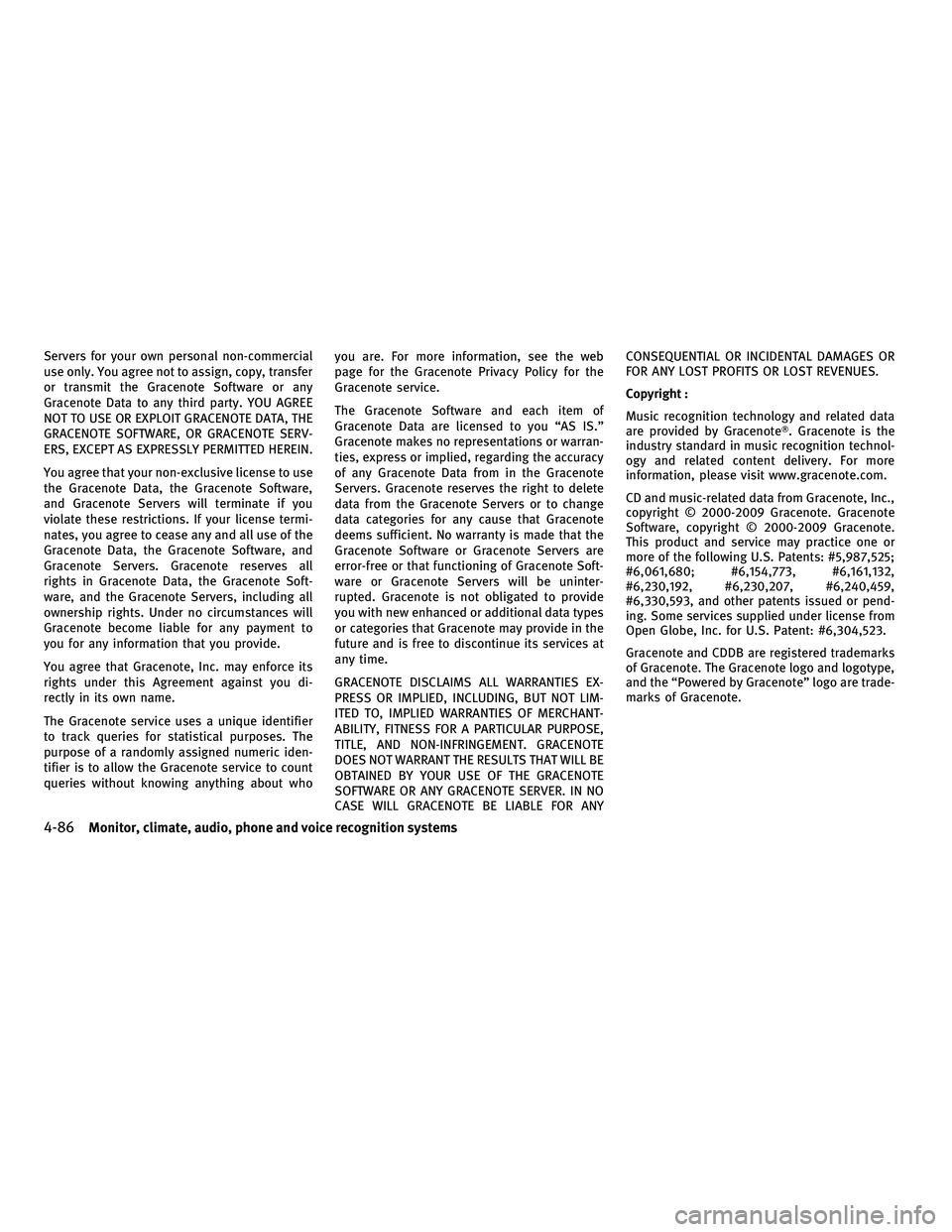

Servers for your own personal non-commercial
use only. You agree not to assign, copy, transfer
or transmit the Gracenote Software or any
Gracenote Data to any third party. YOU AGREE
NOT TO USE OR EXPLOIT GRACENOTE DATA, THE
GRACENOTE SOFTWARE, OR GRACENOTE SERV-
ERS, EXCEPT AS EXPRESSLY PERMITTED HEREIN.
You agree that your non-exclusive license to use
the Gracenote Data, the Gracenote Software,
and Gracenote Servers will terminate if you
violate these restrictions. If your license termi-
nates, you agree to cease any and all use of the
Gracenote Data, the Gracenote Software, and
Gracenote Servers. Gracenote reserves all
rights in Gracenote Data, the Gracenote Soft-
ware, and the Gracenote Servers, including all
ownership rights. Under no circumstances will
Gracenote become liable for any payment to
you for any information that you provide.
You agree that Gracenote, Inc. may enforce its
rights under this Agreement against you di-
rectly in its own name.
The Gracenote service uses a unique identifier
to track queries for statistical purposes. The
purpose of a randomly assigned numeric iden-
tifier is to allow the Gracenote service to count
queries without knowing anything about whoyou are. For more information, see the web
page for the Gracenote Privacy Policy for the
Gracenote service.
The Gracenote Software and each item of
Gracenote Data are licensed to you “AS IS.”
Gracenote makes no representations or warran-
ties, express or implied, regarding the accuracy
of any Gracenote Data from in the Gracenote
Servers. Gracenote reserves the right to delete
data from the Gracenote Servers or to change
data categories for any cause that Gracenote
deems sufficient. No warranty is made that the
Gracenote Software or Gracenote Servers are
error-free or that functioning of Gracenote Soft-
ware or Gracenote Servers will be uninter-
rupted. Gracenote is not obligated to provide
you with new enhanced or additional data types
or categories that Gracenote may provide in the
future and is free to discontinue its services at
any time.
GRACENOTE DISCLAIMS ALL WARRANTIES EX-
PRESS OR IMPLIED, INCLUDING, BUT NOT LIM-
ITED TO, IMPLIED WARRANTIES OF MERCHANT-
ABILITY, FITNESS FOR A PARTICULAR PURPOSE,
TITLE, AND NON-INFRINGEMENT. GRACENOTE
DOES NOT WARRANT THE RESULTS THAT WILL BE
OBTAINED BY YOUR USE OF THE GRACENOTE
SOFTWARE OR ANY GRACENOTE SERVER. IN NO
CASE WILL GRACENOTE BE LIABLE FOR ANYCONSEQUENTIAL OR INCIDENTAL DAMAGES OR
FOR ANY LOST PROFITS OR LOST REVENUES.
Copyright :
Music recognition technology and related data
are provided by Gracenote. Gracenote is the
industry standard in music recognition technol-
ogy and related content delivery. For more
information, please visit www.gracenote.com.
CD and music-related data from Gracenote, Inc.,
copyright © 2000-2009 Gracenote. Gracenote
Software, copyright © 2000-2009 Gracenote.
This product and service may practice one or
more of the following U.S. Patents: #5,987,525;
#6,061,680; #6,154,773, #6,161,132,
#6,230,192, #6,230,207, #6,240,459,
#6,330,593, and other patents issued or pend-
ing. Some services supplied under license from
Open Globe, Inc. for U.S. Patent: #6,304,523.
Gracenote and CDDB are registered trademarks
of Gracenote. The Gracenote logo and logotype,
and the “Powered by Gracenote” logo are trade-
marks of Gracenote.
4-86Monitor, climate, audio, phone and voice recognition systems
—
—
07/30/09—pattie


AUXILIARY INPUT JACKS
The auxiliary input jacks are located in the
center console. NTSC compatible devices such
as video games, camcorders and portable video
players can be connected to the auxiliary jacks.
Compatible audio devices, such as some MP3
players, can also be connected to the system
through the auxiliary jacks.
The auxiliary jacks are color coded for identifi-
cation purposes.
●Yellow - video input
● White - left channel audio input
● Red - right channel audio input Before connecting a device to a jack, turn off the
power of the portable device.
With a compatible device connected to the
jacks, push the DISC·AUX or AUX button repeat-
edly until the display switches to the AUX mode.
The output from the device will be played
through the monitor and audio system.
SAA2633
With navigation system
SAA2496
Without navigation system
SAA1567
Monitor, climate, audio, phone and voice recognition systems4-87
—
—
07/30/09—pattie
