1. Tachometer (P. 2-7)
2. Warning/Indicator lights (P. 2-12)
3. Speedometer (P. 2-6)
4. Engine coolant temperature gauge(P. 2-7) 5. Dot matrix liquid crystal display/
Odometer/twin trip odometer (P. 2-21)
6. Fuel gauge (P. 2-8)
SIC3825
METERS AND GAUGES
Illustrated table of contents0-9
—
—
08/03/09—tbrooks


VQ35HR ENGINE
1. Fuse/fusible link holder (P. 8-22)
2. Battery (P. 8-15)
3. Radiator filler cap (P. 8-9)
4. Engine oil dipstick (P. 8-10)5. Engine oil filler cap (P. 8-10)
6. Brake fluid reservoir (P. 8-14)
7. Window washer fluid reservoir (P. 8-14)
8. Power steering fluid reservoir (P. 8-13)
9. Air cleaner (P. 8-19)10. Drive belts (P. 8-17)
11. Coolant reservoir (P. 8-9)
SDI2262
ENGINE COMPARTMENT
0-10Illustrated table of contents
—
—
07/30/09—pattie


VK50VE ENGINE
1. Fuse/fusible link holder (P. 8-22)
2. Battery (P. 8-15)
3. Engine oil filler cap (P. 8-10)
4. Radiator filler cap (P. 8-9)5. Engine oil dipstick (P. 8-10)
6. Brake fluid reservoir (P. 8-14)
7. Window washer fluid reservoir (P. 8-14)
8. Power steering fluid reservoir (P. 8-13)
9. Air cleaner (P. 8-19)10. Drive belt location (P. 8-17)
11. Coolant reservoir (P. 8-9)
SDI2264
Illustrated table of contents0-11
—
—
07/30/09—pattie


2 Instruments and controls
Cockpit........................................... 2-2
Instrument panel .................................. 2-4
Meters and gauges ................................ 2-5
Speedometer and odometer ..................... 2-6
Tachometer .................................... 2-7
Engine coolant temperature gauge ............... 2-7
Fuel gauge ..................................... 2-8
Meter/ring illumination and needle sweep ........ 2-8
Compass (if so equipped) .......................... 2-9
Zone variation change procedure ...............2-10
Warning/indicator lights and audible reminders .....2-12
Checking bulbs ............................... 2-12
Warning lights ................................ 2-13
Indicator lights ................................ 2-18
Audible reminders ............................. 2-20
Dot matrix liquid crystal display ...................2-21
Indicators for operation ........................ 2-23
Indicators for maintenance .....................2-25
Trip computer ................................. 2-27
Security systems ................................. 2-29
Vehicle security system ........................ 2-29
INFINITI Vehicle Immobilizer System ............2-31Windshield wiper and washer switch
...............2-32
Windshield wiper and washer operation .........2-33
Rain-sensing auto wiper system
(if so equipped) ............................... 2-33
Rear window wiper and washer operation .......2-34
Rear window and outside mirror defroster switch . . . 2-35
Headlight and turn signal switch ..................2-35
Xenon headlights ............................. 2-35
Headlight switch .............................. 2-36
Turn signal switch ............................. 2-39
Fog light switch ............................... 2-40
Hazard warning flasher switch .....................2-40
Horn ............................................ 2-41
Climate controlled seats (if so equipped) ...........2-41
Lane Departure Warning (LDW) switch
(if so equipped) .................................. 2-42
Forward Collision Warning (FCW) switch
(if so equipped) .................................. 2-43
SNOW

mode switch .............................. 2-43
Continuous damping control mode select switch
(if so equipped) .................................. 2-44
Auto mode .................................... 2-44
—
—
08/03/09—tbrooks


1. Tachometer
2. Warning/Indicator lights
3. Speedometer
4. Engine coolant temperature gauge5. Dot matrix liquid crystal display/
Odometer/twin trip odometer
6. Fuel gauge
The needle indicators in the speedometer, ta-
chometer, engine coolant temperature gauge and fuel gauge may move slightly after the igni-
tion switch is pushed to the OFF position. This is
not a malfunction.
SIC3825
METERS AND GAUGES
Instruments and controls2-5
—
—
08/03/09—tbrooks

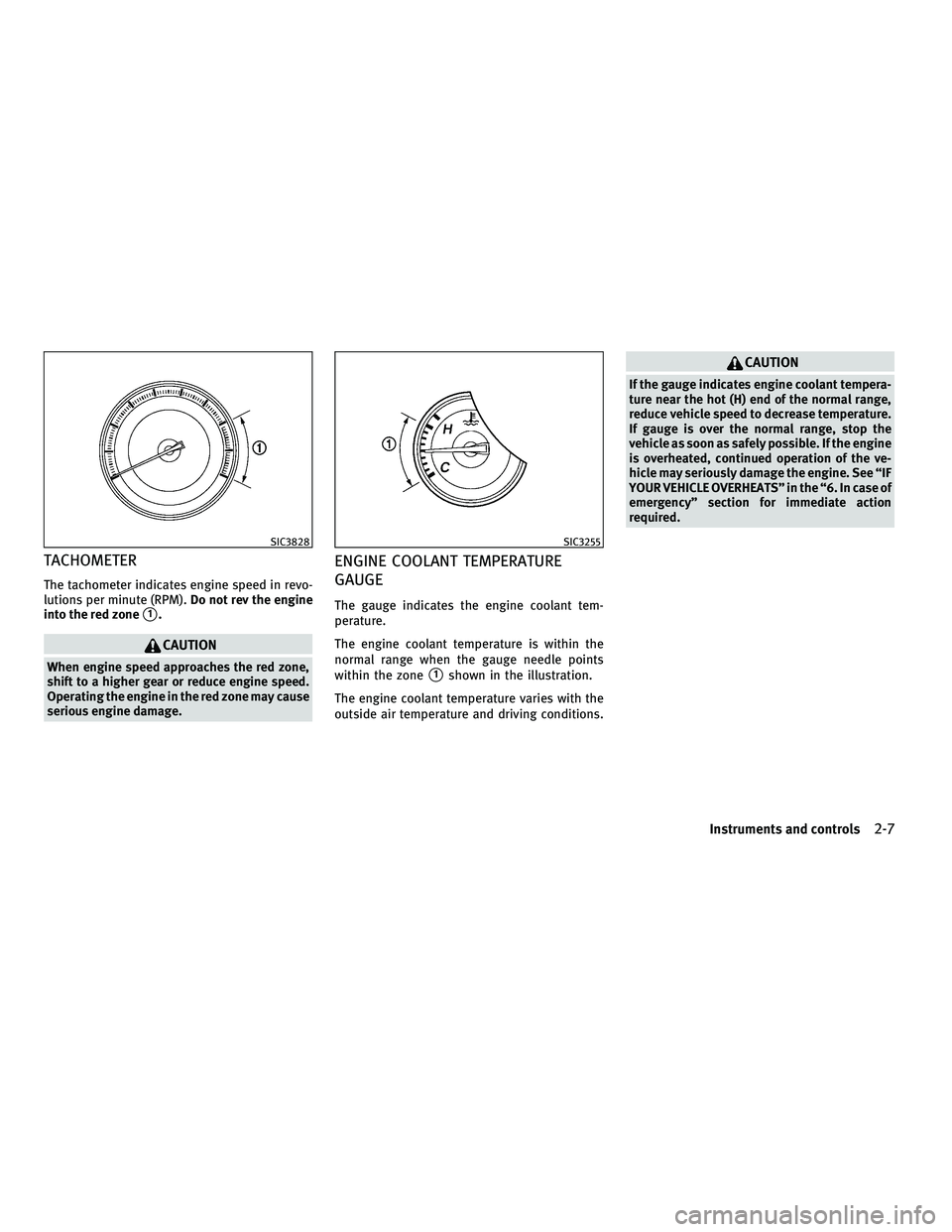

TACHOMETER
The tachometer indicates engine speed in revo-
lutions per minute (RPM).Do not rev the engine
into the red zone
1.
CAUTION
When engine speed approaches the red zone,
shift to a higher gear or reduce engine speed.
Operating the engine in the red zone may cause
serious engine damage.
ENGINE COOLANT TEMPERATURE
GAUGE
The gauge indicates the engine coolant tem-
perature.
The engine coolant temperature is within the
normal range when the gauge needle points
within the zone
1shown in the illustration.
The engine coolant temperature varies with the
outside air temperature and driving conditions.
CAUTION
If the gauge indicates engine coolant tempera-
ture near the hot (H) end of the normal range,
reduce vehicle speed to decrease temperature.
If gauge is over the normal range, stop the
vehicle as soon as safely possible. If the engine
is overheated, continued operation of the ve-
hicle may seriously damage the engine. See “IF
YOUR VEHICLE OVERHEATS” in the “6. In case of
emergency” section for immediate action
required.
SIC3828SIC3255
Instruments and controls2-7
—
—
07/30/09—pattie


●The air flow control is not in the front
defogger mode (the indicator light on the
“
” front defroster button is turned off).
● The outside temperature is about 32°F (0°C)
or more.
When the automatic intake air control is ON, for
the first 5 minutes, the recirculation mode is
selected to prevent dust, dirt and pollen from
entering the vehicle and cleans the air inside of
the vehicle with positive and negative ions that
are emitted from the ventilator.
After the 5 minutes, the sensor detects exhaust
gas and automatically alternates between the
recirculation mode and outside air circulation
mode.
OPERATING TIPS
When the engine coolant temperature and out-
side air temperature are low, the air flow from
the foot outlets may not operate for a maximum
of 150 seconds. This is not a malfunction. After
the coolant temperature warms up, air will flow
normally from the foot outlets. The sunload sensor
Aon the instrument panel
helps maintain a constant temperature. Do not
put anything on or around this sensor.
IN-CABIN MICROFILTER
Type A:
The climate control system is equipped with an
in-cabin microfilter which collects dirt, pollen,
dust, etc. To make sure the air conditioner
heats, defogs, and ventilates efficiently, replace
the filter in accordance with the maintenance
schedule in the INFINITI Service and Mainte-
nance Guide. To replace the filter, contact an
INFINITI retailer. The filter should be replaced if air flow is ex-
tremely decreased or when windows fog up eas-
ily when operating heater or air conditioning
system.
The recommended replacement interval for
the filter is every 1 year or 15,000 miles
(24,000 km).
Type B:
The climate control system is equipped with a
natural grape seed polyphenol filter which col-
lects and neutralizes dirt, pollen, dust, etc. To
make sure that the air conditioner heats, defogs
and ventilates efficiently, replace the filter in
accordance with the maintenance schedule in
the INFINITI Service and Maintenance Guide. To
replace the filter, contact an INFINITI retailer.
The filter should be replaced if the air flow de-
creases significantly or if windows fog up easily
when operating the heater or air conditioner.
The recommended replacement interval for
the filter is every 1 year or 15,000 miles
(24,000 km).
SAA1983
Monitor, climate, audio, phone and voice recognition systems4-45
—
—
07/30/09—pattie


Distance control assist operation................5-51
Forward Collision Warning (FCW) system
(if so equipped) .................................. 5-61
Precautions on FCW system ....................5-62
Intelligent brake assist (IBA) system
(if so equipped) .................................. 5-64
Precautions on IBA system .....................5-65
Break-in schedule ................................ 5-68
Increasing fuel economy .......................... 5-68
All-Wheel Drive (AWD) (if so equipped) .............5-69
Parking/parking on hills ........................... 5-71
Power steering ................................... 5-72
Continuous damping control (if so equipped) .......5-72
Brake system .................................... 5-73
Braking precautions ........................... 5-73
Parking brake break-in ......................... 5-73Brake assist
..................................... 5-74
Brake assist .................................. 5-74
Preview function (Intelligent Cruise Control
system equipped models) ......................5-74
Anti-lock Braking System (ABS) .................5-76
Vehicle Dynamic Control (VDC) system .............5-77
Rear active steer system (if so equipped) ...........5-79
Cold weather driving ............................. 5-80
Freeing a frozen door lock .....................5-80
Antifreeze .................................... 5-80
Battery ....................................... 5-80
Draining of coolant water ......................5-80
Tire equipment ................................ 5-80
Special winter equipment ......................5-80
Driving on snow or ice ......................... 5-80
Engine block heater (if so equipped) ............5-81
—
—
08/03/09—tbrooks
