2010 INFINITI FX Owners Manual

Folding
Before folding the rear seats :
Remove drink containers from the rear cup
holder.
To fold down the seatbacks :
Pull the lever
AorBand fold the seatback.
Return the rear seatback manually until it se-
curely locks in position.
HEAD RESTRAINTS
WARNING
Head restraints supplement the other vehicle
safety systems. They may provide additional
protection against injury in certain rear end
collisions. Adjust the head restraints properly,
as specified in this section. Check the adjust-
ment after someone else uses the seat. Do not
attach anything to the head restraint stalks or
remove the head restraint. Do not use the seat
if the head restraint has been removed. If the
head restraint was removed, reinstall and prop-
erly adjust the head restraint before an occu-
pant uses the seating position. Failure to follow
these instructions can reduce the effectiveness
of the head restraints. This may increase the
risk of serious injury or death in a collision. The illustration shows the seating positions
equipped with head restraints. The head re-
straints are adjustable.
Indicates the seating position is
equipped with a head restraint.
SSS0895SSS1013
1-6Safety — Seats, seat belts and supplemental restraint system
—
—
07/30/09—pattie

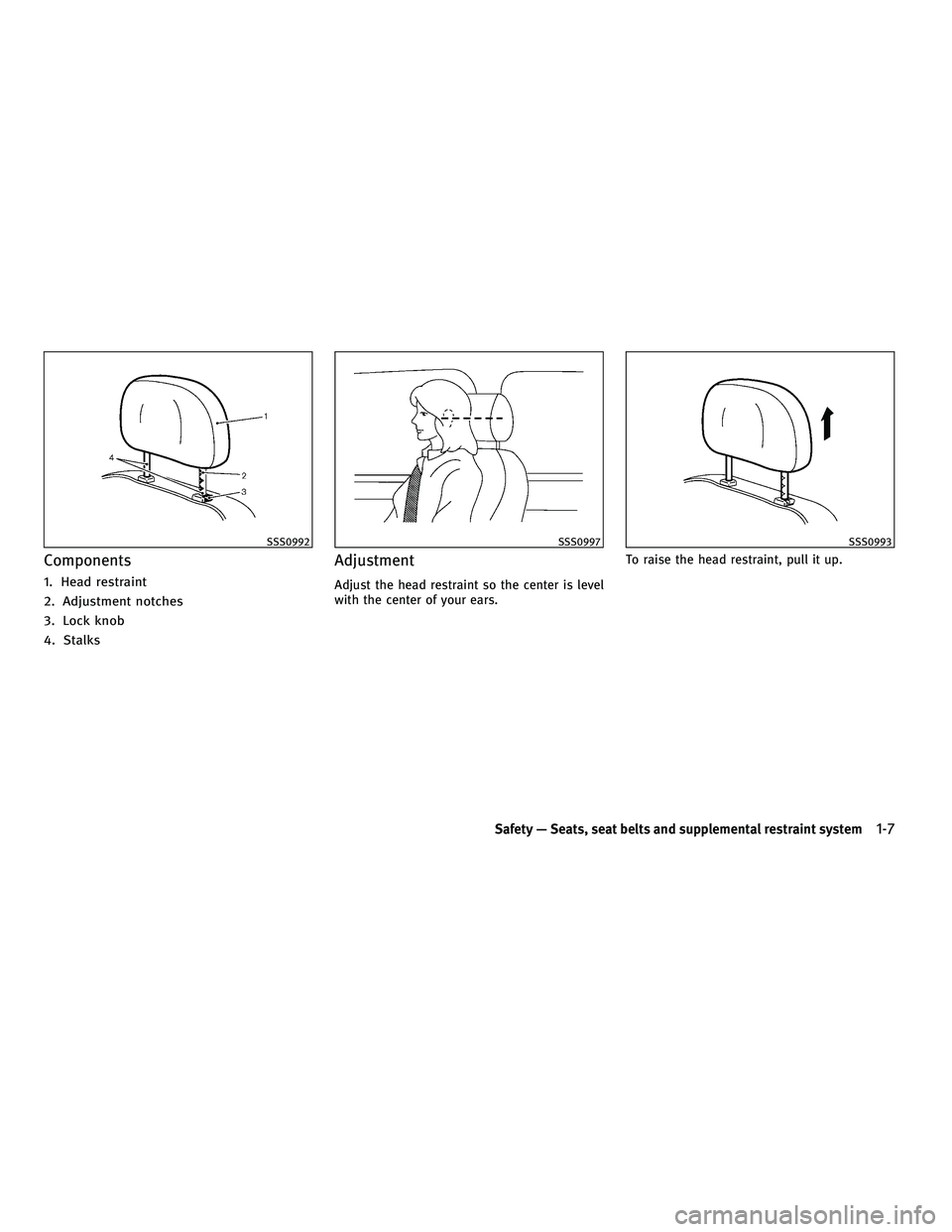

Components
1. Head restraint
2. Adjustment notches
3. Lock knob
4. Stalks
Adjustment
Adjust the head restraint so the center is level
with the center of your ears.To raise the head restraint, pull it up.
SSS0992SSS0997SSS0993
Safety — Seats, seat belts and supplemental restraint system1-7
—
—
07/30/09—pattie


To lower, push and hold the lock knob and push
the head restraint down.Removal
Use the following procedure to remove the
adjustable head restraints.
1. Pull the head restraint up to the highestposition.
2. Push and hold the lock knob.
3. Remove the head restraint from the seat.
4. Store the head restraint properly in a secure place so it is not loose in the
vehicle.
5. Reinstall and properly adjust the head restraint before an occupant uses the
seating position.
Install
1. Align the head restraint stalks with theholes in the seat. Make sure that the head
restraint is facing the correct direction.
The stalk with the adjustment notches
1
must be installed in the hole with the lock
knob
2.
2. Push and hold the lock knob and push the head restraint down.
3. Properly adjust the head restraint before an occupant uses the seating position.
SSS0994SSS0995SSS0996
1-8Safety — Seats, seat belts and supplemental restraint system
—
—
07/30/09—pattie


Front-seat Active Head Restraint
The Active Head Restraint moves forward utiliz-
ing the force that the seatback receives from
the occupant in a rear-end collision. The move-
ment of the head restraint helps support the
occupant’s head by reducing its backward
movement and helping absorb some of the
forces that may lead to whiplash-type injuries.
Active Head Restraints are effective for colli-
sions at low to medium speeds in which it is
said that whiplash injury occurs most.
Active Head Restraints operate only in certain
rear-end collisions. After the collision, the head
restraints return to their original position.Adjust the Active Head Restraints properly as
described earlier in this section.
ADJUSTABLE HEADREST
WARNING
The adjustable headrests supplement the
other vehicle safety systems. They may provide
additional protection against injury in certain
rear end collisions. Adjust the headrests prop-
erly, as specified in this section. Check the ad-
justment after someone else uses the seat. Do
not attach anything to the adjustable headrest
stalks or remove the adjustable headrests. Do
not use the seat if the adjustable headrests
have been removed. If the headrest was re-
moved, reinstall and properly adjust the head-
rest before an occupant uses the seating posi-
tion. Failure to follow these instructions can
reduce the effectiveness of the adjustable
headrests. This may increase the risk of serious
injury or death in a collision.
The illustration shows the seating positions
equipped with adjustable headrests.
Indicates the seating position is
equipped with an adjustable headrest.
SSS0508SSS1014
Safety — Seats, seat belts and supplemental restraint system1-9
—
—
07/30/09—pattie


Components
1. Adjustable headrest
2. Adjustment notches
3. Lock knob
4. Stalks
Adjustment
Adjust the headrest so the center is level with
the center of your ears.To raise the headrest, pull it up.
SSS0992SSS0997SSS0993
1-10Safety — Seats, seat belts and supplemental restraint system
—
—
07/30/09—pattie


To lower, push and hold the lock knob and push
the headrest down.Removal
Use the following procedure to remove the
adjustable headrests.
1. Pull the headrest up to the highest posi-tion.
2. Push and hold the lock knob.
3. Remove the headrest from the seat.
4. Store the headrest properly in a secure place so it is not loose in the vehicle.
5. Install and properly adjust the headrest before an occupant uses the seating po-
sition.
Install
1. Align the headrest stalks with the holes inthe seat. Make sure that the headrest is
facing the correct direction. The stalk with
the adjustment notches
1must be in-
stalled in the hole with the lock knob
2.
2. Push and hold the lock knob and push the headrest down.
3. Properly adjust the headrest before an occupant uses the seating position.
SSS0994SSS0995SSS0996
Safety — Seats, seat belts and supplemental restraint system1-11
—
—
07/30/09—pattie

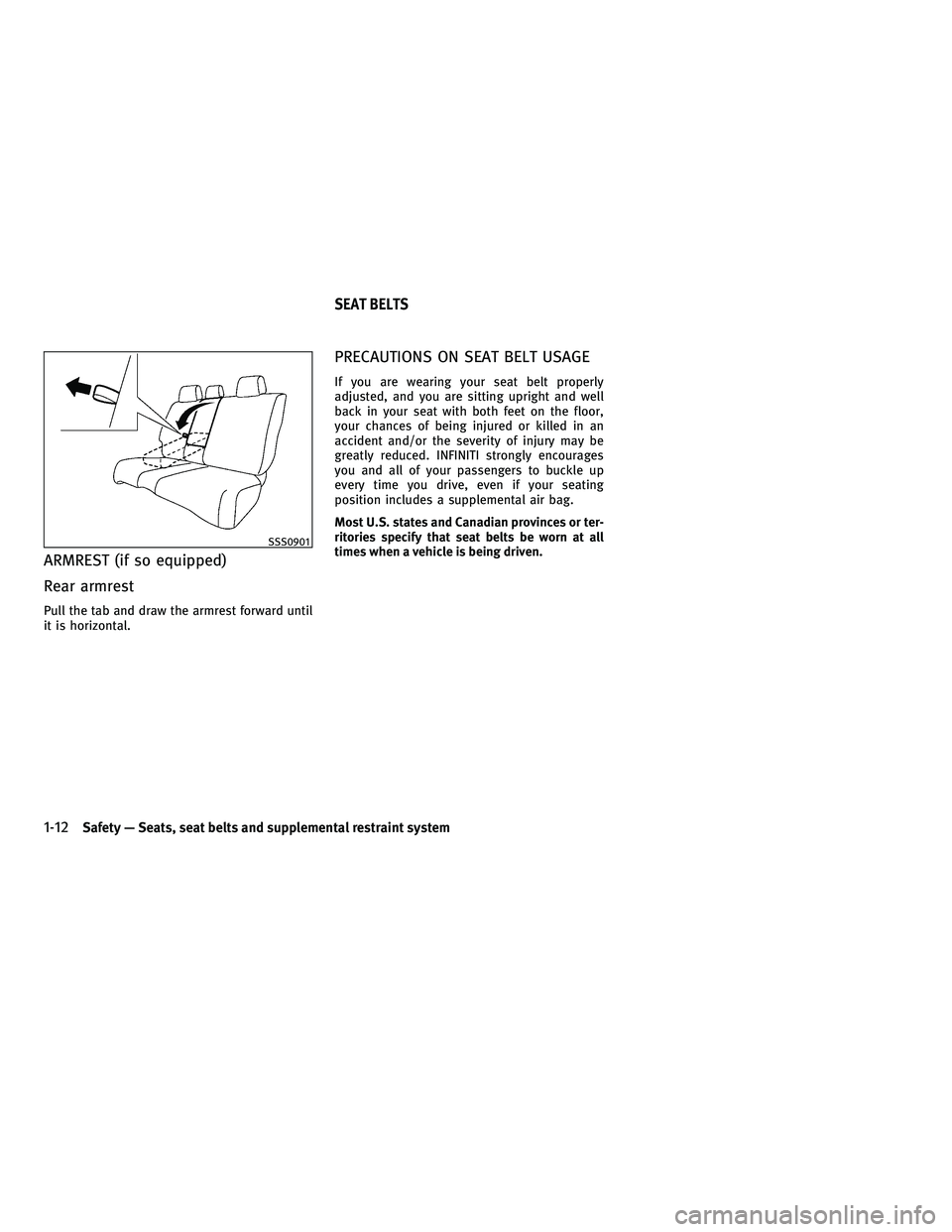

ARMREST (if so equipped)
Rear armrest
Pull the tab and draw the armrest forward until
it is horizontal.
PRECAUTIONS ON SEAT BELT USAGE
If you are wearing your seat belt properly
adjusted, and you are sitting upright and well
back in your seat with both feet on the floor,
your chances of being injured or killed in an
accident and/or the severity of injury may be
greatly reduced. INFINITI strongly encourages
you and all of your passengers to buckle up
every time you drive, even if your seating
position includes a supplemental air bag.
Most U.S. states and Canadian provinces or ter-
ritories specify that seat belts be worn at all
times when a vehicle is being driven.
SSS0901
SEAT BELTS
1-12Safety — Seats, seat belts and supplemental restraint system
—
—
07/30/09—pattie


WARNING
●Every person who drives or rides in this ve-
hicle should use a seat belt at all times. Chil-
dren should be properly restrained in the
rear seat and, if appropriate, in a child
restraint.
● The seat belt should be properly adjusted to
a snug fit. Failure to do so may reduce the
effectiveness of the entire restraint system
and increase the chance or severity of injury
in an accident. Serious injury or death can
occur if the seat belt is not worn properly.
● Always route the shoulder belt over your
shoulder and across your chest. Never put
the belt behind your back, under your arm or
across your neck. The belt should be away
from your face and neck, but not falling off
your shoulder.
● Position the lap belt as low and snug as
possible AROUND THE HIPS, NOT THE WAIST.
A lap belt worn too high could increase the
risk of internal injuries in an accident.
● Be sure the seat belt tongue is securely fas-
tened to the proper buckle.
● Do not wear the seat belt inside out or
twisted. Doing so may reduce its
effectiveness.
SSS0136A
SSS0134A
Safety — Seats, seat belts and supplemental restraint system1-13
—
—
07/30/09—pattie
