2010 INFINITI FX Owners Manual

4. Hold down both buttons until the indica-tor light on HomeLink flashes, changing
from a “slow blink” to a “rapid blink”.
This could take up to 90 seconds. When
the indicator light blinks rapidly, both
buttons may be released. The rapidly
flashing light indicates successful pro-
gramming. To activate the garage door or
other programmed device, push and hold
the programmed HomeLink button - re-
leasing when the device begins to acti-
vate.
5. If the indicator light on HomeLink blinks
rapidly for two seconds and then turns
solid, HomeLink has picked up a “rolling
code” garage door opener signal. You will
need to proceed with the next steps to
train HomeLink, completing the pro-
gramming may require a ladder and an-
other person for convenience.
6. Push and release the program button located on the garage door opener’s mo-
tor to activate the “training mode”. This
button is usually located near the an-
tenna wire that hangs down from the
motor. If the wire originates from under a
light lens, you will need to remove the
lens to access the training button.NOTE:
Once you have pushed and released the
training button on the garage door opener’s
motor and the “training light” is lit, you have
30 seconds in which to perform step 7. For
convenience, use the help of a second person
to assist when performing this step.
7. Quickly (within 30 seconds of pushingand releasing the garage door opener
training button) and firmly push and re-
lease the HomeLink button you’ve just
programmed. Push and release the
HomeLink button up to three times to
complete the training.
8. Your HomeLink button should now be
programmed. To program the remaining
HomeLink buttons for additional door or
gate openers, follow steps 2 through 8
only.
NOTE:
Do not repeat step 1 unless you want to “clear”
all previously programmed HomeLink buttons.
If you have any questions or are having diffi-
culty programming your HomeLink buttons,
please refer to the HomeLink web site at:
www.homelink.com or call 1-800-355-3515.
PROGRAMMING HOMELINK FOR
CANADIAN CUSTOMERS
Prior to 1992, D.O.C. regulations required hand-
held transmitters to stop transmitting after 2
seconds. To program your hand-held transmit-
ter to HomeLink, continue to push and hold
the HomeLink button (note steps 2 through 4
under “Programming HomeLink”) while you
push and re-push (“cycle”) your hand-held
transmitter every 2 seconds until the indicator
light flashes rapidly (indicating successful pro-
gramming).
NOTE:
If programming a garage door opener, etc., it is
advised to unplug the device during the “cy-
cling” process to prevent possible damage to
the garage door opener components.
OPERATING THE HOMELINK
UNIVERSAL TRANSCEIVER
HomeLink Universal Transceiver (once pro-
grammed) may now be used to activate the
garage door, etc. To operate, simply push the
appropriate programmed HomeLink Universal
Transceiver button. The red indicator light will
illuminate while the signal is being transmitted.
2-62Instruments and controls
—
—
07/30/09—pattie


PROGRAMMING TROUBLE-DIAGNOSIS
If HomeLinkdoes not quickly learn the hand-
held transmitter information:
● replace the hand-held transmitter batteries
with new batteries.
● position the hand-held transmitter with its
battery area facing away from the
HomeLink surface.
● push and hold both the HomeLink and
hand-held transmitter buttons without inter-
ruption.
● position the hand-held transmitter 2 to 5 in
(50 to 127 mm) away from the HomeLink
surface. Hold the transmitter in that position
for up to 15 seconds. If HomeLink is not
programmed within that time, try holding
the transmitter in another position - keeping
the indicator light in view at all times.
If you continue to have programming difficul-
ties, please contact the INFINITI Consumer Af-
fairs Department. The phone numbers are lo-
cated in the Foreword of this Owner’s Manual.
CLEARING THE PROGRAMMED
INFORMATION
Individual buttons cannot be cleared, however
to clear all programming, push and hold the two
outside buttons and release when the indicator
light begins to flash (in approximately 20 sec-
onds).
REPROGRAMMING A SINGLE
HOMELINK BUTTON
To reprogram a HomeLink Universal Trans-
ceiver button, complete the following.
1. Push and hold the desired HomeLink button. Do notrelease the button until
step 4 has been completed.
2. When the indicator light begins to flash slowly (after 20 seconds), position the
hand-held transmitter 2 to 5 in (50 to 127
mm) away from the HomeLink surface.
3. Push and hold the hand-held transmitter button.
4. The HomeLink indicator light will flash,
first slowly and then rapidly. When the
indicator light begins to flash rapidly,
release both buttons.
The HomeLink Universal Transceiver button
has now been reprogrammed. The new device
can be activated by pushing the HomeLink button that was just programmed. This proce-
dure will not affect any other programmed
HomeLink
buttons.
IF YOUR VEHICLE IS STOLEN
If your vehicle is stolen, you should change the
codes of any non-rolling code device that has
been programmed into HomeLink. Consult the
Owner’s Manual of each device or call the
manufacturer or retailer of those devices for
additional information.
When your vehicle is recovered, you will need to
reprogram the HomeLink Universal Transceiver
with your new transmitter information.
FCC Notice:
This device complies with FCC rules part 15. Op-
eration is subject to the following two condi-
tions: (1) This device may not cause harmful in-
terference and (2) This device must accept any
interference that may be received, including in-
terference that may cause undesired operation.
The transmitter has been tested and complies
with FCC and DOC/MDC rules. Changes or modi-
fications not expressly approved by the party
responsible for compliance could void the user’s
authority to operate the device.
DOC: ISTC 1763K1313
FCC I.D.: CB2V67690
Instruments and controls2-63
—
—
07/30/09—pattie

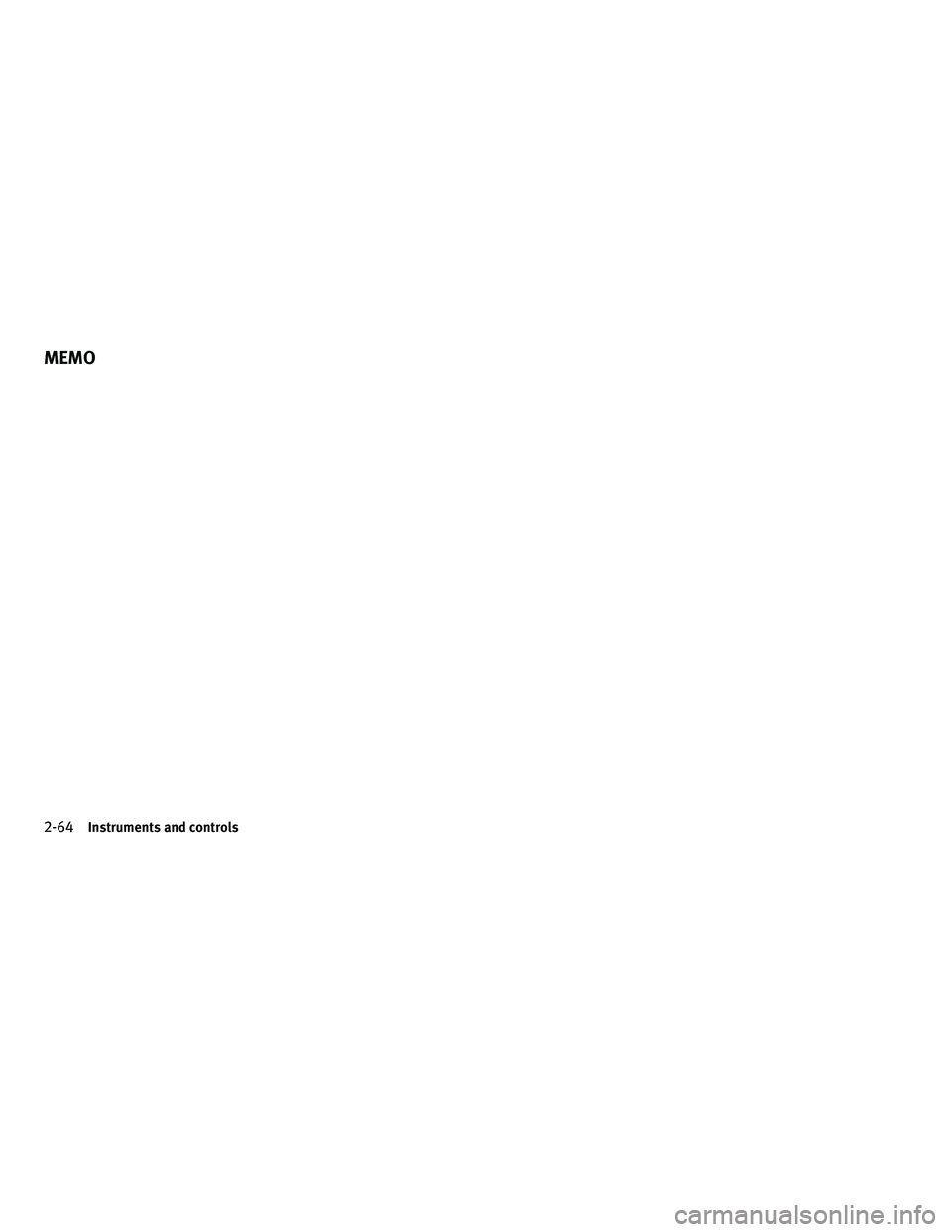

2-64Instruments and controls
MEMO

3 Pre-driving checks and adjustments
Keys............................................. 3-2
Intelligent Key ................................. 3-2
Valet hand-off .................................. 3-3
Doors ............................................ 3-4
Locking with mechanical key .................... 3-4
Opening and closing windows with the
mechanical key ................................ 3-4
Locking with inside lock knob ................... 3-5
Locking with power door lock switch ............. 3-5
Automatic door locks ........................... 3-5
Child safety rear door lock ...................... 3-6
Intelligent Key system ............................. 3-6
Intelligent Key operating range .................. 3-8
Door locks/unlocks precaution .................. 3-9
Intelligent Key operation ........................ 3-9
Battery saver system ........................... 3-11
Warning signals ................................ 3-11
Troubleshooting guide ......................... 3-12
Remote keyless entry system ......................3-13
How to use remote keyless entry system ........3-13 Hood
............................................ 3-16
Lift gate ......................................... 3-16
Lift gate release lever ........................... 3-17
Auto closure ................................... 3-17
Fuel-filler door ................................... 3-18
Opening the fuel-filler door ....................3-18
Fuel-filler cap ................................. 3-18
Tilt/telescopic steering ........................... 3-19
Manual operation (if so equipped) ..............3-20
Electric operation (if so equipped) ..............3-20
Sun visors ....................................... 3-21
Mirrors .......................................... 3-21
Inside mirror .................................. 3-21
Outside mirrors ............................... 3-23
Vanity mirror .................................. 3-24
Automatic drive positioner (if so equipped) .........3-25
Entry/exit function ............................ 3-25
Seat synchronization function ..................3-26
Memory storage ............................... 3-26
System operation ............................. 3-27
—
—
10/16/09—tbrooks


A key number plate is supplied with your keys.
Record the key number and keep it in a safe
place (such as your wallet), not in the vehicle. If
you lose your keys, see an INFINITI retailer for
duplicates by using the key number. INFINITI
does not record any key numbers so it is very
important to keep track of your key number
plate.
A key number is only necessary when you have
lost all keys and do not have one to duplicate
from. If you still have a key, this key can be
duplicated by an INFINITI retailer.
1. Intelligent Key (2)
2. Mechanical key (inside Intelligent Key) (2)
3. Key number plate (1)
INTELLIGENT KEY
Your vehicle can only be driven with the Intelli-
gent Keys which are registered to your vehicle’s
Intelligent Key system components and INFINITI
Vehicle Immobilizer System components. As
many as 4 Intelligent Keys can be registered
and used with one vehicle. The new keys must
be registered by an INFINITI retailer prior to use
with the Intelligent Key system and INFINITI
Vehicle Immobilizer System of your vehicle.
Since the registration process requires erasing
all memory in the Intelligent Key componentswhen registering new keys, be sure to take all
Intelligent Keys that you have to the INFINITI
retailer.
CAUTION
●
Be sure to carry the Intelligent Key with you
when driving. The Intelligent Key is a preci-
sion device with a built-in transmitter. To
avoid damaging it, please note the
following.
– The Intelligent Key is water resistant; however, wetting may damage the Intelli-
gent Key. If the Intelligent Key gets wet,
immediately wipe until it is completely
dry.
– Do not bend, drop or strike it against an- other object.
– Do not place the Intelligent Key for an extended period in a place where tem-
peratures exceed 140°F (60°C).
– Do not change or modify the Intelligent Key.
– Do not use a magnet key holder.
– Do not place the Intelligent Key near an electric appliance such as a television set
or personal computer.
SPA2406
KEYS
3-2Pre-driving checks and adjustments
—
—
07/30/09—pattie


– Do not allow the Intelligent Key to comeinto contact with water or salt water, and
do not wash it in a washing machine. This
could affect the system function.
● If an Intelligent Key is lost or stolen, INFINITI
recommends erasing the ID code of that In-
telligent Key. This will prevent the Intelli-
gent Key from unauthorized use to unlock
the vehicle. For information regarding the
erasing procedure, please contact an
INFINITI retailer.
Mechanical key
To remove the mechanical key, release the lock
knob at the back of the Intelligent Key.
To install the mechanical key, firmly insert it
into the Intelligent Key until the lock knob
returns to the lock position.
Use the mechanical key to lock or unlock the
doors and the glove box.
See “DOORS” later in this section, “STORAGE”
in the “2. Instruments and controls” section.
CAUTION
Always carry the mechanical key installed in
the Intelligent Key.
VALET HAND-OFF
When you have to leave a key with a valet, give
them the Intelligent Key itself and keep the
mechanical key with you to protect your belong-
ings.
To prevent the glove box from being opened
during valet hand-off, follow the procedures
below.
1. Remove the mechanical key from the In- telligent Key.
2. Lock the glove box with the mechanical key.
3. Hand the Intelligent Key to the valet, keeping the mechanical key in your
pocket or bag for insertion into the Intel-
ligent Key when you retrieve your vehicle.
See “STORAGE” in the “2. Instruments and
controls” section.
SPA2033
Pre-driving checks and adjustments3-3
—
—
08/03/09—tbrooks


WARNING
●Always have the doors locked while driving.
Along with the use of seat belts, this pro-
vides greater safety in the event of an acci-
dent by helping to prevent persons from be-
ing thrown from the vehicle. This also helps
keep children and others from unintention-
ally opening the doors, and will help keep
out intruders.
● Before opening any door, always look for and
avoid oncoming traffic.
● Do not leave children unattended inside the
vehicle. They could unknowingly activate
switches or controls. Unattended children
could become involved in serious accidents.
LOCKING WITH MECHANICAL KEY
The power door lock system allows you to lock
or unlock all doors simultaneously using the
mechanical key.
● Turning the driver’s door key cylinder to the
front of the vehicle
1will lock all doors.
● Turning the driver’s door key cylinder once
to the rear of the vehicle
2will unlock the
driver’s door. After returning the key to the
neutral position
3, turning it to the rear
again within 60 seconds will unlock all
doors.
● You can switch the lock system to the mode
that allows you to open all the doors when
the key is turned once. (See “HOW TO USE SETTING BUTTON” in the “4. Monitor, cli-
mate, audio, phone and voice recognition
systems” section.)
OPENING AND CLOSING WINDOWS
WITH THE MECHANICAL KEY
The driver’s door key operation also allows you
to open and close all door windows.
To open the windows, turn the driver’s door key
cylinder to the rear of the vehicle for
longer than
1 second . The door is unlocked and the window
keeps opening while turning the key.
This function can also be performed by pushing
and holding the door UNLOCK button of the
Intelligent Key. (See “REMOTE KEYLESS ENTRY
SYSTEM” later in this section.)
To close the windows, turn the driver’s door key
cylinder to the front of the vehicle for longer
than 1 second . The door is locked and the
window keeps closing while turning the key.
SPA2457B
DOORS
3-4Pre-driving checks and adjustments
—
—
07/30/09—pattie


LOCKING WITH INSIDE LOCK KNOB
To lock the door individually, move the inside
lock knob to the lock position
1.
To unlock, move the inside lock knob to the
unlock position
2.
Be sure not to leave the Intelligent Key inside the
vehicle.
LOCKING WITH POWER DOOR LOCK
SWITCH
Operating the power door lock switch will lock
or unlock all the doors. The switches are lo-
cated on the driver’s and front passenger’s door
armrests.
To lock the doors, push the power door lock
switch to the lock position
1.
Be sure not to leave the Intelligent Key inside the
vehicle.
To unlock the doors including the fuel-filler
door, push the power door lock switch to the
unlock position
2.
Lockout protection
When the power door lock switch (driver or front
passenger) is moved to the lock position with
the Intelligent Key in the port and any door
open, all doors will lock and unlock automati-
cally. With the Intelligent Key left in the vehicle
(not in the Intelligent Key port) and any door
open, all doors will unlock automatically and a
chime will sound after the door is closed.
These functions help to prevent the Intelligent
Key from being accidentally locked inside the
vehicle.
AUTOMATIC DOOR LOCKS
● All doors lock automatically when the ve-
hicle speed reaches 15 MPH (24 km/h).
● All doors unlock automatically when the
ignition is placed in the OFF position (models
with Intelligent Key system) or when the key
is removed from the ignition switch (models
without Intelligent Key system).
The automatic unlock function can be deacti-
vated or activated. To deactivate or activate the
automatic door unlock system, perform the
following procedure:
1. Close all doors.
2. Place the ignition switch in the ON posi- tion.
SPA1814SPA2300
Pre-driving checks and adjustments3-5
—
—
10/16/09—tbrooks
