2010 INFINITI FX Owners Manual

WARNING
If the supplemental air bag warning light is on,
it could mean that the front air bag, side air
bag, curtain and rollover air bag and/or preten-
sioner systems will not operate in an accident.
To help avoid injury to yourself or others, have
your vehicle checked by a retailer as soon as
possible.
REPAIR AND REPLACEMENT
PROCEDURE
The front air bags, side air bags, curtain and
rollover air bags and pretensioners are de-
signed to activate on a one-time-only basis. As
a reminder, unless it is damaged, the supple-
mental air bag warning light will remain illumi-
nated after inflation has occurred. Repair and
replacement of these systems should be done
only by an INFINITI retailer.
When maintenance work is required on the
vehicle, the front air bags, side air bags, curtain
and rollover air bags, pretensioners and related
parts should be pointed out to the person
conducting the maintenance. The ignition
switch should always be in the LOCK position
when working under the hood or inside the
vehicle.
WARNING
●Once a front air bag, side air bag or curtain
and rollover air bag has inflated, the air bag
module will not function again and must be
replaced. Additionally, if any of the front air
bags inflate, the activated pretensioners
must also be replaced. The air bag module
and pretensioner should be replaced by an
INFINITI retailer. The air bag module and pre-
tensioner system cannot be repaired.
● The front air bag, side air bag, curtain and
rollover air bag and the pretensioner should
be inspected by an INFINITI retailer if there is
any damage to the front end or side portion
of the vehicle.
● If you need to dispose of a supplemental air
bag or pretensioner or scrap the vehicle,
contact an INFINITI retailer. Correct supple-
mental air bag and pretensioner system dis-
posal procedures are set forth in the appro-
priate INFINITI Service Manual. Incorrect
disposal procedures could cause personal
injury.
1-54Safety — Seats, seat belts and supplemental restraint system
—
—
07/30/09—pattie


Safety — Seats, seat belts and supplemental restraint system1-55

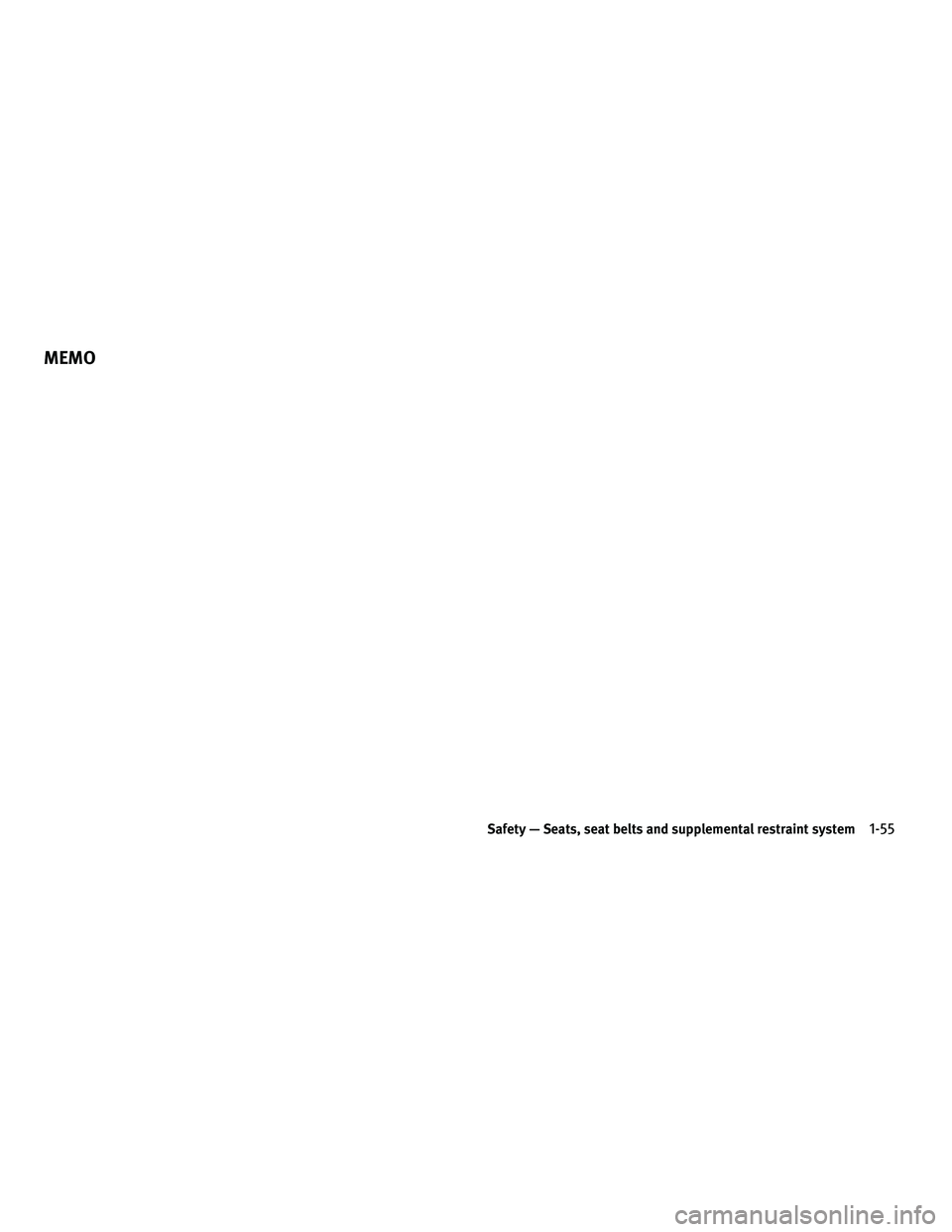

MEMO

2 Instruments and controls
Cockpit........................................... 2-2
Instrument panel .................................. 2-4
Meters and gauges ................................ 2-5
Speedometer and odometer ..................... 2-6
Tachometer .................................... 2-7
Engine coolant temperature gauge ............... 2-7
Fuel gauge ..................................... 2-8
Meter/ring illumination and needle sweep ........ 2-8
Compass (if so equipped) .......................... 2-9
Zone variation change procedure ...............2-10
Warning/indicator lights and audible reminders .....2-12
Checking bulbs ............................... 2-12
Warning lights ................................ 2-13
Indicator lights ................................ 2-18
Audible reminders ............................. 2-20
Dot matrix liquid crystal display ...................2-21
Indicators for operation ........................ 2-23
Indicators for maintenance .....................2-25
Trip computer ................................. 2-27
Security systems ................................. 2-29
Vehicle security system ........................ 2-29
INFINITI Vehicle Immobilizer System ............2-31Windshield wiper and washer switch
...............2-32
Windshield wiper and washer operation .........2-33
Rain-sensing auto wiper system
(if so equipped) ............................... 2-33
Rear window wiper and washer operation .......2-34
Rear window and outside mirror defroster switch . . . 2-35
Headlight and turn signal switch ..................2-35
Xenon headlights ............................. 2-35
Headlight switch .............................. 2-36
Turn signal switch ............................. 2-39
Fog light switch ............................... 2-40
Hazard warning flasher switch .....................2-40
Horn ............................................ 2-41
Climate controlled seats (if so equipped) ...........2-41
Lane Departure Warning (LDW) switch
(if so equipped) .................................. 2-42
Forward Collision Warning (FCW) switch
(if so equipped) .................................. 2-43
SNOW

mode switch .............................. 2-43
Continuous damping control mode select switch
(if so equipped) .................................. 2-44
Auto mode .................................... 2-44
—
—
08/03/09—tbrooks


Sport mode................................... 2-44
Intelligent Brake Assist (IBA) OFF switch
(if so equipped) .................................. 2-44
Vehicle Dynamic Control (VDC) OFF switch ..........2-45
Clock ............................................ 2-45
Adjusting the time ............................. 2-45
Power outlet ..................................... 2-45
Storage ......................................... 2-46
Cup holders .................................. 2-46
Sunglasses holder ............................. 2-47
Glove box .................................... 2-48
Console box .................................. 2-48
Card holder ................................... 2-49
Coat hooks ................................... 2-49
Luggage hooks (if so equipped) ................2-50
Cargo net (if so equipped) .....................2-50
Cargo cover (if so equipped) ....................2-51
Roof rack (if so equipped) ......................2-53
Windows ........................................ 2-53Power windows
............................... 2-53
Moonroof ........................................ 2-56
Automatic moonroof ........................... 2-56
Welcome light ................................... 2-57
Interior lights .................................... 2-58
Map lights .................................... 2-58
Personal lights ................................ 2-58
Interior light control switch ....................2-58
Vanity mirror lights ............................... 2-59
Cargo light ...................................... 2-60
HomeLink Universal Transceiver ..................2-60
Programming HomeLink ......................2-61
Programming HomeLink for Canadian
customers .................................... 2-62
Operating the HomeLink Universal
Transceiver ................................... 2-62
Programming

trouble-diagnosis ................. 2-63
Clearing the programmed information ...........2-63
Reprogramming a single HomeLink button.....2-63
If your vehicle is stolen ........................ 2-63
—
—
08/03/09—tbrooks


1. Outside mirror remote control switch
2. Instrument brightness control switch
3. H
eadlight, fog light and turn signal switch
4. Steering-wheel-mounted controls(left side)
— For audio system — For Bluetooth
Hands-Free Phone
System (with navigation system)
— For Bluetooth Hands-Free Phone
System (without navigation system)
— For INFINITI Voice Recognition System
(if so equipped) 5. Trip computer switch
6. Windshield wiper and washer switch
7. Steering-wheel-mounted controls
(right side)
— Cruise control switches
— Intelligent Cruise Control (ICC) switches
(if so equipped)
— Lane Departure Prevention (LDP) switch
(if so equipped)
8. Intelligent Brake Assist (IBA) off switch (if so equipped)
9. Vehicle Dynamic Control (VDC) OFF switch
10. Intelligent Key port
11. Forward Collision Warning (FCW) and Lane Departure Warning (LDW) switch
(if so equipped)
— Forward Collision Warning (FCW)
— Lane Departure Warning (LDW)
12. TRIP/RESET switch for twin trip odometer
13. Electric tilting/telescopic steering wheel lever (if so equipped)
14. Manual tilting/telescopic steering wheel lever (if so equipped)
SIC4246
COCKPIT
2-2Instruments and controls
—
—
08/03/09—tbrooks


15. Center-console-mounted controls— Climate controlled seat switches
(if so equipped)
— SNOW mode switch
— Continuous Damping Control mode
select switch (if so equipped)
Instruments and controls2-3
—
—
07/30/09—pattie


1. Side ventilator
2. Paddle shifter (if so equipped)
3. Meters and gauges
4. Center ventilator5. Center multi-function control panel
— Navigation system* (if so equipped)
— Vehicle information and setting buttons
— Bluetooth Hands-Free Phone System
(if so equipped)
— Around View Monitor (if so equipped) 6. Center display
7. Clock
8. Hazard warning flasher switch
9. Front passenger supplemental air bag
10. Hood release handle
11. Fuse box cover
12. Parking brake
13. Steering wheel
— Horn
— Driver supplement air bag
14. Push-button ignition switch
15. Front passenger air bag status light
16. Power outlet
17. Rear window defogger switch
18. CompactFlash card slot (if so equipped)
19. Automatic climate control system
20. Audio system
21. Glove box lid release handle
*: Refer to the separate Navigation System Owner’s Manual.SIC3824
INSTRUMENT PANEL
2-4Instruments and controls
—
—
08/03/09—tbrooks


1. Tachometer
2. Warning/Indicator lights
3. Speedometer
4. Engine coolant temperature gauge5. Dot matrix liquid crystal display/
Odometer/twin trip odometer
6. Fuel gauge
The needle indicators in the speedometer, ta-
chometer, engine coolant temperature gauge and fuel gauge may move slightly after the igni-
tion switch is pushed to the OFF position. This is
not a malfunction.
SIC3825
METERS AND GAUGES
Instruments and controls2-5
—
—
