2010 INFINITI FX Owners Manual

3. Push the LOCKbutton1on the
Intelligent Key.
4. All the doors, the lift gate and fuel-filler door will lock.
5. The hazard indicator flashes twice and the horn chirps once.
*1: Doors will lock with the Intelligent Key while the ignition switch is in the ACC or ON
position.
*2: Doors will not lock with the Intelligent Key while any door is open.
Unlocking doors and fuel-filler door
1. Push the UNLOCKbutton2on the
Intelligent Key once.
2. The hazard indicator flashes once. The driver’s door and fuel-filler door will un-
lock.
The puddle light and the passenger cabin illu-
mination will illuminate and stay on for a short
period of time.
3. Push the UNLOCKbutton on the
Intelligent Key again within 60 seconds.
4. The hazard indicator flashes once again. All the doors will unlock.
All doors will be locked automatically unless
one of the following operations is performed within 1 minute after pushing the UNLOCK but-
ton on the Intelligent Key while the doors are
locked. If during this 1-minute time period, the
UNLOCK button on the Intelligent Key is
pushed, all doors will be locked automatically
after another 1 minute.
●
Opening any door
● Pushing the ignition switch
Opening windows
To open the windows, push the door UNLOCK
button on the Intelligent Key for about 3
seconds after the door is unlocked.
To stop opening, release the UNLOCK
button.
Window cannot be closed using the Intelligent
Key.
The door windows can be opened or closed by
turning the mechanical key in a door lock. (See
“DOORS” earlier in this section.)
Using panic alarm
If you are near your vehicle and feel threatened,
you may activate the alarm to call attention as
follows:
1. Push the PANICbutton3on the
Intelligent Key for more than 1 second. 2. The theft warning alarm and headlights
will stay on for 25 seconds.
3. The panic alarm stops when:
● It has run for 25 seconds, or
● Any of the buttons on the Intelligent Key
are pushed. (Note: Panic button should be
pushed for more than 1 second.)
Setting hazard indicator and horn
mode
This vehicle is set in hazard indicator and horn
mode when you first receive the vehicle.
In hazard indicator and horn mode, when the
LOCK
button1is pushed, the hazard
indicator flashes twice and the horn chirps
once. When the UNLOCK
button2is
pushed, the hazard indicator flashes once.
If horns are not necessary, the system can be
switched to the hazard indicator mode.
In hazard indicator mode, when the LOCK
button is pushed, the hazard indicator
flashes twice. When the UNLOCK
button
is pushed, neither the hazard indicator nor the
horn operates.
3-14Pre-driving checks and adjustments
—
—
07/30/09—pattie


Hazard indicator and horn mode :
DOOR LOCKDOOR UNLOCK
Intelligent Key system (Using door
handle request switch) HAZARD -
twice
OUTSIDE CHIME - twiceHAZARD -
once
OUTSIDE CHIME - once
Remote keyless entry system
(Using
orbutton) HAZARD -
twice
HORN - once HAZARD -
once
HORN - none
Hazard indicator mode :
DOOR LOCK DOOR UNLOCK
Intelligent Key system (Using door
handle request switch) HAZARD -
twice
OUTSIDE CHIME - twiceHAZARD - none
OUTSIDE CHIME -
once
Remote keyless entry system
(Using
orbutton) HAZARD -
twice HAZARD - none Switching procedure :
Push the LOCK
1and UNLOCK2
buttons on the Intelligent Key simultaneously
for more than 2 seconds to switch the mode
from one to the other.
When pushing the buttons to set the hazard
indicator mode, the hazard indicator flashes 3
times.
When pushing the buttons to set the hazard
indicator and horn mode, the hazard indicator
flashes once and the horn chirps once.
Pre-driving checks and adjustments3-15
—
—
07/30/09—pattie


1. Pull the hood lock release handle1
located below the instrument panel; the
hood will then spring up slightly.
2. Pull the lever
2up at the front of the
hood with your fingertips and raise the
hood.
3. When closing the hood, slowly close the hood down to latch both the right and left
locks. Push the hood down to lock the
hood securely into place.
WARNING
●Make sure the hood is completely closed and
latched before driving. Failure to do so could
cause the hood to fly open and result in an
accident.
● If you see steam or smoke coming from the
engine compartment, to avoid injury do not
open the hood.
WARNING
● Always be sure the lift gate has been closed
securely to prevent it from opening while
driving.
● Do not drive with the lift gate open. This
could allow dangerous exhaust gases to be
drawn into the vehicle. See “PRECAUTIONS
WHEN STARTING AND DRIVING” in the “5.
Starting and driving” section for exhaust
gas.
SPA2520
HOOD LIFT GATE
3-16Pre-driving checks and adjustments
—
—
07/30/09—pattie

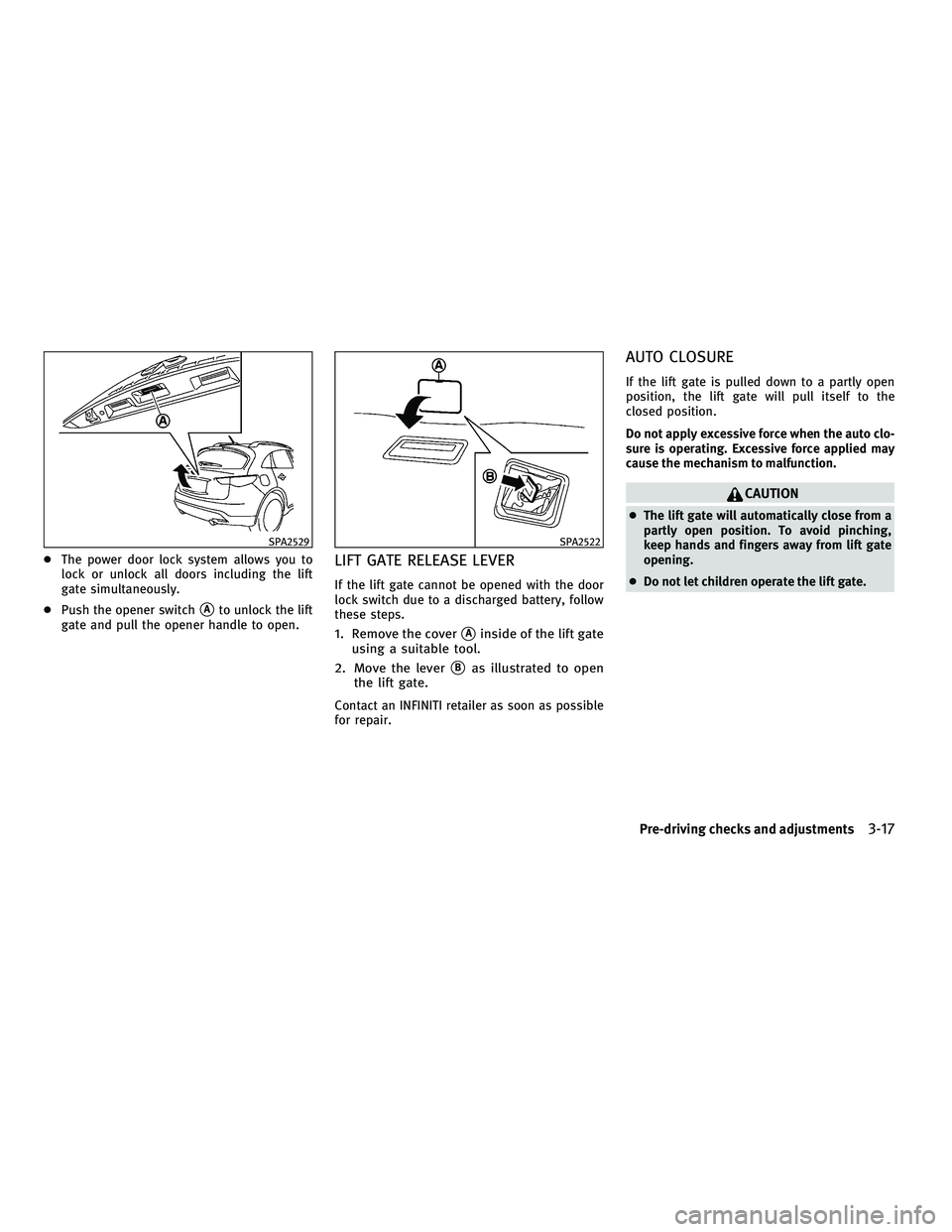

●The power door lock system allows you to
lock or unlock all doors including the lift
gate simultaneously.
● Push the opener switch
Ato unlock the lift
gate and pull the opener handle to open.
LIFT GATE RELEASE LEVER
If the lift gate cannot be opened with the door
lock switch due to a discharged battery, follow
these steps.
1. Remove the coverAinside of the lift gate
using a suitable tool.
2. Move the lever
Bas illustrated to open
the lift gate.
Contact an INFINITI retailer as soon as possible
for repair.
AUTO CLOSURE
If the lift gate is pulled down to a partly open
position, the lift gate will pull itself to the
closed position.
Do not apply excessive force when the auto clo-
sure is operating. Excessive force applied may
cause the mechanism to malfunction.
CAUTION
● The lift gate will automatically close from a
partly open position. To avoid pinching,
keep hands and fingers away from lift gate
opening.
● Do not let children operate the lift gate.
SPA2529SPA2522
Pre-driving checks and adjustments3-17
—
—
07/30/09—pattie


OPENING THE FUEL-FILLER DOOR
To open the fuel-filler door, unlock the fuel-filler
door by using one of the following operations,
then push the left side of the door.
●Push the driver’s door handle request switch
with the Intelligent Key carried with you.
● Push the passenger’s door handle request
switch or lift gate request switch twice with
the Intelligent Key carried with you.
● Push the UNLOCK button on the Intelligent
Key.
● Insert the mechanical key into the door lock
cylinder and turn it to the rear of the vehicle. ●
Push the power door lock switch to the
UNLOCK position.
To lock, close the fuel-filler door securely and
lock all doors by operating the door handle
request switch, the LOCK button on the Intelli-
gent Key, the mechanical key or the power door
lock switch.
FUEL-FILLER CAP
WARNING
● Gasoline is extremely flammable and highly
explosive under certain conditions. You
could be burned or seriously injured if it is
misused or mishandled. Always stop engine
and do not smoke or allow open flames or
sparks near the vehicle when refueling.
● Do not attempt to top off the fuel tank after
the fuel pump nozzle shuts off automati-
cally. Continued refueling may cause fuel
overflow, resulting in fuel spray and possi-
bly a fire. ●
Use only an original equipment type fuel-
filler cap as a replacement. It has a built-in
safety valve needed for proper operation of
the fuel system and emission control sys-
tem. An incorrect cap can result in a serious
malfunction and possible injury. It could
also cause the malfunction indicator light to
come on.
● Never pour fuel into the throttle body to at-
tempt to start your vehicle.
● Do not fill a portable fuel container in the
vehicle or trailer. Static electricity can cause
an explosion of flammable liquid, vapor or
gas in any vehicle or trailer. To reduce the
risk of serious injury or death when filling
portable fuel containers:
– Always place the container on the ground when filling.
– Do not use electronic devices when filling.
– Keep the pump nozzle in contact with the container while you are filling it.
– Use only approved portable fuel contain- ers for flammable liquid.SPA2523
FUEL-FILLER DOOR
3-18Pre-driving checks and adjustments
—
—
07/30/09—pattie


CAUTION
●If fuel is spilled on the vehicle body, flush it
away with water to avoid paint damage.
● Insert the cap straight into the fuel-filler
tube, then tighten until the fuel-filler cap
clicks. Failure to tighten the fuel-filler cap
properly may cause the
malfunction
indicator light (MIL) to illuminate. If the
light illuminates because the fuel-
filler cap is loose or missing, tighten or in-
stall the cap and continue to drive the ve-
hicle. The
light should turn off after a
few driving trips. If the
light does not
turn off after a few driving trips, have the
vehicle inspected by an INFINITI retailer.
The fuel-filler cap is a ratcheting type. Turn the
cap counterclockwise to remove. To tighten,
turn the cap clockwise until ratcheting clicks
are heard. Put the fuel-filler cap on the cap holderA
while refueling.
WARNING
●
Do not adjust the steering wheel while driv-
ing. You could lose control of your vehicle
and cause an accident.
● Do not adjust the steering wheel any closer
to you than is necessary for proper steering
operation and comfort. The driver’s air bag
inflates with great force. If you are unre-
strained, leaning forward, sitting sideways
or out of position in any way, you are at
greater risk of injury or death in a crash. You
may also receive serious or fatal injuries
from the air bag if you are up against it when
it inflates. Always sit back against the seat-
back and as far away as practical from the
steering wheel. Always use the seat belts.
SPA2524
TILT/TELESCOPIC STEERING
Pre-driving checks and adjustments3-19
—
—
07/30/09—pattie


MANUAL OPERATION (if so equipped)
Tilt or telescopic operation
Pull the lock lever1down and adjust the
steering wheel up, down, forward or rearward to
the desired position.
Push the lock lever up securely to lock the
steering wheel in place.
ELECTRIC OPERATION (if so equipped)
Tilt or telescopic operation
Move the lever to adjust the steering wheel up
or down, forward or rearward to the desired
position. Entry/Exit function operation (if so equipped) :
The automatic drive positioner system will
make the steering wheel move up automatically
when the driver’s door is opened with the
ignition switch in the LOCK position. This lets
the driver get into and out of the seat more
easily.
For more information, see “AUTOMATIC DRIVE
POSITIONER” later in this section.
SPA2468SPA2456
3-20Pre-driving checks and adjustments
—
—
07/30/09—pattie

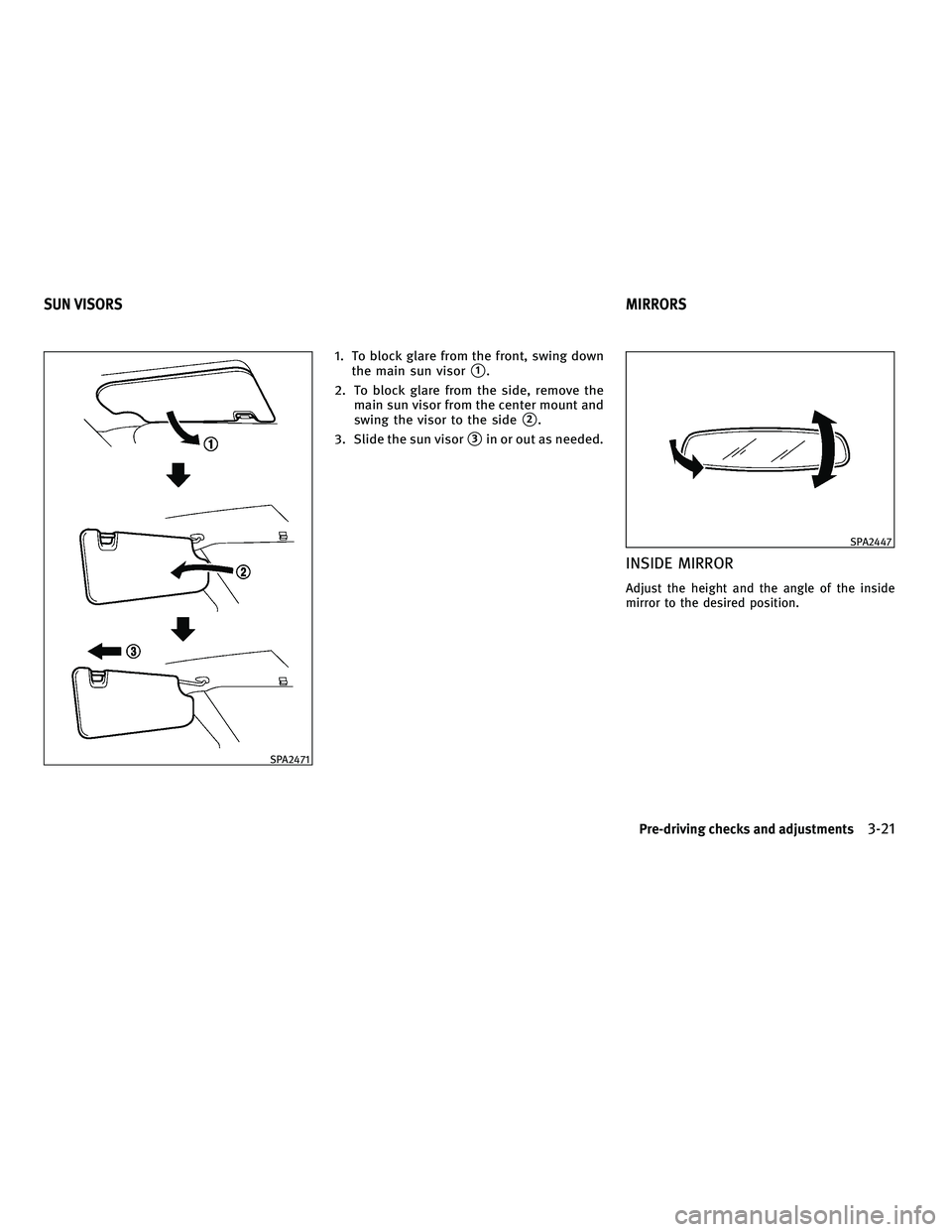

1. To block glare from the front, swing downthe main sun visor
1.
2. To block glare from the side, remove the main sun visor from the center mount and
swing the visor to the side
2.
3. Slide the sun visor
3in or out as needed.
INSIDE MIRROR
Adjust the height and the angle of the inside
mirror to the desired position.
SPA2471
SPA2447
SUN VISORS MIRRORS
Pre-driving checks and adjustments3-21
—
—
07/30/09—pattie
