2010 INFINITI FX Owners Manual

VQ35HR ENGINE
1. Fuse/fusible link holder (P. 8-22)
2. Battery (P. 8-15)
3. Radiator filler cap (P. 8-9)
4. Engine oil dipstick (P. 8-10)5. Engine oil filler cap (P. 8-10)
6. Brake fluid reservoir (P. 8-14)
7. Window washer fluid reservoir (P. 8-14)
8. Power steering fluid reservoir (P. 8-13)
9. Air cleaner (P. 8-19)10. Drive belts (P. 8-17)
11. Coolant reservoir (P. 8-9)
SDI2262
ENGINE COMPARTMENT
0-10Illustrated table of contents
—
—
07/30/09—pattie


VK50VE ENGINE
1. Fuse/fusible link holder (P. 8-22)
2. Battery (P. 8-15)
3. Engine oil filler cap (P. 8-10)
4. Radiator filler cap (P. 8-9)5. Engine oil dipstick (P. 8-10)
6. Brake fluid reservoir (P. 8-14)
7. Window washer fluid reservoir (P. 8-14)
8. Power steering fluid reservoir (P. 8-13)
9. Air cleaner (P. 8-19)10. Drive belt location (P. 8-17)
11. Coolant reservoir (P. 8-9)
SDI2264
Illustrated table of contents0-11
—
—
07/30/09—pattie


Warninglight Name Page
All-Wheel Drive (AWD) warning
light (AWD models)* 2-13
Anti-lock Braking System (ABS)
warning light2-13
Automatic Transmission (AT)
check warning light2-13
Brake warning light
2-13
Charge warning light2-14
Distance Control Assist (DCA)
system warning light (orange)*2-14
Engine oil pressure warning
light2-14
Intelligent Cruise Control (ICC)
system warning light (orange)* 2-15
Intelligent Key system warning
light2-15
Lane departure warning light
(orange)*2-15
Warning
light Name Page
Low tire pressure warning light 2-15
Master warning light
2-17
Preview Function warning light
(orange)*2-17
Rear Active Steer warning light* 2-17
Seat belt warning light
2-17
Supplemental air bag warning
light2-17
Indica-
tor light Name Page
Adaptive Front lighting System
(AFS) indicator light 2-18
Automatic Transmission (AT)
position indicator light2-18
Front passenger air bag status
light2-18
High beam indicator light
2-18
Indica-
tor light Name Page
Intelligent Brake Assist (IBA) off
indicator light* 2-18
Lane Departure Prevention
(LDP) ON indicator light
(green)* 2-19
Malfunction Indicator Light
(MIL)
2-19
Security indicator light
2-20
Slip indicator light2-20
Low beam indicator lights 2-20
SPORT mode indicator light* 2-20
Turn signal/hazard indicator
lights2-20
Vehicle Dynamic Control (VDC)
off indicator light2-20
*: if so equipped
WARNING AND INDICATOR LIGHTS
0-12Illustrated table of contents
—
—
10/16/09—tbrooks


1 Safety — Seats, seat belts and supplemental
restraint system
Seats.............................................1-2
Front seats .....................................1-2
Rear seats ......................................1-5
Head restraints .................................1-6
Adjustable headrest .............................1-9
Armrest (if so equipped) ........................ 1-12
Seat belts ........................................ 1-12
Precautions on seat belt usage ..................1-12
Child safety .................................... 1-15
Pregnant women ............................... 1-16
Injured persons ................................ 1-16
Pre-crash seat belts with comfort function
(front seats) (if so equipped) ....................1-16
Three-point type seat belt .......................1-17
Seat belt extenders ............................. 1-19
Seat belt maintenance ......................... 1-20
Child restraints .................................. 1-20
Precautions on child restraints .................1-20
Lower Anchors and Tethers for CHildren
System (LATCH) ............................... 1-22Top tether strap child restraint
.................1-24
Child restraint installation using LATCH ..........1-25
Child restraint installation using the seat
belts ......................................... 1-29
Booster seats ..................................... 1-35
Precautions on booster seats ....................1-35
Booster seat installation ....................... 1-38
Supplemental restraint system ....................1-40
Precautions on supplemental restraint
system ....................................... 1-40
INFINITI Advanced Air Bag System
(front seats) ................................... 1-45
Front seat-mounted side-impact
supplemental air bag and roof-mounted
curtain side-impact and rollover
supplemental air bag systems ..................1-50
Seat belts with pretensioners (front seats) .......1-52
Supplemental air bag warning labels ............1-53
Supplemental air bag warning light ..............1-53
Repair and replacement procedure ...............1-54
—
—
08/03/09—tbrooks


WARNING
●Do not ride in a moving vehicle when the
seatback is reclined. This can be dangerous.
The shoulder belt will not be against your
body. In an accident, you could be thrown
into it and receive neck or other serious inju-
ries. You could also slide under the lap belt
and receive serious internal injuries.
● For the most effective protection when the
vehicle is in motion, the seat should be up-
right. Always sit well back in the seat with
both feet on the floor and adjust the seat belt
properly. See “PRECAUTIONS ON SEAT BELT
USAGE” later in this section. ●
After adjustment, gently rock in the seat to
make sure it is securely locked.
● Do not leave children unattended inside the
vehicle. They could unknowingly activate
switches or controls. Unattended children
could become involved in serious accidents.
● The seatback should not be reclined any
more than needed for comfort. Seat belts are
most effective when the passenger sits well
back and straight up in the seat. If the seat-
back is reclined, the risk of sliding under the
lap belt and being injured is increased.
FRONT SEATS
Front power seat adjustment
Operating tips :
● The power seat motor has an auto-reset
overload protection circuit. If the motor
stops during operation, wait 30 seconds,
then reactivate the switch.
● Do not operate the power seat switch for a
long period of time when the engine is off.
This will discharge the battery.
See “AUTOMATIC DRIVE POSITIONER” in the “3.
Pre-driving checks and adjustments” section for
the seat position memory function.
CAUTION
When adjusting the seat positions, be sure not
to contact any moving parts to avoid possible
injuries and/or damages.
SSS0133
SEATS
1-2Safety — Seats, seat belts and supplemental restraint system
—
—
08/03/09—tbrooks

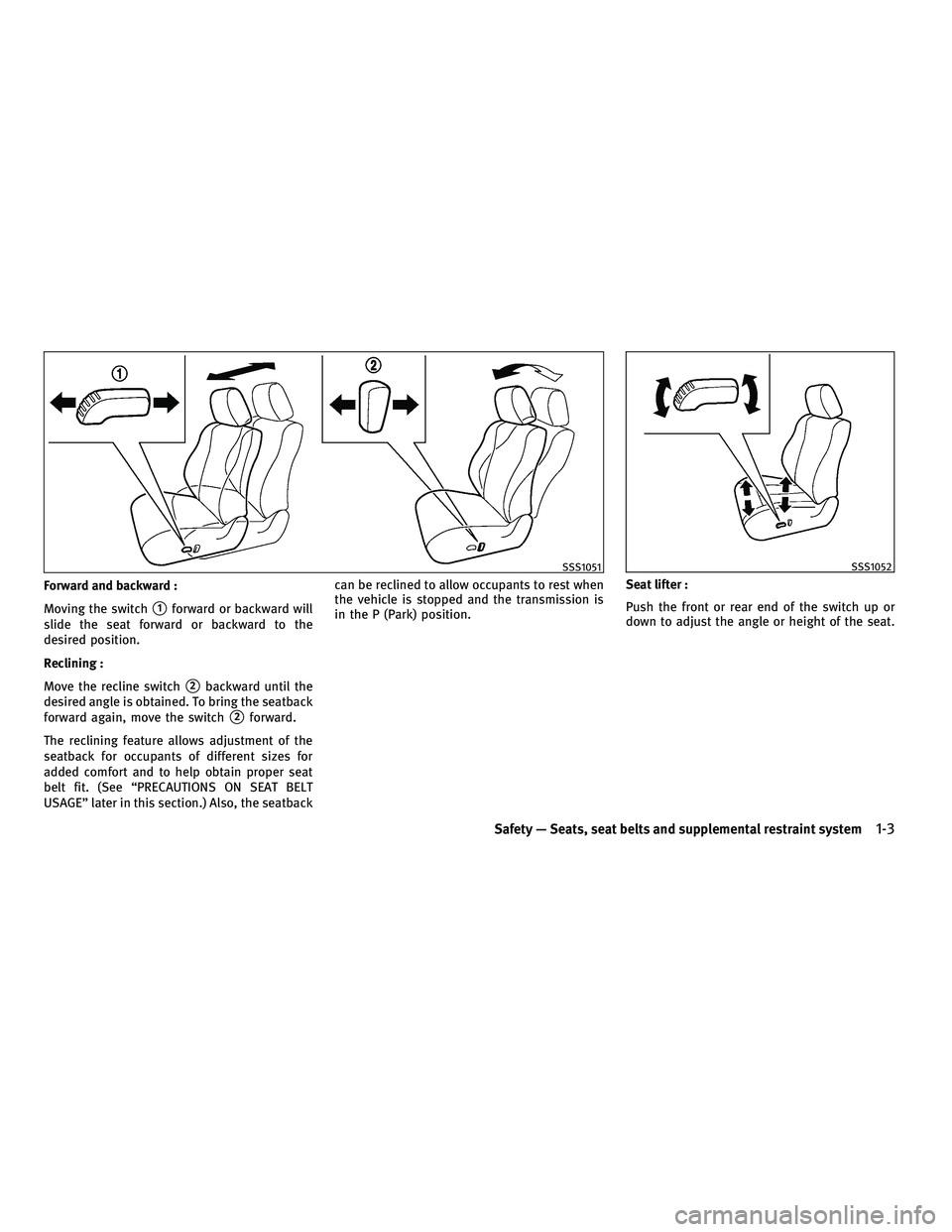

Forward and backward :
Moving the switch
1forward or backward will
slide the seat forward or backward to the
desired position.
Reclining :
Move the recline switch
2backward until the
desired angle is obtained. To bring the seatback
forward again, move the switch
2forward.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. (See “PRECAUTIONS ON SEAT BELT
USAGE” later in this section.) Also, the seatback can be reclined to allow occupants to rest when
the vehicle is stopped and the transmission is
in the P (Park) position.
Seat lifter :
Push the front or rear end of the switch up or
down to adjust the angle or height of the seat.
SSS1051SSS1052
Safety — Seats, seat belts and supplemental restraint system1-3
—
—
10/16/09—tbrooks

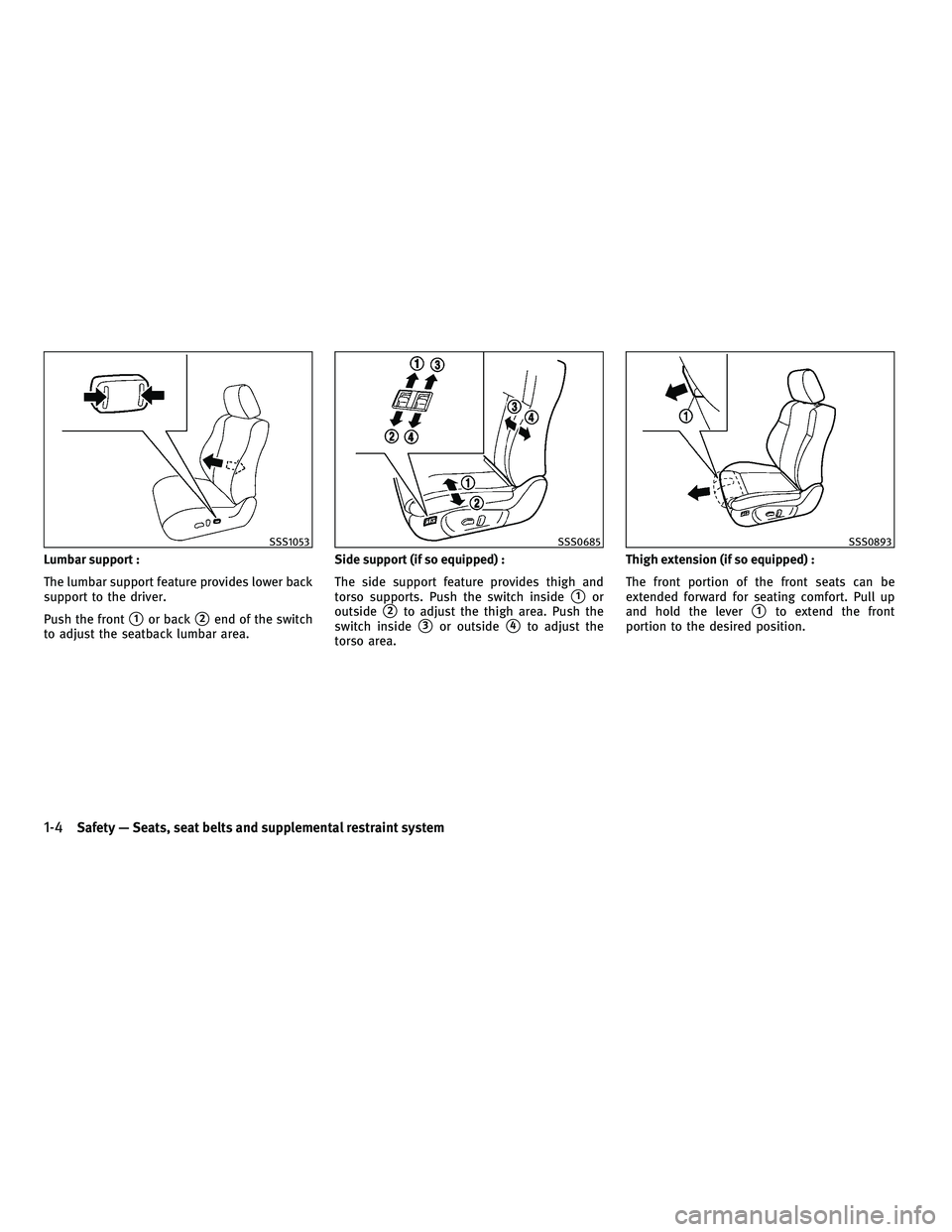

Lumbar support :
The lumbar support feature provides lower back
support to the driver.
Push the front
1or back2end of the switch
to adjust the seatback lumbar area. Side support (if so equipped) :
The side support feature provides thigh and
torso supports. Push the switch inside
1or
outside
2to adjust the thigh area. Push the
switch inside
3or outside4to adjust the
torso area. Thigh extension (if so equipped) :
The front portion of the front seats can be
extended forward for seating comfort. Pull up
and hold the lever1to extend the front
portion to the desired position.
SSS1053SSS0685SSS0893
1-4Safety — Seats, seat belts and supplemental restraint system
—
—
10/16/09—tbrooks


REAR SEATS
WARNING
●Never allow anyone to ride in the cargo area
or on the rear seat when it is in the fold-down
position. Use of these areas by passengers
without proper restraints could result in se-
rious injury in an accident or sudden stop.
● When returning the seatbacks to the upright
position, be certain they are completely se-
cured in the latched position. If they are not
completely secured, passengers may be in-
jured in an accident or sudden stop.
● Properly secure all cargo to help prevent it
from sliding or shifting. Do not place cargo
higher than the seatbacks. In a sudden stop
or collision, unsecured cargo could cause
personal injury.
Reclining
Pull the reclining leverAand position the
seatback at the desired angle. Release the
reclining lever after positioning the seat at the
desired angle.
To return the seatback, pull the lever.
The reclining feature allows adjustment of the
seatback for occupants of different sizes to help
obtain proper seat belt fit. (See “PRECAUTIONS
ON SEAT BELT USAGE” later in this section.) The
seatback may also be reclined to allow occu-
pants to rest when the vehicle is parked.
WARNING
● Do not ride in a moving vehicle when the
seatback is reclined. This can be dangerous.
The shoulder belt will not be against your
body. In an accident, you could be thrown
into it and receive neck or other serious inju-
ries. You could also slide under the lap belt
and receive serious internal injuries.
● For the most effective protection when the
vehicle is in motion, the seat should be up-
right. Always sit well back in the seat with
both feet on the floor and adjust the seat belt
properly. See “PRECAUTIONS ON SEAT BELT
USAGE” later in this section.
● After adjustment, check to be sure the seat is
securely locked.
SSS0894
Safety — Seats, seat belts and supplemental restraint system1-5
—
—
