2009 CHRYSLER PT CRUISER Owners Manual

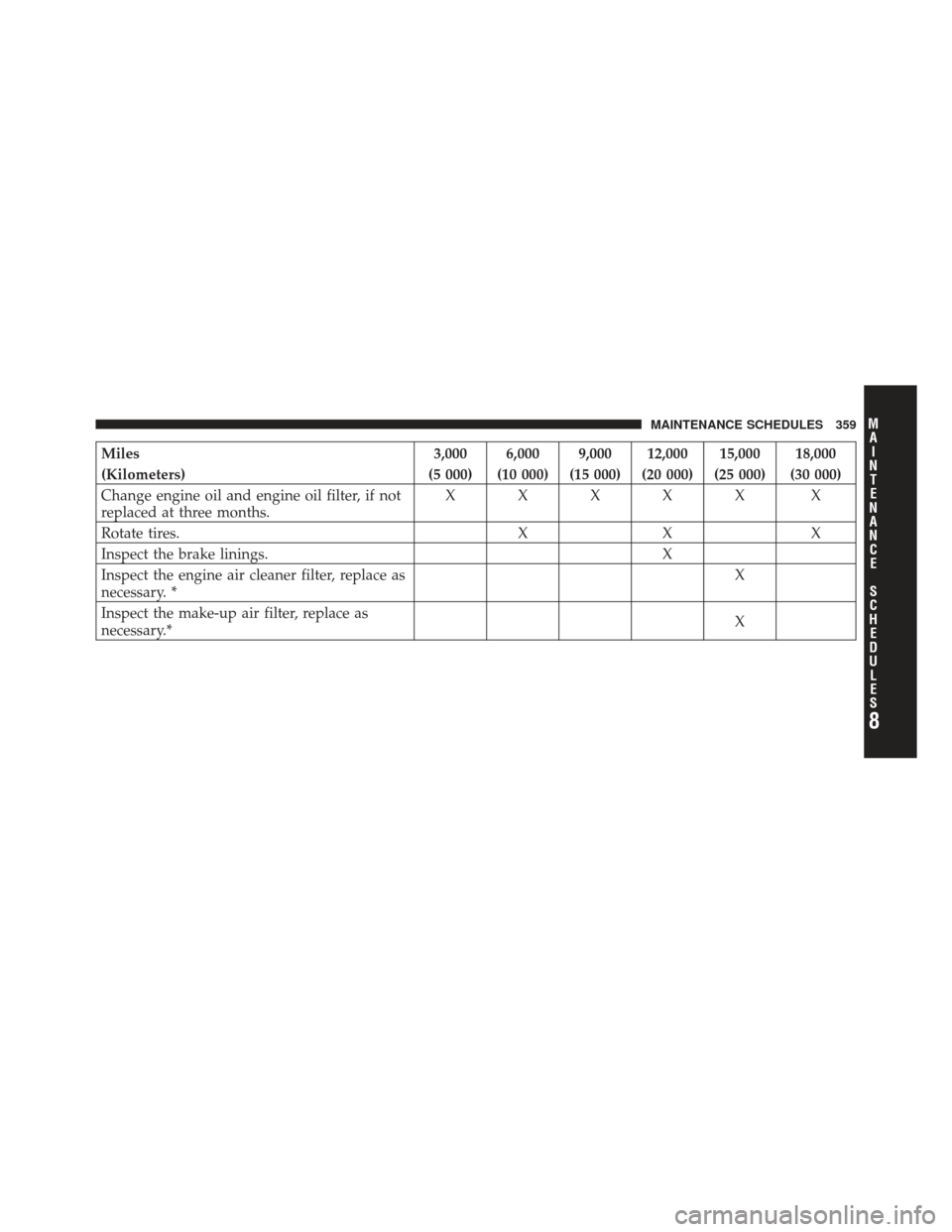

Miles3,000 6,000 9,000 12,000 15,000 18,000
(Kilometers) (5 000) (10 000) (15 000) (20 000) (25 000) (30 000)
Change engine oil and engine oil filter, if not
replaced at three months. XXXXX X
Rotate tires. XX X
Inspect the brake linings. X
Inspect the engine air cleaner filter, replace as
necessary. * X
Inspect the make-up air filter, replace as
necessary.* X
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
SMAINTENANCE SCHEDULES 359

Miles21,000 24,000 27,000 30,000 33,000 36,000
(Kilometers) (35 000) (40 000) (45 000) (50 000) (55 000) (60 000)
Change engine oil and engine oil filter, if not
replaced at three months. XXXXX X
Rotate tires. XX X
Inspect the brake linings. XX
Adjust parking brake on vehicles equipped
with four-wheel disc brakes. X
Replace the engine air cleaner filter.* X
Replace the spark plugs. X
Inspect the tie rod ends and boot seals. X
Replace the make-up air filter.* X
Adjust the generator drive belt tension. X
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S360 MAINTENANCE SCHEDULES

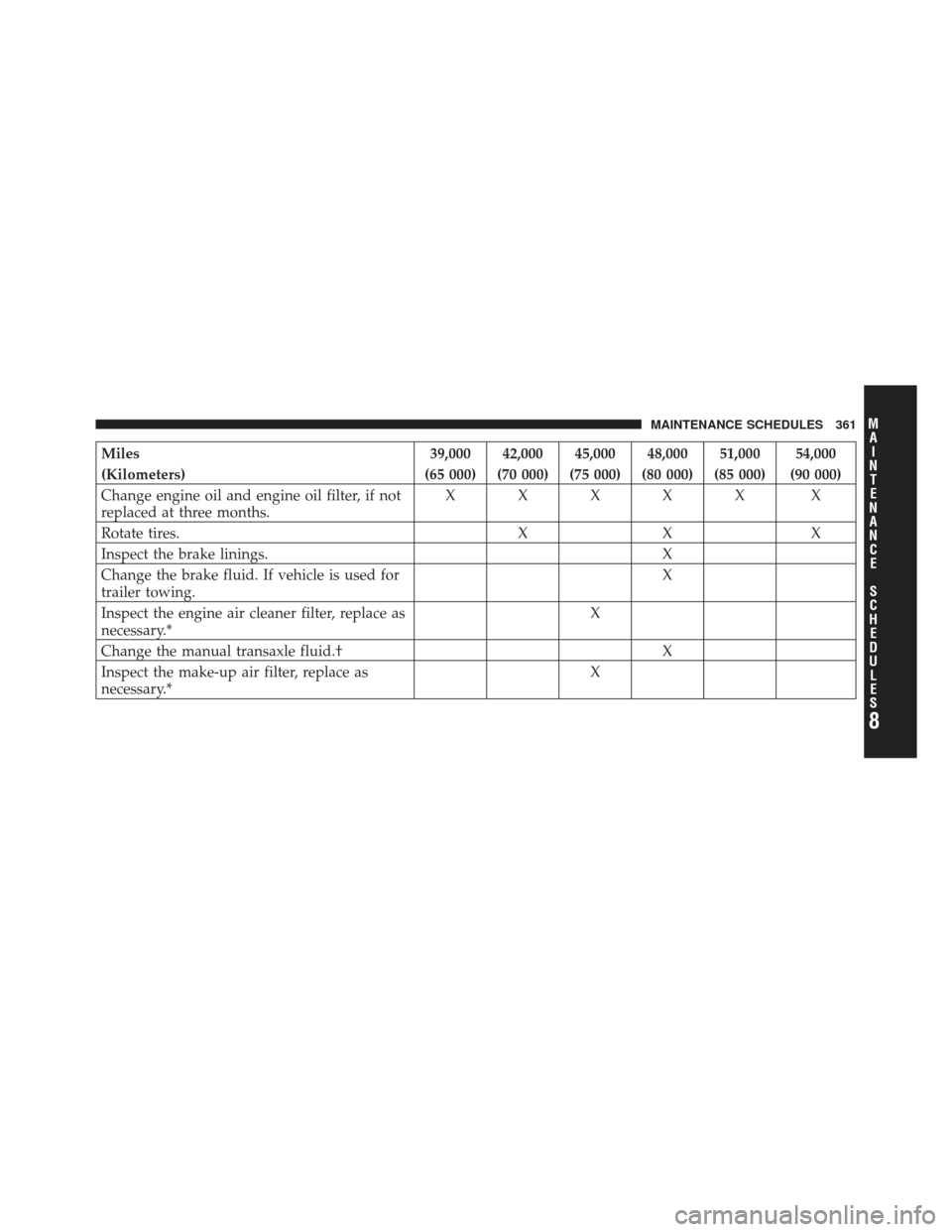

Miles39,000 42,000 45,000 48,000 51,000 54,000
(Kilometers) (65 000) (70 000) (75 000) (80 000) (85 000) (90 000)
Change engine oil and engine oil filter, if not
replaced at three months. XXXXX X
Rotate tires. XX X
Inspect the brake linings. X
Change the brake fluid. If vehicle is used for
trailer towing. X
Inspect the engine air cleaner filter, replace as
necessary.* X
Change the manual transaxle fluid.† X
Inspect the make-up air filter, replace as
necessary.* X
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
SMAINTENANCE SCHEDULES 361

Miles57,000 60,000 63,000 66,000 69,000 72,000
(Kilometers) (95 000) (100 000) (105 000) (110 000) (115 000) (120 000)
Change engine oil and engine oil filter, if not
replaced at three months. XXXXX X
Rotate tires. XX X
Inspect the brake linings. XX
Adjust parking brake on vehicles equipped
with four-wheel disc brakes. X
Replace the engine air cleaner filter.* X
Replace the spark plugs and ignition cables. X
Inspect the tie rod ends and boot seal. X
Replace the make-up air filter.* X
Adjust the generator drive belt tension. X
Change the automatic transaxle fluid and
filter. X
Flush and replace engine coolant at
60 months, if not done at 102,000 miles
(170 000 km). X
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S362 MAINTENANCE SCHEDULES

Miles75,000 78,000 81,000 84,000 87,000 90,000
(Kilometers) (125 000) (130 000) (135 000) (140 000) (145 000) (150 000)
Change engine oil and engine oil filter, if not
replaced at three months. XXXXX X
Rotate tires. XX X
Inspect the brake linings. X
Adjust parking brake on vehicles equipped
with four-wheel disc brakes. X
Inspect the engine air cleaner filter, replace as
necessary.* X
Replace the engine air cleaner filter.* X
Replace the spark plugs. X
Inspect the tie rod ends and boot seals. X
Inspect the PCV valve and replace if
necessary.* X
Inspect the make-up air filter, replace as
necessary.* X
Adjust the generator drive belt tension. X
Replace the make-up air filter.* X
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
SMAINTENANCE SCHEDULES 363

Miles93,000 96,000 99,000 102,000 105,000
(Kilometers) (155 000) (160 000) (165 000) (170 000) (175 000)
Change engine oil and engine oil filter, if not
replaced at three months. XXXXX
Rotate tires. XX
Inspect the brake linings. X
Change the brake fluid if your vehicle is used for
trailer towing. X
Inspect the engine air cleaner filter, and replace as
necessary.* X
Change the manual transaxle fluid.† X
Replace the engine timing belt.* X
Flush and replace the engine coolant, if not
replaced at 60 months. X
Inspect the make-up air filter, replace as necessary.* X
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S364 MAINTENANCE SCHEDULES

Miles108,000 111,000 114,000 117,000 120,000
(Kilometers) (180 000) (185 000) (190 000) (195 000) (200 000)
Change engine oil and engine oil filter, if not
replaced at three months. XXXXX
Rotate tires. XXX
Inspect the brake linings. X
Adjust parking brake on vehicles equipped with
four-wheel disc brakes. X
Replace the engine air cleaner filter.* X
Inspect the tie rod ends and boot seals. X
Replace the make-up air filter.* X
Replace the generator belt. X
Replace the power steering/air conditioning belt. X
Change automatic transaxle fluid and filter. X
Flush and replace the engine coolant at
120 months, if not replaced at 102,000 miles
(200 000 km). X
Replace the spark plugs and ignition cables. X
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
SMAINTENANCE SCHEDULES 365

Miles123,000 126,000 129,000 132,000 135,000
(Kilometers) (205 000) (210 000) (215 000) (220 000) (225 000)
Change engine oil and engine oil filter, if not
replaced at three months. XXXXX
Rotate tires. XXX
Inspect the brake linings. X
Inspect the engine air cleaner filter, and replace as
necessary.* X
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S366 MAINTENANCE SCHEDULES
