2009 CHRYSLER PT CRUISER Owners Manual

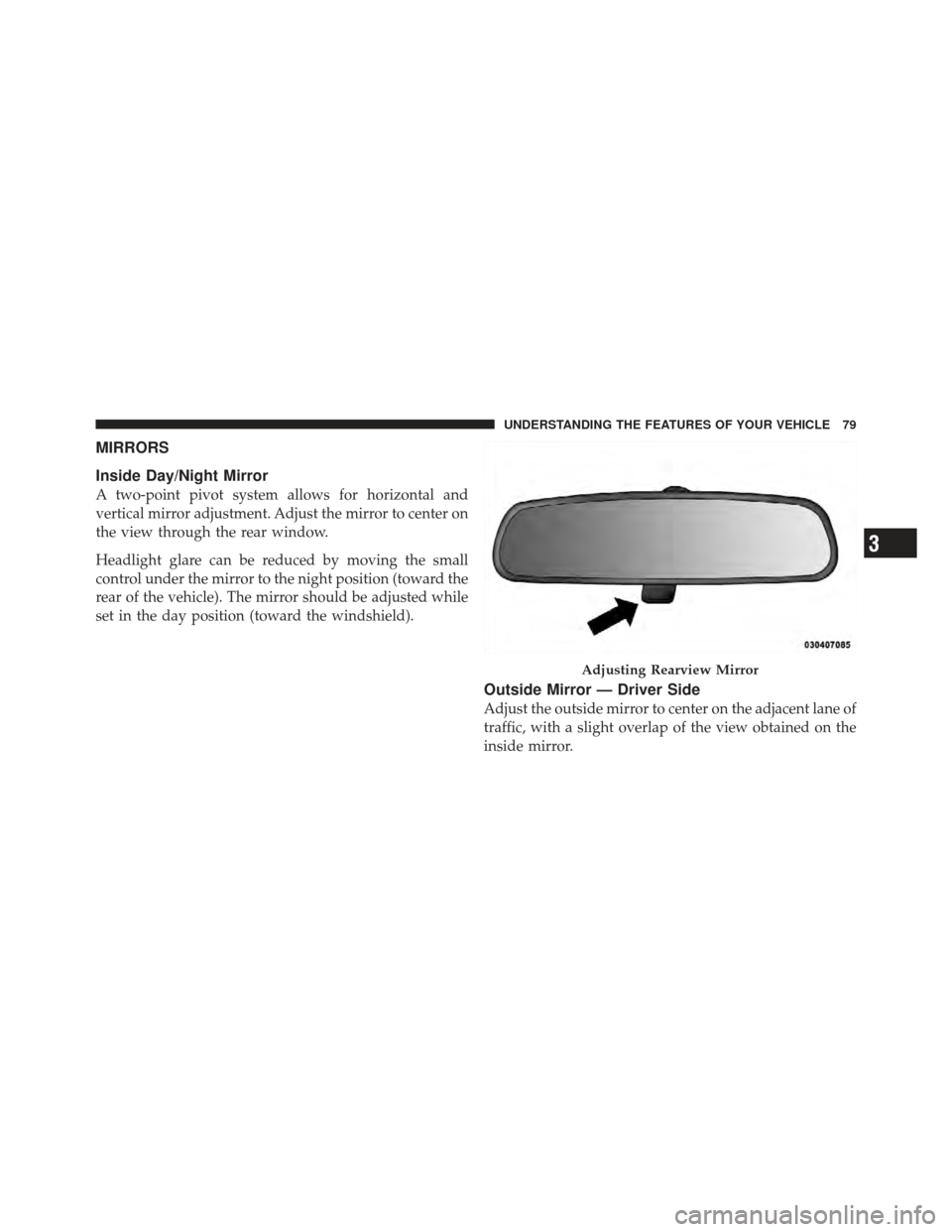

MIRRORS
Inside Day/Night Mirror
A two-point pivot system allows for horizontal and
vertical mirror adjustment. Adjust the mirror to center on
the view through the rear window.
Headlight glare can be reduced by moving the small
control under the mirror to the night position (toward the
rear of the vehicle). The mirror should be adjusted while
set in the day position (toward the windshield).
Outside Mirror — Driver Side
Adjust the outside mirror to center on the adjacent lane of
traffic, with a slight overlap of the view obtained on the
inside mirror.
Adjusting Rearview Mirror
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 79

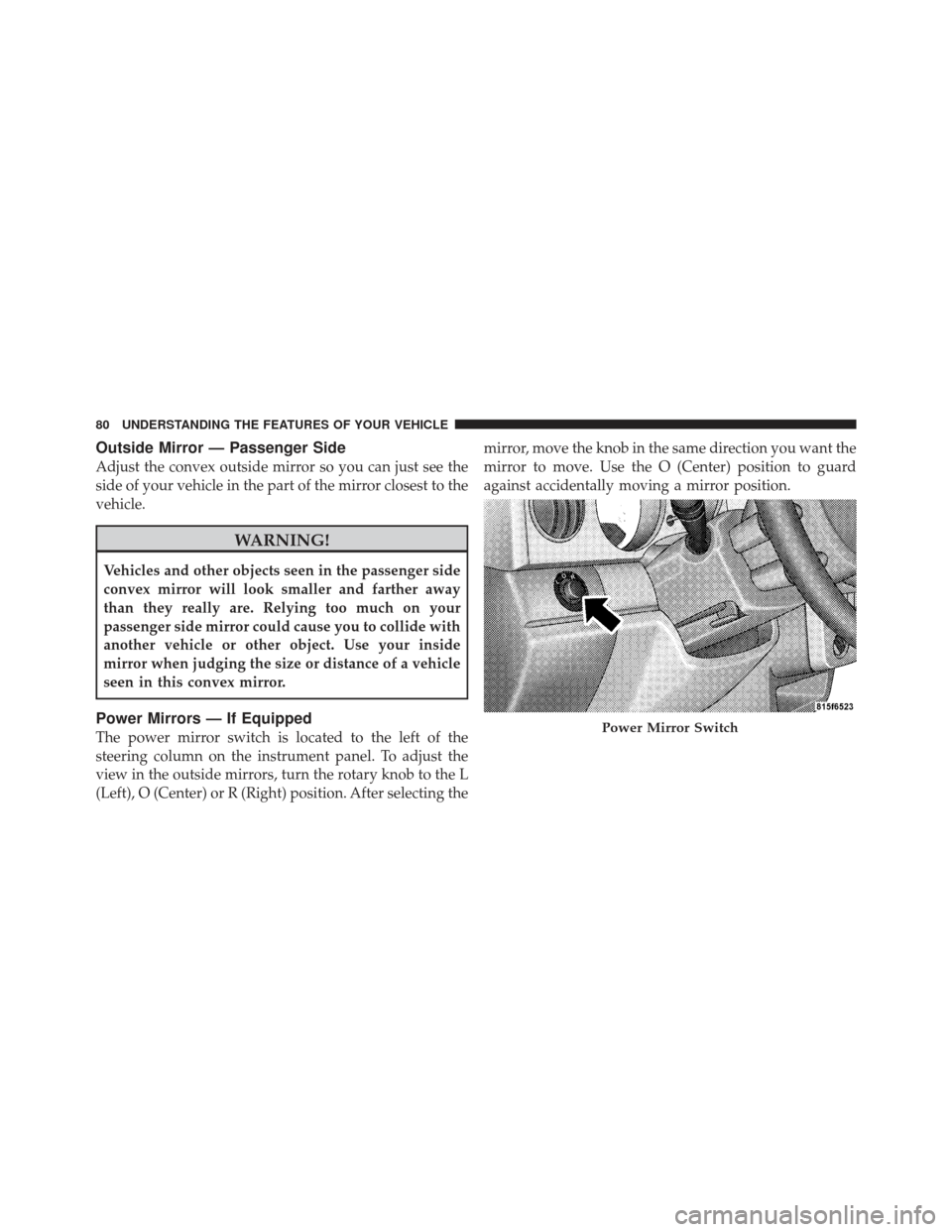

Outside Mirror — Passenger Side
Adjust the convex outside mirror so you can just see the
side of your vehicle in the part of the mirror closest to the
vehicle.
WARNING!
Vehicles and other objects seen in the passenger side
convex mirror will look smaller and farther away
than they really are. Relying too much on your
passenger side mirror could cause you to collide with
another vehicle or other object. Use your inside
mirror when judging the size or distance of a vehicle
seen in this convex mirror.
Power Mirrors — If Equipped
The power mirror switch is located to the left of the
steering column on the instrument panel. To adjust the
view in the outside mirrors, turn the rotary knob to the L
(Left), O (Center) or R (Right) position. After selecting themirror, move the knob in the same direction you want the
mirror to move. Use the O (Center) position to guard
against accidentally moving a mirror position.Power Mirror Switch
80 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

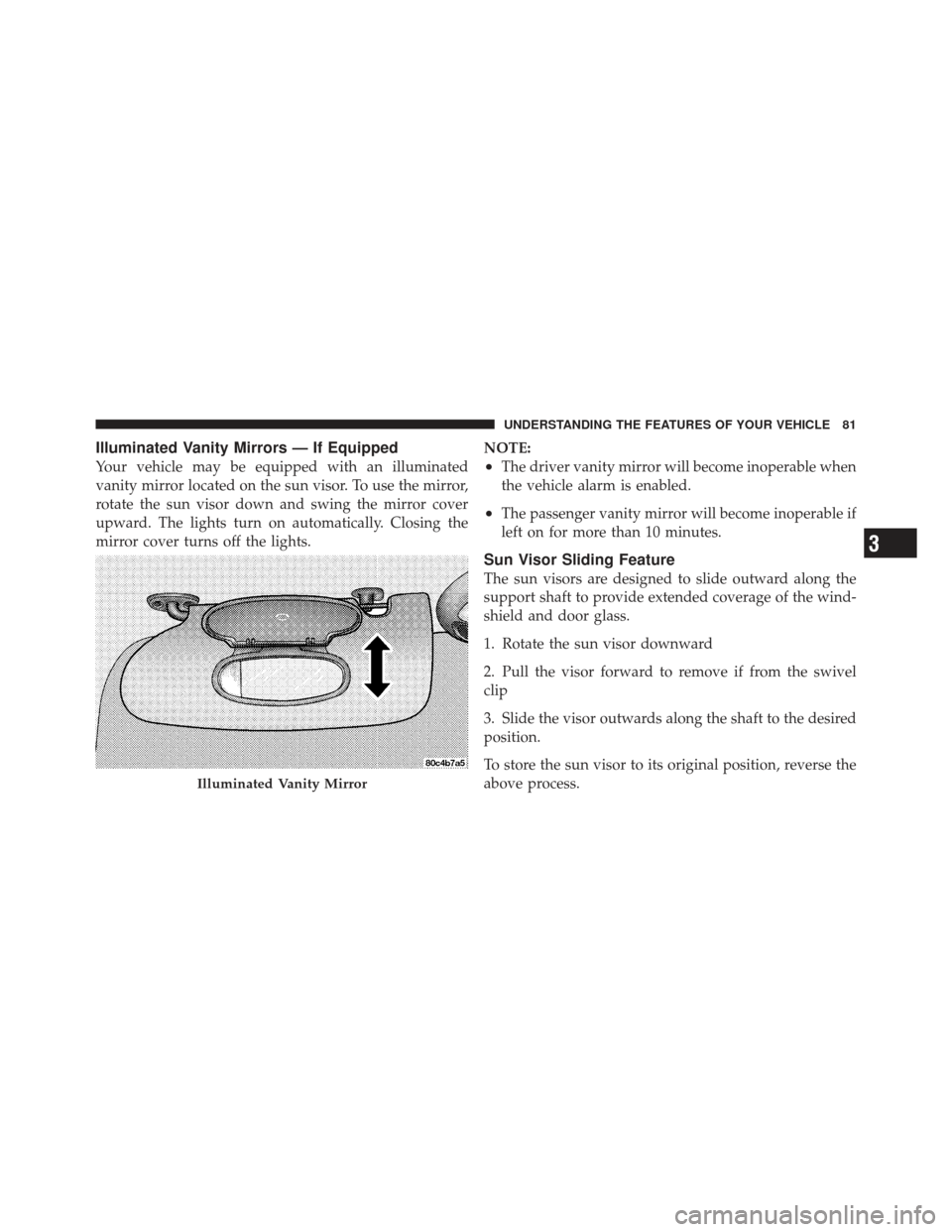

Illuminated Vanity Mirrors — If Equipped
Your vehicle may be equipped with an illuminated
vanity mirror located on the sun visor. To use the mirror,
rotate the sun visor down and swing the mirror cover
upward. The lights turn on automatically. Closing the
mirror cover turns off the lights.NOTE:•The driver vanity mirror will become inoperable when
the vehicle alarm is enabled.
•The passenger vanity mirror will become inoperable if
left on for more than 10 minutes.
Sun Visor Sliding Feature
The sun visors are designed to slide outward along the
support shaft to provide extended coverage of the wind-
shield and door glass.
1. Rotate the sun visor downward
2. Pull the visor forward to remove if from the swivel
clip
3. Slide the visor outwards along the shaft to the desired
position.
To store the sun visor to its original position, reverse the
above process.
Illuminated Vanity Mirror
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 81

uconnectphone — IF EQUIPPED
NOTE: The sales code RER and REU radios contain an
integrated uconnect phone. Refer to your “Navigation
User’s Manual” for uconnect phone operating instruc-
tions for these radios. Radio sales code can be located
on the lower right corner of the Radio faceplate.
uconnect phone is a voice-activated, hands-free, in-
vehicle communications system. uconnect allows you to
dial a phone number with your cellular phone using
simple voice commands (e.g., Call”“Mike” ”Work or
Dial” “248-555-1212). Your cellular phone’s audio is
transmitted through your vehicle’s audio system; the
system will automatically mute your radio when using
the uconnect phone.
NOTE: The uconnect phone requires a cellular phone
equipped with the Bluetooth Hands-Free Profile,Ve r -
sion 0.96 or higher. See the uconnect website for sup-
ported phones. For uconnect
customer support, visit the following
websites:
•www.chrysler.com/uconnect
•www.dodge.com/uconnect
•www.jeep.com/uconnect
•or call 1–877–855–8400
uconnect allows you to transfer calls between the sys-
tem and your cellular phone as you enter or exit your
vehicle and enables you to mute the system’s microphone
for private conversation.
The uconnect phone is driven through your Bluetooth
“Hands-Free Profile” cellular phone. uconnect features
Bluetooth technology - the global standard that enables
different electronic devices to connect to each other
without wires or a docking station, so uconnect phone
works no matter where you stow your cellular phone (be
82 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

it your purse, pocket, or briefcase), as long as your phone
is turned on and has been paired to the vehicle’s
uconnectphone. The uconnect phone allows up to
seven cellular phones to be linked to the system. Only
one linked (or paired) cellular phone can be used with the
system at a time. The system is available in English,
Spanish, or French languages.
Phone Button The rearview mirror contains the microphone
for the system (depending on the type of
mirror and radio equipped), and either the
radio or the mirror has the two control buttons
(PHONE Button and VOICE RECOGNITION button)
that will enable you to access the system.
Voice Recognition Button Actual button location may vary with the ra-
dio. The individual buttons are described in the
“Operation” section. The uconnect
phone can be used with any Hands-Free
Profile certified Bluetooth cellular phone. See the
uconnect website for supported phones. If your cellular
phone supports a different profile (e.g., Headset Profile)
you may not be able to use any uconnect phone
features. Refer to your cellular service provider or the
phone manufacturer for details.
The uconnect phone is fully integrated with the vehi-
cle’s audio system. The volume of the uconnect phone
can be adjusted either from the radio volume control
knob or from the steering wheel radio control (right
switch), if so equipped.
The radio display will be used for visual prompts from
the uconnect phone such as CELLor caller ID on
certain radios.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 83

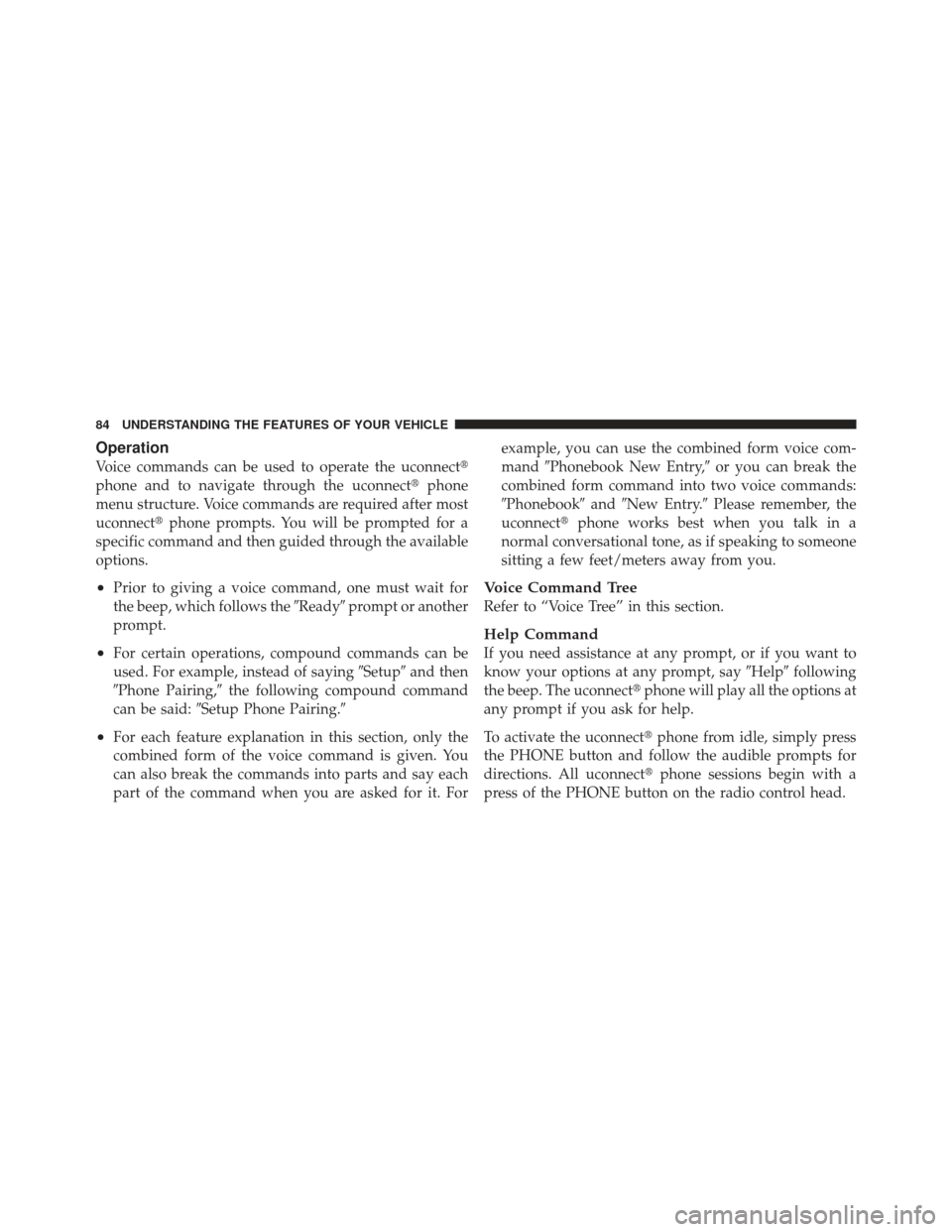

Operation
Voice commands can be used to operate the uconnect
phone and to navigate through the uconnect phone
menu structure. Voice commands are required after most
uconnect phone prompts. You will be prompted for a
specific command and then guided through the available
options.
•Prior to giving a voice command, one must wait for
the beep, which follows the Readyprompt or another
prompt.
•For certain operations, compound commands can be
used. For example, instead of saying Setupand then
Phone Pairing, the following compound command
can be said: Setup Phone Pairing.
•For each feature explanation in this section, only the
combined form of the voice command is given. You
can also break the commands into parts and say each
part of the command when you are asked for it. For example, you can use the combined form voice com-
mand
Phonebook New Entry, or you can break the
combined form command into two voice commands:
Phonebook andNew Entry. Please remember, the
uconnect phone works best when you talk in a
normal conversational tone, as if speaking to someone
sitting a few feet/meters away from you.
Voice Command Tree
Refer to “Voice Tree” in this section.
Help Command
If you need assistance at any prompt, or if you want to
know your options at any prompt, say Helpfollowing
the beep. The uconnect phone will play all the options at
any prompt if you ask for help.
To activate the uconnect phone from idle, simply press
the PHONE button and follow the audible prompts for
directions. All uconnect phone sessions begin with a
press of the PHONE button on the radio control head.
84 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Cancel Command
At any prompt, after the beep, you can sayCanceland
you will be returned to the main menu. However, in a
few instances the system will take you back to the
previous menu.
Pair (Link) uconnect phone to a Cellular Phone
To begin using your uconnect phone, you must pair
your compatible Bluetooth enabled cellular phone.
To complete the pairing process, you will need to refer-
ence your cellular phone Owner’s Manual. The
uconnect website may also provide detailed instructions
for pairing.
The following are general phone to uconnect phone
pairing instructions:
•Press the PHONE button to begin.
•After the Readyprompt and the following beep, say
Setup Phone Pairing.
•When prompted, after the beep, say Pair a Phoneand
follow the audible prompts.
•You will be asked to say a four-digit Personal Identi-
fication Number (PIN), which you will later need to
enter into your cellular phone. You can enter any
four-digit PIN. You will not need to remember this PIN
after the initial pairing process.
•For identification purposes, you will be prompted to
give the uconnect phone a name for your cellular
phone. Each cellular phone that is paired should be
given a unique phone name.
•You will then be asked to give your cellular phone a
priority level between one and seven, with one being
the highest priority. You can pair up to seven cellular
phones to your uconnect phone. However, at any
given time, only one cellular phone can be in use,
connected to your uconnect phone. The priority
allows the uconnect phone to know which cellular
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 85

phone to use if multiple cellular phones are in the
vehicle at the same time. For example, if priority three
and priority five phones are present in the vehicle, the
uconnectphone will use the priority three cellular
phone when you make a call. You can select to use a
lower priority cellular phone at any time (refer to
Advanced Phone Connectivity in this section).
Dial by Saying a Number
•
Press the PHONE button to begin.
•After theReadyprompt and the following beep, say
Dial.
•The system will prompt you to say the number you
want to call.
•For example, you can say 234-567-8901.
•The uconnectphone will confirm the phone number
and then dial. The number will appear in the display
of certain radios.
Call by Saying a Name
•
Press the PHONE button to begin.
•After the Readyprompt and the following beep, say
“Call.
•The system will prompt you to say the name of the
person you want to call.
•After the Readyprompt and the following beep, say
the name of the person you want to call. For example,
you can say John Doe,where John Doe is a previ-
ously stored name entry in the uconnect phonebook
or downloaded phonebook. To learn how to store a
name in the phonebook, refer to Add Names to Your
uconnect Phonebook, in the phonebook.
•The uconnect system will confirm the name and then
dial the corresponding phone number, which may
appear in the display of certain radios.
86 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
