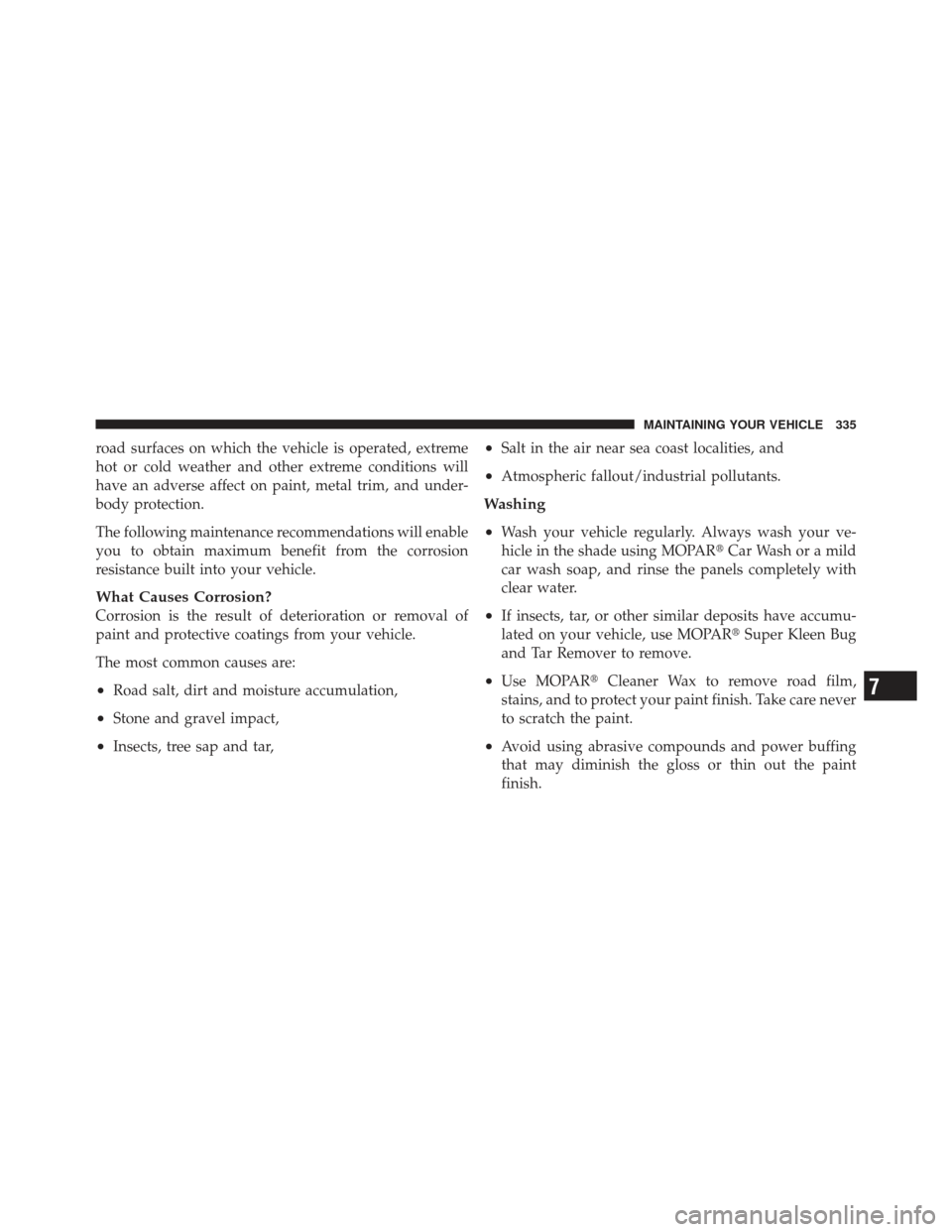

road surfaces on which the vehicle is operated, extreme
hot or cold weather and other extreme conditions will
have an adverse affect on paint, metal trim, and under-
body protection.
The following maintenance recommendations will enable
you to obtain maximum benefit from the corrosion
resistance built into your vehicle.
What Causes Corrosion?
Corrosion is the result of deterioration or removal of
paint and protective coatings from your vehicle.
The most common causes are:
•Road salt, dirt and moisture accumulation,
•Stone and gravel impact,
•Insects, tree sap and tar,
•Salt in the air near sea coast localities, and
•Atmospheric fallout/industrial pollutants.
Washing
•
Wash your vehicle regularly. Always wash your ve-
hicle in the shade using MOPARCar Wash or a mild
car wash soap, and rinse the panels completely with
clear water.
•If insects, tar, or other similar deposits have accumu-
lated on your vehicle, use MOPAR Super Kleen Bug
and Tar Remover to remove.
•Use MOPAR Cleaner Wax to remove road film,
stains, and to protect your paint finish. Take care never
to scratch the paint.
•Avoid using abrasive compounds and power buffing
that may diminish the gloss or thin out the paint
finish.
7
MAINTAINING YOUR VEHICLE 335

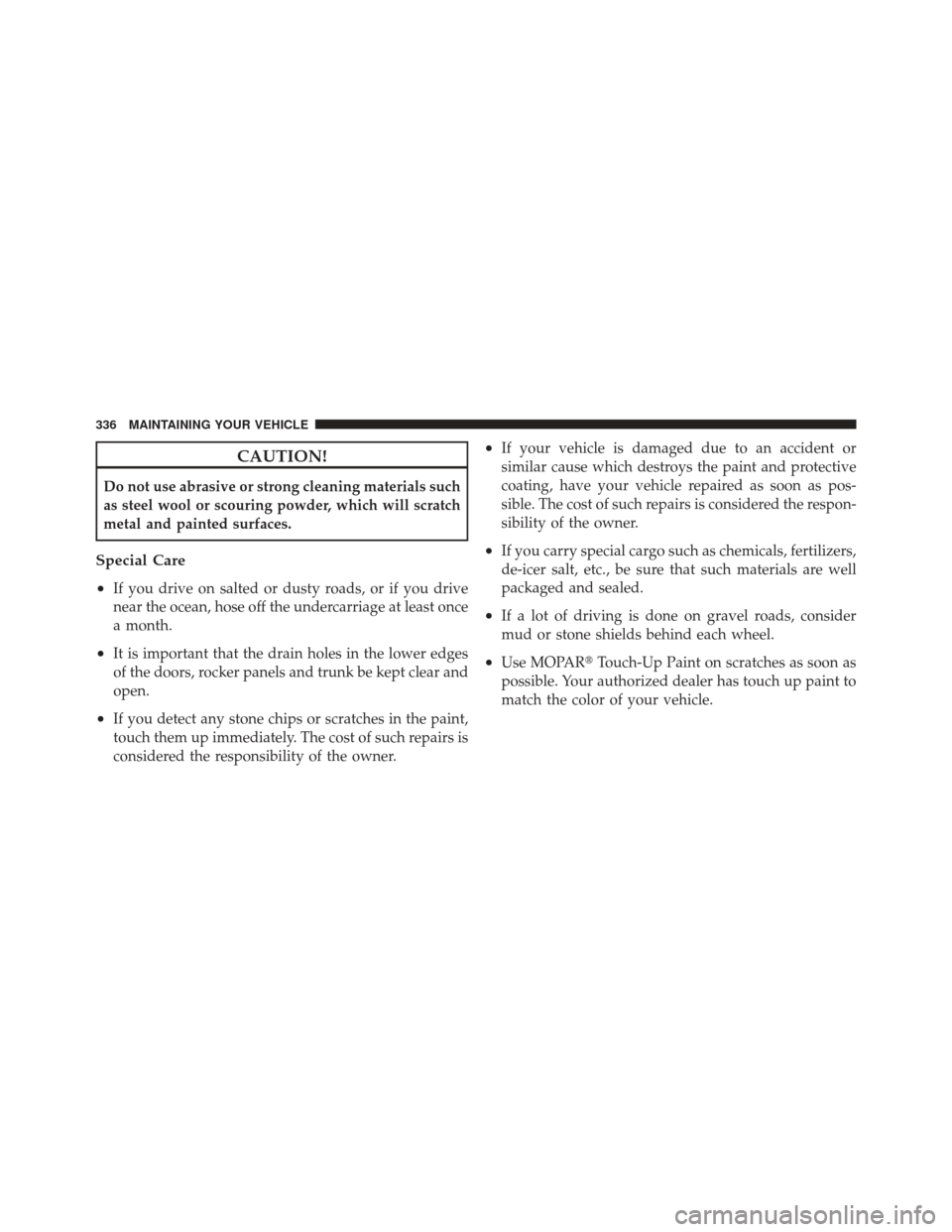

CAUTION!
Do not use abrasive or strong cleaning materials such
as steel wool or scouring powder, which will scratch
metal and painted surfaces.
Special Care
•
If you drive on salted or dusty roads, or if you drive
near the ocean, hose off the undercarriage at least once
a month.
•It is important that the drain holes in the lower edges
of the doors, rocker panels and trunk be kept clear and
open.
•If you detect any stone chips or scratches in the paint,
touch them up immediately. The cost of such repairs is
considered the responsibility of the owner.
•If your vehicle is damaged due to an accident or
similar cause which destroys the paint and protective
coating, have your vehicle repaired as soon as pos-
sible. The cost of such repairs is considered the respon-
sibility of the owner.
•If you carry special cargo such as chemicals, fertilizers,
de-icer salt, etc., be sure that such materials are well
packaged and sealed.
•If a lot of driving is done on gravel roads, consider
mud or stone shields behind each wheel.
•Use MOPARTouch-Up Paint on scratches as soon as
possible. Your authorized dealer has touch up paint to
match the color of your vehicle.
336 MAINTAINING YOUR VEHICLE

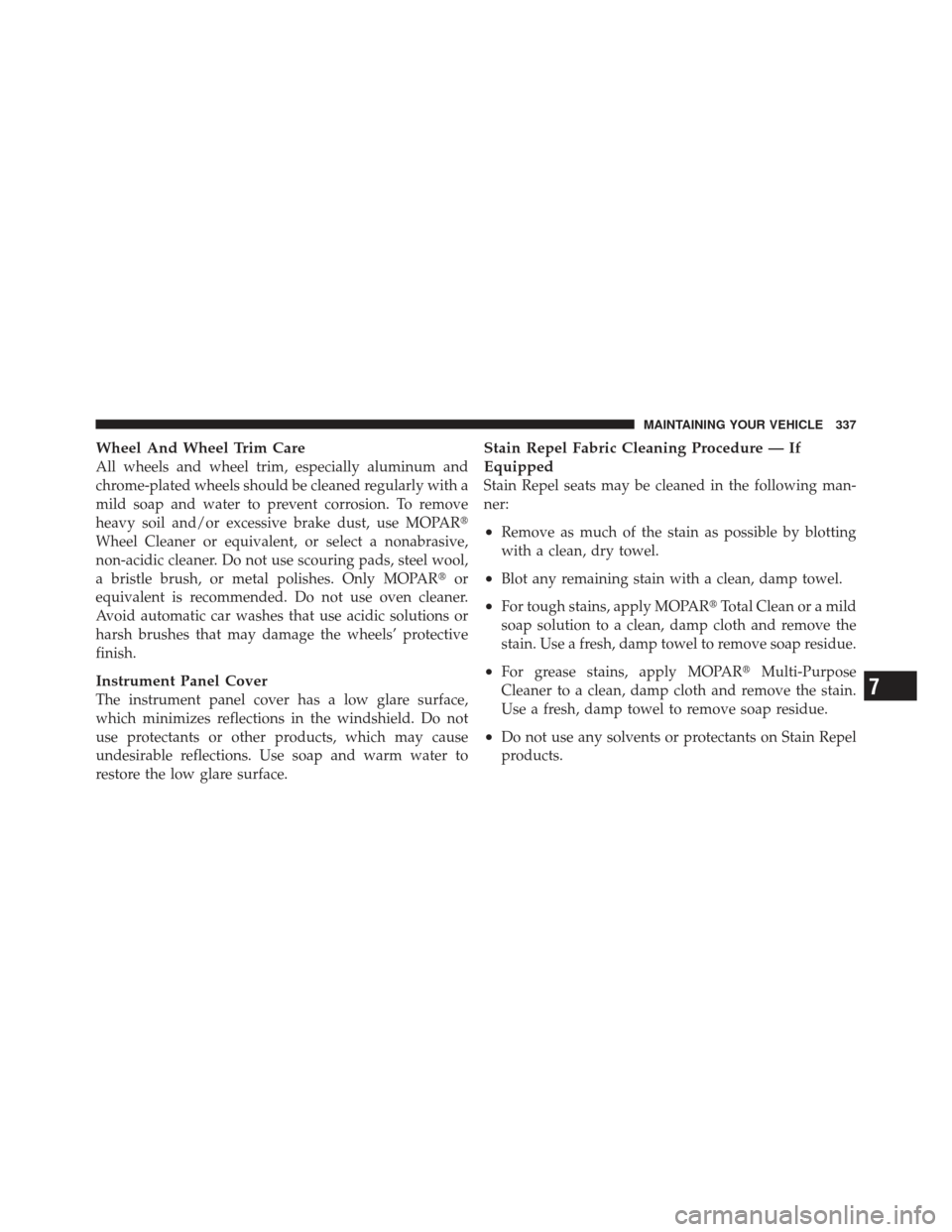

Wheel And Wheel Trim Care
All wheels and wheel trim, especially aluminum and
chrome-plated wheels should be cleaned regularly with a
mild soap and water to prevent corrosion. To remove
heavy soil and/or excessive brake dust, use MOPAR
Wheel Cleaner or equivalent, or select a nonabrasive,
non-acidic cleaner. Do not use scouring pads, steel wool,
a bristle brush, or metal polishes. Only MOPAR or
equivalent is recommended. Do not use oven cleaner.
Avoid automatic car washes that use acidic solutions or
harsh brushes that may damage the wheels’ protective
finish.
Instrument Panel Cover
The instrument panel cover has a low glare surface,
which minimizes reflections in the windshield. Do not
use protectants or other products, which may cause
undesirable reflections. Use soap and warm water to
restore the low glare surface.
Stain Repel Fabric Cleaning Procedure — If
Equipped
Stain Repel seats may be cleaned in the following man-
ner:
•Remove as much of the stain as possible by blotting
with a clean, dry towel.
•Blot any remaining stain with a clean, damp towel.
•For tough stains, apply MOPAR Total Clean or a mild
soap solution to a clean, damp cloth and remove the
stain. Use a fresh, damp towel to remove soap residue.
•For grease stains, apply MOPAR Multi-Purpose
Cleaner to a clean, damp cloth and remove the stain.
Use a fresh, damp towel to remove soap residue.
•Do not use any solvents or protectants on Stain Repel
products.
7
MAINTAINING YOUR VEHICLE 337

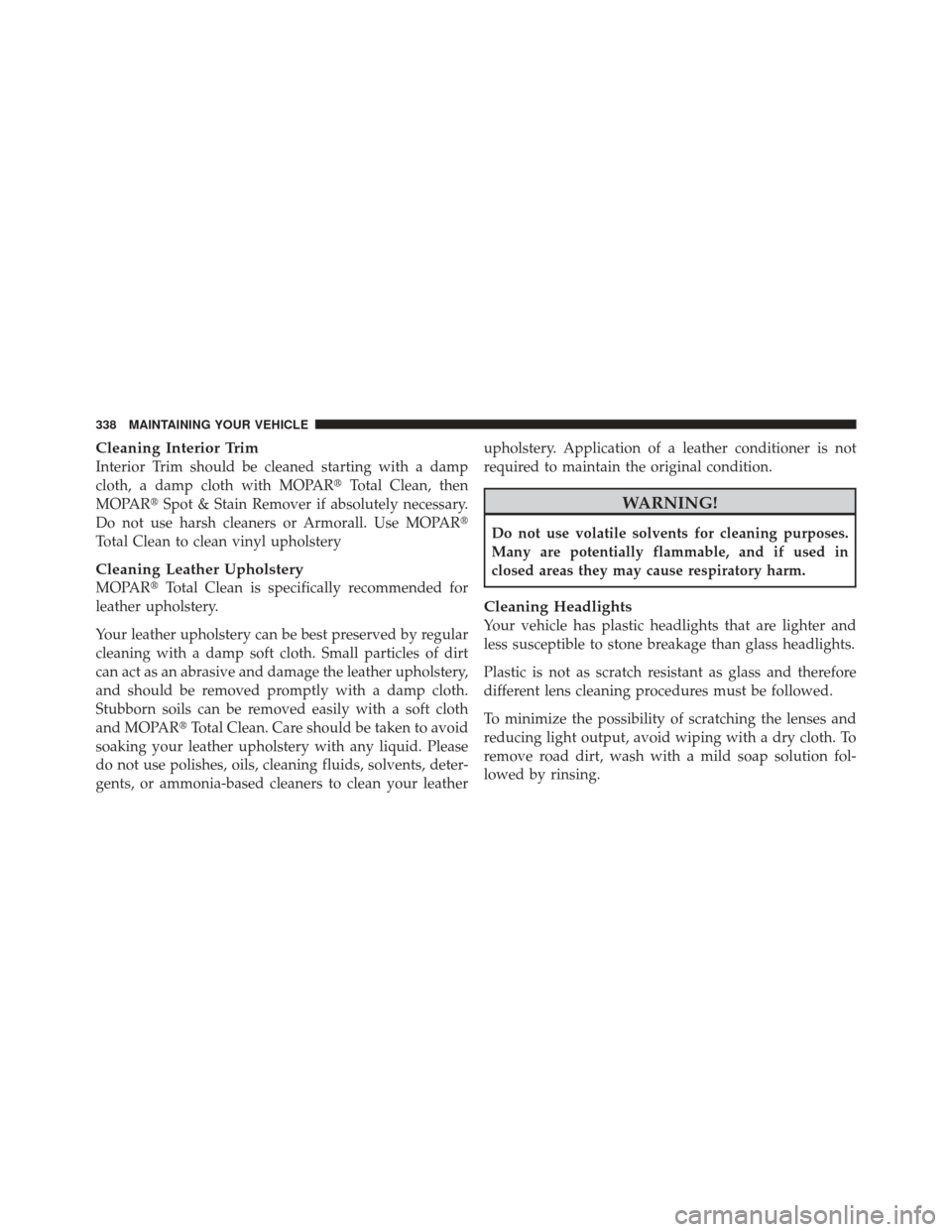

Cleaning Interior Trim
Interior Trim should be cleaned starting with a damp
cloth, a damp cloth with MOPARTotal Clean, then
MOPAR Spot & Stain Remover if absolutely necessary.
Do not use harsh cleaners or Armorall. Use MOPAR
Total Clean to clean vinyl upholstery
Cleaning Leather Upholstery
MOPAR Total Clean is specifically recommended for
leather upholstery.
Your leather upholstery can be best preserved by regular
cleaning with a damp soft cloth. Small particles of dirt
can act as an abrasive and damage the leather upholstery,
and should be removed promptly with a damp cloth.
Stubborn soils can be removed easily with a soft cloth
and MOPAR Total Clean. Care should be taken to avoid
soaking your leather upholstery with any liquid. Please
do not use polishes, oils, cleaning fluids, solvents, deter-
gents, or ammonia-based cleaners to clean your leather upholstery. Application of a leather conditioner is not
required to maintain the original condition.
WARNING!
Do not use volatile solvents for cleaning purposes.
Many are potentially flammable, and if used in
closed areas they may cause respiratory harm.
Cleaning Headlights
Your vehicle has plastic headlights that are lighter and
less susceptible to stone breakage than glass headlights.
Plastic is not as scratch resistant as glass and therefore
different lens cleaning procedures must be followed.
To minimize the possibility of scratching the lenses and
reducing light output, avoid wiping with a dry cloth. To
remove road dirt, wash with a mild soap solution fol-
lowed by rinsing.
338 MAINTAINING YOUR VEHICLE

Do not use abrasive cleaning components, solvents, steel
wool or other aggressive material to clean the lenses.

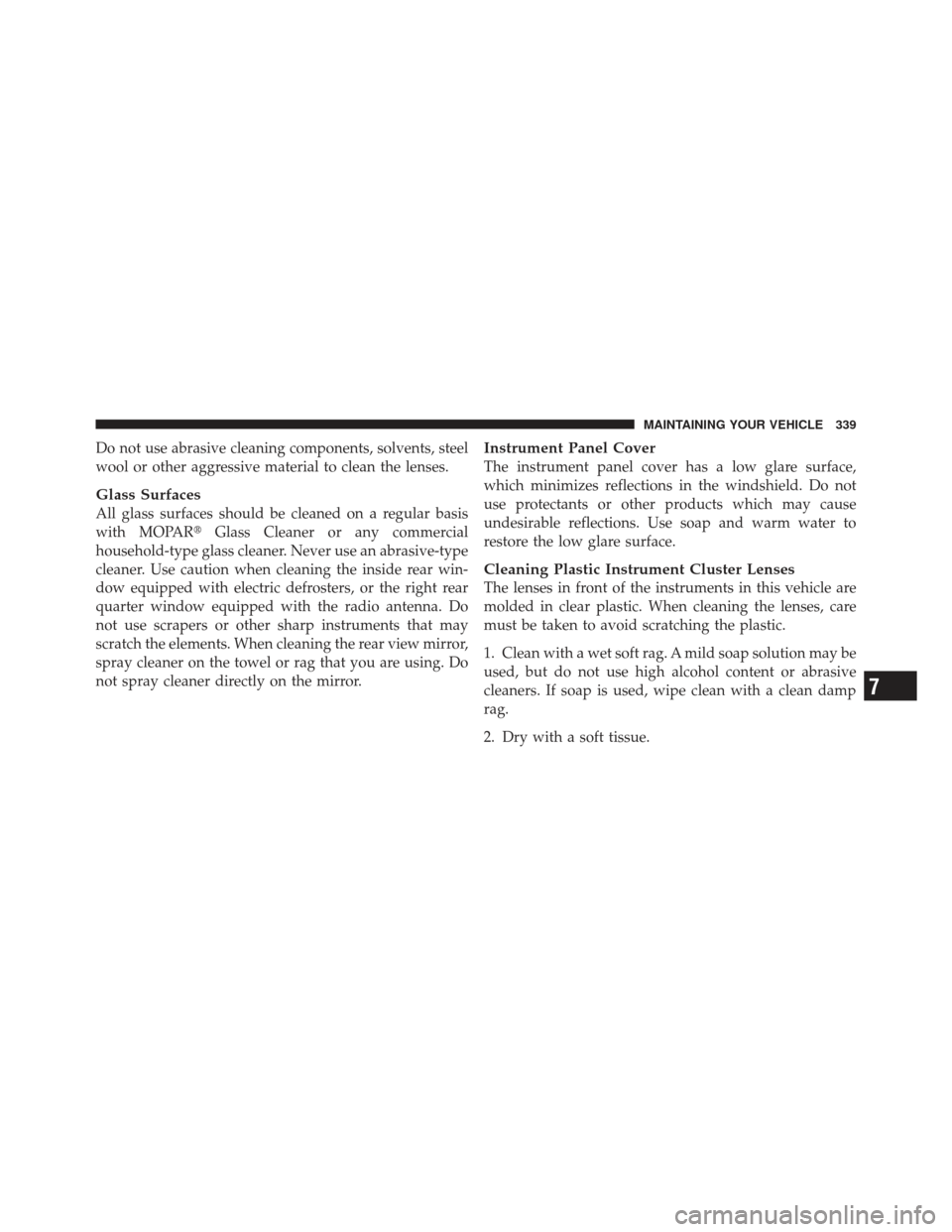

Glass Surfaces
All glass surfaces should be cleaned on a regular basis
with MOPARGlass Cleaner or any commercial
household-type glass cleaner. Never use an abrasive-type
cleaner. Use caution when cleaning the inside rear win-
dow equipped with electric defrosters, or the right rear
quarter window equipped with the radio antenna. Do
not use scrapers or other sharp instruments that may
scratch the elements. When cleaning the rear view mirror,
spray cleaner on the towel or rag that you are using. Do
not spray cleaner directly on the mirror.
Instrument Panel Cover
The instrument panel cover has a low glare surface,
which minimizes reflections in the windshield. Do not
use protectants or other products which may cause
undesirable reflections. Use soap and warm water to
restore the low glare surface.
Cleaning Plastic Instrument Cluster Lenses
The lenses in front of the instruments in this vehicle are
molded in clear plastic. When cleaning the lenses, care
must be taken to avoid scratching the plastic.
1. Clean with a wet soft rag. A mild soap solution may be
used, but do not use high alcohol content or abrasive
cleaners. If soap is used, wipe clean with a clean damp
rag.
2. Dry with a soft tissue.
7
MAINTAINING YOUR VEHICLE 339

Seat Belt Maintenance
Do not bleach, dye or clean the belts with chemical
solvents or abrasive cleaners. This will weaken the fabric.
Sun damage can also weaken the fabric.
If the belts need cleaning, use a mild soap solution or
lukewarm water. Do not remove the belts from the car to
wash them.
Replace the belts if they appear frayed or worn or if the
buckles do not work properly.
Dry with a soft tissue.
FUSES
Integrated Power Module (IPM)
The Integrated Power Module is located in the engine
compartment near the air cleaner assembly. This center
contains cartridge fuses and mini fuses.
CavityCartridge
Fuse Mini-Fuse Description
1 EMPTY
2 20 Amp
YellowAWD ECU
Feed — If
Equipped
Integrated Power Module
340 MAINTAINING YOUR VEHICLE

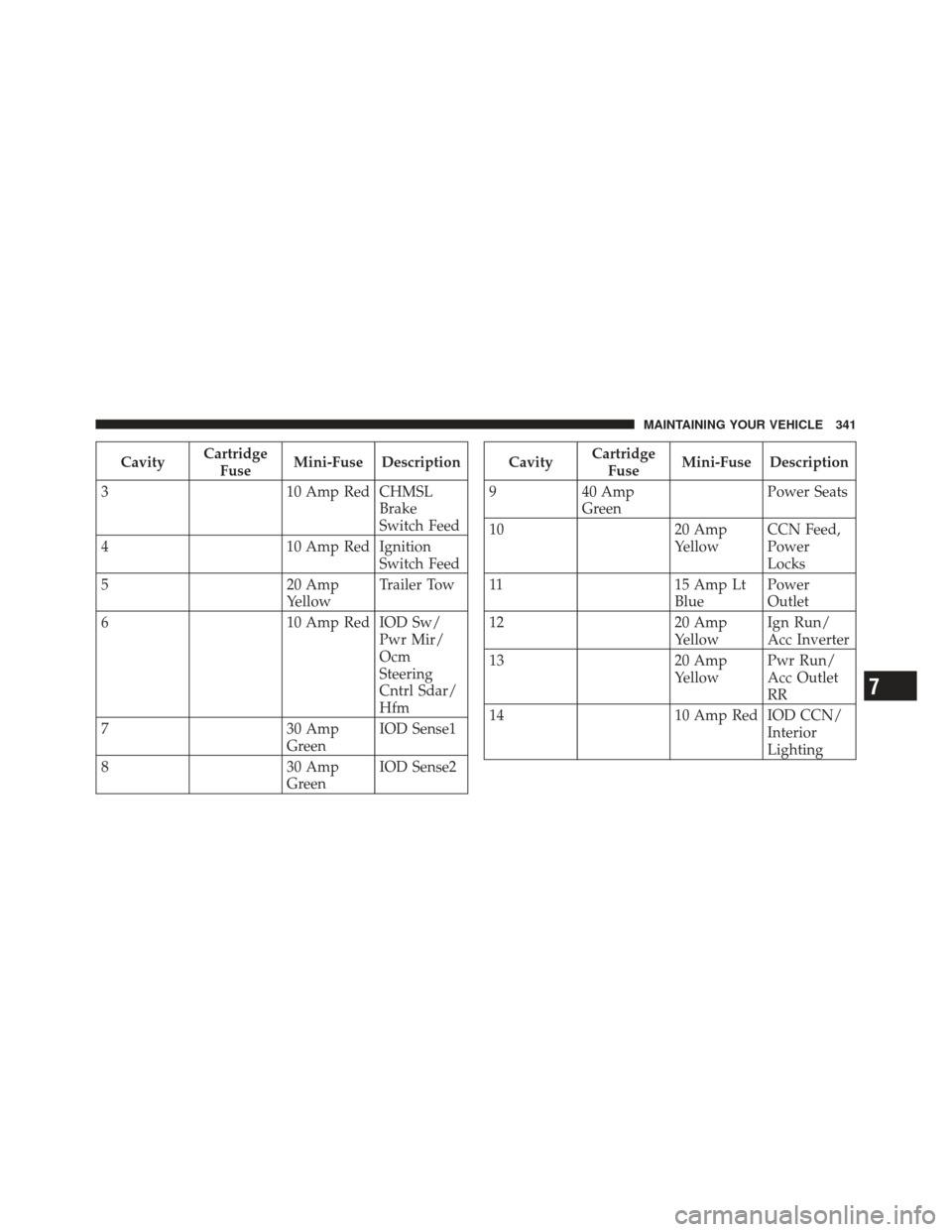

CavityCartridge
Fuse Mini-Fuse Description
3 10 Amp Red CHMSL
Brake
Switch Feed
4 10 Amp Red Ignition
Switch Feed
5 20 Amp
YellowTrailer Tow
6 10 Amp Red IOD Sw/
Pwr Mir/
Ocm
Steering
Cntrl Sdar/
Hfm
7 30 Amp
GreenIOD Sense1
8 30 Amp
GreenIOD Sense2Cavity
Cartridge
Fuse Mini-Fuse Description
9 40 Amp
Green Power Seats
10 20 Amp
YellowCCN Feed,
Power
Locks
11 15 Amp Lt
Blue Power
Outlet
12 20 Amp
YellowIgn Run/
Acc Inverter
13 20 Amp
YellowPwr Run/
Acc Outlet
RR
14 10 Amp Red IOD CCN/
Interior
Lighting
7
MAINTAINING YOUR VEHICLE 341

CavityCartridge
Fuse Mini-Fuse Description
15 50 Amp Red RAD Fan
Relay
Battery Feed
16 15 Amp Lt.
BlueIGN Run/
Acc Cigar
Ltr/Sunroof
17 10 Amp Red IOD Feed
CVT Mod/
Mod_Wcm
18 40 Amp
Green ASD Relay
Contact
Feed
19 20 Amp
YellowPWR Amp
1 & Amp 2
Feed
20 15 Amp Lt.
BlueIOD Feed
RadioCavity
Cartridge
Fuse Mini-Fuse Description
21 10 Amp Red IOD Feed
Intrus
Mod/Siren
22 10 Amp Red IGN RUN
Hvac/
Compass
Sensor
23 15 Amp Lt.
BlueENG ASD
Relay Feed
3
24 25 Amp
NaturalPWR
Sunroof
Feed
25 10 Amp Red Heated
Mirror
