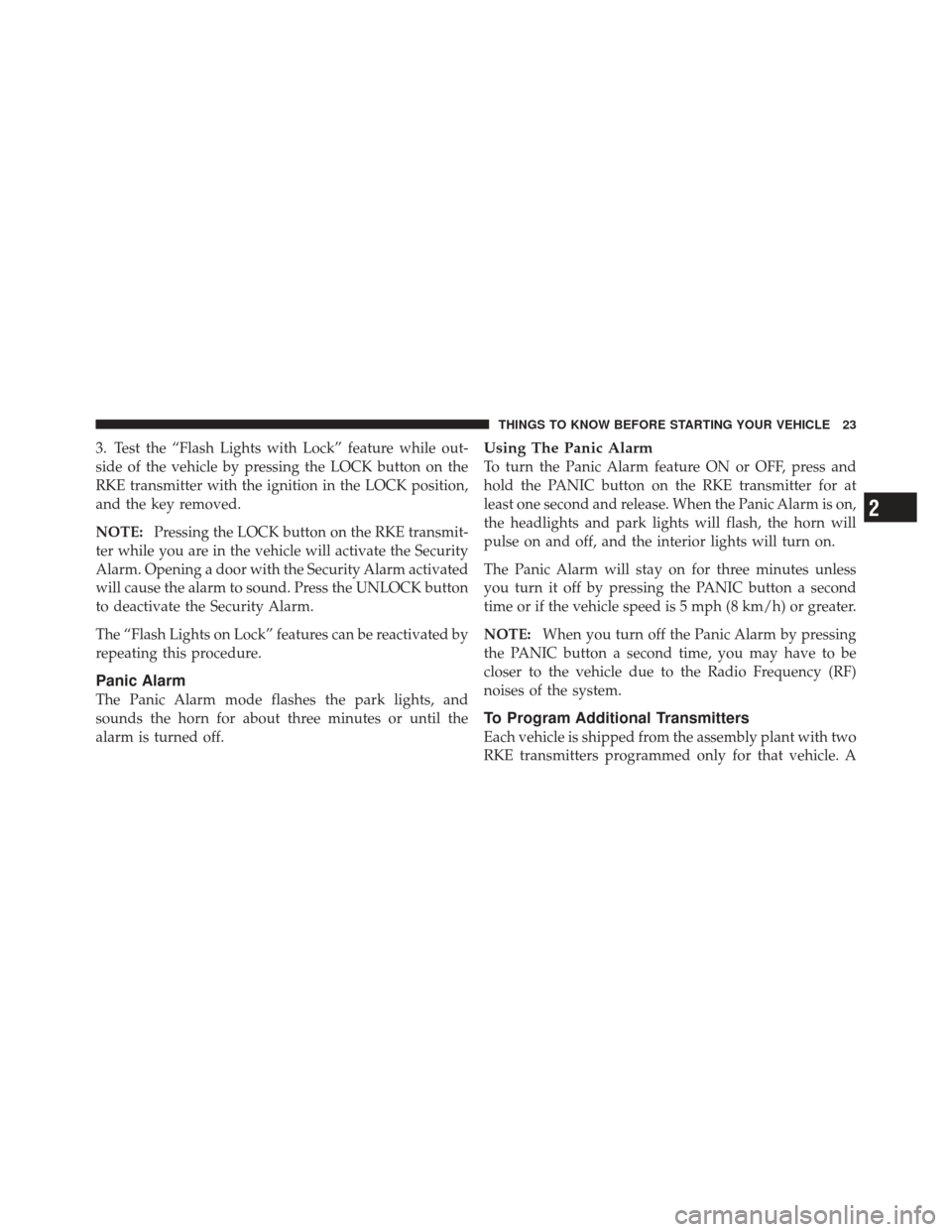

3. Test the “Flash Lights with Lock” feature while out-
side of the vehicle by pressing the LOCK button on the
RKE transmitter with the ignition in the LOCK position,
and the key removed.
NOTE:Pressing the LOCK button on the RKE transmit-
ter while you are in the vehicle will activate the Security
Alarm. Opening a door with the Security Alarm activated
will cause the alarm to sound. Press the UNLOCK button
to deactivate the Security Alarm.
The “Flash Lights on Lock” features can be reactivated by
repeating this procedure.
Panic Alarm
The Panic Alarm mode flashes the park lights, and
sounds the horn for about three minutes or until the
alarm is turned off.
Using The Panic Alarm
To turn the Panic Alarm feature ON or OFF, press and
hold the PANIC button on the RKE transmitter for at
least one second and release. When the Panic Alarm is on,
the headlights and park lights will flash, the horn will
pulse on and off, and the interior lights will turn on.
The Panic Alarm will stay on for three minutes unless
you turn it off by pressing the PANIC button a second
time or if the vehicle speed is 5 mph (8 km/h) or greater.
NOTE: When you turn off the Panic Alarm by pressing
the PANIC button a second time, you may have to be
closer to the vehicle due to the Radio Frequency (RF)
noises of the system.
To Program Additional Transmitters
Each vehicle is shipped from the assembly plant with two
RKE transmitters programmed only for that vehicle. A
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 23

total of eight RKE transmitters can be programmed to
your vehicle through the use of a currently-programmed
RKE transmitter.
NOTE:If vehicle is equipped with the optional EVIC in
the instrument cluster, the RKE transmitters may also be
programmed through the EVIC display.
Use the following procedure to program additional RKE
transmitters if the vehicle is not equipped with Sentry
Key:
NOTE: When entering program mode using currently-
programmed RKE transmitter, all other programmed
transmitters will be erased and you will have to repro-
gram them for your vehicle.
1. Gather every transmitter that is to be used with the
vehicle, including any transmitters that are currently
programmed.
2. Enter your vehicle and close all doors. 3. Fasten your seatbelt. (Fastening the seatbelt will cancel
any chimes that may confuse you during this program-
ming procedure.)
4. Place the key into the ignition.
5. Turn the ignition to the ON position.
Do not start the
engine.
6. Press and hold the UNLOCK button on the RKE
transmitter.
7. After holding the UNLOCK button for four seconds,
also press the PANIC button within six seconds.
8. When a single chime is heard, release both buttons.
The chime is an indication that you have successfully
entered program mode. All RKE transmitters that are to
be programmed must be done so within 60 seconds of
when the chime was heard.
24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

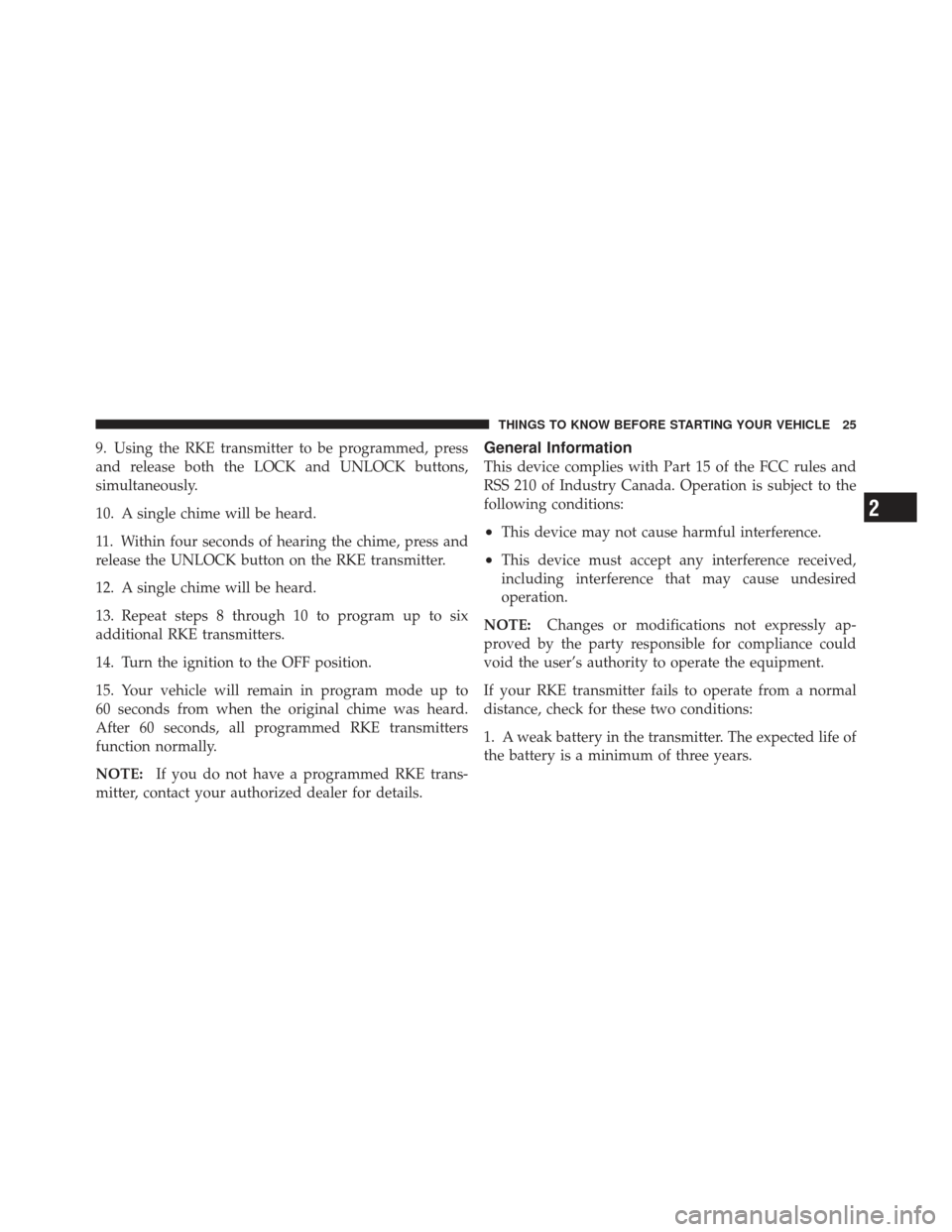

9. Using the RKE transmitter to be programmed, press
and release both the LOCK and UNLOCK buttons,
simultaneously.
10. A single chime will be heard.
11. Within four seconds of hearing the chime, press and
release the UNLOCK button on the RKE transmitter.
12. A single chime will be heard.
13. Repeat steps 8 through 10 to program up to six
additional RKE transmitters.
14. Turn the ignition to the OFF position.
15. Your vehicle will remain in program mode up to
60 seconds from when the original chime was heard.
After 60 seconds, all programmed RKE transmitters
function normally.
NOTE:If you do not have a programmed RKE trans-
mitter, contact your authorized dealer for details.General Information
This device complies with Part 15 of the FCC rules and
RSS 210 of Industry Canada. Operation is subject to the
following conditions:
•This device may not cause harmful interference.
•This device must accept any interference received,
including interference that may cause undesired
operation.
NOTE: Changes or modifications not expressly ap-
proved by the party responsible for compliance could
void the user’s authority to operate the equipment.
If your RKE transmitter fails to operate from a normal
distance, check for these two conditions:
1. A weak battery in the transmitter. The expected life of
the battery is a minimum of three years.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 25

2. Closeness to a radio transmitter such as a radio station
tower, airport transmitter, and some mobile or CB radios.

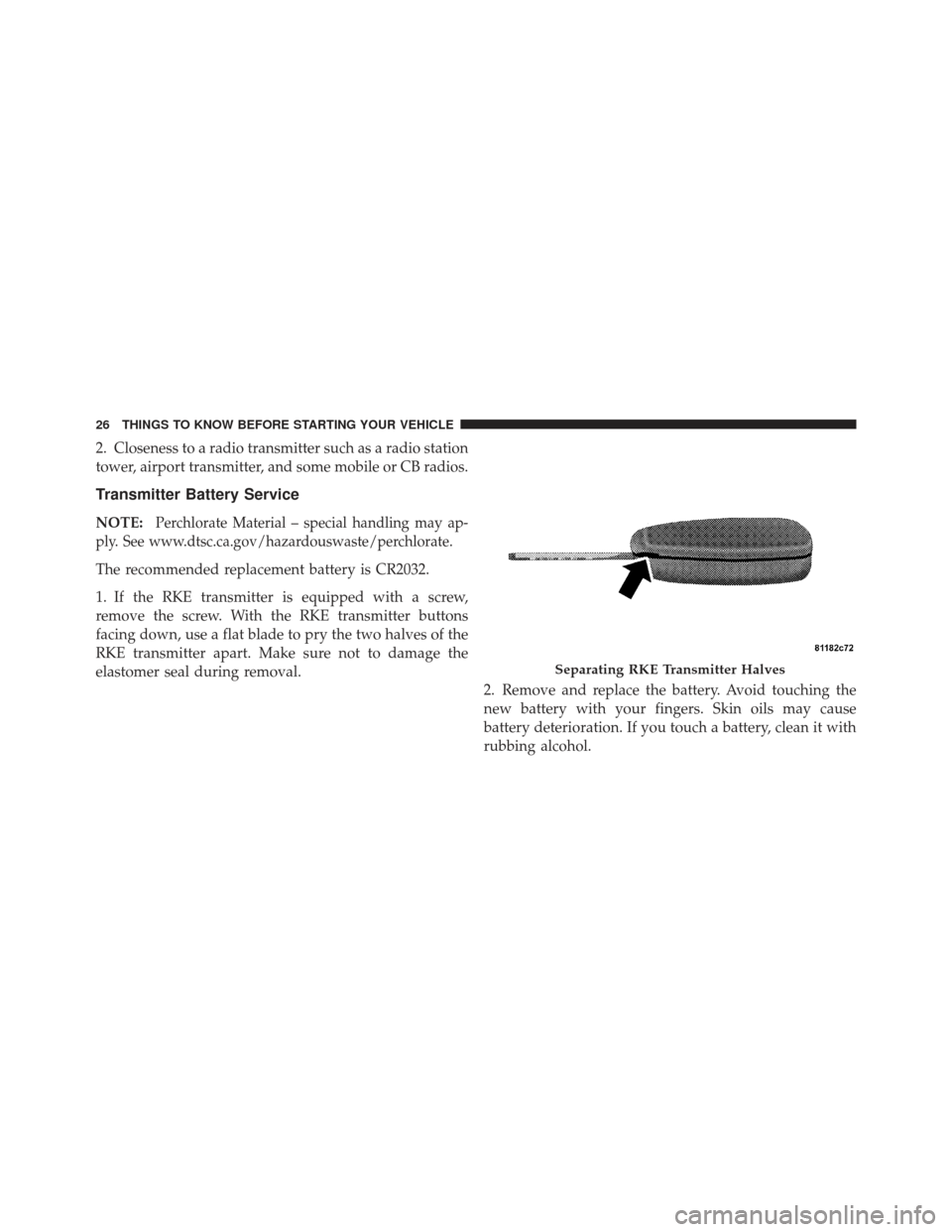

Transmitter Battery Service
NOTE:Perchlorate Material – special handling may ap-
ply. See www.dtsc.ca.gov/hazardouswaste/perchlorate.
The recommended replacement battery is CR2032.
1. If the RKE transmitter is equipped with a screw,
remove the screw. With the RKE transmitter buttons
facing down, use a flat blade to pry the two halves of the
RKE transmitter apart. Make sure not to damage the
elastomer seal during removal. 2. Remove and replace the battery. Avoid touching the
new battery with your fingers. Skin oils may cause
battery deterioration. If you touch a battery, clean it with
rubbing alcohol.
Separating RKE Transmitter Halves
26 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

3. To reassemble the RKE transmitter case, snap the two
halves together.
NOTE:If the RKE transmitter is equipped with a screw,
reinstall and tighten the screw until snug.

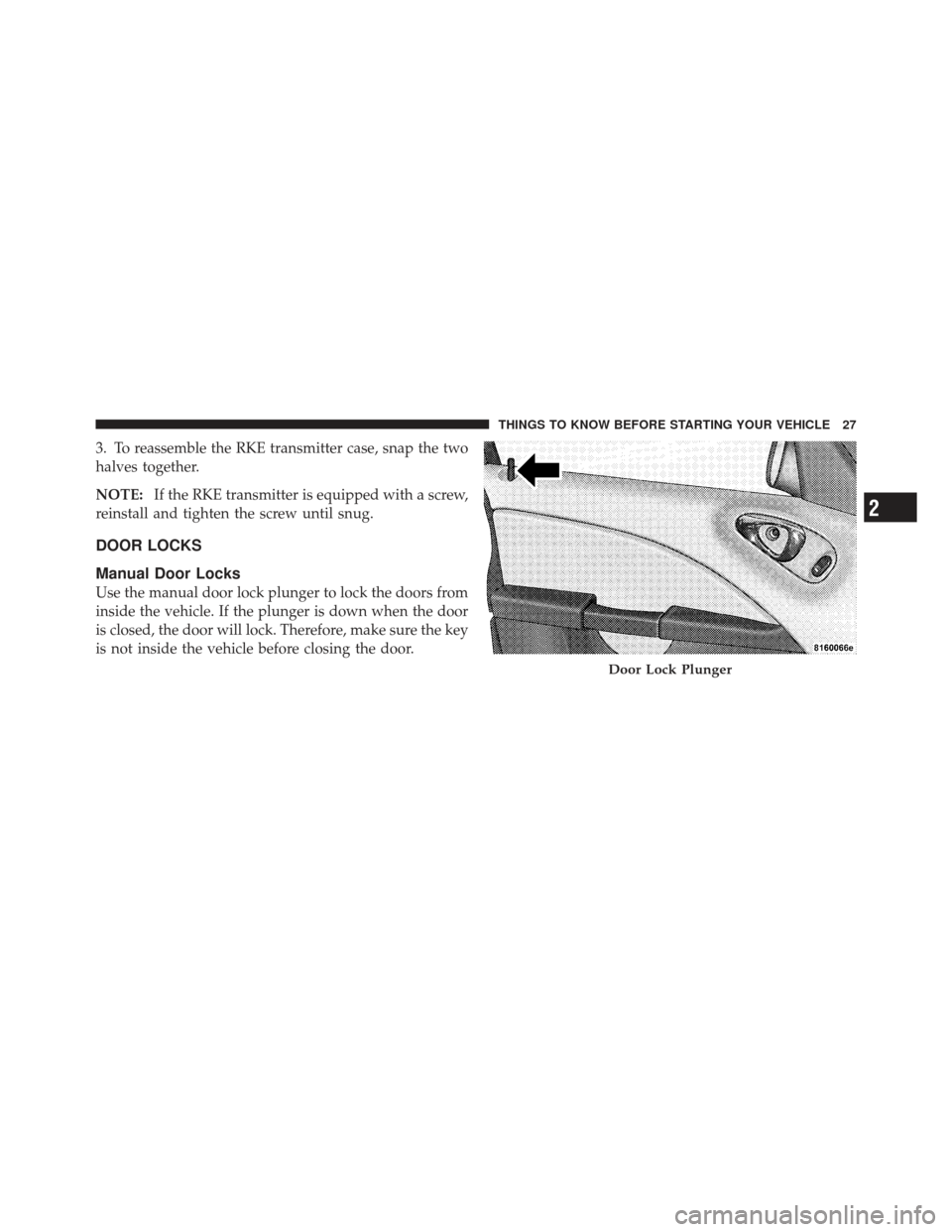

DOOR LOCKS
Manual Door Locks
Use the manual door lock plunger to lock the doors from
inside the vehicle. If the plunger is down when the door
is closed, the door will lock. Therefore, make sure the key
is not inside the vehicle before closing the door.
Door Lock Plunger
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 27

WARNING!
•For personal security and safety in the event of an
accident, lock the vehicle doors while you drive,
when you park, and when leaving the vehicle.
•When leaving the vehicle, always remove the key
from the ignition lock, and lock your vehicle. Do
not leave children unattended in the vehicle, or
with access to an unlocked vehicle. Unsupervised
use of vehicle equipment may cause severe per-
sonal injuries and death.
CAUTION!
An unlocked vehicle is an invitation to thieves.
Always remove the key from the ignition and lock all
the doors when leaving the vehicle unattended.

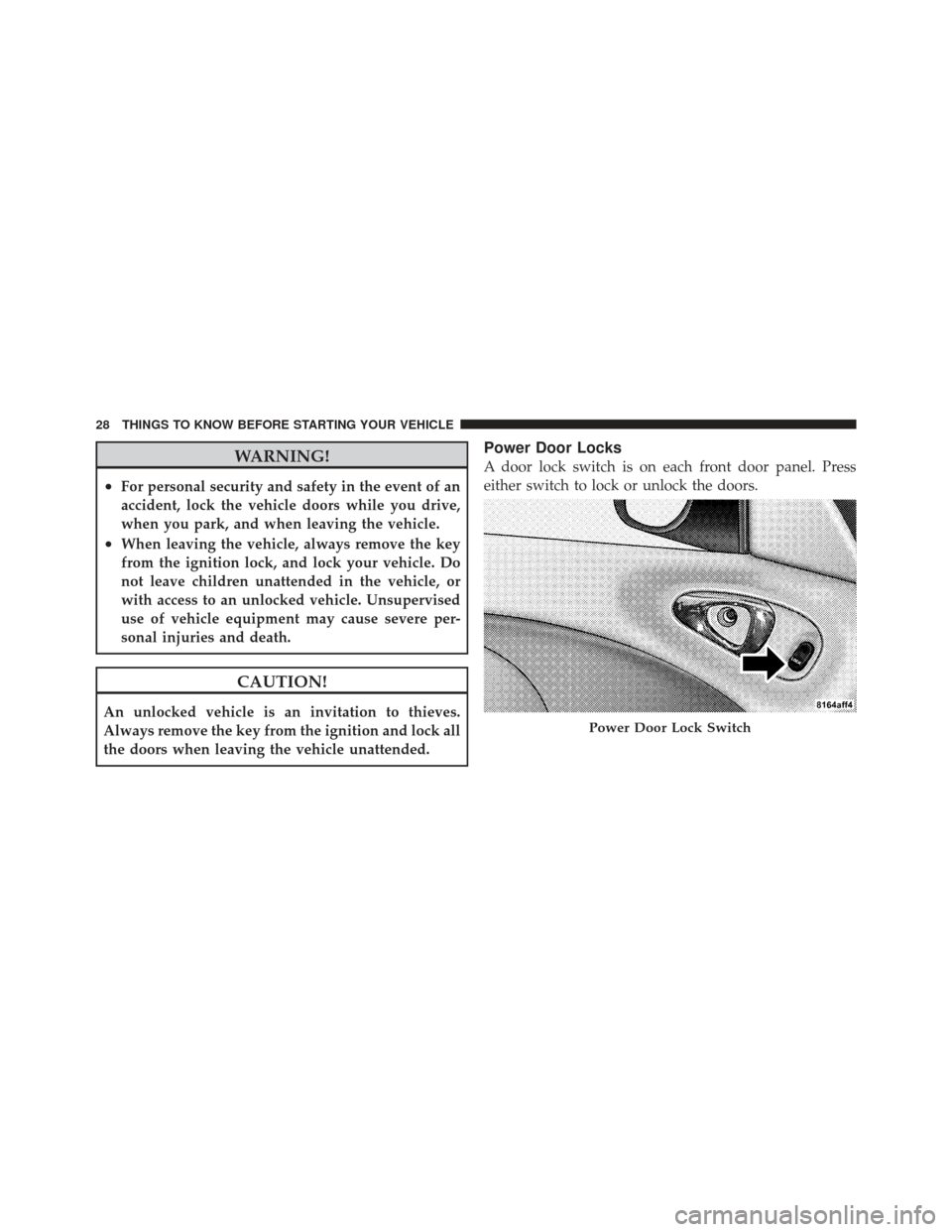

Power Door Locks
A door lock switch is on each front door panel. Press
either switch to lock or unlock the doors.
Power Door Lock Switch
28 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Auto Lock — If Equipped
The doors will lock automatically on vehicles with power
door locks if all of the following conditions are met:
1. The Auto Lock feature is enabled.
2. The transmission is in gear.
3. All doors are closed.
4. The vehicle speed is above 15 mph (24 km/h).
5. The doors were not previously locked using the power
door lock switch or Remote Keyless Entry (RKE)
transmitter.
The Auto Lock feature can be enabled or disabled. Refer
to “Personal Settings (Customer-Programmable Fea-
tures)” in the “Electronic Vehicle Information Center
(EVIC) — If Equipped” section of this manual for details.For vehicles not equipped with the EVIC, the Auto Lock
can be enabled or disabled by performing the following
procedure:
1. Close all doors and place the key in the ignition.
2. Cycle the ignition switch between LOCK and ON, and
back to LOCK four times, ending up in the LOCK
position.
3. Depress the power door LOCK switch to lock the
doors.
4. A single chime will indicate the completion of the
programming.
Auto Unlock — If Equipped
The doors will unlock automatically on vehicles with
power door locks if:
1. The Auto Unlock feature is enabled.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 29

2. The shift lever was in gear and the vehicle speed
returned to 0 mph (0 km/h).
3. The shift lever is in NEUTRAL or PARK.
4. The driver door is opened.
5. The doors were not previously unlocked.
6. The vehicle speed is 0 mph (0 km/h).
The Auto Unlock feature can be enabled or disabled.
Refer to “Personal Settings (Customer-Programmable
Features)” in the “Electronic Vehicle Information Center
(EVIC) — If Equipped” section of this manual.
For vehicles not equipped with the EVIC, the Auto
Unlock Feature can be enabled or disabled by performing
the following procedure:
1. Close all doors and place the key in the ignition.2. Cycle the ignition switch between LOCK and ON, and
back to LOCK four times, ending up in the LOCK
position.
3. Depress the power door UNLOCK switch to unlock
the doors.
4. Verify reprogramming by driving the vehicle.
NOTE:
Use the Auto Lock and Auto Unlock features in
accordance with local laws.
Child Protection Door Lock System — If
Equipped
To provide a safer environment for children riding in a
rear seat, the rear doors have the Child Protection Door
Lock system.
30 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
