2009 CHRYSLER PT CRUISER Owners Manual

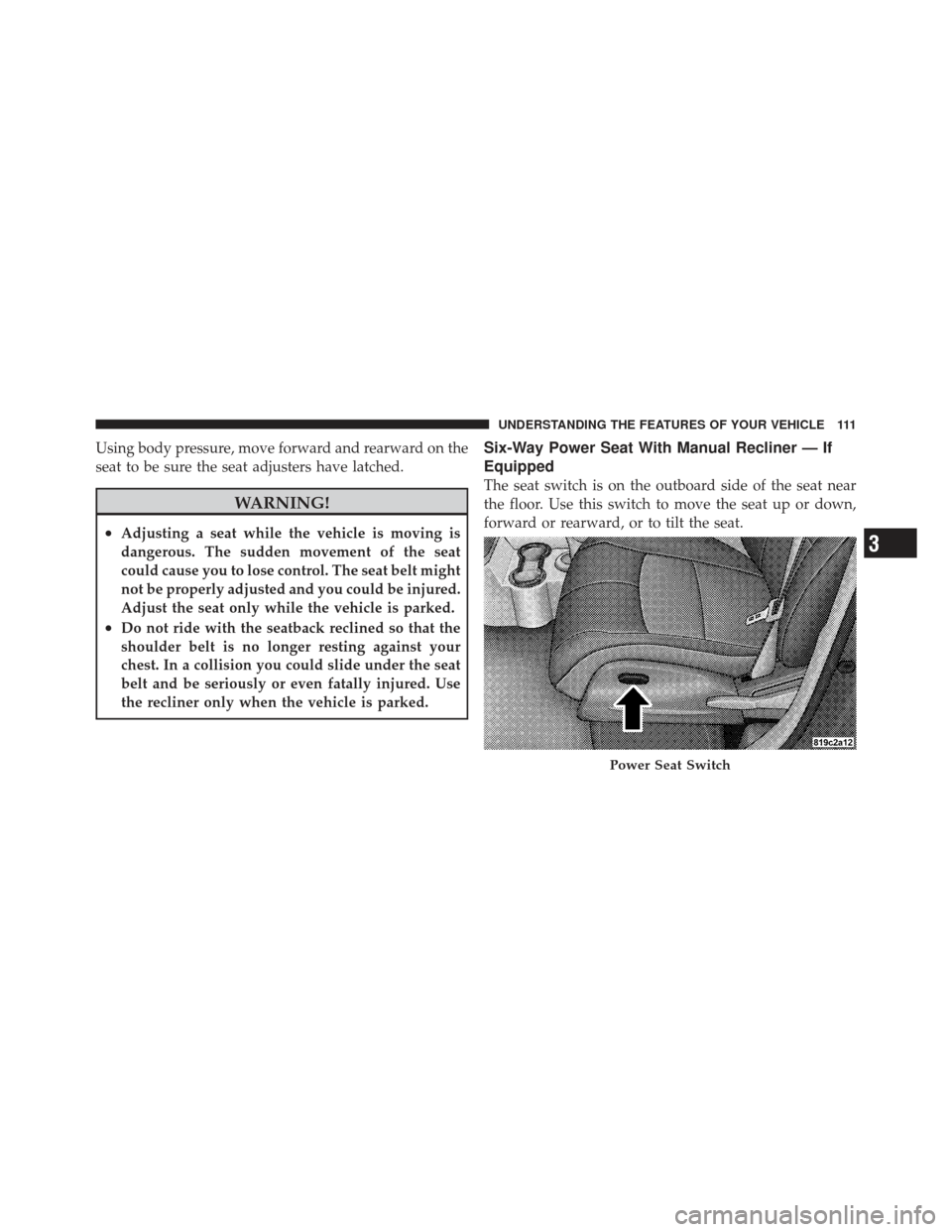

Using body pressure, move forward and rearward on the
seat to be sure the seat adjusters have latched.
WARNING!
•Adjusting a seat while the vehicle is moving is
dangerous. The sudden movement of the seat
could cause you to lose control. The seat belt might
not be properly adjusted and you could be injured.
Adjust the seat only while the vehicle is parked.
•Do not ride with the seatback reclined so that the
shoulder belt is no longer resting against your
chest. In a collision you could slide under the seat
belt and be seriously or even fatally injured. Use
the recliner only when the vehicle is parked.
Six-Way Power Seat With Manual Recliner — If
Equipped
The seat switch is on the outboard side of the seat near
the floor. Use this switch to move the seat up or down,
forward or rearward, or to tilt the seat.
Power Seat Switch
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 111

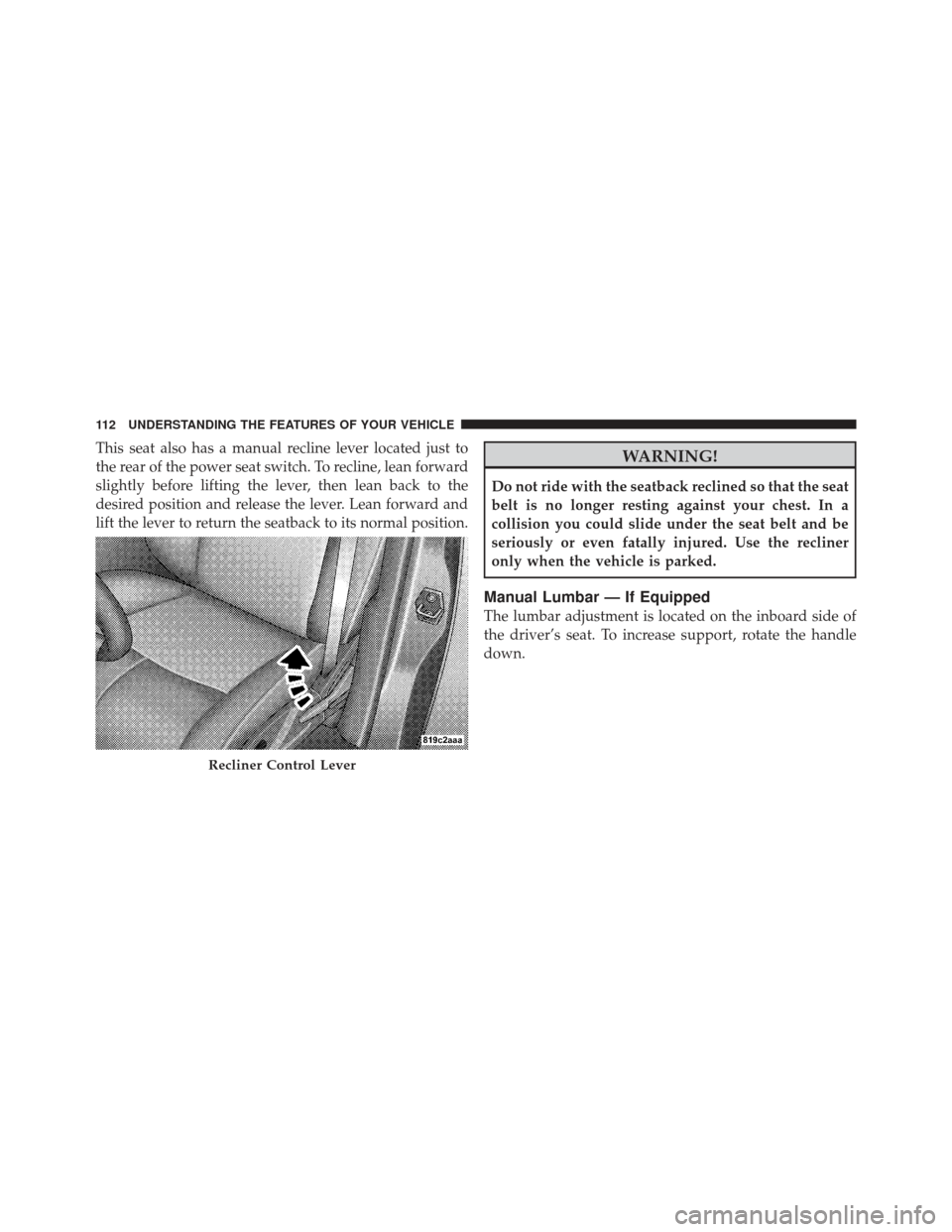

This seat also has a manual recline lever located just to
the rear of the power seat switch. To recline, lean forward
slightly before lifting the lever, then lean back to the
desired position and release the lever. Lean forward and
lift the lever to return the seatback to its normal position.WARNING!
Do not ride with the seatback reclined so that the seat
belt is no longer resting against your chest. In a
collision you could slide under the seat belt and be
seriously or even fatally injured. Use the recliner
only when the vehicle is parked.
Manual Lumbar — If Equipped
The lumbar adjustment is located on the inboard side of
the driver’s seat. To increase support, rotate the handle
down.
Recliner Control Lever
112 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

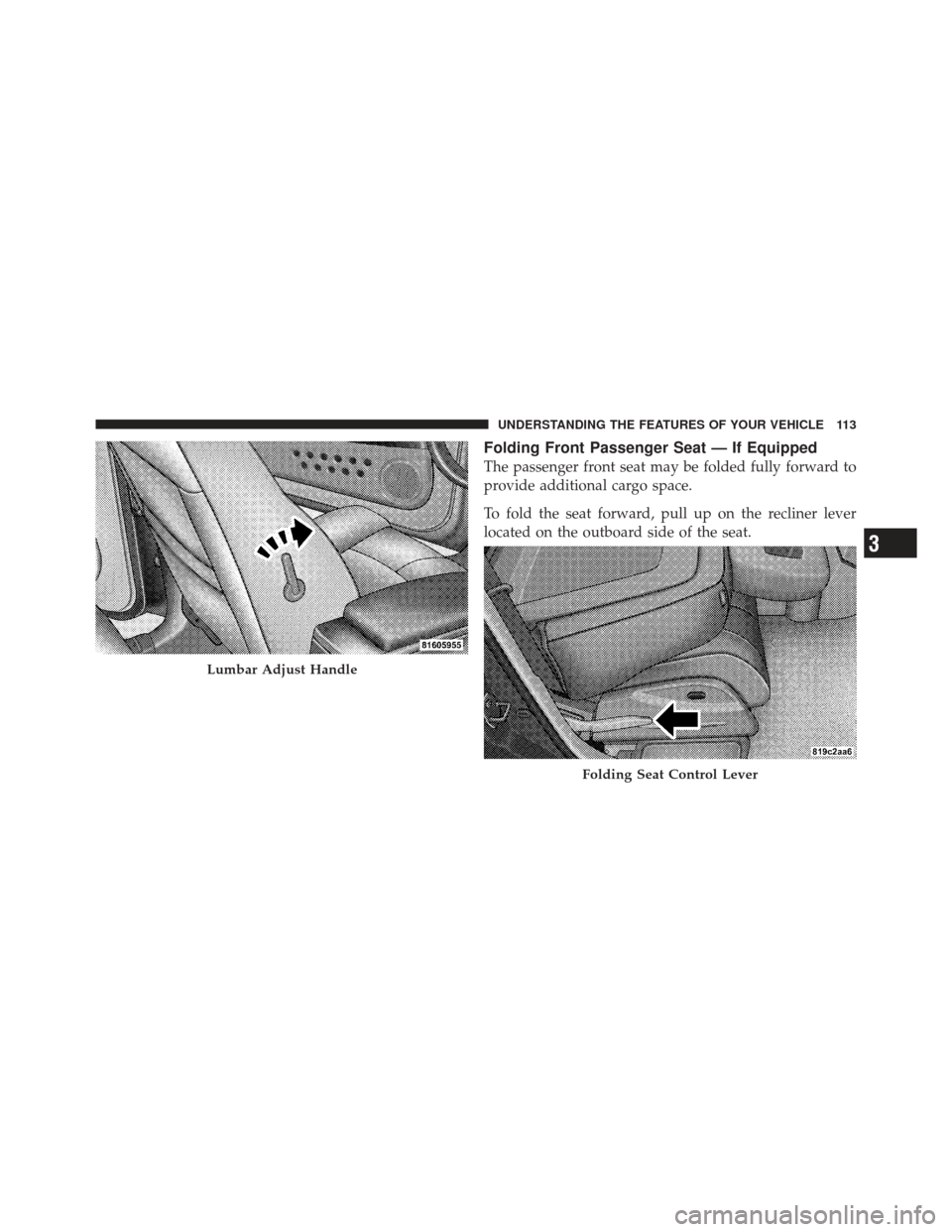

Folding Front Passenger Seat — If Equipped
The passenger front seat may be folded fully forward to
provide additional cargo space.
To fold the seat forward, pull up on the recliner lever
located on the outboard side of the seat.
Lumbar Adjust Handle
Folding Seat Control Lever
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 113

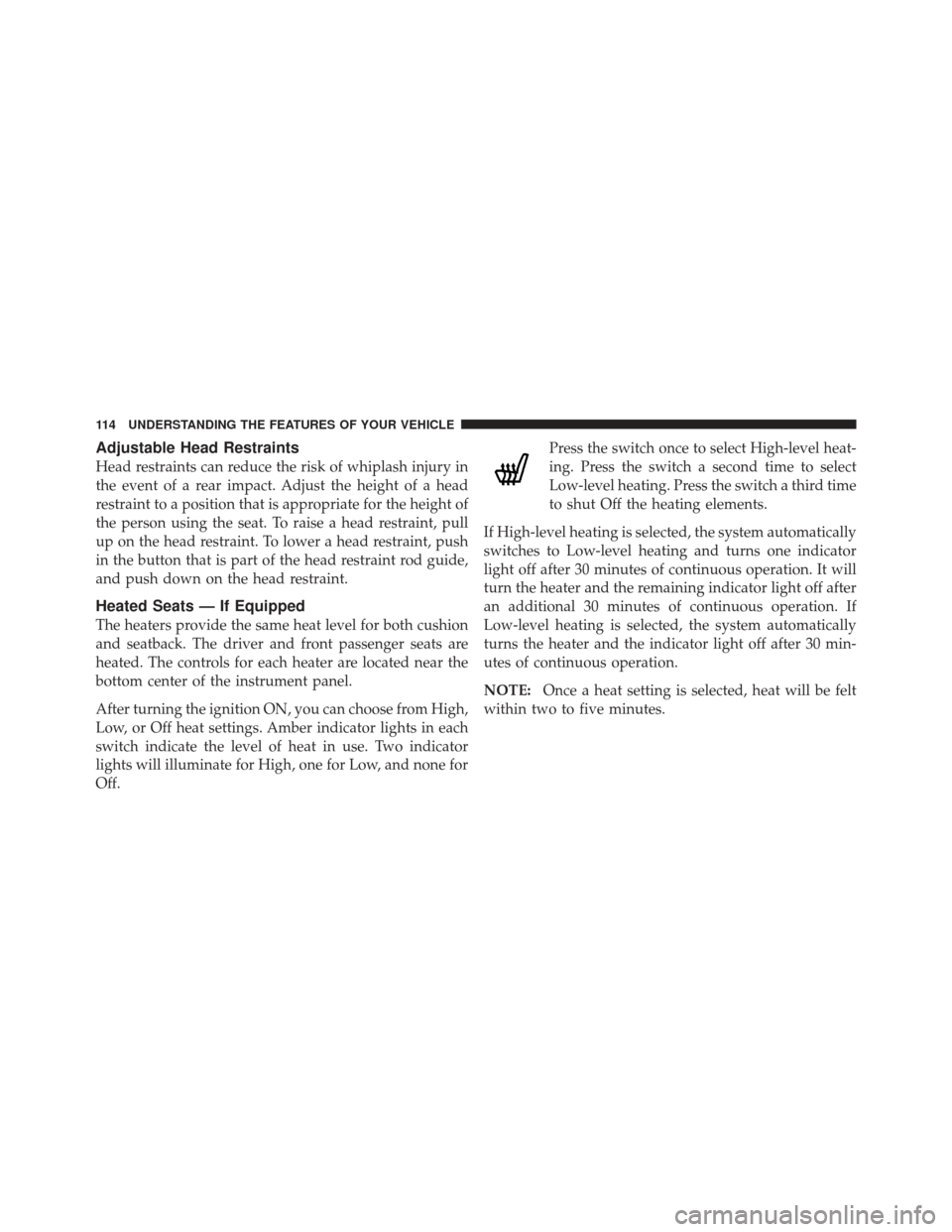

Adjustable Head Restraints
Head restraints can reduce the risk of whiplash injury in
the event of a rear impact. Adjust the height of a head
restraint to a position that is appropriate for the height of
the person using the seat. To raise a head restraint, pull
up on the head restraint. To lower a head restraint, push
in the button that is part of the head restraint rod guide,
and push down on the head restraint.
Heated Seats — If Equipped
The heaters provide the same heat level for both cushion
and seatback. The driver and front passenger seats are
heated. The controls for each heater are located near the
bottom center of the instrument panel.
After turning the ignition ON, you can choose from High,
Low, or Off heat settings. Amber indicator lights in each
switch indicate the level of heat in use. Two indicator
lights will illuminate for High, one for Low, and none for
Off.Press the switch once to select High-level heat-
ing. Press the switch a second time to select
Low-level heating. Press the switch a third time
to shut Off the heating elements.
If High-level heating is selected, the system automatically
switches to Low-level heating and turns one indicator
light off after 30 minutes of continuous operation. It will
turn the heater and the remaining indicator light off after
an additional 30 minutes of continuous operation. If
Low-level heating is selected, the system automatically
turns the heater and the indicator light off after 30 min-
utes of continuous operation.
NOTE: Once a heat setting is selected, heat will be felt
within two to five minutes.
114 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

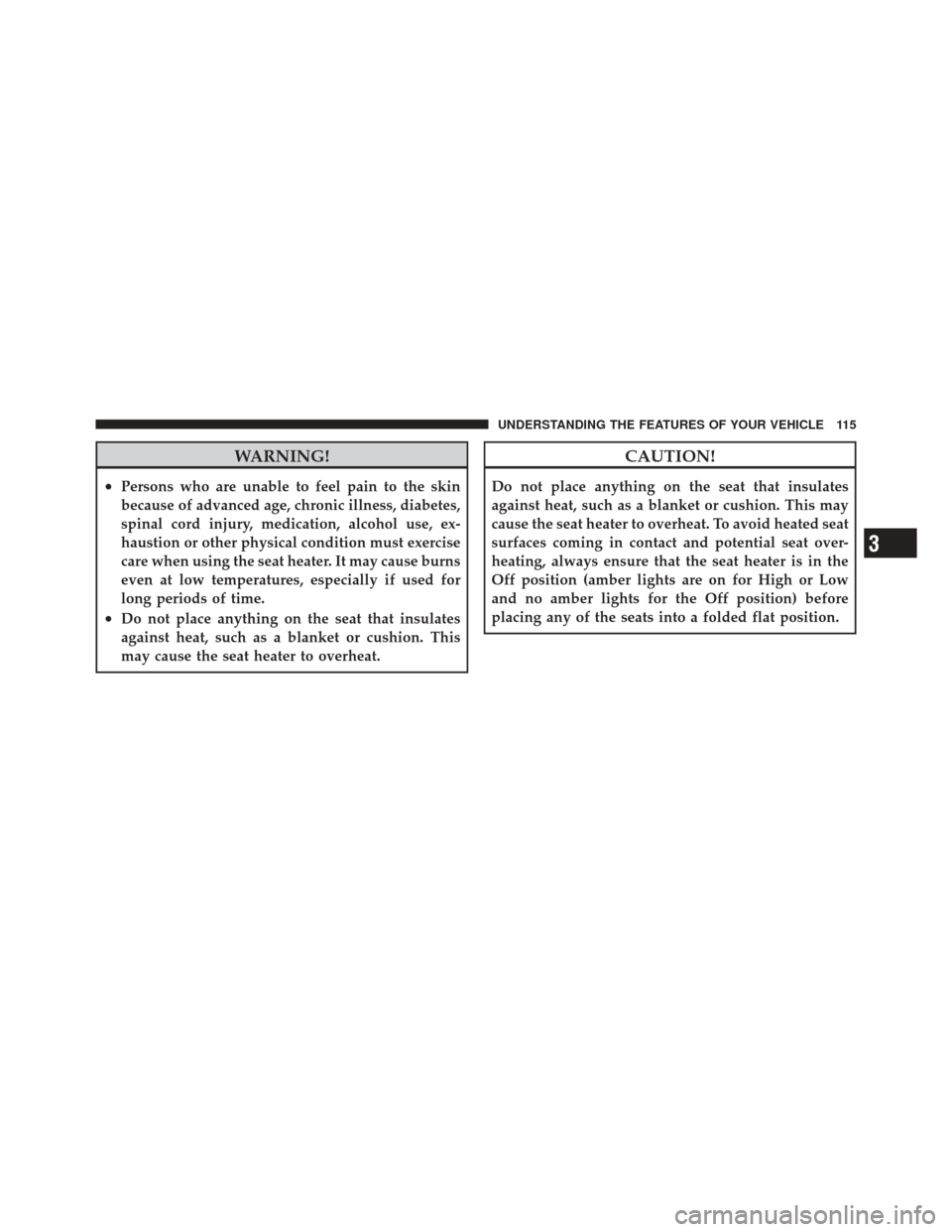

WARNING!
•Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes,
spinal cord injury, medication, alcohol use, ex-
haustion or other physical condition must exercise
care when using the seat heater. It may cause burns
even at low temperatures, especially if used for
long periods of time.
•Do not place anything on the seat that insulates
against heat, such as a blanket or cushion. This
may cause the seat heater to overheat.
CAUTION!
Do not place anything on the seat that insulates
against heat, such as a blanket or cushion. This may
cause the seat heater to overheat. To avoid heated seat
surfaces coming in contact and potential seat over-
heating, always ensure that the seat heater is in the
Off position (amber lights are on for High or Low
and no amber lights for the Off position) before
placing any of the seats into a folded flat position.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 115

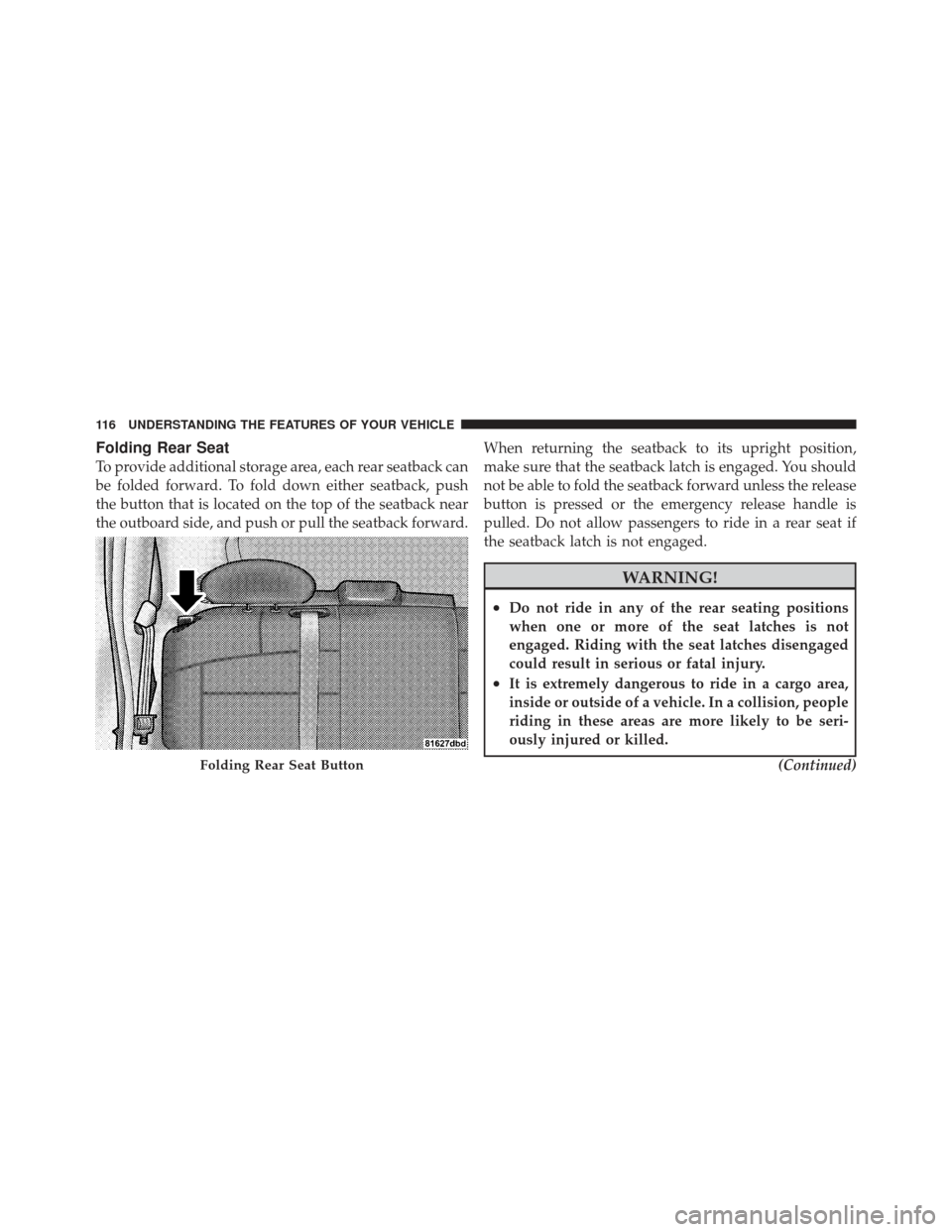

Folding Rear Seat
To provide additional storage area, each rear seatback can
be folded forward. To fold down either seatback, push
the button that is located on the top of the seatback near
the outboard side, and push or pull the seatback forward.When returning the seatback to its upright position,
make sure that the seatback latch is engaged. You should
not be able to fold the seatback forward unless the release
button is pressed or the emergency release handle is
pulled. Do not allow passengers to ride in a rear seat if
the seatback latch is not engaged.
WARNING!
•Do not ride in any of the rear seating positions
when one or more of the seat latches is not
engaged. Riding with the seat latches disengaged
could result in serious or fatal injury.
•It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision, people
riding in these areas are more likely to be seri-
ously injured or killed.
(Continued)
Folding Rear Seat Button
116 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

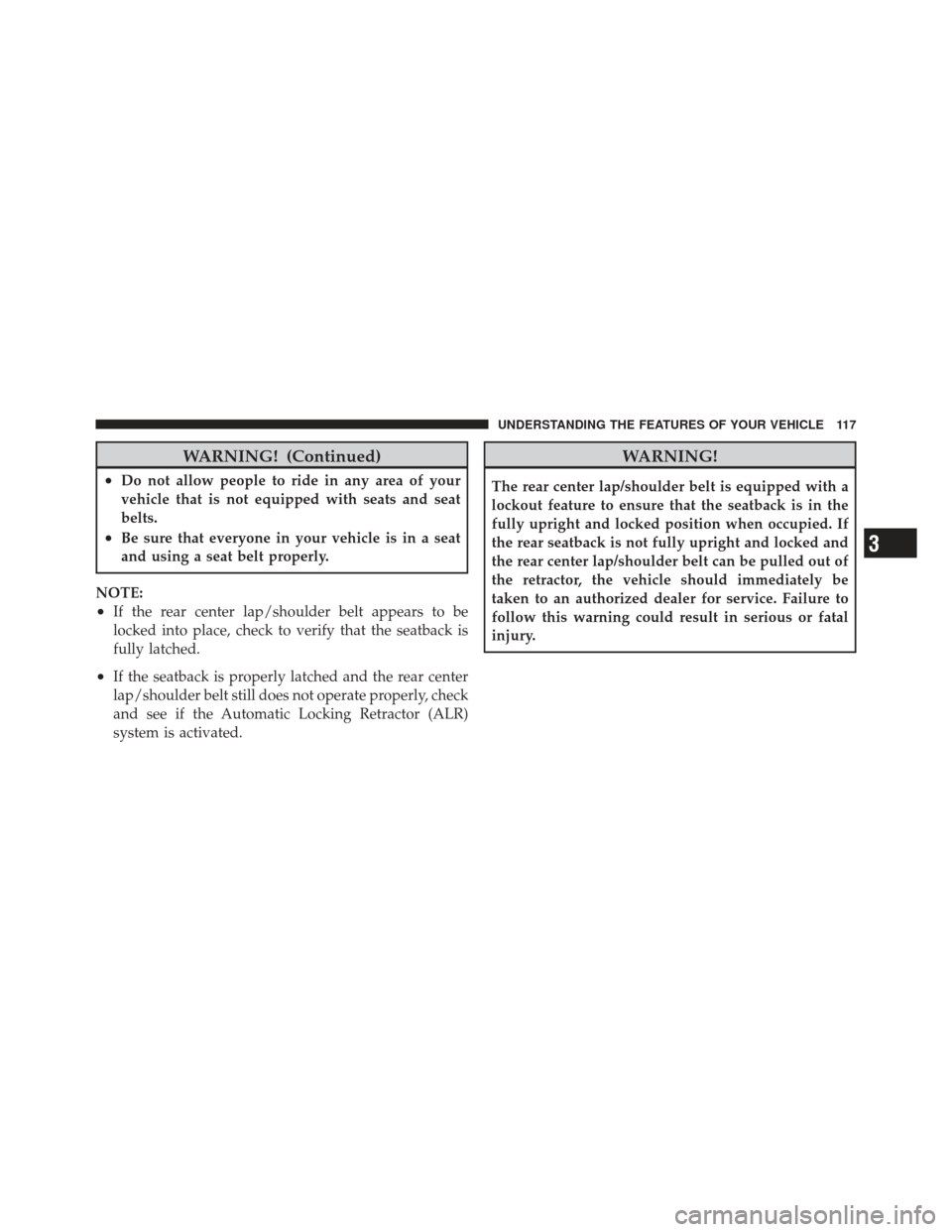

WARNING! (Continued)
•Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat
belts.
•Be sure that everyone in your vehicle is in a seat
and using a seat belt properly.
NOTE:
•If the rear center lap/shoulder belt appears to be
locked into place, check to verify that the seatback is
fully latched.
•If the seatback is properly latched and the rear center
lap/shoulder belt still does not operate properly, check
and see if the Automatic Locking Retractor (ALR)
system is activated.
WARNING!
The rear center lap/shoulder belt is equipped with a
lockout feature to ensure that the seatback is in the
fully upright and locked position when occupied. If
the rear seatback is not fully upright and locked and
the rear center lap/shoulder belt can be pulled out of
the retractor, the vehicle should immediately be
taken to an authorized dealer for service. Failure to
follow this warning could result in serious or fatal
injury.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 117

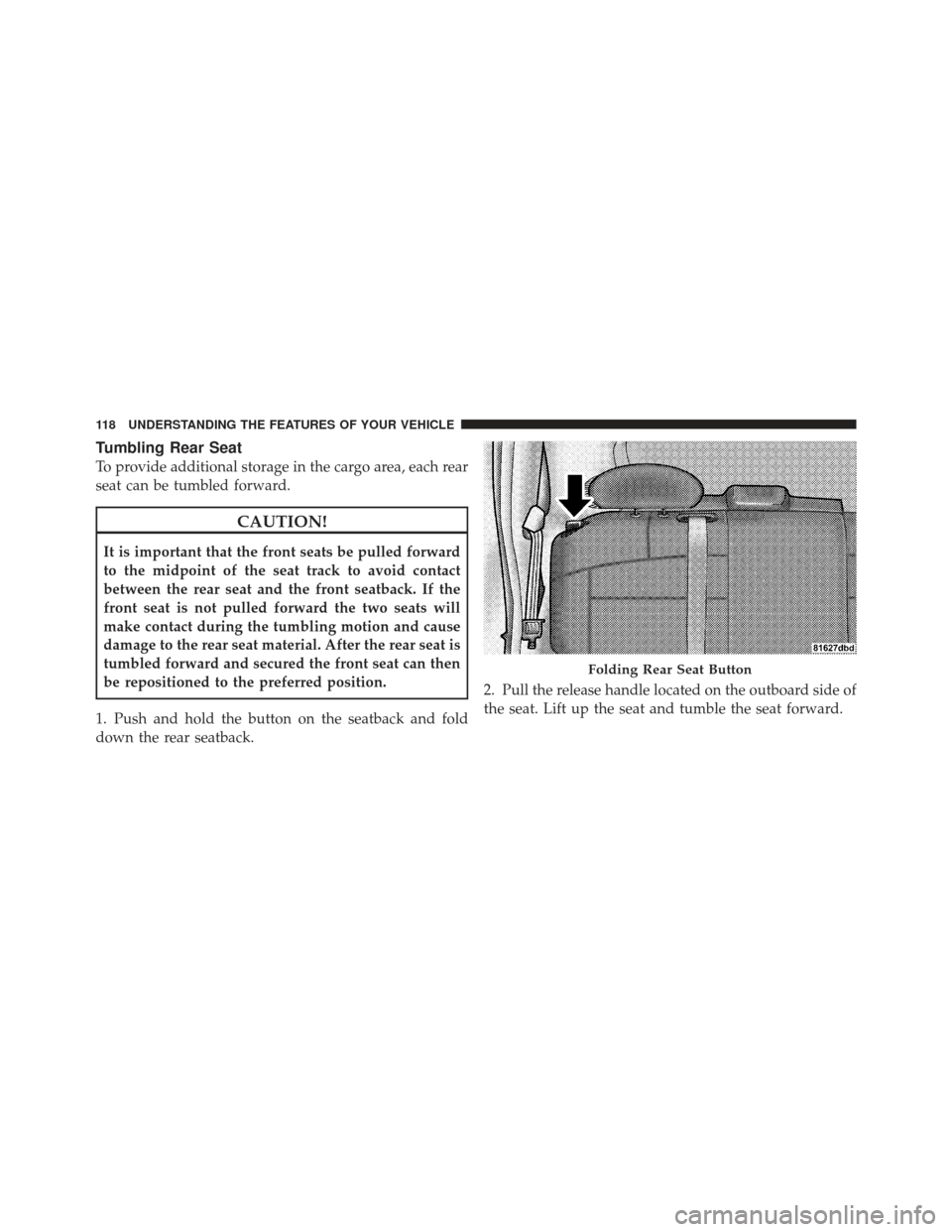

Tumbling Rear Seat
To provide additional storage in the cargo area, each rear
seat can be tumbled forward.
CAUTION!
It is important that the front seats be pulled forward
to the midpoint of the seat track to avoid contact
between the rear seat and the front seatback. If the
front seat is not pulled forward the two seats will
make contact during the tumbling motion and cause
damage to the rear seat material. After the rear seat is
tumbled forward and secured the front seat can then
be repositioned to the preferred position.
1. Push and hold the button on the seatback and fold
down the rear seatback. 2. Pull the release handle located on the outboard side of
the seat. Lift up the seat and tumble the seat forward.
Folding Rear Seat Button
118 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
