2009 CHRYSLER PT CRUISER Owners Manual

CavityCartridge
Fuse Mini-Fuse Description
26 15 Amp Lt.
BlueENG ASD
Relay Feed
2
27 10 Amp Red IGN RUN
Only ORC
Feed
28 10 Amp Red IGN RUN
ORC/OCM
Feed
29 EMPTY
30 20 Amp
YellowHeated
Seats
31 10 Amp Red Headlamp
Washer
Relay
ControlCavityCartridge
Fuse Mini-Fuse Description
32 30 Amp
Pink ENG ASD
Control
Feed 1
33 10 Amp Red ABS MOD/
J1962
Conn/PCM
34 30 Amp
Pink ABS Valve
Feed
35 40 Amp
Green ABS Pump
Feed
36 30 Amp
Pink Headlamp
Washer
Relay
Contact
Feed
37 25 Amp
NaturalSpare
7
MAINTAINING YOUR VEHICLE 343

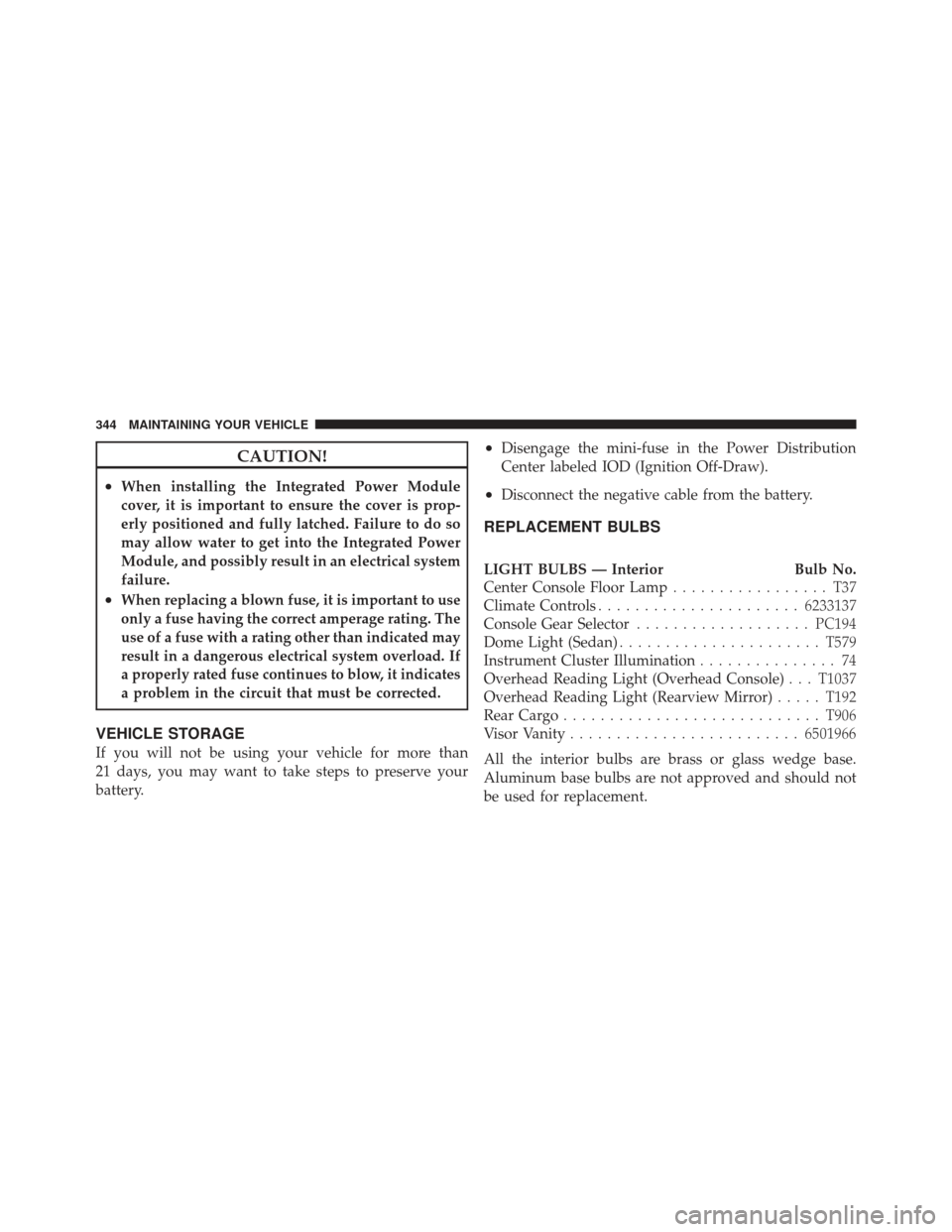

CAUTION!
•When installing the Integrated Power Module
cover, it is important to ensure the cover is prop-
erly positioned and fully latched. Failure to do so
may allow water to get into the Integrated Power
Module, and possibly result in an electrical system
failure.
•When replacing a blown fuse, it is important to use
only a fuse having the correct amperage rating. The
use of a fuse with a rating other than indicated may
result in a dangerous electrical system overload. If
a properly rated fuse continues to blow, it indicates
a problem in the circuit that must be corrected.
VEHICLE STORAGE
If you will not be using your vehicle for more than
21 days, you may want to take steps to preserve your
battery.
•Disengage the mini-fuse in the Power Distribution
Center labeled IOD (Ignition Off-Draw).
•Disconnect the negative cable from the battery.
REPLACEMENT BULBS
LIGHT BULBS — InteriorBulb No.
Center Console Floor Lamp ................. T37
Climate Controls ...................... 6233137
Console Gear Selector ................... PC194
Dome Light (Sedan) ...................... T579
Instrument Cluster Illumination ............... 74
Overhead Reading Light (Overhead Console) . . . T1037
Overhead Reading Light (Rearview Mirror) .....T192
Rear Cargo ............................ T906
Visor Vanity ......................... 6501966
All the interior bulbs are brass or glass wedge base.
Aluminum base bulbs are not approved and should not
be used for replacement.
344 MAINTAINING YOUR VEHICLE

LIGHTS BULBS — ExteriorBulb No.
Low Beam Headlight ................... 9006XS
High Beam Headlight ................... 9005XS
Front Park/Turn Signal/
Side Marker Light ................... 4157NAKX
Front Fog Light ......................... 9145
Center High-Mounted Stop Light
(CHMSL) (Sedan) ................... 921–W16W
Rear Tail/Stop .......................... 3157
Rear Turn Signal ....................... 3757A
Backup Light ..................... 3157-P27/7W
License Light ........................... 168BULB REPLACEMENT
Headlights
CAUTION!
Do not touch the new headlight bulb with your
fingers. Oil contamination will severely shorten bulb
life.
1. Remove the headlight access cover splash shield,
located in the front wheel well opening.
7
MAINTAINING YOUR VEHICLE 345

2. Disconnect the electrical connector(s).
3. Rotate the socket to the left one-quarter turn, and
replace the bulb.Front Parking, Turn Signal, and Side Marker
Lights
1. Remove the headlight access cover splash shield,
located in the front wheel well opening.
2. Disconnect the electrical connector.
346 MAINTAINING YOUR VEHICLE

3. Rotate the socket to the left one-quarter turn, and
replace the bulb.
Front Fog Lights — If Equipped
1. Remove the fasteners attaching the lower splash
shield to gain access to the fog light.
2. Twist and remove the bulb from the fog light housing.
3. Disconnect the electrical connector and replace bulb.
Tail/Stop Lights and Rear Turn Signal Lights
1. Remove the screw attaching the tail light housing and
remove the housing from the vehicle.
2. Twist the bulb socket one—quarter turn to remove it
from the housing.3. Pull the bulb out of the socket and replace.
7
MAINTAINING YOUR VEHICLE 347

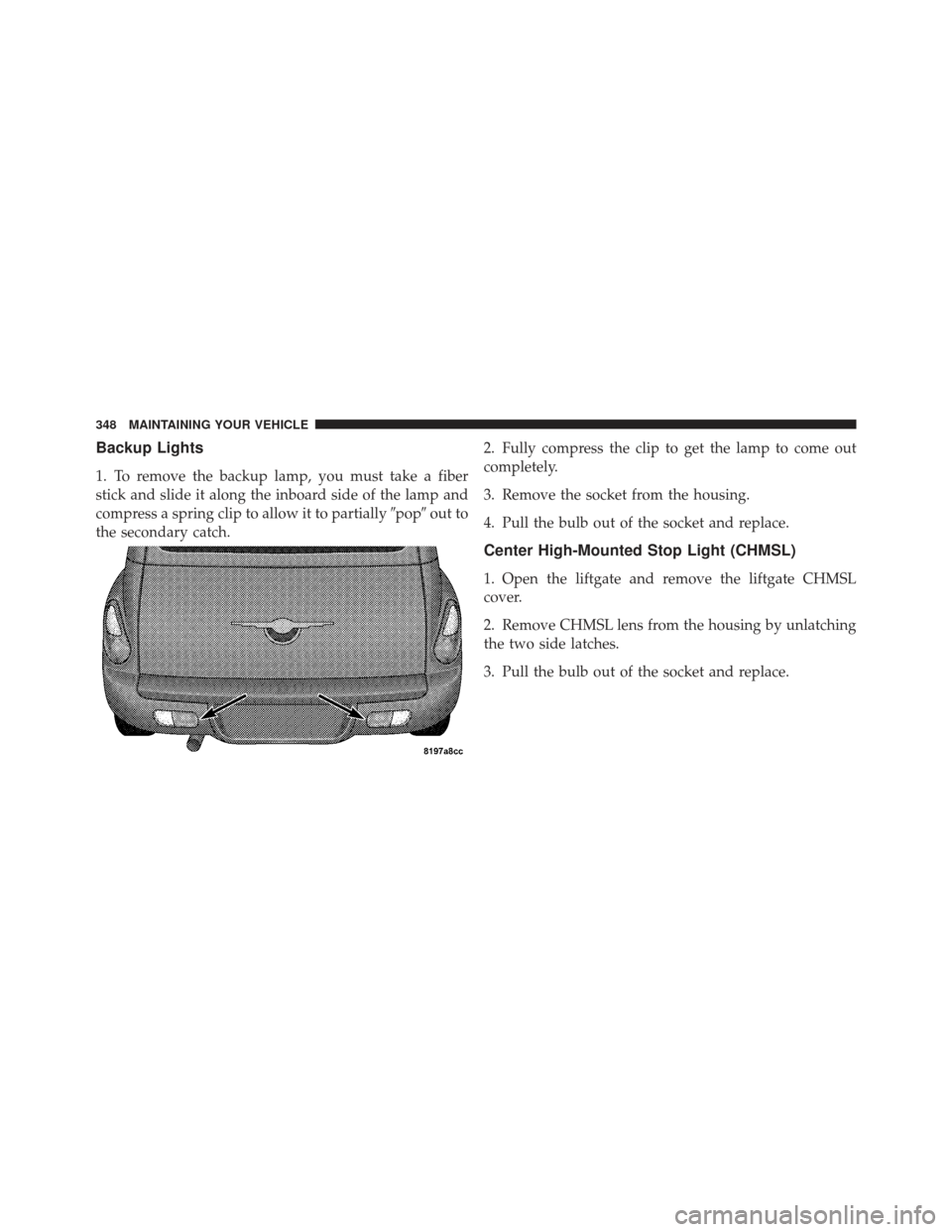

Backup Lights
1. To remove the backup lamp, you must take a fiber
stick and slide it along the inboard side of the lamp and
compress a spring clip to allow it to partiallypopout to
the secondary catch. 2. Fully compress the clip to get the lamp to come out
completely.
3. Remove the socket from the housing.
4. Pull the bulb out of the socket and replace.
Center High-Mounted Stop Light (CHMSL)
1. Open the liftgate and remove the liftgate CHMSL
cover.
2. Remove CHMSL lens from the housing by unlatching
the two side latches.
3. Pull the bulb out of the socket and replace.
348 MAINTAINING YOUR VEHICLE

FLUIDS AND CAPACITIES
U.S.Metric
Fuel (Approximate) 15 Gallons56.7 Liters
Engine Oil with Filter
2.4 Liter/2.4L Turbo Engines (SAE 5W-30, API Certified) 5 Quarts4.7 Liters
Cooling System *
2.4 Liter/2.4L Turbo Engines (MOPAR Antifreeze/Engine
Coolant 5 Year/100,000 Mile Formula) 6.5 Quarts
6.2 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
7
MAINTAINING YOUR VEHICLE 349

FLUIDS, LUBRICANTS AND GENUINE PARTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine Coolant MOPARAntifreeze/Coolant 5 Year/100,000 Mile Formula HOAT (Hy-
brid Organic Additive Technology).
Engine Oil Use API Certified SAE 5W-30 Engine Oil, meeting the requirements of
Chrysler Material Standard MS-6395. Refer to your engine oil filler cap for
correct SAE grade.
Engine Oil Filter MOPAREngine Oil Filter or equivalent.
Spark Plugs (2.4L Engine) ChampionRE16MC (Gap 0.040 in [1.02 mm])
Spark Plugs (2.4L Turbo Engine) Champion RE14MCC5 (Gap 0.050 in [1.27 mm])
Fuel Selection 87 Octane
350 MAINTAINING YOUR VEHICLE
