A new engine may consume some oil during its first few
thousand miles (kilometers) of operation. This should be
considered a normal part of the break-in and not inter-
preted as an indication of difficulty.
SAFETY TIPS
Transporting Passengers
NEVER TRANSPORT PASSENGERS IN THE CARGO
AREA.
WARNING!
•It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision, people
riding in these areas are more likely to be seri-
ously injured or killed.(Continued)
WARNING! (Continued)
•Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat
belts.
•Be sure everyone in your vehicle is in a seat and
using a seat belt properly.
Exhaust Gas
WARNING!
Exhaust gases can injure or kill. They contain carbon
monoxide (CO), which is colorless and odorless.
Breathing it can make you unconscious and can
eventually poison you. To avoid breathing (CO)
follow these safety tips:
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 71

Do not run the engine in a closed garage or in confined
areas any longer than needed to move your vehicle in or
out of the area.
If it is necessary to sit in a parked vehicle with the engine
running, adjust your heating or cooling controls to force
outside air into the vehicle. Set the blower at high speed.
If you are required to drive with the trunk/liftgate open,
make sure that all windows are closed and the climate
control BLOWER switch is set at high speed. DO NOT
use the recirculation mode.
The best protection against carbon monoxide entry into
the vehicle body is a properly maintained engine exhaust
system.
Whenever a change is noticed in the sound of the exhaust
system, when exhaust fumes can be detected inside the
vehicle, or when the underside or rear of the vehicle isdamaged, have a competent mechanic inspect the com-
plete exhaust system and adjacent body areas for broken,
damaged, deteriorated, or mispositioned parts. Open
seams or loose connections could permit exhaust fumes
to seep into the passenger compartment. In addition,
inspect the exhaust system each time the vehicle is raised
for lubrication or oil change. Replace as required.
Safety Checks You Should Make Inside the
Vehicle
Seat Belts
Inspect the belt system periodically, checking for cuts,
frays, and loose parts. Damaged parts must be replaced
immediately. Do not disassemble or modify the system.
Front seat belt assemblies must be replaced after a
collision. Rear seat belt assemblies must be replaced after
a collision if they have been damaged (i.e., bent retractor,
torn webbing, etc.). If there is any question regarding belt
or retractor condition, replace the belt.
72 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Airbag Warning Light
The light should come on and remain on for six to eight
seconds as a bulb check when the ignition switch is first
turned ON. If the light is not lit during starting, see your
authorized dealer. If the light stays on, flickers, or comes
on while driving, have the system checked by an autho-
rized dealer.
Defroster
Check operation by selecting the defrost mode and place
the blower control on high speed. You should be able to
feel the air directed against the windshield. See your
authorized dealer for service if your defroster is
inoperable.
Periodic Safety Checks You Should Make Outside
the Vehicle
Tires
Examine tires for excessive tread wear and uneven wear
patterns. Check for stones, nails, glass, or other objectslodged in the tread. Inspect the tread and sidewall for
cuts and cracks. Check the wheel nuts for tightness.
Check the tires (including spare) for proper pressure.
Lights
Have someone observe the operation of exterior lights
while you work the controls. Check turn signal and high
beam indicator lights on the instrument panel.
Door Latches
Check for positive closing, latching, and locking.
Fluid Leaks
Check area under vehicle after overnight parking for fuel,
engine coolant, oil, or other fluid leaks. Also, if gasoline
fumes are detected or if fuel, power steering fluid, or
brake fluid leaks are suspected, the cause should be
located and corrected immediately.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 73

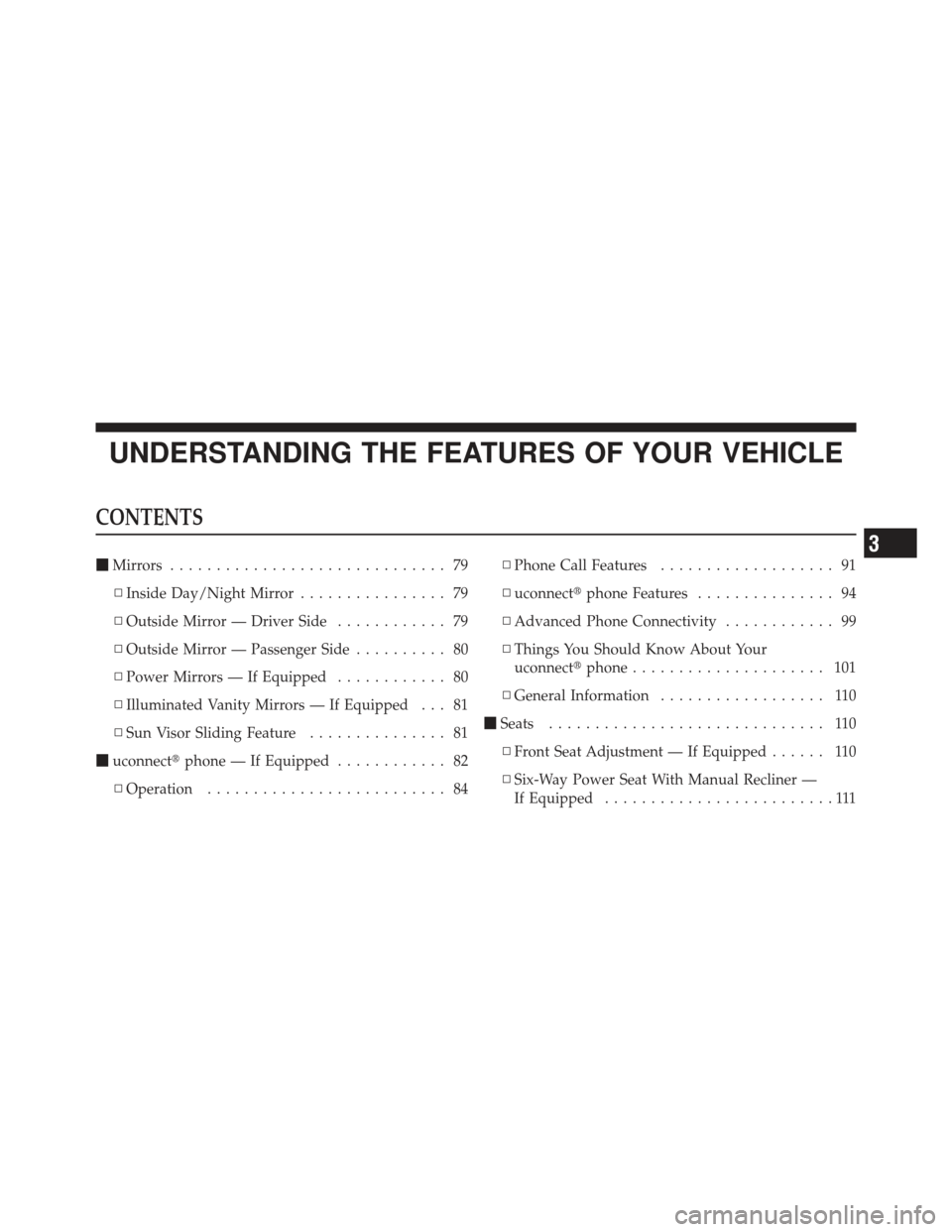

UNDERSTANDING THE FEATURES OF YOUR VEHICLE
CONTENTS
Mirrors .............................. 79
▫ Inside Day/Night Mirror ................ 79
▫ Outside Mirror — Driver Side ............ 79
▫ Outside Mirror — Passenger Side .......... 80
▫ Power Mirrors — If Equipped ............ 80
▫ Illuminated Vanity Mirrors — If Equipped . . . 81
▫ Sun Visor Sliding Feature ............... 81
 uconnect phone — If Equipped ............ 82
▫ Operation .......................... 84 ▫
Phone Call Features ................... 91
▫ uconnect phone Features ............... 94
▫ Advanced Phone Connectivity ............ 99
▫ Things You Should Know About Your
uconnect phone..................... 101
▫ General Information .................. 110
 Seats .............................. 110
▫ Front Seat Adjustment — If Equipped ...... 110
▫ Six-Way Power Seat With Manual Recliner —
If Equipped .........................111
3

▫Manual Lumbar — If Equipped .......... 112
▫ Folding Front Passenger Seat —
If Equipped ........................ 113
▫ Adjustable Head Restraints ............. 114
▫ Heated Seats — If Equipped ............ 114
▫ Folding Rear Seat .................... 116
▫ Tumbling Rear Seat ................... 118
▫ Rear Seat Removal ................... 120
 Emergency Seatback Release .............. 122
 To Open And Close The Hood ............ 123
 Lights ............................. 125
▫ Map/Reading Lights .................. 125
▫ Headlights ......................... 126 ▫
Parking And Instrument Panel Lights ...... 126
▫ Daytime Running Lights (DRL) —
If Equipped ........................ 127
▫ Lights — On Reminder ................ 127
▫ Fog Lights — If Equipped .............. 128
▫ Turn Signal Operation ................. 128
▫ High Beam/Low Beam Select Switch ...... 129
▫ Flash-To-Pass ....................... 130
 Windshield Wipers And Washers .......... 130
▫ Windshield Wiper Operation ............ 130
▫ Intermittent Wiper System .............. 131
▫ Windshield Washers .................. 132
▫ Mist Feature ........................ 132
76 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Tilt Steering Column ................... 132
 Electronic Speed Control — If Equipped ..... 133
▫ To Activate ......................... 134
▫ To Set a Desired Speed ................ 134
▫ To Deactivate ....................... 134
▫ To Resume Speed .................... 134
▫ To Vary The Speed Setting .............. 135
▫ Manual Transaxle .................... 135
▫ To Accelerate For Passing .............. 136
▫ Using Electronic Speed Control On Hills .... 136
 Garage Door Opener — If Equipped ........ 136
▫ Programming HomeLink .............. 137
▫ Gate Operator/Canadian Programming .... 141▫
Security ........................... 141
▫ Troubleshooting Tips .................. 142
▫ General Information .................. 142
 Power Sunroof — If Equipped ............ 143
▫ Express-Open Feature ................. 143
▫ Wind Buffeting ...................... 144
▫ Sunroof Maintenance ................. 145
 Electrical Power Outlets ................. 145
 Storage ............................. 147
▫ Center Console/Armrest Storage Bin ...... 147
▫ Storage Pockets ..................... 148
 Console Features ...................... 148
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 77

Rear Shelf Panel — If Equipped ........... 149
▫ Position 1 (Top) ..................... 150
▫ Position 2 (Middle) ................... 150
▫ Position 3 (Floor) .................... 151
▫ Position 4 (Vertical) ................... 152 ▫
Position 5 (Table) .................... 152
 Rear Window Features .................. 154
▫ Rear Window Defroster ................ 154
▫ Rear Wiper/Washer Switch — If Equipped . . 155
78 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
