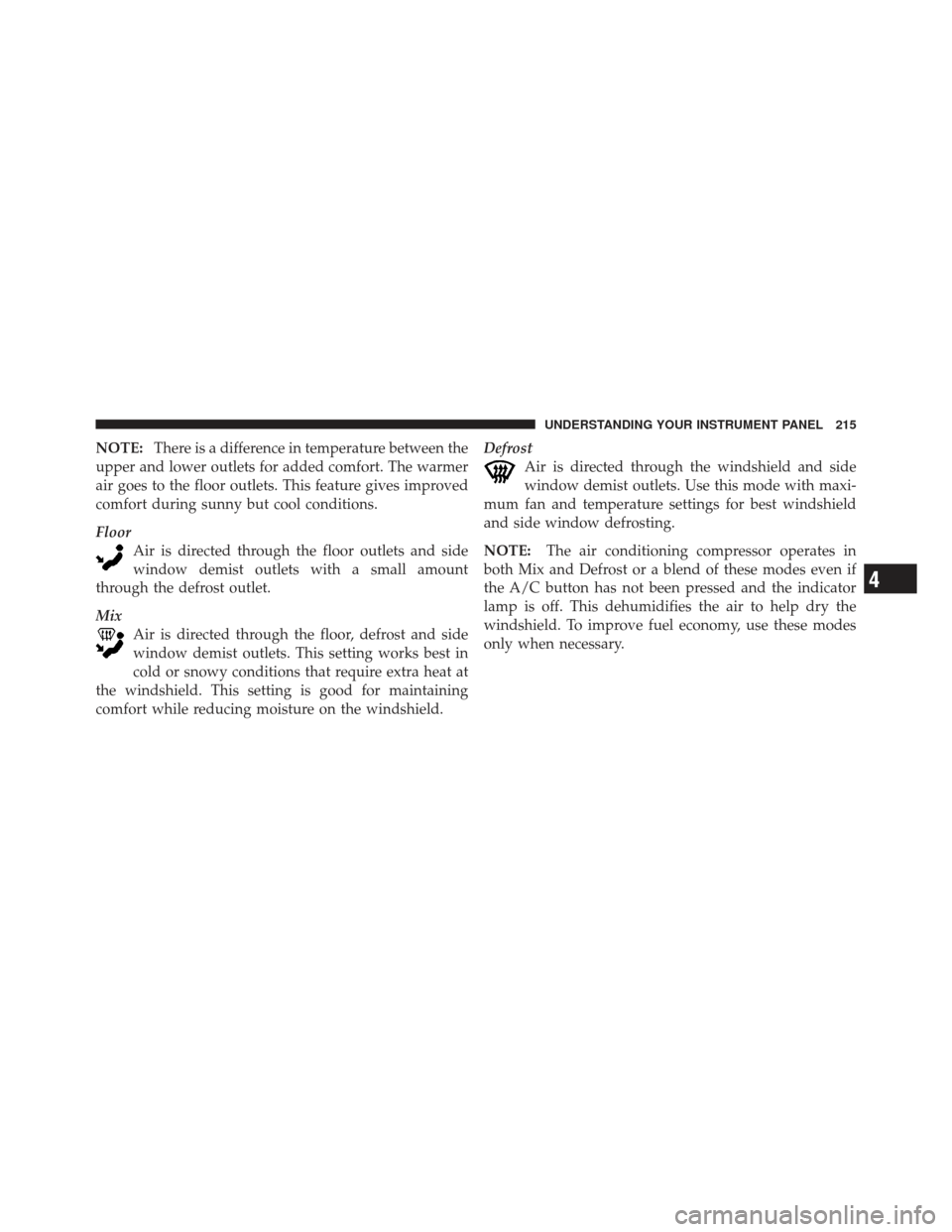

NOTE:There is a difference in temperature between the
upper and lower outlets for added comfort. The warmer
air goes to the floor outlets. This feature gives improved
comfort during sunny but cool conditions.
Floor Air is directed through the floor outlets and side
window demist outlets with a small amount
through the defrost outlet.
Mix Air is directed through the floor, defrost and side
window demist outlets. This setting works best in
cold or snowy conditions that require extra heat at
the windshield. This setting is good for maintaining
comfort while reducing moisture on the windshield. Defrost
Air is directed through the windshield and side
window demist outlets. Use this mode with maxi-
mum fan and temperature settings for best windshield
and side window defrosting.
NOTE: The air conditioning compressor operates in
both Mix and Defrost or a blend of these modes even if
the A/C button has not been pressed and the indicator
lamp is off. This dehumidifies the air to help dry the
windshield. To improve fuel economy, use these modes
only when necessary.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 215

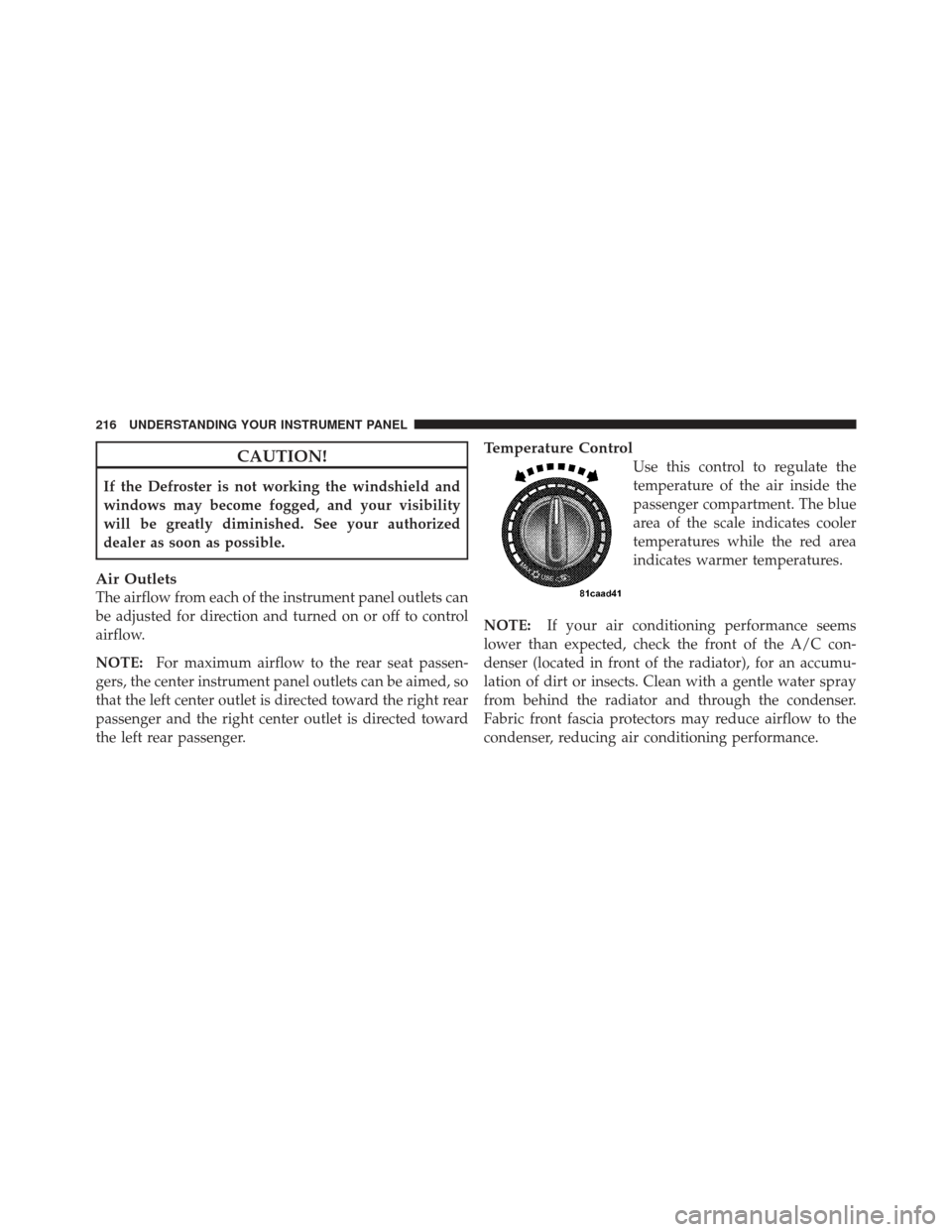

CAUTION!
If the Defroster is not working the windshield and
windows may become fogged, and your visibility
will be greatly diminished. See your authorized
dealer as soon as possible.
Air Outlets
The airflow from each of the instrument panel outlets can
be adjusted for direction and turned on or off to control
airflow.
NOTE:For maximum airflow to the rear seat passen-
gers, the center instrument panel outlets can be aimed, so
that the left center outlet is directed toward the right rear
passenger and the right center outlet is directed toward
the left rear passenger.
Temperature Control
Use this control to regulate the
temperature of the air inside the
passenger compartment. The blue
area of the scale indicates cooler
temperatures while the red area
indicates warmer temperatures.
NOTE: If your air conditioning performance seems
lower than expected, check the front of the A/C con-
denser (located in front of the radiator), for an accumu-
lation of dirt or insects. Clean with a gentle water spray
from behind the radiator and through the condenser.
Fabric front fascia protectors may reduce airflow to the
condenser, reducing air conditioning performance.
216 UNDERSTANDING YOUR INSTRUMENT PANEL

Air Conditioning (A/C) — If Equipped
Press the A/C button to engage
the air conditioning. A lamp will
illuminate when the air condition-
ing system is engaged
NOTE: The air conditioning compressor will not engage
until the engine has been running for about 10 seconds.
MAX A/C
To quickly cool the vehicle interior
follow the steps listed below:
1. Set the Temperature Control to Max Cool.
2. Set the Mode Control to Panel or Bi-Level.
3. Press the Recirculation button and the A/C button.
4. Adjust the Fan Control to desired airflow setting.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 217

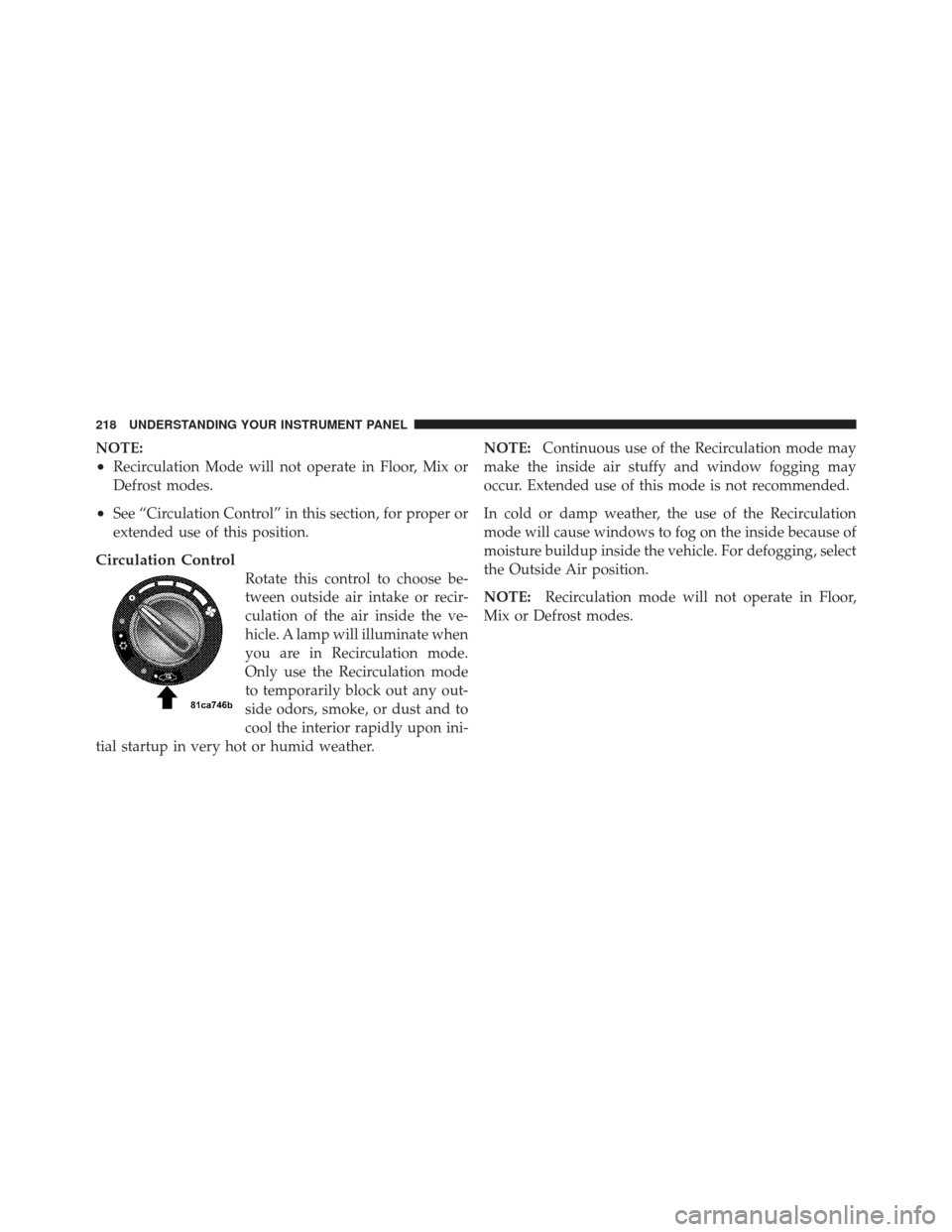

NOTE:
•Recirculation Mode will not operate in Floor, Mix or
Defrost modes.
•See “Circulation Control” in this section, for proper or
extended use of this position.
Circulation Control
Rotate this control to choose be-
tween outside air intake or recir-
culation of the air inside the ve-
hicle. A lamp will illuminate when
you are in Recirculation mode.
Only use the Recirculation mode
to temporarily block out any out-
side odors, smoke, or dust and to
cool the interior rapidly upon ini-
tial startup in very hot or humid weather. NOTE:
Continuous use of the Recirculation mode may
make the inside air stuffy and window fogging may
occur. Extended use of this mode is not recommended.
In cold or damp weather, the use of the Recirculation
mode will cause windows to fog on the inside because of
moisture buildup inside the vehicle. For defogging, select
the Outside Air position.
NOTE: Recirculation mode will not operate in Floor,
Mix or Defrost modes.
218 UNDERSTANDING YOUR INSTRUMENT PANEL

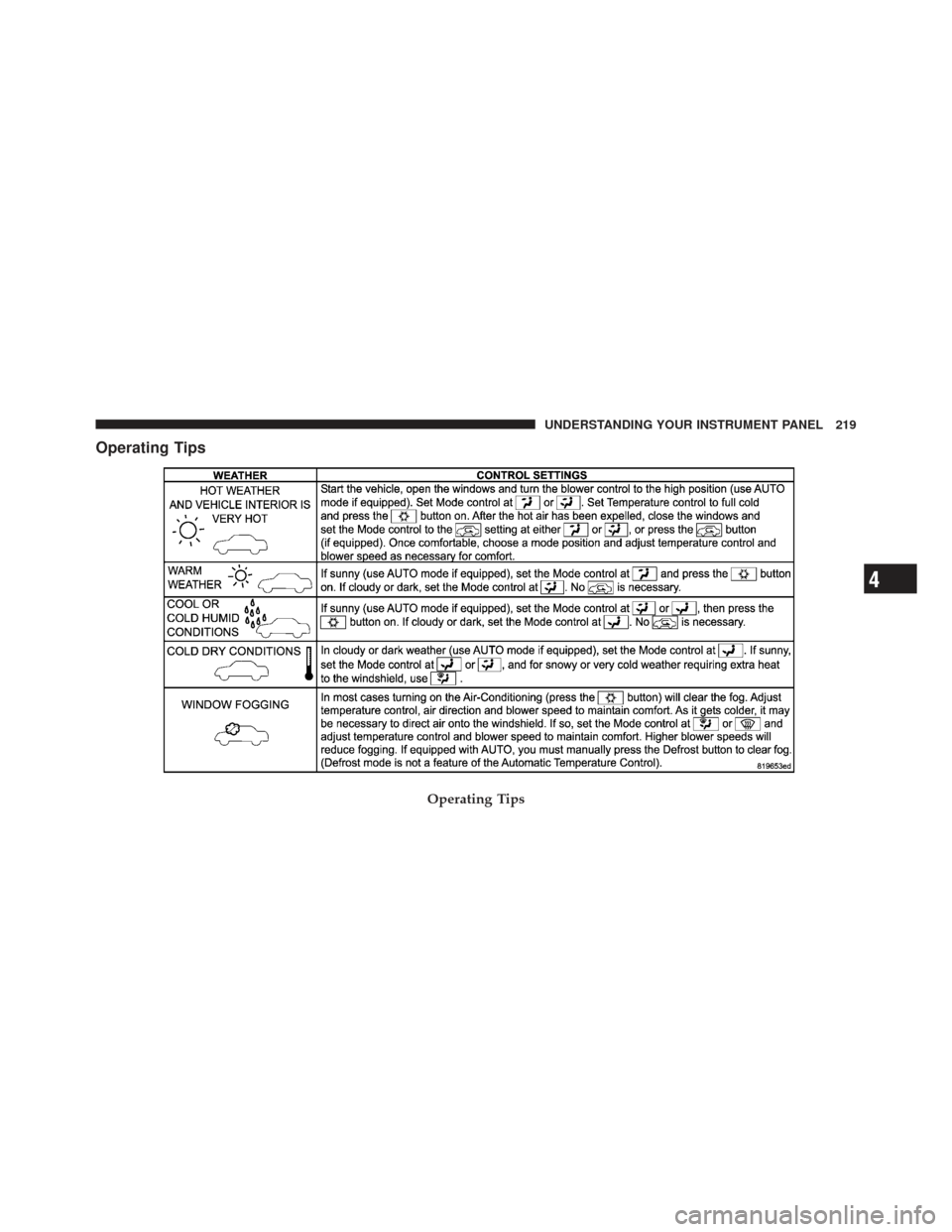

Operating Tips
Operating Tips
4
UNDERSTANDING YOUR INSTRUMENT PANEL 219

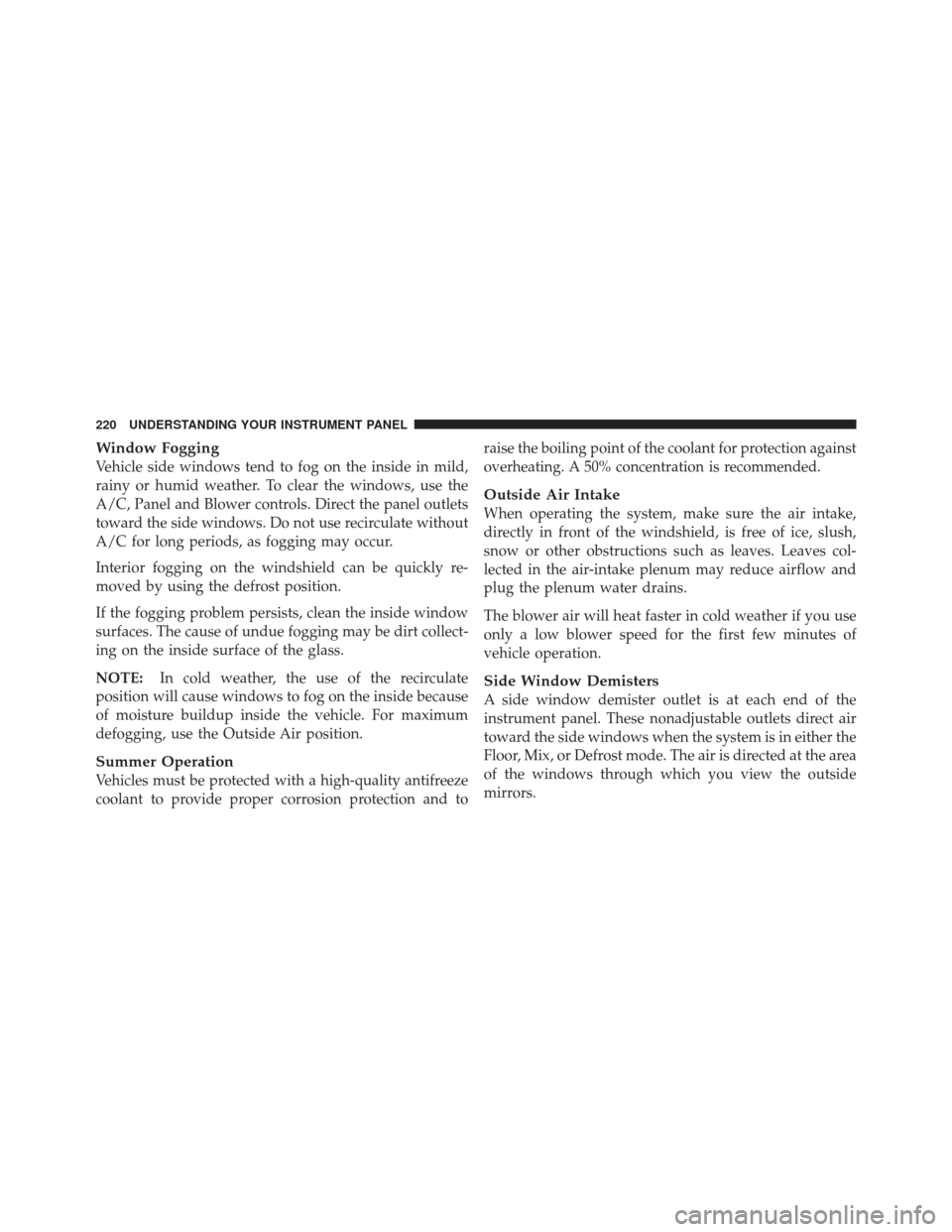

Window Fogging
Vehicle side windows tend to fog on the inside in mild,
rainy or humid weather. To clear the windows, use the
A/C, Panel and Blower controls. Direct the panel outlets
toward the side windows. Do not use recirculate without
A/C for long periods, as fogging may occur.
Interior fogging on the windshield can be quickly re-
moved by using the defrost position.
If the fogging problem persists, clean the inside window
surfaces. The cause of undue fogging may be dirt collect-
ing on the inside surface of the glass.
NOTE:In cold weather, the use of the recirculate
position will cause windows to fog on the inside because
of moisture buildup inside the vehicle. For maximum
defogging, use the Outside Air position.
Summer Operation
Vehicles must be protected with a high-quality antifreeze
coolant to provide proper corrosion protection and to raise the boiling point of the coolant for protection against
overheating. A 50% concentration is recommended.
Outside Air Intake
When operating the system, make sure the air intake,
directly in front of the windshield, is free of ice, slush,
snow or other obstructions such as leaves. Leaves col-
lected in the air-intake plenum may reduce airflow and
plug the plenum water drains.
The blower air will heat faster in cold weather if you use
only a low blower speed for the first few minutes of
vehicle operation.
Side Window Demisters
A side window demister outlet is at each end of the
instrument panel. These nonadjustable outlets direct air
toward the side windows when the system is in either the
Floor, Mix, or Defrost mode. The air is directed at the area
of the windows through which you view the outside
mirrors.
220 UNDERSTANDING YOUR INSTRUMENT PANEL

STARTING AND OPERATING
CONTENTS
Starting Procedures .................... 224
▫ Manual Transaxle — If Equipped ......... 224
▫ Automatic Transaxle — If Equipped ....... 224
▫ Normal Starting ..................... 224
▫ Extreme Cold Weather
(Below 20°F Or 29°C)............... 225
▫ If The Engine Fails To Start ............. 225
▫ After Starting ....................... 226
▫ Turbocharger Cool-Down ............. 226
Manual Transaxle — If Equipped .......... 226
▫ Five–Speed Manual Transaxle ........... 226
 Automatic Transaxle — If Equipped ........ 229
▫ Brake/Transmission Interlock System ...... 230
▫ Four-Speed Automatic Transaxle ......... 231
▫ Gear Ranges ........................ 232
 AutoStick — If Equipped ............... 234
▫ Operation ......................... 235
▫ General Information .................. 235
5

Driving On Slippery Surfaces ............. 236
▫ Acceleration ........................ 236
▫ Traction ........................... 237
 Driving Through Water ................. 237
▫ Flowing/Rising Water ................. 238
▫ Shallow Standing Water ............... 238
 Power Steering ....................... 240
▫ Power Steering Fluid Check ............. 241
 Parking Brake ........................ 241
 Brake System ........................ 243
▫ Anti-Lock Brake System (ABS) —
If Equipped ........................ 244
 Traction Control System — If Equipped ...... 246
Tire Safety Information ................. 248
▫ Tire Markings ....................... 248
▫ Tire Identification Number (TIN) ......... 251
▫ Tire Loading And Tire Pressure .......... 252
 Tires — General Information ............. 256
▫ Tire Pressure ....................... 256
 Tire Chains .......................... 263
 Snow Tires .......................... 264
 Tire Rotation Recommendations ........... 264
 Tire Pressure Monitoring System (TPMS) ..... 265
▫ Base System ........................ 267
 Fuel Requirements ..................... 270
▫ 2.4L And 2.4L Turbo Engines ............ 270
222 STARTING AND OPERATING
