2009 CHRYSLER PT CRUISER Owners Manual

Add Names to Your uconnectPhonebook
NOTE:Adding names to the uconnect phonebook is
recommended when the vehicle is not in motion.
•Press the PHONE button to begin.
•After the Readyprompt and the following beep, say
Phonebook New Entry.
•When prompted, say the name of the new entry. Use of
long names helps the voice recognition and it is
recommended. For example, say Robert Smithor
Robert instead of Bob.
•When prompted, enter the number designation (e.g.,
Home,Work,Mobile, orPager). This will allow
you to store multiple numbers for each phonebook
entry, if desired.
•When prompted, recite the phone number for the
phonebook entry that you are adding. After you are finished adding an entry into the phone-
book, you will be given the opportunity to add more
phone numbers to the current entry or to return to the
main menu.
The uconnect
phone will allow you to enter up to 32
names in the phonebook with each name having up to
four associated phone numbers and designations. Each
language has a separate 32-name phonebook accessible
only in that language. In addition, if equipped and
supported by your phone, uconnect phone automati-
cally downloads your cellular phone’s phonebook.
Phonebook Download – Automatic Phonebook
Transfer From Cellular Phone
If equipped and specifically supported by your phone,
uconnect phone automatically downloads names (text
names) and number entries from the cellular phone’s
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 87

phonebook. Specific BluetoothPhones with Phone Book
Access Profile may support this feature. See uconnect
website for supported phones.
•To call a name from downloaded (or uconnect)
Phonebook, follow the procedure in “Call by Saying a
Name” section.
•Automatic download and update, if supported, begins
as soon as the Bluetooth wireless phone connection is
made to the uconnect phone, for example, after you
start the vehicle.
•A maximum of 1000 entries per phone will be down-
loaded and updated every time a phone is connected
to the uconnect phone.
•Depending on the maximum number of entries down-
loaded, there may be a short delay before the latest
downloaded names can be used. Until then, if avail-
able, the previous downloaded phonebook is available
for use.
•Only the phonebook of the currently connected cellu-
lar phone is accessible.
•Only the cellular phone’s phonebook is downloaded.
SIM card phonebook is not part of the Mobile phone-
book.
•This downloaded phonebook cannot be edited or
deleted on the uconnect phone. These can only be
edited on the cellular phone. The changes are trans-
ferred and updated to uconnect phone on the next
phone connection.
Phonebook Download — Single Entry
If equipped and supported by your phone, uconnect
phone allows the user to download entries from their
phone via Bluetooth. To use this feature, press the
PHONE button and say “Phonebook Download.” The
system prompts, “Ready to accept “V” card entry via
Bluetooth…” The system is now ready to accept phone-
book entries from your phone using the Bluetooth
88 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Object Exchange Profile (OBEX). Please see your phone
Owner’s Manual for specific instructions on how to send
these entries from your phone.
NOTE:
•The phone handset must support BluetoothOBEX
transfers of phonebook entries to use this feature.
•Some phones cannot send phonebook entries if they
are already connected to any system via Bluetooth ,
and you may see a message on the phone display that
the Bluetooth link is busy. In this case, the user must
first disconnect or drop the Bluetooth connection to
the uconnect phone, and then send the address book
entry via Bluetooth. Please see your phone Owner ’s
Manual for specific instructions on how to drop the
Bluetooth connection.
•If the phonebook entry is longer than 24 characters, it
will only use the first 24 characters.
Edit uconnect Phonebook Entries
NOTE:
•Editing names in the phonebook is recommended
when the vehicle is not in motion.
•Automatic downloaded phonebook entries cannot be
deleted or edited.
•Press the PHONE button to begin.
•After theReadyprompt and the following beep, say
Phonebook Edit.
•You will then be asked for the name of the phonebook
entry that you wish to edit.
•Next, choose the number designation (home, work,
cellular, or pager) that you wish to edit.
•When prompted, recite the new phone number for the
phonebook entry that you are editing.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 89

After you are finished editing an entry in the phonebook,
you will be given the opportunity to edit another entry in
the phonebook, call the number you just edited, or return
to the main menu.
Phonebook Editcan be used to add another phone
number to a name entry that already exists in the
phonebook. For example, the entry John Doe may have a
cellular and a home number, but you can add ”John
Doe’s” work number later using the Phonebook Edit
feature.
Delete uconnect Phonebook Entry
NOTE:Editing phonebook entries is recommended
when the vehicle is not in motion.
•Press the PHONE button to begin.
•After the Readyprompt and the following beep, say
Phonebook Delete.
•After you enter the Phonebook Delete menu, you will
then be asked for the name of the entry that you wish
to delete. You can either say the name of a phonebook
entry that you wish to delete or you can say List
Names to hear a list of the entries in the phonebook
from which you choose. To select one of the entries
from the list, press the VOICE RECOGNITION button
while the uconnect phone is playing the desired entry
and say Delete.
•After you enter the name, the uconnect phone will
ask you which designation you wish to delete: home,
work, cellular, pager, or all. Say the designation you
wish to delete.
•Note that only the phonebook entry in the current
language is deleted.
•Automatic downloaded phonebook entries cannot be
deleted or edited.
90 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Delete/Erase “All” uconnectPhonebook Entries
•
Press the PHONE button to begin.
•After the Readyprompt and the following beep, say
Phonebook Erase All.
•The uconnect phone will ask you to verify that you
wish to delete all the entries from the phonebook.
•After confirmation, the phonebook entries will be
deleted.
•Note that only the phonebook in the current language
is deleted.
•Automatic downloaded phonebook entries cannot be
deleted or edited.
List All Names in the uconnect Phonebook
•
Press the PHONE button to begin.
•After the Readyprompt and the following beep, say
Phonebook List Names.
•The uconnect phone will play the names of all the
phonebook entries, including the downloaded phone-
book entries, if available.
•To call one of the names in the list, press the VOICE
RECOGNITION button during the playing of the
desired name, and say Call.
NOTE: The user can also exercise EditorDelete
operations at this point.
•The uconnect phone will then prompt you as to the
number designation you wish to call.
•The selected number will be dialed.
Phone Call Features
The following features can be accessed through the
uconnect phone if the feature(s) are available on your
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 91

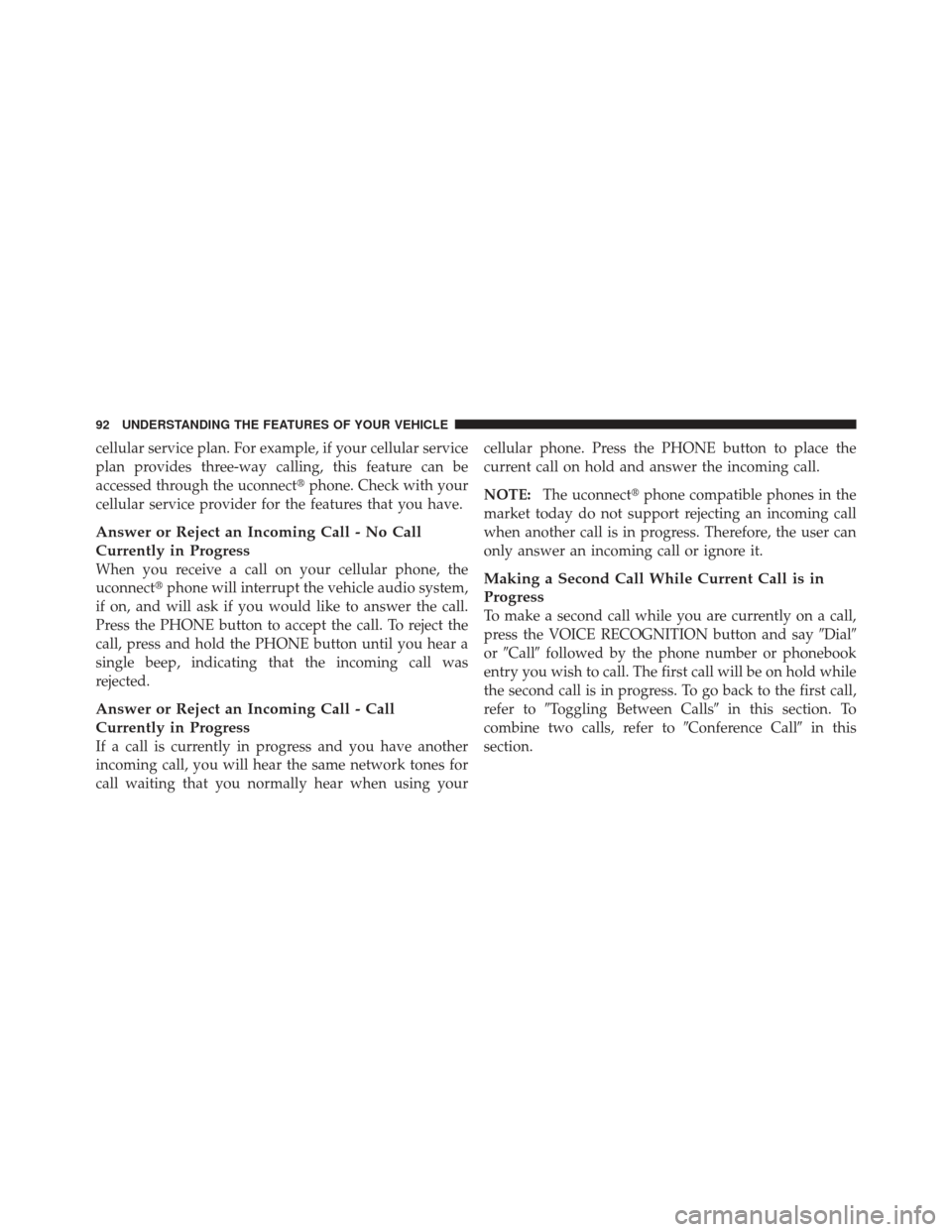

cellular service plan. For example, if your cellular service
plan provides three-way calling, this feature can be
accessed through the uconnectphone. Check with your
cellular service provider for the features that you have.
Answer or Reject an Incoming Call - No Call
Currently in Progress
When you receive a call on your cellular phone, the
uconnect phone will interrupt the vehicle audio system,
if on, and will ask if you would like to answer the call.
Press the PHONE button to accept the call. To reject the
call, press and hold the PHONE button until you hear a
single beep, indicating that the incoming call was
rejected.
Answer or Reject an Incoming Call - Call
Currently in Progress
If a call is currently in progress and you have another
incoming call, you will hear the same network tones for
call waiting that you normally hear when using your cellular phone. Press the PHONE button to place the
current call on hold and answer the incoming call.
NOTE:
The uconnect phone compatible phones in the
market today do not support rejecting an incoming call
when another call is in progress. Therefore, the user can
only answer an incoming call or ignore it.
Making a Second Call While Current Call is in
Progress
To make a second call while you are currently on a call,
press the VOICE RECOGNITION button and say Dial
or Call followed by the phone number or phonebook
entry you wish to call. The first call will be on hold while
the second call is in progress. To go back to the first call,
refer to Toggling Between Calls in this section. To
combine two calls, refer to Conference Callin this
section.
92 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

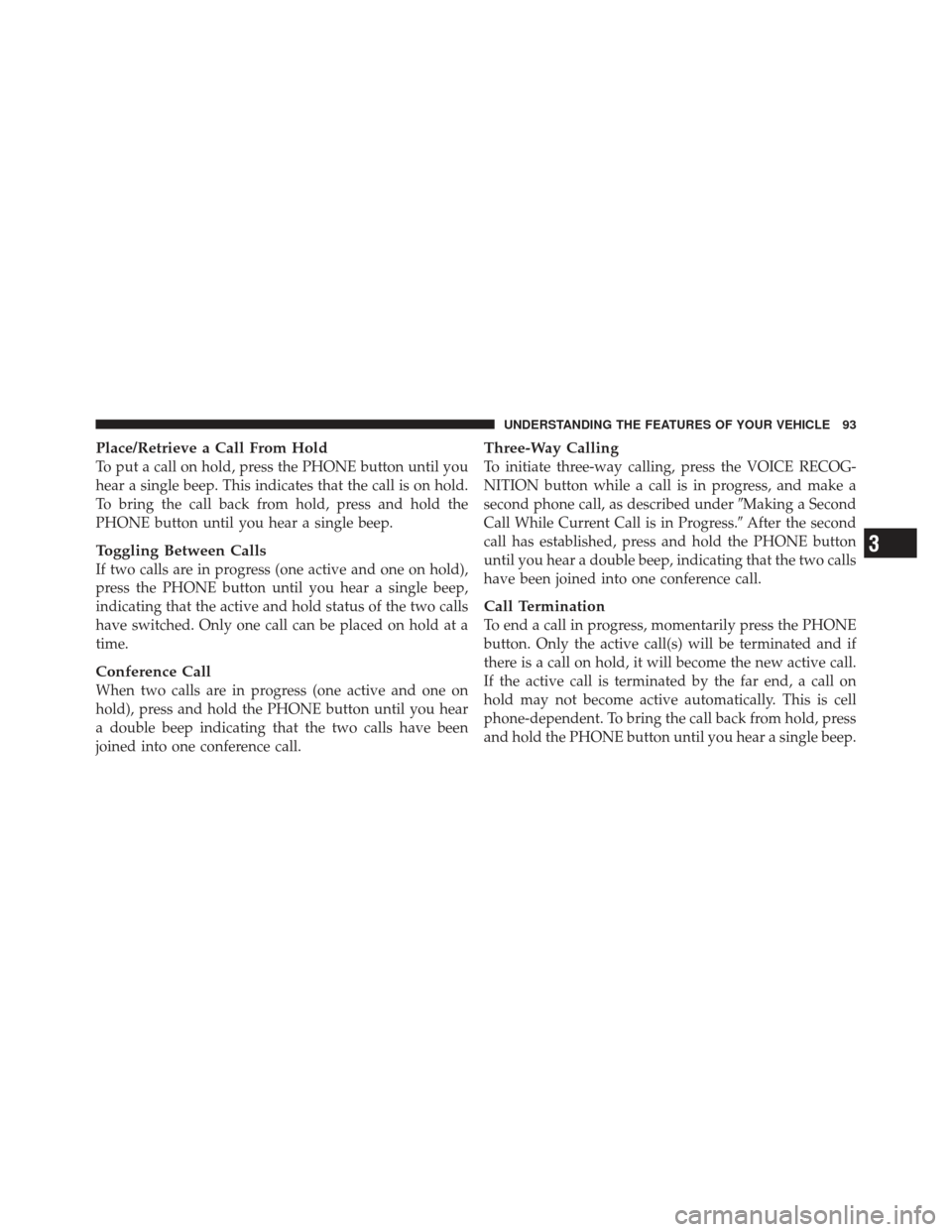

Place/Retrieve a Call From Hold
To put a call on hold, press the PHONE button until you
hear a single beep. This indicates that the call is on hold.
To bring the call back from hold, press and hold the
PHONE button until you hear a single beep.
Toggling Between Calls
If two calls are in progress (one active and one on hold),
press the PHONE button until you hear a single beep,
indicating that the active and hold status of the two calls
have switched. Only one call can be placed on hold at a
time.
Conference Call
When two calls are in progress (one active and one on
hold), press and hold the PHONE button until you hear
a double beep indicating that the two calls have been
joined into one conference call.
Three-Way Calling
To initiate three-way calling, press the VOICE RECOG-
NITION button while a call is in progress, and make a
second phone call, as described underMaking a Second
Call While Current Call is in Progress. After the second
call has established, press and hold the PHONE button
until you hear a double beep, indicating that the two calls
have been joined into one conference call.
Call Termination
To end a call in progress, momentarily press the PHONE
button. Only the active call(s) will be terminated and if
there is a call on hold, it will become the new active call.
If the active call is terminated by the far end, a call on
hold may not become active automatically. This is cell
phone-dependent. To bring the call back from hold, press
and hold the PHONE button until you hear a single beep.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 93

Redial
•
Press the PHONE button to begin.
•After theReadyprompt and the following beep, say
Redial.
•The uconnect phone will call the last number that
was dialed from your cellular phone.
NOTE: This may not be the last number dialed from the
uconnect phone.
Call Continuation
Call continuation is the progression of a phone call on the
uconnect phone after the vehicle ignition key has been
switched to OFF. Call continuation functionality avail-
able on the vehicle can be any one of three types:
•After the ignition key is switched to OFF, a call can
continue on the uconnect phone either until the call
ends, or until the vehicle battery condition dictates cessation of the call on the uconnect
phone and
transfer of the call to the cellular phone.
•After the ignition key is switched to OFF, a call can
continue on the uconnect phone for a certain dura-
tion, after which the call is automatically transferred
from the uconnect phone to the cellular phone.
•An active call is automatically transferred to the
cellular phone after the ignition key is switched to
OFF.
uconnectphone Features
Language Selection
To change the language that the uconnect phone is
using:
•Press the PHONE button to begin.
94 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
