2009 CHRYSLER PT CRUISER Owners Manual

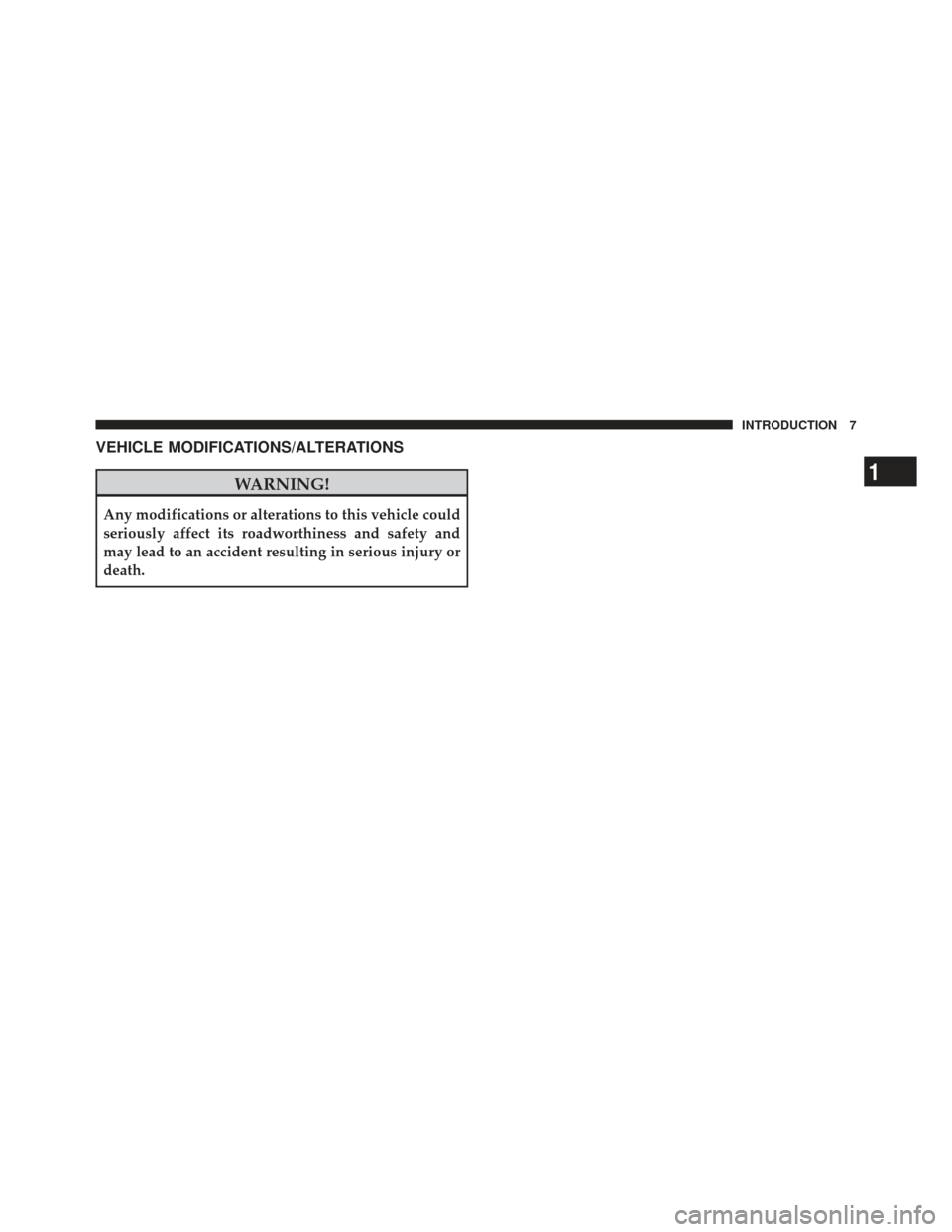

VEHICLE MODIFICATIONS/ALTERATIONS
WARNING!
Any modifications or alterations to this vehicle could
seriously affect its roadworthiness and safety and
may lead to an accident resulting in serious injury or
death.
1
INTRODUCTION 7

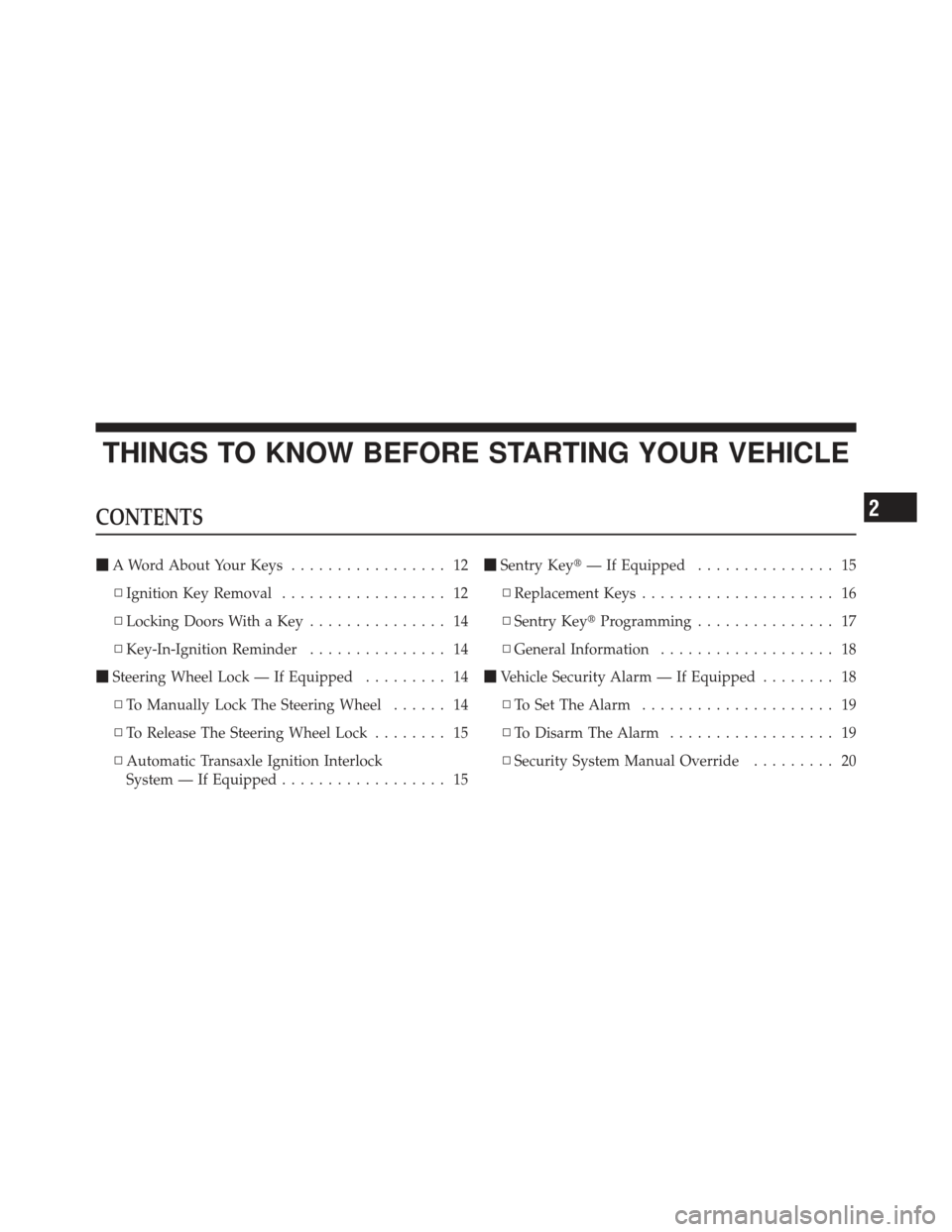

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
A Word About Your Keys ................. 12
▫ Ignition Key Removal .................. 12
▫ Locking Doors With a Key ............... 14
▫ Key-In-Ignition Reminder ............... 14
 Steering Wheel Lock — If Equipped ......... 14
▫ To Manually Lock The Steering Wheel ...... 14
▫ To Release The Steering Wheel Lock ........ 15
▫ Automatic Transaxle Ignition Interlock
System — If Equipped .................. 15
Sentry Key — If Equipped ............... 15
▫ Replacement Keys ..................... 16
▫ Sentry Key Programming ............... 17
▫ General Information ................... 18
 Vehicle Security Alarm — If Equipped ........ 18
▫ To Set The Alarm ..................... 19
▫ To Disarm The Alarm .................. 19
▫ Security System Manual Override ......... 20
2

Remote Keyless Entry (RKE) .............. 20
▫ To Unlock The Doors And Liftgate ......... 21
▫ To Lock The Doors And Liftgate .......... 22
▫ To Turn Off “Flash Lights With Lock” ....... 22
▫ Panic Alarm ......................... 23
▫ To Program Additional Transmitters ........ 23
▫ General Information ................... 25
▫ Transmitter Battery Service .............. 26
 Door Locks ........................... 27
▫ Manual Door Locks ................... 27
▫ Power Door Locks .................... 28
▫ Child Protection Door Lock System —
If Equipped ......................... 30
Power Windows ....................... 31
▫ Auto-Down Feature ................... 32
▫ Rear Window Switches ................. 33
▫ Wind Buffeting ....................... 33
 Liftgate ............................. 33
 Occupant Restraints ..................... 35
▫ Lap/Shoulder Belts .................... 36
▫ Lap/Shoulder Seat Belt Untwisting
Procedure ........................... 42
▫ Adjustable Upper Shoulder Seat Belt
Anchorage .......................... 43
▫ Seat Belt Pretensioners ................. 43
▫ Enhanced Seat Belt Use Reminder System
(BeltAlert) ......................... 44
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

▫Seat Belts And Pregnant Women .......... 45
▫ Driver And Front Passenger Supplemental
Restraint System (SRS) - Airbag ........... 45
▫ Child Restraints ...................... 62
▫ Transporting Pets ..................... 70
 Engine Break-In Recommendations .......... 70
Safety Tips ........................... 71
▫ Transporting Passengers ................ 71
▫ Exhaust Gas ......................... 71
▫ Safety Checks You Should Make Inside The
Vehicle ............................. 72
▫ Periodic Safety Checks You Should Make
Outside The Vehicle ................... 73
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11

A WORD ABOUT YOUR KEYS
The authorized dealer that sold you your new vehicle has
the key code numbers for your vehicle locks. These
numbers can be used to order duplicate keys from your
authorized dealer. Ask your authorized dealer for these
numbers and keep them in a safe place.
Ignition Key Removal
Automatic Transaxle
Place the shift lever in PARK and make sure that the shift
lever knob pushbutton has returned to the outward
position. Turn the ignition switch to the ACC position,
push the key and cylinder inward, rotate the key to the
LOCK position, and remove the key.

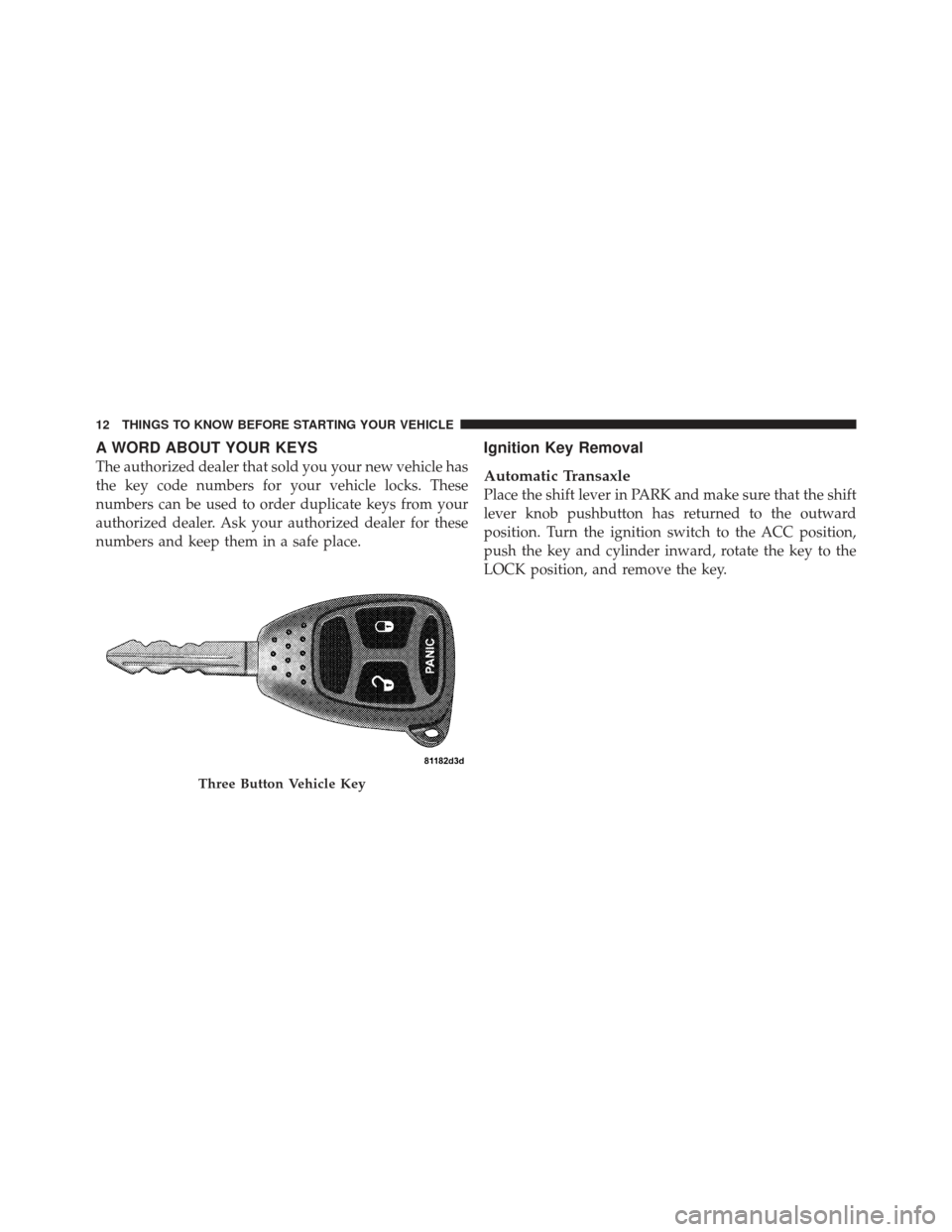

Three Button Vehicle Key
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:If you try to remove the key before you place the
shift lever in PARK, the key may become trapped tem-
porarily in the ignition cylinder. If this occurs, rotate the key to the right slightly, then remove the key as de-
scribed. If a malfunction occurs, the system will trap the
key in the ignition cylinder to warn you that this safety
feature is inoperable. The engine can be started and
stopped but the key cannot be removed until you obtain
service.
WARNING!
Never leave children alone in a vehicle. Leaving
unattended children in a vehicle is dangerous for a
number of reasons. A child or others could be seri-
ously or fatally injured. Don’t leave the key in the
ignition. A child could operate power windows,
other controls, or move the vehicle.
Ignition Switch Positions
1 — LOCK
3 — ON
2 — ACC (ACCESSORY) 4 — START
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13

CAUTION!
An unlocked vehicle is an invitation to thieves.
Always remove the key from the ignition and lock all
doors when leaving the vehicle unattended.
Manual Transaxle — If Equipped
Turn the ignition switch to the ACC position, push the
key and cylinder inward, rotate the key to the LOCK
position, and remove the key.
Locking Doors with a Key
You can insert the key with either side up. To lock the
door, turn the key rearward. To unlock the door, turn the
key forward. For door lock lubrication, refer to “Body
Lubrication” in the “Maintenance Procedures” section of
this manual.
Key-In-Ignition Reminder
Opening the driver’s door when the key is in the ignition,
sounds a signal to remind you to remove the key.
NOTE:With the driver’s door open, and the key in the
ignition, both the power door locks and Remote Keyless
Entry (RKE) will not function.
STEERING WHEEL LOCK — IF EQUIPPED
Your vehicle may be equipped with a passive steering
wheel lock. This lock prevents steering the vehicle with-
out the ignition key. If the steering wheel is moved
approximately a half turn in either direction and the key
is not in the ignition switch, the steering wheel will lock.
To Manually Lock the Steering Wheel
With the engine running, turn the steering wheel upside
down, turn off the engine and remove the key. Turn the
steering wheel slightly in either direction until the lock
engages.
