Remote Unlock All Doors is selected, all doors will
unlock at the first press of the RKE transmitter UNLOCK
button. Press and hold the EVIC button when in this
display until Driver’s Door 1st or All Doors appears, to
make your selection.
Sound Horn On Lock
When ON is selected, a short horn sound will occur when
the RKE transmitter LOCK button is pressed. This feature
may be selected with or without the Flash Lights On
Lock/Unlock feature. Press and hold the EVIC button
when in this display until ON or OFF appears, to make
your selection.
Flash Lights On Lock
When ON is selected, the front and rear turn signals will
flash when the doors are locked or unlocked using the
RKE transmitter. This feature may be selected with orwithout the Sound Horn On Lock feature activated. Press
and hold the EVIC button when in this display until ON
or OFF appears, to make your selection.
Delay Turning Headlights Off
When this feature is selected the driver can choose to
have the headlights remain on for 0, 30, 60, or 90 seconds
when exiting the vehicle. Press and hold the EVIC button
when in this display until 0, 30, 60, or 90 appears to make
your selection.
Delay Power Off to Accessories Until Exit
When this feature is selected, the power window
switches, radio, hands–free system, DVD video system,
power sunroof, and power outlets will remain active for
up to 60 minutes after the ignition switch has been turned
OFF. Opening a vehicle door will cancel this feature.
Press and hold the EVIC button when in this display until
OFF, 45 sec, 5 min, or 10 min appears, to make your
selection.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 183

Turn Headlights on with Remote Key Unlock
When this feature is selected, the headlights will activate
and remain on for up to 90 seconds when the doors are
unlocked using the RKE transmitter. Press and hold the
EVIC button when in this display until OFF, 30 sec,
60 sec, or 90 sec appears, to make your selection.
Confirmation of Voice Commands — If Equipped
When ON is selected, all voice commands from the
U-Connectsystem are confirmed. Press and hold the
EVIC button when in this display until ON or OFF
appears, to make your selection.
Display English or Metric
The EVIC, odometer, and navigation system units can be
changed between English and METRIC.
Press and hold the EVIC button when in this display until
US or METRIC appears, to make your selection.
Automatic Compass Calibration
The compass on your vehicle is self-calibrating, eliminat-
ing the need to manually calibrate the compass. When
the vehicle is new, the compass may appear erratic and
the CAL indicator message will flash in the EVIC until
the calibration is complete.
A good calibration requires a level surface and an envi-
ronment free from large metallic objects such as build-
ings, bridges, underground cables, railroad tracks, etc.
Calibrate the compass by driving slowly, under 5 mph
(8 km/h) in one or more complete circles in an area free
from large metallic objects, until the CAL indicator in the
EVIC turns off. The compass will now function normally.
NOTE:
•A good calibration requires a level surface and an
environment free from large metallic objects such as
buildings, bridges, underground cables, railroad
tracks, etc.
184 UNDERSTANDING YOUR INSTRUMENT PANEL

•Keep all magnetic objects, such as laptop computers,
iPod’s, cell phones and PDA’s (anything with a bat-
tery) away from the compass sensor which is located
in the top of the instrument panel. These devices can
interfere with compass accuracy and performance.
Manual Compass Calibration
If the compass appears to be inaccurate, you may wish to
manually calibrate the compass. Prior to calibrating the
compass, make sure the proper Compass Variance Value
is selected. (Refer to “Compass Variance” for additional
information). Then, continue to calibrate the compass as
follows:
1. Start the engine and leave the shift lever in the PARK
position.
2. Press and release the EVIC button several times until
the EVIC displays the Personal Settings (Customer-
Programmable Features) menu.3. Press and release the EVIC button several times until
“Calibrate Compass (Yes)” is displayed. A EVIC button
press (longer than two seconds) will place the compass in
calibration mode.
4. The CAL indicator will come on continuously in the
EVIC display, to indicate that the compass is now in the
calibration mode and that the vehicle can now be driven
to calibrate. Press the EVIC button from the
Calibrate
Compass (Yes) screen to exit the EVIC Customer-
Programmable features, and return it to its normal oper-
ating mode.)
5. Drive the vehicle slowly, under 5 mph (8 km/h),
completing one or more circles (in an area free from large
metal or metallic objects) until the “CAL” indicator turns
off. The compass will now function normally.
Compass Variance
Compass Variance is the difference between Magnetic
North and Geographic North. To compensate for the
4
UNDERSTANDING YOUR INSTRUMENT PANEL 185

differences, the variance should be set for the zone where
the vehicle is driven, per the zone map. Once properly
set, the compass will automatically compensate for the
differences and provide the most accurate compass head-
ing.To Set the Variance
Follow this procedure to set the Variance:
1. Turn the ignition switch to the ON position. Leave the
shift lever in PARK.
2. Press and release the EVIC button several times until
you have displayed the Personal Settings (Customer-
Programmable Features) menu.
3. Press and release the EVIC button until “Compass
Variance” and the current variance zone number displays
in the EVIC.
4. Press and release the EVIC button to increment the
variance zone by one, (one button press per update), until
the proper variance zone number is selected according to
the map.
NOTE:
Zone 8 is the factory default. During program-
ming, the Zone Number will wrap around from Zone 15
to 1.
Compass Variance Map
186 UNDERSTANDING YOUR INSTRUMENT PANEL

5. Press and release the EVIC button to exit.
SETTING THE ANALOG CLOCK
To set the analog clock at the top center of the instrument
panel, press and hold the button until the setting is
correct. The clock will adjust slowly at first, and then
more quickly the longer the button is held.
SALES CODE RAQ – AM/FM/CD (6-DISC) RADIO
WITH OPTIONAL uconnectstudios (SATELLITE
RADIO), uconnect phone, AND VIDEO
ENTERTAINMENT SYSTEMS (VES)™
CAPABILITIES
NOTE: The radio sales code is located on the lower right
side of your radio faceplate.
Setting The Analog ClockRAQ Radio
4
UNDERSTANDING YOUR INSTRUMENT PANEL 187

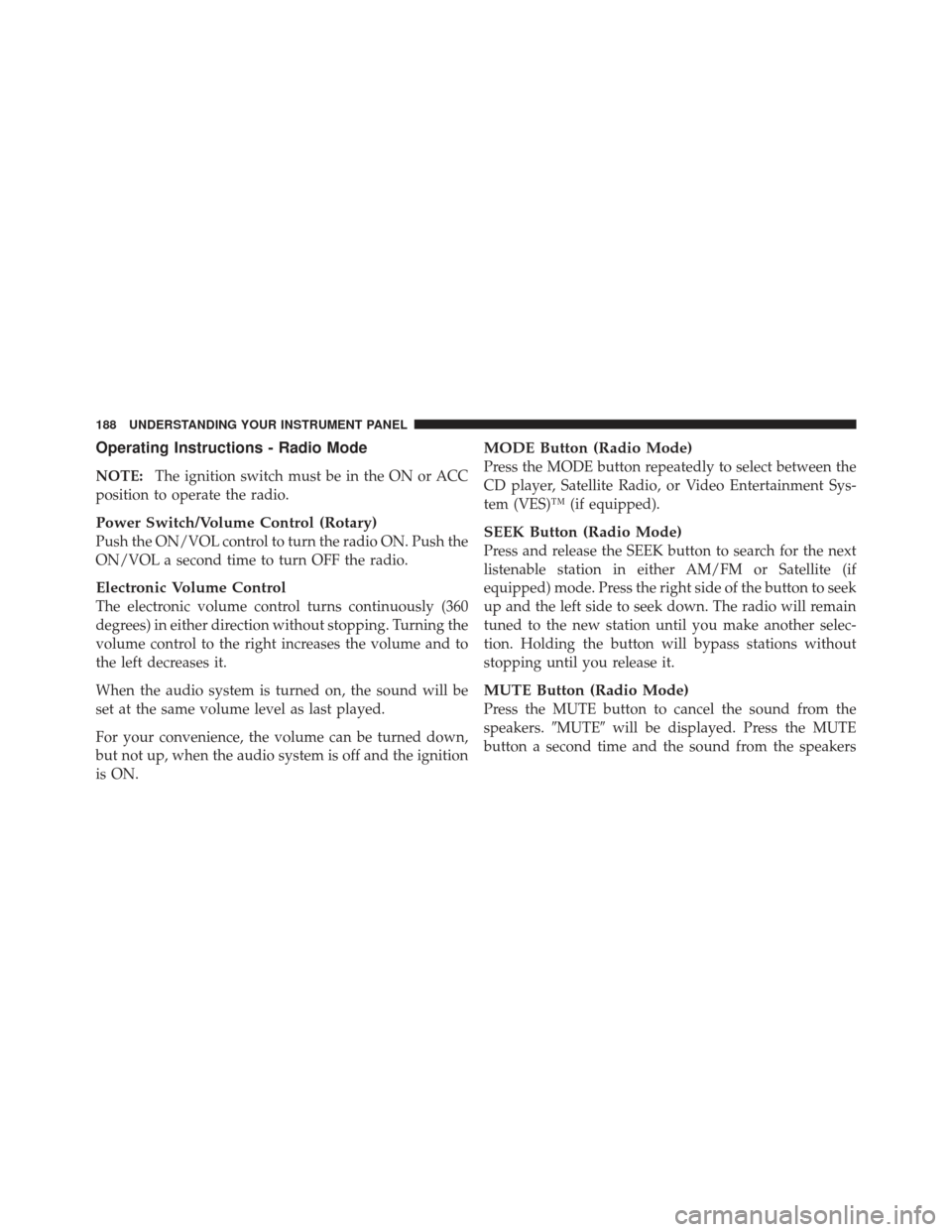

Operating Instructions - Radio Mode
NOTE:The ignition switch must be in the ON or ACC
position to operate the radio.
Power Switch/Volume Control (Rotary)
Push the ON/VOL control to turn the radio ON. Push the
ON/VOL a second time to turn OFF the radio.
Electronic Volume Control
The electronic volume control turns continuously (360
degrees) in either direction without stopping. Turning the
volume control to the right increases the volume and to
the left decreases it.
When the audio system is turned on, the sound will be
set at the same volume level as last played.
For your convenience, the volume can be turned down,
but not up, when the audio system is off and the ignition
is ON.
MODE Button (Radio Mode)
Press the MODE button repeatedly to select between the
CD player, Satellite Radio, or Video Entertainment Sys-
tem (VES)™ (if equipped).
SEEK Button (Radio Mode)
Press and release the SEEK button to search for the next
listenable station in either AM/FM or Satellite (if
equipped) mode. Press the right side of the button to seek
up and the left side to seek down. The radio will remain
tuned to the new station until you make another selec-
tion. Holding the button will bypass stations without
stopping until you release it.
MUTE Button (Radio Mode)
Press the MUTE button to cancel the sound from the
speakers. MUTEwill be displayed. Press the MUTE
button a second time and the sound from the speakers
188 UNDERSTANDING YOUR INSTRUMENT PANEL

will return. Rotating the volume control, turning the
radio ON/OFF, or turning OFF the ignition will also
return the sound from the speakers
NOTE:In Hands Free Phone (if equipped) mode, the
MUTE button mutes the microphone.
SCAN Button (Radio Mode)
Pressing the SCAN button causes the tuner to search for
the next listenable station, in either AM, FM or Satellite (if
equipped) frequencies, pausing for 5 seconds at each
listenable station before continuing to the next. To stop
the search, press SCAN a second time.
MSG or INFO Button (Radio Mode)
Press the MSG or INFO button for an RBDS station (one
with call letters displayed). The radio will return a radio
text message broadcast from an FM station (FM mode
only).
TIME Button
Press the TIME button and the time of day will be
displayed for 5 seconds.
Clock Setting Procedure
1. Press and hold the TIME button until the hours blink.
2. Adjust the hours by turning the right side Tune /
Audio control.
3. After the hours are adjusted, press the right side Tune
/ Audio control to set the minutes. The minutes will
begin to blink.
4. Adjust the minutes using the right side Tune / Audio
control.
5. To exit, press any button/knob or wait 5 seconds.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 189

RW/FF (Radio Mode)
Pressing the Rewind/Fast Forward button causes the
tuner to search for the next frequency in the direction of
the arrows. This feature operates in either AM, FM or
Satellite (if equipped) frequencies.
TUNE Control (Radio Mode)
Turn the right side rotary TUNE control clockwise to
increase or counter-clockwise to decrease the channel
number.
AM/FM Button (Radio Mode)
Press the button to select AM or FM modes.
Setting the Tone, Balance, and Fade
Press the rotary TUNE control and “BASS” will display.
Turn the TUNE control to the right or left to increase or
decrease the Bass tones.Press the rotary TUNE control a second time and “MID”
will display. Turn the TUNE control to the right or left to
increase or decrease the Mid Range tones.
Press the rotary TUNE control a third time and
“TREBLE” will display. Turn the TUNE control to the
right or left to increase or decrease the Treble tones.
Press the rotary TUNE control a fourth time and “BAL-
ANCE” will display. Turn the TUNE control to the right
or left to adjust the sound level from the right or left side
speakers.
Press the rotary TUNE control a fifth time and “FADE”
will display. Turn the TUNE control to the left or right to
adjust the sound level between the front and rear speak-
ers.
Press the rotary TUNE control again to exit setting tone,
balance and fade.
