Torque Specifications for Key Operational Bolts
Any part that has a tightening torque requirement for fastening piece connections should be fastened according
to specifications, the tightening torque of fastening pieces that have no tightening torque specification should
satisfy the QC/T 518—1999 regulations.
Tightening torque for key operational bolts are shown in the table below.
No.Important fastening piece locationsFastening piece name
and model numberQuantity
Tightening
torque
(N·m)
1Chassis
1.01Left mount & left side memberHexagon bolt for flange face1112±10
Left mount & left mounting bracketHexagon bolt for flange face264±5
1.02Left mounting bracket & transmissionHexagon bolt for flange face364±5
Right mount & engineHexagon nut for flange face141±4
1.03Right mount & engineHexagon bolt for flange face264±5
Right mount & vehicle bodyHexagon bolt for flange face 264±5
Grade Specification and Filled Quantity of Each Individual Functioning
Component's Working Agent
No.Functioning
component
QuantitySpecificationsGW413EFGW4G15
1Engine fuel45L
#93 and above high quality unleaded gasoline (GW413EF,
GW4G15 engine)
#-10 light diesel fuel (YC4W75-31 engine)
2Engine
lubricant3.25±0.25 L3.5L
GW413EF
SJ 15W-40/SJ 10W-30
(For China domestic model)
SL 5W-30 (For alpine region model)
GW4G15
SJ 20W-40/SJ 10W-30 (For domestic &
exported high-temperature region model)
SL 10W-30 (For alpine region model)
3Coolant5.5±0.5 L5.4±0.5 L
Ethylene-Glycol-35oC antifreeze fluid
(For China domestic model)
Ethylene-Glycol-45oC antifreeze fluid
(For alpine region model)
4Clutch fluid0.49±0.02 L0.72±0.02 LDOT4 synthetic brake fluid
5Transmission
lubricant1.9±0.1 L1.8L
GL-4 80W-90 (For China domestic model)
GL-4 75W-90 (For alpine region model)
GL-5 140 (For high-temperature region model)
6Power steering
fluid0.65±0.02 L0.75±0.02 LATF DEXRONⅢ Mobil fluid
7Brake fluid0.49±0.02 LDOT4 synthetic brake fluid
8Battery
terminal1.0 gIndustrial vaseline
9Windshield
washer fluid2.8±0.1 L
Room temperature: use clean water with a hardness less
than 205g/1000 kg.
Low temperature (-18oC±3oC): use methanol-water
solution concentration of 50%.
10Air conditioner
refrigerant510±10 gR134a

Downloaded from www.Manualslib.com manuals search engine 19Overall Parameters
No.Important fastening piece locationsFastening piece name
and model numberQuantity
Tightening
torque
(N·m)
1.04Right mount & vehicle bodyHexagon bolt for flange face164±5
Right mount & transmissionHexagon bolt for flange face 164±5
1.05Right mount & transmissionHexagon bolt for flange face 264±5
Rear mount & rear mounting bracketHexagon bolt for flange face 164±5
1.06Rear mount & subframeHexagon bolt for flange face
(M10 × 1.25 × 70)164±5
1.07Rear mount & subframeHexagon nut for flange face (M10 × 1.25)264±5
1.08Fuel tank & railHexagon head bolt and flat washer
subassembly435±3
1.09Fuel filler pipe & vehicle bodyHexagon head bolt, spring washer and flat
washer subassembly147±3
1.10Accelerator pedal & vehicle bodyHexagon nut for flange face39±2
1.11Fuel filter bracket & tankHexagon head bolt and flat washer
subassembly39±2
1.12Fuel pump install panel & tankHexagon head bolt and flat washer
subassembly84±1
1.13Fuel filler pipe assembly & vehicle
body
H e x a g o n h e a d b o l t a n d s p r i n g w a s h e r
subassembly19±2
1.14Air filter bracket & vehicle bodyH e x a g o n h e a d b o l t a n d s p r i n g w a s h e r
subassembly29±2
1.15Air filter & air filter bracketHexagon head bolt and flat washer
subassembly39±2
1.16Exhaust pipe rear protection supportHexagon bolt for flange face223±3
1.17Between the front muffler and catalytic
convertorHexagon bolt for flange face264±5
1.18
Connections between the front exhaust
pipe and catalytic convertor, front &
rear muffler flanges
Bolt (M10 × 1.25)464±5
1.19Connections between the front exhaust
pipe & engine exhaust manifoldAir intake and exhaust nut components264±5
1.20Front, central, and rear heat shieldHexagon head bolt, spring washer and flat
washer subassembly59±2
1.21Front heat shieldHexagon nut for flange face19±2
1.22Fan with overflow tank assemblyHexagon head bolt and flat washer
subassembly39±2
1.23Clutch pedal & clutch master cylinderNut (M8)221±5
1.24Clutch pedal & beamHexagon bolt for flange face123±3
1.25
Mounting bolts on the bracket connected
the rigid pipe of the clutch master cylinder
and hose
Hexagon head bolt and flat washer
subassembly19±2
1.26Connected the rigid pipe bracket of
clutch slave cylinders & boltsHexagon head bolt323±3
1.27Transmission control mechanism
assembly & floor
Hexagon head bolt and flat washer
subassembly420±2
1.28Transmission control cable assembly
bracket mounting bolt
Hexagon head bolt and flat washer
subassembly19±2
1.29Transmission control cable fixed plate
mounting bolt
Hexagon head bolt and flat washer
subassembly29±2
1.30Transmission control cable assembly
bracket & vehicle bodyHexagon nut for flange face19±2

Downloaded from www.Manualslib.com manuals search engine GWFLORID Maintenance Manual20

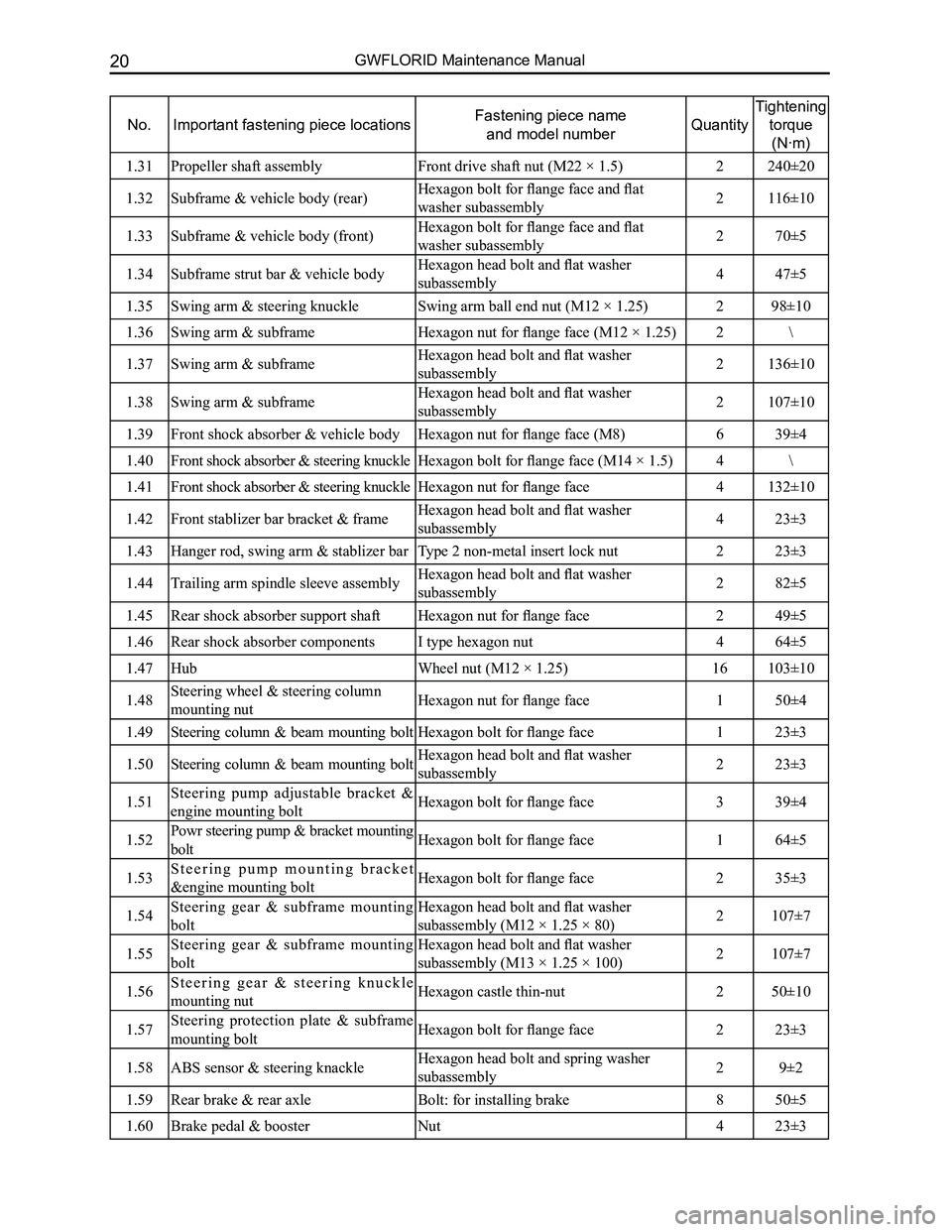

No.Important fastening piece locationsFastening piece name
and model numberQuantity
Tightening
torque
(N·m)
1.31Propeller shaft assemblyFront drive shaft nut (M22 × 1.5)2240±20
1.32Subframe & vehicle body (rear)Hexagon bolt for flange face and flat
washer subassembly2116±10
1.33Subframe & vehicle body (front)Hexagon bolt for flange face and flat
washer subassembly270±5
1.34Subframe strut bar & vehicle bodyHexagon head bolt and flat washer
subassembly447±5
1.35Swing arm & steering knuckleSwing arm ball end nut (M12 × 1.25)298±10
1.36Swing arm & subframeHexagon nut for flange face (M12 × 1.25)2\
1.37Swing arm & subframeHexagon head bolt and flat washer
subassembly2136±10
1.38Swing arm & subframeHexagon head bolt and flat washer
subassembly2107±10
1.39Front shock absorber & vehicle bodyHexagon nut for flange face (M8)639±4
1.40Front shock absorber & steering knuckleHexagon bolt for flange face (M14 × 1.5)4\
1.41Front shock absorber & steering knuckleHexagon nut for flange face4132±10
1.42Front stablizer bar bracket & frameHexagon head bolt and flat washer
subassembly423±3
1.43Hanger rod, swing arm & stablizer barType 2 non-metal insert lock nut223±3
1.44Trailing arm spindle sleeve assemblyHexagon head bolt and flat washer
subassembly282±5
1.45Rear shock absorber support shaftHexagon nut for flange face249±5
1.46Rear shock absorber componentsI type hexagon nut464±5
1.47Hub Wheel nut (M12 × 1.25)16103±10
1.48Steering wheel & steering column
mounting nutHexagon nut for flange face150±4
1.49Steering column & beam mounting boltHexagon bolt for flange face123±3
1.50Steering column & beam mounting boltHexagon head bolt and flat washer
subassembly223±3
1.51Steering pump adjustable bracket &
engine mounting boltHexagon bolt for flange face339±4
1.52Powr steering pump & bracket mounting
boltHexagon bolt for flange face164±5
1.53S t e e r i n g p u m p m o u n t i n g b r a c k e t
&engine mounting boltHexagon bolt for flange face235±3
1.54Steering gear & subframe mounting
bolt
Hexagon head bolt and flat washer
subassembly (M12 × 1.25 × 80)2107±7
1.55Steering gear & subframe mounting
bolt
Hexagon head bolt and flat washer
subassembly (M13 × 1.25 × 100)2107±7
1.56S t e e r i n g g e a r & s t e e r i n g k n u c k l e
mounting nutHexagon castle thin-nut250±10
1.57Steering protection plate & subframe
mounting boltHexagon bolt for flange face223±3
1.58ABS sensor & steering knackleHexagon head bolt and spring washer
subassembly29±2
1.59Rear brake & rear axleBolt: for installing brake850±5
1.60Brake pedal & boosterNut423±3

Downloaded from www.Manualslib.com manuals search engine 21Overall Parameters
No.Important fastening piece locationsFastening piece name
and model numberQuantity
Tightening
torque
(N·m)
1.61ABS sensor front wire harness & front
shock absorber
Hexagon head bolt and flat washer
subassembly223±3
1.62ABS & vehicle body Hexagon head bolt and flat washer
subassembly323±2
1.63Parking brake cable & vehicle bodyH e x a g o n h e a d b o l t a n d s p r i n g w a s h e r
subassembly69±2
1.64Parking brake cable & rear brakeH e x a g o n h e a d b o l t a n d s p r i n g w a s h e r
subassembly29±2
1.65ABS sensor rear wire harness, vehicle
body & rear brake
H e x a g o n h e a d b o l t a n d s p r i n g w a s h e r
subassembly69±2
1.66Parking brake fixed cable braket &
vehicle body
H e x a g o n h e a d b o l t a n d s p r i n g w a s h e r
subassembly19±2
1.67ABS sensor front wire harness & vehicle
body
Hexagon head bolt, spring washer and flat
washer subassembly29±2
1.68Parking brake control mechanismHexagon head bolt, spring washer and flat
washer subassembly223±3
1.69Rear brake pipe connector & vehicle
bodyHexagon bolt for flange face19±2
1.70Seven-hole tube clamp & vehicle bodyHexagon bolt for flange face19±2
1.71Brake pedal & vehicle bodyHexagon bolt for flange face123±3
1.72Brake cable & rear axleHexagon nut for flange face29±2
1.73All of the brake line connectors M1016±2
1.74All of the brake line connectors M1216±2
2Vehicle body
2.1Connected seat belt Front seat belt upper mounting bolt (7/16.)242±5
2.2Connected seat belt Seat belt lower mounting bolt (7/16.)438±5
2.3Connected seat belt retractorFront seat belt retractor lower bolt (7/16.)238±5
2.4Connected seat belt retractorHexagon bolt for flange face29±3
2.5Connected seat belt Rear seat belt upper mounting bolt (7/16.)238±5
2.6Connected seat belt retractorRear seat belt retractor bolt (7/16.)238±5
2.7Connected seat belt Mounting bolts on the middle seat belt
(7/16.)138±5
2.8Connected front seat belt mortise lockFront seat belt mortise lock bolt (7/16.)260±5
2.9Connected rear seat belt lockRear seat belt lock bolt (7/16.)238±5
3Air conditioner
3.1Compressor bracket & engineHexagon bolt for flange face Q1841030FD
(M10 × 1.25)464±5
3.2Comperssor bracket & compressorHexagon bolt for flange face-oversize
Q1860890FD423±3
3.3Condensor fan mounting boltHexagon head bolt and flat washer
subassembly Q1400630 (Q402) F3219±2
3.4Condensor mounting boltHexagon bolt for flange face223±3
3.5Compressor suction hose & HVAC
refrigeration line portHexagon bolt for flange face Q1460640F3219±2
3.6Air conditioner hose, compressor, and
condenser coupling boltHexagon bolt for flange face Q1840625F3249±2
3.7Expansion valve & HVAC refrigeration line portHexagon bolt for flange face Q1840630F3229±2

Downloaded from www.Manualslib.com manuals search engine GWFLORID Maintenance Manual22
Imaginary
reference line
Front wheel center line
Vehicle center line
"Z" represents the imaginary
reference line [below reference
l i n e ( " O Z " l i n e o f t h e d e s i g n
diagram) 400 mm]
Vehicle Body's Basic Calibration Measurements
This section shows the basic parameters of the overall vehicle. Please refer to this section when servicing or
repairing.
• All figures used to express measurements are actual figures.
• Measuring points are taken from the center of the mounting holes.
• When using the gauge, adjust the two measuring needles until they reach an equal length, then check
the measuring needle and the gauge itself to ensure there are no gaps.
• When using measuring tape, make sure not to stretch, twist, or bend it. \
• The asterisk (*) symbol after a numerical measurement value indicates that the other side's
symmetrical position is of equal value.
• Coordinates of the measuring points refer to the distances measured between the point and "X", "Y",
and "Z" standard lines.
• The left & right symmetry points of a measuring point's coordinate represent a coordinate point on the
left side, and that the right and left side are symmetrical.

Downloaded from www.Manualslib.com manuals search engine 23Overall Parameters
Engine Compartment
MarkAxis (X, Y, Z)Diameter (mm)MarkAxis (X, Y, Z)Diameter (mm)
A(115.2, 0.4, 701.5)Ф10B(-461.2, -447.6, 627.7)Ф8
C(56.5, -520.3, 698.8)Ф11D(-143.9, -645.9, 690.9)Ф8
E(-506.2, -45.0, 679.1)Ф9F(-52.3, -681.0, 725.3)Ф10
G(-606.8, -464.3, 290.6)Ф8.5H(-548.7, -403.6, 359.8)Ф8
J(-188.4, 467.5, 387.9)Ф13K(-319.0, -425.0, 327.5)Ф14

Downloaded from www.Manualslib.com manuals search engine GWFLORID Maintenance Manual24
Chassis
LH
side
Front
Front
UpperLower
Unit: mm

Downloaded from www.Manualslib.com manuals search engine 25Overall Parameters
Chassis (Continued)
LH
side
Ф
Ф
Ф
Ф
Ф
Ф
Ф
Ф
Ф
Ф
FrontUnit: mm
AxisAxis
