Page 57 of 92
WARNING LAMPS
DI-57
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2006 November2007 350Z

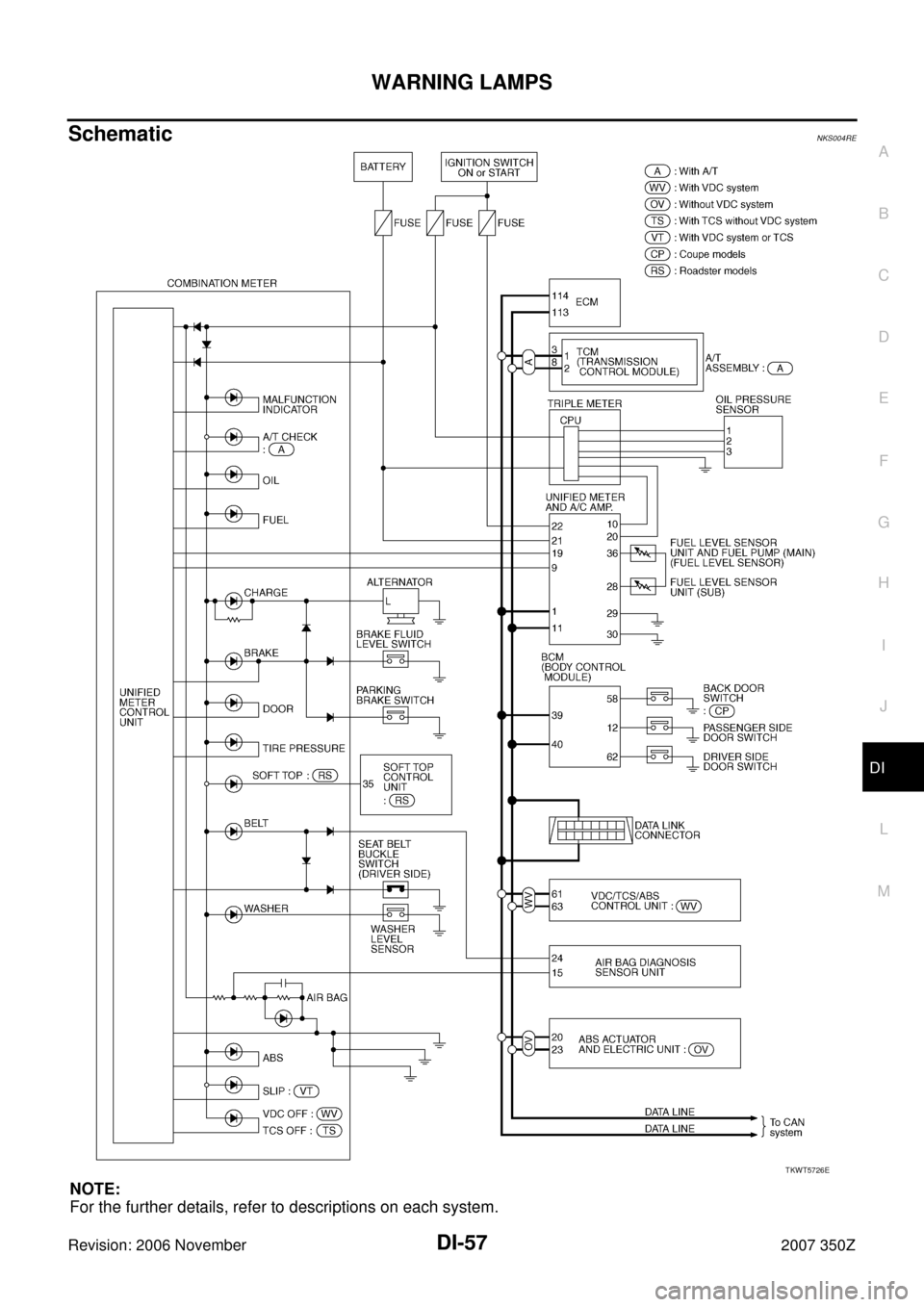

SchematicNKS004RE
NOTE:
For the further details, refer to descriptions on each system.
TKWT5726E
Page 58 of 92
DI-58
WARNING LAMPS
Revision: 2006 November2007 350Z
Wiring Diagram — WARN —NKS004RF
TKWT0485E
Page 59 of 92
WARNING LAMPS
DI-59
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2006 November2007 350Z

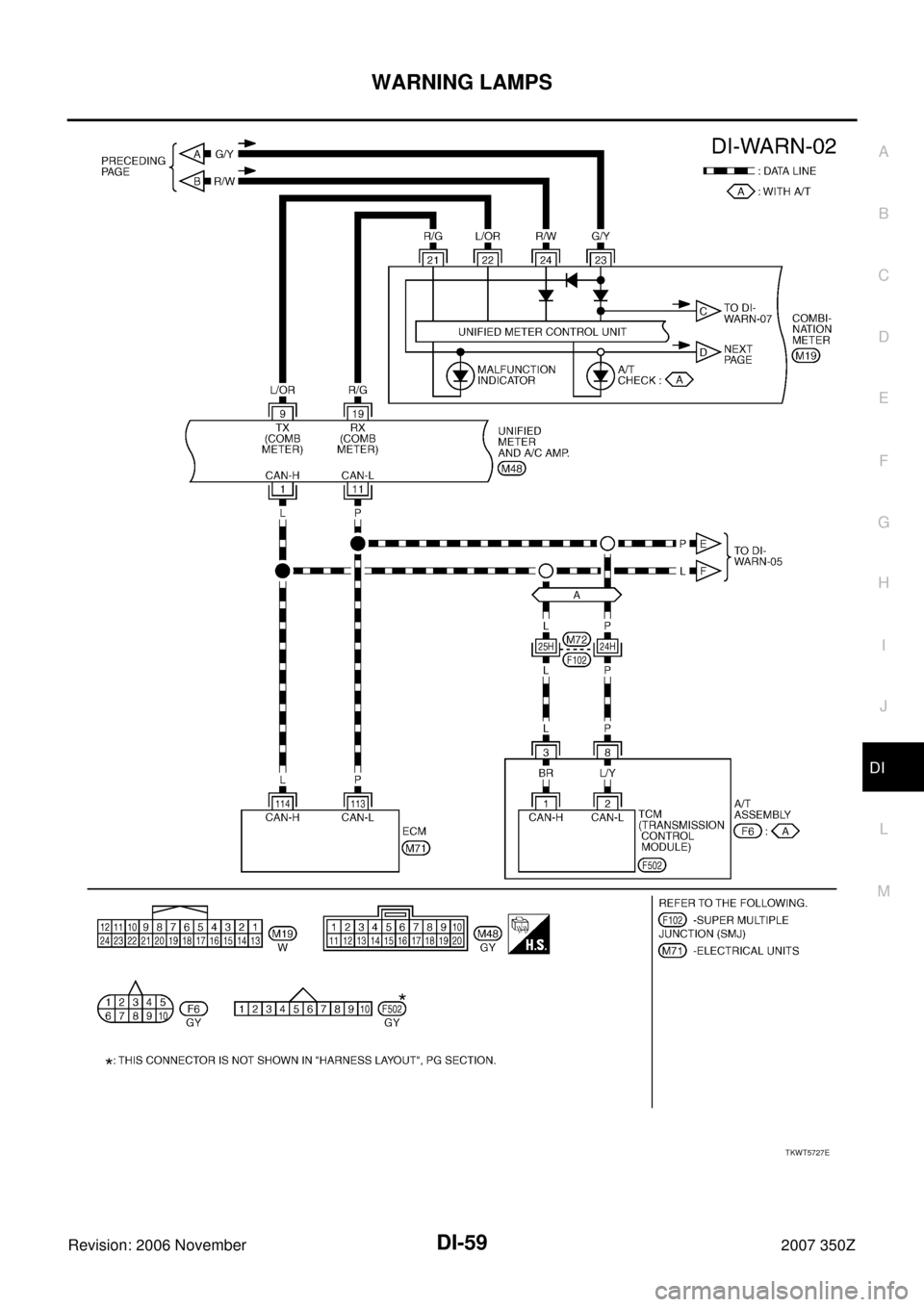

TKWT5727E
Page 60 of 92
DI-60
WARNING LAMPS
Revision: 2006 November2007 350Z

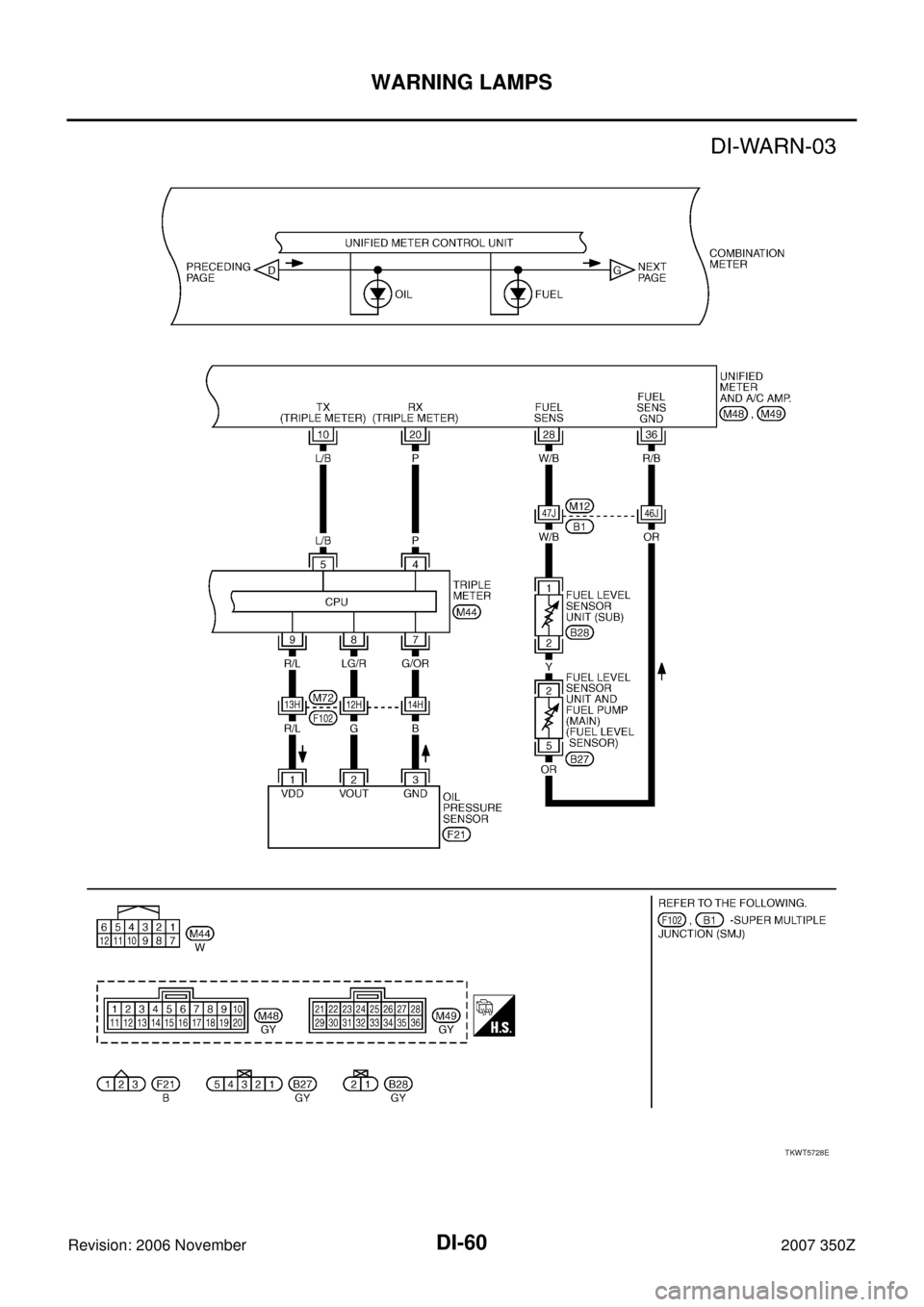

TKWT5728E
Page 61 of 92
WARNING LAMPS
DI-61
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2006 November2007 350Z

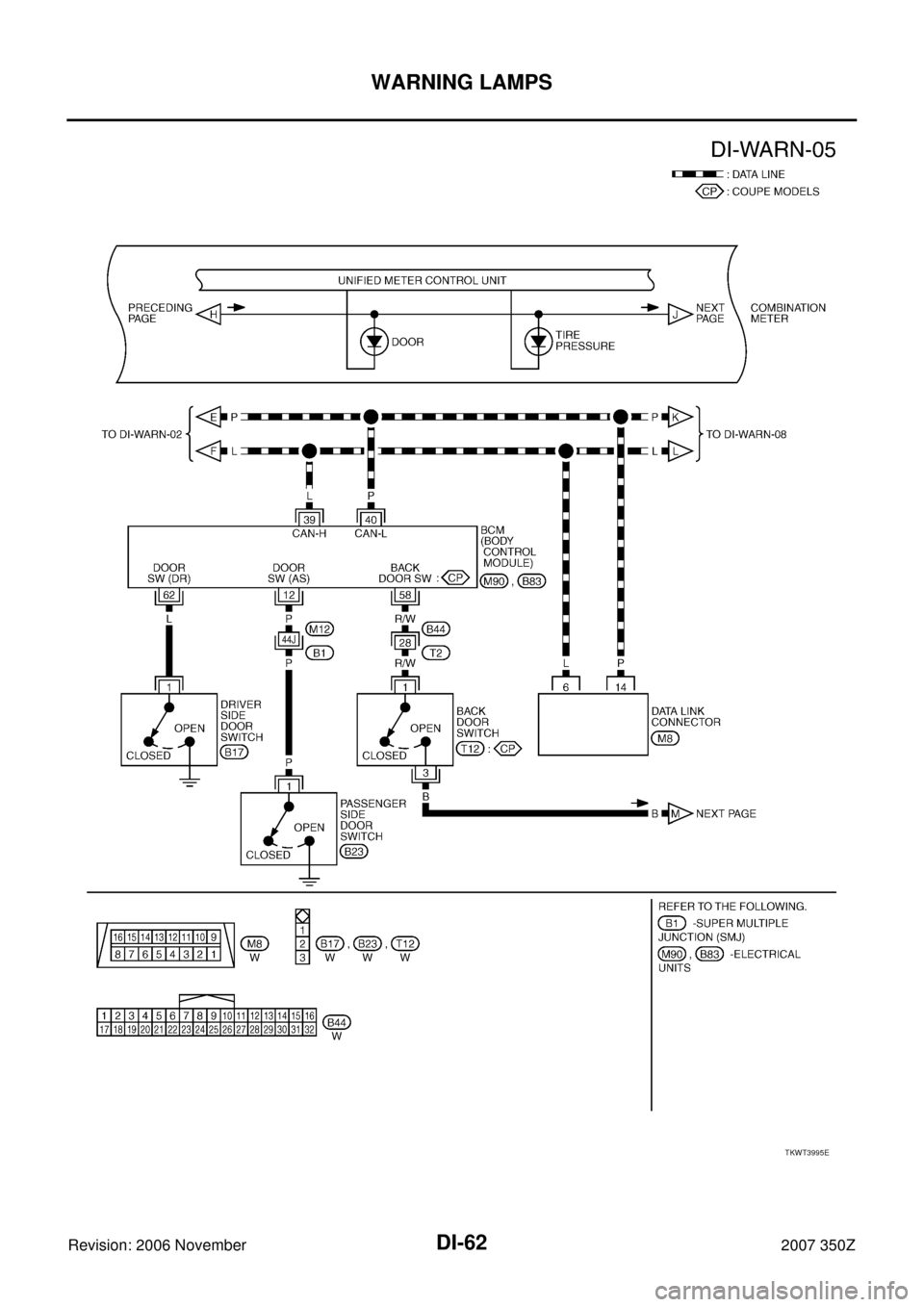

TKWT5729E
Page 62 of 92
DI-62
WARNING LAMPS
Revision: 2006 November2007 350Z

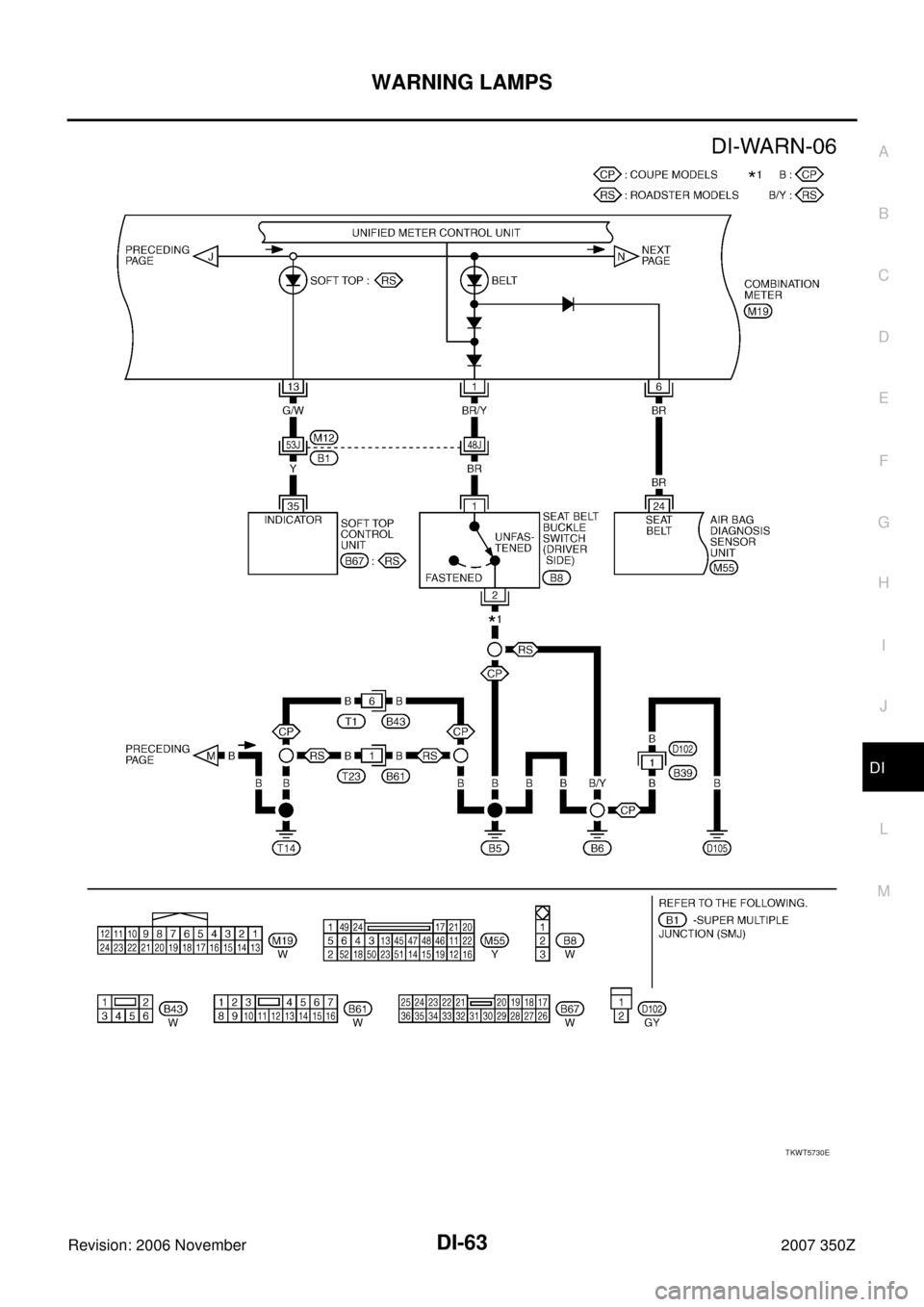

TKWT3995E
Page 63 of 92
WARNING LAMPS
DI-63
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2006 November2007 350Z

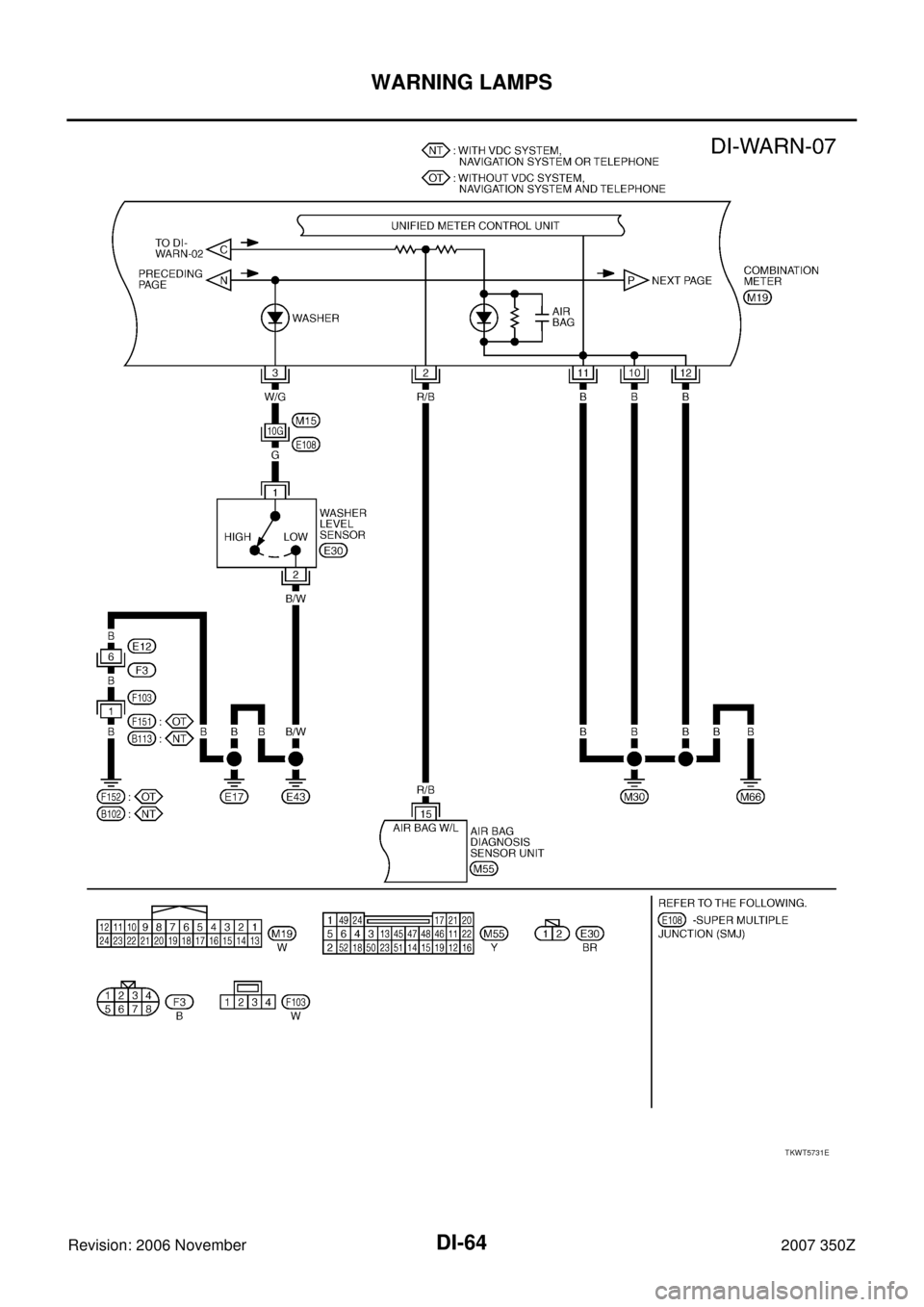

TKWT5730E
Page 64 of 92
DI-64
WARNING LAMPS
Revision: 2006 November2007 350Z
TKWT5731E
