Page 73 of 92
WARNING CHIME
DI-73
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2006 November2007 350Z

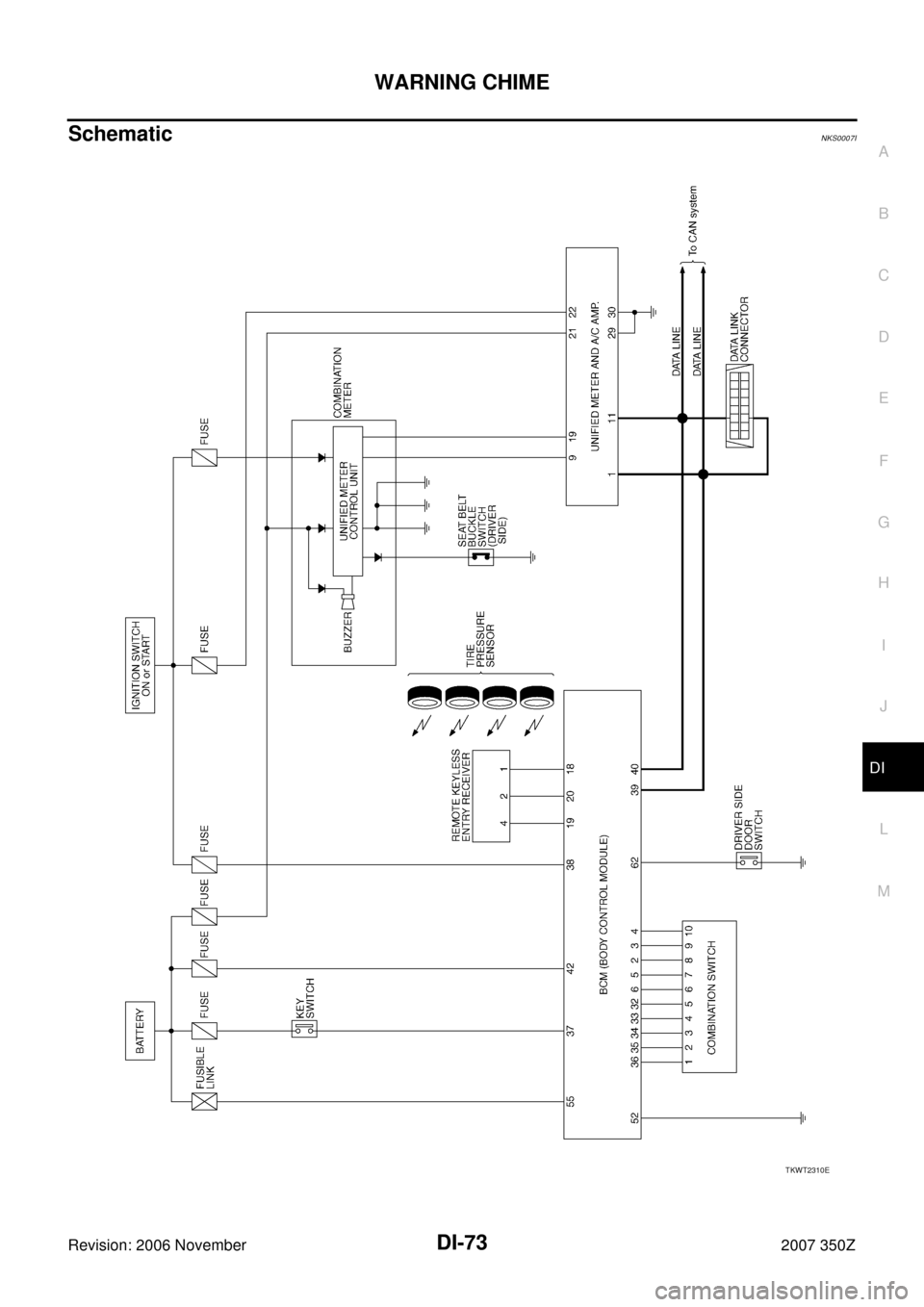

SchematicNKS0007I
TKWT2310E
Page 74 of 92
DI-74
WARNING CHIME
Revision: 2006 November2007 350Z

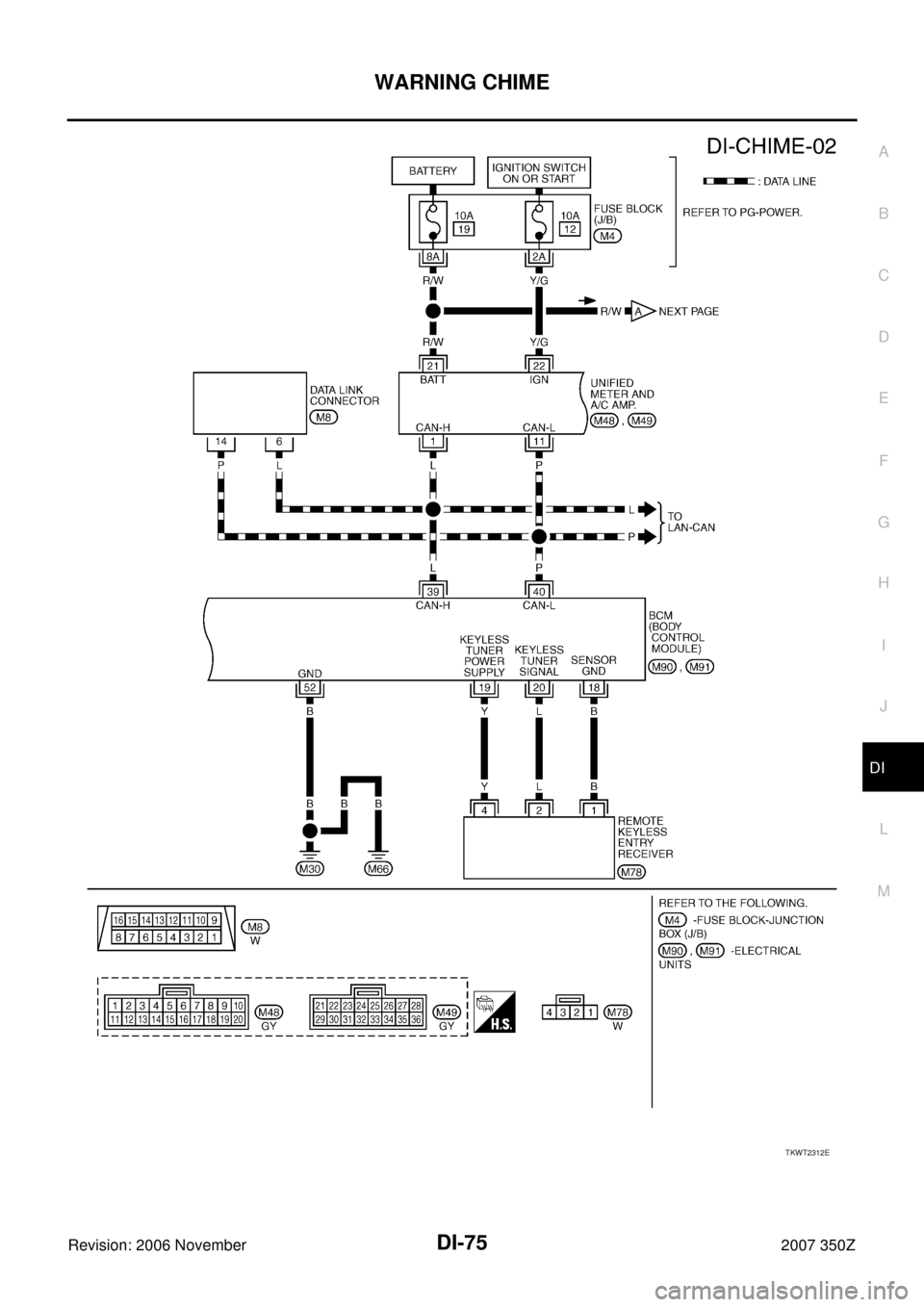

Wiring Diagram — CHIME —NKS004RG
TKWT5733E
Page 75 of 92
WARNING CHIME
DI-75
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2006 November2007 350Z
TKWT2312E
Page 76 of 92
DI-76
WARNING CHIME
Revision: 2006 November2007 350Z
TKWT5734E
Page 77 of 92
WARNING CHIME
DI-77
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2006 November2007 350Z
Terminals and Reference Value for BCMNKS0007K
CAUTION:
Check combination switch system terminal waveform under the loaded condition with lighting
switch, turn signal switch and wiper switch OFF not to be fluctuated by overloaded.
Turn wiper dial position to 4 except when checking waveform or voltage of wiper dial position.
Wiper dial position can be confirmed on CONSULT-III. Refer to LT- 9 1 , "
DATA MONITOR" .
Terminal
No.Wire
colorSignal nameMeasuring condition
Reference value
(Approx.) Igni-
tion
switchOperation or condition
2GYCombination
switch input 5ONLighting,
turn, wiper
switch
(Wiper
intermit-
tent dial
position 4)OFF 0 V
Any of the conditions below
Lighting switch 1ST
Lighting switch HIGH beam
(Operates only HIGH beam
switch)
Turn signal switch to right
1.0 V
Lighting switch 2ND
2.0 V
3L/WCombination
switch input 4ONLighting,
turn, wiper
switch
(Wiper
intermit-
tent dial
position 4)OFF 0 V
Any of the conditions below
Lighting switch 2ND
Lighting switch PASSING
(Operates only PASSING switch)
Turn signal switch to left
1.0 V
4PU/WCombination
switch input 3ONLighting,
turn, wiper
switch
(Wiper
intermit-
tent dial
position 4)OFF 0 V
Any of the conditions below
Front wiper switch MIST
Front wiper switch INT
Front wiper switch LO
1.0 V
PKIB4959J
PKIB4953J
PKIB4959J
PKIB4959J
Page 78 of 92
DI-78
WARNING CHIME
Revision: 2006 November2007 350Z
5Y/RCombination
switch input 2ONLighting,
turn, wiper
switchOFF
(Wiper intermittent dial position 4)0 V
Any of the conditions below
Front washer switch
Rear washer switch
Wiper intermittent dial position 1
Wiper intermittent dial position 5
Wiper intermittent dial position 6
1.0 V
Rear wiper switch ON
(Wiper intermittent dial position 4)
0.8 v
6Y/GCombination
switch input 1ONLighting,
turn, wiper
switchOFF
(Wiper intermittent dial position 4)0 V
Any of the conditions below
Front wiper switch HI
Rear wiper switch INT
Wiper intermittent dial position 3
1.0 V
Any of the conditions below
Wiper intermittent dial position 1
Wiper intermittent dial position 2
1.7 V
Any of the conditions below
Wiper intermittent dial position 6
Wiper intermittent dial position 7
0.8 V Te r m i n a l
No.Wire
colorSignal nameMeasuring condition
Reference value
(Approx.) Igni-
tion
switchOperation or condition
PKIB4959J
PKIB4955J
PKIB4959J
PKIB4952J
PKIB4955J
Page 79 of 92
WARNING CHIME
DI-79
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2006 November2007 350Z
18 BRemote key-
less entry
receiver
(Ground)
——Refer to WT-20, "
Control Unit
Input/Output Signal Standard" . 19 YRemote key-
less entry
receiver
(Power sup-
ply)
20 LRemote key-
less entry
receiver (Sig-
nal)
32 G/BCombination
switch output
5ONLighting,
turn, wiper
switchOFF
(Wiper intermittent dial position 4)
7.2 V
Any of the conditions below
Wiper intermittent dial position 1
Wiper intermittent dial position 2
Wiper intermittent dial position 6
Wiper intermittent dial position 7
1.0 V
33 GCombination
switch output
4ONLighting,
turn, wiper
switchOFF
(Wiper intermittent dial position 4)
7.2 V
Any of the conditions below
Lighting switch 1ST (The same
result with lighting switch 2ND)
Rear wiper switch INT
Wiper intermittent dial position 1
Wiper intermittent dial position 5
Wiper intermittent dial position 6
1.2 V Terminal
No.Wire
colorSignal nameMeasuring condition
Reference value
(Approx.) Igni-
tion
switchOperation or condition
PKIB4960J
PKIB4956J
PKIB4960J
PKIB4958J
Page 80 of 92
DI-80
WARNING CHIME
Revision: 2006 November2007 350Z
34 W/LCombination
switch output
3ONLighting,
turn, wiper
switchOFF
(Wiper intermittent dial position 4)
7.2 V
Any of the conditions below
Lighting switch 2ND
Lighting switch HI beam
(Operates only HI beam switch)
Rear washer switch
Wiper intermittent dial position 1
Wiper intermittent dial position 2
Wiper intermittent dial position 31.2 V
35 W/GCombination
switch output
2ONLighting,
turn, wiper
switch
(Wiper
intermit-
tent dial
position 4)OFF
7.2 V
Any of the conditions below
Lighting switch 2ND
Lighting switch PASSING
(Operates only PASSING switch)
Front wiper switch INT
Front wiper switch HI
1.2 V
36 W/RCombination
switch output
1ONLighting,
turn, wiper
switch
(Wiper
intermit-
tent dial
position 4)OFF
7.2 V
Any of the conditions below
Turn signal switch to right
Turn signal switch to left
Front wiper switch MIST
Front wiper switch LO
Front washer switch
1.2 V Te r m i n a l
No.Wire
colorSignal nameMeasuring condition
Reference value
(Approx.) Igni-
tion
switchOperation or condition
PKIB4960J
PKIB4958J
PKIB4960J
PKIB4958J
PKIB4960J
PKIB4958J
