TRIPLE METERS
DI-33
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2006 November2007 350Z

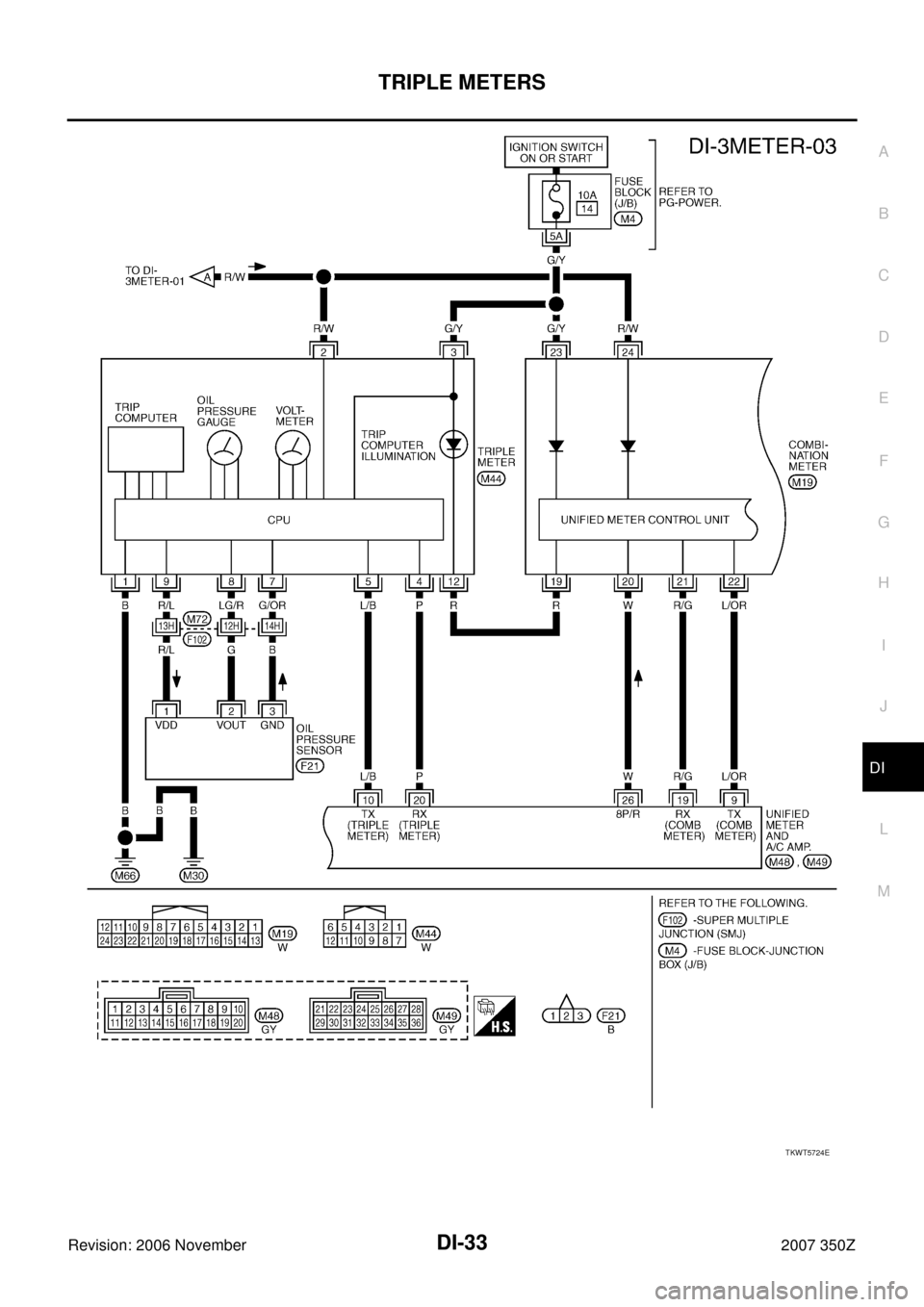

TKWT5724E

DI-34
TRIPLE METERS
Revision: 2006 November2007 350Z

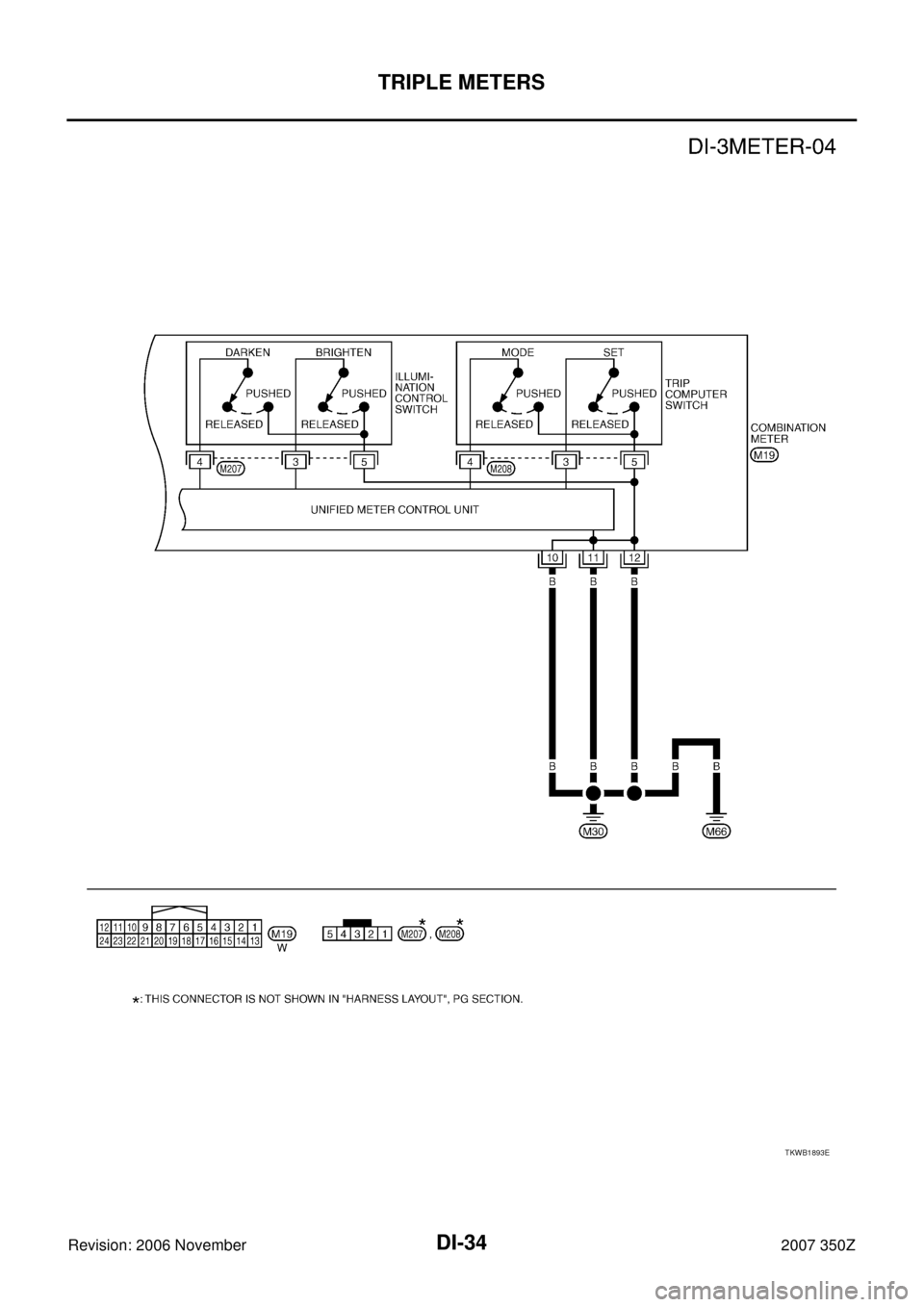

TKWB1893E

TRIPLE METERS
DI-35
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2006 November2007 350Z
Terminals and Reference Value for Triple MeterNKS0006I
Terminal
No.Wire
colorItemMeasuring condition
Reference value
(Approx.) Ignition
switchOperation or condition
1 B Ground ON — 0 V
2 R/W Battery power supply OFF — Battery voltage
3 G/Y Ignition power supply ON — Battery voltage
4PTX communication line
(To unified meter and A/C amp.)ON —
5L/BRX communication line
(From unified meter and A/C amp.)ON —
7 G/OR Oil pressure sensor ground ON — 0 V
8 LG/R Oil pressure sensor signal ONWhen ignition switch is in ON
position (Engine stopped.)1 V
Engine running [When the oil
pressure is 80 psi (500 kPa)]3 V
9 R/L Oil pressure sensor power supply ON — 5 V
12 R Illumination signal input ONLighting switch ON, then
operate the illumination con-
trol switch. When brightness level is
midway
Lighting switch OFF 0 V
SKIA3364E
SKIA3363E
SKIA7256E

DI-36
TRIPLE METERS
Revision: 2006 November2007 350Z
Terminals and Reference Value for Unified Meter and A/C Amp.NKS0006K
Te r m i n a l
No.Wire
colorItemMeasuring condition
Reference value
(Approx.) Ignition
switchOperation or condition
1 L CAN-H — — —
9L/ORTX communication line
(To combination meter)ON —
10 L/BTX communication line
(To triple meter)ON —
11 P C A N - L — — —
19 R/GRX communication line
(From combination meter)ON —
20 PRX communication line
(From triple meter)ON —
21 R/W Battery power supply OFF — Battery voltage
22 Y/G Ignition power supply ON — Battery voltage
26 WVehicle speed signal output
(8-pulse)ONSpeedometer operated.
[When vehicle speed is
approx. 40 km/h (25 MPH)]NOTE:
Maximum voltage may be 5 V due
to specifications (connected units).
28 W/B Fuel level sensor signal — —Refer to DI-23, "
FUEL LEVEL SEN-
SOR UNIT" .
29 B Ground (For power) ON — 0 V
30 B Ground ON — 0 V
36 R/B Fuel level sensor ground ON — 0 V
39 Y Ambient sensor signal — —Refer to AT C - 9 2 , "
Ambient Sensor
Circuit" .
SKIA3362E
SKIA3363E
SKIA3361E
SKIA3364E
PKIA1935E

TRIPLE METERS
DI-37
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2006 November2007 350Z
Terminals and Reference Value for Combination MeterNKS0006J
46 L/W ACC power supply ACC — Battery voltage
49 W/L Ambient sensor ground ON — Approx. 0 V Terminal
No.Wire
colorItemMeasuring condition
Reference value
(Approx.) Ignition
switchOperation or condition
Terminal
No.Wire
colorItemMeasuring condition
Reference value
(Approx.) Ignition
switchOperation or condition
10
B Ground ON — 0 V 11
12
19 R Illumination signal output ONLighting switch ON, then
operate the illumination con-
trol switch. When brightness level is
midway
Lighting switch OFF 0 V
20 WVehicle speed signal input
(8-pulse)ONSpeedometer operated.
[When vehicle speed is
approx. 40 km/h (25 MPH)]NOTE:
Maximum voltage may be 5 V
due to specifications (connected
units).
21 R/GTX communication line
(To unified meter and A/C amp.)ON —
22 L/ORRX communication line
(From unified meter and A/C amp.)ON —
23 G/Y Ignition power supply ON — Battery voltage
24 R/W Battery power supply OFF — Battery voltage
SKIA7256E
PKIA1935E
SKIA3361E
SKIA3362E

DI-38
TRIPLE METERS
Revision: 2006 November2007 350Z
Self-Diagnosis Mode of Triple MeterNKS0006L
SELF-DIAGNOSIS FUNCTION
Triple meter operation can be checked with self-diagnosis mode of combination meter.
OPERATION PROCEDURE
1. While pressing the odo/trip meter switch, turn ignition switch ON.
2. Make sure that the trip meter displays “0000.0”.
3. Press the odo/trip meter switch at least 3 times (within 7 seconds after the ignition switch is turned ON).
4. All the segments on the trip computer illuminate. At this time, the triple meter is turned to self-diagnosis
mode.
NOTE:
If any of the segments is not displayed, replace triple meter.
5. Press the odo/trip meter switch. voltmeter and oil pressure
gauge should indicate as shown in the figure while pressing odo/
trip meter switch.
NOTE:
If voltmeter or oil pressure gauge is not activated, replace triple
meter.
CONSULT-III Function (METER A/C AMP)NKS0006M
Refer to DI-47, "CONSULT-III Function (METER A/C AMP)" in “UNIFIED METER AND A/C AMP”.
SKIA8981E
PKIA1942E

TRIPLE METERS
DI-39
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2006 November2007 350Z
Trouble DiagnosisNKS0006N
HOW TO PERFORM TROUBLE DIAGNOSIS
1. Confirm the symptom or customer complaint.
2. Perform diagnosis according to diagnosis flow. Refer to DI-39, "
PRELIMINARY CHECK" .
3. According to the symptom chart, repair or replace the cause of the symptom.
4. Does the meter operate normally? If so, GO TO 5. If not, GO TO 2.
5. INSPECTION END
PRELIMINARY CHECK
1. CHECK COMMUNICATION LINE
Perform self-diagnosis of unified meter and A/C amp.
Self-diagnostic results content
No malfunction detected>>GO TO 2.
Malfunction detected>>Check applicable parts, and repair or replace corresponding parts.
2. CHECK OPERATION OF SELF-DIAGNOSIS MODE (COMBINATION METER)
Activate self-diagnosis mode of combination meter. Refer to DI-15, "
Self-Diagnosis Mode of Combination
Meter" .
Does self-diagnosis mode operate?
YES >> GO TO 3.
NO >> Check combination meter power supply and ground circuit. If normal, replace combination meter.
3. CHECK OPERATION OF SELF-DIAGNOSIS MODE (TRIPLE METER)
Check operation of triple meter in self-diagnosis mode. Refer to DI-38, "
Self-Diagnosis Mode of Triple Meter" .
Does self-diagnosis mode operation namely?
YES >> INSPECTION END
NO >> GO TO 4.
4. CHECK POWER SUPPLY AND GROUND CIRCUIT OF TRIPLE METER
Check power supply and ground circuit of triple meter.
OK or NG
OK >> Replace triple meter.
NG >> Repair power supply and ground circuit of triple meter.
Symptom ChartNKS0006O
Trouble phenomenon Possible cause
Speed indication is not displayed properly. Refer to DI-40, "
Vehicle Speed Signal Inspection" .
Ambient air temperature indication is not displayed properly.
(It may take a short time to steady the indication after ignition
switch is turned ON.)
NOTE:
If the meter is powered up with the ambient sensor disconnected,
ambient air temperature display will show “---” even if the sensor is
reconnected. In this case, with the sensor connected, disconnect
and reconnect the battery, then the correct temperature will be dis-
played.Refer to ATC-92, "
AMBIENT TEMPERATURE INPUT PRO-
CESS" in “ATC”.
DTE (distance to empty) indication is not displayed properly.
Refer to DI-40, "
Fuel Consumption Monitor Signal Inspection" .
Average fuel consumption indication is not displayed properly.
Shift-up indicator setting indication is not displayed properly or
shift-up indicator does not operate properly.Refer to DI-42, "
Trip Computer Switch Inspection" .

DI-40
TRIPLE METERS
Revision: 2006 November2007 350Z
Vehicle Speed Signal InspectionNKS0006R
Symptom: Speed indication is not displayed properly.
1. CHECK UNIFIED METER AND A/C AMP. INPUT SIGNAL
1. Start engine and select “METER A/C AMP” on CONSULT-III.
2. Using “SPEED METER” on the “DATA MONITOR”, compare the value of data monitor with speed indica-
tion of trip computer.
OK or NG
OK >> Refer to DI-18, "Vehicle Speed Signal Inspection" of “COMBINATION METERS”.
NG >> Replace triple meter.
Fuel Consumption Monitor Signal InspectionNKS0006S
Symptom:

DTE (distance to empty) indication is not displayed properly.

Average fuel consumption indication is not displayed properly.
1. CHECK ECM (CONSULT-III)
Perform self-diagnosis of ECM. Refer to EC-116, "
CONSULT-III Function (ENGINE)" .
Self
-diagnostic results
No malfunction detected>>Replace unified meter and A/C amp.
Malfunction detected>>Check applicable parts, and repair or replace corresponding parts.
Oil Pressure Sensor Signal InspectionNKS0006T
Symptom: Indication is malfunction of oil pressure gauge.
1. CHECK OIL PRESSURE SENSOR SIGNAL INPUT
1. Turn ignition switch ON.
2. Check voltage between triple meter harness connector M44 ter-
minal 8 and ground.
OK or NG
OK >> Replace triple meter.
NG >> GO TO 2.
Average vehicle speed indication is not indicated properly.
Replace triple meter. Trip distance indication is not indicated properly.
Trip time indication is not indicated properly.
Stopwatch indication is not displayed properly.
Indication is malfunction of voltmeter.
Indication is malfunction of oil pressure gauge. Refer to DI-40, "
Oil Pressure Sensor Signal Inspection" .
Trip computer switch is not operate. Refer to DI-42, "
Trip Computer Switch Inspection" . Trouble phenomenon Possible cause
8 – Ground
When ignition switch is in ON
position (Engine stopped.): Approx. 1 V
Engine running [When the oil
pressure is 80 psi (500 kPa)]: Approx. 3 V
SKIB1167E
