DRIVER INFORMATION SYSTEM
PRECAUTIONS .......................................................... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 3
Precautions for Battery Service ................................ 3
COMBINATION METERS ........................................... 4
System Description .................................................. 4
UNIFIED METER CONTROL UNIT ...................... 4
UNIFIED METER AND A/C AMP. ......................... 4
POWER SUPPLY AND GROUND CIRCUIT ........ 4
SPEEDOMETER ................................................... 4
TACHOMETER ..................................................... 5
WATER TEMPERATURE GAUGE ........................ 5
FUEL GAUGE ....................................................... 5
ODO/TRIP METER ............................................... 5
ILLUMINATION CONTROL ................................... 6
SHIFT-UP INDICATOR ......................................... 7
FAIL-SAFE ............................................................ 7
Component Parts and Harness Connector Location ..... 8
Arrangement of Combination Meter ......................... 9
Schematic .............................................................. 10
Wiring Diagram — METER — ................................. 11
Terminals and Reference Value for Combination
Meter ...................................................................... 13
Terminals and Reference Value for Unified Meter
and A/C Amp. ......................................................... 14
Self-Diagnosis Mode of Combination Meter ........... 15
SELF-DIAGNOSIS FUNCTION .......................... 15
OPERATION PROCEDURE ............................... 15
CONSULT-III Function (METER A/C AMP) ............ 15
Trouble Diagnosis .................................................. 16
HOW TO PERFORM TROUBLE DIAGNOSIS ... 16
PRELIMINARY CHECK ...................................... 16
Symptom Chart ...................................................... 16
Power Supply and Ground Circuit Inspection ........ 17
Vehicle Speed Signal Inspection ............................ 18
Engine Speed Signal Inspection ............................ 19
Engine Coolant Temperature Signal Inspection ..... 19
Fuel Level Sensor Signal Inspection ...................... 19
Illumination Control Switch Inspection ................... 21Fuel Gauge Pointer Fluctuates, Indicator Wrong
Value or Varies ....................................................... 22
Fuel Gauge Does Not Move to FULL Position ....... 22
Electrical Components Inspection .......................... 23
FUEL LEVEL SENSOR UNIT ............................. 23
Removal and Installation for Combination Meter .... 24
REMOVAL ........................................................... 24
INSTALLATION ................................................... 24
Disassembly and Assembly for Combination Meter ... 24
DISASSEMBLY ................................................... 24
ASSEMBLY ......................................................... 25
TRIPLE METERS ...................................................... 26
System Description ................................................. 26
TRIPLE METER .................................................. 26
UNIFIED METER AND A/C AMP. ........................ 26
POWER SUPPLY AND GROUND CIRCUIT ....... 26
VOLTMETER ....................................................... 26
OIL PRESSURE GAUGE .................................... 26
TRIP COMPUTER ............................................... 27
FAIL-SAFE .......................................................... 29
Schematic ............................................................... 30
Wiring Diagram — 3METER — .............................. 31
Terminals and Reference Value for Triple Meter .... 35
Terminals and Reference Value for Unified Meter
and A/C Amp. ......................................................... 36
Terminals and Reference Value for Combination
Meter ...................................................................... 37
Self-Diagnosis Mode of Triple Meter ...................... 38
SELF-DIAGNOSIS FUNCTION ........................... 38
OPERATION PROCEDURE ................................ 38
CONSULT-III Function (METER A/C AMP) ............ 38
Trouble Diagnosis ................................................... 39
HOW TO PERFORM TROUBLE DIAGNOSIS .... 39
PRELIMINARY CHECK ....................................... 39
Symptom Chart ....................................................... 39
Vehicle Speed Signal Inspection ............................ 40
Fuel Consumption Monitor Signal Inspection ......... 40
Oil Pressure Sensor Signal Inspection ................... 40
Trip Computer Switch Inspection ............................ 42
Removal and Installation of Triple Meters .............. 42

COMBINATION METERS
DI-5
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2006 November2007 350Z

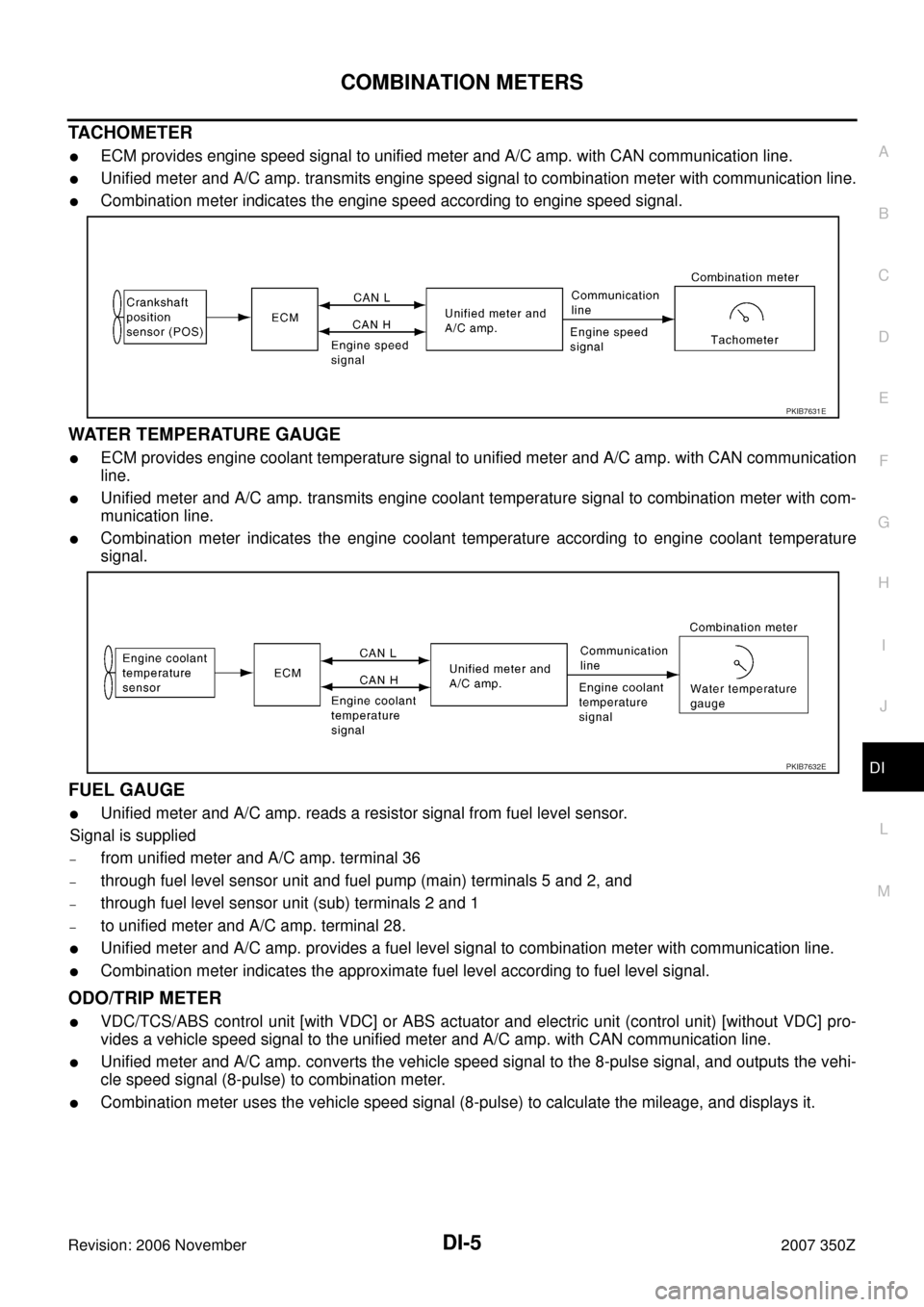

TACHOMETER

ECM provides engine speed signal to unified meter and A/C amp. with CAN communication line.

Unified meter and A/C amp. transmits engine speed signal to combination meter with communication line.

Combination meter indicates the engine speed according to engine speed signal.
WATER TEMPERATURE GAUGE

ECM provides engine coolant temperature signal to unified meter and A/C amp. with CAN communication
line.

Unified meter and A/C amp. transmits engine coolant temperature signal to combination meter with com-
munication line.

Combination meter indicates the engine coolant temperature according to engine coolant temperature
signal.
FUEL GAUGE

Unified meter and A/C amp. reads a resistor signal from fuel level sensor.
Signal is supplied
–from unified meter and A/C amp. terminal 36
–through fuel level sensor unit and fuel pump (main) terminals 5 and 2, and
–through fuel level sensor unit (sub) terminals 2 and 1
–to unified meter and A/C amp. terminal 28.

Unified meter and A/C amp. provides a fuel level signal to combination meter with communication line.

Combination meter indicates the approximate fuel level according to fuel level signal.
ODO/TRIP METER

VDC/TCS/ABS control unit [with VDC] or ABS actuator and electric unit (control unit) [without VDC] pro-
vides a vehicle speed signal to the unified meter and A/C amp. with CAN communication line.

Unified meter and A/C amp. converts the vehicle speed signal to the 8-pulse signal, and outputs the vehi-
cle speed signal (8-pulse) to combination meter.

Combination meter uses the vehicle speed signal (8-pulse) to calculate the mileage, and displays it.
PKIB7631E
PKIB7632E

DI-14
COMBINATION METERS
Revision: 2006 November2007 350Z
Terminals and Reference Value for Unified Meter and A/C Amp.NKS0005Y
Terminal
No.Wire
colorItemMeasuring condition
Reference value
(Approx.) Ignition
switchOperation or condition
1 L CAN-H — — —
9L/ORTX communication line
(To combination meter)ON —
11 P C A N - L — — —
19 R/GRX communication line
(From combination meter)ON —
21 R/W Battery power supply OFF — Battery voltage
22 Y/G Ignition power supply ON — Battery voltage
26 WVehicle speed signal output
(8-pulse)ONSpeedometer operated.
[When vehicle speed is
approx. 40 km/h (25 MPH)]NOTE:
Maximum voltage may be 5 V due
to specifications (connected units).
28 W/B Fuel level sensor signal — —Refer to DI-23, "
FUEL LEVEL
SENSOR UNIT" .
29 B Ground (For power) ON — 0 V
30 B Ground ON — 0 V
36 R/B Fuel level sensor ground ON — 0 V
46 L/W ACC power supply ACC — Battery voltage
SKIA3362E
SKIA3361E
PKIA1935E

DI-16
COMBINATION METERS
Revision: 2006 November2007 350Z
Trouble DiagnosisNKS00061
HOW TO PERFORM TROUBLE DIAGNOSIS
1. Confirm the symptom or customer complaint.
2. Perform preliminary check. Refer to DI-16, "
PRELIMINARY CHECK" .
3. According to the symptom chart, make sure of the symptom cause and repair or replace applicable parts.
4. Does the meter operate normally? If so, GO TO 5. If not, GO TO 2.
5. INSPECTION END
PRELIMINARY CHECK
1. CHECK OPERATION OF SELF-DIAGNOSIS MODE (COMBINATION METER)
Perform self-diagnosis mode of combination meter. Refer to DI-15, "
SELF-DIAGNOSIS FUNCTION" .
Does self-diagnosis mode operation normally?
YES >> GO TO 2.
NO >> GO TO 3.
2. CHECK UNIFIED METER AND A/C AMP. (CONSULT-III)
Perform self-diagnosis of unified meter and A/C amp. Refer to DI-47, "
CONSULT-III Function (METER A/C
AMP)" .
Self-diagnostic results
No malfunction detected >> INSPECTION END
Malfunction detected >> Check applicable parts, and repair or replace corresponding parts.
3. CHECK POWER SUPPLY AND GROUND CIRCUIT OF COMBINATION METER
Check power supply and ground circuit of combination meter. Refer to DI-17, "
Power Supply and Ground Cir-
cuit Inspection" .
OK or NG
OK >> Replace combination meter.
NG >> Repair power supply and ground circuit of combination meter.
Symptom ChartNKS00062
Symptom Possible cause
Speedometer and odo/trip meter indication is malfunction. Refer to DI-18, "
Vehicle Speed Signal Inspection" .
Tachometer indication is malfunction. Refer to DI-19, "
Engine Speed Signal Inspection" .
Water temperature gauge indication is malfunction. Refer to DI-19, "
Engine Coolant Temperature Signal Inspection" .
Fuel gauge indication is malfunction.
Refer to DI-19, "
Fuel Level Sensor Signal Inspection" .
Low-fuel warning lamp indication is irregular.
A/T position indicator is malfunction. Refer to DI-70, "
A/T Indicator Is Malfunction" .
Illumination control does not operate. Refer to DI-21, "
Illumination Control Switch Inspection" .

COMBINATION METERS
DI-19
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2006 November2007 350Z
Engine Speed Signal InspectionNKS00066
Symptom: Tachometer indication is malfunction.
1. CHECK UNIFIED METER AND A/C AMP. OUTPUT SIGNAL
1. Start engine and select “METER A/C AMP” on CONSULT-III.
2. Using “TACHO METER” on “DATA MONITOR”, compare the value of “DATA MONITOR” with tachometer
pointer of combination meter.
OK or NG
OK >> GO TO 2.
NG >> Replace combination meter.
2. CHECK UNIFIED METER AND A/C AMP. INPUT SIGNAL
1. Select “ENGINE” on CONSULT-III.
2. Using “ENG SPEED” on “DATA MONITOR”, check the CONSULT-III screen when the engine is idling.
3. Select “METER A/C AMP” on CONSULT-III.
4. Using “TACHO METER” on “DATA MONITOR”, compare the value of “DATA MONITOR” of the idling
speed with that of the “ENG SPEED”.
OK or NG
OK >> Perform ECM self-diagnosis. Refer to EC-116, "CONSULT-III Function (ENGINE)" .
NG >> Replace unified meter and A/C amp.
Engine Coolant Temperature Signal InspectionNKS00067
Symptom: Water temperature gauge indication is malfunction.
1. CHECK UNIFIED METER AND A/C AMP. OUTPUT SIGNAL
1. Start engine and select “METER A/C AMP” on CONSULT-III.
2. Using “W TEMP METER” on the “DATA MONITOR”, compare the value of “DATA MONITOR” with water
temperature gauge pointer of combination meter.
OK or NG
OK >> GO TO 2.
NG >> Replace combination meter.
2. CHECK UNIFIED METER AND A/C AMP. INPUT SIGNAL
1. Select “ENGINE” on CONSULT-III.
2. Using “COOLAN TEMP/S” on “DATA MONITOR”, check the CONSULT-III screen.
3. Select “METER A/C AMP” on CONSULT-III.
4. Using “W TEMP METER” on, compare the value of “DATA MONITOR” with that of the “COOLAN TEMP/
S”.
OK or NG
OK >> Perform ECM self-diagnosis. Refer to EC-116, "CONSULT-III Function (ENGINE)" .
NG >> Replace unified meter and A/C amp.
Fuel Level Sensor Signal InspectionNKS00068
Symptom:

Fuel gauge indication is malfunction.

Low-fuel warning lamp indication is irregular.
Water temperature gauge pointer Reference value of data monitor [°C (°F)]
Hot Approx. 130 (266)
Middle Approx. 70 - 105 (158 - 221)
Cold Approx. 50 (122)

DI-20
COMBINATION METERS
Revision: 2006 November2007 350Z
NOTE:
The following symptoms are not malfunction.
Fuel level sensor unit

Depending on vehicle position or driving circumstance, the fuel level in the tank varies, and the pointer
may fluctuate.

If the vehicle is fueled with the ignition switch ON, the pointer will move slowly.
Low-fuel warning lamp

Depending on vehicle position or driving circumstance, the fuel in the tank flows and the warning lamp ON
timing may change.
1. CHECK UNIFIED METER AND A/C AMP. INPUT SIGNAL
1. Select “METER A/C AMP” on CONSULT-III.
2. Using “FUEL METER” on “DATA MONITOR”, compare the value of “DATA MONITOR” with fuel gauge
pointer of combination meter.
OK or NG
OK >> GO TO 2.
NG >> Replace combination meter.
2. CHECK FUEL LEVEL SENSOR
1. Turn ignition switch OFF.
2. Check components. Refer to DI-23, "
FUEL LEVEL SENSOR UNIT" .
OK or NG
OK >> GO TO 3.
NG >> Replace fuel level sensor unit.
3. CHECK FUEL LEVEL SENSOR (SUB) CIRCUIT
1. Disconnect unified meter and A/C amp. connector and fuel level sensor unit (sub) connector.
2. Check continuity between unified meter and A/C amp. harness
connector M49 terminal 28 and fuel level sensor unit (sub) har-
ness connector B28 terminal 1.
3. Check continuity between unified meter and A/C amp. harness
connector M49 terminal 28 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair harness or connector.
Fuel gauge indication Value on monitor [lit.]
Full Approx. 74
Three quarters Approx. 61
Half Approx. 42
A quarter Approx. 22
Empty Approx. 8
28 – 1 : Continuity should exist.
28 – Ground : Continuity should not exist.
SKIB1155E

COMBINATION METERS
DI-21
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2006 November2007 350Z

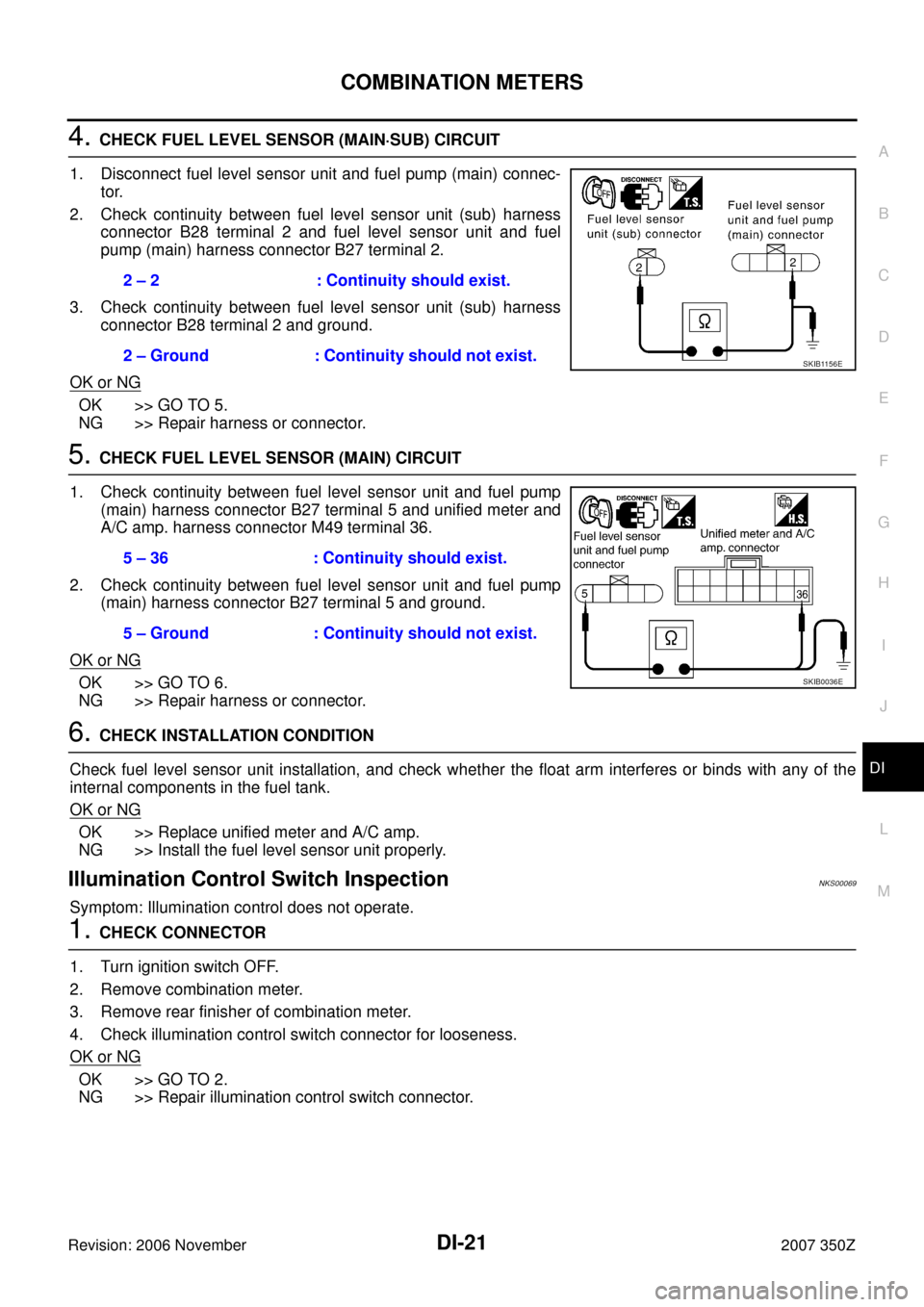

4. CHECK FUEL LEVEL SENSOR (MAIN·SUB) CIRCUIT
1. Disconnect fuel level sensor unit and fuel pump (main) connec-
tor.
2. Check continuity between fuel level sensor unit (sub) harness
connector B28 terminal 2 and fuel level sensor unit and fuel
pump (main) harness connector B27 terminal 2.
3. Check continuity between fuel level sensor unit (sub) harness
connector B28 terminal 2 and ground.
OK or NG
OK >> GO TO 5.
NG >> Repair harness or connector.
5. CHECK FUEL LEVEL SENSOR (MAIN) CIRCUIT
1. Check continuity between fuel level sensor unit and fuel pump
(main) harness connector B27 terminal 5 and unified meter and
A/C amp. harness connector M49 terminal 36.
2. Check continuity between fuel level sensor unit and fuel pump
(main) harness connector B27 terminal 5 and ground.
OK or NG
OK >> GO TO 6.
NG >> Repair harness or connector.
6. CHECK INSTALLATION CONDITION
Check fuel level sensor unit installation, and check whether the float arm interferes or binds with any of the
internal components in the fuel tank.
OK or NG
OK >> Replace unified meter and A/C amp.
NG >> Install the fuel level sensor unit properly.
Illumination Control Switch InspectionNKS00069
Symptom: Illumination control does not operate.
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Remove combination meter.
3. Remove rear finisher of combination meter.
4. Check illumination control switch connector for looseness.
OK or NG
OK >> GO TO 2.
NG >> Repair illumination control switch connector.2 – 2 : Continuity should exist.
2 – Ground : Continuity should not exist.
SKIB1156E
5 – 36 : Continuity should exist.
5 – Ground : Continuity should not exist.
SKIB0036E

DI-22
COMBINATION METERS
Revision: 2006 November2007 350Z
2. CHECK ILLUMINATION CONTROL SWITCH
1. Disconnect illumination control switch connector.
2. Check continuity between illumination control switch harness
connector M207 terminals 3 or 4 and 5.
OK or NG
OK >> Replace combination meter.
NG >> Replace illumination control switch.
Fuel Gauge Pointer Fluctuates, Indicator Wrong Value or VariesNKS0006A
1. CHECK FUEL GAUGE FLUCTUATION
Test drive vehicle to see if gauge fluctuates only during driving or at the instant of stopping.
Does the indication value vary only during driving or at the instant of stopping?
YES >> The pointer fluctuation may be caused by fuel level change in the fuel tank. Condition is normal.
NO >> Ask the customer about the situation when the symptom occurs in detail, and perform the trouble
diagnosis.
Fuel Gauge Does Not Move to FULL PositionNKS0006B
1. QUESTION 1
Does it take a long time for the pointer to move to FULL position?
YES >> GO TO 2.
NO >> GO TO 3.
2. QUESTION 2
Was the vehicle fueled with the ignition switch ON?
YES >> Be sure to fuel the vehicle with the ignition switch OFF. Otherwise, it will take a long time to move
to FULL position because of the characteristic of the fuel gauge.
NO >> GO TO 3.
3. QUESTION 3
Is the vehicle parked on an incline?
YES >> Check the fuel level indication with vehicle on a level surface.
NO >> GO TO 4.
4. QUESTION 4
During driving, does the fuel gauge pointer move gradually toward EMPTY position?
YES >> Check the fuel level sensor unit. Refer to DI-23, "FUEL LEVEL SENSOR UNIT" .
NO >> The float arm may interfere or bind with any of the components in the fuel tank.
Terminal Condition Continuity
3
5Illumination control switch upper
side (BRIGHTEN) is pressed.Ye s
Illumination control switch upper
side (BRIGHTEN) is released.No
4Illumination control switch lower side
(DARKEN) is pressed.Ye s
Illumination control switch lower side
(DARKEN) is released.No
SKIA3271E
