2007 MERCEDES-BENZ SL65AMG Owner's Manual

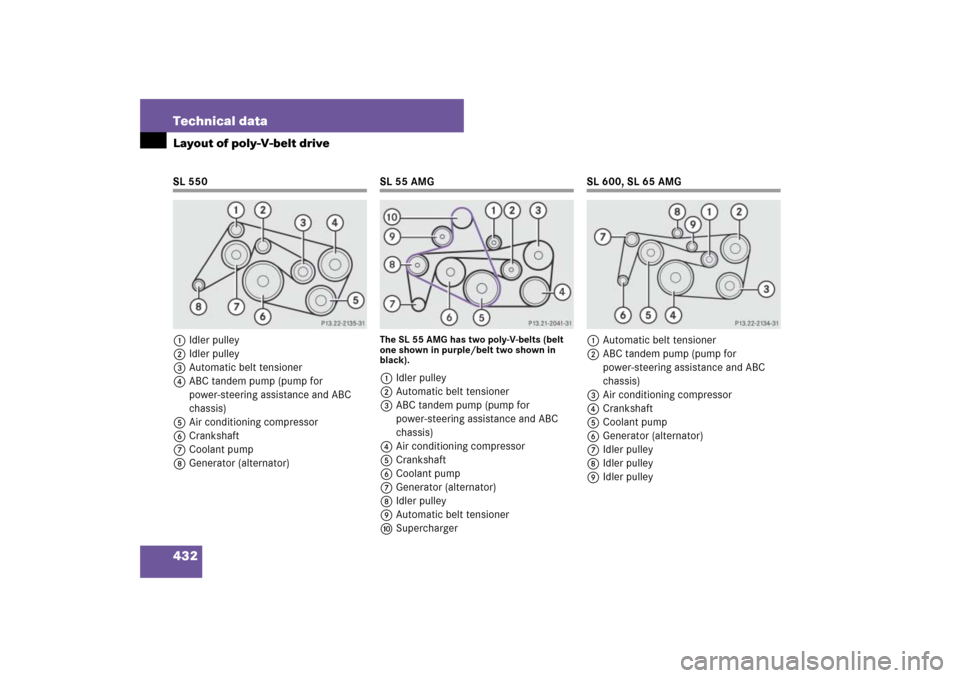

432 Technical dataLayout of poly-V-belt driveSL 550
1Idler pulley
2Idler pulley
3Automatic belt tensioner
4ABC tandem pump (pump for
power-steering assistance and ABC
chassis)
5Air conditioning compressor
6Crankshaft
7Coolant pump
8Generator (alternator)
SL 55 AMGThe SL 55 AMG has two poly-V-belts (belt
one shown in purple/belt two shown in
black).1Idler pulley
2Automatic belt tensioner
3ABC tandem pump (pump for
power-steering assistance and ABC
chassis)
4Air conditioning compressor
5Crankshaft
6Coolant pump
7Generator (alternator)
8Idler pulley
9Automatic belt tensioner
aSupercharger
SL 600, SL 65 AMG
1Automatic belt tensioner
2ABC tandem pump (pump for
power-steering assistance and ABC
chassis)
3Air conditioning compressor
4Crankshaft
5Coolant pump
6Generator (alternator)
7Idler pulley
8Idler pulley
9Idler pulley

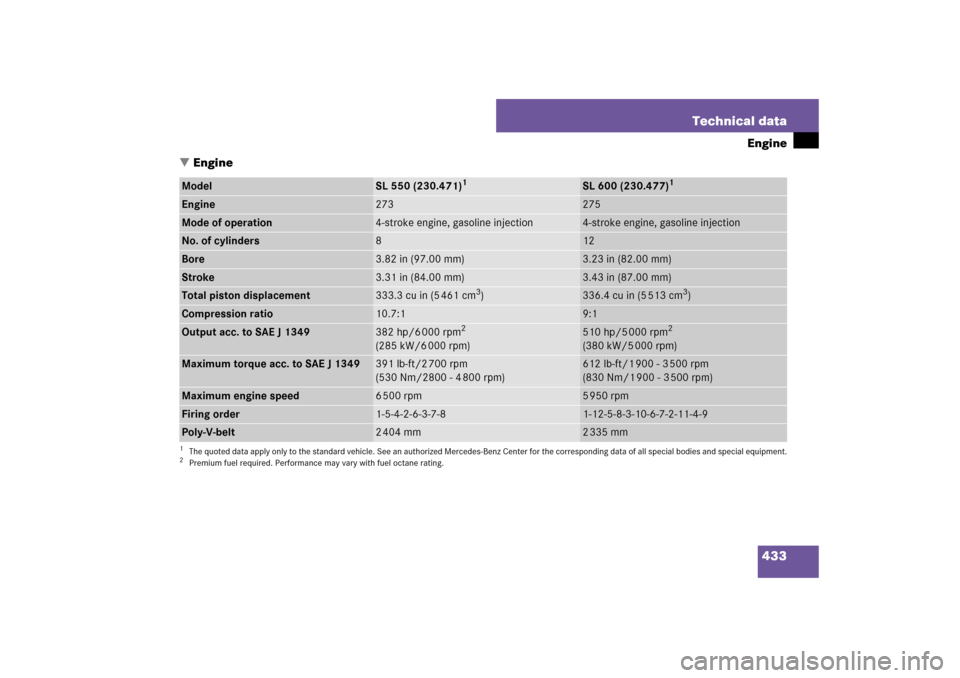

433 Technical data
Engine
Engine
Model
SL 550 (230.471)
1
1The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Center for the corresponding data of all special bodies and special equipment.
SL 600 (230.477)
1
Engine
273
275
Mode of operation
4-stroke engine, gasoline injection
4-stroke engine, gasoline injection
No. of cylinders
8
12
Bore
3.82 in (97.00 mm)
3.23 in (82.00 mm)
Stroke
3.31 in (84.00 mm)
3.43 in (87.00 mm)
Total piston displacement
333.3 cu in (5 461 cm
3)
336.4 cu in (5 513 cm
3)
Compression ratio
10.7:1
9:1
Output acc. to SAE J 1349
382 hp/6 000 rpm
2
(285 kW/6 000 rpm)
2Premium fuel required. Performance may vary with fuel octane rating.
510 hp/5 000 rpm
2
(380 kW/5 000 rpm)
Maximum torque acc. to SAE J 1349
391 lb-ft/2 700 rpm
(530 Nm/2800 - 4 800 rpm)
612 lb-ft/1 900 - 3 500 rpm
(830 Nm/1 900 - 3 500 rpm)
Maximum engine speed
6 500 rpm
5 950 rpm
Firing order
1-5-4-2-6-3-7-8
1-12-5-8-3-10-6-7-2-11-4-9
Poly-V-belt
2 404 mm
2 335 mm

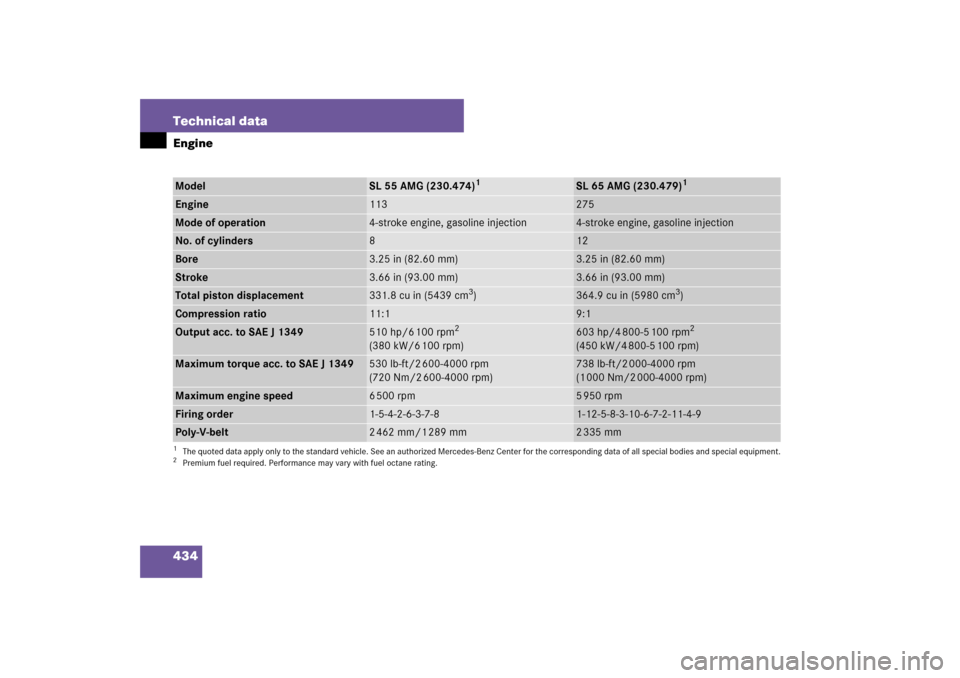

434 Technical dataEngineModel
SL 55 AMG (230.474)
1
1The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Center for the corresponding data of all special bodies and special equipment.
SL 65 AMG (230.479)
1
Engine
113
275
Mode of operation
4-stroke engine, gasoline injection
4-stroke engine, gasoline injection
No. of cylinders
8
12
Bore
3.25 in (82.60 mm)
3.25 in (82.60 mm)
Stroke
3.66 in (93.00 mm)
3.66 in (93.00 mm)
Total piston displacement
331.8 cu in (5439 cm
3)
364.9 cu in (5980 cm
3)
Compression ratio
11:1
9:1
Output acc. to SAE J 1349
510 hp/6 100 rpm
2
(380 kW/6 100 rpm)
2Premium fuel required. Performance may vary with fuel octane rating.
603 hp/4 800-5 100 rpm
2
(450 kW/4 800-5 100 rpm)
Maximum torque acc. to SAE J 1349
530 lb-ft/2 600-4000 rpm
(720 Nm/2 600-4000 rpm)
738 lb-ft/2 000-4000 rpm
(1 000 Nm/2 000-4000 rpm)
Maximum engine speed
6500 rpm
5950 rpm
Firing order
1-5-4-2-6-3-7-8
1-12-5-8-3-10-6-7-2-11-4-9
Poly-V-belt
2 462 mm/1 289 mm
2335 mm

435 Technical data
Rims and tires
Rims and tires
!
Only use tires which have been tested and
approved by Mercedes-Benz. Tires approved by
Mercedes-Benz are developed to provide best
possible performance in conjunction with the
driving safety systems on your vehicle such as
ABS or ESP
®. Tires specially developed for your
vehicle and tested and approved by
Mercedes-Benz can be identified by finding the
following on the tire’s sidewall:


MO = M
ercedes-Benz O
riginal equipment
tires
AMG vehicles:
Does not apply to all approved tires on AMG
vehicles. For information on tested and ap-
proved tires for AMG vehicles, contact an au-
thorized Mercedes-Benz Center.


MOE = M
ercedes-Benz O
riginal E
xtended
(tires with limited run-flat characteristics)
original equipment tires
Using tires other than those approved by
Mercedes-Benz may result in damage that is not
covered by the Mercedes-Benz Limited
Warranty.
i
For information on driving with MOExtended
tires, see “MOExtended system”(
page 301).
!
Using tires other than those approved by
Mercedes-Benz can have detrimental effects,
such as


poor handling characteristics


increased noise


increased fuel consumption
Moreover, tires and rims not approved by
Mercedes-Benz may, under load, exhibit dimen-
sional variations and different tire deformation
characteristics that could cause them to come
into contact with the vehicle body or axle parts.
Damage to the tires or the vehicle may be the re-
sult.
i
Further information on tires and rims is
available at any authorized Mercedes-Benz
Center. A placard with the recommended tire in-
flation pressures is located on the driver’s door
B-pillar. Some vehicles may have supplemental
tire inflation pressure information for driving at
high speeds (
page 292) or for vehicle loads
less than the maximum loaded vehicle condition
(
page 292). If such information is provided, it
can be found on the placard located on the in-
side of the fuel filler flap.The tire inflation pressure should be checked
regularly and should only be adjusted on cold
tires. Follow tire manufacturer’s maintenance
recommendation included with vehicle.
i
The following pages also list the approved
wheel rim and tire sizes for equipping your vehi-
cles with winter tires. Winter tires are not avail-
able as standard or optional factory equipment,
but can be purchased from an authorized
Mercedes-Benz Center.
Depending on vehicle model and the standard or
optional factory-equipped wheel rim/tire config-
uration on your vehicle (Performance Package,
Sport Package etc.), equipping your vehicle with
winter tires approved for your vehicle model may
also require the purchase of two or four wheel
rims of the recommended size for use with these
winter tires. See an authorized Mercedes-Benz
Center for more information.

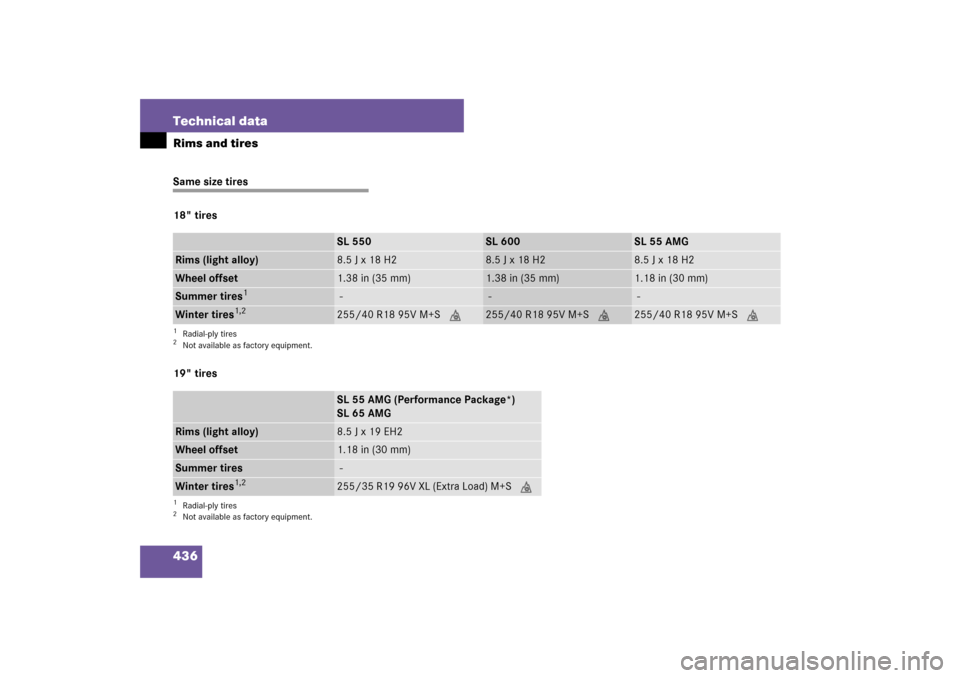

436 Technical dataRims and tiresSame size tires
18" tires
19" tires
SL 550
SL 600
SL 55 AMG
Rims (light alloy)
8.5 J x 18 H2
8.5 J x 18 H2
8.5 J x 18 H2
Wheel offset
1.38 in (35 mm)
1.38 in (35 mm)
1.18 in (30 mm)
Summer tires
1
1Radial-ply tires
-
-
-
Winter tires
1,2
2Not available as factory equipment.
255/40 R18 95V M+S .
255/40 R18 95V M+S .
255/40 R18 95V M+S .
SL 55 AMG (Performance Package*)
SL 65 AMG
Rims (light alloy)
8.5 J x 19 EH2
Wheel offset
1.18 in (30 mm)
Summer tires
-
Winter tires
1,2
1Radial-ply tires2Not available as factory equipment.
255/35 R19 96V XL (Extra Load) M+S .

437 Technical data
Rims and tires
Mixed size tires
SL 550
SL 600
Front axle:
Rims (light alloy)
8.5 J x 18 H2
8.5 J x 18 H2
Wheel offset
1.38 in (35 mm)
1.38 in (35 mm)
Summer tires
1
1Radial-ply tires
255/40 R18 95W
255/40 R18 95Y
Rear axle:
Rims (light alloy)
9.5 J x 18 H2
9.5 J x 18 H2
Wheel offset
1.57 in (40 mm)
1.57 in (40 mm)
Summer tires
1,2
2Must not be used with snow chains.
285/35 R18 97W
285/35 R18 97Y

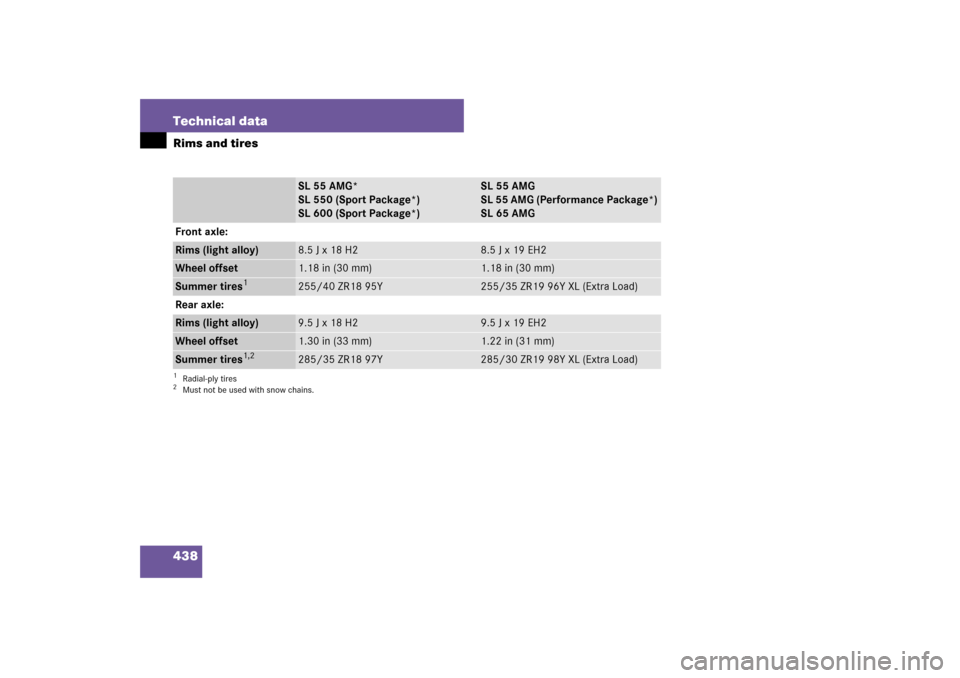

438 Technical dataRims and tires
SL 55 AMG*
SL 550 (Sport Package*)
SL 600 (Sport Package*)
SL 55 AMG
SL 55 AMG (Performance Package*)
SL 65 AMG
Front axle:
Rims (light alloy)
8.5 J x 18 H2
8.5 J x 19 EH2
Wheel offset
1.18 in (30 mm)
1.18 in (30 mm)
Summer tires
1
1Radial-ply tires
255/40 ZR18 95Y
255/35 ZR19 96Y XL (Extra Load)
Rear axle:
Rims (light alloy)
9.5 J x 18 H2
9.5 J x 19 EH2
Wheel offset
1.30 in (33 mm)
1.22 in (31 mm)
Summer tires
1,2
2Must not be used with snow chains.
285/35 ZR18 97Y
285/30 ZR19 98Y XL (Extra Load)

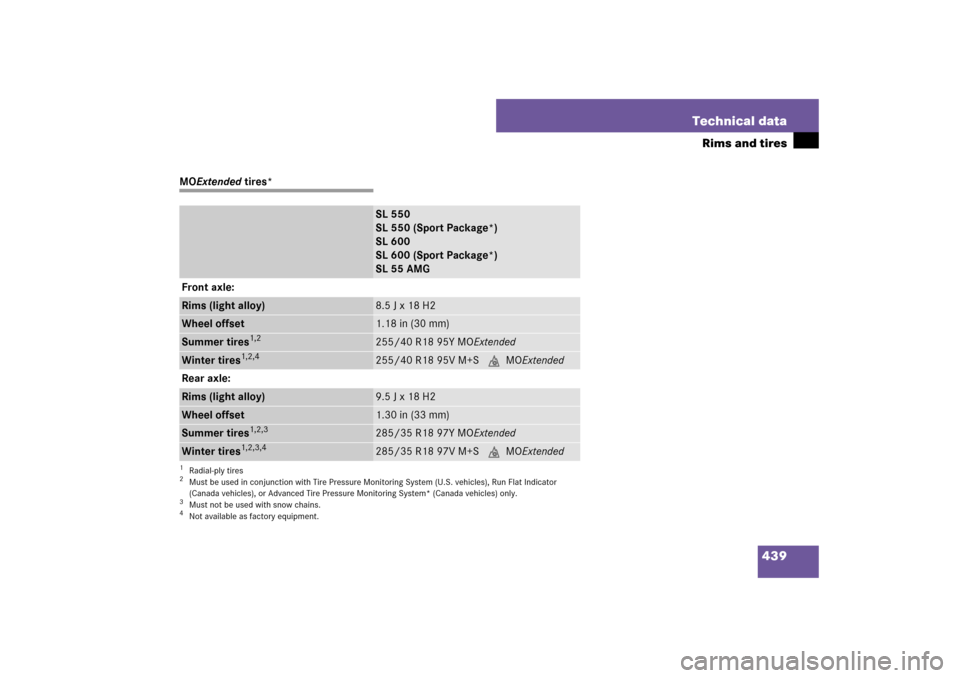

439 Technical data
Rims and tires
MOExtended tires*
SL 550
SL 550 (Sport Package*)
SL 600
SL 600 (Sport Package*)
SL 55 AMG
Front axle:
Rims (light alloy)
8.5 J x 18 H2
Wheel offset
1.18 in (30 mm)
Summer tires
1,2
1Radial-ply tires2Must be used in conjunction with Tire Pressure Monitoring System (U.S. vehicles), Run Flat Indicator
(Canada vehicles), or Advanced Tire Pressure Monitoring System* (Canada vehicles) only.
255/40 R18 95Y MOExtended
Winter tires
1,2,4
255/40 R18 95V M+S .MOExtended
Rear axle:
Rims (light alloy)
9.5 J x 18 H2
Wheel offset
1.30 in (33 mm)
Summer tires
1,2,3
3Must not be used with snow chains.
285/35 R18 97Y MOExtended
Winter tires
1,2,3,4
4Not available as factory equipment.
285/35 R18 97V M+S .MOExtended
