2007 MERCEDES-BENZ SL65AMG Owner's Manual

184 Controls in detailAutomatic climate control

185 Controls in detail

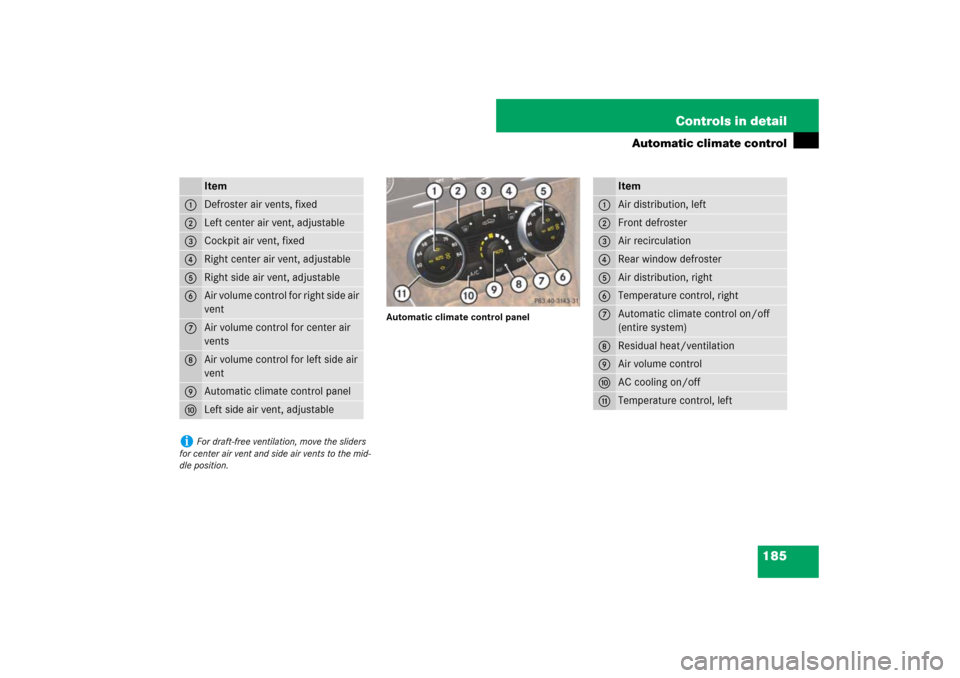

Automatic climate control
Automatic climate control panel

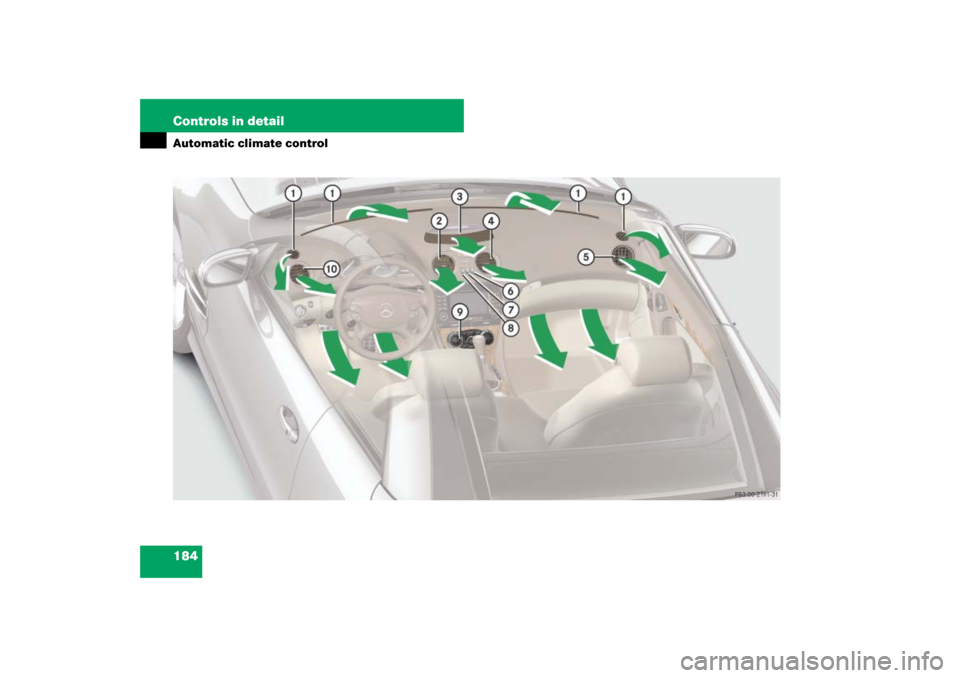

Item
1
Defroster air vents, fixed
2
Left center air vent, adjustable
3
Cockpit air vent, fixed
4
Right center air vent, adjustable
5
Right side air vent, adjustable
6
Air volume control for right side air
vent
7
Air volume control for center air
vents
8
Air volume control for left side air
vent
9
Automatic climate control panel
a
Left side air vent, adjustable
i
For draft-free ventilation, move the sliders
for center air vent and side air vents to the mid-
dle position.
Item
1
Air distribution, left
2
Front defroster
3
Air recirculation
4
Rear window defroster
5
Air distribution, right
6
Temperature control, right
7
Automatic climate control on/off
(entire system)
8
Residual heat/ventilation
9
Air volume control
a
AC cooling on/off
b
Temperature control, left

186 Controls in detailAutomatic climate controlThe automatic climate control is operation-
al whenever the engine is running. You can
operate the automatic climate control sys-
tem in either the automatic or manual
mode. The system cools or heats the inte-
rior depending on the selected interior
temperature and the current outside tem-
perature.Nearly all dust particles, pollutants and
odors are filtered out before outside air en-
ters the passenger compartment through
the air distribution system.
The air conditioning will not engage (no
cooling) if the A/Cmode is deactivated
(
page 193).

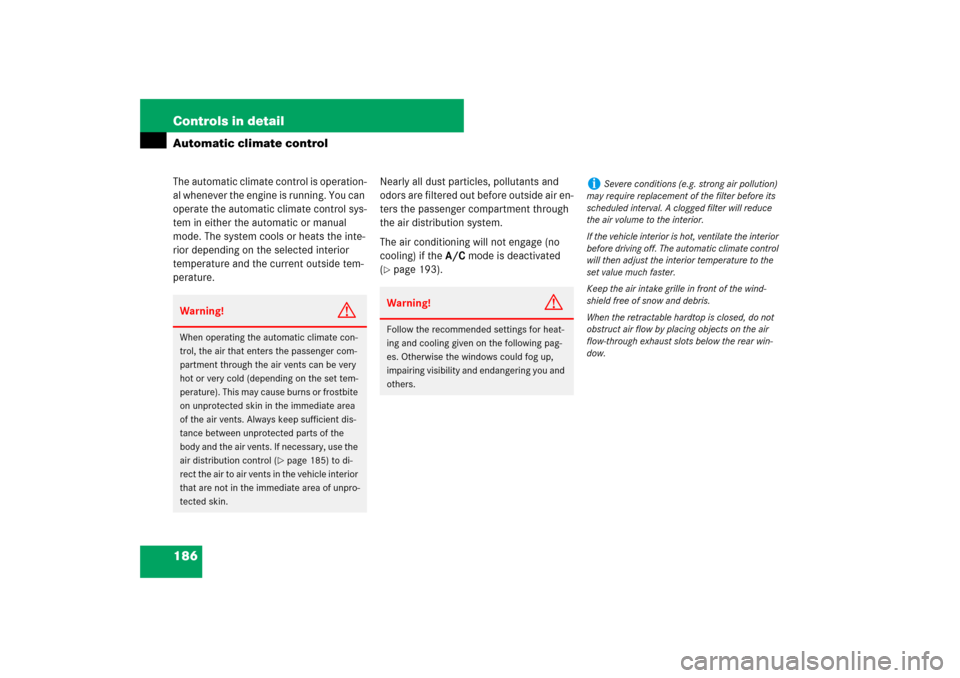

Warning!
G
When operating the automatic climate con-
trol, the air that enters the passenger com-
partment through the air vents can be very
hot or very cold (depending on the set tem-
perature). This may cause burns or frostbite
on unprotected skin in the immediate area
of the air vents. Always keep sufficient dis-
tance between unprotected parts of the
body and the air vents. If necessary, use the
air distribution control (
page 185) to di-
rect the air to air vents in the vehicle interior
that are not in the immediate area of unpro-
tected skin.
Warning!
G
Follow the recommended settings for heat-
ing and cooling given on the following pag-
es. Otherwise the windows could fog up,
impairing visibility and endangering you and
others.
i
Severe conditions (e.g. strong air pollution)
may require replacement of the filter before its
scheduled interval. A clogged filter will reduce
the air volume to the interior.
If the vehicle interior is hot, ventilate the interior
before driving off. The automatic climate control
will then adjust the interior temperature to the
set value much faster.
Keep the air intake grille in front of the wind-
shield free of snow and debris.
When the retractable hardtop is closed, do not
obstruct air flow by placing objects on the air
flow-through exhaust slots below the rear win-
dow.

187 Controls in detail
Automatic climate control
Deactivating the automatic climate control system
Deactivating
Press button ´ (
page 185).
The indicator lamp on the button
comes on.Reactivating

Press button ´ (
page 185).
The indicator lamp on the button goes
out.
The previous settings are in effect
again.
or

Turn one of the temperature controls
on the automatic climate control panel
(page 185).
The indicator lamp on button ´
goes out.Operating the automatic climate
control system in automatic mode
Air distribution and air volume can be
adjusted automatically by the automatic
climate control system. You can also ad-
just the settings for air distribution and air
volume manually.

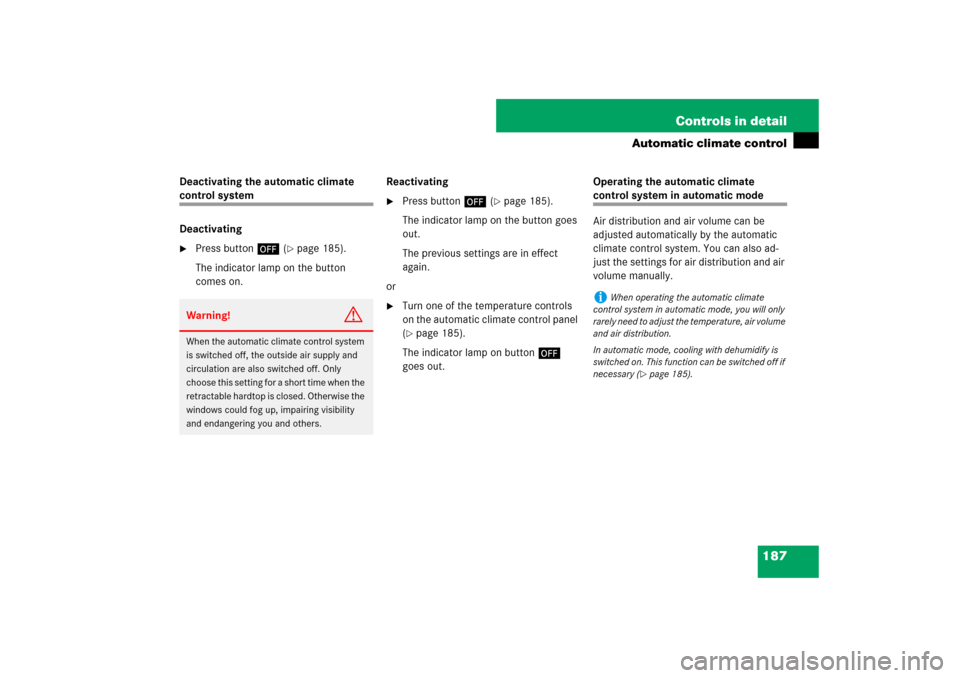

Warning!
G
When the automatic climate control system
is switched off, the outside air supply and
circulation are also switched off. Only
choose this setting for a short time when the
retractable hardtop is closed. Otherwise the
windows could fog up, impairing visibility
and endangering you and others.
i
When operating the automatic climate
control system in automatic mode, you will only
rarely need to adjust the temperature, air volume
and air distribution.
In automatic mode, cooling with dehumidify is
switched on. This function can be switched off if
necessary (
page 185).

188 Controls in detailAutomatic climate controlAir distribution in automatic mode
You can separately adjust the air distribu-
tion for each side of the passenger com-
partment.
Activating
Press control button1 or 5
(page 185).
The control button is engaged.
TheU symbol on the control button
comes on. Air distribution for the re-
spective side of the passenger com-
partment is adjusted automatically.
Deactivating

Press control button 1 or 5
(page 185) once more.
The control button sticks up slightly.
The U symbol on the control button
goes out. Automatic air distribution for
the respective side of the passenger
compartment is switched off. Adjust
the air distribution manually
(page 189).Air volume in automatic mode
The air volume settings are the same for
the entire passenger compartment.
Activating

Press control button 9 (
page 185).
The control button is engaged.
TheU symbol on the control button
comes on.
Deactivating

Press control button 9 (
page 185)
once more.
The control button sticks up slightly.
The U symbol on the control button
goes out. Adjust the air volume manu-
ally (
page 190).
Setting the temperature
Use temperature controls6 andb
(page 185) to separately adjust the air
temperature on each side of the passenger
compartment. You should raise or lower
the temperature setting in small incre-
ments, preferably starting at 72°F (22°C).
The automatic climate control will adjust
to the set temperature as fast as possible.
Increasing

Turn temperature control6
and/orb (
page 185) slightly
clockwise.
The automatic climate control system
will correspondingly adjust the interior
air temperature.
Decreasing

Turn temperature control6
and/orb (
page 185) slightly
counterclockwise.

189 Controls in detail
Automatic climate control
The automatic climate control system
will correspondingly adjust the interior
air temperature.
Adjusting air distribution
Use air distribution controls1 and5
(page 185) to separately adjust the air
distribution on each side of the passenger
compartment. The following symbols are
found on the controls:

Press control button 1 or 5
(page 185) until the control button
sticks up slightly and the U symbol
on the control button is out.Automatic air distribution for the re-
spective side of the passenger com-
partment is switched off.

Turn control button to the desired sym-
bol.
The air distribution is adjusted accord-
ing to the chosen setting.
Opening the center air vents

Turn thumbwheel 7 (
page 184) up-
ward to the first stop.
Center air vents 2 and 4
(
page 184) are open.
Opening the cockpit air vent and center
air vents

Turn thumbwheel 7 (
page 184) up-
ward all the way.
Cockpit air vent 3 and center air vents
2 and 4 (
page 184) are open.Closing the cockpit air vent and center
air vents

Turn thumbwheel 7 (
page 184)
downward.
Cockpit air vent 3 and center air vents
2 and 4 (
page 184) are closed.
Opening the side air vents

Turn thumbwheel 6 and 8
(page 184) upward.
The corresponding side air vent is
open.
Closing the side air vents

Turn thumbwheel 6 and 8
(page 184) upward.
The corresponding side air vent is
closed.

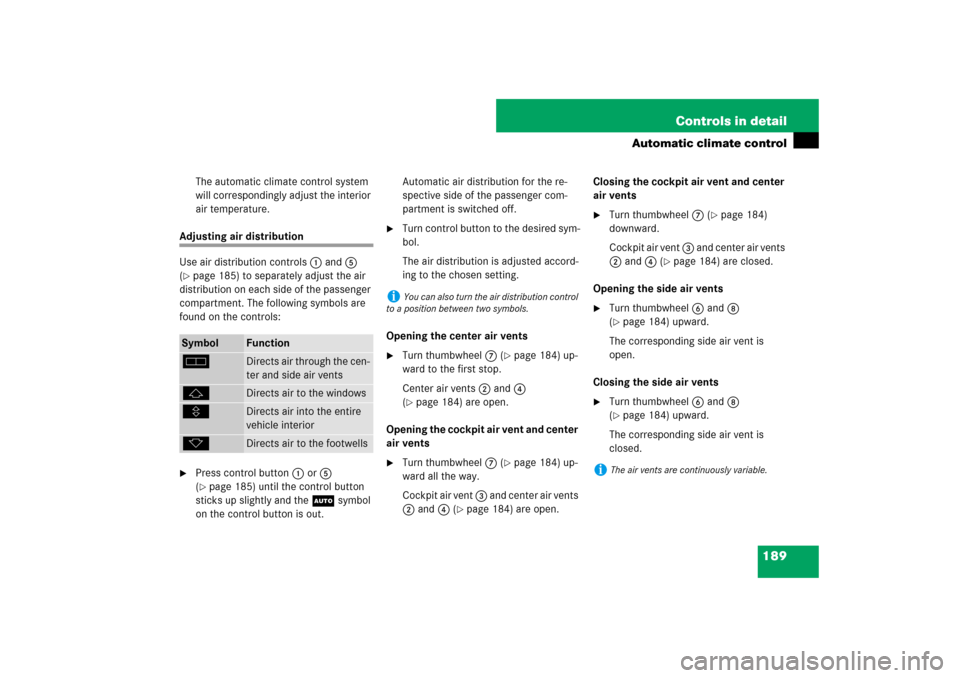

Symbol
Function
h
Directs air through the cen-
ter and side air vents
j
Directs air to the windows
V
Directs air into the entire
vehicle interior
k
Directs air to the footwells
i
You can also turn the air distribution control
to a position between two symbols.
i
The air vents are continuously variable.

190 Controls in detailAutomatic climate controlAdjusting air volume
Use air volume control9 (
page 185) for
both automatic (
page 187) and manual
air volume adjustment. Nine blower
speeds are available.

Press control button9 (
page 185).
The control button sticks up slightly.
The U symbol on the control button
goes out. Automatic air volume control
is switched off. The air volume is ad-
justed corresponding to the set blower
speed.
Maximum cooling MAXCOOL
If the left and right air distribution controls
as well as the airflow volume control are
set to U and there is a high need for
cooling, MAXCOOL is activated.
“MAX COOL” appears on the temperature
controls 6 and b (
page 185).
This provides the fastest possible cooling
of the vehicle interior (when retractable
hardtop is closed).
Automatic climate control panel with
MAXCOOL activated
Front defroster
You can use this setting to defrost the
windshield, for example if it is iced up.
You can also defog the windshield and the
side windows.i
Keep this setting selected only until the
windshield or the side windows are clear again.

191 Controls in detail
Automatic climate control
Activating
Press button P (
page 185).
The indicator lamp on the button
comes on.
The air conditioning switches to the fol-
lowing functions automatically:


cooling on to dehumidify


maximum blower speed and
heating power


air flows onto the windshield
and the front side windows


the air recirculation mode is
switched off
Deactivating

Press button P (
page 185).
The indicator lamp on the button goes
out. Defrosting is turned off.
The previous settings are in effect
again.Windshield fogged on the outside

Switch the windshield wipers on
(page 57).
If the automatic air distribution and air vol-
ume are switched off:

Turn air distribution controls1 and 5
(page 185) to position h ork.
or

Press control buttons 1, 5 and 9
(page 185).
The control buttons are engaged. The
U symbol on the control buttons
come on. Air distribution and air vol-
ume are adjusted automatically.
Air recirculation mode
Switch to air recirculation mode to prevent
unpleasant odors from entering the vehicle
from the outside. This setting cuts off the
intake of outside air and recirculates the
air in the passenger compartment.
i
The cooling remains switched on.
i
Keep this setting selected only until the
windshield is clear again.
Warning!
G
Fogged windows impair visibility, endanger-
ing you and others. If the windows begin to
fog on the inside, switching off the air
recirculation mode immediately should clear
interior window fogging. If interior window
fogging persists, make sure the air
conditioning (
page 193) is activated, or
press buttonP.
