2007 MERCEDES-BENZ SL65AMG Owner's Manual

40 Getting startedUnlockingSmartKeyStarter switch0For removing SmartKey
1Power supply for some electrical con-
sumers, such as seat adjustment
2Ignition (power supply for all electrical
consumers) and driving position
All lamps (except high beam headlamp
indicator lamp and turn signal indicator
lamps unless activated) in the instru-
ment cluster come on. If a lamp in the
instrument cluster fails to come on
when the ignition is switched on, have
it checked and replaced if necessary.If a lamp in the instrument cluster re-
mains on after starting the engine or
comes on while driving, refer to “Lamps
in the instrument cluster”
(
page 332).
3Starting position
SmartKey with KEYLESS-GO*
KEYLESS-GO start/stop button1USA only
2Canada only
i
When you switch on the ignition, the indica-
tor and warning lamps (except high beam head-
lamp indicator lamp and turn signal indicator
lamps unless activated) in the instrument cluster
come on. The indicator and warning lamps (ex-
cept high beam headlamp indicator lamp and
turn signal indicator lamps if activated) should go
out when the engine is running. This indicates
that the respective systems are operational.
i
The SmartKey can only be removed from the
starter switch with the gear selector lever in
position P.
!
If the SmartKey cannot be turned in the
starter switch, the starter battery may not be
sufficiently charged.


Check the starter battery and charge it if
necessary (
page 414).


Get a jump start (
page 419).
To prevent accelerated battery discharge or a
completely discharged battery, always remove
the SmartKey from the starter switch when the
engine is not in operation.

41 Getting started
Unlocking
The SmartKey with KEYLESS-GO must be
located in the vehicle.
Make sure the gear selector lever is set
toP.

Do not depress the brake pedal.
Position 0
Before you press the KEYLESS-GO
start/stop button, the vehicle’s on-board
electronics have the status0 (as with
SmartKey removed).
Position 1

Press the KEYLESS-GO start/stop
button once.
This supplies power for some electrical
consumers, such as seat adjustment.Ignition (or Position 2)

Press the KEYLESS-GO start/stop but-
ton twice.
This supplies power for all electrical
consumers. All lamps (except high
beam headlamp indicator lamp and
turn signal indicator lamps unless acti-
vated) in the instrument cluster come
on.For more information, see “SmartKey with
KEYLESS-GO*” (
page 105).
For information on starting the engine us-
ing the KEYLESS-GO start/stop button,
see “Starting with KEYLESS-GO*”
(
page 53).
i
If you now press the KEYLESS-GO
start/stop button


once again, the ignition (position2) is
switched on


twice, the power supply is again switched off
i
If you now press the KEYLESS-GO
start/stop button once, the power supply is
again switched off.
i
When you switch on the ignition, the indica-
tor and warning lamps (except high beam head-
lamp indicator lamp and turn signal indicator
lamps unless activated) in the instrument cluster
come on. The indicator and warning lamps
(except high beam headlamp indicator lamp and
turn signal indicator lamps if activated) should go
out when the engine is running. This indicates
that the respective systems are operational.

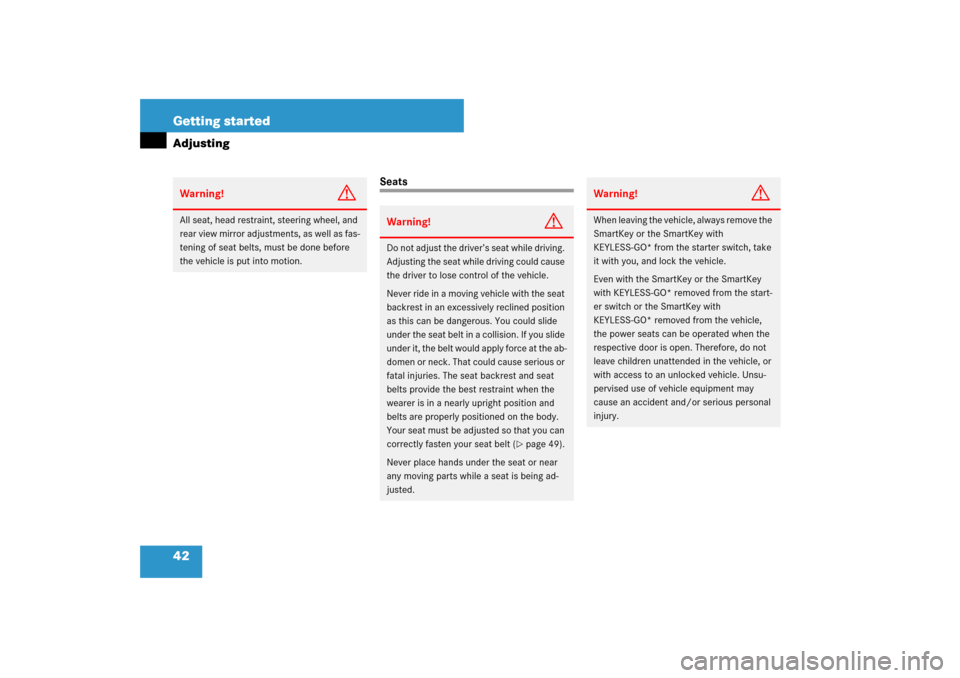

42 Getting startedAdjusting
Seats
Warning!
G
All seat, head restraint, steering wheel, and
rear view mirror adjustments, as well as fas-
tening of seat belts, must be done before
the vehicle is put into motion.
Warning!
G
Do not adjust the driver’s seat while driving.
Adjusting the seat while driving could cause
the driver to lose control of the vehicle.
Never ride in a moving vehicle with the seat
backrest in an excessively reclined position
as this can be dangerous. You could slide
under the seat belt in a collision. If you slide
under it, the belt would apply force at the ab-
domen or neck. That could cause serious or
fatal injuries. The seat backrest and seat
belts provide the best restraint when the
wearer is in a nearly upright position and
belts are properly positioned on the body.
Your seat must be adjusted so that you can
correctly fasten your seat belt (
page 49).
Never place hands under the seat or near
any moving parts while a seat is being ad-
justed.
Warning!
G
When leaving the vehicle, always remove the
SmartKey or the SmartKey with
KEYLESS-GO* from the starter switch, take
it with you, and lock the vehicle.
Even with the SmartKey or the SmartKey
with KEYLESS-GO* removed from the start-
er switch or the SmartKey with
KEYLESS-GO* removed from the vehicle,
the power seats can be operated when the
respective door is open. Therefore, do not
leave children unattended in the vehicle, or
with access to an unlocked vehicle. Unsu-
pervised use of vehicle equipment may
cause an accident and/or serious personal
injury.

43 Getting started
Adjusting
Seat adjustment
The seat adjustment switch is located in
the door.
1Head restraint height
2Seat height
3Seat cushion tilt
4Seat cushion depth
5Seat fore and aft adjustment
6Seat backrest tilt
Switch on the ignition (
page 39).
or

Open the respective door.Seat fore and aft adjustment

Press the switch forward or backward
in direction of arrow 5.
Adjust seat to a comfortable seating
position that still allows you to reach
the accelerator / brake pedal safely.
The position should be as far to the rear
as possible, consistent with ability to
properly operate controls.
Warning!
G
Children 12 years old and under must be
seated and properly secured in an appropri-
ate infant or child restraint recommended
for the size and weight of the child.
The infant or child restraint must be properly
secured with the vehicle’s seat belt fully in
accordance with the child seat manufactur-
er’s instructions.
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle and
the child is not properly secured in the child
restraint.
i
The memory function (
page 126) lets you
store the settings for the seat position together
with the settings for the steering wheel and the
exterior rear view mirrors.
!
When moving the seats, make sure there are
no items in the footwell or behind the seats.
Otherwise you could damage the seats.

44 Getting startedAdjustingSeat height
Press the switch up or down in
direction of arrow2.
Seat cushion tilt

Press the switch up or down in
direction of arrow3 until your upper
legs are lightly supported.
Seat cushion depth

Press the switch forward or backward
in direction of arrow4 until your legs
are supported comfortably.
Seat backrest tilt

Press the switch forward or backward
in direction of arrow6 until your arms
are slightly angled when holding the
steering wheel.Head restraint height

Press the switch up or down in
direction of arrow1.Head restraint tilt
Manually adjust the angle of the head re-
straint.

Push or pull on the lower edge of the
head restraint cushion.
For more information on seats, see “Seats”
(
page 121).
Warning!
G
For your protection, drive only with properly
positioned head restraints.
Adjust head restraint so that it is as close to
the head as possible and the center of the
head restraint supports the back of the head
at eye level. This will reduce the potential for
injury to the head and neck in the event of
an accident or similar situation.
Do not drive the vehicle without the seat
head restraints. Head restraints are intend-
ed to help reduce injuries during an acci-
dent.i
When moving the seat fore or aft after ad-
justing the head restraints, the head restraints
may readjust automatically.

45 Getting started
Adjusting
Steering wheel
Make sure that


you can reach the steering wheel with
your arms slightly bent at the elbows


you can move your legs freely


all displays (including malfunction and
indicator lamps) on the instrument
cluster are clearly visibleSteering wheel adjustment
The steering wheel adjustment stalk is
located on the lower left of the steering
column.
1Adjusting steering wheel, in or out
2Adjusting steering wheel, up or down

Switch on the ignition (
page 39).
or

Open the driver’s door.
Warning!
G
Do not adjust the steering wheel while driv-
ing. Adjusting the steering wheel while driv-
ing could cause the driver to lose control of
the vehicle.
When leaving the vehicle, always remove the
SmartKey or the SmartKey with
KEYLESS-GO* from the starter switch, take
it with you, and lock the vehicle.
Even with the SmartKey or the SmartKey
with KEYLESS-GO* removed from the
starter switch or the SmartKey with
KEYLESS-GO* removed from the vehicle,
the steering wheel adjustment feature can
be operated when the driver’s door is open.
Therefore, do not leave children unattended
in the vehicle, or with access to an unlocked
vehicle. Unsupervised use of vehicle equip-
ment may cause an accident and/or serious
personal injury.
i
The memory function (
page 126) lets you
store the settings for the steering wheel together
with the settings for the seat position and the
exterior rear view mirrors.

46 Getting startedAdjustingAdjusting steering wheel in or out
Move stalk forward or back in direction
of arrow1 until a comfortable steer-
ing wheel position is reached with your
arms slightly bent at the elbow.
Adjusting steering wheel up or down

Move stalk up or down in direction of
arrow2.
For more information, see “Heated steer-
ing wheel*” (
page 240).Easy-entry/exit feature
This feature allows for easier entry into and
exit from the vehicle. When entering and
exiting the vehicle, the steering wheel is in
its uppermost position.
The easy-entry/exit feature can be activat-
ed or deactivated in the
Convenience
sub-
menu of the control system (
page 162).With the easy-entry/exit feature activated,
the steering wheel will return to its last set
position when you:


close the driver’s door with the ignition
switched on
or


insert the SmartKey into the starter
switch or press the KEYLESS-GO*
start/stop button (
page 40) once
with the driver’s door closed
Warning!
G
You must make sure no one can become
trapped or injured by the moving steering
wheel when the easy-entry/exit feature is
activated.
To stop steering wheel adjustment, do one
of the following:

Move steering wheel adjustment stalk
(page 45).


Press one of the memory position but-
tons* or the memory button M*
(page 126).
Do not leave children unattended in the ve-
hicle, or with access to an unlocked vehicle.
Children could open the driver’s door and
unintentionally activate the easy-entry/exit
feature, which could result in an accident
and/or serious personal injury.i
The last set steering wheel position is stored
when


the ignition is switched off (
page 39)


the position is stored in memory
(page 126)

47 Getting started
Adjusting
With the easy-entry/exit feature activated,
the steering wheel tilts upwards when you

remove the SmartKey from the starter
switch
or


open the driver’s door with the
SmartKey in starter switch position 0
or 1 or the KEYLESS-GO* start/stop
button in position 1 (
page 40)
Mirrors
Adjust the interior and exterior rear view
mirrors before driving so that you have a
good view of the road and traffic condi-
tions.
i
If the current position for the steering wheel
is in the uppermost tilt position, the steering
wheel will no longer be able to move upward
when the easy-entry/exit feature is activated.
The adjustment procedure is briefly interrupted
when the engine is started.
Warning!
G
Let the system complete the adjustment
procedure before setting the vehicle in mo-
tion. All steering wheel adjustment must be
completed before setting the vehicle in mo-
tion. Driving off with the steering wheel still
adjusting could cause the driver to lose con-
trol of the vehicle.
Warning!
G
In case of an accident, liquid electrolyte may
escape the mirror housing if the mirror glass
breaks.
Electrolyte has an irritating effect. Do not al-
low the liquid to come into contact with
eyes, skin, clothing, or respiratory system.
In case it does, immediately flush affected
area with water, and seek medical help if
necessary.!
Electrolyte drops coming into contact with
the vehicle paint finish can only be completely
removed while in their liquid state and by apply-
ing plenty of water.
