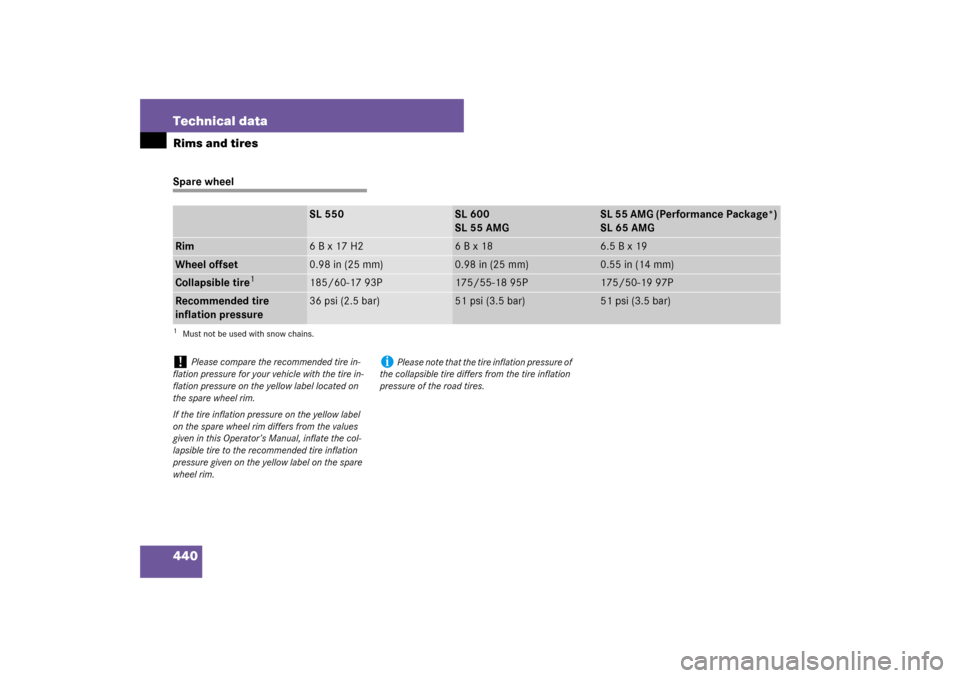

440 Technical dataRims and tiresSpare wheel
SL 550
SL 600
SL 55 AMG
SL 55 AMG (Performance Package*)
SL 65 AMG
Rim
6 B x 17 H2
6 B x 18
6.5 B x 19
Wheel offset
0.98 in (25 mm)
0.98 in (25 mm)
0.55 in (14 mm)
Collapsible tire
1
1Must not be used with snow chains.
185/60-17 93P
175/55-18 95P
175/50-19 97P
Recommended tire
inflation pressure
36 psi (2.5 bar)
51 psi (3.5 bar)
51 psi (3.5 bar)
!
Please compare the recommended tire in-
flation pressure for your vehicle with the tire in-
flation pressure on the yellow label located on
the spare wheel rim.
If the tire inflation pressure on the yellow label
on the spare wheel rim differs from the values
given in this Operator’s Manual, inflate the col-
lapsible tire to the recommended tire inflation
pressure given on the yellow label on the spare
wheel rim.
i
Please note that the tire inflation pressure of
the collapsible tire differs from the tire inflation
pressure of the road tires.

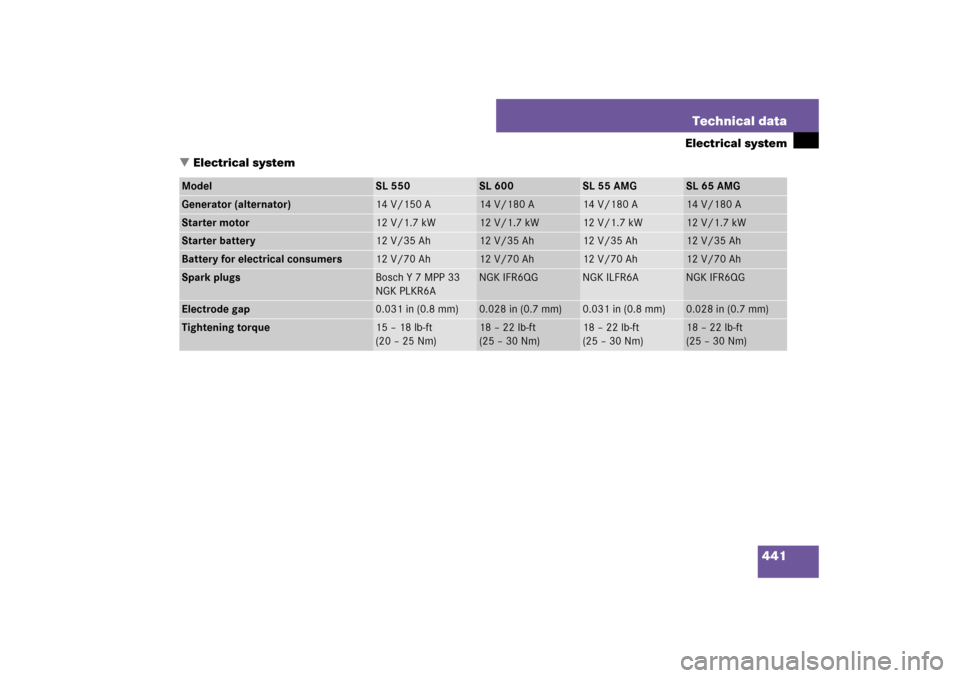

441 Technical data
Electrical system
Electrical system
Model
SL 550
SL 600
SL 55 AMG
SL 65 AMG
Generator (alternator)
14 V/150 A
14 V/180 A
14 V/180 A
14 V/180 A
Starter motor
12 V/1.7 kW
12 V/1.7 kW
12 V/1.7 kW
12 V/1.7 kW
Starter battery
12 V/35 Ah
12 V/35 Ah
12 V/35 Ah
12 V/35 Ah
Battery for electrical consumers
12 V/70 Ah
12 V/70 Ah
12 V/70 Ah
12 V/70 Ah
Spark plugs
Bosch Y 7 MPP 33
NGK PLKR6A
NGK IFR6QG
NGK ILFR6A
NGK IFR6QG
Electrode gap
0.031 in (0.8 mm)
0.028 in (0.7 mm)
0.031 in (0.8 mm)
0.028 in (0.7 mm)
Tightening torque
15 – 18 lb-ft
(20 – 25 Nm)
18 – 22 lb-ft
(25 – 30 Nm)
18 – 22 lb-ft
(25 – 30 Nm)
18 – 22 lb-ft
(25 – 30 Nm)

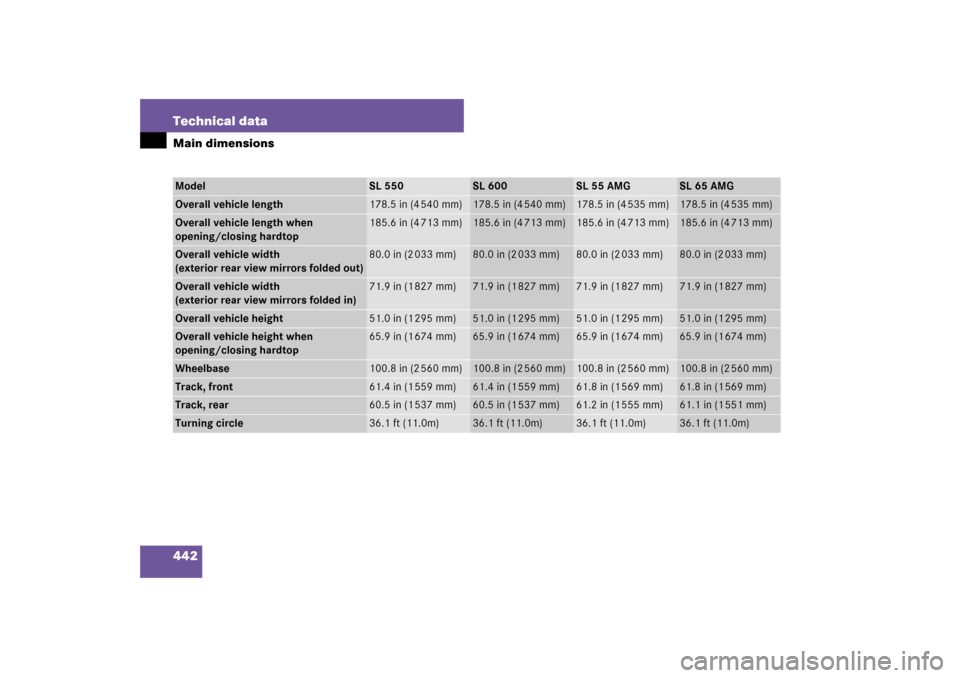

442 Technical dataMain dimensionsModel
SL 550
SL 600
SL 55 AMG
SL 65 AMG
Overall vehicle length
178.5 in (4 540 mm)
178.5 in (4 540 mm)
178.5 in (4 535 mm)
178.5 in (4 535 mm)
Overall vehicle length when
opening/closing hardtop
185.6 in (4 713 mm)
185.6 in (4 713 mm)
185.6 in (4 713 mm)
185.6 in (4 713 mm)
Overall vehicle width
(exterior rear view mirrors folded out)
80.0 in (2 033 mm)
80.0 in (2 033 mm)
80.0 in (2 033 mm)
80.0 in (2 033 mm)
Overall vehicle width
(exterior rear view mirrors folded in)
71.9 in (1 827 mm)
71.9 in (1 827 mm)
71.9 in (1 827 mm)
71.9 in (1 827 mm)
Overall vehicle height
51.0 in (1 295 mm)
51.0 in (1 295 mm)
51.0 in (1 295 mm)
51.0 in (1 295 mm)
Overall vehicle height when
opening/closing hardtop
65.9 in (1 674 mm)
65.9 in (1 674 mm)
65.9 in (1 674 mm)
65.9 in (1 674 mm)
Wheelbase
100.8 in (2 560 mm)
100.8 in (2 560 mm)
100.8 in (2 560 mm)
100.8 in (2 560 mm)
Track, front
61.4 in (1 559 mm)
61.4 in (1 559 mm)
61.8 in (1 569 mm)
61.8 in (1 569 mm)
Track, rear
60.5 in (1 537 mm)
60.5 in (1 537 mm)
61.2 in (1 555 mm)
61.1 in (1 551 mm)
Turning circle
36.1 ft (11.0m)
36.1 ft (11.0m)
36.1 ft (11.0m)
36.1 ft (11.0m)

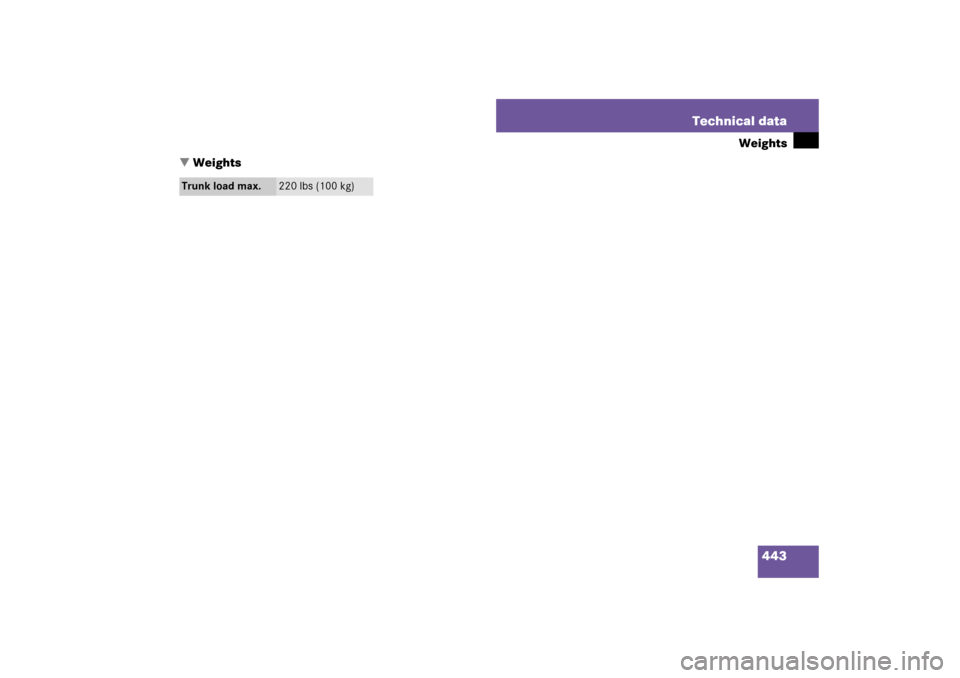

443 Technical data
Weights
Weights
Trunk load max.
220 lbs (100 kg)

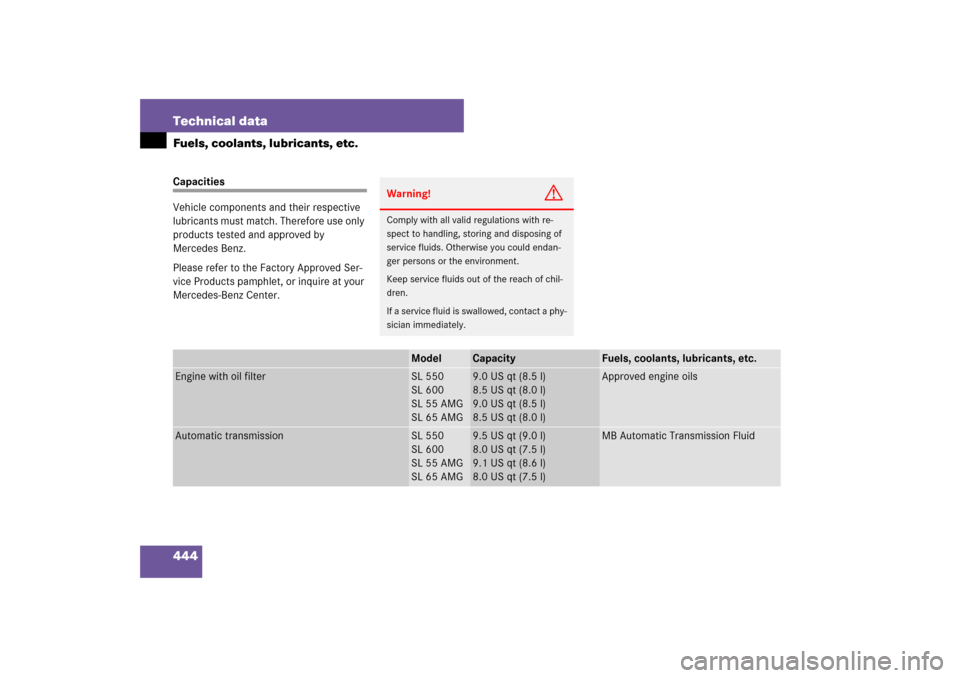

444 Technical dataFuels, coolants, lubricants, etc.Capacities
Vehicle components and their respective
lubricants must match. Therefore use only
products tested and approved by
Mercedes Benz.
Please refer to the Factory Approved Ser-
vice Products pamphlet, or inquire at your
Mercedes-Benz Center.
Warning!
G
Comply with all valid regulations with re-
spect to handling, storing and disposing of
service fluids. Otherwise you could endan-
ger persons or the environment.
Keep service fluids out of the reach of chil-
dren.
If a service fluid is swallowed, contact a phy-
sician immediately.
Model
Capacity
Fuels, coolants, lubricants, etc.
Engine with oil filter
SL 550
SL 600
SL 55 AMG
SL 65 AMG
9.0 US qt (8.5 l)
8.5 US qt (8.0 l)
9.0 US qt (8.5 l)
8.5 US qt (8.0 l)
Approved engine oils
Automatic transmission
SL 550
SL 600
SL 55 AMG
SL 65 AMG
9.5 US qt (9.0 l)
8.0 US qt (7.5 l)
9.1 US qt (8.6 l)
8.0 US qt (7.5 l)
MB Automatic Transmission Fluid

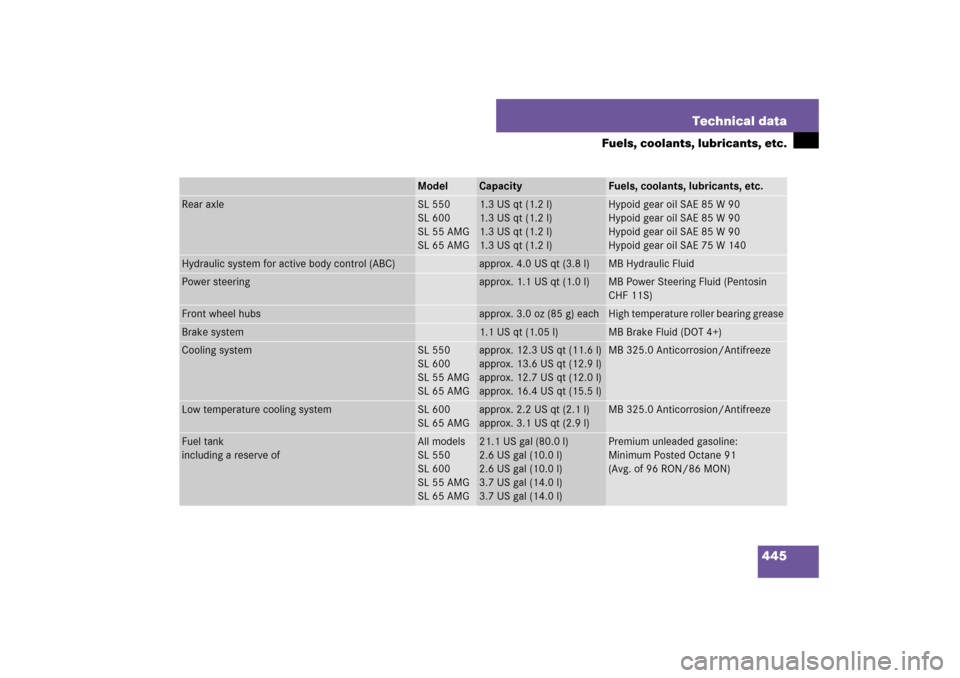

445 Technical data
Fuels, coolants, lubricants, etc.
Model
Capacity
Fuels, coolants, lubricants, etc.
Rear axle
SL 550
SL 600
SL 55 AMG
SL 65 AMG
1.3 US qt (1.2 l)
1.3 US qt (1.2 l)
1.3 US qt (1.2 l)
1.3 US qt (1.2 l)
Hypoid gear oil SAE 85 W 90
Hypoid gear oil SAE 85 W 90
Hypoid gear oil SAE 85 W 90
Hypoid gear oil SAE 75 W 140
Hydraulic system for active body control (ABC)
approx. 4.0 US qt (3.8 l)
MB Hydraulic Fluid
Power steering
approx. 1.1 US qt (1.0 l)
MB Power Steering Fluid (Pentosin
CHF 11S)
Front wheel hubs
approx. 3.0 oz (85 g) each
High temperature roller bearing grease
Brake system
1.1 US qt (1.05 l)
MB Brake Fluid (DOT 4+)
Cooling system
SL 550
SL 600
SL 55 AMG
SL 65 AMG
approx. 12.3 US qt (11.6 l)
approx. 13.6 US qt (12.9 l)
approx. 12.7 US qt (12.0 l)
approx. 16.4 US qt (15.5 l)
MB 325.0 Anticorrosion/Antifreeze
Low temperature cooling system
SL 600
SL 65 AMG
approx. 2.2 US qt (2.1 l)
approx. 3.1 US qt (2.9 l)
MB 325.0 Anticorrosion/Antifreeze
Fuel tank
including a reserve of
All models
SL 550
SL 600
SL 55 AMG
SL 65 AMG
21.1 US gal (80.0 l)
2.6 US gal (10.0 l)
2.6 US gal (10.0 l)
3.7 US gal (14.0 l)
3.7 US gal (14.0 l)
Premium unleaded gasoline:
Minimum Posted Octane 91
(Avg. of 96 RON/86 MON)

446 Technical dataFuels, coolants, lubricants, etc.Engine oils
Engine oils are specifically tested for their
suitability in our engines and durability for
our service intervals. Therefore, only use
approved engine oils and oil filters re-
quired for vehicles with Maintenance
System (U.S. vehicles) or FSS (Canada
vehicles). For a listing of approved engine
oils and oil filters, refer to the Factory Ap-
proved Service Products pamphlet, or con-
tact an authorized Mercedes-Benz Center.
Engine oil additives
Do not blend oil additives with engine oil.
They may damage the engine.
Damage or malfunctions resulting from
blending oil additives are not covered by
the Mercedes-Benz Limited Warranty.Air conditioning refrigerant
R-134a (HFC) refrigerant and special PAG
lubricating oil are used in the air condition-
er system.
Never use R-12 (CFC) or mineral-based
lubricating oil. Otherwise damage to the
system will occur.
Model
Capacity
Fuels, coolants, lubricants, etc.
Air conditioning system
R-134a refrigerant and special PAG lu-
bricant oil (never R-12)
Hydraulic system for retractable hardtop
0.42 US qt (0.4 l)
MB Hydraulic Fluid
Windshield washer and headlamp cleaning system
7.4 US qt (7 l)
MB Windshield Washer Concentrate
1
1Use MB Windshield Washer Concentrate “S” and water for temperatures above freezing or MB Windshield Washer Concentrate “S” and commercially available pre-
mixed windshield washer solvent/antifreeze for temperatures below freezing. Follow suggested mixing ratios (page 452).
!
Using engine oils and oil filters of specifica-
tion other than those expressly required for the
Maintenance System (U.S. vehicles) or FSS
(Canada vehicles), or changing oil and oil filter at
change intervals longer than those called for by
the Maintenance System (U.S. vehicles) or FSS
(Canada vehicles) will result in engine or emis-
sion control system damage not covered by the
Mercedes-Benz Limited Warranty.
Please follow Maintenance System
(U.S. vehicles) or FSS (Canada vehicles) recom-
mendations for scheduled oil changes. Failure to
do so could result in engine or emission control
system damage not covered by the
Mercedes-Benz Limited Warranty.

447 Technical data
Fuels, coolants, lubricants, etc.
Brake fluid
During vehicle operation, the boiling point
of the brake fluid is continuously reduced
through the absorption of moisture from
the atmosphere.
Only brake fluid approved by
Mercedes-Benz is recommended. Your
authorized Mercedes-Benz Center will
provide you with additional information.
Premium unleaded gasoline
Warning!
G
Under extremely strenuous operating condi-
tions, this moisture content can lead to the
formation of bubbles in the system, thus
reducing the system’s efficiency.
Therefore, the brake fluid must be replaced
regularly. Refer to your vehicle’s Mainte-
nance Booklet for replacement interval.
Warning!
G
Gasoline is highly flammable and poisonous.
It burns violently and can cause serious
injury. Whenever you are around gasoline,
avoid inhaling fumes and skin contact,
extinguish all smoking materials. Never
allow sparks, flame or smoking materials
near gasoline!
!
To maintain the engine’s durability and per-
formance, premium unleaded gasoline must be
used. If premium unleaded is not available and
low octane fuel is used, follow these precau-
tions:


have the fuel tank only partially filled with un-
leaded regular and fill up with premium un-
leaded as soon as possible


avoid full throttle driving and abrupt acceler-
ation


do not exceed an engine speed of 3000 rpm
if the vehicle is loaded with a light load such
as two occupants and no luggage


do not exceed
2/3 of maximum accelerator
pedal position if the vehicle is fully loaded or
operating in mountainous terrain
