2007 MERCEDES-BENZ SL65AMG Owner's Manual

80 Safety and SecurityOccupant safety1Seat belt housing
2Latch plate
3Buckle
4Release buttonEnhanced seat belt reminder system
When the engine is started, the seat belt
telltale< illuminates for a maximum of
6 seconds and a warning chime sounds to
remind you and your passenger to fasten
your seat belts.
If after these 6 seconds, the driver’s or the
passenger’s seat belt (with the passenger
seat occupied) are not fastened with all
doors closed,


and the vehicle speed does not exceed
15 mph (25 km/h), the seat belt
telltale< remains illuminated for as
long as either the driver’s or
passenger’s seat belt is not fastened


and the vehicle speed exceeds
15 mph (25 km/h), the seat belt
telltale< starts flashing and a
warning chime sounds with increasing
intensity until both the driver’s and
passenger’s seat belt are fastened, or
for a maximum of 60 seconds from
the time the vehicle speed exceeded 15 mph (25 km/h) if either
the driver’s or passenger’s seat belt
remains unfastened.
If the driver’s or passenger’s seat belt
remains unfastened after 60 seconds,
the seat belt telltale< stops flash-
ing and the warning chime stops
sounding. The seat belt telltale<
then continues to be illuminated for as
long as either the driver’s or passen-
ger’s seat belt are not fastened.
The seat belt telltale< will only go out
if both the driver’s and the passenger’s
seat belt (with the front passenger seat oc-
cupied) are fastened, or the vehicle is
standing still and a front door is opened.
For more information, on the seat belt
telltale<, see the “Practical hints” sec-
tion (
page 341).

81 Safety and Security
Occupant safety
Emergency tensioning device (ETD),
seat belt force limiter
The seat belts are equipped with emergen-
cy tensioning devices and belt force
limiters.
The ETD is designed to activate in the fol-
lowing cases:

in frontal or rear-end impacts exceed-
ing the system deployment threshold


if the restraint systems are operational
and functioning correctly, see 1 in-
dicator lamp (
page 66)


in certain vehicle rollovers if the sys-
tem determines an additional degree of
protectionWhen activated, emergency tensioning de-
vices remove slack from the belts in such a
way that the seat belts fit more snugly
against the body. Belt force limiters reduce
the force exerted by the seat belts on oc-
cupants during a crash.
Automatic comfort-fit feature seat belt
The automatic comfort-fit feature reduces
the retracting force of the seat belts when
they are in normal use.
Roll bar
i
The ETDs will only activate if the seat belts
are fastened (latch plate properly inserted into
buckle).
Warning!
G
An emergency tensioning device (ETD) that
was activated must be replaced.
When disposing of the emergency tension-
ing device, our safety instructions must be
followed. These are available at your autho-
rized Mercedes-Benz Center.
Warning!
G
This vehicle is a two occupant vehicle. The
rear storage area is not intended for use by
occupants and is not equipped for properly
seating or restraining occupants. Thus this
area should never be used by any persons.
Before operating the roll bar switch make
sure that the roll bar’s path is clear and no
persons are injured by the moving roll bar
due to inattention. Raising or lowering of the
roll bar could injure someone in it’s proximi-
ty.
For your own safety, we recommend to drive
with the roll bar raised if the outside temper-
ature is below +5°F (-15°C).!
If the outside temperature falls below +5°F
(-15°C), the roll bar must be raised manually us-
ing the buttons provided to avoid damaging the
hydraulics.

82 Safety and SecurityOccupant safetyThe roll bar raises automatically in an acci-
dent or in a critical driving situation. You
can also raise and lower the roll bar manu-
ally using the buttons provided.
The buttons for the roll bar are on the cen-
ter console under the retractable hardtop
switch.
1Raise roll bar
2Lower roll bar
The roll bar can be moved manually when
the ignition is switched on (
page 39).Raising the roll bar

Lift the switch for the retractable hard-
top.

Press and hold button1 until the roll
bar is raised.Lowering the roll bar

Lift the switch for the retractable hard-
top.
If the roll bar was raised manually:

Press and hold button2 until the roll
bar is lowered.
If the roll bar was raised automatically:

Press and hold button1 until you hear
the roll bar lock into place.

Press and hold button2 until the roll
bar is lowered.
i
When the roll bar is raised automatically,
you will hear a ratcheting sound.
Warning!
G
If the roll bar warning light in the ta-
chometer remains lit after starting the en-
gine, there is a malfunction. In the display
you see the message
Raise roll-over
bar
.
For safety reasons, drive only with the roll
bar upright until the malfunction is repaired.
Have your vehicle checked at an authorized
Mercedes-Benz Center.
i
If you have raised the roll bar manually using
the button, the roll bar will automatically be low-
ered and then raised again when you close and
open the retractable hardtop.

83 Safety and Security
Occupant safety
Children in the vehicle
If an infant or child is traveling with you in
the vehicle:

Secure the child using an infant or child
restraint appropriate to the age and
size of the child.


Make sure the infant or child is proper-
ly secured at all times while the vehicle
is in motion.
Infant and child restraint seats and
information on choosing an appropriate
restraint system can be obtained from any
Mercedes-Benz Center.Infant and child restraint systems
We recommend all infants and children be
properly restrained at all times while the
vehicle is in motion.
The passenger lap-shoulder belt has a spe-
cial seat belt retractor for the secure fas-
tening of child restraints.
To fasten a child restraint follow child re-
straint instructions for mounting. Then pull
the shoulder belt out completely and let it
retract. During the seat belt retraction a
ratcheting sound can be heard to indicate
that the special seat belt retractor is acti-
vated. The belt is now locked. Push down
on child restraint to take up any slack.
To deactivate, release seat belt buckle and
let seat belt retract completely. The seat
belt can again be used in the usual man-
ner.Warning!
G
Do not leave children unattended in the
vehicle, even if they are secured in a child
restraint system. The children could

injure themselves on parts of the vehicle


be seriously or fatally injured through
excessive exposure to extreme heat or
cold
Do not expose the child restraint system to
direct sunlight. The child restraint system’s
metal parts, for example, could become very
hot, and the child could be burned on these
parts.
If children open a door, they could

injure other persons


get out of the car and injure themselves
or be injured by following traffic
Do not carry heavy or hard objects in the
passenger compartment unless they are
firmly secured in place.
For more information, please refer to the
“Useful features” section (
page 233)
through (
page 238).
Unsecured or improperly positioned cargo
increases a child’s risk of injury in the event
of


strong braking maneuvers


sudden changes of direction


an accident

84 Safety and SecurityOccupant safetyThe use of infant or child restraints is re-
quired by law in all 50 states, the District of
Columbia, the U.S. territories, and all Ca-
nadian provinces.
Infants and small children should be seat-
ed in an appropriate infant or child re-
straint system which is properly secured
by a lap-shoulder belt and that complies
with U.S. Federal Motor Vehicle Safety
Standard 213 and Canadian Motor Vehicle
Safety Standard 213.
A statement by the child restraint manu-
facturer of compliance with this standard
can be found on the instruction label on
the restraint and in the instruction manual
provided with the restraint.When using any infant or child restraint
system, be sure to carefully read and fol-
low all manufacturer’s instructions for in-
stallation and use.
Please read and observe warning labels af-
fixed to inside of vehicle and to infant or
child restraints.Warning!
G
Never release the seat belt buckle while the
vehicle is in motion, since the special seat
belt retractor will be deactivated.
Warning!
G
Children 12 years old and under must be
seated and properly secured in an appropri-
ate infant or child restraint recommended
for the size and weight of the child.
The infant or child restraint must be properly
secured with the vehicle's seat belt fully in
accordance with the child seat manufactur-
er's instructions.
Occupants, especially children, should nev-
er place their bodies or lean their heads in
the area of the door where the head-thorax
air bag inflates. This could result in serious
injuries or death should the head-thorax air
bag be triggered. Always sit nearly upright,
properly use the seat belt and use an appro-
priately sized infant or toddler restraint or
booster seat recommended for the size and
weight of the child.
Children can be killed or seriously injured by
an inflating air bag. Note the following
important information when you place a
child in the passenger seat:

Your vehicle is equipped with air bag
technology designed to turn off the front
passenger front air bag in your vehicle
when the OCS senses the weight of a
typical 12-month-old child or less along
with the weight of a standard
appropriate child restraint on the front
passenger seat.

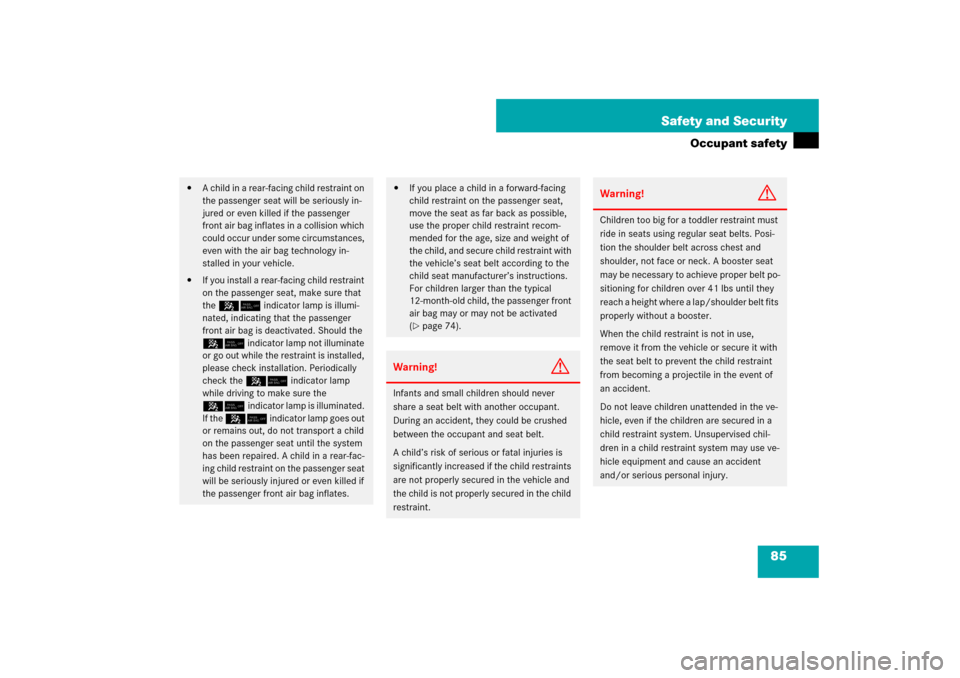

85 Safety and Security
Occupant safety


A child in a rear-facing child restraint on
the passenger seat will be seriously in-
jured or even killed if the passenger
front air bag inflates in a collision which
could occur under some circumstances,
even with the air bag technology in-
stalled in your vehicle.


If you install a rear-facing child restraint
on the passenger seat, make sure that
the 5/indicator lamp is illumi-
nated, indicating that the passenger
front air bag is deactivated. Should the
5/ indicator lamp not illuminate
or go out while the restraint is installed,
please check installation. Periodically
check the 5/ indicator lamp
while driving to make sure the
5/indicator lamp is illuminated.
If the 5/ indicator lamp goes out
or remains out, do not transport a child
on the passenger seat until the system
has been repaired. A child in a rear-fac-
ing child restraint on the passenger seat
will be seriously injured or even killed if
the passenger front air bag inflates.


If you place a child in a forward-facing
child restraint on the passenger seat,
move the seat as far back as possible,
use the proper child restraint recom-
mended for the age, size and weight of
the child, and secure child restraint with
the vehicle’s seat belt according to the
child seat manufacturer’s instructions.
For children larger than the typical
12-month-old child, the passenger front
air bag may or may not be activated
(page 74).
Warning!
G
Infants and small children should never
share a seat belt with another occupant.
During an accident, they could be crushed
between the occupant and seat belt.
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle and
the child is not properly secured in the child
restraint.
Warning!
G
Children too big for a toddler restraint must
ride in seats using regular seat belts. Posi-
tion the shoulder belt across chest and
shoulder, not face or neck. A booster seat
may be necessary to achieve proper belt po-
sitioning for children over 41 lbs until they
reach a height where a lap/shoulder belt fits
properly without a booster.
When the child restraint is not in use,
remove it from the vehicle or secure it with
the seat belt to prevent the child restraint
from becoming a projectile in the event of
an accident.
Do not leave children unattended in the ve-
hicle, even if the children are secured in a
child restraint system. Unsupervised chil-
dren in a child restraint system may use ve-
hicle equipment and cause an accident
and/or serious personal injury.

86 Safety and SecurityPanic alarmAn audible alarm and flashing exterior
lamps will operate briefly.
1Â button
Activating
Press and hold button1 for at least
1 second.
Deactivating
Press button1 again.
or

Insert SmartKey or the SmartKey with
KEYLESS-GO* in starter switch.
or

Press the KEYLESS-GO* start/stop
button on the gear selector lever.
The SmartKey with KEYLESS-GO* must
be in the vehicle.
i
USA only: This device complies with Part 15
of the FCC Rules. Operation is subject to the fol-
lowing two conditions:
(1) This device may not cause harmful interfer-
ence, and
(2) this device must accept any interference re-
ceived, including interference that may
cause undesired operation.
Any unauthorized modification to this device
could void the user’s authority to operate the
equipment.
i
Canada only:
This device complies with RSS-210 of Industry
Canada. Operation is subject to the following
two conditions:
(1) This device may not cause interference, and
(2) this device must accept any interference re-
ceived, including interference that may
cause undesired operation of the device.
Any unauthorized modification to this device
could void the user’s authority to operate the
equipment.

87 Safety and Security
Driving safety systems
Driving safety systems
In this section you will find information on
the following driving safety systems:

ABS (A
ntilock B
rake S
ystem)


BAS (B
rake A
ssist S
ystem)


ESP
® (E
lectronic S
tability P
rogram)


Electro-hydraulic brake system
ABS
The Antilock Brake System (ABS) regulates
the brake pressure so that the wheels do
not lock during braking. This allows you to
maintain the ability to steer your vehicle.
The ABS is functional above a speed of
approximately 5 mph (8 km/h) indepen-
dent of road surface conditions.
On slippery road surfaces, the ABS will re-
spond even to light brake pressure.
Warning!
G
The following factors increase the risk of ac-
cidents:

Excessive speed, especially in turns


Wet and slippery road surfaces


Following another vehicle too closely
The ABS, BAS, ESP
®, and the electro-hy-
draulic brake system cannot reduce this
risk.
Always adjust your driving style to the pre-
vailing road and weather conditions.
i
In winter operation, the maximum effective-
ness of the ABS, the BAS, the ESP
®, and the
electro-hydraulic brake system is only achieved
with winter tires (
page 316) or snow chains as
required.
Warning!
G
Do not pump the brake pedal. Use firm,
steady brake pedal pressure instead. Pump-
ing the brake pedal defeats the purpose of
the ABS and significantly reduces braking
effectiveness.
