2007 MERCEDES-BENZ SL65AMG Owner's Manual

288 OperationTires and wheelsSteps for determining correct load limit
The following steps have been developed
as required of all manufacturers under Title
49, Code of U.S. Federal Regulations, Part
575 pursuant to the “National Traffic and
Motor Vehicle Safety Act of 1966”.
Step 1
Locate the statement “The combined
weight of occupants and cargo should
never exceed XXX kg or XXX lbs.” on
your vehicle’s placard.
Step 2

Determine the combined weight of the
driver and passengers that will be
riding in your vehicle.
Step 3

Subtract the combined weight of the
driver and passengers from XXX kilo-
grams or XXX lbs.Step 4

The resulting figure equals the avail-
able amount of cargo and luggage load
capacity. For example, if the “XXX”
amount equals 1400 lbs. and there will
be five 150 lbs. passengers in your
vehicle, the amount of available cargo
and luggage load capacity is 650 lbs.
(1400 - 750 (5 x 150) = 650 lbs.)
Step 5

Determine the combined weight of
luggage and cargo being loaded on the
vehicle. That weight may not safely
exceed the available cargo and luggage
load capacity calculated in step 4.Step 6 (if applicable)

If your vehicle will be towing a trailer,
load from your trailer will be trans-
ferred to your vehicle. Consult this
manual to determine how this reduces
the available cargo and luggage load
capacity of your vehicle (
page 290).

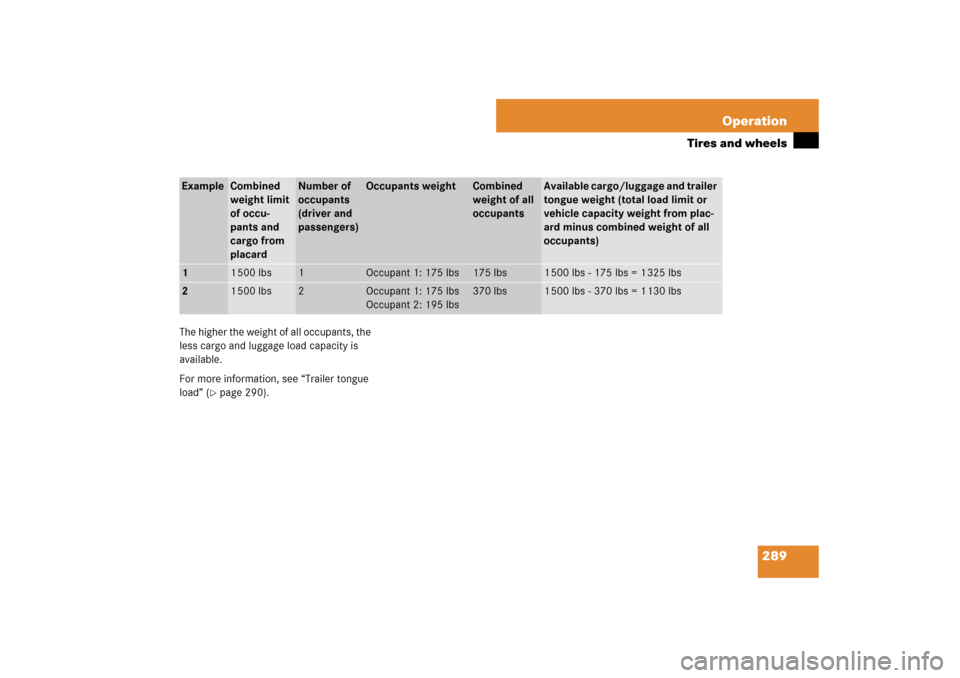

The following table shows examples on
how to calculate total and cargo load
capacities with varying seating configura-
tions and number and size of occupants.
The following examples use a load limit
of 1500 lbs. This is for illustration
purposes only. Make sure you are using
the actual load limit for your vehicle stated
on the vehicle’s placard (
page 287).

289 Operation
Tires and wheels
The higher the weight of all occupants, the
less cargo and luggage load capacity is
available.
For more information, see “Trailer tongue
load” (
page 290).
Example
Combined
weight limit
of occu-
pants and
cargo from
placard
Number of
occupants
(driver and
passengers)
Occupants weight
Combined
weight of all
occupants
Available cargo/luggage and trailer
tongue weight (total load limit or
vehicle capacity weight from plac-
ard minus combined weight of all
occupants)
1
1500 lbs
1
Occupant 1: 175 lbs
175 lbs
1 500 lbs - 175 lbs = 1 325 lbs
2
1500 lbs
2
Occupant 1: 175 lbs
Occupant 2: 195 lbs
370 lbs
1 500 lbs - 370 lbs = 1 130 lbs

290 OperationTires and wheelsCertification label
Even after careful determination of the
combined weight of all occupants, cargo
and the trailer tongue load (if applicable)
(page 290) as to not exceed the permis-
sible load limit, you must make sure that
your vehicle never exceeds the Gross Vehi-
cle Weight Rating (GVWR) and the Gross
Axle Weight Rating (GAWR) for either the
front or rear axle. You can obtain the
GVWR and GAWR from the Certification la-
bel. The Certification Label can be found
on the driver’s door B-pillar, see “Technical
data” (
page 430).Gross Vehicle Weight Rating (GVWR): The
total weight of the vehicle, all occupants,
all cargo, and the trailer tongue load
(
page 290) must never exceed the
GVWR.
Gross Axle Weight Rating (GAWR): The to-
tal allowable weight that can be carried by
a single axle (front or rear).
To assure that your vehicle does not ex-
ceed the maximum permissible weight
limits (GVWR and GAWR for front and rear
axle), have the loaded vehicle (including
driver, passengers and all cargo and, if ap-
plicable, trailer fully loaded) weighed on a
suitable commercial scale.Trailer tongue load
The tongue load of any trailer is an impor-
tant weight to measure because it affects
the load you can carry in your vehicle. If a
trailer is towed, the tongue load must be
added to the weight of all occupants riding
and any cargo you are carrying in the
vehicle. The tongue load typically is
10 percent of the trailer weight and every-
thing loaded in it.
Your Mercedes-Benz has been designed
primarily to carry passengers and their
cargo. Mercedes-Benz does not recom-
mend trailer towing with your vehicle.

291 Operation
Tires and wheels
Recommended tire inflation pressure
Your vehicle is equipped with the Tire and
Loading Information placard located on
the driver’s door B-pillar (
page 286).The tire inflation pressure should be
checked regularly and should only be ad-
justed on cold tires. The tires can be con-
sidered cold if the vehicle has been parked
for at least 3 hours or driven less than
1 mile (1.6 km).
Follow recommended cold tire inflation
pressures listed on placard.
Keeping the tires properly inflated
provides the best handling, tread life and
riding comfort.
In addition to the tire placard on the
driver’s door B-pillar, also consult the fuel
filler flap for any additional information
pertaining to special driving situations. For
more information, see “Important notes on
tire inflation pressure” (
page 292).1Tire and Loading Information placard
with recommended cold tire inflation
pressures
The Tire and Loading Information placard
lists the recommended cold tire inflation
pressures for maximum loaded vehicle
weight. The tire inflation pressures listed
apply to the tires installed as original
equipment.
Warning!
G
Follow recommended tire inflation
pressures.
Do not underinflate tires. Underinflated tires
wear excessively and/or unevenly,
adversely affect handling and fuel economy,
and are more likely to fail from being over-
heated.
Do not overinflate tires. Overinflated tires
can adversely affect handling and ride
comfort, wear unevenly, increase stopping
distance, and result in sudden deflation
(blowout) because they are more likely to
become punctured or damaged by road
debris, potholes etc.
i
Data shown on placard example are for illus-
tration purposes only. Tire data are specific to
each vehicle and may vary from data shown in
the illustration below. Refer to placard on vehicle
for actual data specific to your vehicle.

292 OperationTires and wheelsImportant notes on tire inflation
pressure
Tire temperature and tire inflation pressure
are also increased while driving, depending
on the driving speed and the tire load.
If you will be driving your vehicle at high
speeds of 100 mph (160km/h) or higher,
where it is legal and conditions allow,
consult the placard on the inside of the fuel
filler flap on how to adjust the cold tire in-
flation pressure. If you do not adjust the
tire inflation pressure, excessive heat can
build up and result in sudden tire failure.Be sure to readjust the tire inflation
pressure for normal driving speeds. You
should wait until the tires are cold before
adjusting the tire inflation pressure.
Some vehicles may have supplemental tire
pressure information for vehicle loads less
than the maximum loaded vehicle condi-
tion. If such information is provided, it can
be found on the placard located on the in-
side of the fuel filler flap.
Tire inflation pressure changes by approxi-
mately 1.5 psi (0.1 bar) per 18°F (10°C) of
air temperature change. Keep this in mind
when checking tire inflation pressure
where the temperature is different from
the outside temperature.
Checking tire inflation pressure
Regularly check your tire inflation pressure
at least once a month.
Check and adjust the tire inflation
pressure when the tires are cold. The tires
can be considered cold if the vehicle has
been parked for at least 3 hours or driven
less than 1 mile (1.6 km).
If you check the tire inflation pressure
when the tires are warm (the vehicle has
been driven for several miles or sitting less
than 3 hours), the reading will be
approximately 4 psi (0.3 bar) higher than
the cold reading. This is normal. Do not let
air out to match the specified cold tire in-
flation pressure. Otherwise, the tire will be
underinflated.
Warning!
G
If the tire inflation pressure repeatedly
drops:

Check the tires for punctures from
foreign objects.


Check to see whether air is leaking from
the valves or from around the rim.

293 Operation
Tires and wheels
Checking tire inflation pressure
manually
Follow the steps below to achieve correct
tire inflation pressure:
Remove the cap from the valve on one
tire.

Firmly press a tire gauge onto the
valve.

Read tire inflation pressure on tire
gauge and check against the recom-
mended tire inflation pressure on the
placard on the driver’s door B-pillar
(page 286). If necessary, add air to
achieve the recommended tire inflation
pressure.

Install the valve cap.

Repeat this procedure for each tire.Run Flat Indicator (Canada only)
While the vehicle is being driven, the Run
Flat Indicator monitors the set tire inflation
pressures by evaluating each wheel’s rota-
tional speed. This allows the system to de-
tect a significant loss of pressure in a tire.
If a wheel’s rotational speed changes due
to falling tire inflation pressure, you will
see a corresponding warning message in
the multifunction display.
The Run Flat Indicator may function in a re-
stricted manner or with a delay


if snow chains are mounted to the
vehicle


in presence of ice and snow


if you are driving on a loose surface
(e.g. sand or gravel)


if you are driving in a very sporty man-
ner (involving rapid acceleration or high
speeds in curves)
Warning!
G
Follow recommended tire inflation
pressures.
Do not underinflate tires. Underinflated tires
wear excessively and/or unevenly,
adversely affect handling and fuel economy,
and are more likely to fail from being over-
heated.
Do not overinflate tires. Overinflated tires
can adversely affect handling and ride
comfort, wear unevenly, increase stopping
distance, and result in sudden deflation
(blowout) because they are more likely to
become punctured or damaged by road
debris, potholes etc.
Do not overload the tires by exceeding the
specified load limit or vehicle capacity
weight as indicated on the placard on the
driver’s door B-pillar. Overloading the tires
can overheat them, possibly causing a
blowout. Overloading the tires can also
result in handling or steering problems, or
brake failure.
i
If you have overfilled the tire, release tire in-
flation pressure by pushing the metal stem of the
valve with e.g. a tip of a pen. Then recheck the
tire inflation pressure with the tire gauge.

294 OperationTires and wheels
Reactivating the Run Flat Indicator
The tire inflation pressure monitor must be
reactivated in the following situations:

if you have changed the tire inflation
pressure


if you have replaced the wheels or tires


if you have installed new wheels or
tires

Using the tire placard on the driver’s
door B-pillar or, if available, the inside
of the fuel filler flap, make sure the tire
inflation pressure of all four tires is cor-
rect.
Warning!
G
When the multifunction display shows the
message
Tire pressure Check tires
,
one or more of your tires is significantly un-
der-inflated. You should stop and check
your tires as soon as possible, and inflate
them to the proper tire inflation pressure as
indicated on the vehicle’s tire information
placard. Driving on a significantly under-in-
flated tire causes the tire to overheat and
can lead to tire failure. Under-inflation also
reduces fuel efficiency and tire tread life,
and may affect the vehicle’s handling and
stopping ability. Each tire, including the
spare, should be checked monthly when
cold and set to the recommended tire infla-
tion pressure as specified on the Tire And
Loading Information placard (
page 287)
or on the tire inflation pressure label
(
page 291).
Warning!
G
The Run Flat Indicator does not provide a
warning for wrongly selected tire inflation
pressures. Always adjust tire inflation pres-
sure according to the placard on the driver’s
door B-pillar or fuel filler flap.
The Run Flat Indicator does not replace reg-
ular checks of the tire inflation pressures
since a gradual pressure loss in all four tires
cannot be detected by the Run Flat
Indicator.
The Run Flat Indicator is not able to issue a
warning due to a sudden dramatic loss of
tire inflation pressure (e.g. tire blowout
caused by a foreign object). In this case
bring the vehicle to a halt by carefully apply-
ing the brakes and avoiding abrupt steering
maneuvers.
Warning!
G
The Run Flat Indicator can only warn you in
a reliable manner if you have set the correct
tire inflation pressures for each tire.
If an incorrect tire inflation pressure was
set, the system will monitor the pressure ac-
cording to the incorrect value.

295 Operation
Tires and wheels

Switch on the ignition (
page 39).
Make sure the standard display menu
appears in the multifunction display
(
page 145).

Press buttonk orj repeatedly
until the following message appears in
the multifunction display:Run Flat Indicator
active
Menu: R-Button

Press the reset button (
page 27).
The following message will appear in
the multifunction display:
Restart
Run Flat Indicator?
If you wish to confirm activation:
Press buttonæ.
The following message will appear in
the multifunction display:Run Flat Indicator
restarted
After a certain “learning phase”, the Run
Flat Indicator checks the set pressure val-
ues for all four tires.
If you wish to cancel activation:
Press buttonç.Checking tire pressure electronically
with the Tire Pressure Monitoring
System (TPMS), (USA only)
i
The T
ire P
ressure M
onitoring S
ystem
(TPMS) is equipped with a combination low tire
pressure/TPMS malfunction telltale in the in-
strument cluster (
page 29). Depending on
how the telltale illuminates, it indicates a low tire
pressure condition or a malfunction in the TPMS
system itself:


If the telltale illuminates continuously, one
or more of your tires is significantly under-in-
flated. There is no malfunction in the TPMS.


If the telltale flashes for 60 seconds and
then stays illuminated, the TPMS system it-
self is not operating properly.
