2007 MERCEDES-BENZ SL65AMG Owner's Manual

64 Getting startedParking and lockingLocking with KEYLESS-GO*
1Lock button
Press lock button1 on a door handle
or the lock button on the trunk lid
(page 110).
With the trunk and all doors closed, the
turn signal lamps flash three times. The
locking knobs on the doors move
down. The anti-theft alarm system is
armed.
For more information, see “Locking and
unlocking” (
page 102).

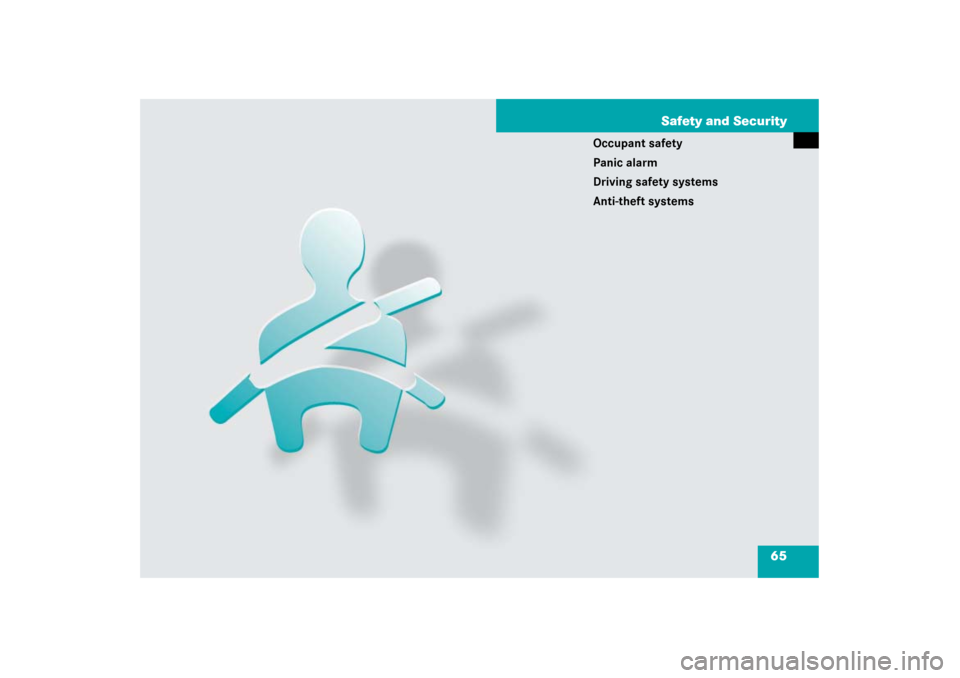

65 Safety and Security
Occupant safety
Panic alarm
Driving safety systems
Anti-theft systems

66 Safety and SecurityOccupant safetyIn this section you will learn the most im-
portant facts about the restraint systems
of the vehicle.
The restraint systems are

Seat belts (
page 77)


Child restraints (
page 83)
Additional protection potential provided by


Supplemental Restraint System (SRS)
with

Air bags (
page 68)


Air bag control unit (with crash
sensors)


Emergency tensioning device (ETD)
for seat belts (
page 81)


Roll bar (
page 81)Air bag system components with


Front passenger front air bag off
indicator lamp (
page 76)


Front passenger seat with Occupant
Classification System (OCS)
(page 72)
Although independent systems, their pro-
tective functions work in conjunction with
each other.The SRS system conducts a self-test when
the ignition is switched on and in regular
intervals while the engine is running. This
facilitates detection of malfunctions. The
1
indicator lamp in the instrument clus-
ter comes on when the ignition is switched
on and goes out no later than a few sec-
onds after the engine has been started.
The SRS components are in operational
readiness if the
1
indicator lamp is not
lit when the engine is running.
A malfunction in the system has been
detected if the
1
indicator lamp:


fails to go out after approximately
4 seconds after the engine was started


does not come on at all


comes on after the engine was started
or while driving
i
For information on infants and children trav-
eling with you in the vehicle and restraint sys-
tems for infants and children, see “Children in
the vehicle” (
page 83).

67 Safety and Security
Occupant safety
Warning!
G
Modifications to or work improperly con-
ducted on restraint systems (such as seat
belts and anchors, emergency tensioning
devices, seat belt force limiters or air bags)
or their wiring, as well as tampering with in-
terconnected electronic systems, can lead
to the restraint systems no longer function-
ing as intended.
Air bags or emergency tensioning devices,
for example, could deploy inadvertently or
fail to deploy in accidents although the de-
celeration threshold for air bag deployment
is exceeded. Therefore, never modify the re-
straint systems. Do not tamper with elec-
tronic components or their software.
Warning!
G
In the event that the 1 indicator lamp
comes on during driving or does not come
on at all, the SRS self-check has detected a
malfunction. For your safety, we strongly
recommend that you visit an authorized
Mercedes-Benz Center immediately to have
the system checked; otherwise the SRS may
not deploy when needed in an accident,
which could result in serious or fatal injury,
or it might deploy unexpectedly and unnec-
essarily which could also result in injury.
In addition, improper repair work on the SRS
creates a risk of rendering the SRS inopera-
tive or causing unintended air bag deploy-
ment. Work on the SRS must therefore only
be performed by qualified technicians. Con-
tact an authorized Mercedes-Benz Center.
If it is necessary to modify an air bag system
to accommodate a person with disabilities,
contact your local authorized
Mercedes-Benz Center or call our Customer
Assistance Center at 1-800-FOR-MERCedes
(1-800-367-6372) for details.

68 Safety and SecurityOccupant safetyAir bagsWarning!
G
Air bags are designed to reduce the poten-
tial of injury and fatality in certain frontal im-
pacts (front air bags, driver-side knee bag)
or side impacts (head-thorax air bags). How-
ever, no system available today can totally
eliminate injuries and fatalities.
The deployment of the air bags temporarily
releases a small amount of dust from the air
bags. This dust, however, is neither injurious
to your health, nor does it indicate a fire in
the vehicle. The dust might cause some tem-
porary breathing difficulty for people with
asthma or other breathing trouble. To avoid
this, you may wish to get out of the vehicle
as soon as it is safe to do so. If you have any
breathing difficulty but cannot get out of the
vehicle after the air bag inflates, then get
fresh air by opening a window or door.
Warning!
G
To reduce the risk of injury when the front
air bags inflate, it is very important for the
driver and passenger to always be in a prop-
erly seated position and to wear their seat
belts.
For maximum protection in the event of a
collision always be in normal seated position
with your back against the backrest. Fasten
your seat belt and make sure that it is prop-
erly positioned on your body (
page 49).
Since the air bag inflates with considerable
speed and force, a proper seating and hands
on steering wheel position will help to keep
you at a safe distance from the air bag.
Occupants who are unbelted, out of position
or too close to the air bag can be seriously
injured or killed by an air bag as it inflates
with great force in the blink of an eye:


Sit properly belted in a nearly upright
position with your back against the seat
backrest.


Adjust the driver’s seat as far as possi-
ble rearward, still permitting proper op-
eration of vehicle controls. The distance
from the center of the driver’s breast-
bone to the center of the air bag cover
on the steering wheel must be at least
10 inches (25 cm) or more. You should
be able to accomplish this by a combina-
tion of adjustments to the seat and
steering wheel. If you have any prob-
lems, please see an authorized
Mercedes-Benz Center.


Do not lean your head or chest close to
the steering wheel or dashboard.


Keep hands on the outside of steering
wheel rim. Placing hands and arms in-
side the rim can increase the risk and
potential severity of hand / arm injury
when driver’s front air bag inflates.


Adjust the passenger seat as far as pos-
sible rearward from the dashboard when
the seat is occupied.

69 Safety and Security
Occupant safety


Occupants, especially children, should
never lean their heads in the area of the
door where the head-thorax air bag in-
flates. This could result in serious inju-
ries or death should the air bag be
triggered. Always sit nearly upright,
properly use the seat belts and appropri-
ate size infant or child restraint system.
Failure to follow these instructions can re-
sult in severe injuries to you or other occu-
pants.
If you sell your vehicle, it is important that
you make the buyer aware of this safety in-
formation. Be sure to give the buyer this
Operator’s Manual.
Warning!
G
It should be noted, however, that there is a
possibility for a head-thorax air bag related
injury if occupants, especially children, are
not properly seated or restrained when next
to a head-thorax air bag which needs to de-
ploy rapidly in a side impact in order to do its
job.
To help avoid the possibility of injury, please
follow these guidelines:
(1) Occupants, especially children, should
never place their bodies or lean their
heads in the area of the door where the
head-thorax air bag inflates. This could
result in serious injuries or death should
the head-thorax air bag be triggered.
(2) Always sit nearly upright, properly use
the seat belts and for children 12 years
old and under, use an appropriately
sized infant or toddler restraint or
booster seat recommended for the size
and weight of the child.
(3) Always wear seat belts properly.
If you believe that, even with the use of
these guidelines, it would be safer for your
passenger seat occupants to have the pas-
senger side head-thorax air bag deactivated,
then deactivation can be accomplished
upon your written election to do so at an au-
thorized Mercedes-Benz Center at an addi-
tional cost. Please contact your local
authorized Mercedes-Benz Center or call
our Customer Assistance Center (in the
USA) at 1-800-FOR-MERCedes, or Customer
Service (in Canada) at 1-800-387-0100 for
details.

70 Safety and SecurityOccupant safety
Safety guidelines for the seat belt,
emergency tensioning device and
air bag
i
Air bags are designed to activate only in cer-
tain frontal impacts (front air bags, driver-side
knee bag) and side impacts (head-thorax air
bags) which exceed preset thresholds. Only dur-
ing these events, will they provide their supple-
mental protection.
The driver and passenger should always wear
their seat belts. Otherwise it is not possible for
the air bags to provide their intended supple-
mental protection.
In case of other types of impacts and impacts be-
low air bag deployment thresholds, air bags will
not deploy. The driver and passenger will then be
protected to the extent possible by a properly
fastened seat belt. A properly fastened seat belt
is also needed to provide the best possible pro-
tection in a rollover.
We caution you not to rely on the presence of the
air bags in order to avoid wearing your seat belt.
It is important to your safety and that of your pas-
senger that you replace deployed air bags and
repair any malfunctioning air bags to make sure
that the vehicle will continue to provide supple-
mental crash protection for occupants.
Warning!
G


Damaged seat belts or belts that were
highly stressed in an accident must be
replaced and their anchoring points
must also be checked. Only use belts in-
stalled or supplied by an authorized
Mercedes-Benz Center.


Air bags and pyrotechnic emergency
tensioning devices (ETDs) are designed
to function on a one-time-only basis. An
air bag or ETD that has deployed must
be replaced.


Do not pass belts over sharp edges.
They could tear.


Do not make any modification that could
change the effectiveness of the belts.


No modifications of any kind may be
made to any components or wiring of
the SRS. This includes changing or
removing any component or part of the
SRS, the installation of additional trim
material, badges, etc. over the steering
wheel hub, passenger front air bag cov-
er, door frame trims, or door trim pan-
els, and installation of additional
electrical /electronic equipment on or
near SRS components and wiring. Keep
area between air bags and occupants
free from objects (e.g. packages, purs-
es, umbrellas, etc.).


Do not bleach or dye seat belts as this
may severely weaken them. In a crash,
they may not be able to provide ade-
quate protection.


Air bag system components will be hot
after an air bag has inflated. Do not
touch.


Never place your feet on the instrument
panel, dashboard, or on the seat. Always
keep both feet on the floor in front of the
seat.

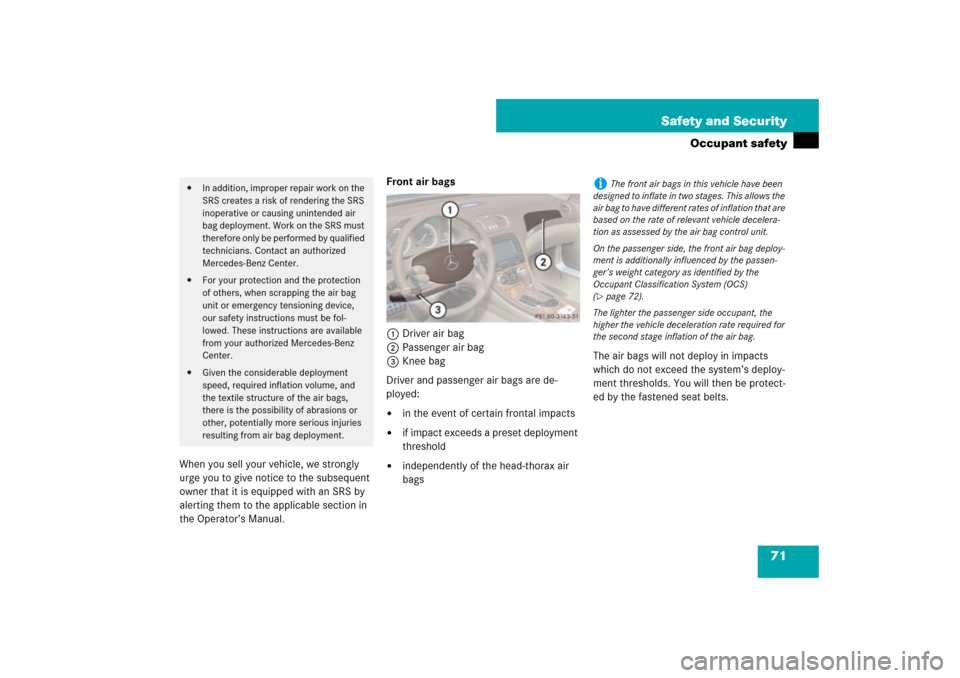

71 Safety and Security
Occupant safety
When you sell your vehicle, we strongly
urge you to give notice to the subsequent
owner that it is equipped with an SRS by
alerting them to the applicable section in
the Operator’s Manual.Front air bags
1Driver air bag
2Passenger air bag
3Knee bag
Driver and passenger air bags are de-
ployed:


in the event of certain frontal impacts


if impact exceeds a preset deployment
threshold


independently of the head-thorax air
bagsThe air bags will not deploy in impacts
which do not exceed the system’s deploy-
ment thresholds. You will then be protect-
ed by the fastened seat belts.


In addition, improper repair work on the
SRS creates a risk of rendering the SRS
inoperative or causing unintended air
bag deployment. Work on the SRS must
therefore only be performed by qualified
technicians. Contact an authorized
Mercedes-Benz Center.


For your protection and the protection
of others, when scrapping the air bag
unit or emergency tensioning device,
our safety instructions must be fol-
lowed. These instructions are available
from your authorized Mercedes-Benz
Center.


Given the considerable deployment
speed, required inflation volume, and
the textile structure of the air bags,
there is the possibility of abrasions or
other, potentially more serious injuries
resulting from air bag deployment.
i
The front air bags in this vehicle have been
designed to inflate in two stages. This allows the
air bag to have different rates of inflation that are
based on the rate of relevant vehicle decelera-
tion as assessed by the air bag control unit.
On the passenger side, the front air bag deploy-
ment is additionally influenced by the passen-
ger’s weight category as identified by the
Occupant Classification System (OCS)
(
page 72).
The lighter the passenger side occupant, the
higher the vehicle deceleration rate required for
the second stage inflation of the air bag.
