424 Practical hintsFusesThe electrical fuses in your vehicle serve to
switch off malfunctioning power circuits.
If a fuse is blown, the components and sys-
tems secured by that fuse will stop operat-
ing.If a newly inserted fuse blows again, have
the cause determined and rectified by an
authorized Mercedes-Benz Center.
The following aids are available to help you
replace fuses. They are located in the trunk
with the vehicle tool kit (
page 388).


Fuse chart
The fuse chart explains the fuse alloca-
tion and fuse amperages.


Spare fuses


Fuse extractor
The electrical fuses are located in different
fuse boxes:


on the driver’s side of the engine com-
partment (
page 425)


on the passenger side of the engine
compartment (
page 425)


under passenger-side rear storage
compartment (
page 426)


in the trunk (
page 426)Before replacing fuses:

Apply the parking brake (
page 61).

Make sure the gear selector lever is set
to position P (
page 168).

Turn off all electrical consumers.

Turn off the engine (
page 62).

Remove the SmartKey from the starter
switch.
Vehicles with KEYLESS-GO*: Open
the driver’s door.
Warning!
G
Only use fuses approved by Mercedes-Benz
with the specified amperage for the system
in question and do not attempt to repair or
bridge a blown fuse. Using other than ap-
proved fuses or using repaired or bridged
fuses may cause an overload leading to a
fire, and/or cause damage to electrical
components and/or systems. Have the
cause determined and remedied by an
authorized Mercedes-Benz Centeri
A blown fuse must be replaced by an appro-
piate spare fuse (recognizable by its color or the
fuse rating given on the fuse) of the amperage
recommended in the fuse chart.
Any Mercedes-Benz Center will be glad to advise
you on this subject.

425 Practical hintsFuses
Fuse boxes in engine compartment
Open the hood (
page 274).
The fuse boxes are located on the driver’s
and passenger side in front of the bulk-
head (wall separating the engine and pas-
senger compartment).
Fuse box on driver’s side1Fuse box cover
2Locking
3Unlocking
Fuse box on passenger side1Fuse box cover
2Locking
3UnlockingOpening

Move slide to position 3 and lift
cover1.
Closing

Hook cover 1 onto tabs and close it.

Move slide to position 2.

Close the hood after checking or re-
placing fuses (
page 275).
!
The fuse box cover must be properly posi-
tioned with the slide at the ‹ symbol to pre-
vent moisture or dirt from entering the fuse box
and possibly impairing fuse operation.

426 Practical hintsFusesFuse box in passenger compartment
The fuse box is located under the rear pas-
senger-side storage compartment.
1Clips
2Storage compartment floor
Open the rear passenger-side storage
compartment (
page 235).

Lift both clips 1.

Remove storage compartment floor 2
in direction of arrow.
You can now access the fuses.

To reinstall storage compartment
floor2 after checking or replacing
fuses, follow the procedure in reverse
order.
Fuse in trunk
The fuse in the trunk is located on the
right-hand side of the trunk.
Lift up the trunk floor cover.
Emergency engine shut-down
If the engine cannot be turned off as de-
scribed, you may use the following emer-
gency procedure.
Take the fuse chart from the vehicle
tool kit (
page 388).

Find row “Engine emergency stop” in
the fuse chart table to identify the
fuses that have to removed as well as
their locations.

Remove the respective fuses.

427 Technical data
Parts service
Warranty coverage
Identification labels
Layout of poly-V-belt drive
Engine
Rims and tires
Electrical system
Main dimensions
Weights
Fuels, coolants, lubricants, etc.

428 Technical dataThe “Technical data” section provides the
necessary technical data for your vehicle.Parts service
All authorized Mercedes-Benz Centers
maintain a stock of Genuine
Mercedes-Benz parts required for mainte-
nance and repair work. In addition, strate-
gically located parts distribution centers
provide quick and reliable parts service.
More than 300 000 different parts for
Mercedes-Benz models are available.
Genuine Mercedes-Benz parts are subject-
ed to stringent quality inspections. Each
part has been specifically developed, man-
ufactured or selected for and adapted to
Mercedes-Benz vehicles.
Therefore, Genuine Mercedes-Benz parts
should be installed.
!
The use of non-genuine Mercedes-Benz
parts and accessories not authorized by
Mercedes-Benz could damage the vehicle, which
is not covered by the Mercedes-Benz Limited
Warranty, or could compromise the vehicle’s du-
rability or safety.

429 Technical data
Warranty coverage
Warranty coverage
Your vehicle is covered under the terms of
the warranties printed in the Service and
Warranty Information booklet. Your
authorized Mercedes-Benz Center will ex-
change or repair any defective parts origi-
nally installed in the vehicle in accordance
with the terms of the following warranties:

New Vehicle Limited Warranty


Emission System Warranty


Emission Performance Warranty


California, Maine, Massachusetts, and
Vermont Emission Control Systems
WarrantyReplacement parts and accessories are
covered by the Mercedes-Benz Parts and
Accessories warranties, copies of which
are available at any Mercedes-Benz Cen-
ter.Loss of Service and Warranty
Information Booklet
Should you lose your Service and Warranty
Information booklet, have an authorized
Mercedes-Benz Center arrange for a re-
placement. It will be mailed to you.

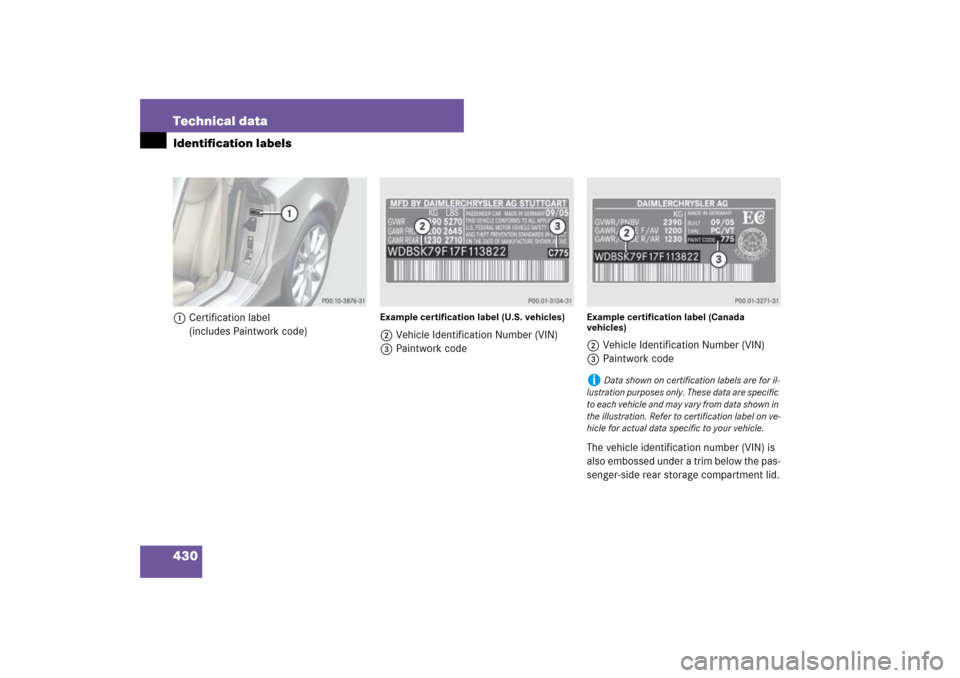

430 Technical dataIdentification labels1Certification label
(includes Paintwork code)
Example certification label (U.S. vehicles)2Vehicle Identification Number (VIN)
3Paintwork code
Example certification label (Canada
vehicles)2Vehicle Identification Number (VIN)
3Paintwork code
The vehicle identification number (VIN) is
also embossed under a trim below the pas-
senger-side rear storage compartment lid.i
Data shown on certification labels are for il-
lustration purposes only. These data are specific
to each vehicle and may vary from data shown in
the illustration. Refer to certification label on ve-
hicle for actual data specific to your vehicle.

431 Technical data
Identification labels

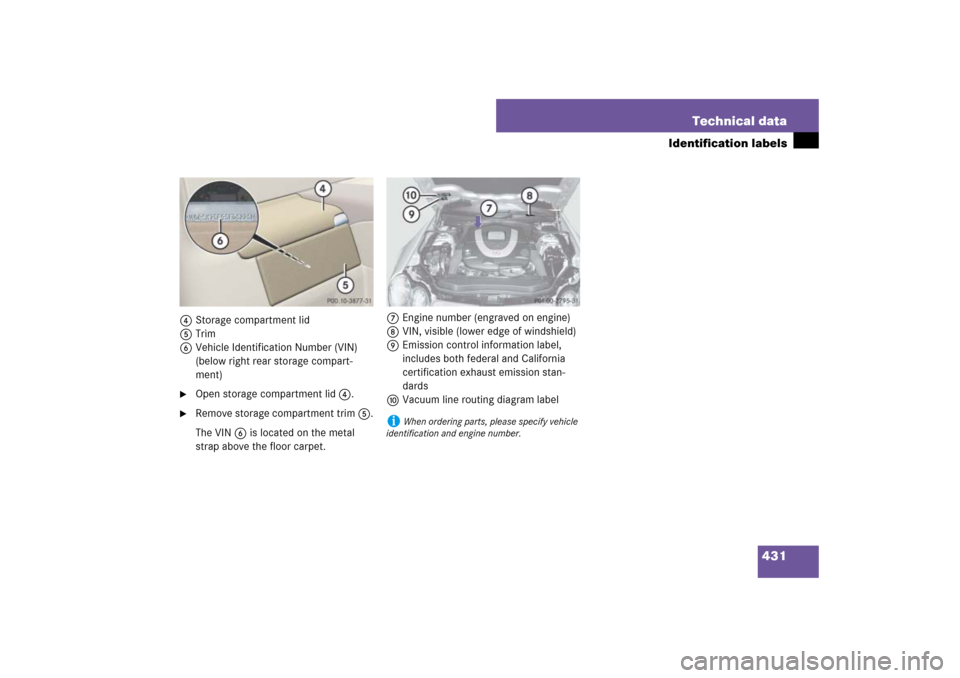

4Storage compartment lid
5Trim
6Vehicle Identification Number (VIN)
(below right rear storage compart-
ment)
Open storage compartment lid 4.

Remove storage compartment trim 5.
The VIN 6 is located on the metal
strap above the floor carpet.7Engine number (engraved on engine)
8VIN, visible (lower edge of windshield)
9Emission control information label,
includes both federal and California
certification exhaust emission stan-
dards
aVacuum line routing diagram label
i
When ordering parts, please specify vehicle
identification and engine number.
