2007 MERCEDES-BENZ SL65AMG Owner's Manual

392 Practical hintsLocking/unlocking in an emergencyUnlocking the trunk
A minimum height clearance of 6.2 ft
(1.89 m) is required to open the trunk lid.
1Unlocking in an emergency
2Handle
Insert the mechanical key into the
trunk lid lock until it stops.

Turn the mechanical key counterclock-
wise to position 1.
The trunk is unlocked

Pull handle 2 and lift lid.

Turn the mechanical key back and re-
move it from the trunk lid lock.Unlocking the glove box
Lockable storage areas in the passenger
compartment include:


the glove box


the storage compartment under the
armrest


the rear storage compartments
If these cannot be unlocked by means of
the SmartKey or the SmartKey with
KEYLESS-GO*, use the mechanical key to
unlock the glove box.1Separately unlocking the glove box

Slide mechanical key out of SmartKey
housing (
page 391).

Insert the mechanical key into the
glove box lock and turn it to
position1.
You can now open the glove box.
i
To unlock the remaining storage compart-
ments, the cause for the malfunction of the
SmartKey or the SmartKey with KEYLESS-GO*
must be determined and corrected, see
(
page 104) and (
page 109).

393 Practical hints
Locking/unlocking in an emergency
Locking the vehicle
If you cannot lock the vehicle with the
SmartKey, lock it with the mechanical key
as follows:
Close the passenger door and the
trunk.

Press the central locking switch in the
center console (
page 119).

Check whether the locking knob on the
passenger door has moved down.

If necessary push it down manually.

Remove the mechanical key from of
the SmartKey (
page 391).

Check whether the trunk is locked.

If necessary, lock the trunk with the
mechanical key (
page 117).
Except for the driver’s door, the vehicle
should now be locked.1Locking
2Mechanical key

Insert mechanical key 2 (
page 391)
into the driver’s door lock until it stops.

Turn mechanical key 2 clockwise to
position 1.
The driver’s door is locked.
i
Unlocking the glove box with the mechanical
key will trigger the anti-theft alarm system. To
cancel the alarm, do one of the following:


Press button Œ or ‹ on the
SmartKey.


Insert the SmartKey in the starter switch.


Press the KEYLESS-GO* start/stop button
(page 40).


Grasp an outside door handle (vehicles with
KEYLESS-GO* only).
i
This procedure does not arm the anti-theft
alarm system, nor does it lock the fuel filler flap
and the storage compartments.
The storage compartments can be locked
separately (
page 235).

394 Practical hintsLocking/unlocking in an emergencyLowering the load assist manually
If the load assist feature does not fully low-
er the retractable hardtop into the trunk
compartment and you are unable to close
the trunk lid, follow the instructions below.
1Hex-socket wrench
2Locking screw
Remove the trunk floor from the trunk.

Lift up the lid located at the lower left
side of the trunk.

Have a second person lift and hold the
retracted hardtop.

Using hex-socket 1 wrench provided
in the vehicle tool kit, carefully turn the
locking screw 2 approximately one
quarter of a turn.

Hook luggage cover into holders
(page 205).

Let go of the hardtop.
It should gradually lower into the trunk.

When top is completely lowered, return
locking screw 2 to its original posi-
tion.

Close the lid.

Replace the trunk floor.

Visit an authorized Mercedes-Benz
Center as soon as possible.
!
Do not overtighten the screw.

395 Practical hints
Replacing SmartKey batteries
Replacing SmartKey batteries
If the batteries in the SmartKey or the
SmartKey with KEYLESS-GO* are dis-
charged, the vehicle can no longer be
locked or unlocked. It is recommended to
have the batteries replaced at an autho-
rized Mercedes-Benz Center.Batteries contain materials that can harm
the environment if disposed of improperly.
Recycling of batteries is the preferred
method of disposal. Many states require
sellers of batteries to accept old batteries
for recycling.

Remove the mechanical key from the
SmartKey or SmartKey with
KEYLESS-GO* (
page 391).
1Mechanical key
2Battery compartment

Insert mechanical key 1 into opening.

Press mechanical key 1 in direction of
arrow.
The battery compartment is unlatched.

Pull battery compartment 2 out of the
housing.
Warning!
G
Batteries contain poisonous and corrosive
substances. Therefore keep the batteries
out of reach of children.
If a battery is swallowed, seek medical help
immediately.
i
When inserting batteries, make sure they
are clean and free of lint.
i
When replacing batteries, always replace
both batteries.
The required replacement batteries (Lithium,
type CR 2025 or equivalent) are available at any
authorized Mercedes-Benz Center.


396 Practical hintsReplacing SmartKey batteries3Batteries
4Contact spring
Pull out batteries3.

Using a lint-free cloth, insert new bat-
teries 3 under contact springs 4 with
the positive terminal (+) side facing up.

Return battery compartment 2 into
housing until it locks into place.

Slide mechanical key 1 back into
SmartKey or SmartKey with
KEYLESS-GO*.

Check the operation of the SmartKey
or SmartKey with KEYLESS-GO* as well
as the KEYLESS-GO* function.


397 Practical hints
Replacing bulbs
Replacing bulbs
Bulbs
Safe vehicle operation depends on proper
exterior lighting and signaling. It is there-
fore essential that all bulbs and lamp as-
semblies are in good working order at all
times.
Correct headlamp adjustment is extremely
important. Have headlamps checked and
readjusted at regular intervals and when a
bulb has been replaced. See an authorized
Mercedes-Benz Center for headlamp ad-
justment.
Warning!
G
Bulbs and bulb sockets can be very hot. Al-
low the lamp to cool down before changing
a bulb.
Keep bulbs out of reach of children.
Halogen lamps contain pressurized gas. A
bulb can explode if you:

touch or move it when hot


drop the bulb


scratch the bulb
Wear eye and hand protection.
Because of high voltage in Xenon lamps, it is
dangerous to replace the bulb or repair the
lamp and its components. We recommend
that you have such work done by a qualified
technician.
i
If the headlamps or front fog lamps are
fogged up on the inside as a result of high humid-
ity, driving the vehicle a distance with the lights
on should clear up the fogging.
i
Auxiliary bulbs will be brought into use when
the following lamps malfunction:


Turn signal lamps


Brake lamps


Parking lamps


Tail lamps
Observe the messages in the multifunction dis-
play (page 347).

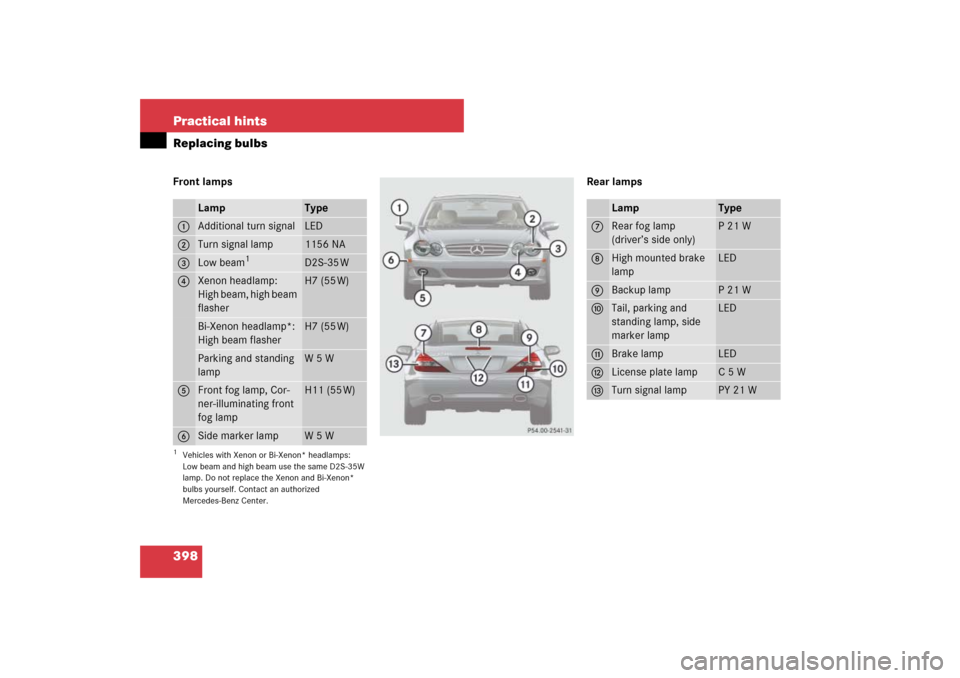

398 Practical hintsReplacing bulbsFront lamps Rear lamps
Lamp
Type
1
Additional turn signal
LED
2
Turn signal lamp
1156 NA
3
Low beam
1
1Vehicles with Xenon or Bi-Xenon* headlamps:
Low beam and high beam use the same D2S-35W
lamp. Do not replace the Xenon and Bi-Xenon*
bulbs yourself. Contact an authorized
Mercedes-Benz Center.
D2S-35 W
4
Xenon headlamp:
High beam, high beam
flasher
H7 (55 W)
Bi-Xenon headlamp*:
High beam flasher
H7 (55 W)
Parking and standing
lamp
W 5 W
5
Front fog lamp, Cor-
ner-illuminating front
fog lamp
H11 (55 W)
6
Side marker lamp
W 5 W
Lamp
Type
7
Rear fog lamp
(driver’s side only)
P 21 W
8
High mounted brake
lamp
LED
9
Backup lamp
P 21 W
a
Tail, parking and
standing lamp, side
marker lamp
LED
b
Brake lamp
LED
c
License plate lamp
C 5 W
d
Turn signal lamp
PY 21 W

399 Practical hints
Replacing bulbs
Notes on bulb replacement

Only use 12-volt bulbs of the same type
and with the specified watt rating.


Switch the lights off before changing a
bulb to prevent short circuits.


Always use a clean lint-free cloth when
handling bulbs.


Your hands should be dry and free of oil
and grease.


If the newly installed bulb does not
come on, visit an authorized
Mercedes-Benz Center.Have the LEDs and bulbs for the following
lamps replaced by an authorized
Mercedes-Benz Center:


the additional turn signals in the exteri-
or rear view mirrors


the high mounted brake lamp


the brake lamps


the parking lamps and the side marker
lamps in the tail lamp unit


the rear fog lamps


the low beam (Xenon or Bi-Xenon*)
lamps


the front fog lamps


the front side marker lamps
Replacing bulbs for front lamps
Before you start to replace a bulb for a
front lamp, do the following first:
Turn the exterior lamp switch to posi-
tion M (
page 128).

Open the hood (
page 274).
1Bulb socket for turn signal lamp
2High beam headlamp cover
3Low beam headlamp cover (Xenon or
Bi-Xenon* lamp). Do not remove.
i
Have the headlamp adjustment checked
regularly.
