ContentsOperation......................................... 257
The first 1000 miles (1500 km) ......... 258
Driving instructions ............................ 259
Drive sensibly – save fuel ............. 259
Drinking and driving ..................... 259
Pedals .......................................... 259
Power assistance ......................... 260
Brakes .......................................... 260
Driving off..................................... 262
Parking ......................................... 263
Tires ............................................. 263
Hydroplaning ................................ 264
Tire traction .................................. 265
Tire speed rating .......................... 265
Winter driving instructions ........... 266
Standing water ............................. 267
Passenger compartment .............. 268
Driving abroad .............................. 268
Control and operation of radio
transmitters.................................. 268
Catalytic converter ....................... 269
Emission control........................... 269
Coolant temperature .................... 270At the gas station .............................. 271
Refueling ...................................... 271
Check regularly and before a
long trip........................................ 272
Engine compartment ......................... 274
Hood ............................................ 274
Engine oil ..................................... 275
Transmission fluid level ................ 279
Oil level in the ABC system .......... 279
Coolant ........................................ 280
Battery ......................................... 281
Windshield washer system and
headlamp cleaning system ........... 282
Tires and wheels ................................ 283
Important guidelines .................... 283
Tire care and maintenance ........... 284
Direction of rotation ..................... 286
Loading the vehicle ...................... 286
Recommended tire inflation
pressure ....................................... 291
Checking tire inflation pressure ... 292
MOExtended system* .................. 301
Tire labeling.................................. 302
Load identification ....................... 306
DOT, Tire Identification Number
(TIN) ............................................. 307Maximum tire load ....................... 308
Maximum tire inflation pressure .. 309
Uniform Tire Quality Grading
Standards (U.S. vehicles) ............. 309
Tire ply material ........................... 311
Tire and loading terminology........ 312
Rotating tires ............................... 315
Winter driving .................................... 316
Winter tires .................................. 316
Block heater (Canada only) .......... 317
Snow chains................................. 318
Maintenance...................................... 319
Maintenance service indicator
message ...................................... 319
Calling up the maintenance
service indicator display .............. 320
Resetting the maintenance
service indicator .......................... 321
Vehicle care....................................... 322
Cleaning and care of the vehicle .. 322

87 Safety and Security
Driving safety systems
Driving safety systems
In this section you will find information on
the following driving safety systems:

ABS (A
ntilock B
rake S
ystem)


BAS (B
rake A
ssist S
ystem)


ESP
® (E
lectronic S
tability P
rogram)


Electro-hydraulic brake system
ABS
The Antilock Brake System (ABS) regulates
the brake pressure so that the wheels do
not lock during braking. This allows you to
maintain the ability to steer your vehicle.
The ABS is functional above a speed of
approximately 5 mph (8 km/h) indepen-
dent of road surface conditions.
On slippery road surfaces, the ABS will re-
spond even to light brake pressure.
Warning!
G
The following factors increase the risk of ac-
cidents:

Excessive speed, especially in turns


Wet and slippery road surfaces


Following another vehicle too closely
The ABS, BAS, ESP
®, and the electro-hy-
draulic brake system cannot reduce this
risk.
Always adjust your driving style to the pre-
vailing road and weather conditions.
i
In winter operation, the maximum effective-
ness of the ABS, the BAS, the ESP
®, and the
electro-hydraulic brake system is only achieved
with winter tires (
page 316) or snow chains as
required.
Warning!
G
Do not pump the brake pedal. Use firm,
steady brake pedal pressure instead. Pump-
ing the brake pedal defeats the purpose of
the ABS and significantly reduces braking
effectiveness.

91 Safety and Security
Driving safety systems
Electronic traction system
The electronic traction system is a compo-
nent of ESP
®.
The electronic traction system improves
the vehicle’s ability to utilize available trac-
tion, especially under slippery road condi-
tions by applying the brakes to a spinning
wheel.
When you switch off the ESP
®, the elec-
tronic traction system is still enabled.Switching off the ESP
®
To improve the vehicle’s traction, switch
off the ESP
® in driving situations where it
would be advantageous to have the drive
wheels spin and thus cut into surfaces for
better grip such as:


when driving with snow chains


in deep snow


in sand or gravelWhen you switch off the ESP
®


the ESP
® does not stabilize the vehicle


the engine output is not limited, which
allows the drive wheels to spin and
thus cut into surfaces for better grip


the electronic traction system will still
apply the brakes to a spinning wheel


the ESP
® continues to operate when
you are braking


you cannot activate the cruise control
or the Distronic* system


the cruise control or the Distronic* sys-
tem switch off if currently activated
Warning!
G
If you are driving too fast, the electronic
traction system cannot reduce the risk of an
accident.
The electronic traction system cannot pre-
vent the natural laws of physics from acting
on the vehicle.
Warning!
G
ESP
® should not be switched off during nor-
mal driving other than in the circumstances
described below. Disabling of the system
will reduce vehicle stability in standard driv-
ing maneuvers.
Do not switch off the ESP
® when a spare
wheel is mounted.
!
Switch on the ESP
® immediately if the
aforementioned circumstances do not apply
anymore.
i
When the ESP
® is switched off and one or
more drive wheels are spinning, the ABS/ESP
®
warning lamp v in the speedometer flashes.
However, the ESP
® will then not stabilize the
vehicle.

226 Controls in detailDriving systemsThe vehicle chassis ride height is raised or
lowered according to the selected level
setting and to the vehicle speed:

With increasing speed, ride height is re-
duced by up to approximately 0.5 inch
(12 mm).


With decreasing speed, the ride height
is again raised to the selected vehicle
level.The following vehicle level settings can be
selected when the vehicle is stationary:
Select the level 1 and level 2 settings only
when required by current driving condi-
tions. Otherwise:


Fuel consumption may increase.


Handling may be impaired.The ABC vehicle level control button with
the indicator lamps is located in the lower
section of the center console.
1Indicator lamp 1
2Indicator lamp 2
3ABC vehicle level control button
i
These height adjustments are so small that
you may not notice any change.
Vehicle
level
Use for
Indicator
lamps
Normal
For driving on nor-
mal roads.
Both
lamps off
Level 1
For driving on
rough roads or with
snow chains
(page 318).
One
lamp on
Level 2
For driving on very
rough road surface
conditions.
Both
lamps on
i
The selected vehicle level setting remains
stored in memory, even if the engine is turned off
and restarted.

266 OperationDriving instructionsSL 550
Your vehicle is factory equipped with
“W”-rated tires, which have a speed rating
of 168 mph (270 km/h).
An electronic speed limiter prevents your
vehicle from exceeding a speed of
155 mph (250 km/h).
SL 600
SL 55 AMG
SL 65 AMG
SL 550 (Sport Package*)
SL 600 (Sport Package*)
Your vehicle is factory equipped with
“Y”-rated tires, which have a speed rating
of 186 mph (300 km/h).
An electronic speed limiter prevents your
vehicle from exceeding a speed of
155 mph (250 km/h).SL 55 AMG (Performance Package*)
Your vehicle is factory equipped with
“Y”-rated tires, which have a speed rating
of 186 mph (300 km/h).
An electronic speed limiter prevents your
vehicle from exceeding a speed of
186 mph (300 km/h).
Winter driving instructions
The most important rule for slippery or icy
roads is to drive sensibly and to avoid
abrupt acceleration, braking and steering
maneuvers. Do not use the cruise control
system under such conditions.
When the vehicle is in danger of skidding,
move gear selector lever to positionN. Try
to keep the vehicle under control by cor-
rective steering action.
i
For information on tire speed rating for win-
ter tires, see “All-season and winter tires”
(
page 306).
For additional general information on tire speed
markings on tire sidewall, see “Tire speed rating”
(page 304).
i
For information on driving with snow chains,
see “Snow chains” (
page 318).
Warning!
G
On slippery road surfaces, never downshift
in order to obtain braking action. This could
result in drive wheel slip and reduced vehi-
cle control. Your vehicle’s ABS will not pre-
vent this type of control loss.

293 Operation
Tires and wheels
Checking tire inflation pressure
manually
Follow the steps below to achieve correct
tire inflation pressure:
Remove the cap from the valve on one
tire.

Firmly press a tire gauge onto the
valve.

Read tire inflation pressure on tire
gauge and check against the recom-
mended tire inflation pressure on the
placard on the driver’s door B-pillar
(page 286). If necessary, add air to
achieve the recommended tire inflation
pressure.

Install the valve cap.

Repeat this procedure for each tire.Run Flat Indicator (Canada only)
While the vehicle is being driven, the Run
Flat Indicator monitors the set tire inflation
pressures by evaluating each wheel’s rota-
tional speed. This allows the system to de-
tect a significant loss of pressure in a tire.
If a wheel’s rotational speed changes due
to falling tire inflation pressure, you will
see a corresponding warning message in
the multifunction display.
The Run Flat Indicator may function in a re-
stricted manner or with a delay


if snow chains are mounted to the
vehicle


in presence of ice and snow


if you are driving on a loose surface
(e.g. sand or gravel)


if you are driving in a very sporty man-
ner (involving rapid acceleration or high
speeds in curves)
Warning!
G
Follow recommended tire inflation
pressures.
Do not underinflate tires. Underinflated tires
wear excessively and/or unevenly,
adversely affect handling and fuel economy,
and are more likely to fail from being over-
heated.
Do not overinflate tires. Overinflated tires
can adversely affect handling and ride
comfort, wear unevenly, increase stopping
distance, and result in sudden deflation
(blowout) because they are more likely to
become punctured or damaged by road
debris, potholes etc.
Do not overload the tires by exceeding the
specified load limit or vehicle capacity
weight as indicated on the placard on the
driver’s door B-pillar. Overloading the tires
can overheat them, possibly causing a
blowout. Overloading the tires can also
result in handling or steering problems, or
brake failure.
i
If you have overfilled the tire, release tire in-
flation pressure by pushing the metal stem of the
valve with e.g. a tip of a pen. Then recheck the
tire inflation pressure with the tire gauge.

318 OperationWinter drivingSnow chainsSnow chains should only be driven on
snow-covered roads at speeds not to ex-
ceed 30 mph (50 km/h). Remove chains
as soon as possible when driving on roads
without snow.
Please observe the following guidelines
when using snow chains:


Use of snow chains is not permissible
with all wheel/tire combinations
(page 435).


Use snow chains in pairs and on rear
wheels only. Follow the manufacturer’s
mounting instructions.


Only use snow chains that are ap-
proved by Mercedes-Benz. Any autho-
rized Mercedes-Benz Center will be
glad to advise you on this subject.


Use of snow chains may be prohibited
depending on location. Always check
local and state laws before installing
snow chains.


Do not use snow chains on the spare
wheel (
page 440).


Do not use snow chains on wheels with
MOExtended tires* (
page 439).
!
When driving with snow chains, always se-
lect setting 1 of the level control system
(
page 225). Other settings may result in dam-
age to your vehicle.
!
Some tire sizes do not leave adequate clear-
ance for snow chains. To help avoid serious dam-
age to your vehicle or tires, use of snow chains is
not permissible with


285/35 R18 97W


285/35 R18 97Y


285/35 ZR18 97Y


285/30 ZR19 98Y XL (Extra Load)
!
If snow chains are mounted to the front
wheels, they may scrape against the body or axle
components. The tires or the vehicle could be
damaged as a result.
i
When driving with snow chains, you may
wish to deactivate the ESP
® (page 91) before
setting the vehicle in motion. This will improve
the vehicle’s traction.

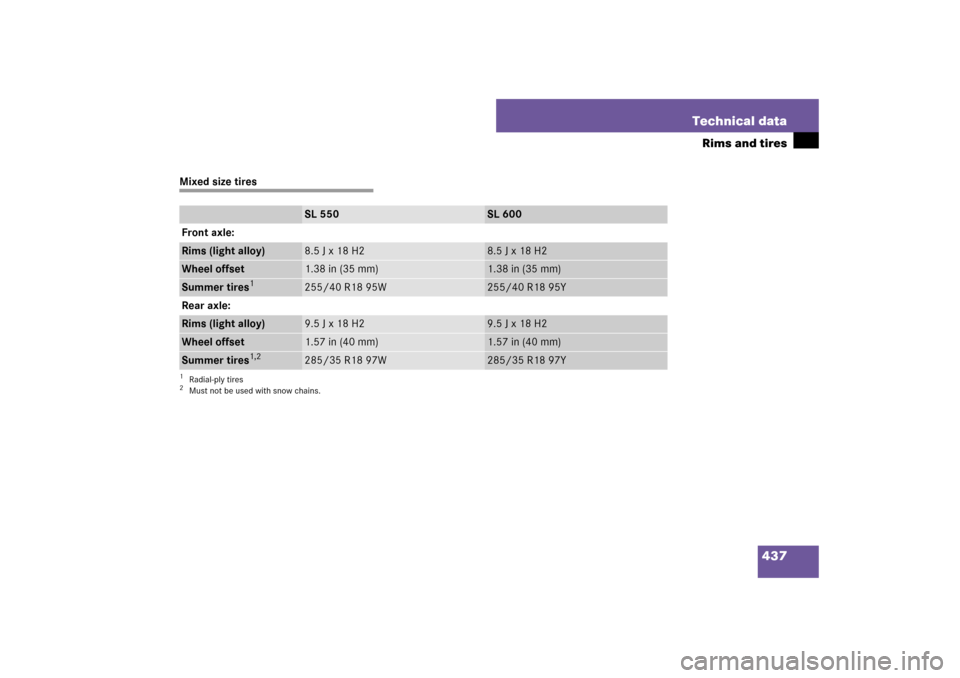

437 Technical data
Rims and tires
Mixed size tires
SL 550
SL 600
Front axle:
Rims (light alloy)
8.5 J x 18 H2
8.5 J x 18 H2
Wheel offset
1.38 in (35 mm)
1.38 in (35 mm)
Summer tires
1
1Radial-ply tires
255/40 R18 95W
255/40 R18 95Y
Rear axle:
Rims (light alloy)
9.5 J x 18 H2
9.5 J x 18 H2
Wheel offset
1.57 in (40 mm)
1.57 in (40 mm)
Summer tires
1,2
2Must not be used with snow chains.
285/35 R18 97W
285/35 R18 97Y
