2006 TOYOTA TUNDRA Owners Manual

’06 TUNDRA_U (L/O 0508)
21
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
Driver’s side
Passenger’s side
LOCKING AND UNLOCKING WITH
POWER DOOR LOCK SWITCH
Push the switch.
To lock: Push the switch down on the
front side.
To unlock: Push the switch down on the
rear side.
Both doors lock or unlock simultaneously.
CAUTION
Before driving, be sure that the doors
are closed and locked, especially
when small children are in the ve-
hicle. Along with the proper use of
seat belts, locking the doors helps
prevent the driver and passengers
from being thrown out from the ve-
hicle during an accident. It also helps
prevent the doors from being opened
unintentionally.
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
All the doors lock and unlock simulta-
neously with either front door. In the driv-
er’s door lock, turning the key once will
unlock the driver’s door and twice in suc-
cession will unlock all the doors simulta-
neously.
This double key turning operation to un-
lock all the doors can be changed to a
single key turning operation. For details,
contact your Toyota dealer.
Side doors
(double cab models)

’06 TUNDRA_U (L/O 0508)
22
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
When all the doors are unlocked simulta-
neously using a key, the interior light, igni-
tion switch light, step light come on for
about 15 seconds and cargo lamp for
about 20 seconds before fading out. (For
details, see “Center interior and personal
lights”, “Ignition switch and step lights”
and “Cargo lamp” in Section 1 −5.)
LOCKING AND UNLOCKING WITH
INSIDE LOCK KNOB
Move the lock knob.
To lock: Push the knob forward.
To unlock: Pull the knob backward.
The front doors can be opened by pulling
the inside handles even if the lock knobs
are in the locked position.
CAUTION
Do not pull the inside handle of the
front doors while driving. The doors
will open and an accident may occur.
Toyota strongly recommends that all
children be placed in the rear seat of
the vehicle.
Closing the door with the lock knob in the
lock position will also lock the door. Be
careful not to lock your keys in the ve-
hicle.
Doors cannot be locked when either front
door is open and the key is in the igni-
tion.

’06 TUNDRA_U (L/O 0508)
23
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
Driver’s side
Passenger’s side
LOCKING AND UNLOCKING WITH
POWER DOOR LOCK SWITCH
Push the switch.
To lock: Push the switch down on the
front side.
To unlock: Push the switch down on the
rear side.
All the doors lock or unlock simultaneous-
ly.
When the front doors are locked with the
inside lock knob, the key or the wireless
remote control transmitter, the power door
lock switch will not work until either front
door is unlocked with the key, lock knob,
or wireless remote control transmitter.
REAR DOOR CHILDPROTECTORS
Move the lock lever to the “LOCK”
position as shown on the label.
When the child−protector is locked, you
cannot open the rear door by the inside
door handle. We recommend using this
feature whenever small children are in the
vehicle.

’06 TUNDRA_U (L/O 0508)
24
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
CAUTION
Before driving, be sure that the doors
are closed and locked, especially
when small children are in the ve-
hicle. Along with the proper use of
seat belts, locking the doors helps
prevent the driver and passengers
from being thrown out from the ve-
hicle in an accident. It also helps pre-
vent the doors from being opened
unintentionally.
For easy access to the rear seat, open
the access door (rear door).
To open: First, open the front door widely.
Then pull the outside handle or inside le-
ver of the access door.
If you try to open the front and rear doors
simultaneously, they will not open.
To close: First, close the access door
completely. Then close the front door.
You can open and close the access door
only when the front door is widely opened.
NOTICE
The front door and access door could
be damaged if they hit each other
when being opened or closed. Be
sure to follow the above instructions.
Access doors
(access cab models)

’06 TUNDRA_U (L/O 0508)
25
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)

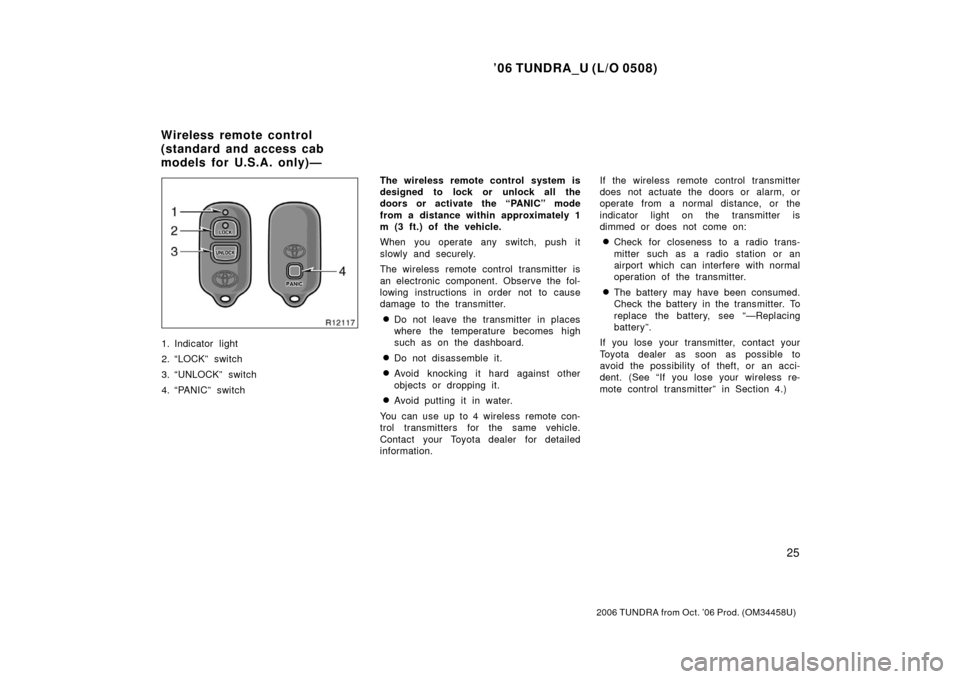

1. Indicator light
2. “LOCK” switch
3. “UNLOCK” switch
4. “PANIC” switch The wireless remote control system is
designed to lock or unlock all the
doors or activate the “PANIC” mode
from a distance within approximately 1
m (3 ft.) of the vehicle.
When you operate any switch, push it
slowly and securely.
The wireless remote control transmitter is
an electronic component. Observe the fol-
lowing instructions in order not to cause
damage to the transmitter.
Do not leave the transmitter in places
where the temperature becomes high
such as on the dashboard.
Do not disassemble it.
Avoid knocking it hard against other
objects or dropping it.
Avoid putting it in water.
You can use up to 4 wireless remote con-
trol transmitters for the same vehicle.
Contact your Toyota dealer for detailed
information. If the wireless remote control transmitter
does not actuate the doors or alarm, or
operate from a normal distance, or the
indicator light on the transmitter is
dimmed or does not come on:
Check for closeness to a radio trans-
mitter such as a radio station or an
airport which can interfere with normal
operation of the transmitter.
The battery may have been consumed.
Check the battery in the transmitter. To
replace the battery, see “—Replacing
battery”.
If you lose your transmitter, contact your
Toyota dealer as soon as possible to
avoid the possibility of theft, or an acci-
dent. (See “If you lose your wireless re-
mote control transmitter” in Section 4.)
Wireless remote control
(standard and access cab
models for U.S.A. only)—

’06 TUNDRA_U (L/O 0508)
26
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)

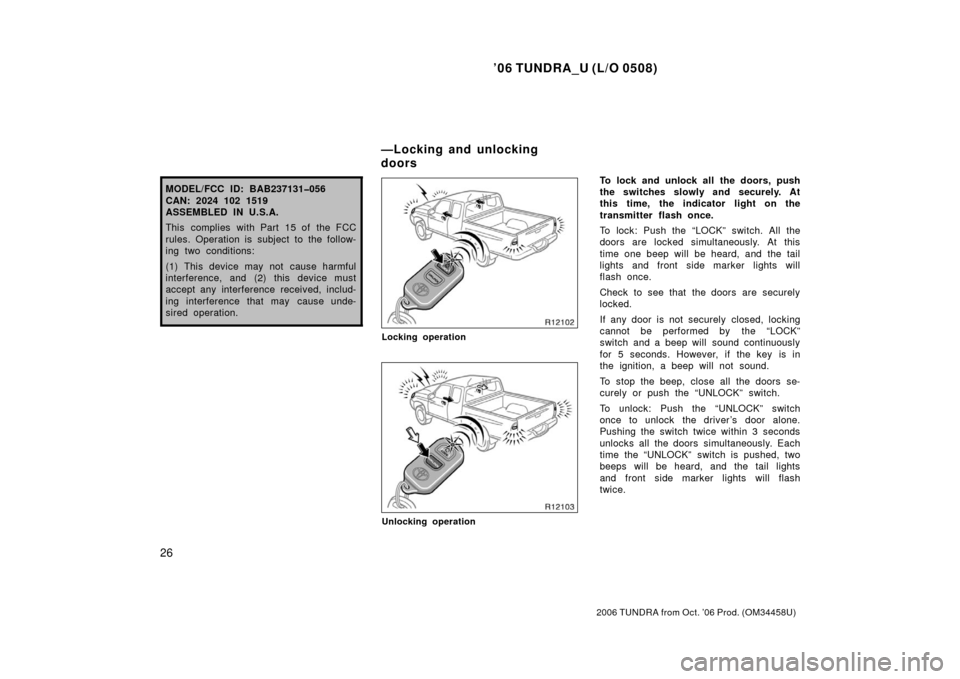

MODEL/FCC ID: BAB237131056
CAN: 2024 102 1519
ASSEMBLED IN U.S.A.
This complies with Part 15 of the FCC
rules. Operation is subject to the follow-
ing two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
Locking operation
Unlocking operation
To lock and unlock all the doors, push
the switches slowly and securely. At
this time, the indicator light on the
transmitter flash once.
To lock: Push the “LOCK” switch. All the
doors are locked simultaneously. At this
time one beep will be heard, and the tail
lights and front side marker lights will
flash once.
Check to see that the doors are securely
locked.
If any door is not securely closed, locking
cannot be performed by the “LOCK”
switch and a beep will sound continuously
for 5 seconds. However, if the key is in
the ignition, a beep will not sound.
To stop the beep, close all the doors se-
curely or push the “UNLOCK” switch.
To unlock: Push the “UNLOCK” switch
once to unlock the driver ’s door alone.
Pushing the switch twice within 3 seconds
unlocks all the doors simultaneously. Each
time the “UNLOCK” switch is pushed, two
beeps will be heard, and the tail lights
and front side marker lights will flash
twice.
—Locking and unlocking
doors

’06 TUNDRA_U (L/O 0508)
27
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
When the “UNLOCK” switch is pressed,
the interior light, personal light come on.
The lights remain on for about 30 seconds
unless any door is opened and closed.
(For details, see “Interior light” and “Per-
sonal lights” in Section 1−5.)
You have 60 seconds to open a door after
using the wireless remote unlock feature.
If a door is not opened by then, all the
doors will be automatically locked again.
If the “LOCK” or “UNLOCK” switch is kept
pressed in, the locking or unlocking opera-
tion is not repeated. Release the switch
and then push again.
Pushing the “PANIC” switch blows the
horn intermittently, flashes the tail
lights, and turns on the interior light.
The “PANIC” switch is used to deter ve-
hicle theft when you witness anyone at-
tempting to break into or damage your
vehicle.
The alarm will last for one minute. To stop
alarm midway, push the “PANIC” switch
once again, lock or unlock any door with
the key or transmitter, or turn the ignition
key from the “LOCK” to “ON” position.
The “PANIC” mode does not work when
the ignition key is in the ignition switch. For replacement, use a CR2025 lithium
battery or equivalent.
CAUTION
Special care should be taken to pre-
vent small children from swallowing
the removed transmitter battery or
components.
NOTICE

When replacing the battery, be care-
ful not to lose the components.
 Replace only with the same or
equivalent type recommended by a
Toyota dealer.
 Dispose of used batteries according
to the local laws.
Replace the transmitter battery by follow-
ing these procedures:
—Activating panic mode —Replacing battery

’06 TUNDRA_U (L/O 0508)
28
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
1. Using a coin or equivalent, open the
transmitter case.2. Remove the rubber gasket and set itaside.3. Remove the discharged transmitter bat-tery.
NOTICE
Do not bend the terminals.
