Routing devices
Anchor brackets Symbol
Use the routing device on the rear of the
seat back and the anchor bracket on the
side floor to attach the top strap.
Anchor brackets are installed for each
rear seating position.
This symbol indicates the locations of
user ready anchor brackets.TO USE THE ANCHOR BRACKET:
Outside position
1. Remove the head restraint.
Routing device
2. Route the top strap through the routing device as shown in the il-
lustration.
CAUTION
Make sure the top strap is not
twisted.

’06 TUNDRA_U (L/O 0508)
142
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
3. Fix the child restraint system with
the seat belt.
Latch the hook onto the anchor
bracket on the side floor and tighten
the top strap.
For instructions to install the child re-
straint system, see “Child restraint” in this
Section.
CAUTION
Make sure the top strap is securely
latched, and check that the child re-
straint system is secure by pushing
and pulling it in different directions.
Follow all the installation instructions
provided by its manufacturer.
4. Replace the head restraint.

’06 TUNDRA_U (L/O 0508)
143
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
Center position
1. Remove the head restraint.2. Fold down the cup holder, unfasten the fastener that attaches the anchor
bracket cover, and lift the cover.3. Route the top strap through the sloton top of the seat, pass the strap
through the seat, then latch the hook
onto the anchor bracket.
Close the cover and return the cup
holder to the original position.

’06 TUNDRA_U (L/O 0508)
144
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)

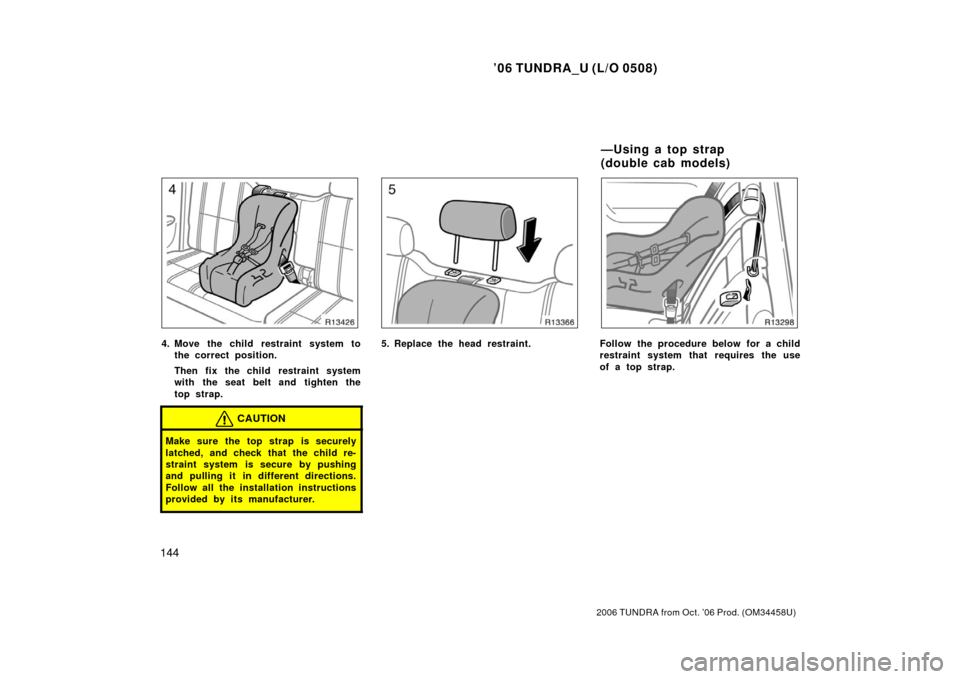

4. Move the child restraint system to
the correct position.
Then fix the child restraint system
with the seat belt and tighten the
top strap.
CAUTION
Make sure the top strap is securely
latched, and check that the child re-
straint system is secure by pushing
and pulling it in different directions.
Follow all the installation instructions
provided by its manufacturer.
5. Replace the head restraint.Follow the procedure below for a child
restraint system that requires the use
of a top strap.
— U sin g a to p st rap
(double cab models)

’06 TUNDRA_U (L/O 0508)
145
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
Anchor brackets

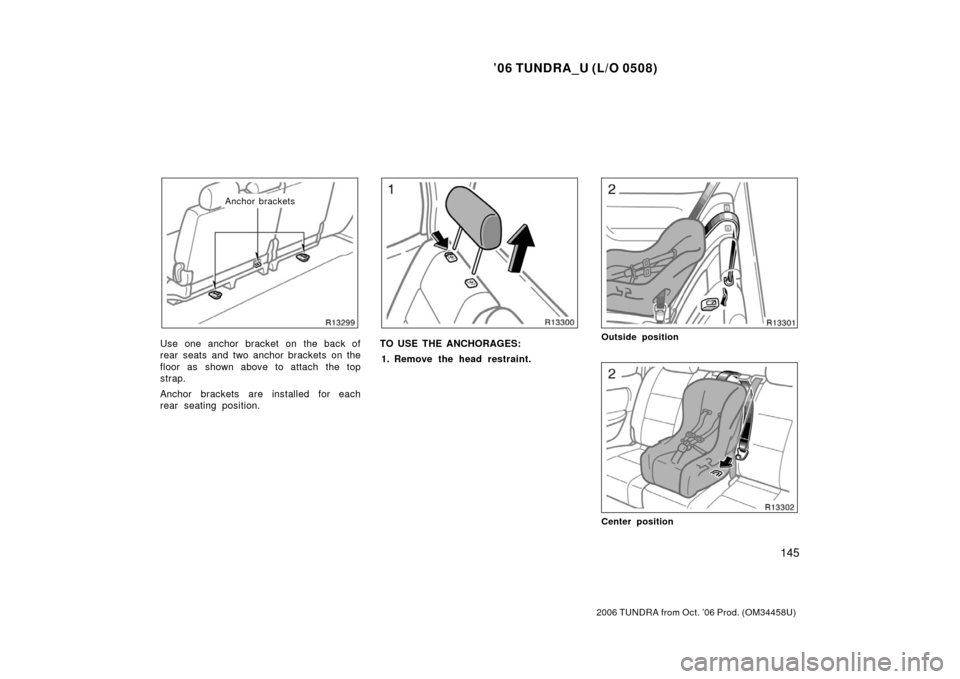

Use one anchor bracket on the back of
rear seats and two anchor brackets on the
floor as shown above to attach the top
strap.
Anchor brackets are installed for each
rear seating position.TO USE THE ANCHORAGES:
1. Remove the head restraint.Outside position
Center position

’06 TUNDRA_U (L/O 0508)
146
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)

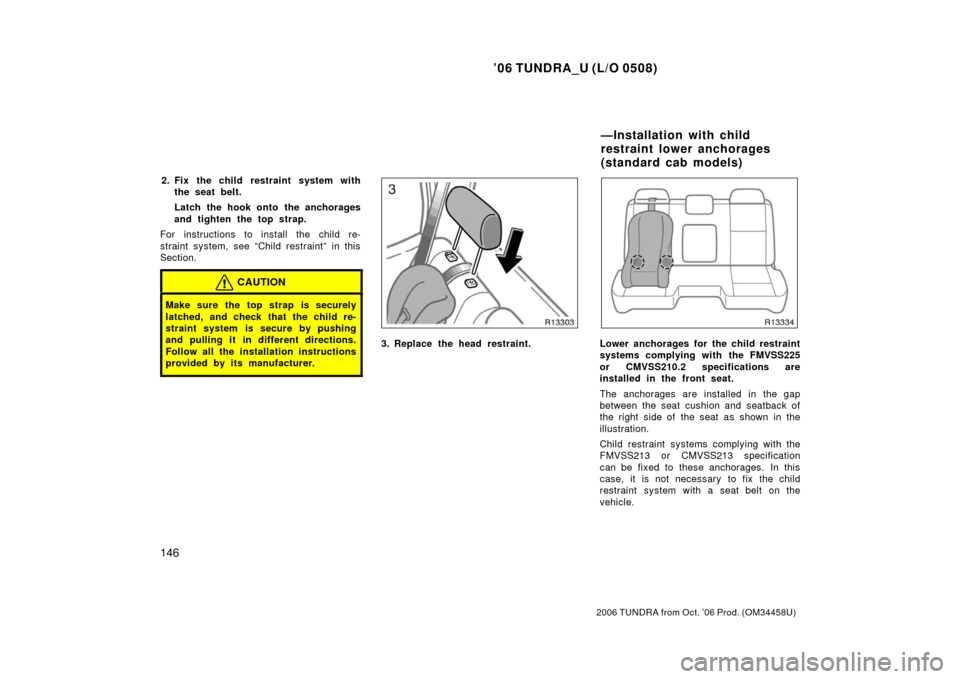

2. Fix the child restraint system with
the seat belt.
Latch the hook onto the anchorages
and tighten the top strap.
For instructions to install the child re-
straint system, see “Child restraint” in this
Section.
CAUTION
Make sure the top strap is securely
latched, and check that the child re-
straint system is secure by pushing
and pulling it in different directions.
Follow all the installation instructions
provided by its manufacturer.

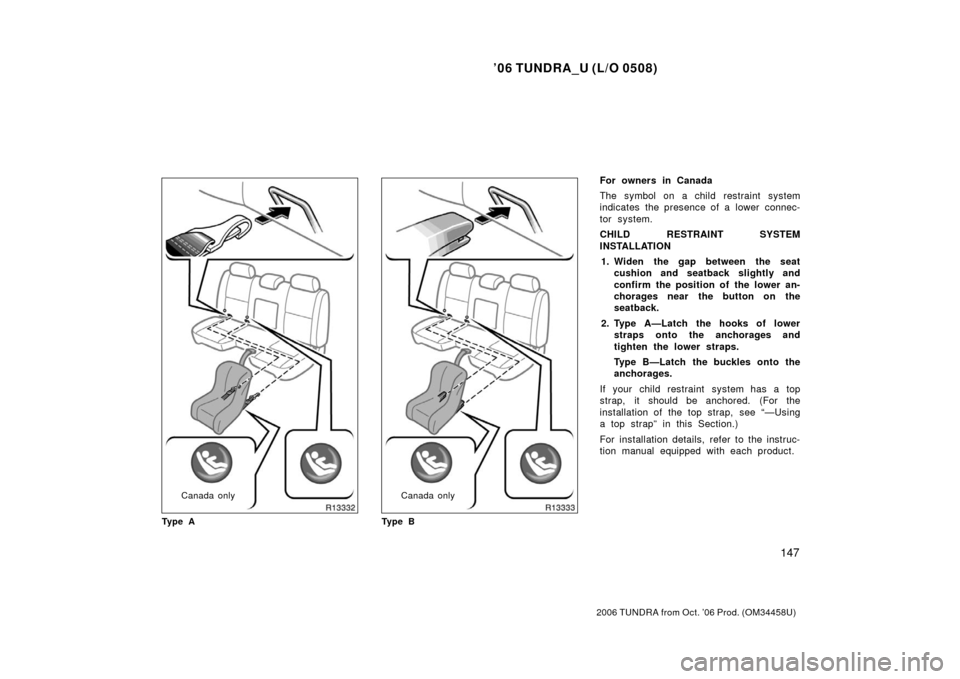

3. Replace the head restraint.Lower anchorages for the child restraint
systems complying with the FMVSS225
or CMVSS210.2 specifications are
installed in the front seat.
The anchorages are installed in the gap
between the seat cushion and seatback of
the right side of the seat as shown in the
illustration.
Child restraint systems complying with the
FMVSS213 or CMVSS213 specification
can be fixed to these anchorages. In this
case, it is not necessary to fix the child
restraint system with a seat belt on the
vehicle.
—Installation with child
restraint lower anchorages
(standard cab models)

’06 TUNDRA_U (L/O 0508)
147
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
Canada only
Ty p e ACanada only
Ty p e B
For owners in Canada
The symbol on a child restraint system
indicates the presence of a lower connec-
tor system.
CHILD RESTRAINT SYSTEM
INSTALLATION 1. Widen the gap between the seat cushion and seatback slightly and
confirm the position of the lower an-
chorages near the button on the
seatback.
2. Type A—Latch the hooks of lower straps onto the anchorages and
tighten the lower straps.
Type B—Latch the buckles onto the
anchorages.
If your child restraint system has a top
strap, it should be anchored. (For the
installation of the top strap, see “—Using
a top strap” in this Section.)
For installation details, refer to the instruc-
tion manual equipped with each product.

’06 TUNDRA_U (L/O 0508)
148
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
CAUTION
When using the lower anchorages
for the child restraint system, be
sure that there are no irregular ob-
jects around the anchorages or that
the seat belt is not caught.
Push and pull the child restraint
system in different directions to be
sure it is secure. Follow all the
installation instructions provided by
its manufacturer.
After securing the child restraint
system, never slide or recline the

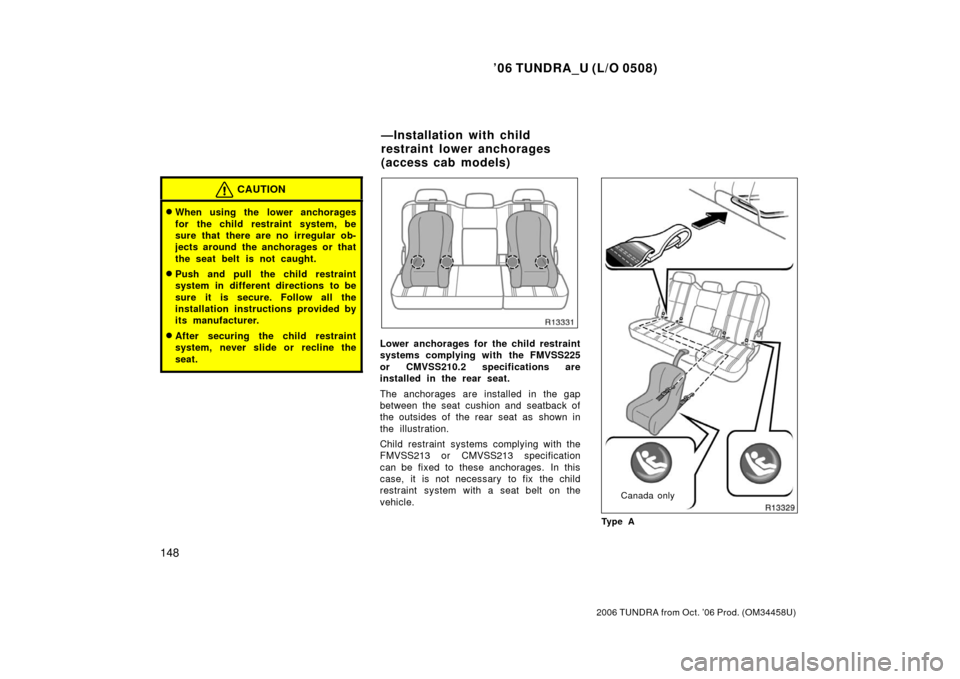

seat.Lower anchorages for the child restraint
systems complying with the FMVSS225
or CMVSS210.2 specifications are
installed in the rear seat.
The anchorages are installed in the gap
between the seat cushion and seatback of
the outsides of the rear seat as shown in
the illustration.
Child restraint systems complying with the
FMVSS213 or CMVSS213 specification
can be fixed to these anchorages. In this
case, it is not necessary to fix the child
restraint system with a seat belt on the
vehicle.
Canada only
Ty p e A
—Installation with child
restraint lower anchorages
(access cab models)
