2006 TOYOTA TUNDRA Owners Manual

’06 TUNDRA_U (L/O 0508)
11 7
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
On vehicles with side airbags and
curtain shield airbags, do not allow
the child to lean his/her head or
any part of his/her body against the
door or the area of the seat, front
or rear pillar or roof side rail from
which the side airbags or curtain
shield airbags deploy even if the
child is seated in the child restraint
system. It is dangerous if the side
airbag and/or curtain shield airbag
inflate, and the impact could cause
death or serious injury to the child.
Do not use the seat belt extender
when installing a child restraint
system on the front or rear passen-
ger seat. If installing a child re-
straint system with the seat belt
extender connected to the seat belt,
the seat belt will not securely hold
the child restraint system, which
could cause death or serious injury
to the child or other passengers in
the event of collision.
Make sure you have complied with
all installation instructions provided
by the child restraint manufacturer
and that the system is properly se-
cured. If it is not secured properly,
it may cause death or serious injury
to the child in the event of a sud-
den stop or accident.A child restraint system for a small
child or baby must itself be properly
restrained on the seat with the lap por-
tion of the lap/shoulder belt. You must
carefully consult the manufacturer ’s
instructions which accompany the child
restraint system.
To provide proper restraint, use a child
restraint system following the manufactur-
er ’s instructions about the appropriate age
and size of the child for the child restraint
system.
Install the child restraint system correctly
following the instructions provided by its
manufacturer. General directions are also
provided under the following illustrations.
The child restraint system should be
installed on the rear seat if your vehicle
is equipped with rear seats. According to
accident statistics, the child is safer when
properly restrained in the rear seat than
in the front seat.
When not using the child restraint system,
keep it secured with the seat belt or place
it somewhere other than the passenger
compartment. This will prevent it from in-
juring passengers in the event of a sud-
den stop or accident.
—Child restraint system

’06 TUNDRA_U (L/O 0508)
11 8
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
Child restraint systems are classified into
the following 3 types depending on the
child’s age and size.
(A) Infant seat
(B) Convertible seat
(C) Booster seat
Install the child restraint system following
the instructions provided by its manufac-
turer.
Your vehicle has anchor brackets for se-
curing the top strap of a child restraint
system.
For instructions about how to use the an-
chor bracket, see “—Using a top strap” in
this Section.
The child restraint lower anchorages ap-
proved for your vehicle may also be used.
See “—Installation with child restraint low-
er anchorages” in this Section.
(A) Infant seat
(B) Convertible seat
(C) Booster seat
—Types of child restraint
system

’06 TUNDRA_U (L/O 0508)
11 9
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
(A) INFANT SEAT INSTALLATION
An infant seat must be used in rear
facing position only.CAUTION
Never install a rearfacing child re-
straint system on the front seat with
the passenger airbag off switch in the
“AUTO” position. In the event of an
accident, the force of the rapid infla-
tion of the front passenger airbag can
cause death or serious injury to the
child if the rearfacing child system
is installed on the front passenger
seat.
When you install a rearfacing child re-
straint system which belongs to a pas-
senger risk group on the right front
seat, turn the passenger airbag off
switch counterclockwise to the “OFF”
position and remove the key. (For de-
tails, see “SRS driver airbag and front
passenger airbag” in this Section.)
The indicator light comes on when the
system is off.
—Installation with seat belt
(standard cab models)

’06 TUNDRA_U (L/O 0508)
120
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
CAUTION
If you must install a rearfacing child
restraint system on the right front
seat, make sure that the passenger
airbag off switch is in the “OFF”
position with the key removed and
that the indicator light is on.
1. Run the lap and shoulder belt through
or around the infant seat following the
instructions provided by its manufactur-
er and insert the tab into the buckle
taking care not to twist the belt. Keep
the lap portion of the belt tight.
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immedi-
ately. Do not install the child
restraint system on the seat until
the seat belt is fixed.

’06 TUNDRA_U (L/O 0508)
121
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)

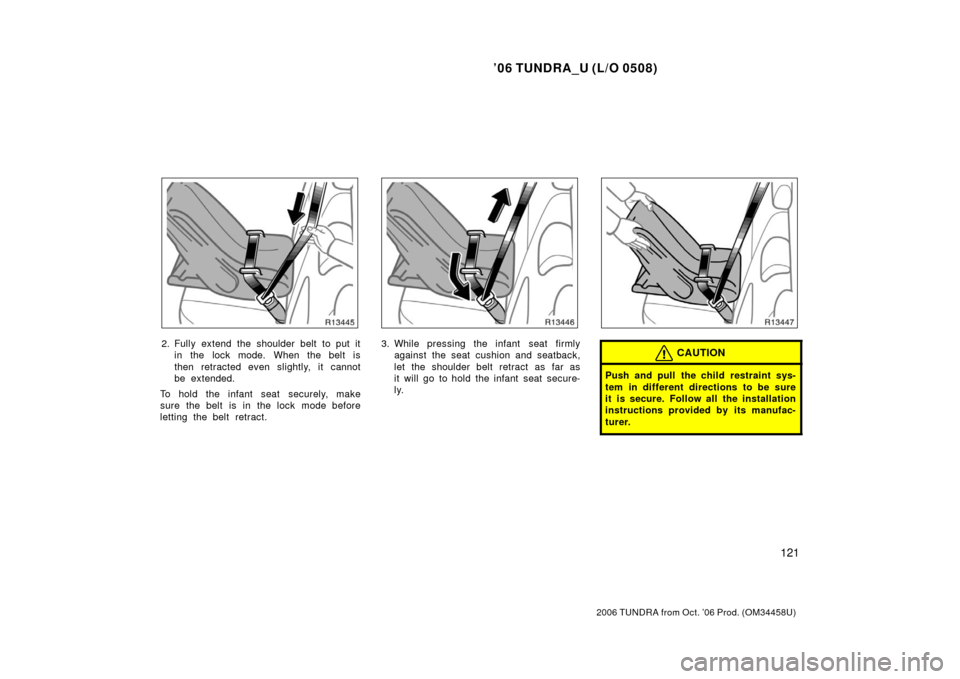

2. Fully extend the shoulder belt to put it
in the lock mode. When the belt is
then retracted even slightly, it cannot
be extended.
To hold the infant seat securely, make
sure the belt is in the lock mode before
letting the belt retract.3. While pressing the infant seat firmly against the seat cushion and seatback,
let the shoulder belt retract as far as
it will go to hold the infant seat secure-
ly.CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.

’06 TUNDRA_U (L/O 0508)
122
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)

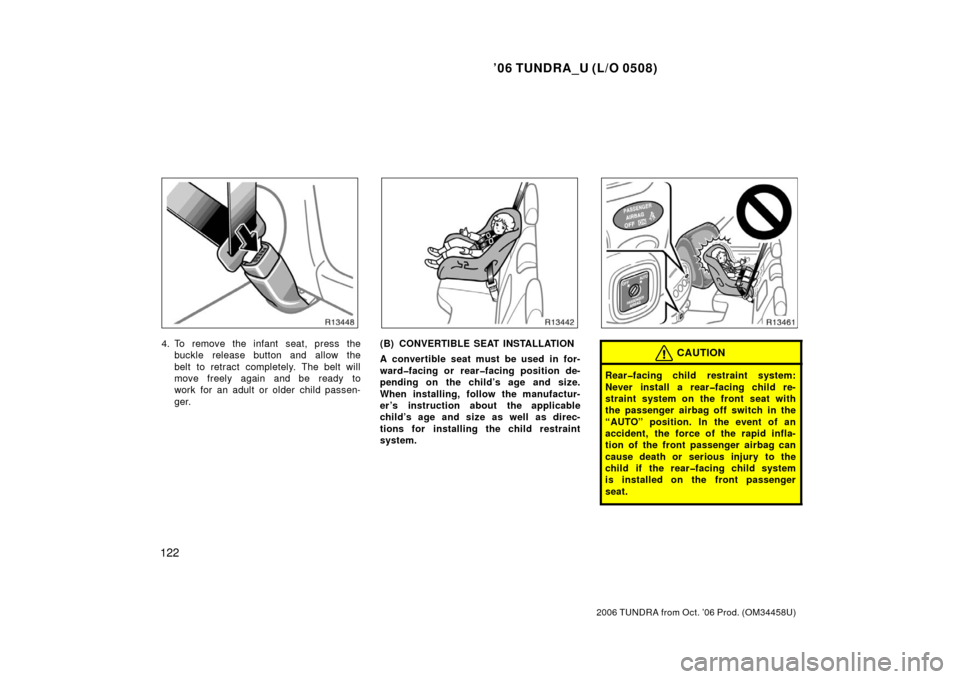

4. To remove the infant seat, press the
buckle release button and allow the
belt to retract completely. The belt will
move freely again and be ready to
work for an adult or older child passen-
ger.(B) CONVERTIBLE SEAT INSTALLATION
A convertible seat must be used in for-
wardfacing or rearfacing position de-
pending on the child’s age and size.
When installing, follow the manufactur-
er ’s instruction about the applicable
child’s age and size as well as direc-
tions for installing the child restraint
system.CAUTION
Rearfacing child restraint system:
Never install a rearfacing child re-
straint system on the front seat with
the passenger airbag off switch in the
“AUTO” position. In the event of an
accident, the force of the rapid infla-
tion of the front passenger airbag can
cause death or serious injury to the
child if the rearfacing child system
is installed on the front passenger
seat.

’06 TUNDRA_U (L/O 0508)
123
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)

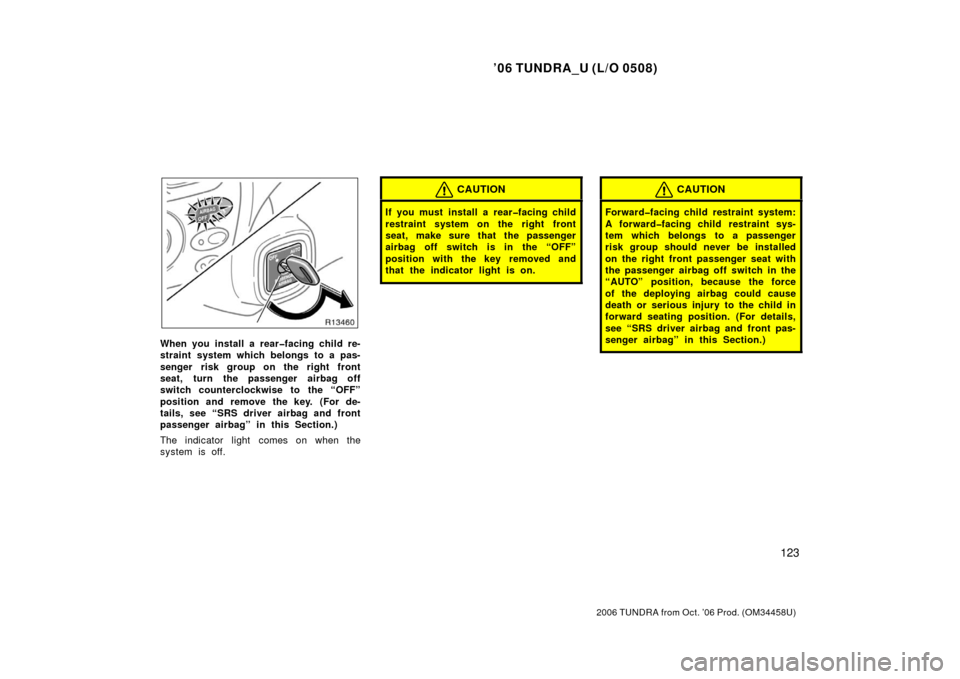

When you install a rearfacing child re-
straint system which belongs to a pas-
senger risk group on the right front
seat, turn the passenger airbag off
switch counterclockwise to the “OFF”
position and remove the key. (For de-
tails, see “SRS driver airbag and front
passenger airbag” in this Section.)
The indicator light comes on when the
system is off.
CAUTION
If you must install a rearfacing child
restraint system on the right front
seat, make sure that the passenger
airbag off switch is in the “OFF”
position with the key removed and
that the indicator light is on.
CAUTION
Forwardfacing child restraint system:
A forwardfacing child restraint sys-
tem which belongs to a passenger
risk group should never be installed
on the right front passenger seat with
the passenger airbag off switch in the
“AUTO” position, because the force
of the deploying airbag could cause
death or serious injury to the child in
forward seating position. (For details,
see “SRS driver airbag and front pas-
senger airbag” in this Section.)

’06 TUNDRA_U (L/O 0508)
124
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)

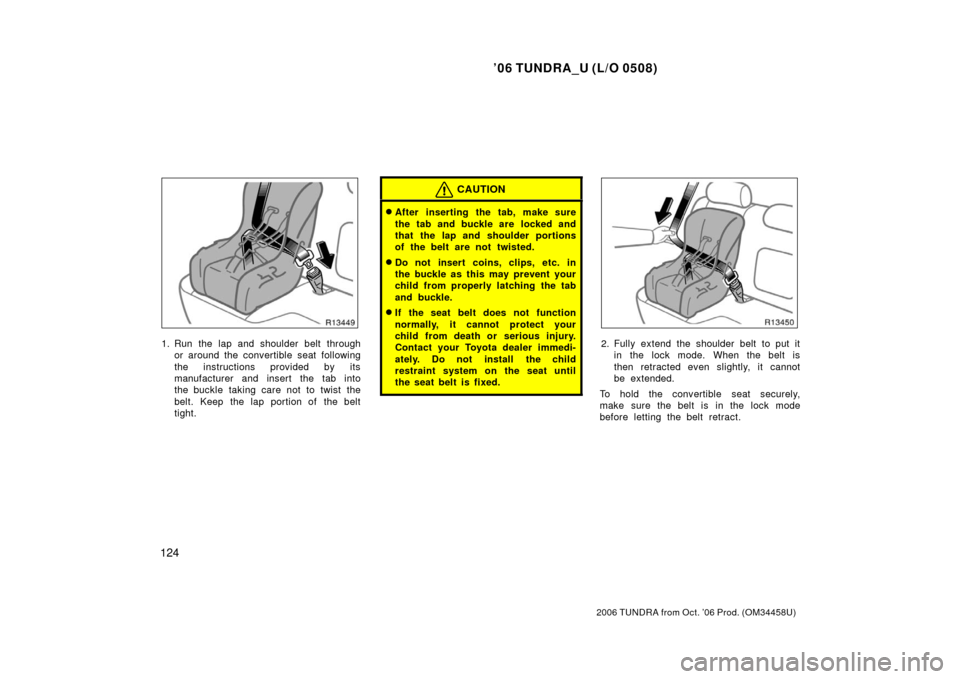

1. Run the lap and shoulder belt through
or around the convertible seat following
the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
belt. Keep the lap portion of the belt
tight.
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immedi-
ately. Do not install the child
restraint system on the seat until
the seat belt is fixed.
2. Fully extend the shoulder belt to put itin the lock mode. When the belt is
then retracted even slightly, it cannot
be extended.
To hold the convertible seat securely,
make sure the belt is in the lock mode
before letting the belt retract.
