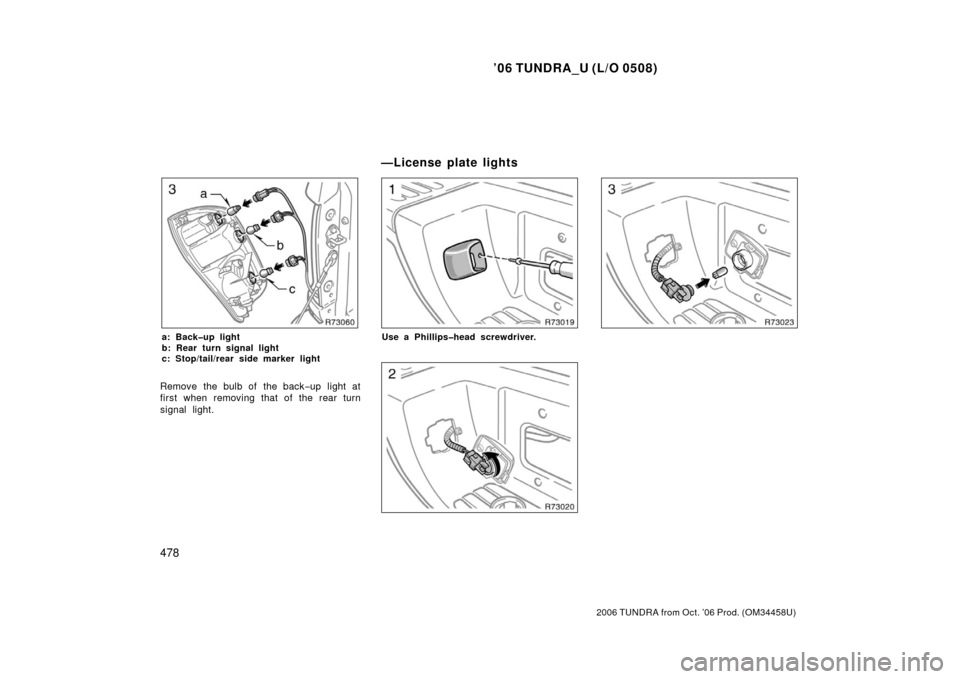

a: Rear turn signal light
b: Stop/tail/rear side marker light
c: Backup lightRemove the bolts.
—Rear turn signal,
stop/tail/rear side marker and
backup lights (type C)

’06 TUNDRA_U (L/O 0508)
478
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
a: Backup light
b: Rear turn signal light
c: Stop/tail/rear side marker light
Remove the bulb of the back −up light at
first when removing that of the rear turn
signal light.
Use a Phillipshead screwdriver.
—License plate lights

’06 TUNDRA_U (L/O 0508)
479
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
Use a Phillipshead screwdriver.

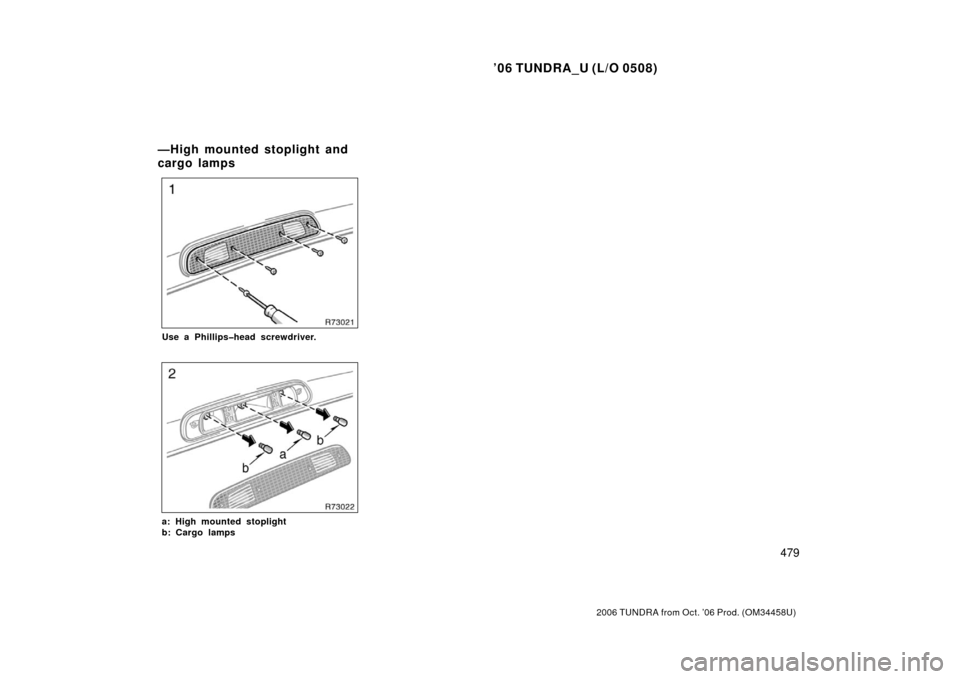

a: High mounted stoplight
b: Cargo lamps
—High mounted stoplight and
cargo lamps

’06 TUNDRA_U (L/O 0508)
480
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
SPECIFICATIONS
Specifications
Dimensions 481
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Vehicle capacity weight 483
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
Towing capacity 486
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Engine 487
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Fuel 487
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Service specifications 487
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Tires 491
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Fuses 493
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
SECTION 8

’06 TUNDRA_U (L/O 0508)
481
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
Tw o−wheel drive models
mm (in.)
Standard cab modelsAccess cab modelsDouble cab modelsStandard bedStepSide bed
Overall length5525 (217.5)∗1
5545 (218.3)∗25525 (217.5)∗1
5545 (218.3)∗25525 (217.5)∗1
5545 (218.3)∗25845 (230.1)
Overall width1910 (75.2)
1910 (75.2)
1945 (76.6)∗3
2015 (79.3)∗42015 (79.3)2015 (79.3)∗3
2025 (79.7)∗4
Overall height∗51795 (70.7)1790 (70.5)∗6
1800 (70.9)∗7or81790 (70.5)
1880 (74.0)∗6
1890 (74.4)∗7
1895 (74.6)∗8
Wheelbase3260 (128.3)3260 (128.3)3260 (128.3)3570 (140.5)
Front tread1680 (66.1)1680 (66.1)1680 (66.1)1680 (66.1)
Rear tread1648 (64.9)1648 (64.9)1648 (64.9)1710 (67.3)
∗1: With steel bumper∗2: With plastic bumper∗3: With wheel arch moulding∗4: With over fender∗5: Unladen vehicle∗6: With P245/70R16 tires∗7: With P265/70R16 tires∗8: With P265/65R17 tires
Dimensions

’06 TUNDRA_U (L/O 0508)
482
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
Four−wheel drive models
mm (in.)
Standard cab modelsAccess cab modelsDouble cab modelsStandard bedStepSide bed
Overall length5525 (217.5)∗1
5545 (218.3)∗25525 (217.5)∗1
5545 (218.3)∗25525 (217.5)∗1
5545 (218.3)∗25845 (230.1)
Overall width1910 (75.2)
1945 (76.6)∗3
1910 (75.2)
1945 (76.6)∗3
2015 (79.3)∗42015 (79.3)2015 (79.3)∗3
2025 (79.7)∗4
Overall height∗51805 (71.1)∗6
1815 (71.5)∗7or81810 (71.3)∗6
1820 (71.7)∗7or81810 (71.3)
1890 (74.4)∗6
1900 (74.8)∗7
1905 (75.0)∗8
Wheelbase3260 (128.3)3260 (128.3)3260 (128.3)3570 (140.5)
Front tread1675 (65.9)1675 (65.9)1675 (65.9)1675 (65.9)
Rear tread1648 (64.9)1648 (64.9)1648 (64.9)1710 (67.3)
∗1: With steel bumper∗2: With plastic bumper∗3: With wheel arch moulding∗4: With over fender∗5: Unladen vehicle∗6: With P245/70R16 tires∗7: With P265/70R16 tires∗8: With P265/65R17 tires

’06 TUNDRA_U (L/O 0508)
483
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
kg (lb.)
Cab type
EngineDriving systemTransmission typeDeck typeGrade∗ 4Vehicle capacity
weight∗5, 6
Standard cab
models
4. 0 L V6
(1GR −FE)Tw o −wheel
driveManual transmissionStandard
bedStandard650 (1435)
Automatic transmissionStandard
bedStandard637 (1405)
4. 7 L V8
(2UZ −FE)
Tw o −wheel
driveAutomatic transmissionStandard
bedStandard
853 (1882)
832 (1836)∗ 1
909 (2005)∗3
Four −wheel
driveAutomatic transmissionStandard
bedStandard728 (1607)
708 (1561)∗ 1
Access cab
models
4. 0 L V6
(1GR −FE)Tw o −wheel
driveManual transmissionStandard
bedSR5630 (1391)
Automatic transmissionStandard
bedSR5608 (1342)
4. 7 L V8
(2UZ −FE)Tw o −wheel
driveAutomatic transmission
Standard
bedSR5734 (1620)
713 (1574)∗ 1
Limited781 (1722)
760 (1676)∗1
StepSide
bedSR5597 (1318)
576 (1272)∗1
Limited645 (1422)
624 (1376)∗1
Vehicle capacity weight

’06 TUNDRA_U (L/O 0508)
484
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
kg (lb.)
Cab type
EngineDriving systemTransmission typeDeck typeGrade∗4Vehicle capacity
weight∗ 5, 6
Access cab
models4. 7 L V8
(2UZ −FE)Four −wheel
drive
Automatic transmissionStandard
bedSR5614 (1355)
593 (1309)∗ 1
Limited669 (1477)
649 (1431)∗1
Automatic transmissionStepSide
bedSR5486 (1073)
465 (1027)∗1
Limited533 (1177)
513 (1131)∗1
Double cab
models4. 7 L V8
(2UZ −FE)
Tw o −wheel
drive
Automatic transmissionStandard
bedSR5
772 (1702)
753 (1661)∗ 1or2
734 (1620)∗1, 2
Automatic transmissionStandard
bedLimited
761 (1678)
742 (1637)∗1or2
723 (1596)∗1, 2
Four −wheel
drive
Automatic transmissionStandard
bedSR5
663 (1462)
644 (1421)∗ 1or2
625 (1380)∗1, 2
Automatic transmissionStandard
bedLimited
652 (1438)
633 (1397)∗1or2
615 (1356)∗1, 2
