Engine compartment
Instrument panel

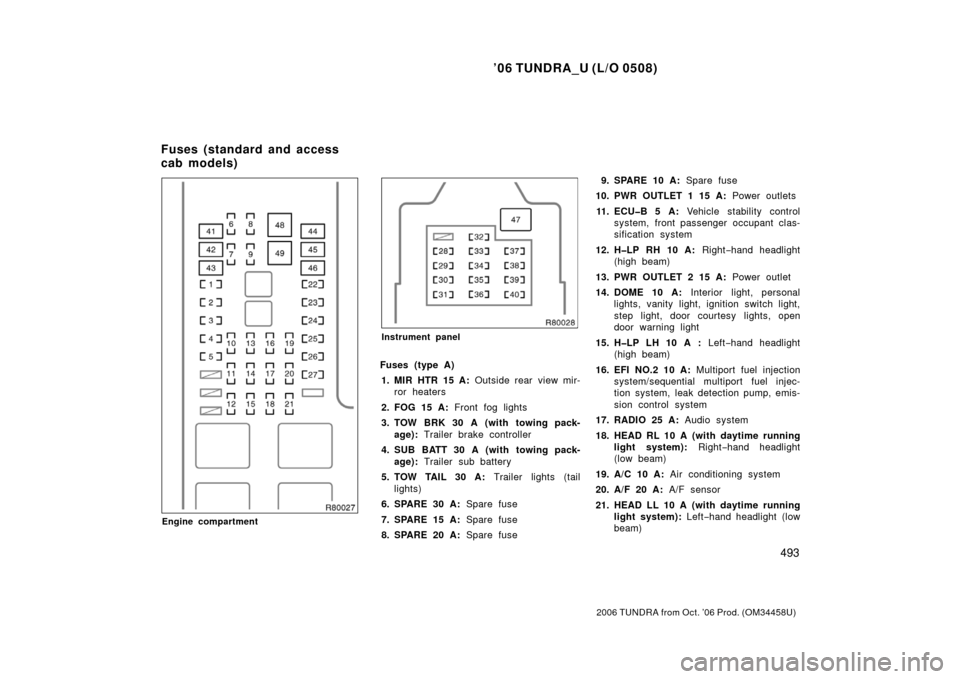

Fuses (type A)
1. MIR HTR 15 A: Outside rear view mir-
ror heaters
2. FOG 15 A: Front fog lights
3. TOW BRK 30 A (with towing pack- age): Trailer brake controller
4. SUB BATT 30 A (with towing pack- age): Trailer sub battery
5. TOW TAIL 30 A: Trailer lights (tail
lights)
6. SPARE 30 A: Spare fuse
7. SPARE 15 A: Spare fuse
8. SPARE 20 A: Spare fuse 9. SPARE 10 A:
Spare fuse
10. PWR OUTLET 1 15 A: Power outlets
11. ECUB 5 A: Vehicle stability control
system, front pass enger occupant clas-
sification system
12. HLP RH 10 A: Right−hand headlight
(high beam)
13. PWR OUTLET 2 15 A: Power outlet
14. DOME 10 A: Interior light, personal
lights, vanity light, ignition switch light,
step light, door courtesy lights, open
door warning light
15. HLP LH 10 A : Left−hand headlight
(high beam)
16. EFI NO.2 10 A: Multiport fuel injection
system/s equential multiport fuel injec-
tion system, leak detection pump, emis-
sion control system
17. RADIO 25 A: Audio system
18. HEAD RL 10 A (with daytime running light system): Right−hand headlight
(low beam)
19. A/C 10 A: Air conditioning system
20. A/F 20 A: A/F sensor
21. HEAD LL 10 A (with daytime running light system): Left−hand headlight (low
beam)
Fuses (standard and access
cab models)

’06 TUNDRA_U (L/O 0508)
494
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
22. ALTS 7.5 A: Charging system
23. ETCS 10 A: Multiport fuel injection
system/s equential multiport fuel injec-
tion system, electronic throttle control
system
24. HAZ 15 A: Emergency flashers, turn
signal lights, towing converter
25. EFI NO.1 20 A: Multiport fuel injection
system/s equential multiport fuel injec-
tion system, fuel pump, “EFI NO.2”
fuse
26. AM2 30 A: Ignition system, starting
system, “IGN” and “STA” fuses
27. TOWING 30 A: Towing converter
28. WIP 20 A: Windshield wipers and
washer
29. TURN 5 A: Turn signal lights
30. ECU IG 5 A: Anti−lock brake system,
vehicle stability control system, multi-
plex communication system, tire pres-
sure warning system
31. 4WD 20 A: Four−wheel drive control
system, A.D.D. control system
32. ACC 15 A: Cigarette lighter, audio sys-
tem, power rear view mirrors, “PWR
OUTLET 1” and “PWR OUTLET 2”
fuses 33. GAUGE 10 A:
Gauges and meters,
back −up lights, starting system, air
conditioning system, auto anti −glare in-
side rear view mirror, outside rear view
mirror heaters
34. IGN 5 A (without daytime running light system) or 7.5 A (with daytime
running light system): SRS airbag
system, multiport fuel injection system/
sequential multiport fuel injection sys-
tem, discharge warning light, ignition
system, vehicle stability control system,
front passenger occupant classification
system, engine immobilizer system
35. CARGO LP 5 A: Cargo lamp
36. TAIL 15 A: Tail lights, turn signal
lights, license plate lights, instrument
panel lights, parking lights, glove box
light
37. OBD 7.5 A: On−board diagnosis sys-
tem
38. HORN 10 A: Horns
39. STA 5 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, g auges and meters
40. STOP 15 A: Stoplights, high mounted
stoplight, anti −lock brake system, ve-
hicle stability control system, towing
converter Fuses (type B)
41. AM1 40 A: Starting system, “ACC”,
“WIP”, “4WD”, “ECU −IG”, “GAUGE” and
“TURN” fuses
42. HTR 50 A: Air conditioning system,
“A/C” fuse
43. J/B 50 A: “POWER”, “CARGO LP”,
“TAIL”, “OBD”, “HORN” and “STOP”
fuses
44. ABS 2 50 A: Anti−lo
ck brake system,
vehicle stability control system
45. ABS 3 30 A: Anti−lock brake system,
vehicle stability control system
46. ST3 30 A: Starting system, “STA” fuse
47. POWER 30 A: Power door lock sys-
tem, power windows, power back win-
dow, power seat
Fuse (type C)
48. FL ALT 120 A (without towing pack- age) or 140 A (with towing package):
“AM1”, “HTR”, “J/B”, “MIR HTR”,
“FOG”, “TOW BRK”, “SUB BATT”,
“TOW TAIL”, “PWR OUTLET 1” and
“PWR OUTLET 2” fuses
49. A/PUMP 60 A: Multiport fuel injection
system/s equential multiport fuel injec-
tion system

’06 TUNDRA_U (L/O 0508)
495
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)

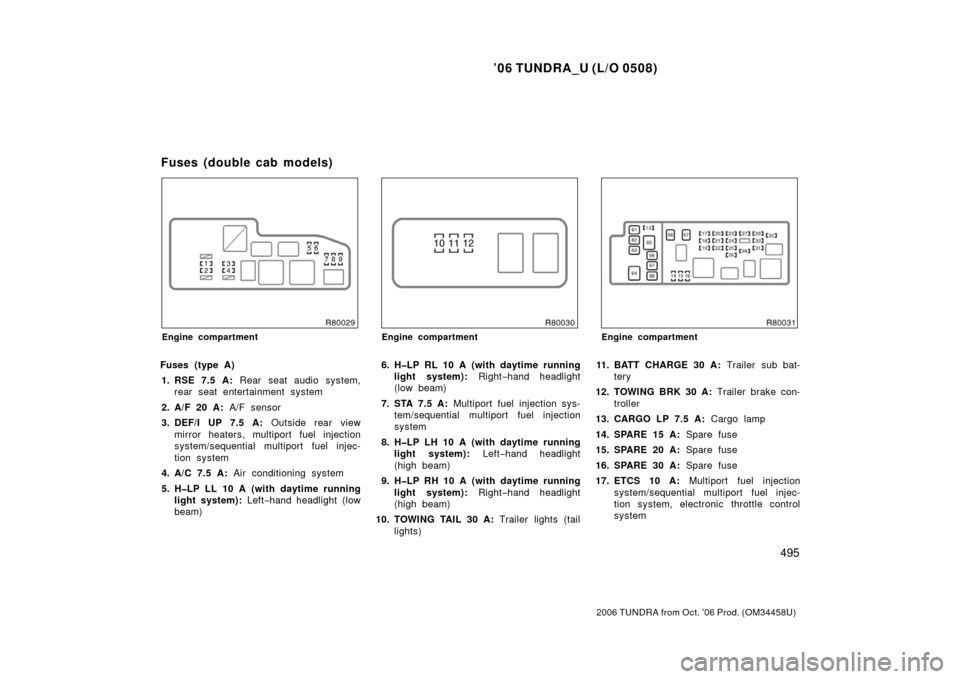

Engine compartment
Fuses (type A)
1. RSE 7.5 A: Rear seat audio system,
rear seat entertainment system
2. A/F 20 A: A/F sensor
3. DEF/I UP 7.5 A: Outside rear view
mirror heaters, multiport fuel injection
system/s equential multiport fuel injec-
tion system
4. A/C 7.5 A: Air conditioning system
5. HLP LL 10 A (with daytime running light system): Left−hand headlight (low
beam)
Engine compartment
6. HLP RL 10 A (with daytime running light system): Right−hand headlight
(low beam)
7. STA 7.5 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system
8. HLP LH 10 A (with daytime running light system): Left−hand headlight
(high beam)
9. HLP RH 10 A (with daytime running light system): Right−hand headlight
(high beam)
10. TOWING TAIL 30 A: Trailer lights (tail
lights)
Engine compartment
11. BATT CHARGE 30 A: Trailer sub bat-
tery
12. TOWING BRK 30 A: Trailer brake con-
troller
13. CARGO LP 7.5 A: Cargo lamp
14. SPARE 15 A: Spare fuse
15. SPARE 20 A: Spare fuse
16. SPARE 30 A: Spare fuse
17. ETCS 10 A: Multiport fuel injection
system/s equential multiport fuel injec-
tion system, electronic throttle control
system
Fuses (double cab models)

’06 TUNDRA_U (L/O 0508)
496
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
Instrument panel
18. EFI NO.1 20 A: Multiport fuel injection
system/s equential multiport fuel injec-
tion system
19. HLP RH 15 A (without daytime run- ning light system): Right−hand head-
light
20. TOWING 30 A: Towing converter
21. ALTS 7.5 A: Charging system
22. DRL 15 A (with daytime running light system): Daytime running light system
HLP LH 15 A (without daytime run-
ning light system): Left−hand head-
light
23. AM2 25 A: Starting system 24. TURNHAZ 20 A:
Turn signal lights,
emergency flashers, towing converter
25. RAD NO.3 30 A: Audio system/video
system
26. ST 30 A: Starting system, “STA” fuse
27. HORN 10 A: Horns
28. EFI NO.2 10 A: Multiport fuel injection
system/se quential multiport fuel injec-
tion system, leak detection pump
29. DOME 10 A: Center interior and per-
sonal lights, personal lights, gauges
and meters, clock, ignition switch light,
door courtesy lights, step light, vanity
lights
30. ECUB 7.5 A: Multiplex communication
system, front passenger occupant clas-
sification system, driver and front pas-
senger door lock system, gauges and
meters, wireless door lock system
31. MIR HTR 15 A: Outside rear view mir-
ror heaters
32. RAD NO.1 20 A: Audio system, rear
seat entertainment system
33. TAIL 15 A: Tail lights, trailer lights (tail
lights), parking lights, multiport fuel in-
jection system/sequential multiport fuel
injection system, license plate lights 34. ECUIG 10 A:
Charging system, stop
lights, anti −lock brake system, vehicle
stability control system, traction control
system, electric moon roof, driver and
front passenger door lock system,
gauges and meters, multi −information
display, power outlets, multiplex com-
munication system, tire pressure warn-
ing system, auto anti− glare inside rear
view mirror
35. WSH 25 A: Wipers and washer
36. AC INV 15 A: Power outlets
37. IGN 2 20 A: Starting system, multiport
fuel injection system/sequential multi-
port fuel injection system
38. PWR NO.3 20 A: Rear passenger’s
power window (right side)
39. PWR NO.4 20 A: Rear passenger’s
power window (left side)
40. CIG 15 A: Cigarette lighter
41. RAD NO.2 7.5 A: Audio system/video
system, rear seat audio system, rear
seat entertainment system, multiplex
communication system, clock, shift
position indicator lights
42. 4WD 20 A: A.D.D. control system,
four −wheel d
rive system

’06 TUNDRA_U (L/O 0508)
497
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
43. STOP 15 A: Stop lights, high− mounted
stop light, multiport fuel injection sys-
tem/sequential multiport fuel injection
system, anti −lock brake system, vehicle
stability control system, traction control
system, trailer light (stop lights), trailer
brake controller, towing converter, mul-
tiplex communication system
44. OBD 7.5 A: On−board diagnosis sys-
tem
45. PANEL 7.5 A: Instrument panel lights,
glove box light, lights of seat heaters,
cigarette lighter, ashtrays, multi −infor-
mation display, audio system/video sys-
tem, gauges and meters, air condition-
ing systems, power outlets
46. PWR NO.1 25 A: Driver ’s door lock
system, driver’s power wi ndow
47. WIP 25 A: Wiper and washers
48. IGN 1 10 A: Charging system, SRS
airbag system, multiport fuel injection
system/s equential multiport fuel injec-
tion system, vehicle stability control
system, g auges and meters, air condi-
tioning system, front passenger occu-
pant classification system
49. SUN ROOF 25 A: Electric moon roof50. PWR NO.2 25 A:
Front passengers’
door lock system, front passenger ’s
power window
51. HTR 10 A: Air conditioning systems,
electric cooling fan, back window de-
fogger, seat heaters
52. FOG 15 A: Front fog lights
53. GAUGE 15 A: Back−up lights, gauge
and meters, emergency flashers, slip
indicator light, vehicle stability control
system, four −wheel drive system, trailer
lights (back −up lights), multiport fuel
injection system/sequential multiport
fuel injection system, shift position indi-
cator lights
54. PWR OUTLET 15 A: Power outlets
55. SEAT HTR 15 A: Seat heaters
Fuses (type B)
56. MAIN 40 A: “H−LP RH”, “H −LP LH”
“H −LP LL” and “H −LP RL” fuses
57. DOOR NO.2 30 A: Multiplex commu-
nication system (power door lock sys-
tem, security system)
58. PWR SEAT 30 A: Power front seats59. AM1 40 A:
“HTR”, “CIG”, “GAUGE”,
“RAD NO.2”, “ECU −IG”, “WIP”, “WSH”,
“IGN 1”, “IGN 2” and “4WD” fuses
60. PWR NO.5 30 A: Power back window
Fuses (type D)
61. ABS NO.2 30 A: Anti−lock brake sys-
tem, vehicle stability control system
62. DEFOG 40 A: Back window defogger
63. HEATER 50 A: Air conditioning system
6

4. TOWING R/B 60 A: “TOWING TAIL”,
“BATT CHARGE” and “TOWING BRK”
fuses
65. ALT 140 A: “DEFOG”, “ABS NO.2”,
“CARGO LP”, “HEATER”, “AM1”, “PWR
SEAT”, “TAIL”, “STOP”, “SUN ROOF”,
“PANEL”, “OBD”, “FOG”, “PWR NO.1”,
“PWR NO.2”, “PWR NO.5”, “AC INV”,
“PWR NO.3”, “PWR NO.4”, “PWR
OUTLET” and “SEAT HTR” fuses
66. ABS NO.1 40 A: Anti−lock brake sys-
tem, vehicle stability control system
67. A/PUMP 50 A: Multiport fuel injection
system/s equential multiport fuel injec-
tion system
68. R/B 30 A: “A/F” fuse

’06 TUNDRA_U (L/O 0508)
498
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
REPORTING SAFETY DEFECTS FOR U.S.
OWNERS AND CAMPER INFORMATION
Reporting safety defects for U.S. owners and camper
information
Reporting safety defects for U.S. owners 499
. . . . . . . . . . . . . . . . . . . . . .
Camper information 499
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
SECTION 9

’06 TUNDRA_U (L/O 0508)
499
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
If you believe that your vehicle
has a defect which could cause a
crash or could cause injury or
death, you should immediately in-
form the National Highway Traffic
Safety Administration (NHTSA) in
addition to notifying Toyota Motor
Sales, U.S.A., Inc. (Toll−free:
1 −800 −331 −4331).
If NHTSA receives similar com-
plaints, it may open an investiga-
tion, and if it finds that a safety
defect exists in a group of ve-
hicles, it may order a recall and
remedy campaign. However,
NHTSA cannot become involved
in individual problems between
you, your dealer, or Toyota Motor
Sales, U.S.A., Inc. To contact NHTSA, you may call
the Vehicle Safety Hotline toll
−free
at 1 −888 −327 −4236 (TTY:
1 −800 −424 −9153); go to
http://www.safercar.gov ; or write
to: Administrator, NHTSA, 400
Seventh Street, SW., Washington,
DC 20590. You can also obtain
other information about motor
vehicle safety from
http://www.safercar.gov .This information has been prepared in ac-
cordance with regulation issued by the Na-
tional Highway Traffic Safety Administra-
tion of the U.S. Department of
Transportation. It provides the purchasers
and/or prospective purchasers of Toyota
vehicles with information on truck −camper
loading. Your Toyota dealer will help an-
swer any questions you may have as you
read this information.
Reporting safety defects for
U.S. owners Camper information—

’06 TUNDRA_U (L/O 0508)
500
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)

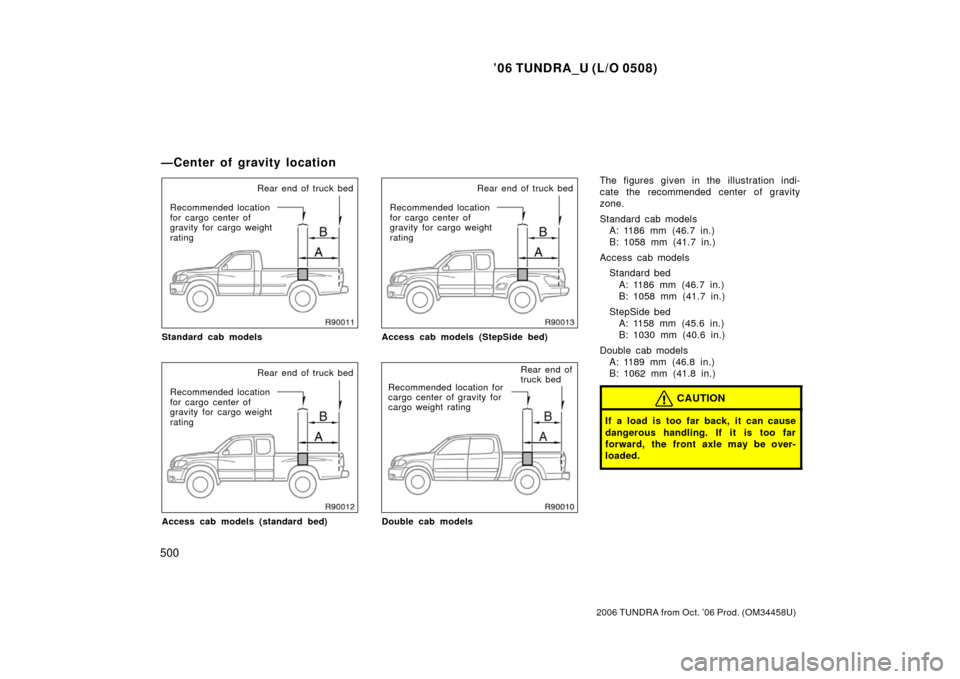

Rear end of truck bed
Recommended location
for cargo center of
gravity for cargo weight
rating
Standard cab models
Rear end of truck bed
Recommended location
for cargo center of
gravity for cargo weight
rating
Access cab models (standard bed)
Rear end of truck bed
Recommended location
for cargo center of
gravity for cargo weight
rating
Access cab models (StepSide bed)
Recommended location for
cargo center of gravity for
cargo weight rating
Rear end of
truck bed
Double cab models
The figures given in the illustration indi-
cate the recommended center of gravity
zone.
Standard cab models A: 1186 mm (46.7 in.)
B: 1058 mm (41.7 in.)
Access cab models Standard bedA: 1186 mm (46.7 in.)
B: 1058 mm (41.7 in.)
StepSide bed A: 1158 mm (45.6 in.)
B: 1030 mm (40.6 in.)
Double cab models A: 1189 mm (46.8 in.)
B: 1062 mm (41.8 in.)
CAUTION
If a load is too far back, it can cause
dangerous handling. If it is too far
forward, the front axle may be over-
loaded.
—Center of gravity location
