CAUTION
Do not turn off the passenger air-
bag off switch except when a mem-
ber of a passenger risk group iden-
tified in TABLE 1 is occupying the
right front passenger seating posi-
tion.
When the passenger airbag off
switch is turned off, the passenger
airbag will not inflate in a collision
and turning off the passenger air-
bag can reduce the occupant
protection which your vehicle safety
systems can provide to you in cer-
tain accidents and increase the like-
lihood of death or serious personal
injuries.
TABLE 1: A PASSENGER RISK GROUP
Infant. An infant (less than 1 year old) who must ride in the front seat because:
Vehicle has no rear seat;
Vehicle has a rear seat too small to accommodate a rear −facing infant seat;
or
The infant has a medical condition which, according to the infant’s physician,
makes it necessary for the infant to ride in the front seat so that the driver
can constantly monitor the child’s condition.
Child age 1 to 12. A child age 1 to 12 must ride in the front seat because:
Vehicle has no rear seat:
Although children ages 1 to 12 ride in the rear seat(s) whenever possible,
children ages 1 to 12 sometimes must ride in the front because no space is
available in the rear seat(s) of vehicle; or
The child has a medical condition which, according to the child’s physician,
makes it necessary for the child to ride in the front seat so that the driver can
constantly monitor the child’s condition.
Medical condition. A passenger has a medical condition which according to his
or her physician:
Causes the passenger airbag to pose a special risk for the passenger: and
Makes the potential harm from the passenger airbag in a crash greater than the
potential harm from turning off the airbag and allowing the passenger, even if
belted, to hit the dashboard, or windshield in a crash.
For more detailed information concerning about the passenger risk group, please
contact NHTSA at 1 −888− 327−4236 or Transport Canada at 1 −800− 333−0371.

’06 TUNDRA_U (L/O 0508)
78
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
The SRS airbags are designed to deploy
in severe (usually frontal) co llisions
where the magnitude and duration of
the forward deceleration of the vehicle
exceeds the designed threshold level.
The SRS airbags will deploy if the severi-
ty of the impact is above the designed
threshold level, comparable to an approxi-
mate 25 km/h (15 mph) collision when the
vehicle has the impact straight into a fixed
barrier that does not move or deform.
However, this threshold velocity will be
considerably higher if the vehicle strikes
an object, such as a parked vehicle or
sign pole, which can move or deform on
impact, or if the vehicle is involved in an
underride co llision (e.g. a collision in
which the front of the vehicle “underrides”,
or goes under, the bed of a truck, etc.).
It is possible that in some collisions
where the forward deceleration of the ve-
hicle is very close to the designed thresh-
old level, the SRS airbags and front seat
belt pretensioners may not activate togeth-
er.
Always wear your seat belts properly.
Collision from the rear
Collision from the side Vehicle rollover
The SRS airbags are not generally de-
signed to inflate if the vehicle is in-
volved in a side or rear collision, if it
rolls over, or if it is involved in a low
speed frontal collision. But, when ever a
collision of any type causes sufficient
forward deceleration of the vehicle, de-
ployment of the SRS airbags may oc-
cur.
Hitting a curb,
edge of pavement
or hard surface Falling into or
jumping over a
deep hole
Landing hard or vehicle falling
The SRS airbags may also deploy if a
serious impact occurs to the underside
of your vehicle. Some examples are
shown in the illustration.

’06 TUNDRA_U (L/O 0508)
79
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
The SRS airbag system consists mainly of
the following components, and their loca-
tions are shown in the illustration.
1. Front airbag sensors
2. Front passenger occupant classification indicator light and passenger airbag off
indicator light
3. Airbag module for right front passenger (airbag and inflator)
4. Front passenger occupant classification system (ECU and sensors)
5. Front passenger ’s seat belt buckle switch
6. Driver ’s seat belt buckle switch
7. Passenger ’s seat position sensor 8. Driver ’s seat position sensor
9. Passenger airbag off switch
10. Airbag sensor assembly 11. Airbag module for driver (airbag and inflator)
12. SRS warning light The airbag sensor assembly consists of a
safing sensor and airbag sensor.
The front airbag sensors constantly moni-
tor the forward deceleration of the vehicle.
If an impact results in a forward decelera-
tion beyond the designed threshold level,
the system triggers the airbag inflators. At
this time a chemical reaction in the infla-
tors very quickly fills the air bags with
non− toxic gas to help restrain the forward
motion of the occupants. The airbags then
quickly deflate, so that there is no ob-
struction of the driver ’s vision should it be
necessary to continue driving. When the airbags inflate, they produce a
loud noise and release some smoke and
residue along with non
−toxic gas. This
does not indicate a fire. This smoke may
remain inside the vehicle for some time,
and may cause some minor irritation to
the eyes, skin or breathing. Be sure to
wash off any residue as soon as possible
to prevent any potential skin irritation with
soap and water. If you can safely exit
from the vehicle, you should do so imme-
diately.

’06 TUNDRA_U (L/O 0508)
80
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
Deployment of the airbags happens in a
fraction of a second, so the airbags must
inflate with considerable force. While the
system is designed to reduce serious inju-
ries, primarily to the head and chest, it
may also cause other, less severe injuries
to the face, chest, arms and hands. These
are usually in the nature of minor burns
or abrasions and swelling, but the force of
a deploying airbag can cause more seri-
ous injuries, especially if an occupant’s
hands, arms, chest or head is in close
proximity to the airbag module at the time
of deployment. This is why it is important
for the occupant to: avoid placing any
object or part of the body between the
occupant and the airbag module; sit
straight and well back into the seat; wear
the available seat belt properly; and sit as
far as possible from the airbag module,
while still maintaining control of the ve-
hicle.
Parts of the airbag module (steering wheel
hub, airbag cover and inflator) may be hot
for several minutes after deployment, so
do not touch! The airbags inflate only
once. The windshield may be damaged by
absorbing some of the force of the inflat-
ing airbag.CAUTION

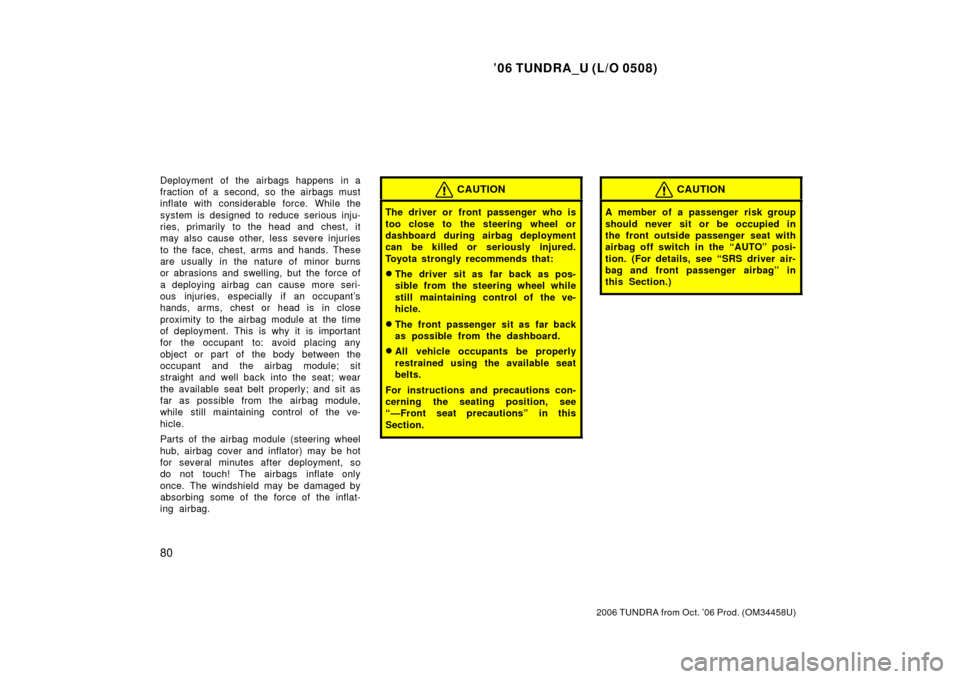

The driver or front passenger who is
too close to the steering wheel or
dashboard during airbag deployment
can be killed or seriously injured.
Toyota strongly recommends that:
The driver sit as far back as pos-
sible from the steering wheel while
still maintaining control of the ve-
hicle.
The front passenger sit as far back
as possible from the dashboard.
All vehicle occupants be properly
restrained using the available seat
belts.
For instructions and precautions con-
cerning the seating position, see
“—Front seat precautions” in this
Section.
CAUTION
A member of a passenger risk group
should never sit or be occupied in
the front outside passenger seat with
airbag off switch in the “AUTO” posi-
tion. (For details, see “SRS driver air-
bag and front passenger airbag” in
this Section.)

’06 TUNDRA_U (L/O 0508)
81
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)

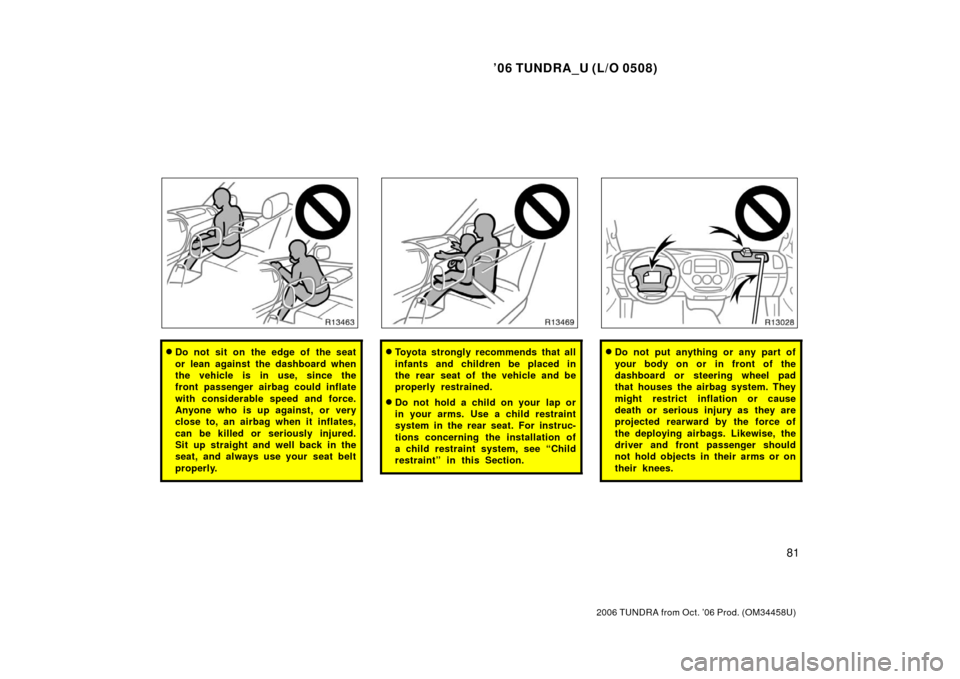

Do not sit on the edge of the seat
or lean against the dashboard when
the vehicle is in use, since the
front passenger airbag could inflate
with considerable speed and force.
Anyone who is up against, or very
close to, an airbag when it inflates,
can be killed or seriously injured.
Sit up straight and well back in the
seat, and always use your seat belt
properly.Toyota strongly recommends that all
infants and children be placed in
the rear seat of the vehicle and be
properly restrained.
Do not hold a child on your lap or
in your arms. Use a child restraint
system in the rear seat. For instruc-
tions concerning the installation of
a child restraint system, see “Child
restraint” in this Section.
Do not put anything or any part of
your body on or in front of the
dashboard or steering wheel pad
that houses the airbag system. They
might restrict inflation or cause
death or serious injury as they are
projected rearward by the force of
the deploying airbags. Likewise, the
driver and front passenger should
not hold objects in their arms or on
their knees.

’06 TUNDRA_U (L/O 0508)
82
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)

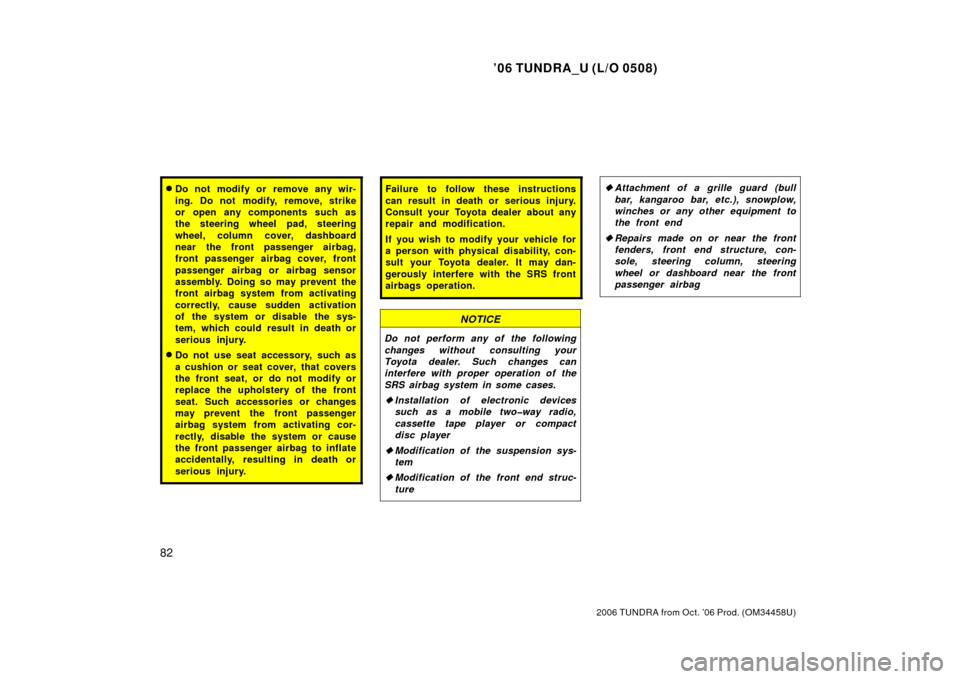

Do not modify or remove any wir-
ing. Do not modify, remove, strike
or open any components such as
the steering wheel pad, steering
wheel, column cover, dashboard
near the front passenger airbag,
front passenger airbag cover, front
passenger airbag or airbag sensor
assembly. Doing so may prevent the
front airbag system from activating
correctly, cause sudden activation
of the system or disable the sys-
tem, which could result in death or
serious injury.
Do not use seat accessory, such as
a cushion or seat cover, that covers
the front seat, or do not modify or
replace the upholstery of the front
seat. Such accessories or changes
may prevent the front passenger
airbag system from activating cor-
rectly, disable the system or cause
the front passenger airbag to inflate
accidentally, resulting in death or
serious injury.
Failure to follow these instructions
can result in death or serious injury.
Consult your Toyota dealer about any
repair and modification.
If you wish to modify your vehicle for
a person with physical disability, con-
sult your Toyota dealer. It may dan-
gerously interfere with the SRS front
airbags operation.
NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can
interfere with proper operation of the
SRS airbag system in some cases.
Installation of electronic devices
such as a mobile twoway radio,
cassette tape player or compact
disc player
 Modification of the suspension sys-
tem
 Modification of the front end struc-
ture
Attachment of a grille guard (bull
bar, kangaroo bar, etc.), snowplow,
winches or any other equipment to
the front end
 Repairs made on or near the front
fenders, front end structure, con-
sole, steering column, steering
wheel or dashboard near the front
passenger airbag

’06 TUNDRA_U (L/O 0508)
83
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
This indicator comes on when the igni-
tion key is turned to the “ON” position.
It goes off after about 6 seconds. This
means the SRS airbags are operating
properly. This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, side and curtain shield airbag sen-
sors, curtain shield airbag sensors, driv-
er ’s seat position sensor, driver ’s seat belt
buckle switch, front passenger occupant
classification system and indicator light,
passenger airbag off switch, front passen-
ger’s seat belt buckle switch, front pas-
senger ’s seat position sensor, seat belt
pretensioner assemblies, inflators, “RSCA
OFF” indicator light, interconnecting wiring
and power sources. (For details, see “Ser-
vice reminder indicators and warning buzz-
ers” in Section 1
−6.)
If any of the following conditions occurs,
this indicates a malfunction of the airbags
or seat belt pretensioners. Contact your
Toyota dealer as soon as possible.
The light does not come on when the
ignition key is turned to the “ON” posi-
tion or remains on for more than 6
seconds.
The light comes on or starts flashing
while driving.
The SRS warning light will come on and
front passenger occupant classification in-
dicator light will indicate “OFF” if there is
a malfunction in the front passenger occu-
pant classification system.
In the following cases, contact your Toyota
dealer as soon as possible:
The SRS airbags have been inflated.
The front of the vehicle (shaded in the
illustration) was involved in an accident
that was not severe enough to cause
the SRS airbags to inflate.
The pad section of the steering wheel
or front passenger airbag cover
(shaded in the illustration) is scratched,
cracked, or otherwise damaged.
NOTICE
Do not disconnect the battery cables
before contacting your Toyota dealer.

’06 TUNDRA_U (L/O 0508)
84
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
Indicator
light

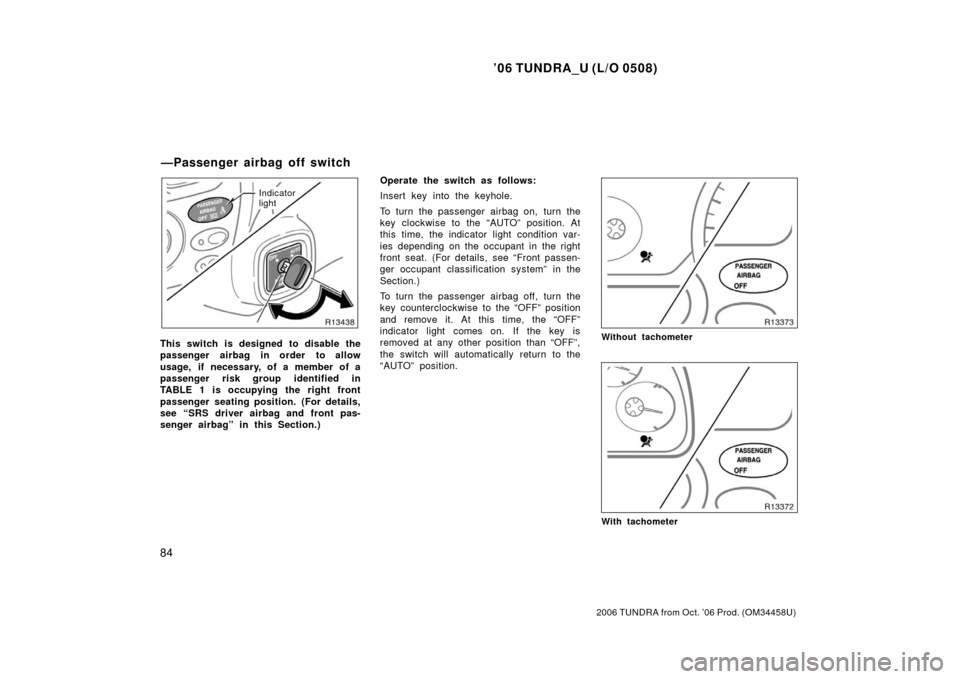

This switch is designed to disable the
passenger airbag in order to allow
usage, if necessary, of a member of a
passenger risk group identified in
TABLE 1 is occupying the right front
passenger seating position. (For details,
see “SRS driver airbag and front pas-
senger airbag” in this Section.) Operate the switch as follows:
Insert key into the keyhole.
To turn the passenger airbag on, turn the
key clockwise to the “AUTO” position. At
this time, the indicator light condition var-
ies depending on the occupant in the right
front seat. (For details, see “Front passen-
ger occupant classification system” in the
Section.)
To turn the passenger airbag off, turn the
key counterclockwise to the “OFF” position
and remove it. At this time, the “OFF”
indicator light comes on. If the key is
removed at any other position than “OFF”,
the switch will automatically return to the
“AUTO” position.Without tachometer
With tachometer
—Passenger airbag off switch
